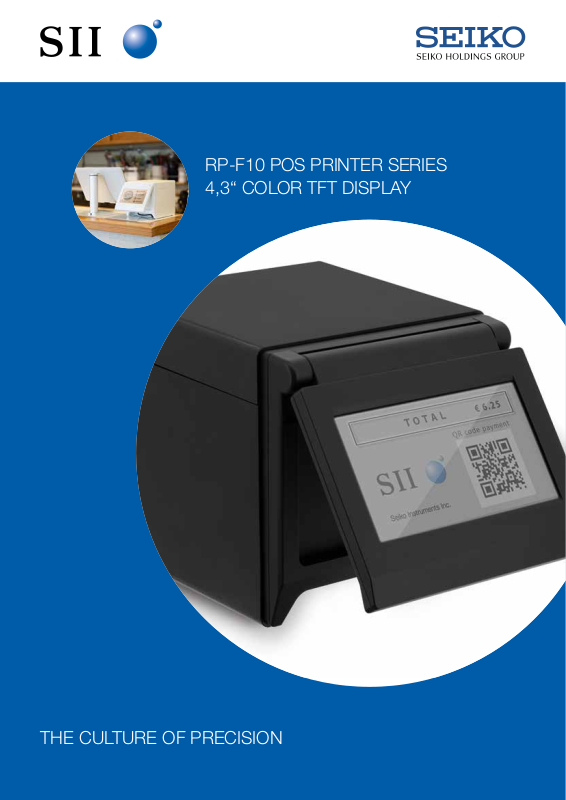

RP-F10 POS PRINTER SERIES
4,3“ COLOR TFT DISPLAY
THE CULTURE OF PRECISION
FEATURES RP-F10 SERIES
2-WAY
PAPER TOP-EXIT AND FRONT-EXIT (IPx1)
ARE AVAILABLE IN ONE MODEL
COMMUNICATIVE
USB, LAN OR BT INTERFACE,
EASY BLUETOOTH PAIRING VIA NFC
VERY COMPACT
127mm CUBIC SHAPE FOR EVEN
MORE FLEXIBILITY AT THE POINT-OF-SALE
D 127mm
H 127mm
W 127mm
INNOVATIVE
4.3 INCH COLOR TFT DISPLAY
FAST
250mm/s MAX PRINTING SPEED
FEATURES DSP-A01
COLOR LCD SLIDE SHOW
4.3 INCH COLOR TFT DISPLAY CAN BE MOUNTED
DIRECTLY TO THE PRINTER, STANDS ALONE OR
CAN EVEN BE WALL-MOUNTED
FOR EASY CUSTOMER COMMUNICATION
PRINTER STATUS INDICATOR
SHOWS ERRORS AND RECOVERY METHODS
VARIOUS MESSAGES
CHARACTERS, BARCODES AND
IMAGES CAN BE DISPLAYED
SPECIFICATIONS
Model
Method
Resolution (dots/mm)
Paper width (mm)
Printing
Type of Paper
Character type
Bar code
Power supply
Communication interface
Input buffer
Command
Cutting
Operating temperature
Service
life
Dimensions
Mass
Standard
Option
Cash drawer
Body color
Software/Printer driver
*1 Use recommended thermal papers. *2 Excluding protrusion. ESC/POS™: Registered trademark of SEIKO EPSON CORP. Windows® is the registered trademark of Microsoft Corporation(USA). Android™ is a trademark of Google Inc.
Printing width (mm)
Speed (mm/sec) max
Outside diameter of paper roll (mm) max
Character matrix (H×W dots)
Character size (H×W mm)
(V)
Methods
Cutting type
(˚C)
Abrasion resistance (km)
(km)
Paper cutting (cut)
(g)
(
W×D×H mm
)
RP-F10
Thermal line dot printing
203 (8dots/mm)
+0
+0
/ 80
58
-1
-1
54 / 72
250
ø 83
24 × 12, 24 × 24, 16 × 8, 16 × 16
3.0 × 1.5, 3.0 × 3.0, 2.0 × 1.0, 2.0 × 2.0
Roll paper
Code page (14 pages), International character, Optional font, Downloaded character, JIS 1&2 Level Kanji,
Special character, User-defined character
UPC-A/E, JAN (EAN) 8/13, ITF, CODABAR, Code39, Code93, Code128, QR, PDF417, GS1 Databar
Specified AC adapter, External power (DC24±10%)
USB+USB-host, Ethernet+USB-host, Bluetooth (NFC)+USB-host, Powered USB
4k bytes
ESC/POS™ conformity
Slide type
Full cut, Partial cut (Leave center point)
5 to 45
*1
150
*1
1,500,000
127.0 × 127.0 × 127.0
Approx. 840
FCC, CE, VCCI
Wall mounting Kit, Buzzer, LCD (4.3 inch color)
2 drivers (24V / 1A)
2 colors: White / Black
Windows®: Printer Driver, Virtual COM Driver, OPOS Driver, POS for Net Driver/SDK/Utility, Linux®: CUPS Filter (Driver)/
Communication Library (SDK), Android™ : SDK/Utility, iOS:SDK/Utility
*2
Model
Panel Size
Method
Color
LCD
Contents
LCD
Barcode
Power supply
Communication interface
Operating Temperature (°C)
Service life
Dimensions (W x D x H mm)
Mass (g)
Standard
Display tilt angle
Installation method
Software
ESC/POS™: Registered trademark of SEIKO EPSON CORP. Windows® is the registered trademark of Microsoft Corporation(USA). Android™ is a trademark of Google Inc.
Number of Pixels (pixel)
Active Area (mm)
Pixel Pitch (mm)
Luminance (cd/m²)
Character matrix (H × W pixel)
Character size (H × W mm)
Number of characters
Character type
Character decoration
1D
2D
DSP-A01
4.3 inch
TFT LCD
16 Bit Color
480 (W) x 272 (H)
95.04 (W) x 53.856 (H)
0.198 (W) x 0.198 (H)
300
Character, Barcode, Image
24 x 12, 24 x 24, 16 x 8, 16 x 16
4.752 x 2.376, 4.752 x 4,752, 3.168 x 1.584, 3.168 x 3.168
ANK : 320 characters (40 characters x 8 lines), Kanji : 160 characters (20 characters x 8 lines)
Code page (18 Page), International character, Optional font (max. 255 x 255 pixel), JIS 1&2 Level Kanji
Special character, User-defined character
Vertical double (x2, x4), Horizontal double (x2, x4), Bold, Underlin
UPC-A/E, JAN (EAN) 8/13, ITF, CODABAR, Code39, Code128
QR code (Version 1 - 22, Cell size 1 - 16 pixel)
JPEG, PNG
DC 4.75 V - 5.25 V (Activated with USB bus power)
USB 2.0 Full speed, micro B connector
5 - 45
30,000 hours
TBD
TBD
FCC, CE, VCCI
0 - 150°
Built-in printer (RP-F10), Stand-alone, Fixing screw (wall mount)
Windows® : OPOS Driver, POS for .Net Driver/SDK/Utility, Android™: iOS SDK/Utility
