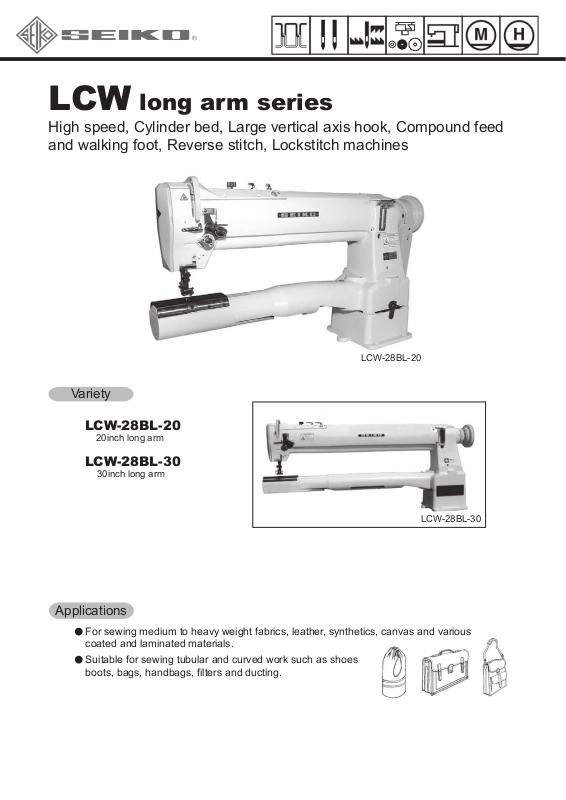

SEIKO LCW-28BL-20, LCW-28BL-30 BROCHURE

LCW long arm series

High speed, Cylinder bed, Large vertical axis hook, Compound feed
and walking foot, Reverse stitch, Lockstitch machines

LCW-28BL-20

Variety

LCW-28BL-20

20inch long arm

LCW-28BL-30

30inch long arm

Applications

For sewing medium to heavy weight fabrics, leather, synthetics, canvas and various

●

coated and laminated materials.

Suitable for sewing tubular and curved work such as shoes

●

boots, bags, handbags, filters and ducting.

LCW-28BL-30

Features

●

Semi-automatic lubrication system.

●

Large vertical axis hook.

●

Safety clutch prevents the hook from being damaged.

●

Reverse stitching by stitch adjusting lever.

Specifications (LCW-□)

LCW long arm series

Variety

Number of needle

Max. sewing speed

Max. stitch length

Clearance under
presser foot

Needle bar stroke

Needle(standard)

Thread

Hook

Amount of lift of walking foot

Thread take up lever

Lubrication

Cylinder size

Working space

Motor

Net weight(Head only)

NOTE: (1) Speed depends on threads, materials and type of operation

(2) Specifications subject to change without notice

Needle gauge list

by pedal
by hand

7/64"-7/32" (2.7 - 5.5 mm) standard 1/8" (standard 3.2 mm)

(LCW-□)

28BL-20

1,500 s.p.m.

Semi-automatic lubrication type

20"x 4-21/64"

(508 x 110 mm)

50Kg

28BL-30

Two needle

1,300 s.p.m.

1/4" (6.2 mm)

35/64" (14 mm)

21/64" (8.5 mm)

1-5/16" (33.2 mm)

DPx17 (#22) , 135x17 (#140)

#8 (standard)

Large vertical axis hook(2.0times)

Slide type

3-7/64"(79 mm) dia.

30"x 4-21/64"

(762 x 110 mm)

Clutch motor

65Kg

Variety

28BL-20

28BL-30

standard : 1/4"(6.4 mm), 5/16"(7.9mm), 3/8"(9.5mm), 1/2"(12.7mm)

SEIKO SEWING MACHINE CO., LTD.

2-13-6, Sakaecho, Funabashi-shi
Chiba Prefecture, 273-0018, Japan

Phone
Fax
E-mail

:

[phone]
[phone]

:

[e-mail]

:

(Overseas dept.)

Needle gauge size

Printed in Japan 2016.04
