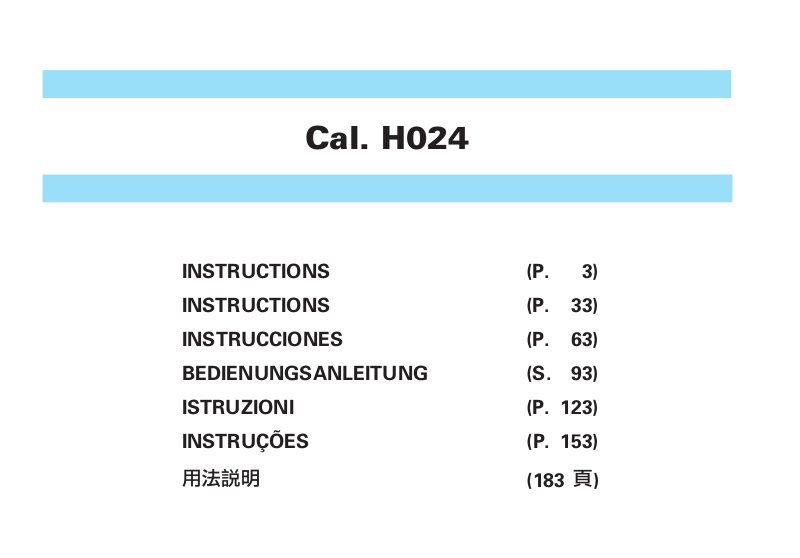

Seiko H024 DUO DISPLAY User Manual
Cal. H024
INSTRUCTIONS (P. 3)
INSTRUCTIONS (P. 33)
INSTRUCCIONES (P. 63)
BEDIENUNGSANLEITUNG (S. 93)
ISTRUZIONI (P. 123)
INSTRUÇÕES (P. 153)
(183 )
You are now the proud owner of a SEIKO Duo-Display Watch Cal. H024. For best results, please
read the instructions in this booklet carefully before using your SEIKO Duo-Display Watch. Please
keep this manual handy for ready reference.
Vous voici l’heureux propriétaire d’une montre double affichage SEIKO Cal. H024. Pour en obtenir
English
d’excellentes performances, veuillez lire attentivement les explications suivantes avant d’utiliser la
montre et conserver cette brochure pour toute référence ultérieure.
Usted es ahora un honrado poseedor del reloj SEIKO de indicación doble Cal. H024. Para obtener
de él óptimos resultados, lea las instrucciones de este panfleto con cuidado antes del uso de su
reloj SEIKO de indicación doble. Guarde este manual para pronta referencia.
Sie sind nun stolzer Besitzer einer SEIKO Zwei-Anzeige-Uhr Kal. H024. Bevor Sie nun Ihr SEIKO
Zwei-Anzeige-Uhr in Gebrauch nehmen, lesen Sie bitte die Anleitungen in diesem Heftchen sorgfältig
durch, damit Sie die Uhr optimal nutzen können. Verwahren Sie dieses Heftchen, um sich jederzeit
wieder informieren zu können.
Siete ora in possesso di un orologio SEIKO a doppio quadrante Cal. H024. Per ottenerne i migliori
risultati, leggete attentamente le istruzioni contenute in questo manuale prima di iniziare ad utilizzare
l’orologio. Conservate poi il manuale per ogni eventuale futuro riferimento.
Você pode sentir-se orgulhoso de possuir um Relógio SEIKO Duo-Display Cal. H024. Para obter os
melhores resultados, leia atentamente as instruções contidas neste opúsculo antes de usar o seu
Relógio SEIKO Duo-Display. Conserve este manual para consultas futuras.
2
CONTENTS
Page
FEATURES .................................................................................................................. 4
BUTTONS & DISPLAY ................................................................................................ 5
MODE CHANGE ......................................................................................................... 6
TIME/CALENDAR MODE ........................................................................................... 7
STOPWATCH MODE .................................................................................................. 11
MEMORY RECALL MODE ......................................................................................... 15
TIMER MODE ............................................................................................................. 17
ALARM MODE ........................................................................................................... 19
ALARM TEST AND DEMONSTRATION MODE ......................................................... 21
NOTES ON OPERATING THE WATCH ....................................................................... 22
BATTERY LIFE INDICATOR ........................................................................................ 24
BATTERY CHANGE ..................................................................................................... 24
TO PRESERVE THE QUALITY OF YOUR WATCH ...................................................... 27
SPECIFICATIONS ........................................................................................................ 31
ENGLISH
English
3
English
FEATURES
SEIKO DUO-DISPLAY QUARTZ
Cal. H024
TIME/CALENDAR
● Hour and minute hands
● Fully automatic calendar from
Jan. 1. 2006 to Dec. 31, 2055
ALARM
● Two daily alarms work
independently.
TIMER
● Countdown timer
● A time-up warning beep and
time-up beep
4
STOPWATCH
● Measures up to 23 hours, 59
minutes and 59.999 seconds in
1/1000-second increments
● Lap time/split time measurement
● Stores the first 100 lap and split
times in memory.
MEMORY RECALL
FUNCTION
● The stored lap and split times
can be recalled.
BUTTONS & DISPLAY
[TIME/CALENDAR mode]
English
Hour hand
Mode indicator
Minute hand
5
MODE CHANGE
With each press, the mode in the digital display changes in the
A
English
following order:
Mode indicator
TIME
TIME/
CALENDAR
mode
★
➡
STOPWATCH
A
CHR
mode
➡
RCLL
MEMORY
RECALL
mode
❋ : The flashing STOPWATCH/
TIMER indicator in any display
mode shows that the
stopwatch/timer is counting.
TMR
➡
TIMER
mode
➡
★ : When the hourly time signal/confirmation sound for button operation is switched on,
a beep sounds with each press of Button A.
6
➡
ALM
ALARM
mode
TIME/CALENDAR MODE (TIME)
● The calendar adjusts automatically for odd and even months including February of
leap years from 2006 up to 2055.
Press to show TIME/CALENDAR mode.
A
Mode indicator
PM indicator for
12-hour display only
[FULL (Time & Calendar) Display]
Hour hand
Date
Minute hand
★
B C
Day of
the week
▲
A
Hour
Minute
★ : If the watch is left untouched for 2 minutes when Day & Date Display is selected, the
digital time disappears and only the day and date are shown. To show
the digital time, press any one of the four buttons.
D
Second
[D&D(Day & Date) Display]
If left untouched
for 2 minutes
▲
Press any one
button.
Day of the week
Date
English
7
TIME/CALENDAR SETTING
● Set the digital time first before setting the analogue time, as the hour and minute
hands move together with the digital time.
English
● If the digital time display cannot be seen because of positions of the hour and
minute hands, advance them by pressing button D before setting the digital time.
Digital time/calendar setting
B
* Seconds setting
By pressing the button,the seconds
are reset to "00" and start counting
immediately.
8
C
▲
D
Press for 2 to 3 seconds to show TIME/
B
CALENDAR SETTING display.
▲
* The second digits start flashing.
Press to select an item(flashing) to be
C
adjusted. With each press of the button, a flashing item changes over in
the following order
(See *1 on page 22)
▲
D
Second
12-/24-hour
display
Press to adjust the selected item.
(See *2 on page 22)
Minute
Year
Hour
Date
Month
Analogue time setting
English
Press to show analogue time setting
C
display.
C
D
▲
Press repeatedly to set Hour and
D
Minute hands to match the digital
time.
▲
(See *3 on page 22)
Press for the display selection.
C
▲
Analogue time setting display
Press to select the desired display.
D
* [FULL(Time & Calendar) Display] or
▲
[D&D(Day & Date) Display] can be
alternatively selected.
Press to return to TIME/CALENDAR
B
mode.
(See *4 on page 22)
9
ENGAGEMENT/DISENGAGEMENT OF HOURLY TIME SIGNAL AND
TURNING ON/OFF OF CONFIRMATION SOUND FOR BUTTON OPERATION
English
✩✩ When all indicators light ✩✩
If all indicators of the display light while in the
TIME/CALENDAR mode, it is not a malfunction.
(See "ALARM TEST AND DEMONSTRATION MODE" on
page 21 )
This happens if Button C and D are pressed at the
same time during time setting. In such a
case,press any one of the four buttons to return
to the TIME/CALENDAR mode.
10
C
Hourly time signal indicator
(displayed when hourly time signal and confirmation
sound are switched on)
With each press in TIME/CALENDAR mode,
the hourly time signal and confirmation sound
C
for button operation are alternately switched
on and off.
(See *5 on page 22 )
C
D
