203L
TOP MOUNT
REFRIGERTOR
SC-220AU8TMW
INSTRUCTION MANUAL
Please read this manual carefully before using, and keep it for future reference.
CONTENTS
General Safety 4
Product Overview 8
Installation 9
Operation 10
Reversing the Door 11
Troubleshooting 16
Specifications 17
Customer Helpline Last Page
GENERAL SAFETY
IMPORTANT INFORMATION
Read this manual thoroughly before you start using the Top Mount Refrigerator.
The safety precautions instructions reduces the risk of fire, electric shock and injury when correctly complied to.
Please follow all instructions and take notice of all warnings.
Pay close attention to messages that follow this safety alert symbol
or the words DANGER, WARNING or CAUTION. These words will be
used to alert you of potential hazards that and injure you and others.
Following these instruction will tell you how to reduce the chance of
injury and the possible dangers if instructions aren’t followed.
This symbol alerts you to take care as the appliance contains flammable
materials: isobutane as refrigerant and cyclopentane as insulation
blowing gas. Do not expose it to high heat, sparks and open flames.
The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the
appliance, a gas with a high level of environmental compatibility, which is flammable.
During transportation and installation of the appliance, make sure that none of the
components of the refrigerant circuit become damaged.
WARNING: Never use an appliance with a damaged refrigerant circuit. If the refrigerant
circuit becomes damaged, avoid proximity to open fires and all types of heat and
ignition sources. Thoroughly ventilate the room in which the appliance is located.
It is dangerous for anyone other than an authorised service person to work on this
appliance. In Queensland, the authorised service person MUST hold a Gas Work
Authorisation for hydrocarbon refrigerants to carry out servicing or repairs which
involve the removal of covers.
The room for installing the appliance must be at least 1m³ per 8g of refrigerant.
The amount and type of refrigerant in the appliance can be found in the Technical
Specifications at the back of the manual and on the appliance rating label.
4
GENERAL SAFETY INSTRUCTIONS (Cont.)
This appliance is intended to be used in household and similar applications such as: sta areas in shops, oces and other working environments;
- farm houses and by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications
R600A WARNINGS
NOTE: This model uses 0.035Kg of R600a flammable refrigerant in its sealed system.
The following must be observed for your safety:
R600A Refrigerant Warning
• This appliance contains a small quantity of R600A refrigerant which is
environmentally friendly, but flammable. It does not damage the ozone layer, nor
does it increase the greenhouse eect.
• During transportation and installation, ensure that the tubing of the refrigerant
circuit is not damaged.
• Leaking refrigerant can ignite and may damage the eyes.
• In the event any damage does occur, avoid exposure to open fires and any device
which creates a spark. Disconnect the appliance from the mains power.
• Thoroughly ventilate the room in which the appliance is located for several minutes.
• Notify Customer Service for necessary action and advice.
• The room for installing the appliance must be at least 1 cubic metre per 8 grams
of refrigerant. The refrigerant quantity contained in this appliance is listed above in
grams; it is also noted on the Rating Plate of the appliance.
It is hazardous for anyone other than an Authorised Service Person to carry out
servicing or repairs to this appliance. In Queensland the authorized person must hold
a Gas Work Authorisation for hydrocarbon refrigerants, before carrying out servicing
or repairs which involve the removal of covers.
WARNNING
1. Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear
of obstruction.
2.Do not use mechanical devices or other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
3.Do not damage the refrigerant circuit.
4.Do not use electrical appliances inside the food storage compartments of the
appliance, unless they are of the type recommended by the manufacturer.
5.Do not store explosive substances such as aerosol cans with a flammable propellant
in the appliance.
The environment and personal safety must be considered when disposing of this
appliance. Please ensure the appliance is taken to a recycle center for safe recycling.
DO NOT dispose of the appliance in land fill as the insulation and refrigerant gas
contained in these appliances are flammable.
5
GENERAL SAFETY INSTRUCTIONS (Cont.)
To reduce risk of fire, electric shock or injury, always follow these basic precautions and
accident prevention measures when using this appliance, including the below:
INSTALLATION
• Heavy: The product is heavy, be careful when moving it. To avoid back or other
injury, have 2 people lift or mechanical aid when installing.
• Damage: When unnoxing, thoroughly inspect the appliance carefully for any
damage. If there is any damage, do not install the appliance. Contact our
support centre on info@ayonz.com for advice.
• Protection from moisture: Make sure the appliance is installed in an indoor area
away from wind, rain, water spray or drips.
• Protect from heat: Do not place the appliance next to an oven, grill or other
source of high heat, or where it will be exposed to direct sunlight for long
periods of time.
• WARNING: Ventilation: Make sure to have enough ventilation, keep any
ventilation openings, in the appliance enclosure or in the built-in structure,
clear all obstructions. Make sure plenty of air circulation around the appliance
to prevent overheating.
• Level: Install appliance level in order for proper operation.
ELECTRICAL SAFETY
• Voltage: Plug the appliance to a 220-240V, 50Hz, properly earthed power
outlet, it must be in good working order.
• Power connection: Do not use an adaptor or an extension cord.
Plug the power plug directly into a separate power point that cannot be
accidentally turned o, and that is easily accessible so you can switch it o
if needed.
• Power cord: Do not kink or damage the power supply cord. Make sure it is
behind the appliance so no one can step on or place anything on the power
supply cord or against it. A damaged power plug may overheat and cause a fire.
• Damaged cord: Do not use a cord that shows cracks or abrasion damage. Any
damage to the cord may cause a short circuit, fire and/or electric shock. Contact
our support centre on info@ayonz.com for advice
• WARNING! The light supplied with this appliance cannot be replaced by the user.
Contact the authorised service agent for replacement or service.
• Disconnection: Never pull the powercord to unplug appliance. Grip the plug and
pull straight out from the power point.
• Electrical work: If the installation of this appliance requires any electrical work,
make sure it is carried out by an electrician.
6
GENERAL SAFETY INSTRUCTIONS (Cont.)
USAGE CONDITIONS AND RESTRICTIONS
• Children: Supervision over children is to ensure that they do not play with the
appliance. Never allow them to use, play with or crawl inside the appliance.
Cleaning and maintenance must not be done by children.
• Usage restrictions: The appliance is not to be used by persons
(including children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given supervision
or instruction.
• Indoor domestic use only: Only for indoor domestic use only, such as in
households, kitchen areas in shops, oces and in other working environments,
use by clients in hotels, motels, bed and breakfast establishments and in catering
and similar non-retail applications. It is not to be used for industrial or
commercial use.
• Intended purpose: Do not use this product for anything other than its intended
purpose, and only use it as described in this manual. Do not attempt to alter or
modify this appliance.
• WARNING! Do not use any electrical or electronic appliances inside the
food storage compartments of the appliance, unless they are of the type
recommended by the manufacturer.
CLEANING AND MAINTENANCE
• Flames: Do not allow open flames or ignition sources enter the appliance.
• Disconnect: Make sure to unplug appliance before cleaning or servicing.
Failure to do so can result in electric shock, injury or death. Do not connect
or disconnect the plug when your hands are wet.
• Flammable/explosive substances: Do not store flammable or explosive
substances such as aerosol cans with flammable propellant in this appliance.
• Solvents: Do not use solvent based cleaning products or abrasives on the interior.
• WARNING! Do not use mechanical devices or other means to accelerate the
defrosting process, other than those recommended by the manufacturer
• Service: Never try to repair, modify or replace any part of the appliance, unless
this manual says you can do so. All other servicing is to be done by a qualified
technician, or contact our support centre on info@ayonz.com for advice.
REPONSIBLE DISPOSAL
• Do not throw this appliance out with your household rubbish. Observe any local
regulations regarding the disposal of electrical consumer goods and dispose
of it appropriately.
7
PRODUCT OVERVIEW
( The picture above is only for reference. The actual configuration
will depend on the physical product or statement by the distributor. )
8
INSTALLATION
• Safety first: Before installing your new bar fridge, read all safety instructions in
this manual, especially the sections on electrical safety and installation.
• Do not tilt the appliance more than 45º from upright when moving.
• This appliance is designed to be freestanding only and is not be recessed
or built in.
• Do not apply force to any part such as the condenser or door.
• Place the bar fridge on a strong, level floor that is solid enough to support the
unit when it is fully loaded.
• To fix the balance, Adjust the levelling legs at the bottom of the appliance.
• Ensure there is nothing that could prevent the door from closing.
• SPACING: Allow 10cm clear space between the back and 5cm on the sides of
the appliance and your wall or anything else to make sure there is enough air
circulation, which is needed to allow for the cooling of the compressor
and condenser.
• If you have to position the refrigerator on carpet, use a plastic carpet protector
underneath the appliance.
SIDE VIEWTOP VIEW
10cm
BE SURE TO PLACE APPLIANCE:
• Away from direct sunlight.
• Away from sources of heat (may increase power consumption).
• An area without excessive moisture and high humidity.
WARNING: Before you plug in the appliance, let it stand upright for 2 hours.
This will allow the refrigerant gases to settle into the compressor and reduce the possibility of a malfunction in the cooling system from transportation.
Top
10cm
10cm5cm5cm
Back
9
OPERATION
For first time use, Please make sure to set the thermostat set in between COLD and
COLDEST, then leave it powered on for 2-3 hours. Then set the thermostat to desired
settings and place foods in the appliance.
FRIDGE COMPARTMENT TEMPERATURE SETTING
The internal temperature is controlled by a sensor.
A - SETTINGS
1 - COLD
2 - COLD 1
ERROR CODES:
3 - COLD 2
4 - COLDEST
5 - SUPER COOL
10

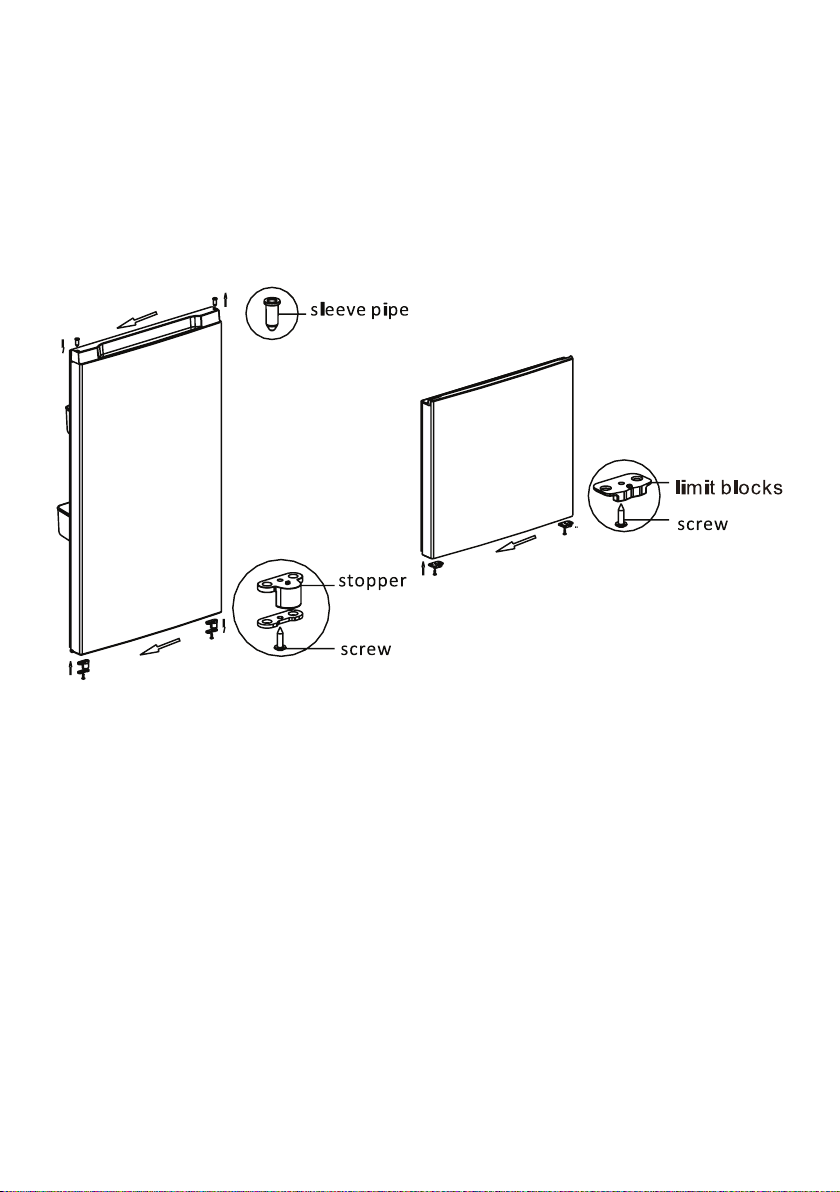

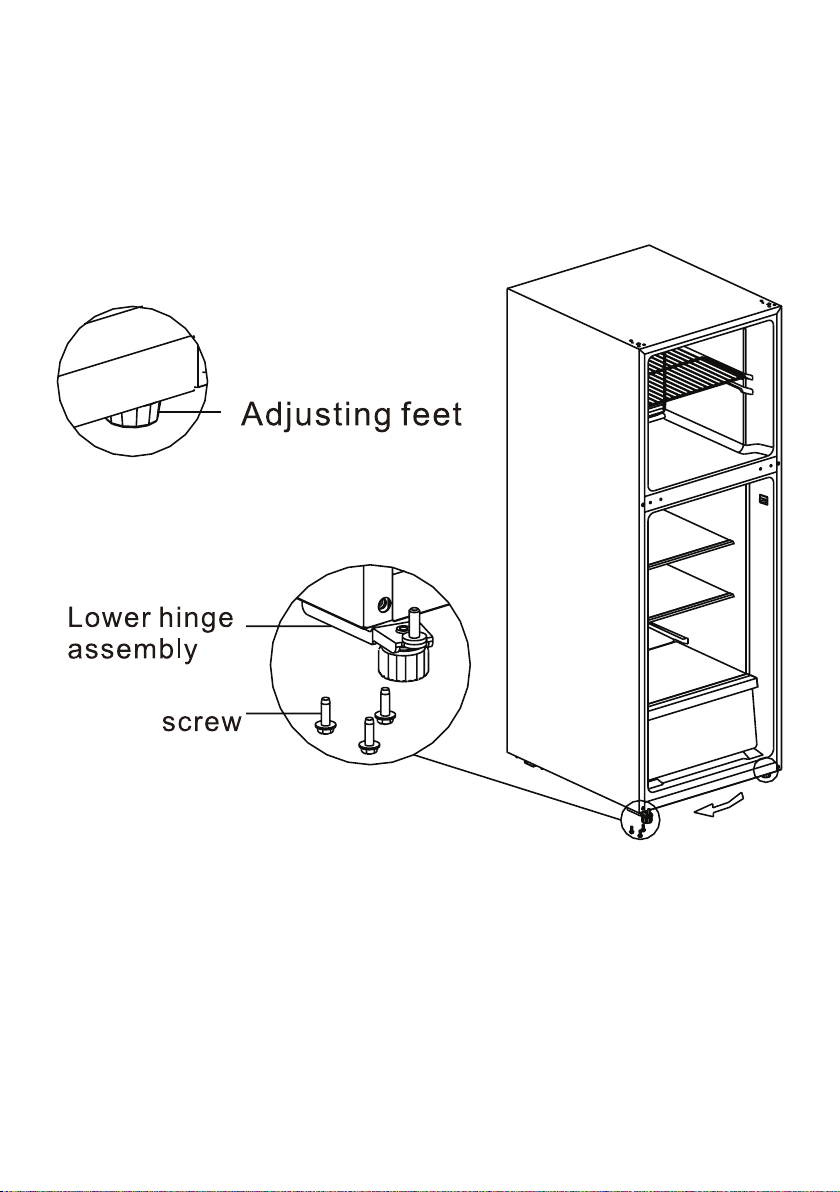

REVERSING THE DOOR
This appliance has the capability of opening the door from either the left or right side.
The appliance is delivered to you with the door opening from the left side.
To change the opening direction, please follow the below instructions. Be sure to
unplug the appliance to change the door.
WARNING: To ensure correct reliable operation of the refrigerator, contact an
authorised service agent to reverse the door for you. Incorrect installation of the door
may result in damage and excessive wear on refrigerant components.
To reverse the door, you will need a straight screw driver, cross screwdriver, spanner
and components in the poly bag (also a 5/16” Socket and Ratchet; not included):
MAKE SURE THAT THE REFRIGERATOR IS POWERED OFF.
Step 1 Remove the hole cap, the upper hinge cover, fitting screws of
upper hinge, upper hinge and sleeve pipe, then uplift the freezer door
until is it seperated from the unit completely.
11
REVERSING THE DOOR (Cont.)
Step 3 Unscrew the middle hinge screws, remove the middle hinge, and
remove the two hole plugs, screw and a cap on the middle beam. Then
carefully remove the refrigerator door.
12
REVERSING THE DOOR (Cont.)
Step 4 Remove the adjusting feet, lower the hinge screw and lower hinge
assembly (indicated below). Then install the lower hinge assembly on the
other side of refrigerator and install the adjusting feet in the opening.
13
REVERSING THE DOOR (Cont.)
Step 5 Dismantle the limit blocks (indicated below) and the screws on
the lower cover of both refrigerator and freezer door. Install them on the
other side of refrigerator, then install the sleeve pipe on the upper cover
of the refrigator on the other side.
14
REVERSING THE DOOR (Cont.)
Step 6 Install the refrierator door compartment door on the lower hinge
and then install the middle hinge and hole caps.
15
TROUBLSHOOTING
Problem Possible Cause
• It is not plugged in. Make sure it is properly plugged in and
The appliance does not operate
The fridge turns on and o
frequently.
There are vibrations • Appliance is not level.
The fridge seems to make too
much noise.
The door will not close
properly.
Moisture forms on the
inside or outside walls of
the bar fridge.
Excessive frost and ice has
built up.
The compressor runs
continuously.
there is power at the socket
• The circuit breaker tripped or has blown a fuse.
• A general power outage has cut power to your home.
• The room temperature is higher then usual
• Too much food is within the fridge.
• Door is open too often
• Door not closed
• Temperature set incorrectly.
• A rattling noise may come from the flow of the
refrigerant, which is standard.
• You may hear gurgling sounds caused by the flow of
refrigerant.
• Contraction and expansion of the internal walls may
cause popping and crackling noises.
• Not Level
• The door was reversed and not installed correctly.
• The gasket is dirty or bent.
• The shelves, bins or baskets are out of position.
• Hot and humid weather increases the rate of frost build-up.
• Open the door less often
• Door has been left open.
• Something is preventing the door from closing.
• The door gasket is dirty or damaged.
• Select a lower setting.
• The door is open or not closed properly.
• Too much food is within the fridge.
16
SPECIFICATIONS
Storage capacity 203 Litres
Refrigerator Capacity 143 Litres
Freezer Capacity 60 Litres
Climate Class T
Rated Current 1.2 A
Power Supply 220-240V ~ 50Hz
Defrost Power 170W
Refrigerant R600a(35g)
Insulation Blowing Gas Cyclopentane
Weights Net: 43 kg / Gross: 46 kg
Dimensions 545 (w) x 610 (d) x 1372 (h) mm
17
THIS PAGE IS LEFT
BLANK ON PURPOSE
18
THIS PAGE IS LEFT
BLANK ON PURPOSE
19
20
CUSTOMER HELPLINE:
info@ayonz.com
DISTRIBUTED BY:
Ayonz Pty Ltd
Loading...
