221L TOP MOUNT
REFRIGERATOR
INSTRUCTION
MANUAL
MODEL: SC-220AU7TMW
Please read this manual carefully before using, and keep it for future reference.
CONTENTS
General Safety 4
Product Overview 7
Installation 8
Operation 9
Reversing the Door 10
Troubleshooting 12
Specifications 13
Customer Helpline 16
GENERAL SAFETY
IMPORTANT INFORMATION
Read this manual thoroughly before you start using the 221L Top Mount Refrigerator.
The safety precautions instructions reduces the risk of fire, electric shock and injury when
correctly complied to.
Please follow all instructions and take notice of all warnings.
Pay close attention to messages that follow this safety alert symbol
or the words DANGER, WARNING or CAUTION. These words will be
used to alert you of potential hazards that and injure you and others.
Following these instruction will tell you how to reduce the chance of
injury and the possible dangers if instructions aren’t followed.
This symbol alerts you to take care as the appliance contains
flammable materials: isobutane as refrigerant and cyclopentane as
insulation blowing gas. Do not expose it to high heat, sparks and
open flames.
The refrigerant isobutane (R600a) is contained within the refrigerant circuit of
the appliance, a gas with a high level of environmental compatibility, which is
flammable. During transportation and installation of the appliance, make sure that
none of the components of the refrigerant circuit become damaged.
WARNING: Never use an appliance with a damaged refrigerant circuit. If the
refrigerant circuit becomes damaged, avoid proximity to open fires and all types
of heat and ignition sources. Thoroughly ventilate the room in which the appliance
is located.
It is dangerous for anyone other than an authorised service person to work on this
appliance. In Queensland, the authorised service person MUST hold a Gas Work
Authorisation for hydrocarbon refrigerants to carry out servicing or repairs which
involve the removal of covers.
The room for installing the appliance must be at least 1m per 8g of refrigerant.
The amount and type of refrigerant in the appliance can be found in the Technical
Specifications at the back of the manual and on the appliance rating label.
4
GENERAL SAFETY INSTRUCTIONS (Cont.)
To reduce risk of fire, electric shock or injury, always follow these basic precautions
and accident prevention measures when using this appliance, including the below:
INSTALLATION
• Heavy: The product is heavy, be careful when moving it. To avoid back or other
injury, have 2 people lift or mechanical aid when installing.
• Damage: When unnoxing, thoroughly inspect the appliance carefully for any
damage. If there is any damage, do not install the appliance. Contact our
support centre on 1300 296 699 for advice.
• Protection from moisture: Make sure the appliance is installed in an indoor area
away from wind, rain, water spray or drips.
• Protect from heat: Do not place the appliance next to an oven, grill or other
source of high heat, or where it will be exposed to direct sunlight for long
periods of time.
• WARNING: Ventilation: Make sure to have enough ventilation, keep any
ventilation openings, in the appliance enclosure or in the built-in structure,
clear all obstructions. Make sure plenty of air circulation around the appliance
to prevent overheating.
• Level: Install appliance level in order for proper operation.
ELECTRICAL SAFETY
• Voltage: Plug the appliance to a 220-240V, 50Hz, properly earthed power
outlet, it must be in good working order.
• Power connection: Do not use an adaptor or an extension cord.
Plug the power plug directly into a separate power point that cannot be
accidentally turned o, and that is easily accessible so you can switch it o
if needed.
• Power cord: Do not kink or damage the power supply cord. Make sure it is
behind the appliance so no one can step on or place anything on the power
supply cord or against it. A damaged power plug may overheat and cause a fire.
• Damaged cord: Do not use a cord that shows cracks or abrasion damage. Any
damage to the cord may cause a short circuit, fire and/or electric shock. Contact
our support centre on 1300 296 699 for advice
• WARNING! The light bulb supplied with this appliance is a special use bulb,
which is only for use with this appliance, Do not use for domestic lighting.
Do not use the appliance without the lamp installed. Do not touch the light
bulb if it has been on for a long period of time.
• Disconnection: Never pull the powercord to unplug appliance. Grip the plug and
pull straight out from the power point.
• Electrical work: If the installation of this appliance requires any electrical work,
make sure it is carried out by an electrician.
5
GENERAL SAFETY INSTRUCTIONS (Cont.)
USAGE CONDITIONS AND RESTRICTIONS
• Children: Supervision over children is to ensure that they do not play with the
appliance. Never allow them to use, play with or crawl inside the appliance.
Cleaning and maintenance must not be done by children.
• Usage restrictions: This appliance can be used by children aged from 8 years
and above, and persons with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, if they are being supervised or been given
instructions on how to use of the appliance in a safe way and understand the
hazards with using this appliance incorrectly.
• Indoor domestic use only: Only for indoor domestic use only, such as in
households, kitchen areas in shops, oces and in other working environments,
use by clients in hotels, motels, bed and breakfast establishments and in catering
and similar non-retail applications. It is not to be used for industrial or
commercial use.
• Intended purpose: Do not use this product for anything other than its intended
purpose, and only use it as described in this manual. Do not attempt to alter or
modify this appliance.
• Intended purpose: Do not use any electrical or electronic appliances inside the
food storage compartments of the appliance, unless they are of the type
recommended by the manufacturer.
CLEANING AND MAINTENANCE
• Flames: Do not allow open flames or ignition sources enter the appliance.
• Disconnect: Make sure to unplug appliance before cleaning or servicing.
Failure to do so can result in electric shock, injury or death. Do not connect
or disconnect the plug when your hands are wet.
• Flammable/explosive substances: Do not store flammable or explosive
substances such as aerosol cans with flammable propellant in this appliance.
• Solvents: Do not use solvent based cleaning products or abrasives on the interior.
• WARNING! Do not use mechanical devices to accelerate the defrosting process.
Never use sharp or metal to remove frost or clean the appliance.
• Service: Never try to repair, modify or replace any part of the appliance, unless
this manual says you can do so. All other servicing is to be done by a qualified
technician, or contact our support centre on 1300 296 699 for advice.
REPONSIBLE DISPOSAL
• Do not throw this appliance out with your household rubbish. Observe any local
regulations regarding the disposal of electrical consumer goods and dispose
of it appropriately.
6
PRODUCT OVERVIEW
7
INSTALLATION
• Safety first: Before installing your new bar fridge, read all safety instructions in
this manual, especially the sections on electrical safety and installation.
• Do not tilt the appliance more than 45º from upright when moving.
• This appliance is designed to be freestanding only and is not be recessed
or built in.
• Do not apply force to any part such as the condenser or door.
• Place the bar fridge on a strong, level floor that is solid enough to support the
unit when it is fully loaded.
• To fix the balance, Adjust the levelling legs at the bottom of the appliance.
• Ensure there is nothing that could prevent the door from closing.

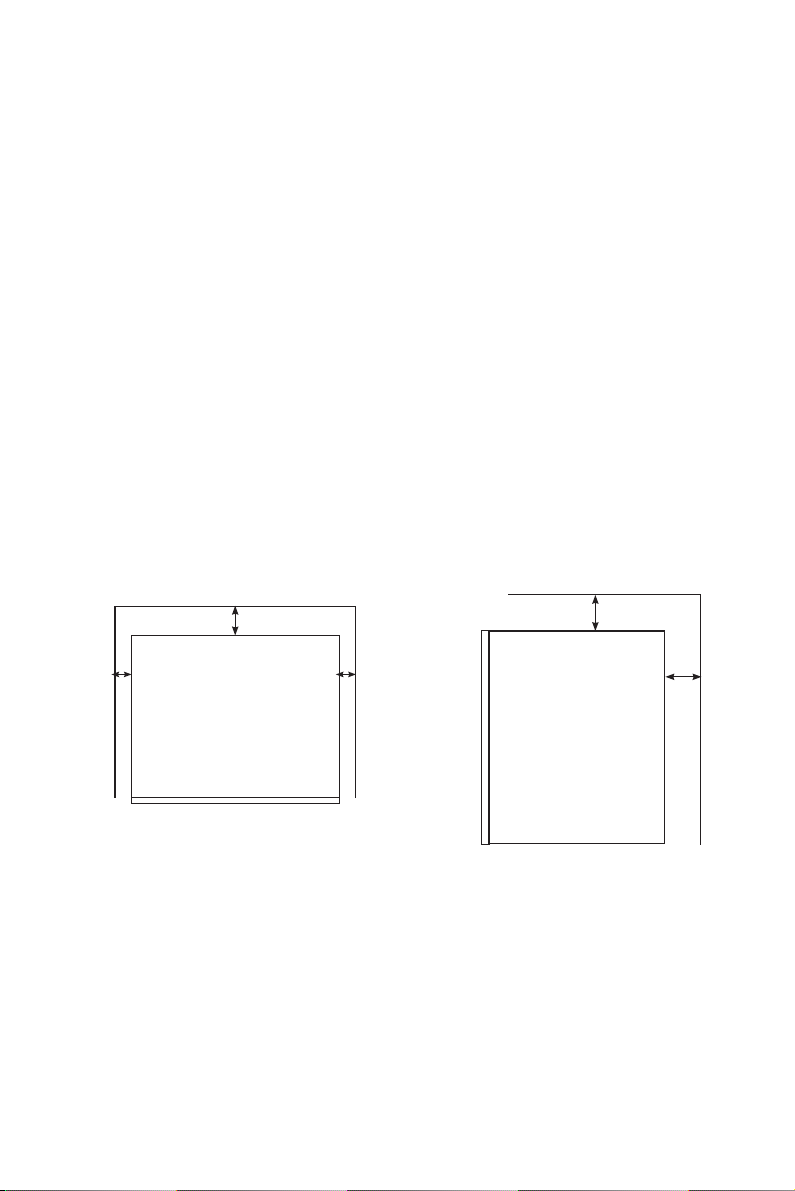

• SPACING: Allow 10cm clear space between the back and 5cm on the sides of
the appliance and your wall or anything else to make sure there is enough air
circulation, which is needed to allow for the cooling of the compressor
and condenser.
• If you have to position the refrigerator on carpet, use a plastic carpet protector
underneath the appliance.
SIDE VIEWTOP VIEW
5cm
Top
5cm
5cm5cm5cm
BE SURE TO PLACE APPLIANCE:
• Away from direct sunlight.
• Away from sources of heat (may increase power consumption).
• An area without excessive moisture and high humidity.
WARNING: Before you plug in the appliance, let it stand upright for 2 hours.
This will allow the refrigerant gases to settle into the compressor and reduce the
possibility of a malfunction in the cooling system from transportation.
8
Back
OPERATION
1. For first time use, Please make sure to set the thermostat dial to Colder, then
leave it powered on for 2-3 hours. then set the thermostat to desired settings
and place foods in the appliance.
FREEZER COMPARTMENT TEMPERATURE SETTING
The internal temperature is controlled by a sensor. There are 3 settings: COLD,
COLDER (which is recommended) and COLDEST.
FRIDGE COMPARTMENT TEMPERATURE SETTING
The internal temperature is controlled by a sensor. There are 4 settings: OFF,
COLD, COLDER (which is recommended) and COLDEST.
9
REVERSING THE DOOR
This appliance has the capability of opening the door from either the left or right
side. The appliance is delivered to you with the door opening from the left side.
To change the opening direction, please follow the below instructions. Be sure to
unplug the appliance to change the door.
CAUTION: Make sure you have someone there to help you, do not attempt to
do this yourself.
1. Remove the upper cover (4 screws) and remove the upper hinge (3 screws).
2. Remove the upper door and place in a safe position where it wont get damaged.
3. Remove the pin under the upper hinge and screw it into the opposite side.
4. Remove the middle hinge
5. Remove the lower door and place in a safe position so it doesnt get damaged.
6. Take the middle hinge hole covers from the left side of the appliances and fit
them into the holes where the middle hinge has just been removed.
10

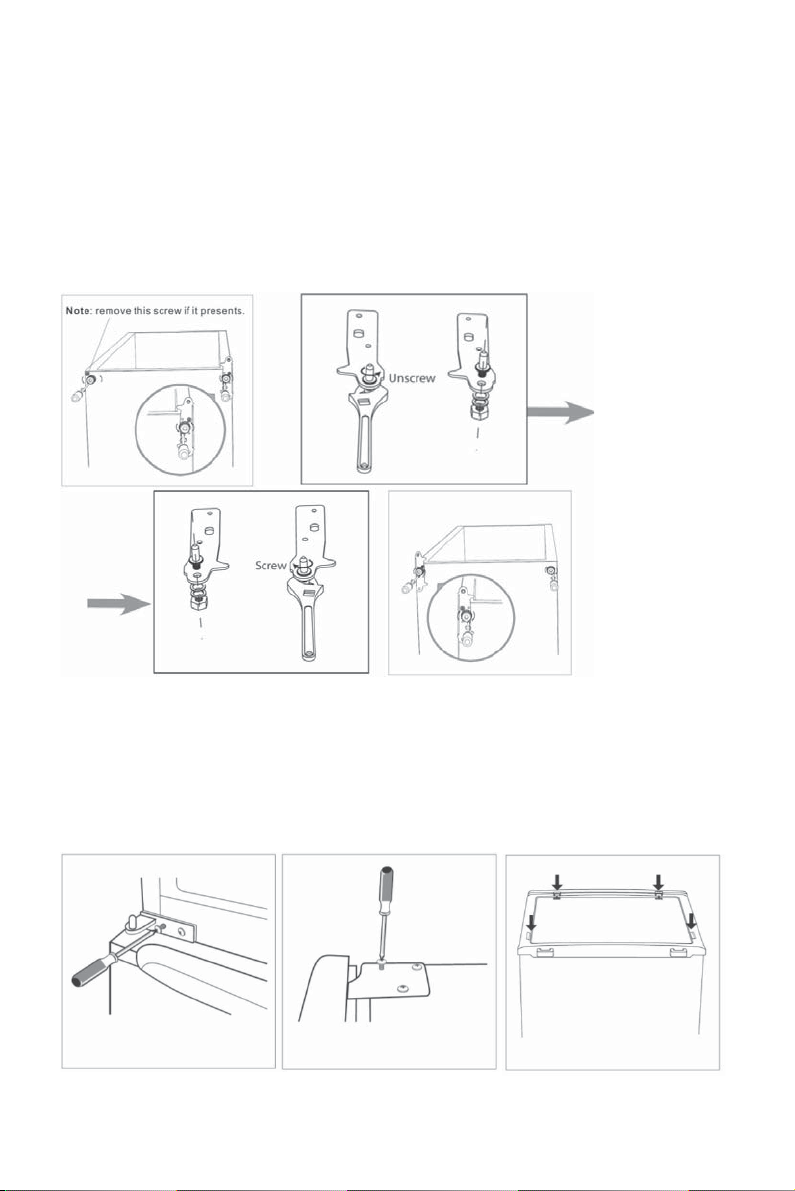

REVERSING THE DOOR (Cont.)
7. Remove the two adjustable feed and the lower hinge (1 screw).
8. Unscrew the pin at the end of the lower hinge, flip the hinge over and screw the
back into the hinge (it is now on the opposite side).
9. Place the lower hinge at the left hand side and refit the two adjustable feet.
10. Place the lower door on the lower hinge pin.
11. Rotate the middle hinge around 180˚, place the lower pin into the lower door
and screw it into the left hand side holes.
12. Place the upper door on the middle hinge upper pin. Fit the upper hinge pin in
the top of the upper door and screw back into place (3 screws).
13. Place the upper cover back onto the top of the appliance and screw back into
place (4 screws).
11
TROUBLSHOOTING
Problem Possible Cause
• It is not plugged in. Make sure it is properly plugged in and
The appliance does not operate
The fridge turns on and o
frequently.
There are vibrations • Appliance is not level.
The fridge seems to make too
much noise.
The door will not close
properly.
Moisture forms on the
inside or outside walls of
the bar fridge.
Excessive frost and ice has
built up.
The compressor runs
continuously.
there is power at the socket
• The circuit breaker tripped or has blown a fuse.
• A general power outage has cut power to your home.
• The room temperature is higher then usual
• Too much food is within the fridge.
• Door is open too often
• Door not closed
• Temperature set incorrectly.
• A rattling noise may come from the flow of the
refrigerant, which is standard.
• You may hear gurgling sounds caused by the flow of
refrigerant.
• Contraction and expansion of the internal walls may
cause popping and crackling noises.
• Not Level
• The door was reversed and not installed correctly.
• The gasket is dirty or bent.
• The shelves, bins or baskets are out of position.
• Hot and humid weather increases the rate of frost build-up.
• Open the door less often
• Door has been left open.
• Something is preventing the door from closing.
• The door gasket is dirty or damaged.
• Select a lower setting.
• The door is open or not closed properly.
• Too much food is within the fridge.
12
SPECIFICATIONS
Total Gross Volume 221 Litres
Total Storage Volume 197 Litres
Climate Class T
Rated Current 1.2A
Power Supply 220-240V ~ 50Hz
Rated Power of Lamp 1W
Defrost Power 150W
Refrigerant R600a(51g)
Insulation Blowing Gas Cyclopentane
13
141516
CUSTOMER HELPLINE:
1300 296 699
DISTRIBUTED BY:
Ayonz Pty Ltd
V1.0
CKSeiki-A01
Loading...
