AW-8P
WIRELESS MICROPHONE SYSTEM
WIRELESS MICROPHONE SYSTEM
INSTRUCTION MANUAL
INSTRUCTION
MANUAL
FEATURE:
Caution:
Any changes or modifications not expressly approved
by the party responsible for compliance could void the
user's authority to operate the equipment.
SMALL POCKBODY TYPE LIKE A POCKET SIZE.
IT IS VERY EASY CARRYING, ANTENNA BUILT-INSIDE.
1. SOCKET
2. VOLUME CONTROL
3. POWER SWITCH
4. LED INDICATOR
2
1
5
5. BATTERY COVER
6.
MIC SENSITIVITY SWITCHING
7.
LABEL
8.
BELT CLIP
9. CHANNEL SWITCH
8
7
3
4
6
SENS
123
9
1
INTRODUCTION CAUTION
WE CONGRATULATE YOU FOR THE CHOICE OF THIS
EXCELLENT PROFESSIONAL APPARATUS MICROPHONE
WHICH WILL GIVE YOU OUTSTANDING RESULTS AT THE
HIGH FIDELITY.
THE MICROPHONE SUIT FOR SCHOOL SPEECH, MEETING
SPEECH, TEACHERS AND PERFORMER ON THE STAGE.
TO AVOID OF PROBLEM LIKE WIRELESS MICROPHONE.
THE BODY PACK MICROPHONE CONNECTION IN EVERY
WORKING CONDITION.
1. BATTERY USE DC9V
2. DO NOT DROP THE MICROPHONE BODY ON THE
FLOOR.
3. PROTECT THE UNITS AGAINST
HUMIDITY AND HEAT.
4. IF THE UNITS ARE TO BE PUT OUT OF OPERATION
DEFINITIVELY, BRING THEM TO TECHNICAL
ENGINEER FOR DISPOSAL.
6
DIAGRAM:
LS-16/4BLM-10/4B HM-26/4B
OTHER FEATURES:
1. SOCKET
3.5 JACK
4P mini XLR PLUG
2. VOLUME CONTROL
Large
Small
3. POWER SWITCH
ON
STAND BY
OFF
4. LED INDICATOR
BATTER LOW
CHANGING BATTER WHEN LIGHT-ON
5
5. BATTERY COVER
6. MIC SENSITIVITY SWITCHING
FOR ELECTRICAL INSTRUMENT
FOR DYNAMIC MICROPHONE
FOR CONDENSER MICROPHONE
7. LABEL
8. BELT CLIP
2 WAYS FOR HANGING
VERTICAL
CROSSWISE
2

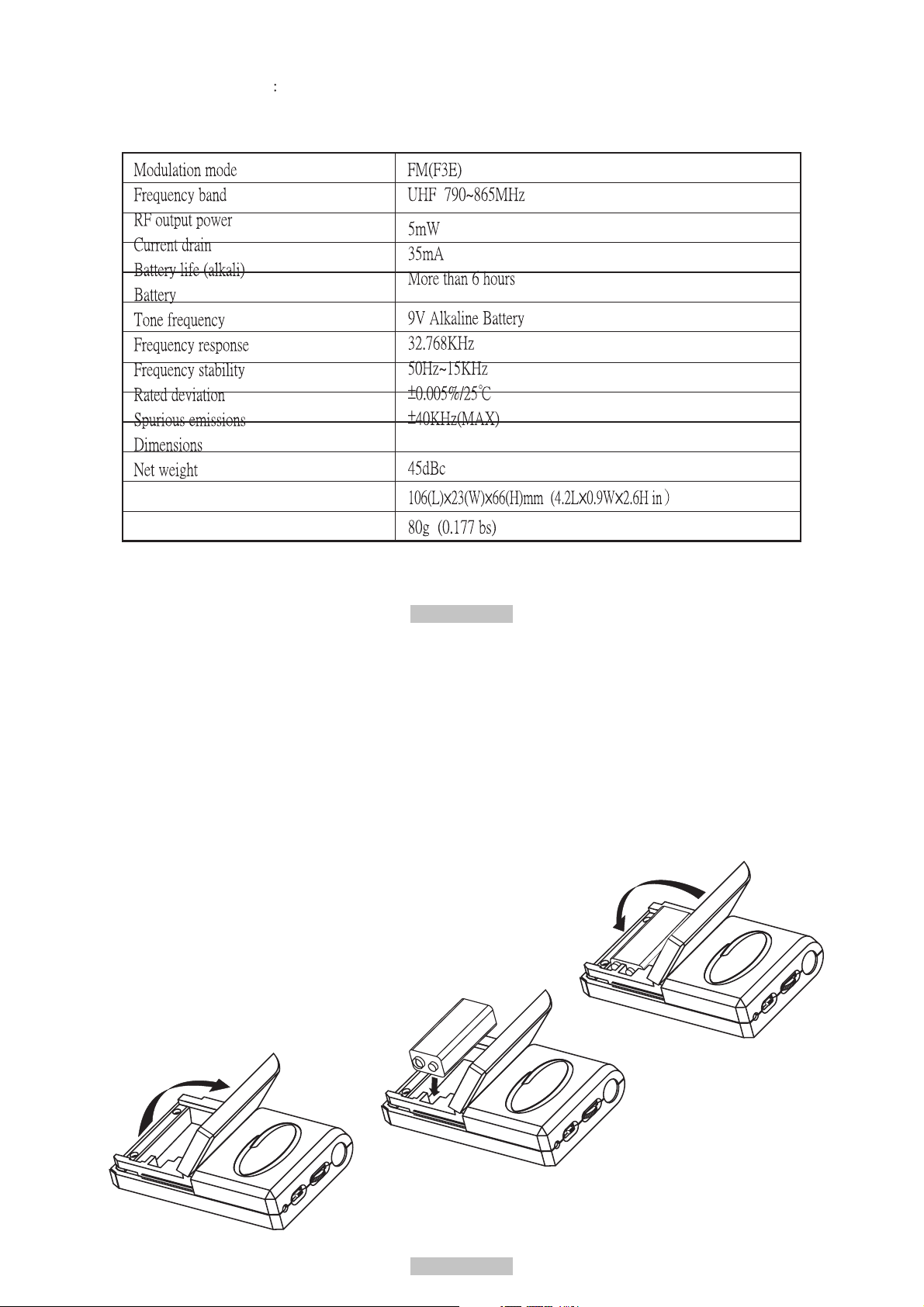

SPECIFICATIONS
INSTRUCTION
1. AFTER OPERATION THE MICROPHONE
MUST BE SWITCHED OFF AS WELL.
OTHERWISE THE BATTERIES WILL
SOON BE EXHAUSTED.
IN ORDER TO AVOID UNTUNEFUL CONSUPMPTION OF THE INNER BATTERY:
IF PILOT LAMP OF THE WIRELESS
MICROPHONE (1)REMAINS LIGHTED,
IT MEANS THAT THE BATTERY HAS NO
MORE POWER: (2) THE LAMP MUST
FLASH ONLY FOR THE TIME OF THE
SWITCHING -ON; THIS INDICATES THAT
THE MICROPHONE WORKS WELL.
3
2. INSTALL BATTERY:
PLS. MAKE SURE THE POSITIVE/NEGATIVE
BEFORE YOU REPLACEMENT BATTERIES.
4
