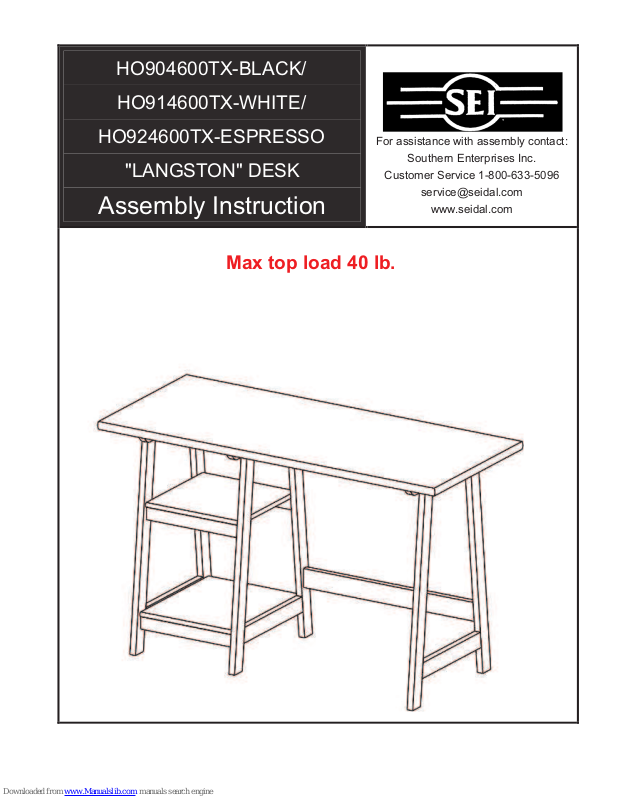

Page 1
HO904600TX-BLACK/
HO914600TX-WHITE/
HO924600TX-ESPRESSO
"LANGSTON" DESK
Assembly Instruction
For assistance with assembly contact:
Southern Enterprises Inc.
Customer Service 1-800-633-5096
www.seidal.com
Max top load 40 lb.
Page 2
HO904600TX-BLACK
HO914600TX-WHITE/HO924600TX-ESPRESSO
"LANGSTON" DESK
Parts List
Please review all parts and hardware before disposing of any packaging.
Call Customer Service if missing hardware. Do not return to store/retailer.
Using a screw that is too long will cause damage. Before beginning assembly,
separate each type of screw. Carefully study the screw diagrams below. You may
receive extra hardware with your unit.
A
Wood Top
B
Left Side Panel
C
Central panel
D
Right Side panel
E
Second Shelf
F
Bottom Shelf
G
Acorss Panel
Top Stretcher
H
Short Stretcher
I
Long Stretcher
Quantity
Of 1
Quantity
Of 1
Quantity
Of1
Quantity
Of1
Quantity
Of 2
Quantity
Of 1
Quantity
Of 1
Quantity
Of 3
Quantity
Of 4
Quantity
Of 1
Page 3
1
Bolts 1/4”x 45mm
2
Barrel Nuts 1/4”
3
Screw 4 x 32mm
4
Dowel 8 x30 mm
5
Wrench 1/4”
6
Quantity
Of 12
Bolts 1/4” x 32mm
Care and Cleaning Instructions:
Before using, wipe with a clean, dry cloth.
Periodically apply furniture wax to renew
The finish. Avoid rubbing or scratching the
surface with rough or abrasive objects.
For replacement parts or questions, please
call Customer Service at 1-800-633-5096.
Do not return product to store. Please call
manufacturer for assistance, questions or
parts.
Assembly Tool Required
No.2 phillips screw diver
Quantity
Of 8
Quantity
Of 10
Quantity
Of 10
Quantity
Of 20
Quantity
Of 1
Page 4
HO904600TX-BLACK/
HO914600TX-WHITE/HO924600TX-ESPRESSO
"LANGSTON" DESK
Assembly Instruction
Step 1: Put all parts on a
soft surface to prevent
scratches ,
Attach top stretcher (G) to
wood top (A) by using bolts
(6) and dowel (4) as shown.
Step 2: Attach short
stretcher (H) to top shelf (F)
by using screw (3) and
dowel (4) as shown.
Page 5

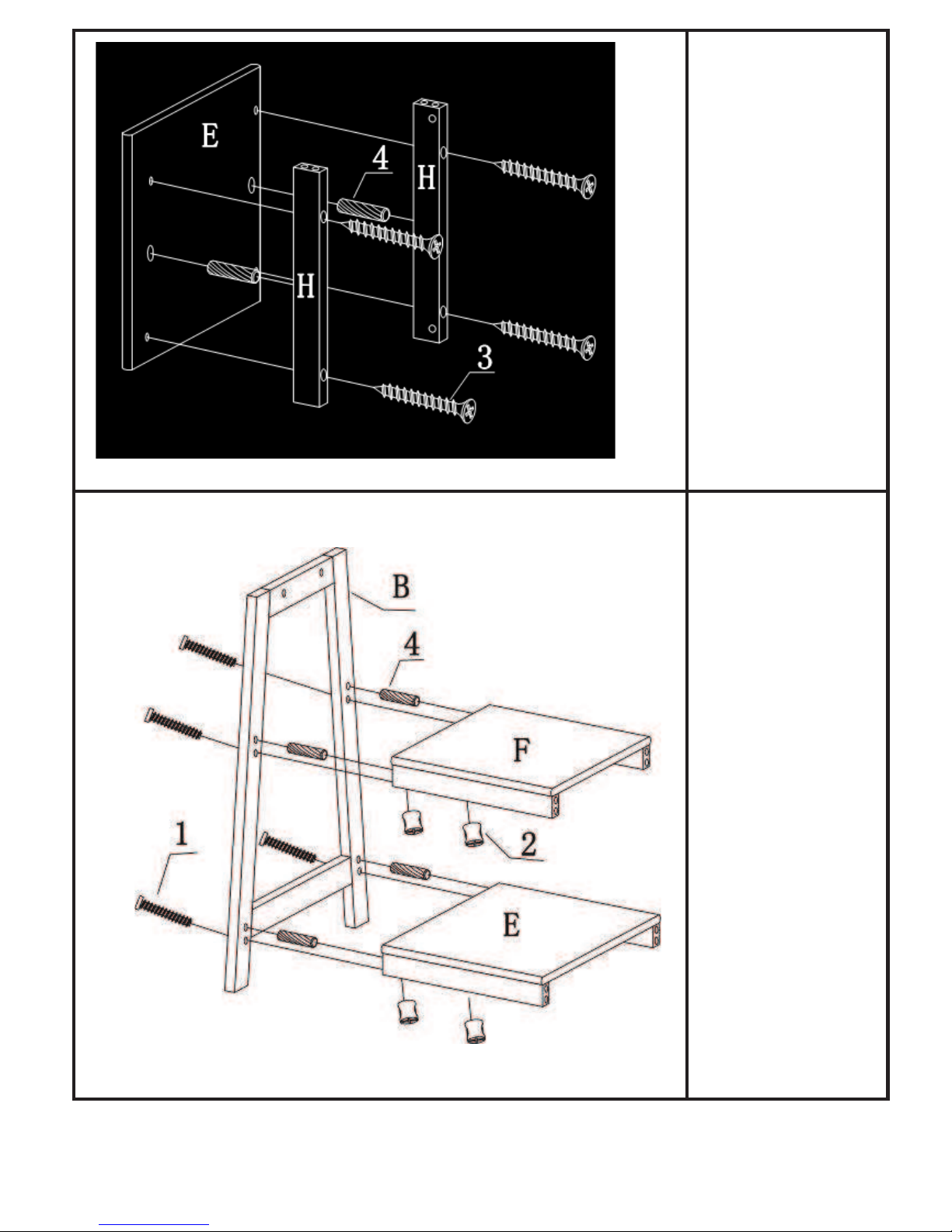

Step 3: Attach short
stretcher (H) to bottom
shelf (E) by using screw
(3) and dowel (4) as
shown.
Step 4: Insert barrel nut
(2) into short stretcher
(H) and keep the hole
of
barrel nut (2) to be
horizontal when
assembly.
Then attach left side
panel (B) to shelves (E)
& (F) by using bolts (1),
dowel (4) and
barrel nut
(2) as shown.
Page 6

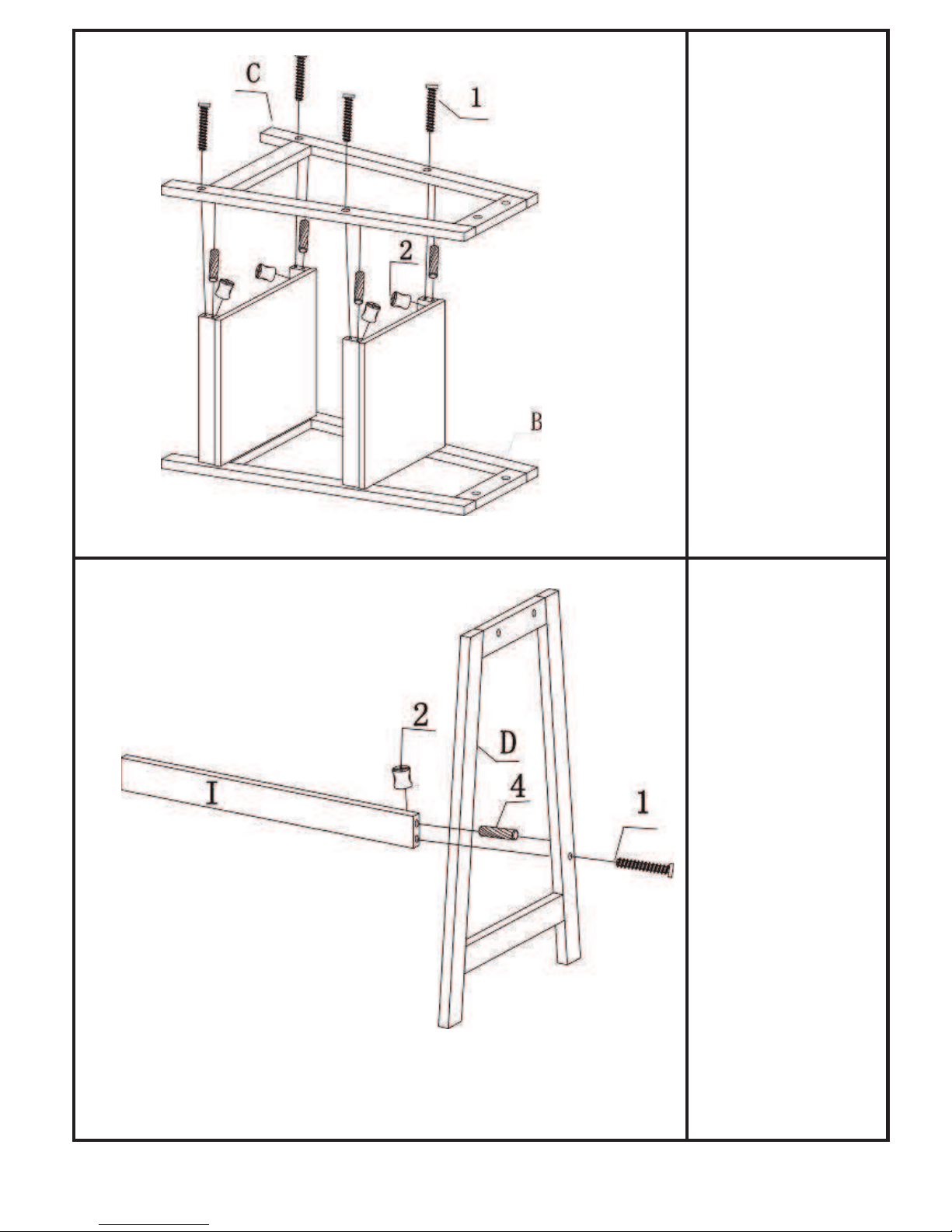

Step 5: Repeat same
procedure as Step 4.
Attach central panel
(C) to shelves (E) & (F)
by using bolts (1),
dowel (4) and
barrel nut
(2) as shown.
Step 6: Insert barrel nut
2) into long stretcher (!)
and keep the hole of
barrel nut (2) to be
horizontal when
assembly.
Attach long stretcher (!!!!)
to right side panel (D)
by using bolt (1), dowel
(4) and barrel nut (2) as
shown.
Page 7

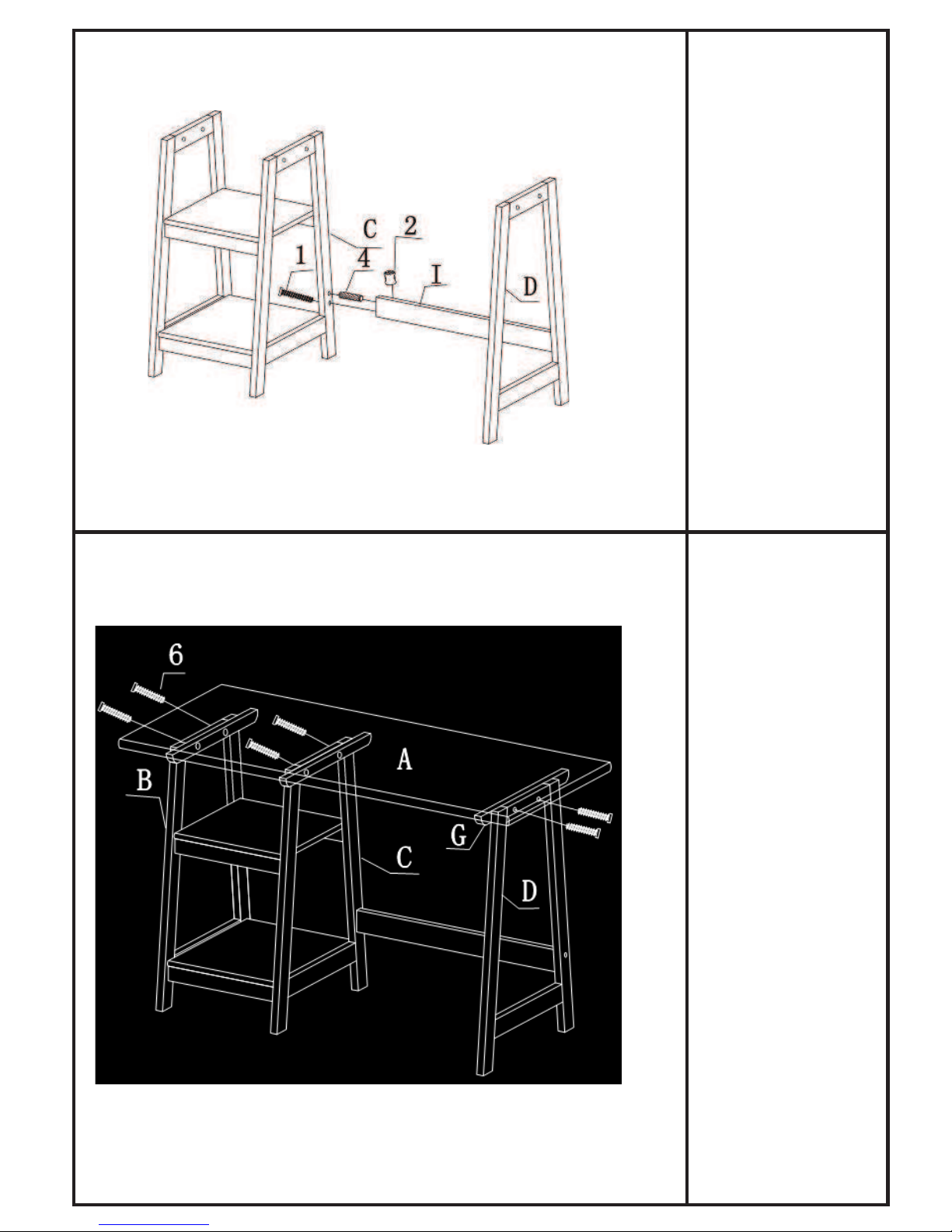

Step 7: Repeat same
procedure as Step 6!
Attach long stretcher
(!!!!) to central panel (C)
by using bolt (1), dowel
(4) and
barrel nut (2) as
shown.
Step 8: Attach wood
top (A) to panels
(B),( C), (D) by using
bolt (6) as shown.
Then your table is
ready to use.
Page 8
We'd love to hear from you! Email us photos of our products in your home at [email protected] and we might
feature it on our site or use it to model one of our inspirational photos.
“PARTS WILL BE SENT IF AVAILABLE FROM SEI” “THIS IS NOT A WARRANTY”
Parts Replacement Form
Customer Information
Name
Address
City/State/Zip Code
Phone Number
Please indicate where you purchased this item: Store/ Website/ Catalog
Please indicate color/size/style number:
Style No Parts Letter Parts Description Quantity Needed
Customer Service 1-800-633-5096
Southern Enterprises, Inc.
600 Freeport Parkway, Suite 200
Coppell, Texas 75019
Please count, identify and compare parts and hardware list to be sure all parts are present. It may help to divide
parts and label them to correspond with part list. Extra hardware may be included. If any items are missing,
please
contact Southern Enterprises at 800-633-5096 or in Dallas (972) 869-0111/ 9am – 4pm Mon-Fri Central time if you
have product issues with your purchase. Please ask for a customer service representative
for issues involving
damages or replacement parts. Please ask for a technical assistance representative
for any issues with product
assembly and product construction. Please contact the retailer that you purchased from for returns.
Missing or damaged hardware and/ or parts will be replaced free of charge. We do not sell parts. We do not
recommend modifying product(s) and we are not responsible for any damages due to product modification(s).
If this product has not been purchased from our retail affiliates (within 9 months), we are under no obligation to
provide parts or replacements merchandise. Parts will not be available for items arriving fully assembled.
