Installing Sega CD Genesis Connector
Installing Sega CD Genesis Connector

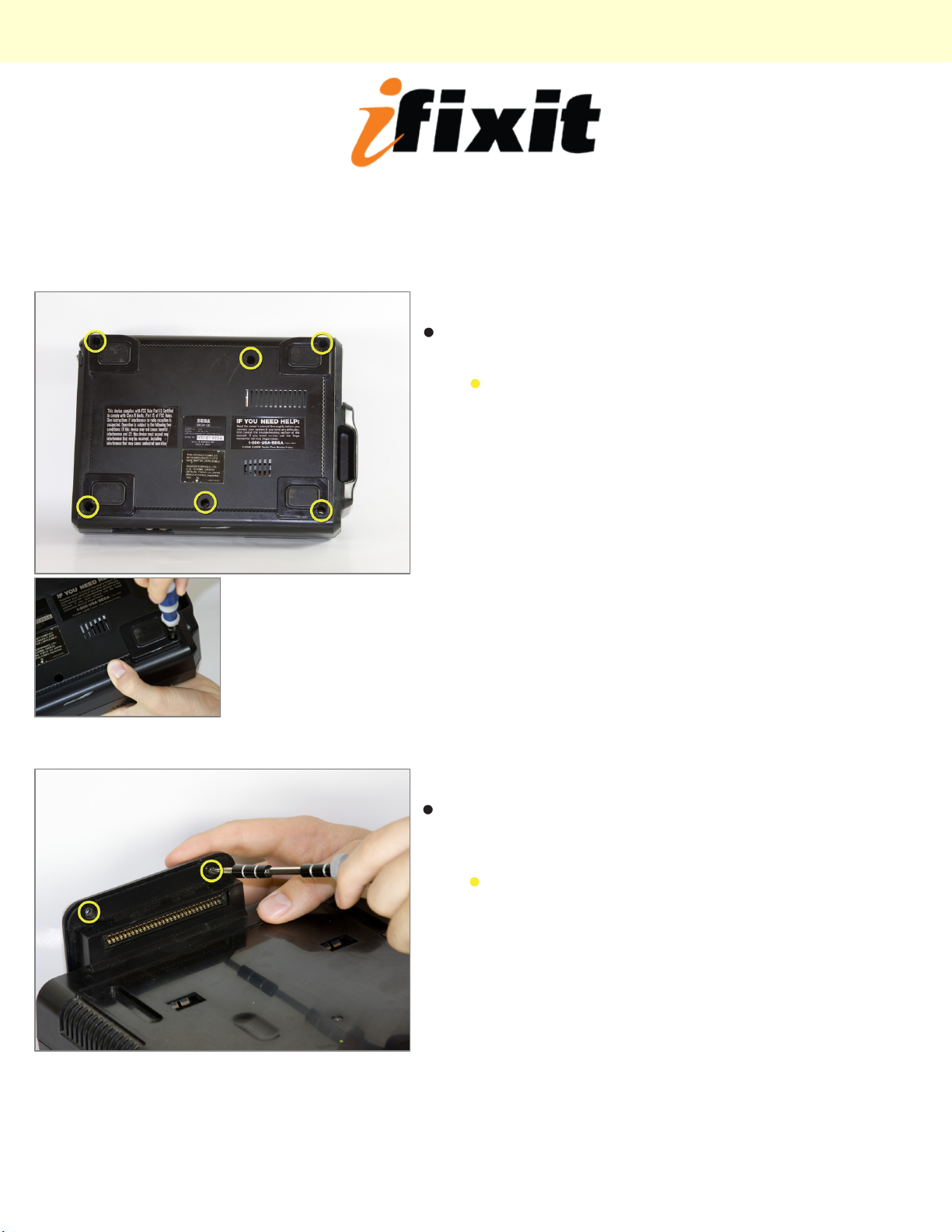

Step 1 - disassembly Plastic Housing
Remove the six screws on the underside of the console
using a medium phillips screwdriver
1/2 inch bronze screws (6)
Step 2
Remove the 2 screws on the side of the console that
attach the Genesis adapter to the rest of the unit using
a medium phillips screwdriver.
© 2010 iFixit — CC BY-NC-SA www.iFixit.com Page 1 of 5
3/8 inch black screws (2)
Page 2
Installing Sega CD Genesis Connector

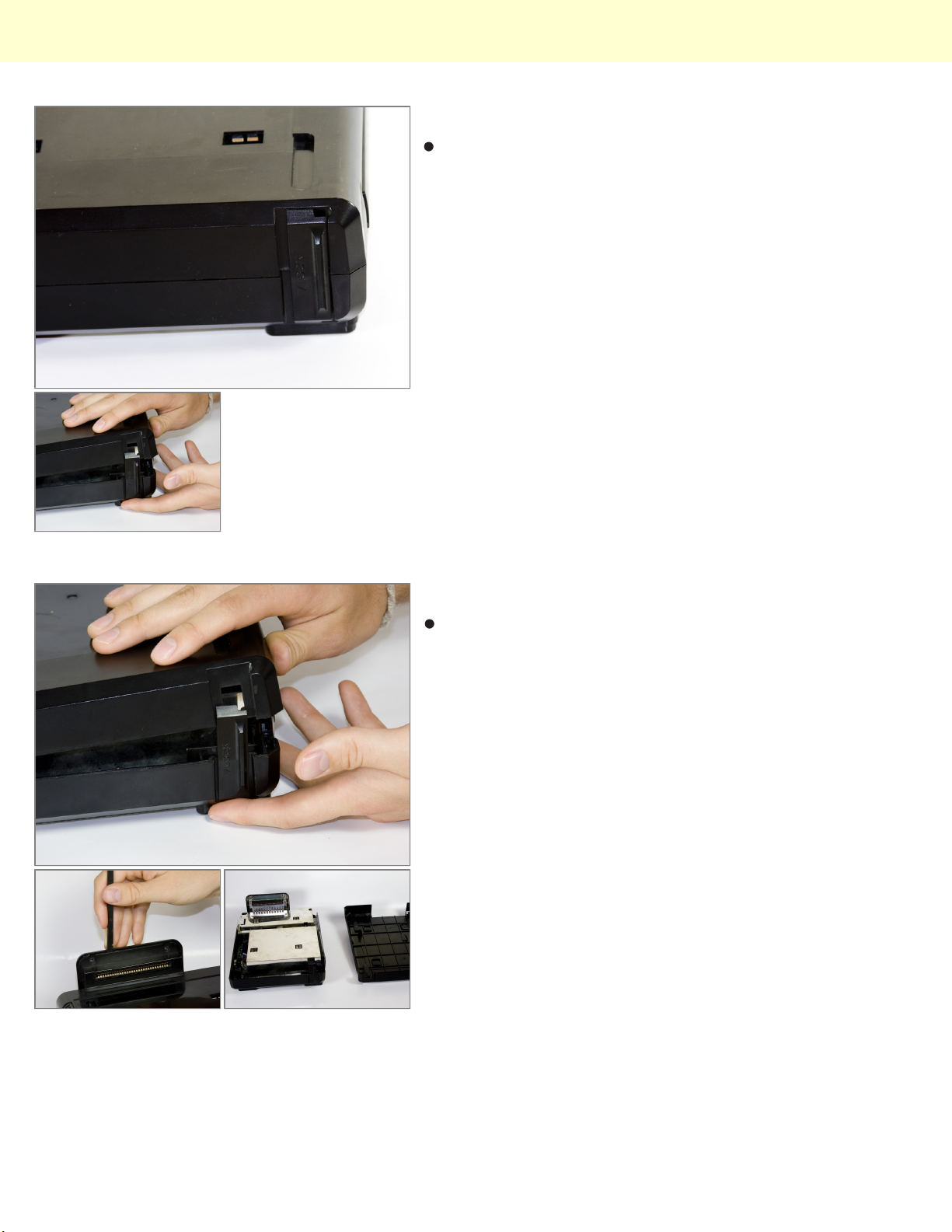

Step 3
Ensure the lock on the left of the case is in the unlock
position (slide left as shown) before removing the case.
Step 4
Remove case by lifting up left side, then using the
prying tool, pry the cover out of the genesis attachment
and lift upward.
© 2010 iFixit — CC BY-NC-SA www.iFixit.com Page 2 of 5
Page 3
Installing Sega CD Genesis Connector

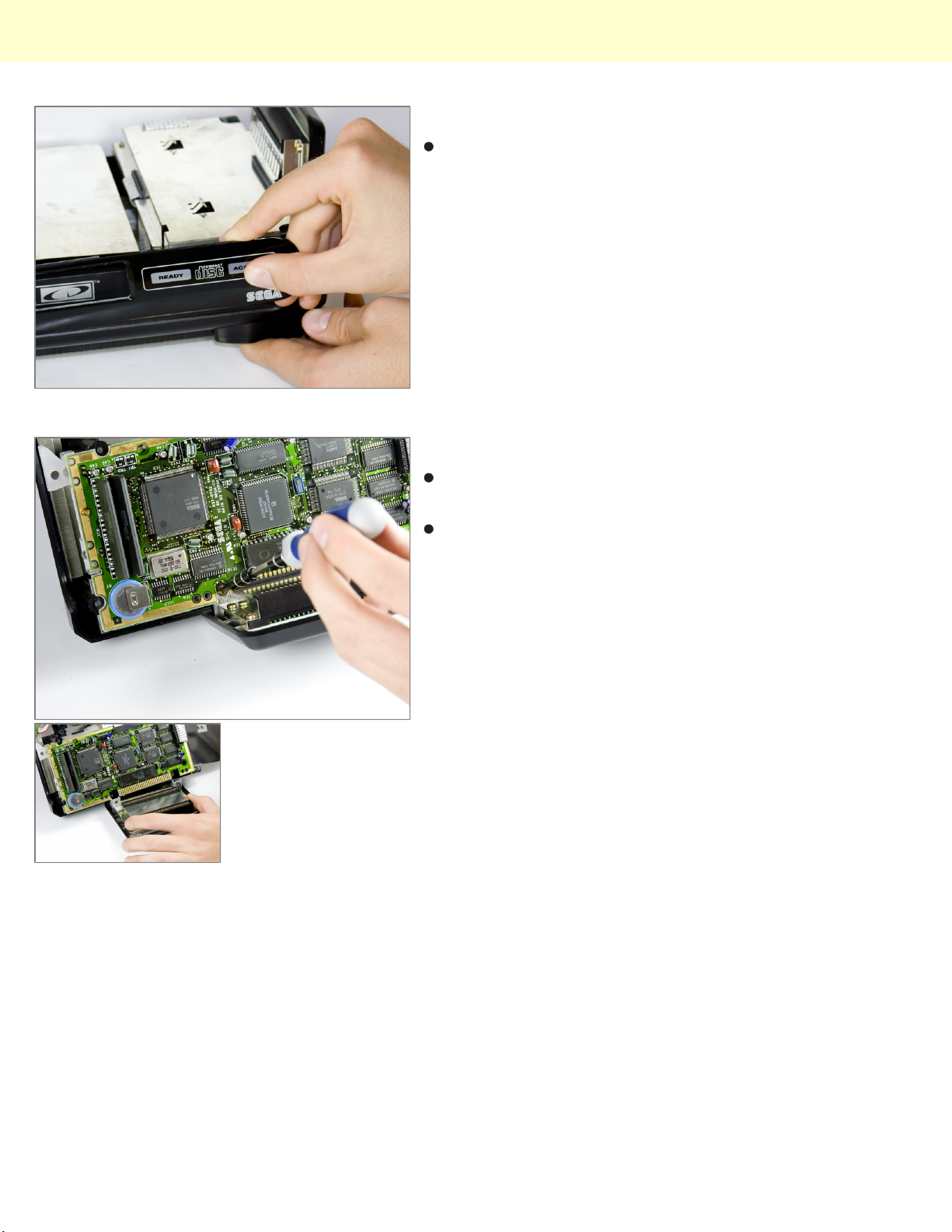

Step 5
Finally remove the faceplate on the front by sliding it
up, then pulling it out.
Step 6 - Genesis Connector
Remove 2 screws that attach the Genesis adapter to
the console using a medium phillips screwdriver
Unplug Genesis adapter by carefully pulling it out
© 2010 iFixit — CC BY-NC-SA www.iFixit.com Page 3 of 5
Page 4
Installing Sega CD Genesis Connector

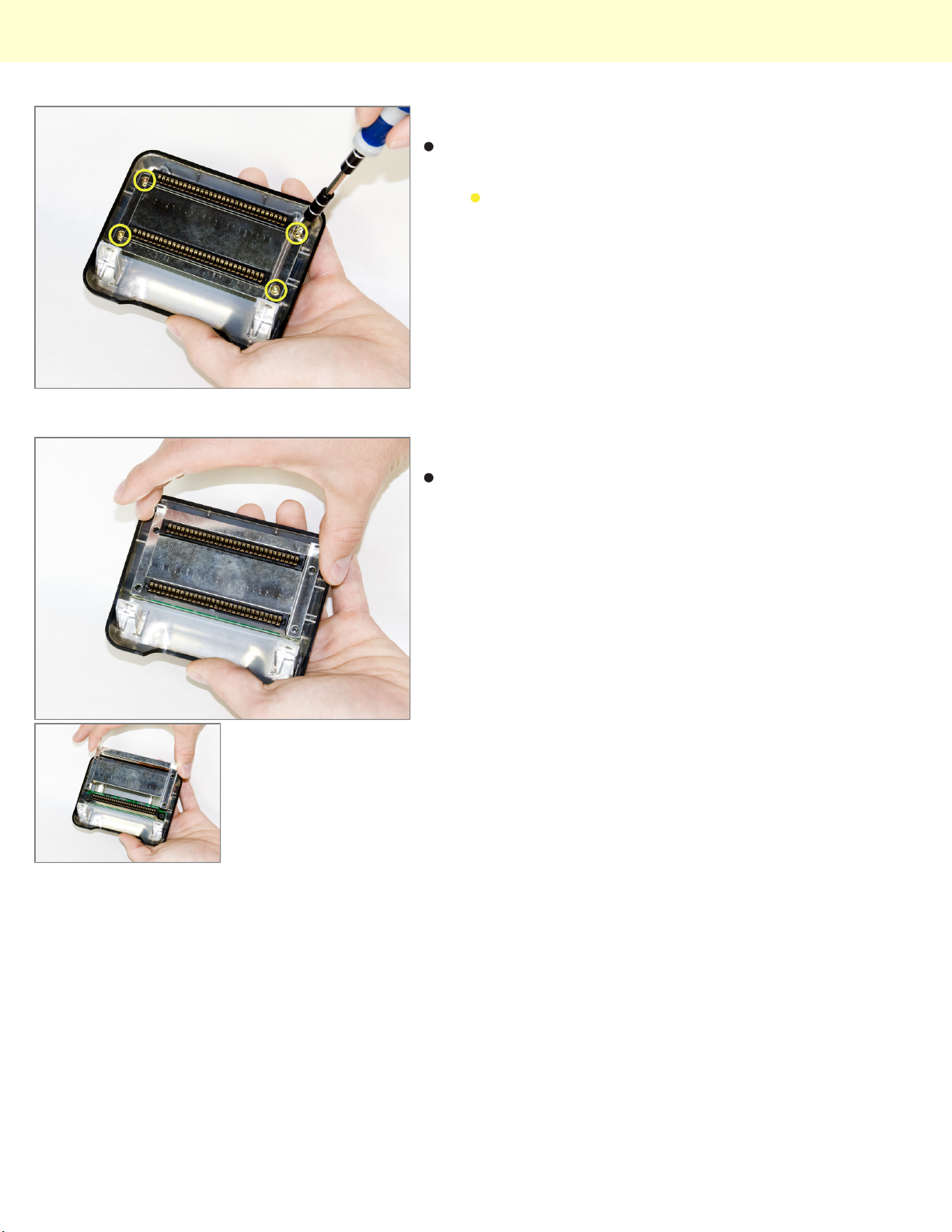

Step 7
Remove the four screws from the metal plate as shown
using a medium phillips screwdriver
Step 8
Carefully remove metal cover from connector as shown
by sliding it up and out
1/2 inch bronze screws (4)
© 2010 iFixit — CC BY-NC-SA www.iFixit.com Page 4 of 5
Page 5
Installing Sega CD Genesis Connector

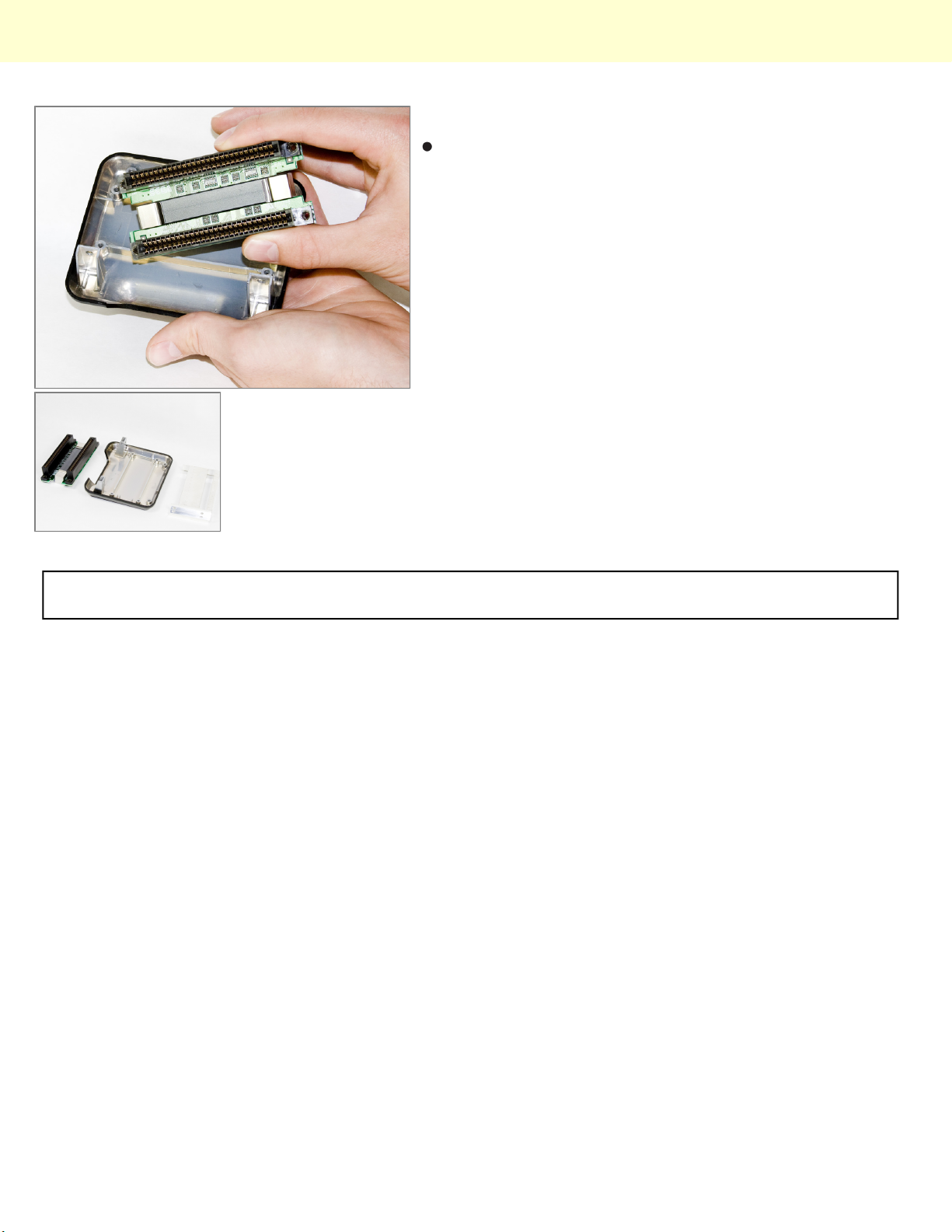

Step 9
Remove connector from housing
To reassemble your device, follow these instructions in reverse order.
