Sega INITIAL D3 TWIN User Manual

420-6799-02UK REV 0

SERVICE MANUAL

TWIN TYPE

Before using this product, read this SERVICE MANUAL carefully to understand the contents stated herein. After reading this manual, be sure to keep it available nearby the product or somewhere convenient in order to be able to refer to it whenever necessary.

Manufactured in the UK by

CONTENTS

1. BEFORE USING THIS PRODUCT .......................................................................................................5

1.1. INSPECTIONS IMMEDIATELY AFTER TRANSPORTING THE PRODUCT TO THE LOCATION ......... 6

2. INTRODUCTION TO THIS SERVICE MANUAL ...................................................................................8

3. INSTALLATION AND SERVICE INSTRUCTIONS ...............................................................................9

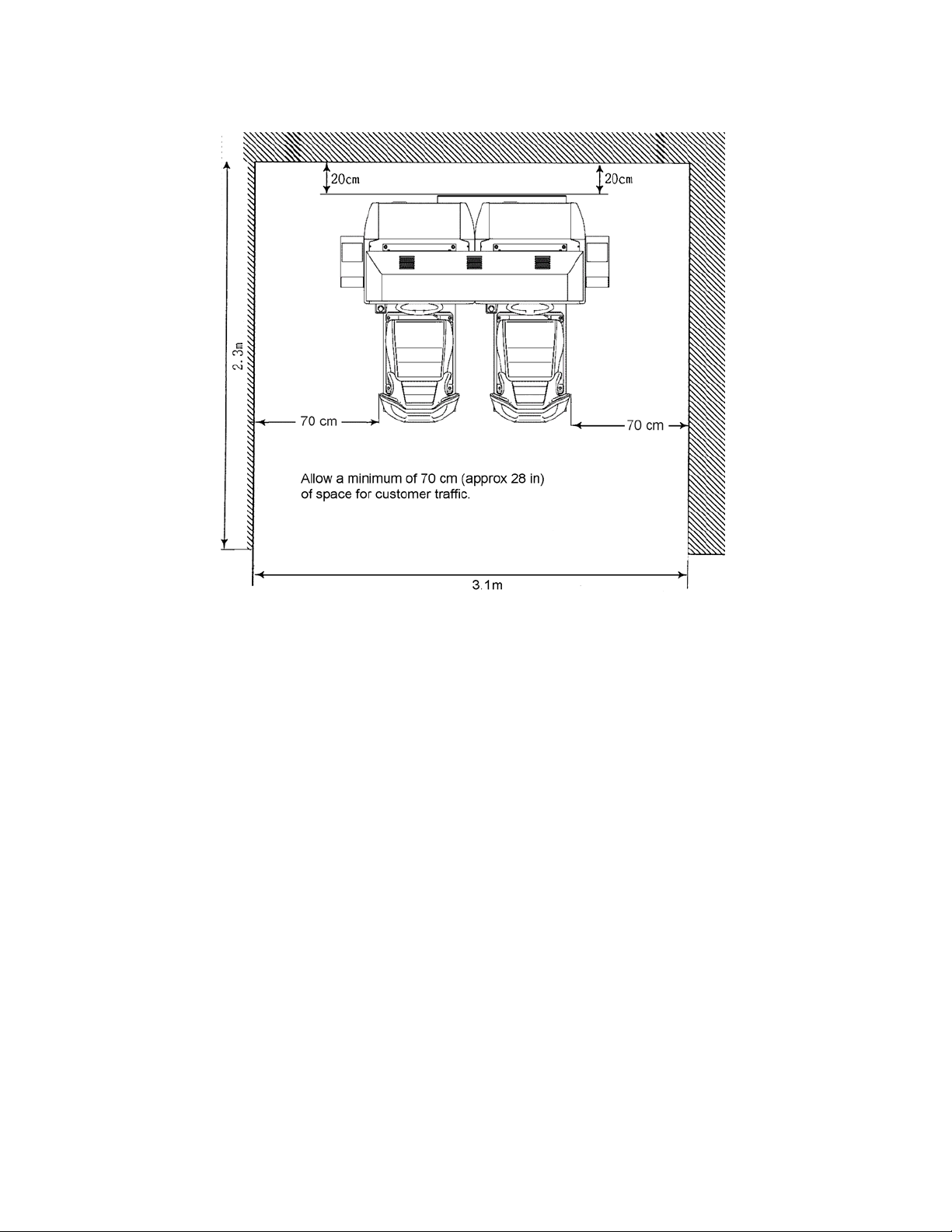

3.1. HANDLING AND INSTALLATION PRECAUTIONS ................................................................................. 9

3.2. COIN HANDLING ................................................................................................................................... 11

3.3. NAME OF PARTS................................................................................................................................... 12

3.4. ACCESSORIES ...................................................................................................................................... 13

3.5. SHIPPING THE GAME BOARD ............................................................................................................. 14

3.6. SHIPPING THE GD-ROM DRIVE........................................................................................................... 15

3.7. ASSEMBLY INSTRUCTIONS................................................................................................................. 16

3.7.1. APPLYING THE PLAY INSTRUCTIONS .................................................................................17

3.7.2. ASSEMBLING THE COCKPIT .................................................................................................18

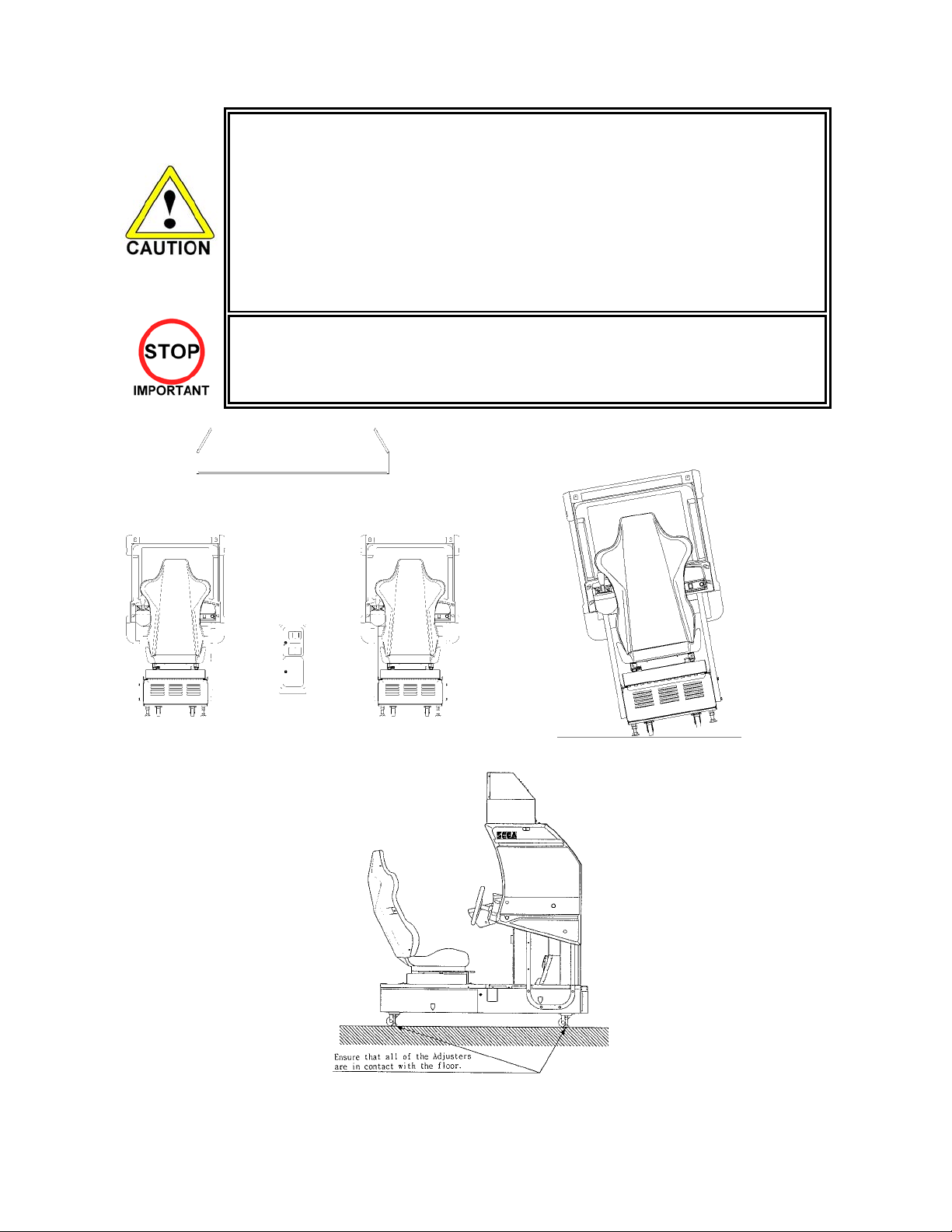

3.7.3. SECURING IN PLACE (LEG ADJUSTER ADJUSTMENT) .....................................................19

3.7.4. BILLBOARD INSTALLATION ...................................................................................................21

3.7.5. INSTALLING THE AC COVERS (WIRE COVERS ) ................................................................23

3.7.6. COIN HANDLING INSTALLATION...........................................................................................24

3.7.6.1. WIRING CONNECTIONS..................................................................................................25

3.7.7. COMMUNICATION CABLES ...................................................................................................26

3.7.8. CONNECTION TO THE POWER SUPPLY .............................................................................27

3.7.9. ASSEMBLY CHECK .................................................................................................................30

3.7.10. MOVING THE MACHINE ......................................................................................................32

3.8. FUSES.................................................................................................................................................... 33

3.9. MAINTENANCE...................................................................................................................................... 34

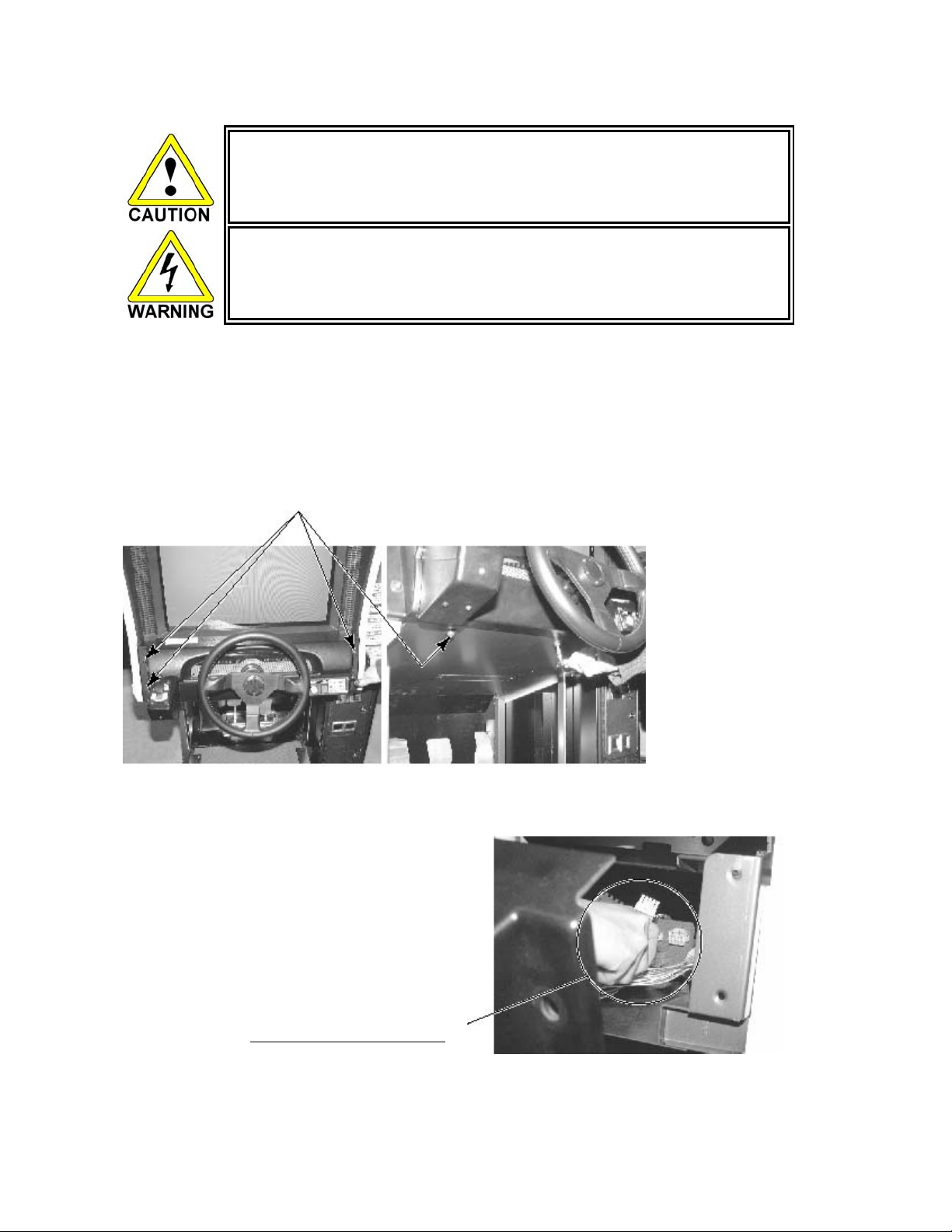

3.9.1. HANDLE MECHA .....................................................................................................................34

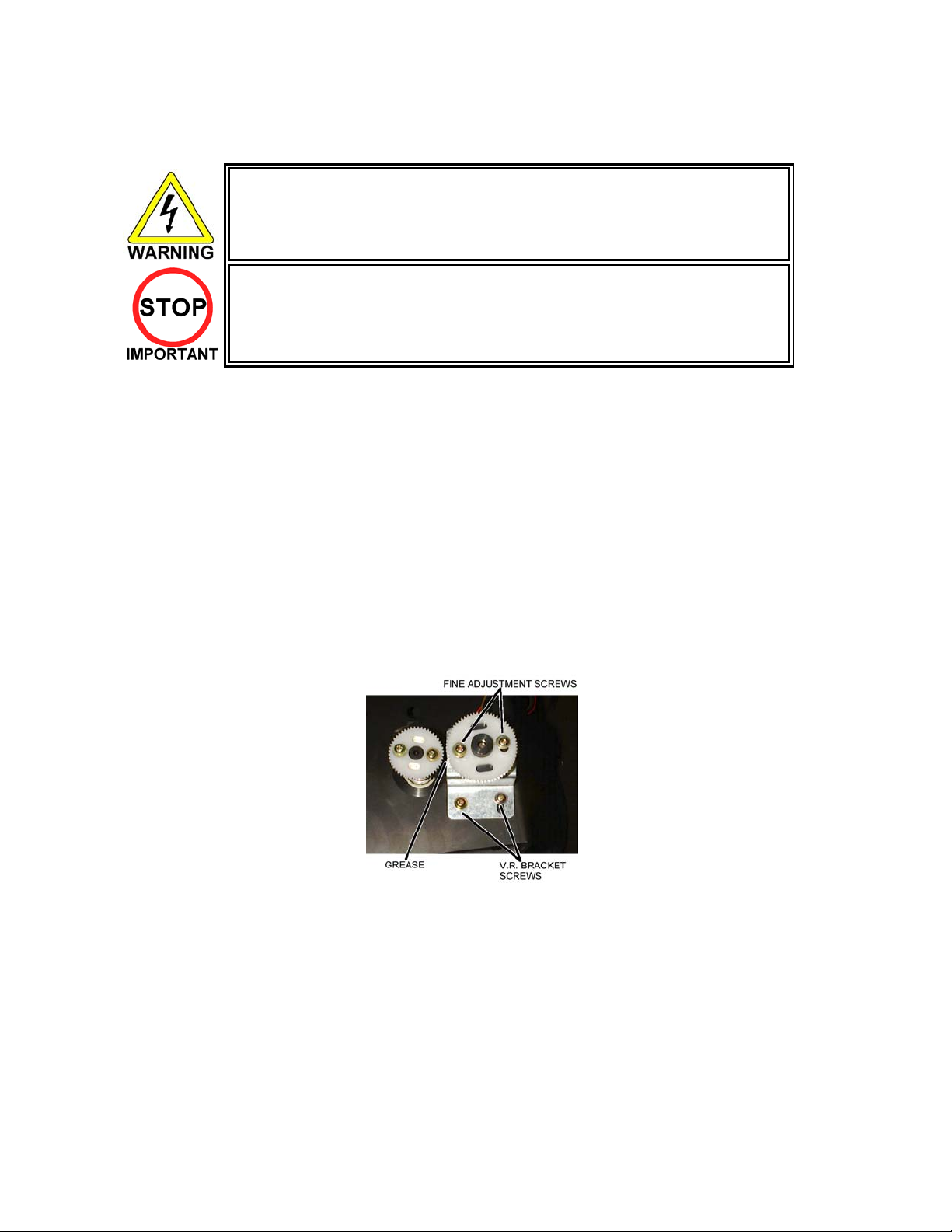

3.9.1.1. REPLACING AND ADJUSTING THE HANDLE MECHA’S VR ........................................35

3.9.1.2. GREASING ........................................................................................................................36

3.9.2. CARD READER/WRITER UNIT ...............................................................................................37

3.9.2.1. SETTING DEDICATED CARDS........................................................................................37

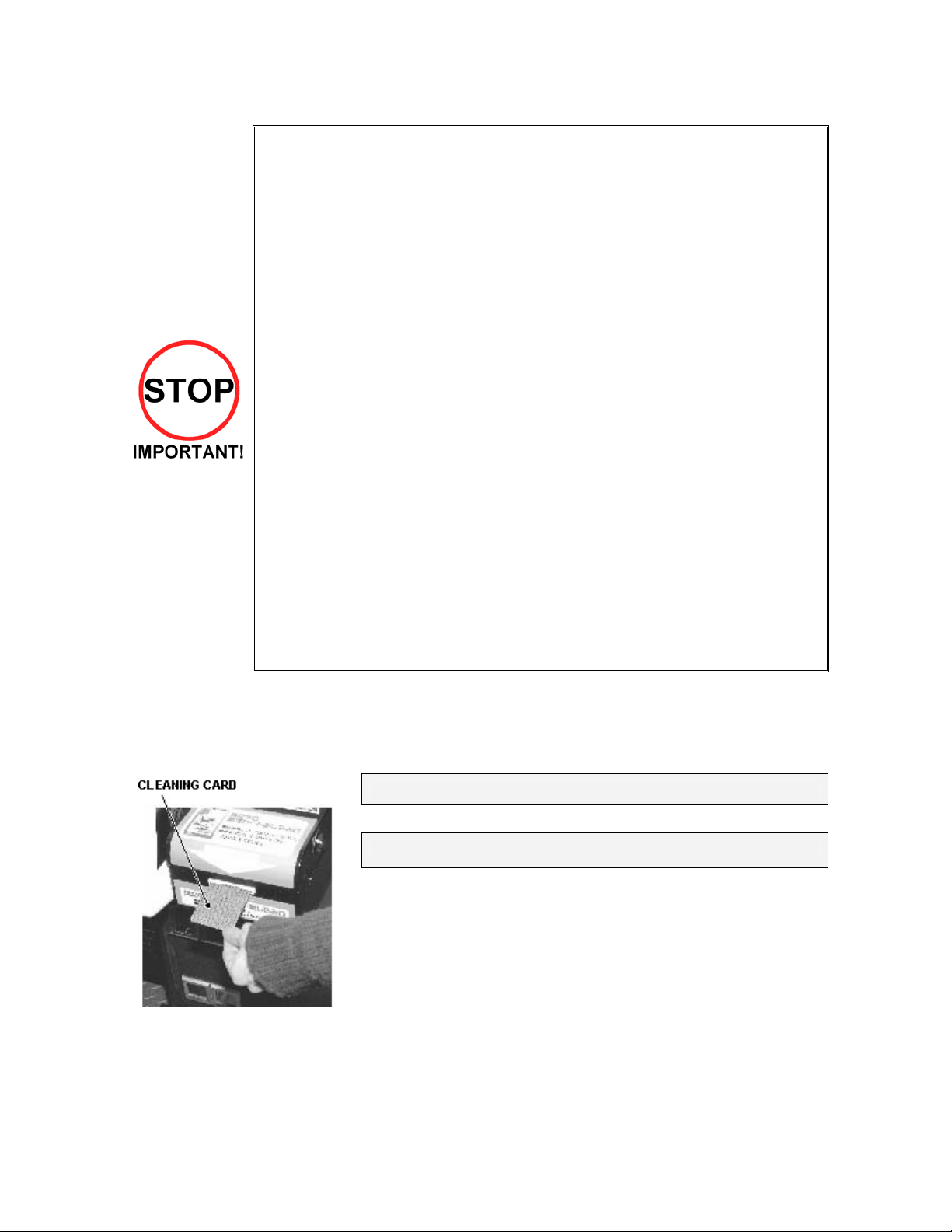

3.9.2.2. HEAD CLEANING .............................................................................................................39

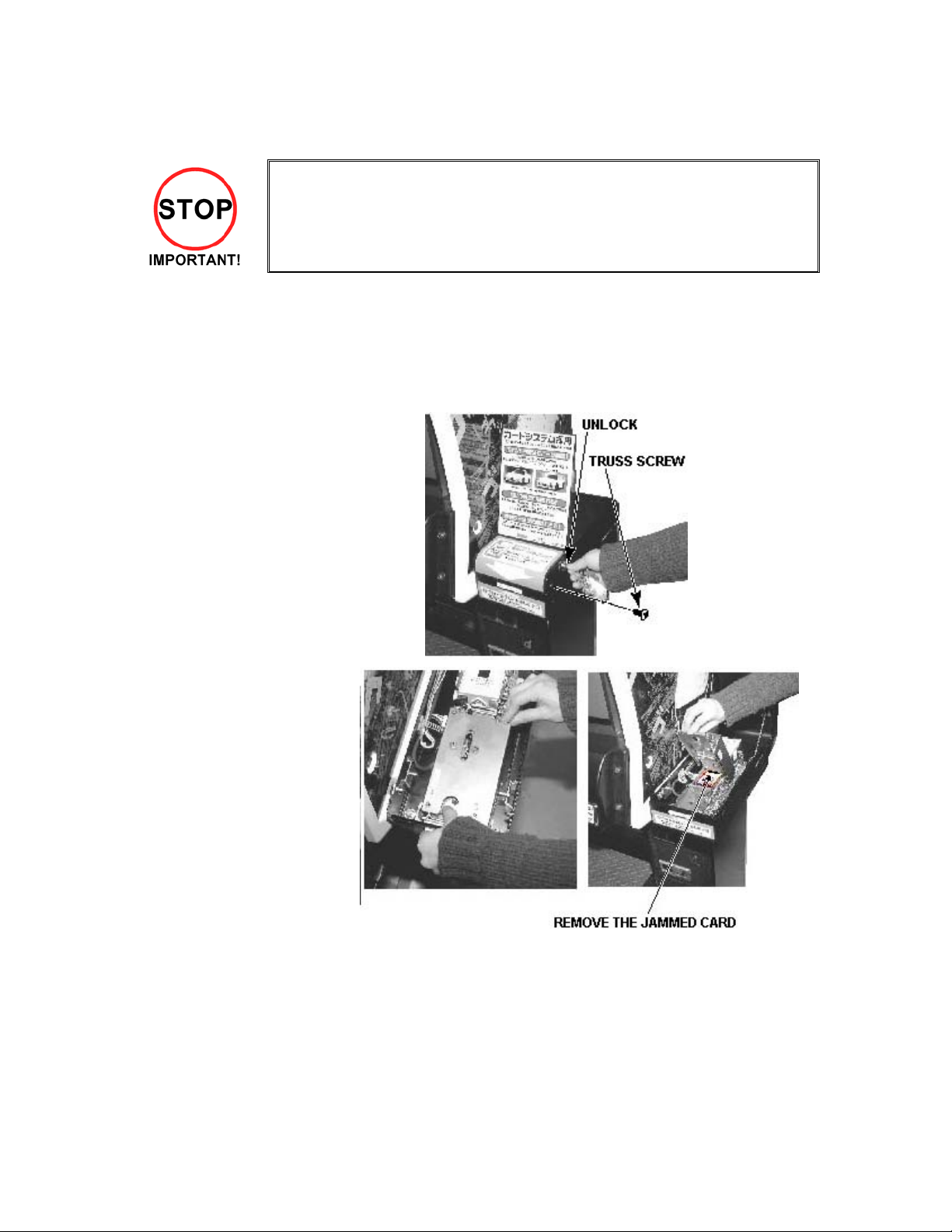

3.9.2.3. CLEARING CARD JAMS ..................................................................................................40

3.9.3. ACCELERATOR & BRAKE ......................................................................................................41

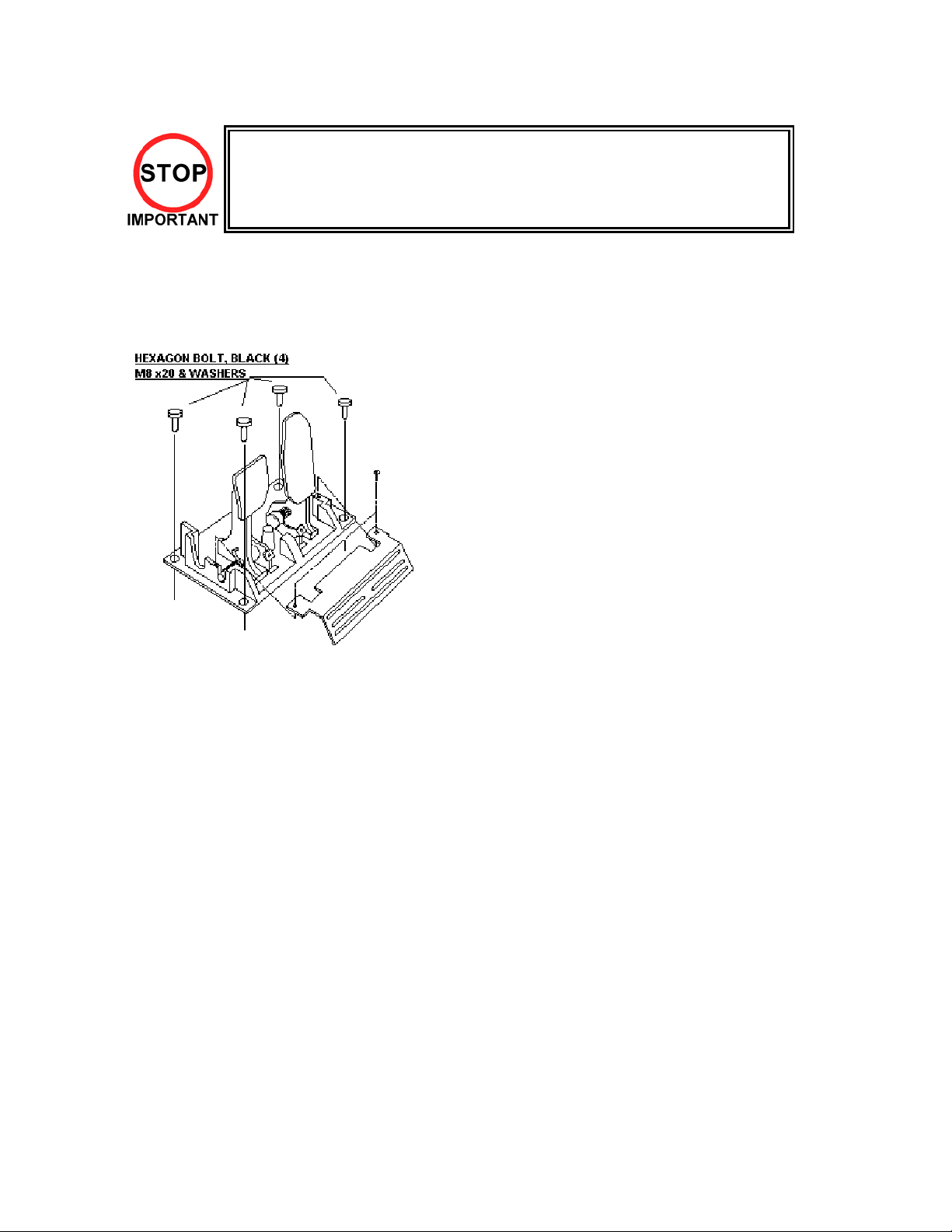

3.9.3.1. Removing the Accelerator & Brake. ..................................................................................41

3.9.3.2. Adjusting the V.R. ..............................................................................................................42

3.9.3.3. Replacing the V.R..............................................................................................................43

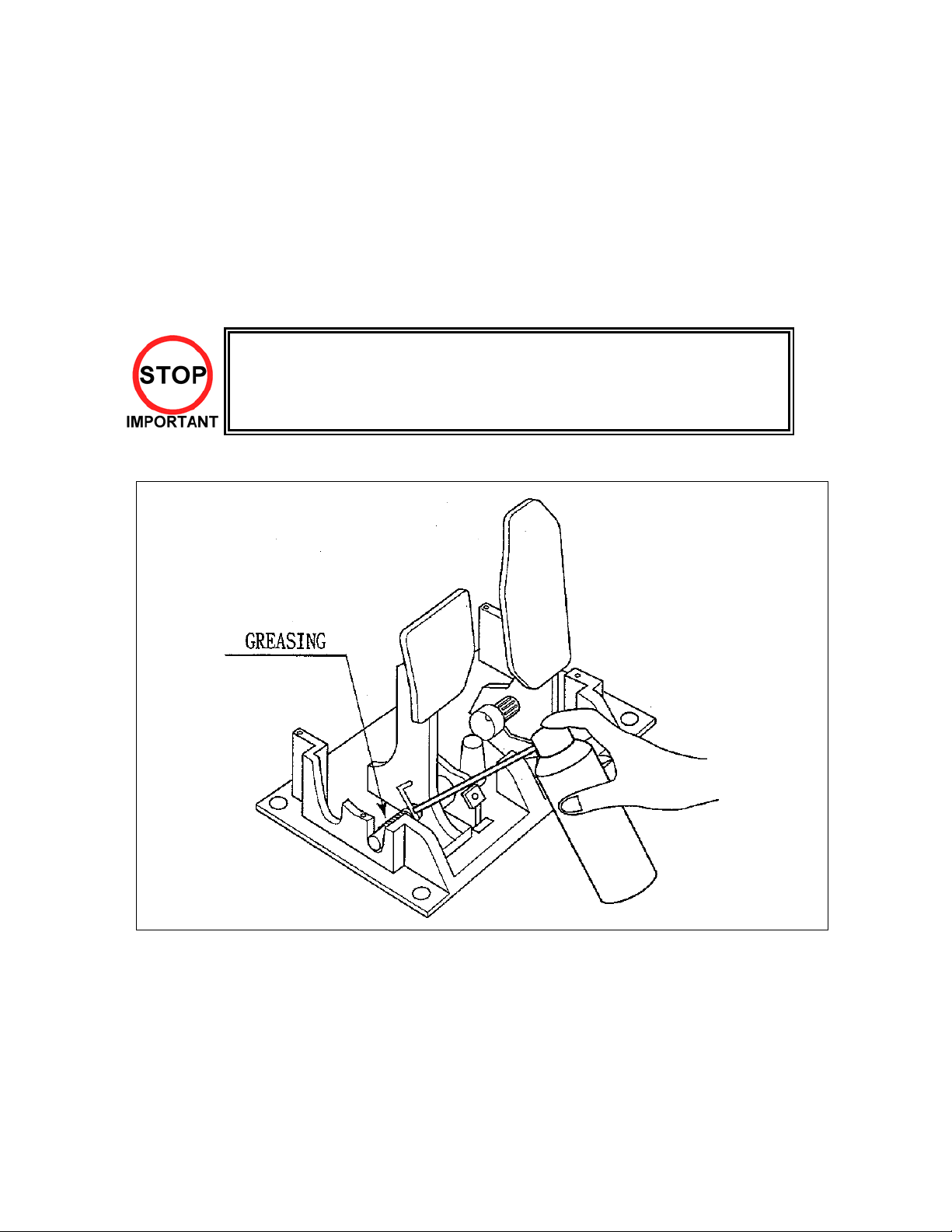

3.9.3.4. Greasing ............................................................................................................................43

3.9.4. SHIFT LEVER...........................................................................................................................44

3.10. REPLACEMENT OF FLUORESCENT LAMP AND OTHER LAMPS ................................................. 45

3.10.1. FLUORESCENT LAMP REPLACEMENT ............................................................................45

3.10.2. START BUTTON LAMP REPLACEMENT............................................................................46

3.10.3. CLEANING THE CABINET SURFACES ..............................................................................47

3.10.4. SEAT (Greasing to Seat Rail Portion)...................................................................................47

3.11. TROUBLESHOOTING ........................................................................................................................ 48

3.11.1. CARD READER/WRITER.....................................................................................................48

3.11.2. TROUBLESHOOTING (WHEN NO ERROR MESSAGE IS SHOWN).................................51

3.12. GAMEBOARD..................................................................................................................................... 54

3.12.1. REMOVING THE BOARD.....................................................................................................54

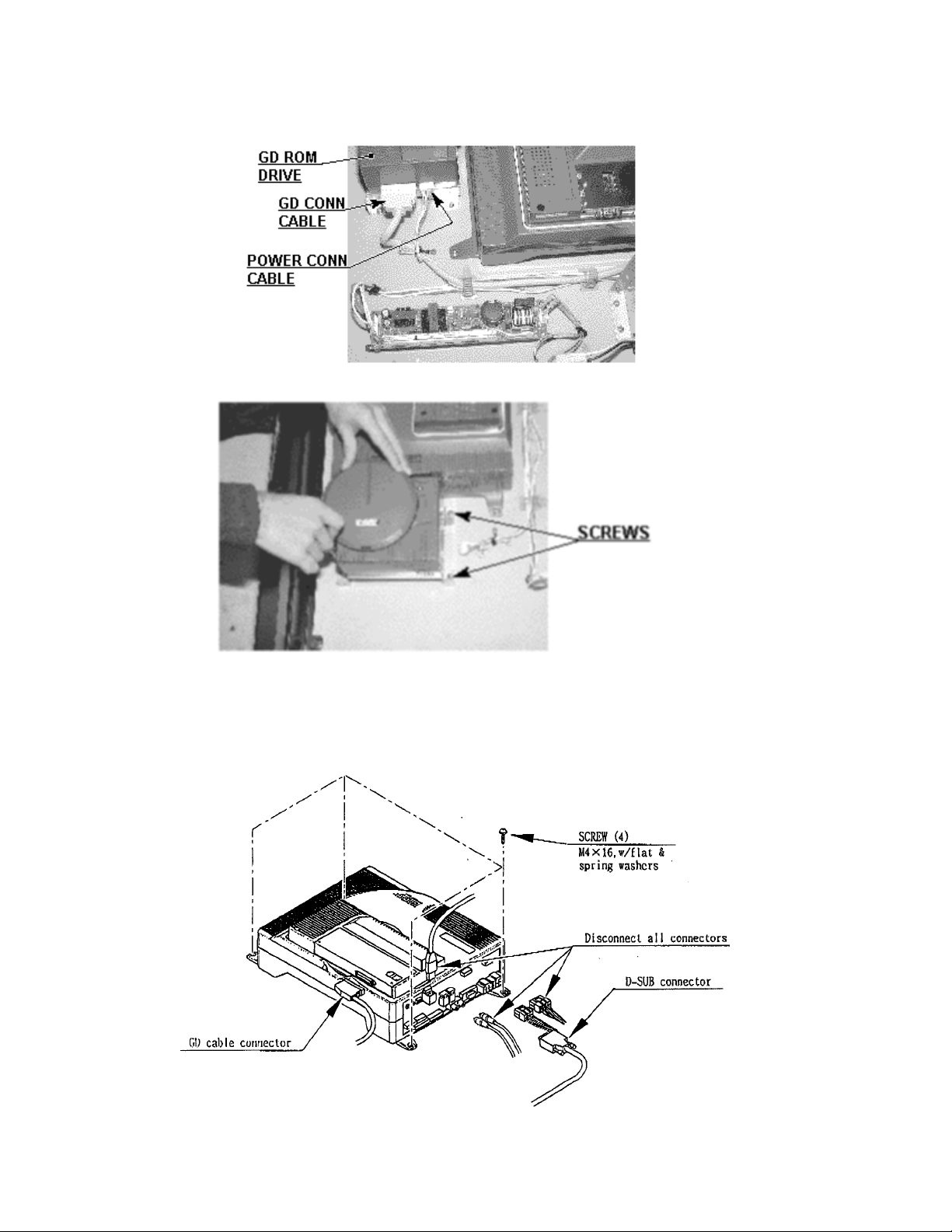

3.12.2. REMOVING THE GD-ROM DRIVE ......................................................................................55

3.12.3. REMOVING THE GAME BOARD .........................................................................................55

3.12.4. MACHINE SET UP................................................................................................................56

3.12.4.1. SETTING FOR COMMUNICATION PLAY........................................................................57

3.13. PERIODIC CHECK AND INSPECTION.............................................................................................. 58

4. HOW TO PLAY ....................................................................................................................................59

4.1. GAME DESCRIPTION............................................................................................................................ 59

4.1.1. Game Overview ........................................................................................................................59

4.1.1.1. Legend of the Streets ........................................................................................................59

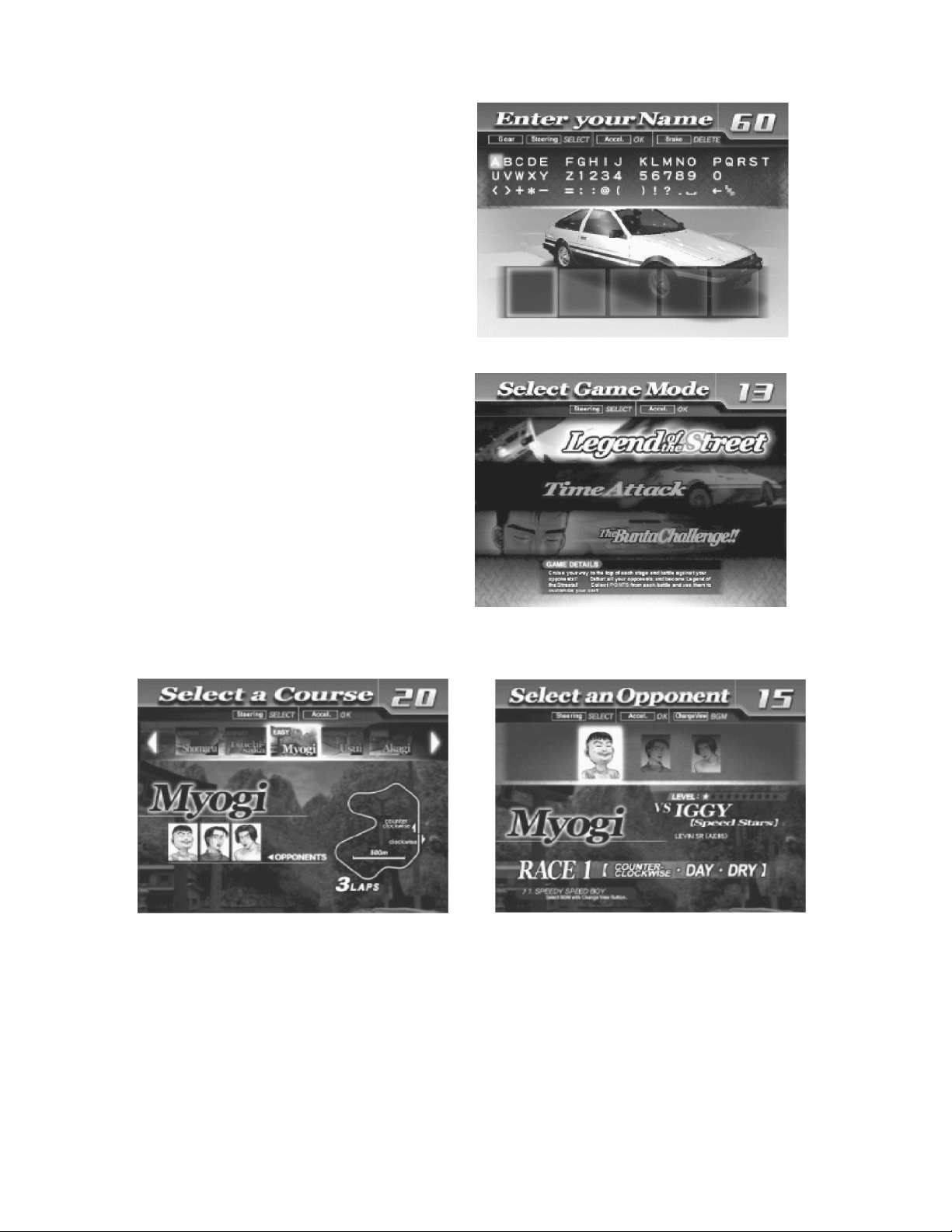

4.1.2. Game Flow................................................................................................................................60

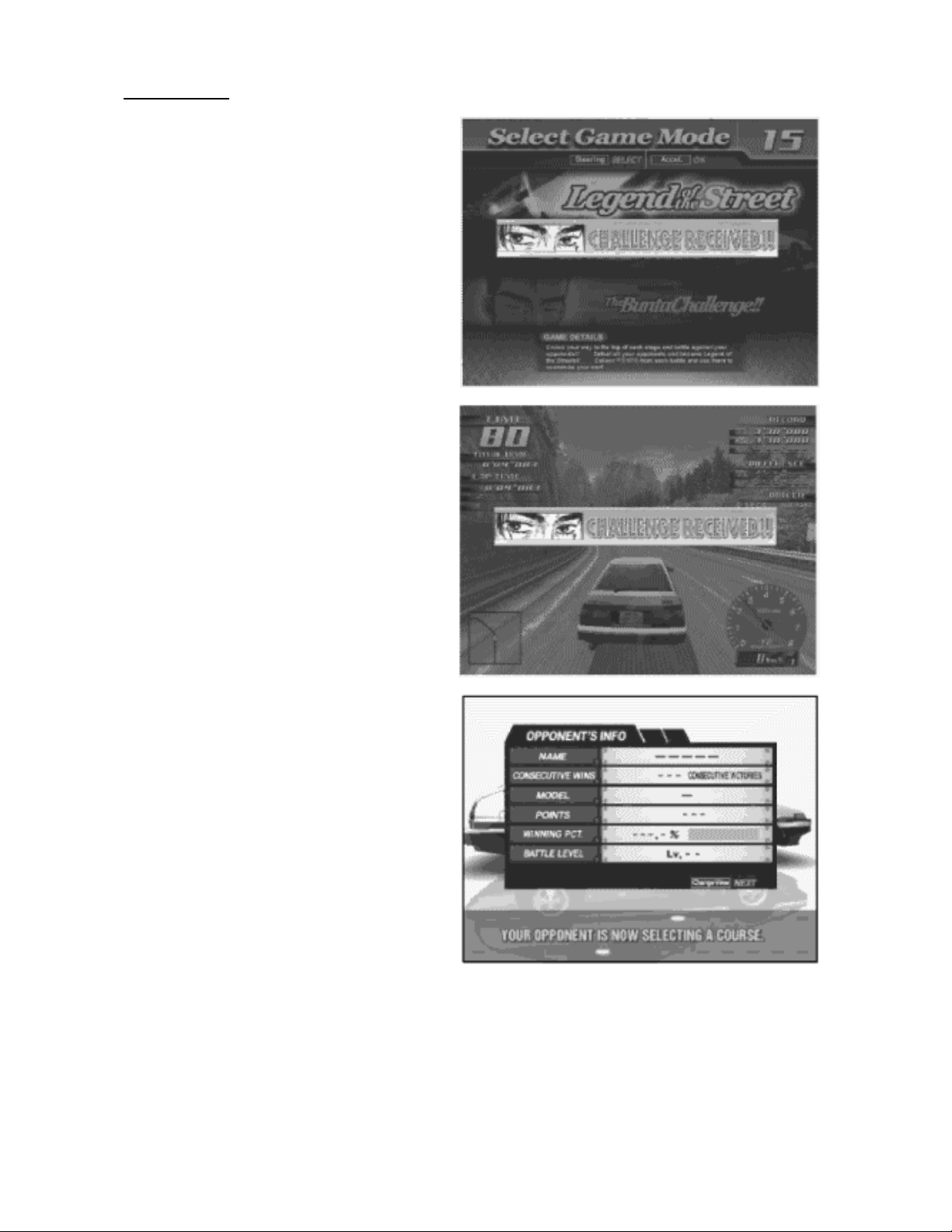

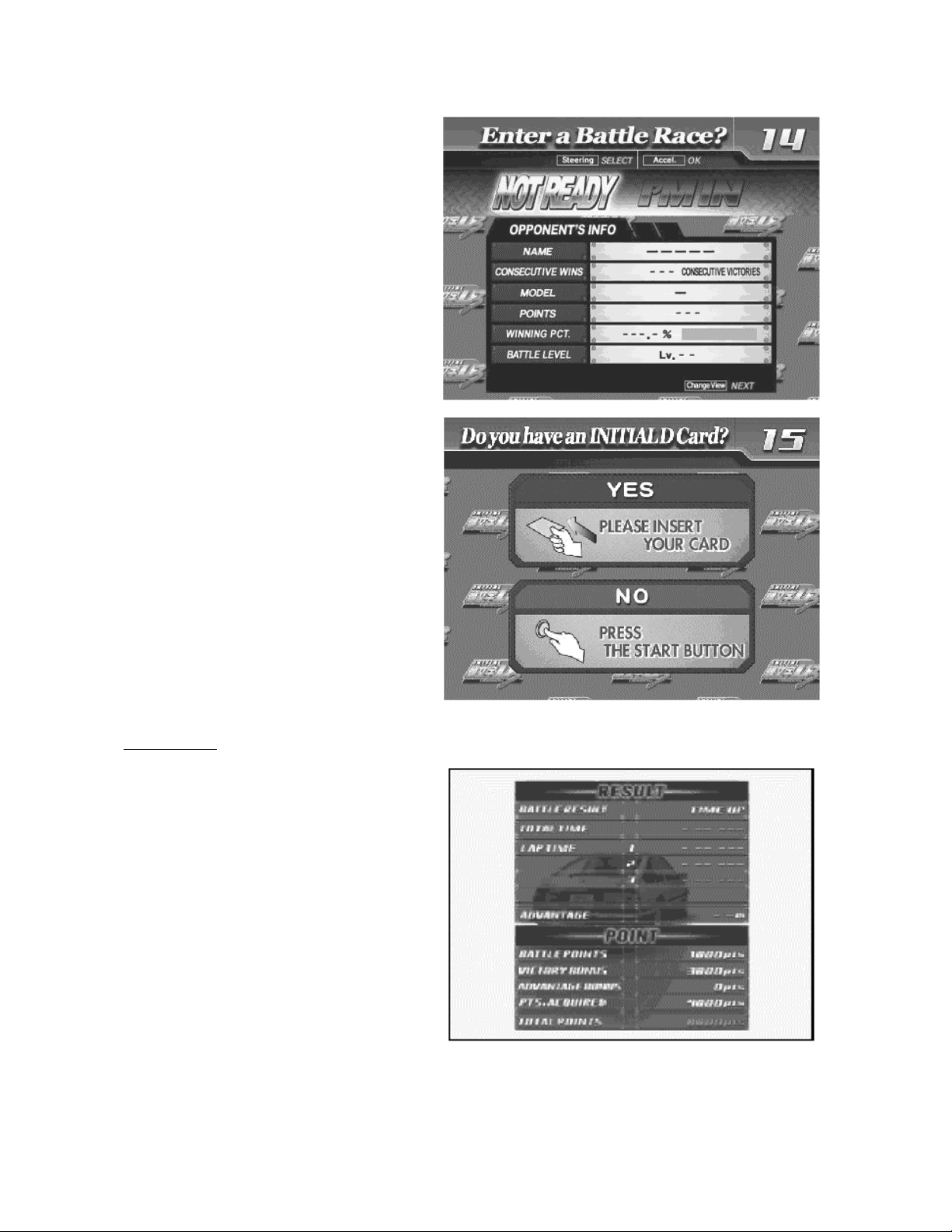

4.1.2.1. Challenger Accept Screen, Battle Race Select Screen: ...................................................60

4.1.2.2. Card Entry Screen and Card Purchase Screen: ...............................................................60

4.1.2.3. Card Data Check Screen:..................................................................................................60

4.1.2.4. Vehicle Selection Screen:..................................................................................................61

4.1.2.5. Transmission Selection Screen: ........................................................................................61

4.1.2.6.

4.1.2.7. Time Attack........................................................................................................................65

4.1.2.8. The BUNTA Challenge! .....................................................................................................65

4.1.2.9. Network Battle Race..........................................................................................................65

4.1.2.10. Configuration .....................................................................................................................68

4.1.2.11. Game Over........................................................................................................................69

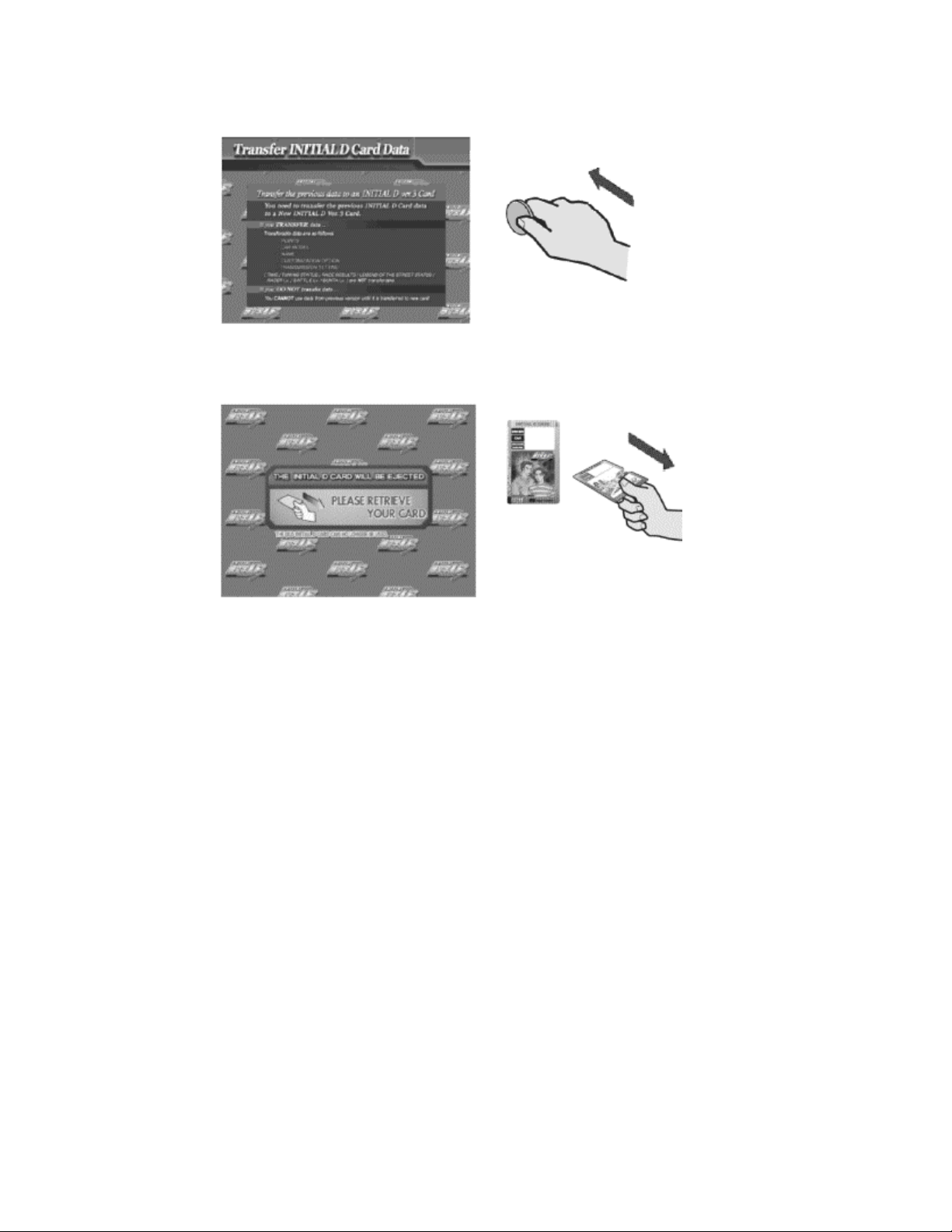

4.1.2.12. Transferring Old Card Data ...............................................................................................69

4.1.2.13. Limit on Card Use..............................................................................................................70

4.1.2.14. Car Selections ...................................................................................................................71

4.1.2.15. Race Courses....................................................................................................................71

4.1.2.16. Legend of the Streets Rival Characters ............................................................................72

5. MAINTENANCE INSTRUCTIONS ......................................................................................................73

5.1. EXPLANATION OF TEST AND DATA DISPLAY ................................................................................... 73

5.1.1. VTS ASSEMBLY.......................................................................................................................74

5.2. SYSTEM TEST MODE ........................................................................................................................... 75

5.2.1. RAM TEST ................................................................................................................................76

5.2.2. JVS TEST .................................................................................................................................76

5.2.3. SOUND TEST...........................................................................................................................77

5.2.4. C.R.T TEST ..............................................................................................................................77

5.2.5. SYSTEM ASSIGNMENTS ........................................................................................................78

5.2.5.1. COIN ASSIGNMENTS.......................................................................................................78

5.2.5.2. COIN/CREDIT SETTING (COIN CHUTE COMMON TYPE) ............................................79

5.2.5.3. COIN/CREDIT SETTING (COIN CHUTE INDIVIDUAL TYPE) .........................................80

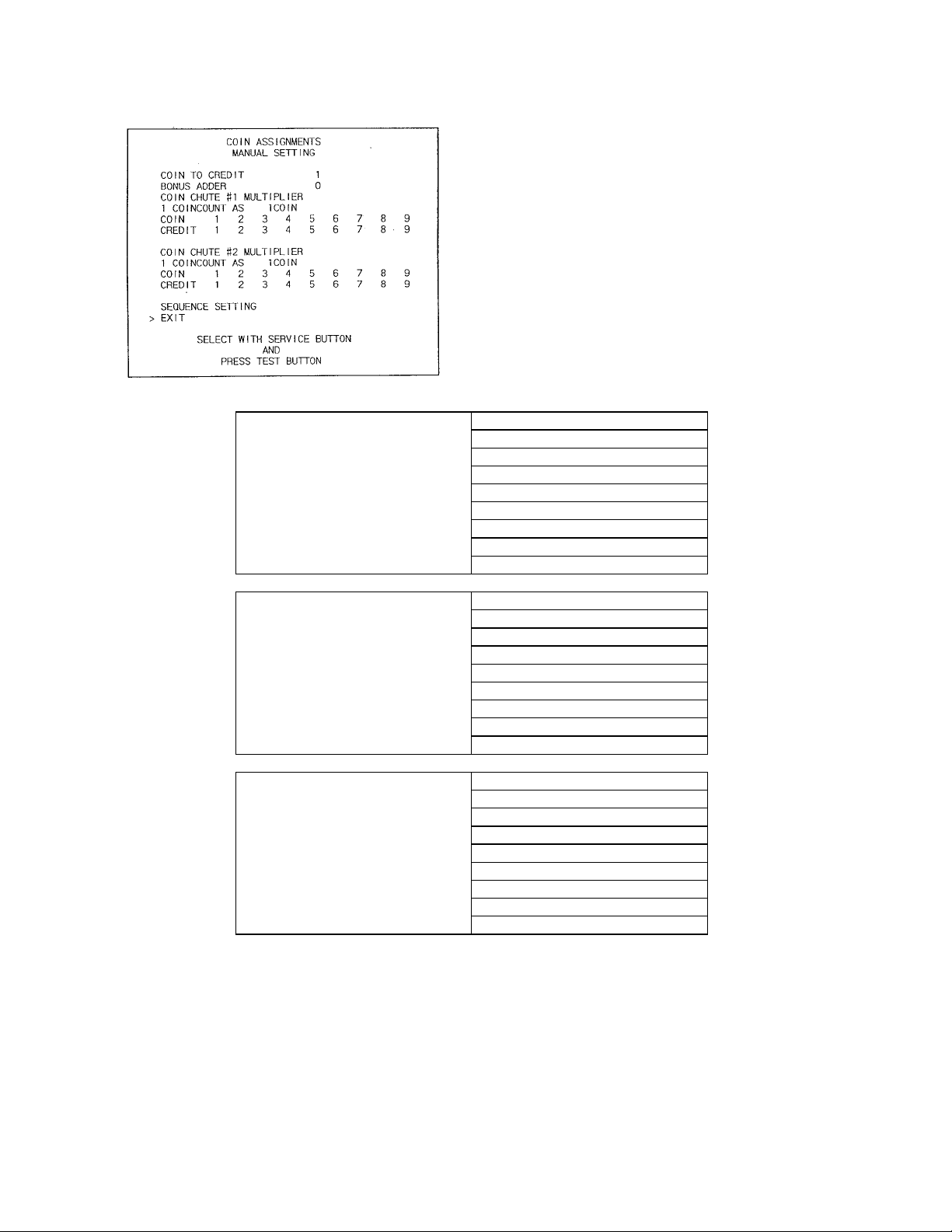

5.2.5.4. MANUAL SETTING ...........................................................................................................81

5.2.5.5. SEQUENCE SETTING ......................................................................................................82

5.2.5.6. BOOKKEEPING ................................................................................................................83

5.2.5.7. BACKUP DATA CLEAR ....................................................................................................83

5.2.5.8. ROM BD TEST ..................................................................................................................84

5.2.5.9. CLOCK SETTING..............................................................................................................84

5.3. GAME TEST MODE ............................................................................................................................... 85

5.3.1. GAME TEST MENU MODE......................................................................................................85

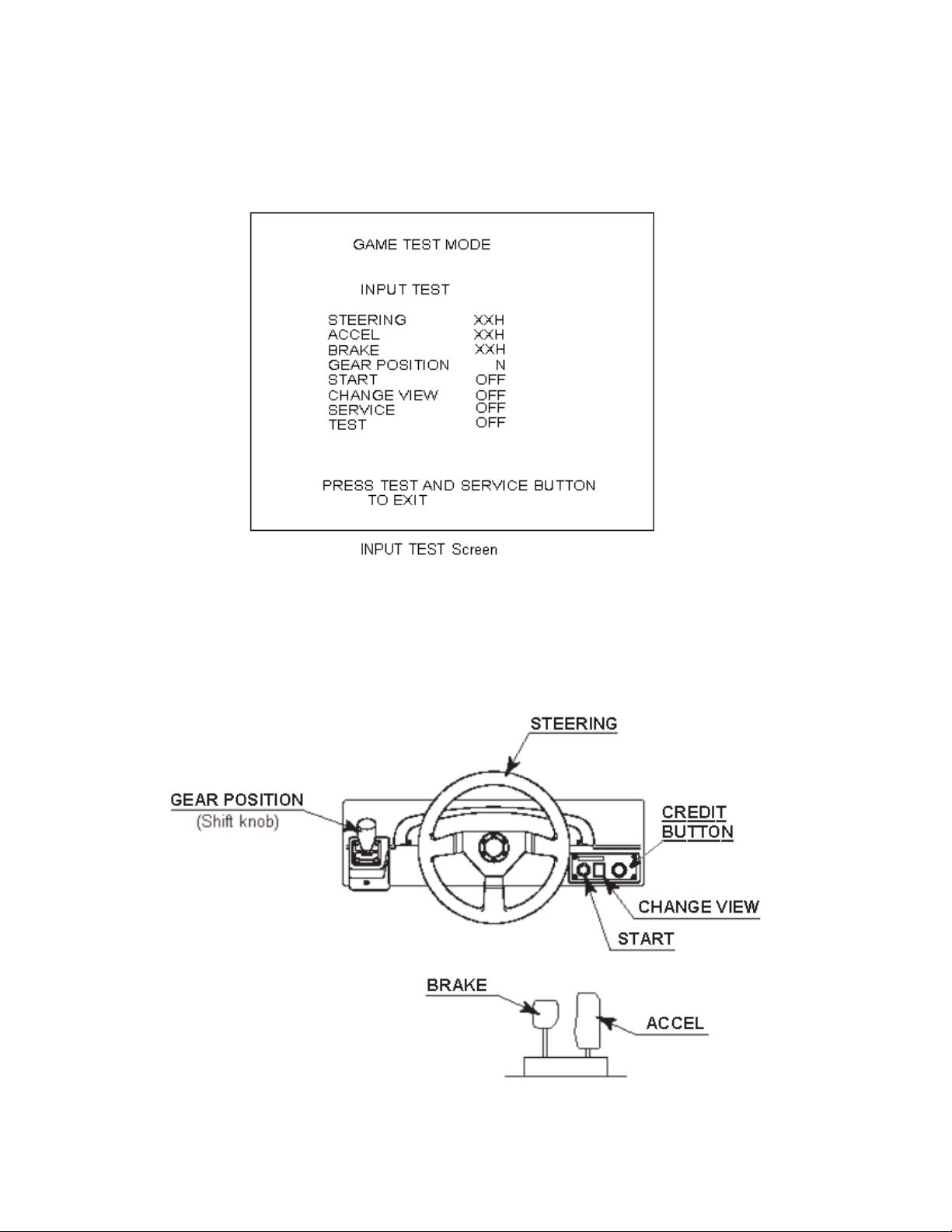

5.3.2. INPUT TEST .............................................................................................................................86

5.3.3. OUTPUT TEST .........................................................................................................................87

5.3.4. FORCE FEEDBACK .................................................................................................................88

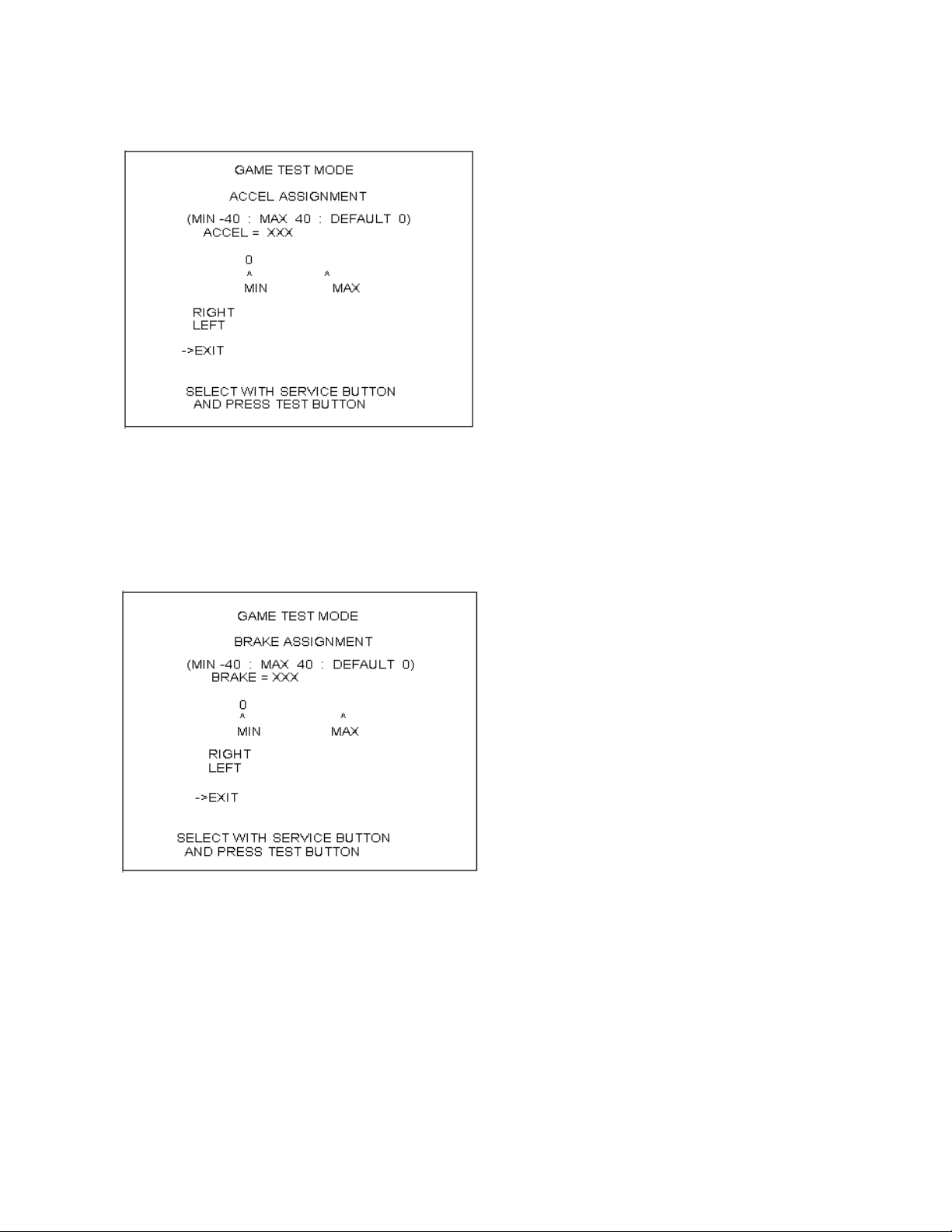

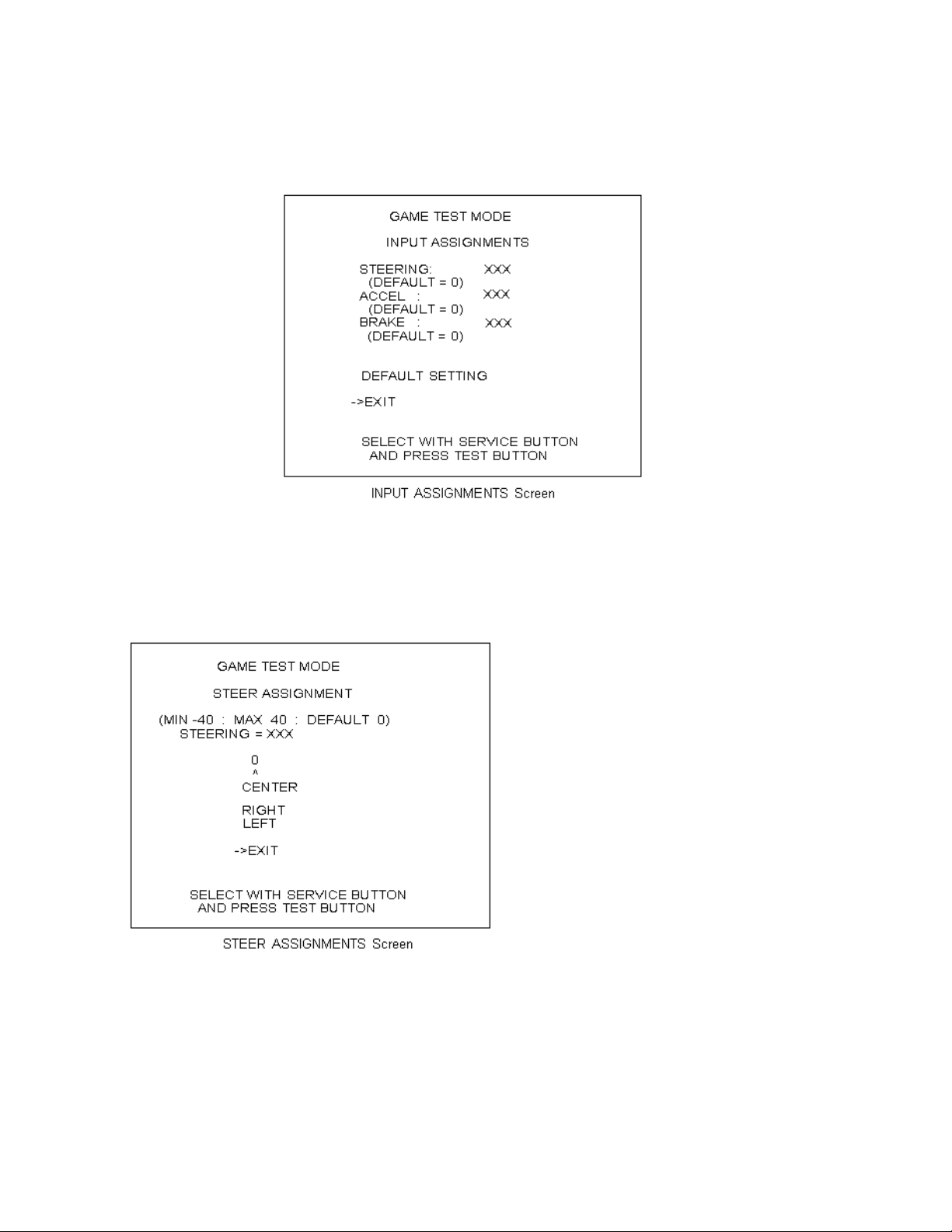

5.3.5. INPUT ASSIGNMENTS ............................................................................................................89

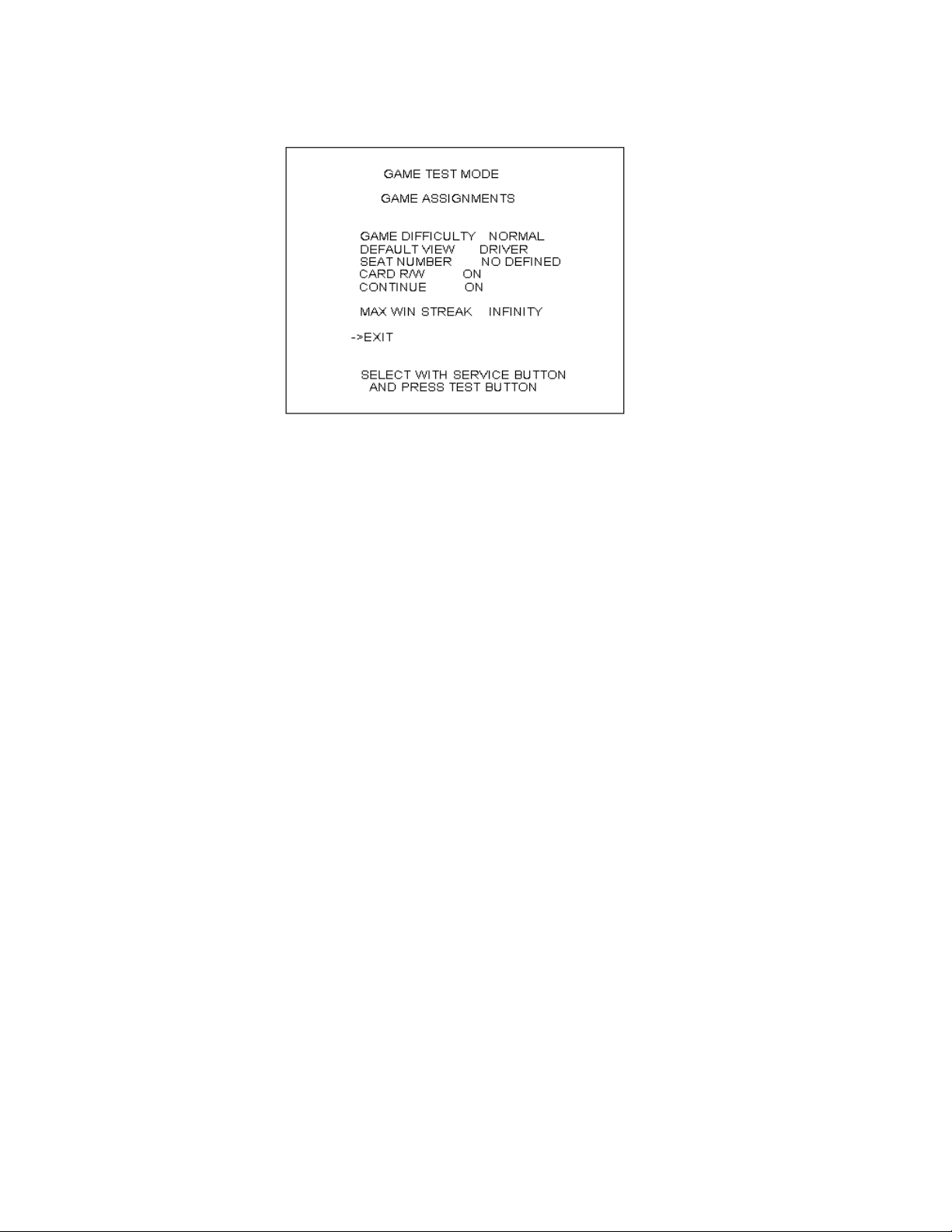

5.3.6. GAME ASSIGNMENTS ............................................................................................................91

5.3.7. CARD R/W TEST......................................................................................................................92

5.3.8. CLEANING PROCESS .............................................................................................................94

5.3.9. CLOSE SETTING .....................................................................................................................95

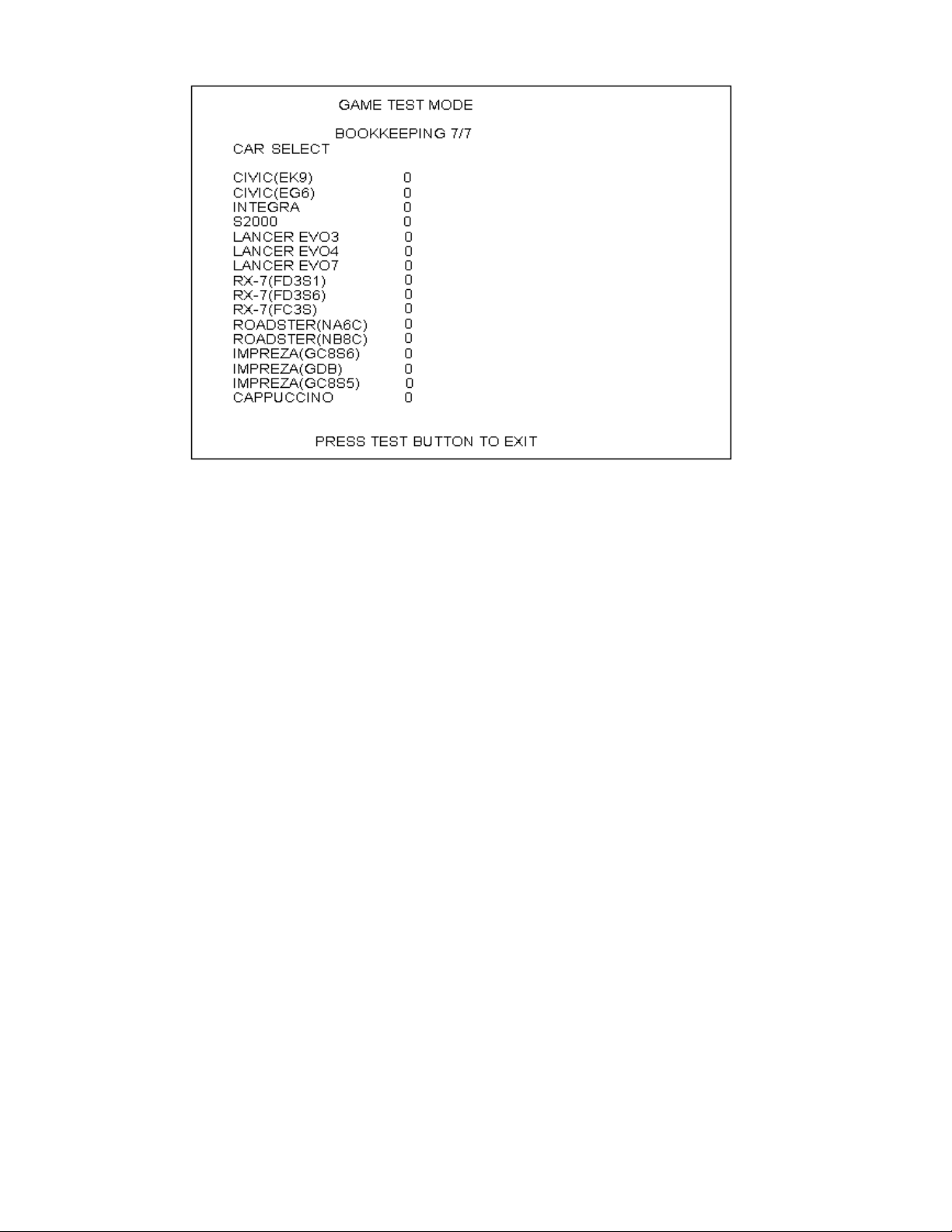

5.4. BOOKKEEPING...................................................................................................................................... 97

5.4.1. BACKUP DATA CLEAR..........................................................................................................101

COIN MECH INSTALLATION AND CREDIT BOARD SET UP ........................................................102

6.1. INTRODUCTION .................................................................................................................................. 102

6.1.1. PRICE OF PLAY SETTINGS UK ...........................................................................................104

6.1.2. PRICE OF PLAY SETTINGS EURO......................................................................................105

6.1.3. PRICE OF PLAY SETTINGS Austria-Czech-Denmark-Norway-Israel-France2...................106

DESIGN RELATED PARTS ..............................................................................................................107

8. PARTS LIST ......................................................................................................................................108

8.1. ASSEMBLY STRUCTURE ................................................................................................................... 108

8.2. TOS-00001UK TOP ASSY INITIAL D 3 TWIN ..................................................................................... 109

8.3. TOS-0200UK ASSY BILLBOARD......................................................................................................... 111

8.4. TOT-0400UK ASSY AC BRKT MAIN ................................................................................................... 112

8.5. TOT-0700UK ASSY AC BRKT SUB ..................................................................................................... 113

8.6. TOT-1200UK ASSY PEDAL BASE TOT .............................................................................................. 114

8.7. ASSY ACCEL & BRAKE (SPG2200).................................................................................................... 115

8.8. FZR-1550UK ASSY MONITOR COVER L 2P ...................................................................................... 117

8.9. FZR-1555UK ASSY MONITOR COVER R 2P ..................................................................................... 117

8.10. TOS-1600UK ASSY SEAT TWIN 1P................................................................................................ 118

8.11. TOF-2000XUK ASSY CONTROL PANEL ........................................................................................ 120

8.12. TOS-2150UK ASSY SW PLATE....................................................................................................... 122

8.13. TOF-2500 ASSY HANDLE MECHA.................................................................................................. 123

8.14. TOS-4500UK ASSY MAIN BD .......................................................................................................... 125

8.15. TOT-4600UK ASSY ELEC BD.......................................................................................................... 126

8.16. TOS-10001UK ASSY COCKPIT 1P.................................................................................................. 127

Parts Course Selection Screen: ........................................................................................61

8.17. APC-1560 ASSY SPEAKER L ......................................................................................................... 130

8.18. APC-1565 ASSY SPEAKER R ........................................................................................................ 130

8.19. ORT-1120UK ASSY SUB MAIN BASE............................................................................................. 131

8.20. FRI-0300UK ASSY COINCHUTE TOWER FRI ................................................................................ 131

8.21. FRI-1510UK ASSY BASE LID R....................................................................................................... 132

8.22. SPG-0500UK ASSY WIRE COVER SPG TWIN............................................................................... 133

8.23. VOF-0450UK CARD UNIT TWIN L................................................................................................... 134

8.24. VOF-0460UK CARD UNIT TWIN R .................................................................................................. 135

8.25. TOS-INST-TW ASSY INSTALLATION KIT TOS TWIN .................................................................... 136

9. APPENDIX A - ELECTRICAL SCHEMATIC .....................................................................................137

9.1. WIRE COLOURS.................................................................................................................................. 137

9.2. ELECTRICAL SCHEMATIC.................................................................................................................. 137

1. BEFORE USING THIS PRODUCT

To ensure the safe usage, be sure to read the following before using the product. The following instructions are intended for the use of QUALIFIED SERVICE PERSONNEL ONLY

If any activity is carried out on the product, this should be done only after carefully reading and sufficiently understanding the instructions.

Only qualified service personnel should carry out maintenance on the product.

Depending on the potential risk, terms such as” explanation is given that requires special attention. SEGA is not responsible for injury or damage caused by use in a manner contrary to the instructions given in this document.

In order to prevent accidents warning stickers and printed instructions are applied in the places where a potentially hazardous situation relating to the product could arise. Be sure to comply with these warnings.

Indicates that mishandling the product by disregarding this warning will cause a potentially hazardous situation that can result in death or serious injury.

Indicates that mishandling the product by disregarding this caution will cause a potentially hazardous situation that can result in personal injury and or material damage.

This is cautionary information that should be complied with when handling the product. Indicates that mishandling the product by disregarding this will cause a potentially hazardous situation that may not result in personal injury but could damage the product.

Be sure to turn off the power and disconnect from the mains supply before working on the machine.

Ensure that the correct fuses are fitted to the machine. Details of these are enclosed in the Service Manual.

Ensure that only qualified Service Engineers perform any maintenance work on the machine.

Specification changes, removal of equipment, conversion and/or additions not designated by SEGA are not permitted and will invalidate this product’s CE conformity.

Warning labels or safety covers for personal protection etc, are component parts of the product. A potential hazard will be created if the machine is operated while any parts have been removed. Do not operate the product if any doors, lids or protective covers become damaged or lost. SEGA is not liable in any whatsoever for any injury and/or damage caused by specification changes not designated by SEGA.

Before installing the product, check for the Electrical Specification Sticker, SEGA products have a sticker on which the electrical specifications are detailed. Ensure that the product is compatible with the power supply voltage and frequency requirements of the location in which the machine is to be installed.

Install and operate the machine only in places where appropriate lighting is available, allowing warning stickers to be clearly read.

To ensure maximum safety for customers and operators, stickers and printed instructions describing potentially hazardous situations are applied to potentially hazardous locations. Ensure that the product’s operating location has sufficient lighting to allow any warnings to be read. If any sticker or printed warning is removed or defaced, do not operate the machine until an identical item has replaced it.

Exercise great care when handling the monitor (applies only to product with monitor). Some of the monitor (TV) parts are subject to high-tension voltage. Even after turning the power off some components are liable to high-tension voltage. Only qualified service engineers should perform monitor repair and replacement.

In cases where commercially available monitors and printers are used, only the items relating to this product are contained in this manual. Some commercially available equipment will have functions and reactions not referred to in this manual. This manual should be read in conjunction with the specific manufacturer’s manual for such equipment.

Descriptions contained herein may be subject to change without prior notification.

The contents described herein are fully prepared with due care. However, should any question arise or errors be found please contact

SEGA AMUSEMENTS EUROPE LTD

WARNING!

Descriptions contained herein may be subject to change without prior notification.

The contents described herein are fully prepared with due care. However, should any question arise or errors be found please contact SEGA.

” “

CAUTION

” and “

IMPORTANT

!” are used where an

1.1. INSPECTIONS IMMEDIATELY AFTER TRANSPORTING THE PRODUCT TO THE LOCATION

• Only QUALIFIED SERVICE PERSONNEL should carry out inspection.

Normally, at the time of shipment, SEGA products are in a state to allowing usage immediately after transporting to the location. Nevertheless, an irregular situation may arise during transportation preventing this. Before turning on the power, check the following points to ensure that the product has been transported safely.

• Are then any dented parts or defects (cuts, etc.) on the external surfaces of the product?

• Are castors and leg adjusters present and undamaged?

• Do the power supply voltage and frequency requirements meet with the local supply?

• Are all wiring connectors correctly and securely connected? Unless connected in the correct direction,

connector connections cannot be made successfully. Do not insert connectors forcibly.

• Are all IC’s of each IC BD firmly inserted?

• Does the power cord have any cuts or dents?

• Do fuses meet the specified rating?

• Are such units such as monitors, control equipment, IC BD, etc. firmly secured?

• Are all earth wires connected?

• Are all accessories available?

• Can all doors and lids be opened with the accessory keys and/or tools?

CONCERNING THE STICKER DISPLAY CONCERNING WARNING STICKERS

SEGA product has stickers describing the product manufacture number (Serial Number) and electrical specification. If you require service assistance you will require the Serial Number. Identical machines may have different parts fitted internally. Only by quoting the Serial Number will the correct parts be identified.

SEGA product has warning displays on stickers, labels or printed instructions adhered/attached to or incorporated in the places where hazardous situations can arise. The warning displays are intended for the accident prevention of customers and service personnel.

SPECIFICATIONS

Installation Space (cm): 202 x 170

Height (cm): 190

Weight (kg): 492

Power consumption (max): Rated Voltage (V.AC): 230 ±10%

Rated Current (A): 2.75

Note: Descriptions in this manual are subject to change without prior notice.

2. INTRODUCTION TO THIS SERVICE MANUAL

SEGA ENTERPRISES LTD. supported by its experience in electronic high technology of VLSI’s, microprocessors etc. and with a wealth of experience, has for more than 30 years been supplying various innovative and popular games to the world market. This Service Manual is intended to provide detailed descriptions together with all the necessary information covering the general operation of electronic assemblies, electro-mechanicals, servicing controls, spare parts, etc. as regards this new SEGA product. This manual is intended for those who have knowledge of electricity and technical expertise especially in IC’s, CRT’s, microprocessors etc. Carefully read this manual to acquire sufficient knowledge before working on the machine. Should there be any malfunction, non-technical personnel should under no circumstances touch the internal systems. Should such a situation arise contact our head office.

SEGA AMUSEMENTS EUROPE LTD./ SEGA SERVICE CENTRE

Suite 3a Oaks House 12 - 22 West Street Epsom Surrey United Kingdom KT18 7RG

3. INSTALLATION AND SERVICE INSTRUCTIONS

• Only QUALIFIED SERVICE PERSONNEL should carry out installation and commissioning.

3.1. HANDLING AND INSTALLATION PRECAUTIONS

When installing or inspecting the machine, be very careful of the following points and pay attention to ensure that the player can enjoy the game safely.

The game must NOT be installed under the following conditions:

• Outside, the game is designed for indoor use only.

• In areas directly exposed to sunlight, high humidity, dust, excessive heat, or extreme cold.

• In locations that would present an obstacle in the case of an emergency i.e. near fire equipment or

emergency exits.

• On unstable surfaces or surfaces subject to vibration.

• Where liquids, other than routine cleaning, may come into contact with the game.

Important:

• Only Qualified Service Personnel should install this machine.

• Be sure to switch the supply power OFF and remove the mains supply plug from the machine before

any work is carried out on the machine.

• Do not attempt to repair the PCB’s (Printed Circuit Boards) yourself. This will void the warranty. The PCB’s contain static sensitive devices that could be damaged.

• Always return a faulty part to your distributor with adequate packaging and protection.

• When removing the plug from the mains always grasp the plug not the cable.

Do not use a fuse that does not meet the specified rating.

•

• Make sure all connections are secure before applying power.

Installation Space

• Ensure that the mains lead is not damaged. If the mains lead is damaged in any way there could be a danger of electric shock or a fire hazard.

• Ensure that the power supply is fitted with circuit protection. Using the power supply without circuit protection is a fire hazard.

3.2. COIN HANDLING

Standard Sega machines are fitted with a SR3 coin mechanism, however, as a service to our customers Sega machines can be supplied with no coin mechanism or door allowing the customer to fit a coin handling option from the approved list. Fit only the coin handling arrangements detailed below and follow the instructions provided in Section 3.7.6. Failure to fit the coin handling options detailed or failure to follow the installation instructions will render the machine, under the CE marking directive, void.

Approved coin handling options:

• Coin controls SR3

• Generic mechanical

Mars (MS111B1 and ME115)

•

• SECI RM4-G20

3.3. NAME OF PARTS

Width (cm) Length (cm) Height (cm) Weight (kg)

COCKPIT (EACH) 101 165 152 224



COIN CHUTE TOWER 27 33 57 15

BILLBOARD 161 36 39 25

When Assembled 202 170 190 492 approx



WITH CARD READ/ WRITE UNIT (NOT SHOWN)

3.4. ACCESSORIES

The machine is supplied with an installation kit. Please ensure the following parts are supplied:

ITEM PART NO. QTY DESCRIPTION

TOS-0200UK 1 ASSY BILLBOARD

FRI-0300UK 1 ASSY COINCHUTE TOWER FRI

SPG-0500UK 1 ASSY WIRE COVER SPG TWIN

DYN-0013 1 JOINT PIPE

DYN-0006XUK 1 AC COVER B

SRT-0018UK 1 AC COVER C

DYN-0019UK 1 AC COVER D

SPG-0008 2 BILLBOARD HOLDER

422-0924UK 2 PLAY INSTR SH TOS MULTI

PK0358 1 INST KIT BOX TOS TWIN

TOS-0004UK 2 STICKER CARD SLOT TOF A MULTI

TOT-0005UK 2 STICKER CARD SLOT TOF B MULTI

601-11358-01 3 CARD PACKAGE TOS ENG

601-11050-91 1 CLEANING KIT(30SHT)

220-5753 1 VOL CONT B-5K OHM (TOCOS)

101

440-CS0186UK 2 STICKER C EPILEPSY MULTI

201

030-000825-SB 20 M8X25 BLT W/S BLK

202

068-852216-0B 20 M8 WSHR 22OD FLT BLK

203

000-P00412-WB 15 M4X12 MSCR PAN W/FS BLK

204

050-F00400 3 M4 NUT FLG SER PAS

205

068-441616 3 M4 WSHR 16OD FLT PAS

401

420-5827 1 SERVICE MANUAL SANWA 31K

402

420-6799-02UK 1 SERVICE MANUAL TOS TWIN

403

OS1019 2 SELF SEAL BAG 9X12.3/4

404

540-0006-01 1 WRENCH M4 TMP PRF

405

540-0007-01 1 WRENCH M5 TMP PRF

406

540-0009-01 1 WRENCH M8 TMP PRF

407

220-5484 1 VOL CONT B-5K OHM

408

SAECE-xxx 1 DECLARATION OF CONFORMITY

409

514-5078-5000 2 FUSE 5X20 CERAMIC SB 5000mA

411

420-6620UK 1 SERVICE MANUAL GD ROM SYSTEM

416

509-5704 1 SW MICRO TYPE (OMRON K3L13)

Item 404-406 - Tamper-proof TORX wrench.

3.5. SHIPPING THE GAME BOARD

• When returning the GAME BOARD for repair or replacement, be sure to package the entire ASSY SHIELD CASE in the original card transit box - THERE ARE NO USERSERVICEABLE PARTS INSIDE.

• Failure to return the GAME BOARD in this manner may invalidate the warranty.

Pack the ASSY SHIELD CASE in the original transit box as shown. Putting it upside down or packing otherwise in the manner not shown can damage the GAME BOARD and other parts.

3.6. SHIPPING THE GD-ROM DRIVE

• When returning the GD-ROM DRIVE for repair or replacement, be sure to package it in the original card transit box - THERE ARE NO USER-SERVICEABLE PARTS INSIDE.

Ensure the GD-ROM Disk is removed and the GD-ROM Drive Lid is replaced on the

•

unit, with fixing screw, before packaging. Also, remove the GD-ROM Drive Bracket and store with the four screws for reuse.

• Failure to return the GD-ROM DRIVE in this manner may invalidate the warranty.

3.7. ASSEMBLY INSTRUCTIONS

• Perform the assembly by following the procedure herein stated. Failure to comply with the instructions, for example, inserting the plug into an outlet at a stage not mentioned in this manual can cause an electric shock

• Assembling should be performed as per this manual. Since this is a complex machine, erroneous assembling can cause damage to the machine, or malfunction to occur.

• Do not attempt to complete this work alone, a minimum of 2 people are required.

• Only QUALIFIED SERVICE PERSONNEL should carry out assembly.

When carrying out the assembly work, follow the procedure in the following 7 item sequence

STEP 1 ASSEMBLING THE COCKPIT

STEP 2 SECURING IN PLACE (LEG ADJUSTER ADJUSTMENT)

STEP 3 BILLBOARD INSTALLATION

STEP 4 INSTALLING THE AC COVERS (WIRE COVERS)

STEP 5 COIN HANDLING INSTALLATION

STEP 6 CONNECTION TO POWER SUPPLY

STEP 7 ASSEMBLY CHECK

Note that the parts contained within the installation kit are required for the assembly work.

Fit all fixings loosely first as detailed in step 1, then position all components

•

before finally tightening fixings at step 6.

3.7.1. APPLYING THE PLAY INSTRUCTIONS

• Only QUALIFIED SERVICE PERSONNEL should carry out this operation.

Supplied in the installation kit are 4 sets of play instructions in 5 languages. Select the language of your choice and apply in the following areas:

1. 422-00924UK: Instructions (on Monitor Mask)

2. TOT-0005UK: Card Slot

3. TOS-0004UK: Card Instructions (on Card R/W Lid)

N.B.: Product appearance may differ slightly.

3.7.2. ASSEMBLING THE COCKPIT

• Only QUALIFIED SERVICE PERSONNEL should carry out this operation.

1. Place the two cockpits side by side. Position the 1P cabinet, which has the IEC inlet at the left hand side when viewed facing the monitor. STICKER L is attached to the back of the 1P cabinet and STICKER R on the back of the 2P cabinet

2. Install the coin chute tower in between both cabinets. Open the coin chute door and the cash door and secure with the 4 hexagon bolts from inside the doors. At this time, make sure the bolts are only loosely fitted.

Note: Door may open in opposite way to that shown above

3. Install the joint pipe on the rear-side of both cabinets by securing with 4 hexagon bolts, at this time loosely.

3.7.3. SECURING IN PLACE (LEG ADJUSTER ADJUSTMENT)

• Make sure all of the leg adjusters are in contact with the floor. If they are not the machines may move and cause injury. This operation requires 2 people.

• Only QUALIFIED SERVICE PERSONNEL should carry out this operation.

This machine has eight castors and eight leg adjusters. When the installation position is decided, unscrew the leg adjusters so that they raise each caster a minimum of 5mm from the floor. Make sure the machine is level.

1. Move the machine to the installation position. When installing against or close to a wall, be sure to allow an adequate space to allow the player access to the machine.

2. Make the leg adjusters contact the floor. Adjust using a spanner as shown below so that a minimum of 5mm exists between the casters and the floor. Make additional adjustment so that the machine is level.

After securing the leg adjuster bolts, fully tighten all bolts temporarily attached in STEP 1 above.

Ensure adequate ventilation is maintained as detailed below

3.7.4. BILLBOARD INSTALLATION

One person alone cannot perform the installation of the billboard assembly. Seek

•

assistance before attempting this operation

• Only QUALIFIED SERVICE PERSONNEL should carry out this operation.

1. Install the Billboard over the two cockpits using two or more workers to lift it into position.

2. Remove seven truss screws and take off the Billboard Sash. Withdraw the Billboard Plate.

3. Fasten the four M8x25 hex bolts to secure the Billboard to the cabinets.

4. Connect the wire connectors from the billboard box to the connectors on the cabinet

5. Install the two Billboard Holders to the rear of the

Billboard, and secure using four M8x25 hex bolts for each.

6. Complete installation by reinserting the Billboard

Plate and replacing the Billboard Sash.

3.7.5. INSTALLING THE AC COVERS (WIRE COVERS )

• Be sure that the machine is not connected to the mains supply before attempting this operation

• Only QUALIFIED SERVICE PERSONNEL should carry out this operation.

The AC Wire Covers are used for protecting the interconnecting wiring and the fibre optic cables. When carrying out this operation be very careful so as not to trap any wire between the covers. Pay attention when handling the fibre optic cables as excessive bending may cause damage.

1. Attach AC Cover A to the rear of the cabinet using 5 screws.

2. Make all the wiring connections between the two cockpits and the Coin Chute Tower. The wiring connectors are colour coded and cannot be fitted into the wrong size connectors. Do not force any connectors together.

3. Connect the earth wires between the two AC Brkts, the AC Covers and the Coin Chute Tower.

4. Insert the fibre optic cables into the fibre optic connectors. Ensure that the “RX” connection on the 1P cockpit is connected to the “TX” connector on the 2P cockpit. The other fibre optic connects the “TX” connector of the 1P cockpit to the “RX” connector of the 2P cockpit.

5. Insert AC Cover B into AC Cover A from above and secure using 2 screws. Be sure not to trap any cables.

6. Secure AC Cover C and AC Cover D using 4 screws each.

3.7.6. COIN HANDLING INSTALLATION

• Only QUALIFIED SERVICE PERSONNEL should carry out this operation.

When fitting the coin mechanism to the door please refer to the specific manufacturers installation instructions for that coin mechanism. To fit the door to the machine, follow the procedure below.

• Loosen all of the bolts on the frame, which secure the clips.

• Turn all clips in towards the door.

• Position the door into the aperture in the machine.

• Turn the clips around so that they will hold the door in the

machine.

• Tighten all of the bolts.

• Ensure that the door is earthed to the frame and the frame is

earthed to either the VTS bracket or the coin chute tower.

3.7.6.1.WIRING CONNECTIONS.

COIN MECH LOOM INSTALLATION

C220B LM1006IDC

LM1006LAMP-0.1

GENERIC MECHANICALS

MARS MS111B1

MARS ME115

SECI, C120, SR3

LM1008

LM1008-LAMP

LM1007

LM1008-LAMP

OWN LOOM AND LM1006LAMP-0.1

• Attach the lamp holder to the bracket on the coin return button.

• Attach one 15-way connector to the C220 coin mech.

Attach the other 15-way connector to Validator A on the

•

credit board.

• Attach the 2-way connector to ‘LAMP’ on the VTS board.

• Fit the two lamp holders behind the coin return buttons.

Attach the blue cable and orange cable to one mech’s

•

microswitch switch.

• Attach the blue/green cable and orange/green cable to the other mech’s microswitch.

• Attach the 2-way mate and lok plug to the 2-way mate and lok cap provided.

• Attach one 15-way connector to Validator A and the other to Validator B on the credit board

• Fit the lamp holder to the bracket behind the coin return button.

• Fit one of the 13-way connectors to the coin mech.

• Fit the other 13-way connector to Validator A on the

credit board. Note the 13-way connector is keyed and this key must coincide with the key on the credit board.

• Attach the lamp holder to the bracket on the coin return button.

• Attach the 2- connector to ‘LAMP’ on the VTS board.

• Attach the validator’s own loom to position A on the

credit board

VTS credit board assembly

3.7.7. COMMUNICATION CABLES

3.7.8. CONNECTION TO THE POWER SUPPLY

• This operation may only be carried out once the machine has been completely assembled.

Only QUALIFIED SERVICE PERSONNEL should carry out this operation.

•

The AC Unit is located on the rear of the 1P cockpit. Using the power lead supplied connect this to the mains socket at the wall.

1. Turn the mains switch on.

2. Turn the switch on the AC bracket on.

3. Once power is turned on, the fluorescent lamp lights up. The Start System Screen displays after a lapse of several seconds. This is followed by the screen that indicates that the network is currently being checked if the communication mode has been set. If there is a bad or improper communication connection, each screen will not proceed to the next, remaining on the currently Network Check Screen. If this occurs, resolve the error according to the instructions in this document.

4. If the communication mode has not been set or the communication check ends normally, the Motor Check Screen returns. While the Motor Check Screen is on-screen, the steering wheel can move either clockwise or counter clockwise. If you touch the wheel, the motor check is hindered and the game will not operate normally. So, you must not touch it at this time. Failures are displayed, if found. Resolve the errors according to the instructions in this document.

5. Once all the above steps have been completed, the Advertise Screen displays and voices are output through the left and right loudspeakers, unless you have set the machine so that no voices are output during the Advertise mode.

6. This product retains the number of credits and the ranking data even after the power is turned off. It does not retain data about the fractional number of coins (i.e., the number of coins not reaching one credit) or the bonus adder count.

Each Check Screen is followed as below:

Sec HEAD CLEANING, Section 3.9.2.2



3.7.9. ASSEMBLY CHECK

• Only QUALIFIED SERVICE PERSONNEL should carry out this operation.

In the TEST mode ensure the assembly has been made correctly by performing the following checks.

Selecting the RAM test on the test mode menu causes the on -board memory to be tested. The game board is satisfactory if the display beside each IC No. shows GOOD

C.R.T. TEST 1/2

C.R.T TEST

PAGE 1/2

RED

GREEN

BLUE

WHITE

PRESS TEST BUTTON TO CONTINUE

C.R.T. TEST 2/2

In the TEST mode select CRT test to check the screen is satisfactory.

Although the projector has been set up before shipment at the factory check to see if the screen needs adjustment.

PRESS TEST BUTTON TO EXIT

Select SOUND test-to-test sound BD and wiring connections. Check that the sound is satisfactory from each speaker and the speaker volume is appropriate.

INPUT TEST tests the input devices. Using this screen, check the input devices periodically. Operate each input device. If the display at the right of the appropriate device changes from OFF to ON, it is diagnosed as being normal. Check that each of the indications at the right of STEERING, ACCEL, BRAKE and GEAR POSITION change smoothly in response to operations of each of the input devices. Pressing the TEST button returns you to the Game Test Menu Screen.

For the coin switch test, insert a coin into the inlet while the cash door is open.

If the display beside each item shows ON as the input is made, the switches and wiring connections are satisfactory.

• Pressing the SERVICE button moves the arrow. With the arrow aligned with the tested lamp item, press the TEST button.

• If the lamp lights up when the indication at the right of each name is ON and goes out when it is OFF, this lamp and wiring connections are normal.

• By selecting EXIT and pressing the TEST button, you return to the Game Test Menu Screen.

3.7.10.MOVING THE MACHINE

• When moving the machine, be sure to remove the plug from the power supply. Moving the machine with the plug inserted can cause the power cord to be damaged, resulting in a fire or electric shock.

• When moving the machine, retract the leg adjusters fully and ensure the casters make contact with the floor. During movement pay careful attention so that the casters or leg adjusters do not damage any other cabling laid on the floor. Such damage could result in a fire or electric shock.

• Don’t push the cockpit cabinets from the side, as they may topple and cause damage.

• Don’t put excessive pressure on the glass or plastic components as damage or

personal injury may result if there is a breakage.

• Only QUALIFIED SERVICE PERSONNEL should carry out this operation.

Disassemble the cabinet into its components if

transporting up or down step level changes!

Do not push an individual cockpit from the side!

3.8. FUSES

• Never touch places other than those specified. Touching places other than those specified can cause electric shock and short circuit. Disconnect the machine from the supply before attempting the replacement of any fuse.

• Only QUALIFIED SERVICE PERSONNEL should replace FUSES.

There are a number of fuses used on this machine to protect the user and the machine from damage. Only replace the fuse once you have remove the cause of its failure. Detailed below is a list of the fuses used, their location and if relevant PCB reference:

PART NUMBER LOCATION TYPE & DETAILS

514-5078-6300 838-11856CE (F1) 5x20 HRC SB 6300mA 1

514-5078-10000 EP1302 (IEC INLET) 5x20 HRC SB 10000mA 1 (PER MACHINE)

514-5078-4000 400-5397-01 (F1) 5x20 HRC SB 4000mA 1 514-5078-6300 838-13578 5X20 CERAMIC SB 6300MA 1

514-5080-15000 838-14174 (F1) 32x6.35 HRC SB 15000mA 1

514-5078-2500 838-14174 (F2) 5x20 HRC SB 2500mA 1 514-5033-5000 400-5421-07512 (F11) 5x20 Glass T 125v 5 A 1 514-5078-5000 AC BRACKET 5x20 HRC SB 5000mA 1

There are also fuses located on the Monitor PCB. Refer to the relevant Monitor manual supplied to reference these fuses.

QTY PER COCKPIT

3.9. MAINTENANCE

Only Qualified Service Personnel must carry out maintenance.

•

• Ensure that the mains power is switch OFF and disconnected before attempting

any work.

• The CONTROL PANEL ASSEMBLY is heavy and may cause injury or damage

to the machine if dropped. Use an assistant when removing and replacing it.

3.9.1. HANDLE MECHA

The handle mecha unit is housed in the control panel assembly. Follow the procedure below to access the components.

REMOVAL

• Turn the POWER switch OFF

• Remove a total of six M8 tamperproof bolts from both sides of the Control Panel. Have your

assistant support the Control Panel’s weight while you remove the bolts.

6 x M8 BOLTS

• Wiring connectors are connected inside the Control Panel. Carefully withdraw the control panel in a manner so as not to damage the wiring.

• Disconnect the wiring connectors

DISCONNECT CONNECTOR

3.9.1.1.REPLACING AND ADJUSTING THE HANDLE MECHA’S VR

Never touch places other than those specified. Touching places other than

•

those specified can cause electric shock and short circuit.

• After the replacement or adjustment of the V.R. be sure to set the Centre of Steer in the DRIVE BOARD TEST.

In the TEST MODE, if the steering wheel VR variations are not within the allowable limit, the VR installation position may require adjustment or replacement. Also be sure to apply grease every 3 months.

3.9.1.1.1.ADJUSTING THE VR

Remove the CONTROL PANEL as detailed above. Locate the V.R. on the rear surface of the HANDLE MECHA.

• By using a screwdriver loosen the 2 machine screws that secure the V.R. Bracket. Move the V.R. Bracket so as to disengage the gears.

• Gently rotate the VR until its value is within the range of the centring position.

• Mesh the gears together. Make sure that a correct amount of backlash is maintained.

• If the VR value is still not correct make fine adjustments by loosening the 2 machine screws on the VR

gear. Rotate the gear holder until the correct value is obtained.

• The value should be adjusted such that with the steering wheel in the centre position the value read during INPUT TEST shall be 2000H±5H.

3.9.1.1.2.REPLACING THE VR

• Remove the CONTROL PANEL as detailed above. Locate the VR on the rear surface of the HANDLE MECHA

• By using a screwdriver remove the 2 machine screws that secure the VR Bracket. Remove the VR Bracket so as to disengage the gears.

• Loosen the hexagon drive grub screws in the collar and gently slide off the VR

• Reassemble is the reverse procedure of steps 1 and 2 above.

• When complete you must readjust the VR in accordance with the paragraph above.

3.9.1.2.GREASING

• Ensure proprietary SYNTHETIC grease is used. Different types of mineralbased grease may damage plastic parts.

• Apply grease only to specified locations.

Apply grease to meshing portion of gears once every THREE months. Use proprietary synthetic grease.

3.9.2. CARD READER/WRITER UNIT

• Take care to work on the machine with the power turned off. In the powered state, the machine may operate suddenly and can cause fingers to be pinched or cut.

3.9.2.1.SETTING DEDICATED CARDS

• Be sure to use dedicated cards available for this product. Use of ones other than such dedicated cards may cause a malfunction or failure of the machine.

• Be sure to set the specified number of card in the specified orientation by using the specified procedure. Wrong setting of the cards may cause the machine to fail.

• This machine allows you to set up to 100 cards at a time. You must not set over 101 cards at a time. If you do so, a trouble such as card jamming may occur.

• Set virgin cards taken out from a container that was unpacked immediately

When the unit is out of cards, a message will be displayed at the upper right of the screen during advertisements. Follow the instructions below to restock the system with cards. Cards may be stocked when the unit is on or off. After restocking the system with cards, the message displayed after the "SEGA" logo will be updated. Gameplay can be resumed without waiting for the updated message.

Remove the truss screw

A) Unlock and open the cover to find the card reader/writer.

The dispenser on which you should place the cards is located at the rear of the reader/writer.

B) From the card reader/writer, take out the dispenser upward in a straight line.

before use.

• Use of any deformed or deteriorated card may cause a trouble.

• Do not include a corrugated, bent, or used card in the card deck.

C) Remove the cover from the back of the dispenser.

D) Place the cards into the dispenser according to the instructions on the sticker attached to the dispenser.

Refer to the diagram shown on the sticker and insert the cards. Be careful not to insert the cards in the wrong direction or with the wrong side facing up. The Dispenser can only hold 100 cards. Do not attempt to insert more than 100 cards, as too many cards may cause the Dispenser to jam or result in other problems. Insert magnetic cards into the Dispenser in complete packs of 100 or after carefully counting the number of cards (not to exceed 100).

E) Reinstall the cover to the dispenser.

F) Insert the dispenser into the card reader/writer. The dispenser can be inserted only in the

predetermined orientation.

G) Close and lock the cover.

H) Secure with the truss screw

3.9.2.2.HEAD CLEANING

• The unit enters Head Cleaning Mode when any of the following conditions are met:

• At power-up if the Card Reader/Writer has operated 100 times or more

• At power-up if the date has been updated

• At boot time after performing Backup Data Clear

• Once the unit enters Head Cleaning Mode, follow the on-screen instructions and

perform Head Cleaning. The unit will not exit Cleaning Mode (i.e. games may not be played) until head cleaning is complete.

• Always use the designated Cleaning Card. Using anything other than the designated card or carrying out any other procedure other than the one outlined in the manual may cause faulty printing, faulty operation and/or unit failure.

• Cleaning Cards may only be used once. Dispose of them after use.

• Cleaning Cards should be used immediately after removal from the package.

Cleaning Cards will not clean effectively if dried out.

• Perform head cleaning only when there are cards in the Card Reader/Writer Dispenser. If the Dispenser is empty, the part that secures the cards inside the Dispenser may touch the rotating part of the Card Reader/Writer and cause noise.

• Always remember to remove the Cleaning Card after completing head cleaning.

After head cleaning, wait for the "SEGA LOGO" to be displayed at least twice

•

before resuming gameplay.

This machine records the number of times the Card Reader/Writer is used. The Card Reader/Writer writes data to and reads data from cards. Each write and read is counted, so the Card Reader/Writer usage count will not be the same as the number of times the game is played. Once head cleaning of the Card Reader/Writer is complete, the unit will exit this mode. Follow the on-screen instructions to carry out cleaning.

PLEASE INSERT CLEANING CARD

Insert the Cleaning Card into the card slot.

NOW CLEANING...

Indicates that the unit is undergoing cleaning. Wait for cleaning to be completed.

The unit exits to normal mode after cleaning is complete. Do not forget to remove the Cleaning Card. Wait for the "SEGA LOGO" to be displayed at least twice before resuming gameplay after cleaning.

The Card Reader/Writer usage count described above is reset when cleaning is performed. Manual head cleaning may also be performed from Test Mode. Refer to Test Mode Section 5.3.8for more details.

3.9.2.3.CLEARING CARD JAMS

When attempting to perform this operation without powering down so that gameplay can be restored, exercise extreme caution. Machine parts may move unexpectedly when the power is ON. This may result in fingers being caught or severed and other injuries. Verify the Stay Lock on the top cover before attempting this procedure. If the top cover closes during the procedure, it may result in serious injury.

If a problem, such as card jamming, occurs on the card reader/writer it will be reported on the screen. Play cannot proceed unless this problem is resolved. Identify the nature of the problem before any action is taken. If repeated attempts continue to generate errors, follow the instructions below to remove the card. Removing the card may force the game to shut down. If the game shuts down, existing customer game data will not be saved.

A) Remove the truss screw.

B) Unlock and open the cover.

C) Unlock the hatch by drawing the green

shaft attached to the top cover on the card reader/writer. While drawing the shaft, open the cover up.

D) Remove the card jammed in the card

reader/writer.

E) While drawing the shaft,

close the cover. With the top cover closed, release the green shaft. Check that the top cover has been locked securely.

E) Close and lock the cover.

F) Secure with the truss screw.

3.9.3. ACCELERATOR & BRAKE

• Only Qualified Service Personnel must carry out maintenance. Ensure that the mains power is switched OFF and disconnected before attempting any work.

In the TEST MODE, if the brake or accelerator V.R. variations are not within the allowable limit, the V.R. installation position requires adjustment or the V.R. needs replacement. Also be sure to apply grease to all moving parts every 3 months.

3.9.3.1.Removing the Accelerator & Brake.

1. Turn the POWER switch OFF

2. Remove a total of 4 screws securing the covers over the ACCELERATOR & BRAKE

3. Fine adjustment of the V.R. values is accomplished with just these covers removed.

4. Coarse adjustment requires the ACCELERATOR & BRAKE mounting bolts to be removed. If this is necessary, remove the bolts from the unit, but do not remove the unit from the machine. Take extreme care when operating the unit in this condition as damage to other components can occur.

3.9.3.2.Adjusting the V.R.

• Never touch places other than those specified. Touching places other than those specified can cause electric shock and short circuit.

• After the replacement or adjustment of the V.R. be sure to set the values in the INPUT TEST.

The required values are:

GAS PEDAL: Under 30H

BRAKE PEDAL: Under 30H

(THE PEDAL RELEASED)

1. Remove the cover panels as detailed above.

2. Fine Adjustment - By using a screwdriver loosen the 2 machine screws that secure the V.R. arm. Move the V.R. arm to adjust the V.R. value within the relaxed range.

3. Coarse Adjustment - Remove the four hexagon bolts detailed above and remove the side covers of the Accelerator & Brake.

4. Loosen the two machine screws holding the V.R. rack

5. Move the V.R. rack away so as to disengage the V.R.

6. Gently rotate the V.R. until its value is within the range of the centring position.

7. Mesh the gears together. Make sure that a correct amount of backlash is maintained.

8. If the V.R. value is still not correct make fine adjustments as detailed above.

⇒

Over C0H

(THE PEDAL PRESSED)

3.9.3.3.Replacing the V.R.

1. Loosen and withdraw the V.R. rack as detailed above.

2. Using a hexagon key loosen the two grub screws holding the V.R. gear onto the V.R.

3. Remove the V.R. gear

4. Using a spanner remove the nut holding the V.R. in position.

5. Gently remove the V.R. and its wire harness.

6. Refit is the reverse of removal.

7. When complete you must readjust the V.R. in accordance with the paragraph above.

3.9.3.4.Greasing

• Be sure to use a good quality, synthetic lubricant. Using a mineral-based lubricant will cause damage to the plastic parts.

• Do not apply lubricant to parts other than those specified. Doing so may cause damage or deterioration of parts.

Apply lubricant to gear mesh portions once every 3 months.

3.9.4. SHIFT LEVER

In the Test Mode, if the SHIFT LEVER's SW can not be inputted satisfactorily, replace the Switch. Apply greasing to the Mechanism's sliding portion once every 3 months. When performing the above work, remove the Shift Lever Unit.

Before starting to work, ensure that the Power SW is OFF. Failure to

•

observe this can cause electric shock and short circuit hazards.

• Use care so as not to damage wirings. Damaged wiring can cause electric shock and short circuit hazards.

REMOVING THE SHIFT LEVER A) Turn the Power SW off.

B) Remove the 4 Tamperproof Screws to lift

the Shift Lever Unit.

C) Disconnect the Connector to remove the

Shift Lever Unit.

D) When reinstalling, follow the procedure

opposite as when removing. At this time, ensure that "DOWN" display appears on the upper part as shown.

E) After reinstalling, be sure to check INPUT

TEST in the test mode. (TEST.)

SWITCH REPLACEMENT A) Disconnect the wiring Connector of the

Switch to be replaced.

B) Remove the 2 Tapping Screws to replace

the Microswitch.

GREASING Apply greasing once in 3 months to the specified

portions. For spray grease, use NOK KLUBER L 60 or

Grease Mate (Part No. 090-0066).

3.10. REPLACEMENT OF FLUORESCENT LAMP AND OTHER LAMPS

• Prepare a secure step when working on the upper parts of the machine.

• Only QUALIFIED SERVICE PERSONNEL should replace lamps.

3.10.1.FLUORESCENT LAMP REPLACEMENT

1. Turn the POWER switch OFF.

2. Remove the POP if fitted, and remove the Billboard Sash by taking out the three screws, and withdrawn the Billboard Plate.

3. Remove the end caps from the fluorescent tube.

4. Carefully pull the tube out of the clips with a twisting action.

3.10.2.START BUTTON LAMP REPLACEMENT

1. Turn off power.

2. Take out four screws to remove the ASSY START SW from the CONTROL PANEL. Withdraw the

ASSY START SW far enough only to disconnect the block connector of the START button.

3. The lamp (bulb) is on the inner side of the

assembly. Turn the metal locking tag anticlockwise (when viewing the rear of the button) on each button, and remove the lamp housings from the assembly.

4. To remove the lamp, press it down and turn

anticlockwise.

3.10.3.CLEANING THE CABINET SURFACES

When the cabinet surfaces are badly soiled, remove stains with a soft cloth dipped in water or diluted (with water) chemical detergent and squeezed dry. To avoid damaging surface finish, do not use such solvents as thinner, benzine, etc. other than ethyl alcohol, or abrasives, bleaching agent and chemical dustcloth.

3.10.4.SEAT (Greasing to Seat Rail Portion)

Move the Seat to the rearmost position and apply spray greasing to the portion shown at the right once every 3 months by using NOK KLUBER L60 or GREASE MATE SEGA PART No. 090-0066.

After greasing, move the Seat a few times forward and backward so as to allow the grease to be applied all over uniformly. Be sure to wipe grease which attaches to the surfaces of the PROTECT RUBBER on the Seat Rail, or any excess grease.

3.11. TROUBLESHOOTING

• Only QUALIFIED SERVICE PERSONNEL should carry out these procedures.

3.11.1.CARD READER/WRITER

If this machine detects an error during the operation of the Card Reader/Writer, it will display the error messages listed below. Perform the appropriate maintenance based on the content of the error message displayed. Should an error occur, do not attempt to open the top cover of the Card Reader/Writer. The unit will attempt to save the data to the customer's card and restore the game if the top cover is closed and the RESTORE command (hold down the Start button + Change View button for a short time) is used. However, attempting to use the RESTORE command after the top cover has been opened may force the game to shut down and not save data to the card. When the game shuts down or the unit is reset, the data on the customer's card is not saved. In order to save customer data, perform the proper maintenance carefully.

ERROR DISPLAY CAUSE COUNTERMEASURES

Error occurred while reading card. Card will be ejected without saving data. Please press the Start and Change View buttons. Error occurred while saving data. Please notify a store attendant. Please press the Start and Change View buttons.

Printing error. Card will be ejected without printing or saving data. Please press the Start and Change View buttons. A shutter error has occurred. Please remove any cards present in card insertion slot. Please press the Start and Change View buttons.

This card cannot be used. Card will be ejected without saving data. Please press the Start and Change View buttons. Card jam. Ejecting card. Please press the Start and Change View buttons.

This message is displayed after several failed attempts to save data to the card at the end of the game.

This message is displayed after several failed attempts to print at the end of the game.

This message is displayed after several failed attempts to read the card at the end of the game.

This message is displayed when the shutter is forced open or if the unit detects a problem with the shutter.

This message is displayed when the unit is unable to open/close the shutter. This message is displayed when the card in the Card Reader/Writer is not a proper player card at the end of the game.

This message is displayed when various operations fail because of dirty rollers or heads.

Press the Start button and Change View button at the same time to eject the card and end the game.

Leave the card in place and press the Start button and Change View button at the same time to retry the save operation. Remove the card and press the Start button and Change View button at the same time to restore or end the game. If this error occurs several times, use Test Mode to perform manual cleaning. (See Cleaning Section 5.3.8) Press the Start button and Change View button at the same time to eject the card and end the game.

Correct the problem, then press the Start button and Change View button at the same time to restore the game. Circumstance may force the game to shut down. Correct the problem, then press the Start button and Change View button at the same time to restore the game. Press the Start button and Change View button at the same time to eject the card and end the game.

Press the Start button and Change View button at the same time to eject the card and restore the game. If this error occurs several times, use Test Mode to perform manual cleaning. (See Section 5.3.8)

Continued from previous page

ERROR DISPLAY CAUSE COUNTERMEASURES

There is a problem with the card reader/writer. Please notify a store attendant. Please turn off the power and start again. The card reader/writer is not responding. Please notify a store attendant. Check the card reader/writer is connected properly, turn off the power and start again. SCIF Error. Please notify a store attendant. Check that the card reader/writer is connected properly, turn off the power and start again.

Card jam. Remove the card and press the Start and Change View buttons. If the card cannot be removed, please notify a store attendant.

This message is displayed when there is a problem with the Card Reader/Writer and it sends improper signals.

This message is displayed at powerup during advertisements when the Card Reader/Writer is not connected properly or when it is broken and unresponsive.

This message is displayed when a communication error occurs between the Card Reader/Writer and the game board.

This message is displayed when various operations fail because of dirty rollers or heads.

This message is displayed when a card jam is suspected when there should be no card in the Card.

Verify there are no problems with the shutter and that the top cover is closed and then restart the unit. (See 3.9.2)

Verify that the Card Reader/Writer is connected properly and then restart the unit. (See Schematic Section 9.2)

Verify that the Card Reader/Writer is connected properly and then restart the unit. (See Schematic Section 9.2) If this error occurs several times, check the immediate area for sources of possible interference. Leave the card in place and press the Start button and Change View button to retry the operation. Remove the card and press the Start button and Change View button at the same time to restore or end the game (refer to 3.9.2). If this error occurs several times, use Test Mode to perform manual cleaning. (See Section 5.3.8)

Press the Start button and Change View button at the same time after removing the card or correcting the problem to restore the game. (See 3.9.2)

The following error messages are displayed when problems are detected during unit power-up (during initialization of the Card Reader/Writer). Perform the appropriate maintenance based on the content of the error message displayed.

ERROR DISPLAY CAUSE COUNTER MEASURES

CARD R/W ERROR! This message is displayed at

power-up when the Card Reader/Writer is not connected properly or when it is broken and unresponsive.

PLEASE INSERT CLEANING CARD. This message is displayed

when the conditions prompting an automatic Card Reader/Writer cleaning are met.

PLEASE WAIT This message is displayed

during network setup while the other unit is being initialized.

CAN'T EJECT

This message is displayed at power-up when, after attempting to do so, the Card Reader/Writer is unable to eject a card for some reason. This message is displayed at power-up when the shutter cannot be opened/closed properly.

Verify that the Card Reader/Writer is connected properly and then restart the unit. (See Schematic Section 9.2). If broken, contact the company from whom the unit was purchased.

Perform the Card Reader/Writer cleaning. (See Section 3.9.2.2)

This message disappears once initialization of the other network game unit is complete.

Remove all cards from the Card Reader/Writer. (See 3.9.2.)

Verify that there are no problems with the shutter and then restart the unit. If this error occurs several times, contact the company from whom the unit was purchased.

The following messages are displayed when there are limits to the Card Reader/Writer Operation Mode. The messages are displayed in the upper right of the screen during advertisements. The message content is updated after the "SEGA LOGO" is displayed. If the message is not one displayed intentionally by the Operation Mode, perform the appropriate maintenance based on the content of the error message displayed.

ERROR DISPLAY CAUSE COUNTER MEASURES The machine is currently unable to issue new cards. Please see a store attendant to have the machine restocked with cards. Cards may not be used at this time.

The Card Reader/Writer Dispenser is empty (no cards).

Cards may not be used due to the Store Closing setting being activated.

Restock the Dispenser with cards. (See 3.9.2) If no cards are available, contact the company from whom the unit was purchased If there is a mistake in the settings, use Test Mode to change the Store Closing setting. (See Section 5.3.9) (See Schematic, Section 9.2) If the setting is correct, but not operating properly, check the internal clock settings on the game board (Refer to the Service Manual.)

3.11.2.TROUBLESHOOTING (WHEN NO ERROR MESSAGE IS SHOWN)

• In order to prevent electric shock and short circuit, be sure to turn power off before performing work.

• Be careful so as not to damage wirings. Damaged wiring can cause electric shock or short circuit.

• After removing the cause of the functioning of the Circuit Protector, reinstate the Circuit Protector. Depending on the cause of the functioning, using the Circuit Protector as is without removing the cause can cause generation of heat and fire hazard.

• In the event that a problem cannot be resolved by employing the procedures listed in this Manual, be sure to request service from the office shown on this Manual or the dealer from whom the product was originally purchased. Attempts to employ procedures other than those specified in this Manual can cause electrical shock, shorting, or fire.

• In the event of a problem that is not described here, be sure to contact the office shown on this Manual or the dealer from whom the product was originally purchased. Careless attempts at repair can result in electrical shock, shorting, or fire.

If a problem occurs, first check to make sure that the wiring connectors are properly connected.

PROBLEM CAUSE COUNTER MEASURES

When the main SW is turned ON, the machine is not activated.

Fluorescent lamp inside FL box doesn't light up.

The power is not ON. Firmly insert the plug into the outlet. Incorrect power source/voltage. Make sure that the power

supply/voltage are correct. The fuse of the connect board was blown out due to momentary overcurrent.

Connector connection fault. Check connector connections

Fluorescent lamp and Glow lamp need replacement.

After eliminating the cause of

overload, replace the specified rating

fuse.

between the Cabinet and the FL box.

Replace the fluorescent lamp and the

glow lamp (See Section 3.10)

PROBLEM CAUSE COUNTER MEASURES

Sound is not emitted.

Sounds are emitted and the lamps are lit, but the screen is black.

Irregular/uneven colors on the monitor screen.

Colors on the monitor screen are strange.

The on-screen image sways and/or shrinks.

Does not accept input from any switch or volume.

Does not accept input from the Shift Lever.

STEERING (Servomotor) response is incorrect.

Sound volume adjustment is not correct.

Faulty connections for various connectors.

Malfunctioning BD, Amp. and

Adjust the Switch Unit's sound adjustment volume . (See Section 5.1.1)

Check the connections for the game board, amp, speakers and Volume connectors.

Perform SOUND TEST. (See 5.2.3)

Speaker.

Faulty connections for the visual signal connector or the monitor

Check the connections for the monitor and game board connectors.

power connector.

Broken monitor. Contact the company from whom the unit

was purchased.

Magnetization of the CRT. Press the Degauss. switch on the VTS

Assembly (See Section 5.1.1.)

Faulty connection for the visual signal connector.

Check the visual signal connector connection and make sure it is secured properly.

Screen adjustment is not appropriate. Make adjustment appropriately. (See

Monitor Manual)

The power source and voltage are no correct.

Faulty connector connections.

Make sure that the power supply and voltage are correct.

Check the connection for the I/O Board and Cabinet connector.

Check the power for the I/O Board.

Faulty connector connections. Check the connections for the connectors in

the Control Panel and between the Control Panel and the Cabinet.

Broken Microswitch. Replace the Microswitch (MICROSWITCH

509-5704).

Incomplete power on check. Power on and verify that the power on

check completes properly. (See Sections )

Deviation of the volume value. Adjust the volume value in the Test Mode.

Volume gear engagement fault. Adjust the engagement of the gear. (See

Sections 3.9 & 5.3.2)

Volume malfunctioning. Replace the volume. (See 3.9.1.1.)

Detached wires. Check for faulty wire connections around

moving parts. When replacing wires, secure them so that they do not touch any moving parts.

PROBLEM CAUSE COUNTER MEASURES

No response from Steering (Servomotor).

Failure of power-on checking procedure.

Reconnect the power and complete a power-on checking procedure. (See Section 3.7.8)

Faulty connector connections. Check the connections for the connectors

between the Game Board and Servodriver and between the Servodriver and the Servomotor.

Thermal element in the Servodriver is operating.

Occurs when the internal temperature reaches 70°C (158°F) and corrects automatically when the unit cools.

Steering (Servomotor) is week in its force feedback.

Unsatisfactory Accel and Brake operation.

Momentary overload caused a fuse on the Servodriver to blow.

Aging of the force feedback mechanism.

Incorrect volume setting. Adjust the volume value in the Test

Faulty Volume attachment or adjust gear alignment.

Contact the company from whom the unit was purchased.

Reset in the Test Mode. ( See 5.3.4)

Mode. (See 5.3.1.)

Adjust the volume attachment and verify in Test Mode. (See Sections 5.3.2&

3.9.3)

Faulty connector connection. Check the connections for the Accel and

Brake connectors and the connectors between the Accel, Brake and Cabinet.

Failure of the volume. Replace the volume. (See 3.9.3)

Start button and Change View button input does not work and they do not flash.

Start button and Change View button input works, but they do not flash.

Faulty connector connections. Check the connections for the connectors

between the I/O Board, the Cabinet and the Control Panel and those inside the Control Panel.

Unverified settings or operation. The Start button only flashes when Free

Play is set. Check the operation in Test Mode. (See Section 5.3.3)

The lamp is burnt out. Replace the lamp. (See Section 3.10.2)

Failure of the network play.

Network play is wrongly set. Reset correctly. (See Section 3.12.4.1)

Communication cables are wrongly connected.

Reconnect the cables. (See Section

3.7.7)

Communication cables are disconnected.

Damage of communication cables.

Reconnect cables correctly. (See Section

3.7.7) Replace the cables. Contact the company from whom the unit was purchased.

3.12. GAMEBOARD

• Turn off the mains power and remove the power cord before opening the machine.

• The GAME BOARD should not require any work to be carried out upon it. All settings and tests can be achieved without access to the GAME BOARD.

• All work to be carried out by QUALIFIED SERVICE PERSONNEL

3.12.1.REMOVING THE BOARD

To return the game board for servicing, take out the board using the following procedure.

1. Turn the main switch OFF.

2. Unlock the base and remove the 2 M6 bolts.

3. Tip the seat carefully backwards as shown. Be careful not to damage the seat back when resting it on the floor. Use a protective mat under the seat back to protect it on hard floors.

4. Disconnect all connectors from the game board, remove the four screws securing the game board to the wooden base, and lift it out. Do not attempt to service the game board. THERE ARE NO USER SERVICEABLE PARTS INSIDE! Return the game board to the Service Department inside the special packaging provided.

3.12.2.REMOVING THE GD-ROM DRIVE

Remove the GD cable connector and the power cord connector from the GD-ROM drive.

Remove the 4 screws to remove the GD-ROM drive.

3.12.3.REMOVING THE GAME BOARD

A) Remove all the connectors from the filter board on the Game Board. Also remove the GD cable

connector from the DIMM board.

B) Remove the 4 screws that fix the Game Board.

3.12.4.MACHINE SET UP

During linked play, if the test mode is not finished within three minutes on all linked machines, the NETWORK CHECK cannot be performed, causing a NETWORK ERROR.

First, set up each linked machine to meet the requirements of communication play. If the settings are incorrect, communication play is not possible.

3.12.4.1.SETTING FOR COMMUNICATION PLAY

1. Turn all the linked machines on.

2. Enter TEST MODE in all machines.

3. Select SYSTEM ASSIGNMENTS.

4. Perform the COMMUNICATION MODE setting in the SYSTEM ASSIGNMENTS SCREEN. Set one of

the machines to MASTER and to SLAVE. If one machine is intended to be used as a live monitor, set this one to RELAY (although this happens automatically if that machine is not being used).

5. Exit TEST mode on all machines: the NETWORK CHECK screen should be displayed.

6. If the ADVERTISE screen is displayed on completion of the NETWORK, the communication setting is

satisfactory. The NETWORK CHECK normally takes less than one minute. If this is not the case, then recheck settings, connections etc. to determine the cause.

• Perform advertise sound settings on the MASTER seat; SLAVE machine will adopt these settings.

• If, during communication play, the link is interrupted, the game is discontinued and the NETWORK CHECK is displayed.

• If one linked machine enters TEST mode, all others display NETWORK CHECK, hence be careful not to do this while a linked machine is being played.

Be aware that linked machines are different in operation to independent machines. As per the above, the MASTER unit sets some Game Assignments. If these settings are changed on the SLAVE machine, the new settings will be ineffectual.

3.13. PERIODIC CHECK AND INSPECTION

The items listed below require periodic check and maintenance to retain the performance of the machine and ensure safe operation:

• Be sure to check annually to see if the power cords are damaged. The plug is securely inserted and that there is no dust in the interior of the machine or between the socket and the power cord. Using the product in an unclean condition may cause a fire or electric shock.

The items listed below require periodic check and maintenance to retain the performance of this machine and to ensure safe business operation. When handling the controller, the player will be in direct contact with it . In order to always allow the player to enjoy the game, be sure to clean it regularly. Also, it is advisable to provide wet tissue, etc. available for player use.

• Only QUALIFIED SERVICE PERSONNEL should carry out periodic checks.

ITEMS

DESCRIPTION PERIOD

CABINET Check Adjusters' contact with surface. Daily

CARD READER/WRITER Head cleaning Every 151 counts of the card

CONTROL PANEL

COIN CHUTE DOOR

SEAT Greasing to the seat rail Tri-monthly

POWER SUPPLY PLUG Inspection and cleaning Annually

INTERIOR Cleaning As necessary

CABINET SURFACES Cleaning As necessary

Cleaning As necessary

Inspection of VR Monthly

Inspection of adjusting gear mesh Tri-monthly

Greasing Tri-monthly

Inspection of SW Monthly SHIFT LEVER

Greasing Tri-monthly

Inspection of VR Monthly ACCEL. & BRAKE

Gear and Spring portion greasing Tri-monthly

SCREEN cleaning. Weekly MONITOR

Check adjustments. Monthly or when moving.

Inspection of COIN SW Monthly

Coin insertion test Monthly

Cleaning of COIN SELECTOR. Tri-monthly

MEMORY TEST Monthly GAME BD

Check settings. Monthly

reader/writer or Daily

4. HOW TO PLAY

4.1. GAME DESCRIPTION

The following explanations apply to the case the product is functioning satisfactorily. Should there be any moves different from the following contents, some sort of faults may have occurred. Immediately look into the cause of the fault and eliminate the cause thereof to ensure satisfactory operation. When the power is connected, the fluorescent lamp in the FL box is always on. When in an advertising state, the screen displays the demonstration pictures and ranking data. Sounds are heard from the speakers on the right and left of the monitor. The advertising sounds are not heard if you have set this function to off (disabled). The start button and the change view button on the control panel are integrated with a lamp. The start button (lamp) flashes when the coins are inserted enough to play the game.

4.1.1. Game Overview

The game is a car racing game with three different game modes: "Legend of the Streets", "Time Attack" and "The Bunta Challenge!". By connecting two units, you can also enjoy "Network Battle Game" play. The card system allows players to store information such as the car, wins/loss records and car tune-up status on a special card.

4.1.1.1.Legend of the Streets

Game Content & Rules

Battle rival characters man to man on 9 different courses. Each checkpoint you pass adds time to the overall time limit. The first one across the finish line with the allotted time wins. If you run out of time or cross the finish line second, you lose. Once you've defeated all 28 rival characters, you'll get a chance to race against a hidden rival character I and a hidden rival character II (final battle/race). Defeat them and you'll race for the title of street legend against the last hidden rival character (special battle/race). Only when the title is yours will you get to see the ending.

INITIAL D CARD Purchasing a card when you start the game creates your car. The card can store all the data for one car. Information on the card includes the player name, car, tune-up status, names of defeated rival characters, times from Time Attack mode, Network Game records, passwords from Time Attack mode and more. On the Card Screen, the player's name, car name, cleared areas, Key and Speed Demon Level are displayed. The Key is necessary when recording results on the Net Rankings. Speed Demon Level stars increase as various conditions are cleared.

Car Tune Ups Depending on how well you do, points are added to your card when you use it to play in "Legend of the Streets", "Time Attack", "The Bunta Challenge!" and "Network Battle Race" modes. When you've accumulated enough points, you are given the option of using those points to do tune-ups on your car to increase performance.

4.1.2. Game Flow

4.1.2.1.Challenger Accept Screen, Battle Race Select Screen:

When network play is disabled, this screen will not appear. For a 1-player game only, select "Refuse Challengers" or or “Not Ready” (Not enter a Battle Race)..

4.1.2.2.Card Entry Screen and Card Purchase Screen:

Insert your card if you've got one after completing the Card Purchase Screens. If you don't already have a card, you can purchase one.

4.1.2.3.Card Data Check Screen:

Insert your card and you can check the recorded data on this screen.

4.1.2.4.Vehicle Selection Screen:

This screen isn't displayed if you've already purchased a card.

4.1.2.5.Transmission Selection Screen:

Transmission Selection Screen: This screen isn't displayed if you've already purchased a card.

4.1.2.6.Parts Course Selection Screen:

If you're purchasing a card, select one of the Parts courses. These parts are then attached to your car when you accumulate enough points.

Name Entry Screen: If you're purchasing a card, enter your name (driver's name) at the player name input screen.

Mode Select Screen: Select "Legend of the Streets" at the Mode Selection Screen.

Course and Rival Character Selection Screens

Rival Character Scenes

Battle (Race)

Results Screen

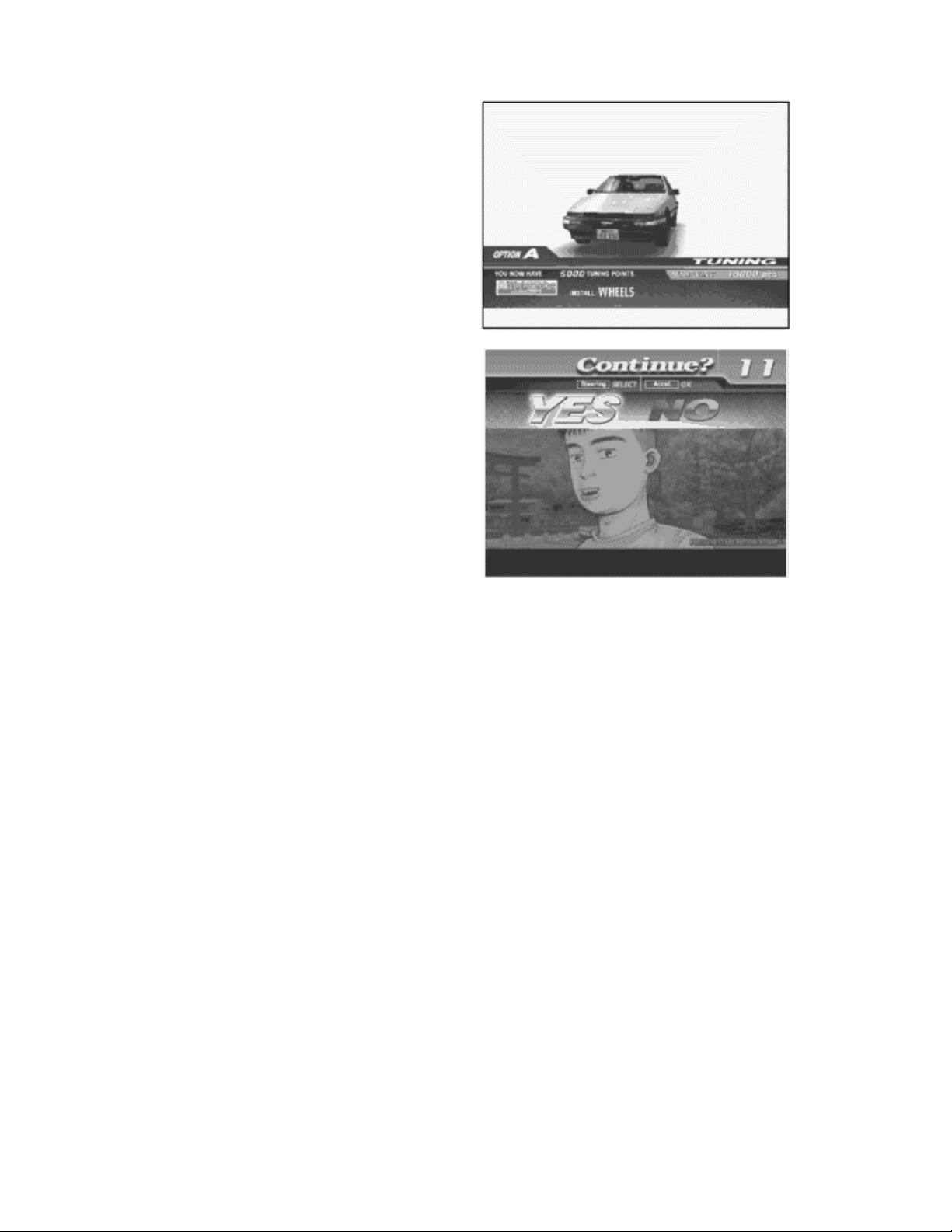

Tune Up Screen: Use your card to play and accumulate points you can put towards performance enhancing tune-ups.

Continue Screen: Choose to continue or quit after rival character scenes. If you select "YES", nothing is recorded to the card and you can continue playing. If you select "NO", your game data is stored on your card and your game ends.

4.1.2.7.Time Attack

Game Content & Rules This is a race against time. The goal is to cross the finish line as quickly as you can. Direction, Time of Day and Weather can be selected for each of the nine courses – note that Happogahara and Akina (Snow) can only be set to Night. Each checkpoint you pass adds time to the overall time limit. When you cross the finish line, a password is displayed. (The password is not displayed when you don't use the card.) You may use this password to participate in the online Internet rankings. In order to register the password, you must have played the game with a card and you'll need to enter the 3 digit number or KEY printed on the front of the card. Your times, when recorded with the Card (tuned car), are displayed in the ranking. The way to accumulate points is to play with a card.

4.1.2.8.The BUNTA Challenge!

Game Content & Rules

Race head-to-head against a single rival, Fujiwara Bunta, on eight different courses: Myogi, Usui, Akagi, Akina (Snow on Level 11), Happogahara, Shomaru and Tsuchisaka. For each course, only Dry or Night conditions may be selected. A Card with saved points is necessary to play. Player must finish ahead within the time limit to win. Finishing behind or over the time limit means the player loses. Beating Bunta earns points and increases the Bunta Level for that course by one. The Bunta Level indicates Bunta's strength; the higher the level the stronger he becomes. Losing reduces the player's points total.

4.1.2.9.Network Battle Race

Game Content & Rules Two vehicles race for victory. When either car passes a checkpoint, remaining race time will be increased. The winner is the car that crosses the finish line first or is occupying first place when time runs out.

A car built on the Card (tuned car) may also be used. When racing with a tuned car, results will be saved on the Card.

Challengers may challenge at any point during the champion side race. Cards may not be purchased during a Network Battle Race.

Before the Race

[Champion Side]

Battle Entry Challenge Request Screen.

When a challenge occurs before the start of the race (during selection phase): If the challenge occurs before the mode selection phase (during Car Selection etc), the Network Battle Race Information Screen is displayed directly before the selection phase. If the challenge occurs after the selection phase, selection is interrupted and the Network Battle Race Information Screen is displayed

When a challenge occurs during the race: The race is interrupted and the Network Battle Race Information Screen is displayed.

Network Battle Race Information Screen The challenger selects the course while the champion waits at the Network Battle Race Information Screen.

[Challenger Side]

Network Battle Race Select Screen This screen asks if a new player wishes to enter a Battle Race. It only appears when a new player first inserts coins and the current player has opted to accept Battle Race challengers.

Card Entry Screen When a Battle Race is established, the Card Entry Screen appears. A Battle can be raced even without a Card. If there is no Card, the game proceeds to the Car Selection and Transmission Selection Screens. The Course Selection Screen then appears. The challenger selects the course.

After the Race

Results Screen After a battle, the Results Screen appears. Depending on the results, the Battle Level will change.

Continue Screen The winning player will receive victory points and will be allowed to continue play. The losing player will go to the Continue Screen.

When the number of victories exceeds the set limit

When a player's total number of victories exceeds the set limit, the player will be taken to the Continue Screen even if they win.

4.1.2.10.Configuration

When a Card is inserted, a number of options may be set. Press the View Change Button at the Card Data Confirmation Screen to go to the Configuration screen. When displaying the configuration Screen, you can select the item by the Shift Lever. After selecting the item, press the Start Button and change the setting by the Steering Wheel. After changing the setting, press the Start Button again to be settled the new settings.

BGM Set race background music options On: Play BGM as normal (Default Setting). Off: Turn BGM off. Fix: Play the melody selected at Song Selection. Will play the same BGM until changed.

Navigation Display Set options for the Navigation Display that appears at the lower left of the Race Screen. On: Show navigation display (Default setting). Off: Do not show navigation display. Paper Cup: A paper cup full of water appears on the navigation display.

Steering Set steering wheel stiffness. 1 to 9: 1 is the loosest. Stiffness increases up to a maximum setting of 9. Default Setting is 5

Time Display Set the Time Display on the Race Screen. Normal: Standard time display. (Default setting) Simple: Simplified time display.

Forced Quit Force end of game during Legend of the Streets and Time Attack play. Off: Disable force quit (Default setting) On: Enable force quit. Press the Start and Change View Buttons simultaneously to end game.

4.1.2.11.Game Over

With "Legend of the Streets", "Time Attack" and "Network Battle Race" play, the Continue Screen appears after each race. If you choose not to continue, the game ends.

4.1.2.12.Transferring Old Card Data

Card data from the previous versions, "Initial D" and "Initial D Ver. 2"may be transferred for use with "Initial D Ver. 3". Not all player data will be transferred to the new Card.

• Transferable Data: Points, car model, player name, customization options, Auto/ Manual transmission setting, number of plays till next inspection (the number of plays remaining on the Card, plus 50, max. 127).

• Non-transferable Data: Tune-up (Tune-up status is returned to default, but transferred points may be used to re-tune the car), times, race results, Legend of the Street status, Key and Speed Demon Level, Network Battle Level, Bunta Level.

1. The player inserts coins to start.

Player inserts Card at the Card Entry Screen.

2. Player inserts credits at the Transfer Card Data Screen.

3. The old Card will be ejected. This Card can no longer be used

4. When the Card Data Transferred message appears, the game will restart. The new Card is for exclusive use with the Initial D Ver. 3, and cannot be used with the previous versions, Initial D and Initial D Ver. 2.

4.1.2.13.Limit on Card Use

Each Card can be used for up to fifty plays, until Car Inspection time is reached. Continued game play after each race is not counted as part of the 50 game limit. Cards may be renewed by transferring data to a new Card (stored points will not be lost). However, if you do not renew your card at the Car Inspection, you will not longer be able to play using the data stored on your card.

4.1.2.14.Car Selections

TOYOTA TRUENO GT-APEX [AE86] LEVIN GT-APEX [AE86] LEVIN SR [AE85] MR2 G-Limited [SW20] MR-S S EDITION [ZZW30] ALTEZZA RS-200 [SXE10] CELICA GT-FOUR [ST205]

NISSAN SKYLINE GT-R [BNR32] SKYLINE GT-R [BNR34] SKYLINE 25GT TURBO [ER34] SILVIA K's [S13] SILVIA Q's [S14] SILVIA K's AERO [S14] SILVIA spec-R [S15] 180SX TYPE X [RPS13] SILEIGHTY [RPS13]

HONDA CIVIC SiR II [EG6] CIVIC TYPE R [EK9] INTEGRA TYPE R [DC2] S2000 [AP1]

MITSUBISHI LANCER GSR EVOLUTION III [CE9A] LANCER RS EVOLUTION IV [CN9A] LANCER RS EVOLUTION V [CP9A] LANCER GSR EVOLUTION VI [CP9A] LANCER GSR EVOLUTION VII [CT9A]

LANCER EVOLUTION WRS [CN9A] LANCER EVOLUITON ZGSR [CT9A]

MAZDA RX-7 Type R [FD3S] RX-7 SPIRIT R Type A [FD3S] RX-7 [FC3S] RX-8 Type S [SE3P] ROADSTER S Special [NA6CE] ROADSTER RS [NB8C]

SUBARU IMPREZA WRX STi Version VI [GC8] IMPREZA WRX STi [GDB] IMPREZA WRX Type R STi Version V [GC8]

SUZUKI Cappuccino [EA11R]

4.1.2.15.Race Courses

Easy: Myogi, Circular Course/3 laps, Clockwise & Counter-clockwise,

Day & Night, Dry & Wet

Normal: Usui, Circular Course/2 laps, Clockwise & Counter-clockwise,

Day & Night, Dry & Wet

Hard: Akagi, Single road, Uphill & Downhill, Day & Night, Dry & Wet

Hard: Akina, Single road, Uphill & Downhill, Day & Night, Dry & Wet

Expert: Irohazaka, Single road, Downhill/Reverse, Day & Night, Dry & Wet

Expert: Akina (Snow),Single road, Uphill & Downhill, Night

Expert: Happogahara, Single road, Outbound & Inbound,Night, Dry & Wet

Expert: Shomaru, Single road, Outbound & Inbound, Day & Night, Dry & Wet

Expert: Tsuchisaka, Single road, Outbound & Inbound, Day & Night, Dry & Wet

4.1.2.16.Legend of the Streets Rival Characters

IGGY LEVIN SR [AE85] KENJI LEVIN SR [AE85] SHINGO CIVIC SRi [EG6]

TORU KAWAI MAYA&SIMONE

TWO GUYS FROM TOKYO DANNY K. T.

COLE ZACK KYLE RY TAK BUNTA

HAWK KYLE CAINE

MIKI

DICE SMILEY TOUCH

NOBU SID AKI

KYLIE RY Man in Evo V Man in Evo VI K. T. TAK

EASY (MYOGI)

NORMAL (USUI)

ROADSTER S Special [NA6CE] SKYLINE 25GT TURBO [ER34] SILEIGHTY [RPS13]

HARD (AKAGI)

SILVIA spec-R [S15] SILVIA Q's [S14] RX-7 Type R [FD3S]

HARD (AKINA)

SILVIA K's [S13] SKYLINE GT-R V-spec II [BNR32] LANCER GSR EVOLUTION III [CE9A] RX-7 •‡III [FC3S] TRUENO GT-APEX [AE86] IMPREZA WRX R STi Version V [GC8]

EXPERT (IROHAZAKA)

LANCER RS EVOLUTION IV [CN9A] LANCER GSR EVOLUTION III [CE9A] MR2 G-Limited [SW20]

EXPERT (AKINA SNOW)

CELICA GT-FOUR [ST205]

EXPERT (HAPPOGAHARA)

CIVIC TYPE R [EK9] INTEGRA TYPE R [DC2] CIVIC TYPE R [EK9]

EXPERT (SHOMARU)

ALTEZZA RS-200 [SXE10] CAPPUCCINO [EA11R] LEVIN GT-APEX [AE86]

EXPERT (

TSUCHISAKA)

RX-7 Type R [FD3S] RX-7 [FC3S] LANCER RS EVOLUTION V [CP9A] LANCER GSR EVOLUTION VI [CP9A] RX-7 Type R [FD3S] TRUENO GT-APEX [AE86]

5. MAINTENANCE INSTRUCTIONS

5.1. EXPLANATION OF TEST AND DATA DISPLAY

Use the switches on the VTS to enter the TEST MODE. This will allow you to carry out post installation and periodic checks and adjustments. The following section details the function of each of the tests:

• Be very careful about entering TEST MODE. If the machine you wish to test is linked to other machines, exiting test on your machine will cause a network check

ITEM DESCRIPTION / REFERENCE INTERVAL

to be carried out. This will disable all other machines linked to it.

INSTALLATION OF THE MACHINE

MEMORY On the TEST MENU screen choosing the MEMORY TEST allows self

PERIODIC CHECKS

CONTROL SYSTEM

MONITOR In the CRT TEST mode, check to ensure the monitor is adjusted

IC BOARD MEMORY TEST

DATA CHECK Check such data as held in the bookkeeping screens, relating to

EXTERIOR MAINTENANCE

COIN MECHANISM

When the machine is installed perform the following checks:

Check to see that each setting is as per the standard settings input at the time of shipment.

In the INPUT TEST mode, check each switch and VR. Section 5.3.2

In the OUTPUT TEST mode, check each of the lamps. Section 5.3.3

In the MEMORY TEST mode check all of the IC’s on the IC BD. Section 5.2.1

test to be performed. In this test RAM & ROM are tested.

Periodically perform the following

MEMORY TEST. Section 5.2.1.

Ascertain each setting:

In the INPUT TEST mode, test the control devices. Section 5.3.2

In the OUTPUT TEST mode, check each of the lamps. Section 5.3.3

In the INPUT TEST mode, check each switch and VR. Section 5.3.2

Adjust or replace each switch and VR. Section 3.9

correctly. Section 5.2.4

Clean screen (switch off machine and remove the plug)

In the SOUND TEST mode, check the sound related ROMs. 5.2.3

number and length of plays. Section 5.4

Clean surfaces

Lubricate seat sliders

Check switch operation (if fitted) Monthly

Monthly

Weekly

Monthly

5.1.1. VTS ASSEMBLY

• Do not touch places other than those specified. Touching places not specified could cause an electric shock or short circuit.

Opening the Coin Chute door will reveal the VTS Assembly shown above. The function of each switch is as follows. The controls on the left affect the 1P cockpit, those on the right the 2P

TEST BUTTON

(TEST SW)

SERVICE BUTTON

(SERVICE SW)

DEMAG Demagnetises (degausses) the CRT to remove

VOLUME MAIN Adjusts the volume of the left and right main

VOLUME WOOFER Adjusts the volume of the woofer.

Used to enter TEST mode. Also has function during TEST mode. Refer to the later section detailing TEST mode.

Gives credits without registering on the coin counter. Also used during TEST mode.

colour unevenness.

speakers.

5.2. SYSTEM TEST MODE

• The contents of settings changed in the TEST mode are stored when the test mode is finished from EXIT in the menu mode. If the power is turned off before the TEST mode is finished, the contents of setting change become ineffective.

• Executing "BACKUP DATA CLEAR" in the SYSTEM TEST MODE does not clear the BOOKKEEPING data in the GAME TEST mode.

• Entering the TEST mode clears fractional number of coins less than one credit

In the SYSTEM TEST MODE, IC BD functioning can be checked, the monitor adjusted, and the coin setting performed. Refer to NAOMI NETWORK SYSTEM SERIVCE MANUAL for the details. Note that the setting of the following items need to be performed in accordance with the instruction given.

The SEQUENCE SETTING items of COIN/CREDIT SETTING are as follows.

SEQUENCE SETTING SEQUENCE 1: Number of credits required for starting the game. SEQUENCE 2: Number of credits required for continuing the play. SEQUENCE 3: Number of credits required for dedicated CARD purchase. SEQUENCE 4 -8: NOT USED

and BONUS ADDER data.

• Perform setting as per specified in this manual for operation. If setting not specified is performed for operation, proper function of this product may not be obtained.

CABINET TYPE : 1 PLAYER(S) MONITOR TYPE : HORIZONTAL SERVICE TYPE : COMMON COIN CHUTE TYPE : COMMON NETWORK TYPE : NONE

Press the TEST BUTTON to bring up the screen shown to the left. Press the SERVICE BUTTON to move downwards through the list. The arrow shows the current selection. Press the TEST BUTTON to activate the selected test. To finish TEST MODE, move the arrow to EXIT and press the TEST.

5.2.1. RAM TEST

5.2.2. JVS TEST

The memory test mode is for automatically checking the on-board memory IC functioning. “GOOD” is displayed for normal IC’s and “BAD “ for abnormal IC’s

• When the test is completed, if the results are as shown on the left then the Game Board is satisfactory.

The test should take approximately thirty

•

seconds to complete. If the test exceeds this time the board may have malfunctioned.

• After finishing the test press the TEST BUTTON or START BUTTON to exit.

• In this test, functioning of the I/O Board connected to the Game Board is displayed, and INPUT TEST can be performed. Select EXIT to return to the MENU screen, or select INPUT TEST to display the second screen.

Select EXIT to return to the MENU screen.

5.2.3. SOUND TEST

Select the sound test to check the status of the amplifiers, soundboards, and speakers.

Press the SERVICE button or view change button to move the arrow to the desired test item.

Press TEST button to output the sound.

• Select the sound source with SERVICE.

• On pressing TEST, the test sound is emitted

from the selected source.

Select EXIT to return to MENU screen.

5.2.4. C.R.T TEST

C.R.T. TEST 1/2

C.R.T TEST

PAGE 1/2

RED

Selecting CRT test allows the projector adjustment to be checked for colour and distortion.

Press the test or start button to have the second CRT test screen appear.

GREEN

BLUE

WHITE

PRESS TEST BUTTON TO CONTINUE

C.R.T. TEST 2/2

PRESS TEST BUTTON TO EXIT

5.2.5. SYSTEM ASSIGNMENTS

Allows system options to be set. Select required setting with SERVICE button, confirm with TEST button. Default settings are indicated in parentheses.

• CABINET TYPE specifies Control Panel and number of Coin Chutes. The number of players displayed in BOOKKEEPING varies in accordance with the value displayed here. (

• ADVERTISE SOUND allows the sound emission to be turned (ON) or OFF during ADVERTISE MODE.

• MONITOR TYPE changes the orientation of the image on the screen (

• SERVICE TYPE sets the functioning of the SERVICE button, should several SERVICE buttons exist.

INDIVIDUAL: Service credit is applied to the machine on which the SERVICE button is pressed.

(

COMMON

): Service credit is applied to all machines when SERVICE button is pressed.

1PLAYER

HORIZONTAL

)

5.2.5.1.COIN ASSIGNMENTS

Select the coin assignments mode to set the coin to credit ratios.

This can be any of the pre-set values or can be done manually.

5.2.5.2.COIN/CREDIT SETTING (COIN CHUTE COMMON TYPE)

SETTING SETTING #1 1 COIN 1 CREDIT 1 COIN 1 CREDIT SETTING #2 1 COIN 2 CREDITS 1 COIN 1 CREDIT SETTING #3 1 COIN 3 CREDIT 1 COIN 1 CREDIT SETTING #4 1 COIN 4 CREDITS 1 COIN 1 CREDIT SETTING #5 1 COIN 5 CREDITS 1 COIN 1 CREDIT SETTING #6 1 COIN 2 CREDITS 1 COIN 2 CREDITS SETTING #7 1 COIN 5 CREDITS 1 COIN 2 CREDITS SETTING #8 1 COIN 3 CREDITS 1 COIN 3 CREDITS SETTING #9 1 COIN 4 CREDITS 1 COIN 4 CREDITS SETTING #10 1 COIN 5 CREDITS 1 COIN 5 CREDITS SETTING #11 1 COIN 6 CREDITS 1 COIN 6 CREDITS SETTING #12 2 COINS 1 CREDIT 2 COINS 1 CREDIT SETTING #13 1 COIN 1 CREDIT 2 COINS 1 CREDIT SETTING #14 1 COIN 2 CREDITS 2 COINS 1 CREDIT SETTING #15 1 COIN

SETTING #16 1 COIN 3 CREDITS 1 COIN

SETTING #17 3 COINS 1 CREDIT 3 COINS 1 CREDIT SETTING #18 4 COINS 1 CREDIT 4 COINS 1 CREDIT SETTING #19 1 COIN

SETTING #20 1 COIN 5 CREDITS 1 COIN

SETTING #21 5 COINS 1 CREDIT 5 COINS 1 CREDIT SETTING #22 1 COIN 2 CREDITS 3 COINS

SETTING #23 2 COINS

SETTING #24 1 COIN 3 CREDITS 2 COINS

SETTING #25 1 COIN

SETTING #26 1 COIN 6 CREDITS 1 COIN

SETTING #27 FREE PLAY FREE PLAY

FUNCTIONING OF COIN CHUTE #1 FUNCTIONING OF COIN CHUTE #2

2 COINS

2 COINS 3 COINS 4 COINS

4 COINS 5 COINS

2 COINS 3 COINS 4 COINS 5 COINS

1 CREDIT 3 CREDITS

1 CREDIT 2 CREDITS 3 CREDITS 5 CREDITS

1 CREDIT 2 CREDITS 3 CREDITS

1 CREDIT 2 CREDITS 3 CREDITS 4 CREDITS 6 CREDITS

1 COIN 2 COINS

2 COINS

1 COIN 2 COINS 3 COINS 4 COINS

2 COINS 3 COINS 4 COINS

5 COINS 2 COINS 4 COINS 5 COINS

4 COINS 5 COINS 1 COIN 2 COINS 3 COINS 4 COINS 5 COINS

2 COINS 3 COINS 4 COINS 5 COINS

1 CREDIT 3 CREDITS 1 CREDIT 3 CREDITS

1 CREDIT 2 CREDITS 3 CREDITS 5 CREDITS 1 CREDIT 2 CREDITS 3 CREDITS 5 CREDITS

1 CREDIT 2 CREDITS 1 CREDIT 2 CREDITS 3 CREDITS 1 CREDIT 2 CREDITS 3 CREDITS 1 CREDIT 2 CREDITS 3 CREDITS 4 CREDITS 6 CREDITS 1 CREDIT 2 CREDITS 3 CREDITS 4 CREDITS 6 CREDITS

5.2.5.3.COIN/CREDIT SETTING (COIN CHUTE INDIVIDUAL TYPE)

SETTING SETTING #1 1 COIN 1 CREDIT SETTING #6 1 COIN 2 CREDITS SETTING #8 1 COIN 3 CREDITS SETTING #9 1 COIN 4 CREDITS SETTING #10 1 COIN 5 CREDITS SETTING #11 1 COIN 6 CREDITS SETTING #12 2 COINS 1 CREDIT SETTING #15 1 COIN

SETTING #17 3 COINS 1 CREDIT SETTING #18 4 COINS 1 CREDIT SETTING #19 1 COIN

SETTING #21 5 COINS 1 CREDIT SETTING #22 3 COINS

SETTING #23 2 COINS

SETTING #25 1 COIN

SETTING #27 FREE PLAY

FUNCTIONING OF COIN CHUTE #1

1 CREDIT

2 COINS

2 COINS 3 COINS 4 COINS

5 COINS

4 COINS 5 COINS

2 COINS 3 COINS 4 COINS 5 COINS

3 CREDITS

1 CREDIT 2 CREDITS 3 CREDITS 5 CREDITS

1 CREDITS 2 CREDITS 1 CREDIT 2 CREDITS 3 CREDITS 1 CREDIT 2 CREDITS 3 CREDITS 4 CREDITS 6 CREDITS

MANUAL SETTING

5.2.5.4.MANUAL SETTING

Select manual setting to manually set the coin to credit ratios.

The available combinations are detailed below.

COIN TO CREDIT 1 COIN 1 CREDIT 2 COINS 1 CREDIT 3 COINS 1 CREDIT 4 COINS 1 CREDIT 5 COINS 1 CREDIT 6 COINS 1 CREDIT 7 COINS 1 CREDIT 8 COINS 1 CREDIT 9 COINS 1 CREDIT

BONUS ADDER NO BONUS ADDER 2 COINS GIVE 1 EXTRA COIN 3 COINS GIVE 1 EXTRA COIN 4 COINS GIVE 1 EXTRA COIN 5 COINS GIVE 1 EXTRA COIN 6 COINS GIVE 1 EXTRA COIN 7 COINS GIVE 1 EXTRA COIN 8 COINS GIVE 1 EXTRA COIN 9 COINS GIVE 1 EXTRA COIN

COIN CHUTE MULTIPLIER 1 COIN COUNTS AS 1 COIN 1 COIN COUNTS AS 2 COINS 1 COIN COUNTS AS 3 COINS 1 COIN COUNTS AS 4 COINS 1 COIN COUNTS AS 5 COINS 1 COIN COUNTS AS 6 COINS 1 COIN COUNTS AS 7 COINS 1 COIN COUNTS AS 8 COINS 1 COIN COUNTS AS 9 COINS

5.2.5.5.SEQUENCE SETTING

Selecting SEQUENCE SETTING allows the number of credits required to start the game to be set. Each sequence can be set between 1 and 5. Select EXIT to return to the first screen.

5.2.5.6. BOOKKEEPING

This mode consists of 2 pages that allow the data relating to credit and game play time to be checked.

In page 1 mode press SERVICE to proceed to page 2, in page 2 mode press TEST to return to the test menu.

• Total time is displayed as XXH XXM XXS and no date will be displayed after exceeding 24 hours.

• The displays for number of coin and number of service vary depending on the CABINET TYPE set in SYSTEM ASSIGNMENTS. Number of credit displays 1 if COIN CHUTE TYPE is set to COMMON in COIN ASSIGNMENTS. If COIN CHUTE TYPE is set to INDIVIDUAL, the applicable number in CABINET TYPE setting will be displayed.

• On the second screen, each sequence displays the frequency of functioning.

5.2.5.7.BACKUP DATA CLEAR

Clears the contents of bookkeeping. When clearing, bring the arrow to “YES (CLEAR)” and press the test button. When the data has been cleared “COMPLETED” will be displayed. Bring the arrow to “NO (CANCEL)” and press the test button to return to the menu mode.

Note that this does not clear the contents of BOOKKEEPING in GAME TEST MODE. For this, use the BACKUP DATA CLEAR in GAME TEST MODE.

5.2.5.8.ROM BD TEST

In this test, Game Board ROM is checked. If GOOD is displayed, it is satisfactory. The IC number, TYPE, BYTE and WORD refer to the checksum of each unit. Press TEST to exit.

On above screen, IC35 and IC36 (program ROMs) do not display GOOD or BAD. Press TEST Button to EXIT.

5.2.5.9. CLOCK SETTING

YEAR, MONTH, DAY, HOUR and MINUTE are set for SEGA NAOMI BOARD. Select the desired item with SERVICE button and press TEST to increase the value. Select EXIT to return to MENU mode.

5.3. GAME TEST MODE

• When changing the game configuration, changes will not take effect until the Game Test Mode has been completed. Be sure to exit the Game Test Mode properly after configuration changes.

• Do not configure the game in ways not described in this text. It is possible that the game will not function properly.

5.3.1. GAME TEST MENU MODE

Select GAME TEST MODE from the System Menu screen to display the Game Test Menu screen.

Use the SERVICE Button to move the cursor to the desired test item. Press the TEST Button to enter the selected item.

After making changes, be sure to select EXIT and press the TEST Button in order to enable the new settings.

Move the cursor to EXIT and press the TEST Button to return to the System Menu screen.

5.3.2. INPUT TEST

Select INPUT TEST to display the following screen and check the status of input devices. This test should be used periodically to check that each input device is functioning correctly.

Test the STEERING, ACCEL and BRAKE controls to ensure that they are functioning properly and that the parameters change smoothly as each input device is operated.

Display N, UP and DOWN using the GEAR POSITION. N should display there is no control input. Verify that both UP and DOWN display in sync with the position of the shift knob.

Press the START, CHANGE VIEW, SERVICE and TEST Buttons. If functioning correctly, each indicator will switch from OFF to ON.

Press the SERVICE and TEST Buttons simultaneously to return to the Game Test Menu screen.

5.3.3. OUTPUT TEST

Select OUTPUT TEST to display the following screen and check the status of each lamp. This test should be used periodically to check that the lamps are functioning correctly.

The cursor toggles automatically between START Button and CHANGE VIEW Button, and each lamp lights up.

Press the TEST Button to return to the Game Test Menu screen.

5.3.4. FORCE FEEDBACK

• If you select FORCE FEEDBACK, the STEERING will rotate automatically when you press the TEST Button. The STEERING will also rotate automatically during FORCE TEST. Make sure that no one is touching the STEERING before running these tests as contact may cause injury.

When you select "FORCE FEEDBACK", a connection test runs and the STEERING rotates. When the connection check completes, a screen similar to the one below is displayed, and you may adjust the STEERING resistance.

FORCE: Set the STEERING resistance

The smaller the value, the weaker the resistance; the larger the value, the stronger the

resistance. (Minimum value is 0; the maximum value is 10. The default setting is 4.) Move the cursor to UP or DOWN and press the TEST Button to change the value.

FORCE TEST: Verifies the STEERING motor is working properly

Conducted when the STEERING resistance is set at 4.

Toggle between OFF and ON by aligning to CENTRE and pressing the TEST Button. The STEERING will rotate and stop in the centre position. Pressing the SERVICE Button moves the cursor to the next menu item and CENTRE changes to OFF. Control of the STEERING is then released. When the RIGHT menu item is ON, the STEERING rotates to the right as far as possible and then stops. Press the SERVICE Button again to turn it OFF and release control of the STEERING. When the LEFT menu item is ON, the STEERING rotates to the left as far as possible and then stops. Press the SERVICE Button again to turn it OFF and release control of the STEERING.

Move the cursor to EXIT and press the TEST Button to return to the Game Test Menu screen.

5.3.5. INPUT ASSIGNMENTS

Select INPUT ASSIGNMENTS to display the following screen.

You can adjust each of the menu items by moving the cursor to the menu item and pressing the TEST Button. Return all settings to the default settings with DEFAULT SETTING.

STEERING: Make adjustments to STEERING Press the TEST Button to display the following screen.

Centre the STEERING. When the "0" displayed is not exactly aligned with the "^" mark above CENTRE, use the cursor to select RIGHT or LEFT and move the "0" until it is displayed directly above the "^" mark. Move the cursor to RIGHT and press the TEST Button to move the "0" to the right. Each time you press the TEST Button, "0" moves slightly to the right. Move the cursor to LEFT and press the TEST Button to move the "0" to the left. Each time you press the TEST Button, "0" moves slightly to the left.

Move the cursor to EXIT and press the TEST Button to return to the INPUT ASSIGNMENTS screen.

ACCEL: Make adjustments to ACCEL Press the TEST Button to display the following screen.

Adjust the distance between "0" displayed and the "^" mark equally so that when your foot is off the ACCEL pedal, the "0" on the left is aligns with the "^" above MIN and when you press the ACCEL pedal down all the way, the "0" on the right is aligns with the "^" mark above MAX.

Move the cursor to RIGHT and press the TEST Button to move "0" to the right. Each press of the TEST Button moves "0" slightly to the right.

Move the cursor to LEFT and press the TEST Button to move "0" to the left. Each press of the TEST Button moves "0" slightly to the left.

Move the cursor to EXIT and press the TEST Button to return to the INPUT ASSIGNMENTS screen.

BRAKE: Make adjustments to BRAKE Press the TEST Button to display the following screen.

Adjust the distance between "0" displayed and the "^" mark equally so that when your foot is off the BRAKE pedal, the "0" on the left is aligns with the "^" above MIN and when you press the BRAKE pedal down all the way, the "0" on the right is aligns with the "^" mark above MAX.

Move the cursor to RIGHT and press the TEST Button to move "0" to the right. Each press of the TEST Button moves "0" slightly to the right.

Move the cursor to LEFT and press the TEST Button to move "0" to the left. Each press of the TEST Button moves "0" slightly to the left.

Move the cursor to EXIT and press the TEST Button to return to the INPUT ASSIGNMENTS screen.

5.3.6. GAME ASSIGNMENTS

Select GAME ASSIGNMENTS to display the current game settings and make changes.

The GAME DIFFICULTY and CONTINUE menu items can be set only when the SEAT NUMBER is set to either 1 or NO DEFINED. The MAX WIN STREAK menu item can be set only when the SEAT NUMBER is set to 1.

GAME DIFFICULTY:

DEFAULT VIEW: Set the view perspective at the start of races

SEAT NUMBER: Assign seat numbers to seats in each arcade unit for network play

CARD R/W: Set to ON if using the Card Reader/Writer.

CONTINUE: Enable/Disable Continue function.

MAX WIN STREAK: Set maximum possible wins in the Battle Race game

INFINITY: Play continues without inserting new coins as long as the

Changes to settings are not enabled until Test Mode is exited.

Set the level of difficulty for the game You may select one of 5 different levels of difficulty: VERY EASY, EASY, NORMAL, HARD or VERY HARD. This setting does not affect the speed of rivals in "Legend of the Streets" mode.

You may select one of the following 2 settings: DRIVER view or REAR view.

If you have two arcade units side by side, make sure you assign different seat numbers; the seat on the left would be 1 and the one on the right would be 2. If the unit will not be used for network play, set the SEAT NUMBER to NO DEFINED. You may select one of the following 3 settings: 1, 2 or NO DEFINED.

Set to OFF when not using the Card Reader/Writer.

ON: Enables Continue for Legend of the Street Time Attack and Network Battle Race games. OFF: Disable Continue.

1/3/5/10/20/30: Causes the continue screen to appear when the number of wins exceeds the indicated limit.

player continues to win.

After changing settings, be sure to exit Test Mode. After changing the settings, select EXIT and press the TEST Button to return to the Game Test Menu screen.

5.3.7. CARD R/W TEST

• Clean the card reader/writer periodically.

Test the functionality of or clean the CARD R/W (read/writer). The CARD R/W should be tested and cleaned periodically.

The cursor can move to the following items:

INITIALIZE: Initialisation

CLEANING: Cleaning

CHECK R/W: R/W Operation Check

Move the cursor to EXIT and press the TEST Button to return to the Game Test Menu screen.

Depending on the R/W running mode, one of the following is displayed in "*****" in "CARD R/W STATUS: “*****":

READY.….….. Now waiting (Clear to Send Command)

INITIAL ……… Now initializing (Not Clear to Send Command)

CLEAN ……… Now cleaning (Not Clear to Send Command)

GET………….. Cards are being taken out from the dispenser (Not Clear to Send Command)

SAVE………… Sample data is saved onto the card (Not Clear to Send Command)

PRINT……….. Sample data is printed onto the card (Not Clear to Send Command)

LOAD………… Load card data and compares it with sample data (Not Clear to Send Command)

OUT………….. Eject cards (Not Clear to Send Command)

SHUTTER…… Now closing/opening the shutter (Not Clear to Send Command)

ERROR………. Error (Clear to Initialize Command Only)

While a status with a note of "Not Clear to Send Command " in parentheses is on-screen, no operations are accepted. If such a status has occurred, wait until the operation in that status stops automatically and the display comes to READY.

Occasionally, the "INFORMATION" field on the screen outputs one of the instructions below.

It usually displays nothing (blank), although it displays NO ERROR when each item is completed normally.

While cleaning is in progress, waiting in the ready mode for inserting a cleaning card:

--PLEASE INSERT CLEANING CARD –

After the operation check, waiting for the ready mode for ejecting the card:

-- PLEASE REMOVE –

When an error occurs, its type are displayed in the "INFORMATION" field:

NO ERROR………………… Normal Completion

CAN'T LOAD………………. Loading Error

CAN'T SAVE……………….. Writing Error

DRAW CARD ERROR…….. Error in Taking Card from dispenser

CARD STUFFED………….. Card Jamming

SHUTTER ERROR………… Shutter Error

WRONG DATA…………….. Data Error, Dispenser Card Empty

CONNECTION ERROR…… Connection Error

SCIF ERROR RC-232C…… Communication Error

UNKNOWN EROR………… Unknown Error

The "---" field in "CHECK R/W : ---" shows the result of the operation check.

---……………... Not Checked

OK …………… No Failure

NG……………. Failure

5.3.8. CLEANING PROCESS

Cleaning refers to the optional cleaning of the heads on the CARD R/W.

Refer to Head Cleaning for details on the use of the cleaning card.

A. If the CARD R/W is not initialised, it will be initialised first. :INITIALIZE is displayed.

B. The following message appears to show that the R/W is ready for insertion of the cleaning card:

C. Insert the cleaning card into the R/W.

D. Once cleaning ends after a lapse of a certain time, the R/W automatically ejects the card.

TESTING FUNCTIONALITY

The operation check takes out each card from the dispenser, and writes the sample data onto it. The check then loads and reads it, and checks whether the read data matches the sample data. Then, the check ejects the card. When you draw out the card at this time, the entire process of the check is completed. The functionality test uses 1 card from the dispenser.

Select "CHECK R/W" and press the TEST button.

R/W operates automatically as follows:

A If the CARD R/W is not initialised, it will be initialised first. :INITIALIZE is displayed.

B Close the shutter: SHUTTER is displayed.

C Takes out the card from the dispenser: GET is displayed.

D Saves the sample data onto the card: SAVE is displayed.

E Print the sample data onto the card: PRINT is displayed.

F Loads the data on the card for comparison with the sample data: LOAD is displayed.

G Open the shutter: SHUTTER is displayed.

H Ejects the card: OUT is displayed.

I Draws out the card. Now the entire process of the check is completed.

If execution of the operation check results in display of NG, check the error condition. If you can take action against the error, execute the operation check again after you take the proper action. If you cannot take action against the error, repeat the check several times. If the result of the check is still NG, clean the R/W. If the subsequent execution of the operation check still results in NG, the R/W may be faulty. If an error occurs, it is cleared by executing the INITIALIZE command.

Note that, when an error has occurred, the R/W only accepts this command (except EXIT).

Select "CLEANING" and press the TEST Button.

-- PLEASE INSERT CLEANING CARD –

On the screen, the status display is replaced with "CLEAN", and cleaning begins.

The status display changes from "CLEAN" to "READY." NO ERROR is displayed on the screen.

5.3.9. CLOSE SETTING

Select CLOSE SETTING to display the following screen. Change the setting for the time when the store closes. The game will be unusable for card play starting 15 minutes before the time you set until 6:00 AM the next morning. Before the store closing time, be sure to pay attention to the players with the card.

You can set SCHEDULE TYPE to DAY, WEEK or OFF. Press the TEST Button to select the item. (The unit is shipped with SCHEDULE TYPE set to OFF.)

Move the cursor to SETTING and press the TEST Button to display the appropriate time setting screen.

DAY: Set the daily store closing time. This time setting will be used every day

Set the daily store closing time. When you press the SERVICE Button, the "hour" display will begin to flash. Press the TEST Button to select any hour from "19" to "26". Press the SERVICE Button again to accept the "hour" selection. Once accepted, the "minute" display will then begin to flash. Press the TEST Button to select one of the following "minute" options: "00, 15, 30, 45". Press the SERVICE Button again to accept the "minute" selection. When complete, move the cursor to EXIT. If you press the SERVICE Button when the cursor is next to EXIT, the "hour" display will begin to flash again indicating that you can change the settings. Move the cursor to EXIT and press the TEST Button to return to the CLOSE SETTING screen.

WEEK: Set a different store close time for each day of the week

Set the store closing time for each day of the week. When you press the SERVICE Button, the "hour" display will begin to flash. Press the TEST Button to select any hour from "19" to "26".

Press the SERVICE Button again to accept the "hour" selection. Once accepted, the "minute" display will then begin to flash. Press the TEST Button to select one of the following "minute" options: "00, 15, 30, 45". Press the SERVICE Button again to accept the "minute" selection. Once accepted, the "hour" display for the next day of the week will begin to flash. Set the "hour" and "minute" settings in the same fashion as described above.

When you have completed setting the time for SAT, move the cursor to EXIT. If you press the SERVICE Button when the cursor is next to EXIT, the "hour" display for SUN will begin to flash again indicating that you can change the settings.

Move the cursor to EXIT and press the TEST Button to return to the CLOSE SETTING screen. OFF: Do not set any store closing times. Other SETTING items are not displayed

5.4. BOOKKEEPING

Select BOOKKEEPING to display the following screens of operating status data. Each time the TEST Button is pressed, the ensuing page appears. Pressing the TEST Button while the 5/5 page is displayed causes the Game Test Menu to return on the screen.

Press the TEST Button to move to screen 3/7 of BOOKKEEPING.

GAME/LEGEND OF THE STREETS: Displays the number of times each rival character was selected in "Legend of the Street" mode. "MYOGI-1" refers to the first rival in MYOGI who is IGGY. Press the TEST Button to move to screen 4/7 of BOOKKEEPING.

GAME/TIME ATTACK: Displays the number of times each course was selected in TIME ATTACK mode GAME/NETWORK GAME: Displays the number of times each course was selected in NETWORK GAME (VERSUS) mode

Press the TEST Button to move to screen 5/7 of BOOKKEEPING

GAME/BUNTA CHALLENGE: Displays number of times each course has been selected for the Bunta Challenge. TRANSMISSION SELECT: Displays the number of times each TRANSMISSION was selected in all game modes.

Press the TEST Button to move to screen 6/7 of BOOKKEEPING.

Press the TEST Button to move to screen 7/7 of BOOKKEEPING.

CAR SELECT: Displays the number of times each car was selected Move the cursor to EXIT and press the TEST Button to return to the Game Test Menu screen.
