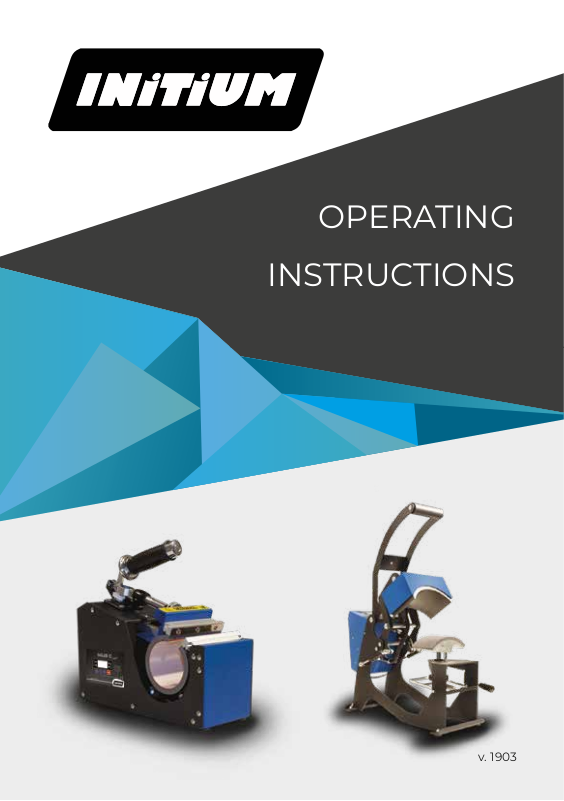

OPERATING
INSTRUCTIONS
v. 1903
1
P R E PA RIN G T O W ORK
Co nnec t t h e press to a suitable mains elec t r icit y s upply and ensu re t h a t
the wo r k a r ea is c lear of obstruc tions.
When th e pr ess is s w i t c h ed on, th e main display will re ad - In P while
the unit i niti alises an d perfo r ms som e int e r n a l checks. T h e - In P d i s play will, after some seco n d s h ave elapsed, chan ge t o t h e number - 4 0 0
while the units inte r n a l checks continued. Th e unit w ill then display
the cur rent a c tual plat en t emper atur e in degr ees c enti g rade / Celsiu s
on the m a i n display, a n d th e target or most recently s et t emp e r a tur e
on the green auxiliar y d i splay for e xample - 1 6 5 You c a n n ow use t h e
blue set button to access one of two input m o d es. T h ese m ode s a
which is con c e r n ed w ith the temperature rel a t e d fun c tion of t h e press
and th e sec o n d mode of operation i s - S T which i s c o n c erned w ith t i m e
settin g. T i m e an d temp erature can b e a d justed using t h e up and dow n
arrow keys which are co l our ed o r a n ge and a r e l o c a ted next to t h e blu e
set button on the c o ntr o l c onso le. The b l ue button can be p r e sse d r e peatedly to cycle between the t wo m o d es ab ove a n d t he operat ion a l
mode whic h display s th e cur r ent platen temperature as m e asu r e d in
degrees centigrade / Celsius for example – 1 4 0 . The - In P v alue must b e
setup to 2 0 .
SET TIN G TE M P ERA T URE P RESSURE AND TIME
re - SP
Successful o
ture. Cons ult th e data sh eet f or y our tr ansf er m a terial and experi m ent
to get the resul t y ou’r e l o oking fo r .
I N U S E
1.Lift th e pr ess h a n dle a n d place the item you want to print u pon t h e
rubber mat with th e tr ansf er m edium, c olour side down a n d c o rrect l y
position e d upon th e item. Pressure is a matter of som e e xpe r i mentation
using t h e press bolt identified in th e illustr ation b elo w. T i m i n g is again
a mater of experi m ent ation usin g th e unit’ s ti m er. An a u dible alar m
rings w h en t h e set time is elapsed and th e c y c l e s ta r ts au to m a t i cally
when th e h a n dle is lowered.
2. A f t er t he required tim e is elapsed, left th e h a ndle and r e m o v e t h e
printed i tem.
2
peration is a combination of time, pressu r e a n d temp e ra-
TROUBLESHOUTING
ISSUES SOLUTIONS
No display on power-up Check mains connection and fuses
Lubrication is needed
S P E CIFIC ATION AND S A F E T Y NO TICE
Voltage requirement AC 220-240V / 50Hz
Power 300W
Temperature range 0 - 250 °C
Time control 0 - 999 seconds
Boxed dimensions 530 x 630 x 370 mm
Weight 13 kg
Voltage requirement AC 220-240V / 50Hz
Power 300W
Temperature range 0 - 250 °C
Time control 0 - 999 seconds
Boxed dimensions 310 x 250 x 380 mm
Weight 8 kg
3
CONTROL DISPL AY
All press ope r ation c o n c e rning time an d t emper a tur e a r e s et using t h e
control pad. Pressure setting are m e c h anic al an d are set usin g t h e
press bo l t i dentified in the following illustrations.
MODE Selector
SP displayed, tempera ture adjust m ent
ST displayed, time adjustm ent
UP Selector
Increase t h e v alue (tim e or temperature depen d i n g
on the MODE selec ted)
DOWN Selector
Decrease the value (tim e or temperature d e p e nding
on the MODE selec ted)
4
I C A P E P RES S
HANDLE
HEATING A REA
WORK ING PLAT E
<
<
<
<
TIME AND TEMP CLOCK
<
ELECTRIC SWITCH
<
CONNECTOR
5
IMUG C P RESS
<
HANDLE
<
PRESSURE ADJUST
<
CONTROL DISPLAY
<
HEATING M A T
HANDLE
ELECTRIC SWITCH
CONNECTOR
6
<
<
<
TRAN SPO R T SCRE W
You mus t r e m ov e th e transpor t screw before s ta r t i ng t h e m achin e f o r
the fi r st tim e. This is only a v ailable on th e iC AP E p ress.
The screw m a int a i n th e arm to t h e
elctrom agn eti c sy stem for trans port security r easo ns.
Just unscrew it w hile y o u m aintain
the arm i n c l osi ng pos itio n .
Do no t loose t h e screw, y o u
may n eed i t in c ase of tr a nsporti n g again th e machine .
After removin g th e scr e w , just
release t h e ar m sm oothly .
Ready to work .
7
by
HE AT TR ANS FER TECH NOL OGIES
Email
sales@sefa.f r
support@sefa.f r
www.sefa.f r
8
Phone
Office : + 33 468 740 589
Fax : +33 468 742 408
Address
SEFA SAS
Z.I. PASTABRAC
11 260 ESPERAZA
