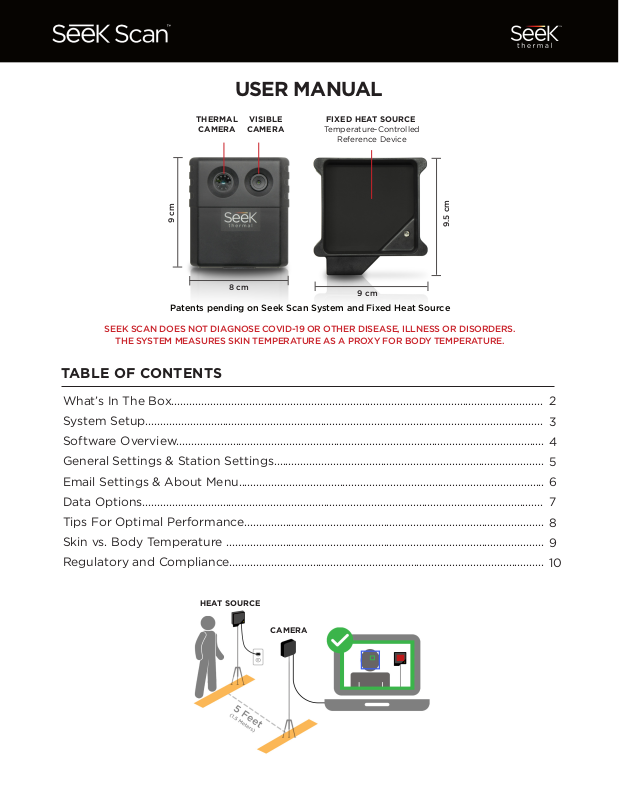

Seek Scan User Manual

USER MANUAL

CAMERA

9 cm

Patents pending on Seek Scan System and Fixed Heat Source

SEEK SCAN DOES NOT DIAGNOSE COVID-19 OR OTHER DISEASE, ILLNESS OR DISORDERS.

THE SYSTEM MEASURES SKIN TEMPERATURE AS A PROXY FOR BODY TEMPERATURE.

VISIBLE

CAMERA

8 cm

FIXED HEAT SOURCETHERMAL

Temperature-Controlled

Reference Device

9.5 cm

9 cm

TABLE OF CONTENTS

What’s In The Box.............................................................................................................................

2

System Setup......................................................................................................................................

Software Overview............................................................................................................................

General Settings & Station Settings...........................................................................................

Email Settings & About Menu.......................................................................................................

Data Options.......................................................................................................................................

Tips For Optimal Performance.....................................................................................................

Skin vs. Body Temperature ...........................................................................................................

Regulatory and Compliance..........................................................................................................

HEAT SOURCE

CAMERA

3

4

5

6

7

8

9

10

WHAT’S IN THE BOX

Camera Fixed Heat Source

Quick Start Guide Warranty

Removable for
international
power plugs

Camera

USB-A Cable

USB Stick with

Seek Scan Software

Fixed Heat Source

Power Cable

2.

SYSTEM SETUP

Connect USB stick to PC or tablet and follow

1. 2.

instructions to install Seek Scan software.

Set tripod heights to 5 feet (1.5 m).

3. 4.

Tripods not included.

Place two pieces of tape 5 feet (1.5 m) apart.

Position is critical to system performance.

Heat source automatically turns on once
plugged in. Ready when light stops blinking.

Attach camera to tripod and connect cable to

5. 6.

PC or tablet. Software must be already installed.

3.

Heat source and subject should be NO
FURTHER than 5 feet (1.5 m) from the camera.
