UM2039
User Manual
World smallest Time-of-Flight ranging and gesture detection sensor
Application Programming Interface
Introduction
VL53L0X is a ranging and gesture detection sensor.
The purpose of this User Manual is to describe the Application Programming Interface
(API), and the calibration procedures from a user perspective.
The API is a turnkey solution. It consists of a set of C functions which enables fast
development of end user applications, without the complication of direct multiple register
access. The API is structured in a way that it can be compiled on any kind of platform
through a well isolated platform layer.
The API package allows the user to take full benefit of VL53L0X capabilities
Figure 1. VL53L0X ranging sensor module
References
1. VL53L0X Datasheet (DS11555)
June 2016 DocID029105 Rev 1 1/26
www.st.com
26
Contents UM2039
Contents
1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2 Initial customer manufacturing calibration . . . . . . . . . . . . . . . . . . . . . . . 5
2.1 Data init . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.2 Static Init . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.3 Reference SPADs calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.3.1 Reference SPADs calibration procedure . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.4 Ref (temperature) calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.4.1 Ref calibration procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.5 Offset calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.5.1 Offset calibration procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.6 Cross-talk calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.6.1 Cover window impact on ranging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.6.2 Cross-talk calibration distance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.6.3 Cross-talk calibration procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3 Range profile phases . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.1 Initialization/calibration phase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.2 Ranging phase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4 System initialization/calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4.1 Data init . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4.2 Static Init . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4.3 Load calibration data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4.3.1 Reference SPADs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4.3.2 Ref calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4.3.3 Offset calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4.3.4 Cross-talk correction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4.4 Device mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4.5 Polling and interrupt mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5 Ranging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5.1 Start a measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2/26 DocID029105 Rev 1
UM2039 Contents
5.1.1 Start measurement only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5.1.2 Start measurement and wait for data ready . . . . . . . . . . . . . . . . . . . . . . 15
5.1.3 Start measurement, wait for data ready and report the data . . . . . . . . . 15
5.2 Stop a measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5.3 Get a result . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5.3.1 Host polling to get the result status . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5.3.2 Get measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
6 API useful additional functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
6.1 Overall timing budget . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
6.2 Limit settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
6.3 Timed ranging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
6.4 API versions and product revision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
6.5 API state and API error . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
6.6 I2C device address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
6.7 Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
6.8 Interrupt settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
7 Example API range profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
7.1 High accuracy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
7.2 Long range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
7.3 High speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
8 Acronyms and abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
9 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
DocID029105 Rev 1 3/26
26
Overview UM2039
1 Overview
VL53L0X API is based on Photonic Abstraction Layer (PAL) specification. API is defined as
the implementation of the PAL.
The API exposes high level functions to be used by the customer application to control the
device.
Note: Full API documentation is available, as part of the API package, in chm and pdf formats.
4/26 DocID029105 Rev 1
UM2039 Initial customer manufacturing calibration
StaticInit
DataInit
Key
Host call s API
funct ion
Host action
Target
need ed
* : Ti mings ar e given fo r infor mation o nly, they can var y
depending on the Host capabilities
Cali brat ion
Data result
Calibration
data
Calibration
data
Calibration
data
Calibration
data
Device
initialization
SPADs
calibration
Temperature
calibration
Offset
calibration
CrossTalk
calibration
~40ms*
~10ms*
~40ms*
~300ms*
~1sec*
Cali brat ion
data - Host
2 Initial customer manufacturing calibration
There is an initial, once only, calibration step required that should be applied at customer
level during the manufacturing process. This flow takes into account all parameters (cover
glass, temperature & voltage) from the application.
The customer manufacturing calibration flow is described in Figure 2 below.
Figure 2. Customer manufacturing calibration flow
The following sections detail the API function calls required to perform the initial system
calibration.
2.1 Data init
VL53L0X_DataInit() function is called one time, and it performs the device initialization.
To be called once and only once after device is brought out of reset.
DocID029105 Rev 1 5/26
26
Initial customer manufacturing calibration UM2039
2.2 Static Init
VL53L0X_StaticInit() function allows to load device settings specific for a given use
case.
2.3 Reference SPADs calibration
In order to optimize the dynamic of the system, the reference SPADs have to be calibrated.
This step is performed on the bare modules during Final Module Test at STMicroelectronics,
and the calibration data (SPAD numbers and type) are stored into the device NVM.
In case a cover glass is used on top of VL53L0X, the reference SPADs have to be recalibrated by the customer.
Reference SPAD calibration needs to be done only once during the initial manufacturing
calibration, calibration data should then be stored on the Host.
When calibration is performed and calibration data is available on the Host, the data can be
loaded without re-performing the calibration.
These functions can be called after VL53L0X_StaticInit(). It has to be done before Ref
Calibration, VL53L0X_PerformRefCalibration().
2.3.1 Reference SPADs calibration procedure
No particular conditions have to be used. The calibration does not require specific target or
lighting conditions.
The following procedure has to be performed:
• Call VL53L0X_PerformRefSpadManagement()
– This function outputs the number and type of reference SPADs to be used.
– At the end of this function, the reference SPADs number and type is programmed
in the device.
• Host has to store these 2 values. See Section 4.3.1 for loading calibration data from
Host.
Note: If a highly reflective target is covering the VL53L0X module during reference SPAD
calibration, too much signal will be received on the reference array and the calibration may
fail, reporting a ‘-50’ status code. In this case, user has to remove the target away from
device
2.4 Ref (temperature) calibration
Ref calibration is the calibration of two parameters (VHV and phase cal) which are
temperature dependent. These two parameters are used to set the device sensitivity.
Ref calibration allows the adjustment of the device sensitivity when temperature varies.
Ref calibration must be performed during initial manufacturing calibration, it should be
performed again when temperature varies more than 8degC compared to the initial
calibration temperature.
If temperature does not vary, the ref calibration data can be loaded without re-performing
the calibration procedure.
6/26 DocID029105 Rev 1
UM2039 Initial customer manufacturing calibration
2.4.1 Ref calibration procedure
User has two options:
1. Perform the calibration after VL53L0X_PerformRefSPADManagement,by calling
VL53L0X_PerformRefCalibration().
2. If user wants to improve the boot time, they can load only the calibration parameters
after VL53L0X_PerformRefSPADManagement by using
VL53L0X_SetRefCalibration(). This assumes that user has previously
performed a calibration and stored the two parameters in the Host memory. See
Section 4.3.2.
There is no specific setup needed to perform ref calibration. It has only to be done before
offset and cross-talk calibrations, after Reference SPADs management and before the first
ranging is performed.
2.5 Offset calibration
Range offset is performed during Final Module Test at STMicroelectronics, and the offset is
stored into the device NVM.
For some cases, it can appear that the value programmed in the NVM is not correct. This
can happen when the customer is using a cover window. In this case, ranging can be
affected by an offset, due to the cover window and so the customer should perform a new
offset calibration on its manufacturing line.
2.5.1 Offset calibration procedure
• Recommendation is to use a white (88%reflectance) target at 100mm, in a dark
environment. Target distance can be changed depending on customer’s constraints,
but it has to be chosen in the linear part of the ranging curve.
• Both Reference SPADs and Ref calibrations have to be performed before calling offset
calibration.
• A dedicated API function has to be called to compute the offset:
VL53L0X_PerformOffsetCalibration().
• The output of this function is the offset calibration value, in micrometers.
• Offset calibration value has to be stored into Host memory. See Section 4.3.3 for
loading calibration data from Host.
2.6 Cross-talk calibration
This section presents the effect of the cover window on ranging, and proposes a method for
cross-talk calibration.
2.6.1 Cover window impact on ranging
The ranging performance is dependent on the quality of the cover window. Figure 3 shows
the cover window impact on ranging with low, medium and high cross-talk.
The ideal curve (with no cover window) is the green dotted line.
DocID029105 Rev 1 7/26
26
Initial customer manufacturing calibration UM2039

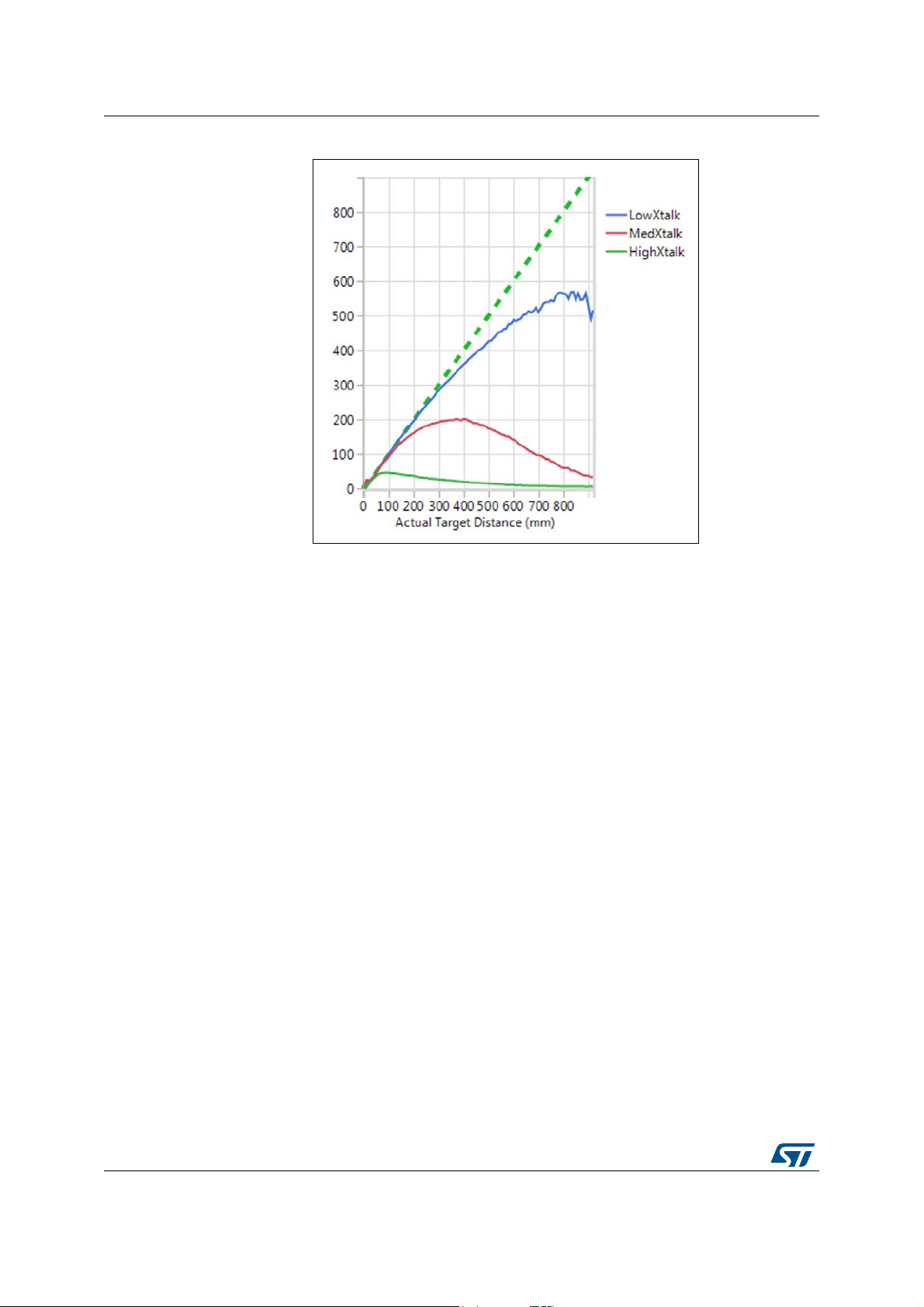

Figure 3. Cover window impact on ranging
The cross-talk correction is basically a weighted gain applied to the ranging data, based on
a calibration result.
Correcting low cross-talk is easier than correcting high cross-talk.
2.6.2 Cross-talk calibration distance
The calibration distance is dependent on the quality of the cover window. Low cross-talk or
high cross-talk calibration cannot be performed at the same distance.
The starting point of the valid distance to perform cross-talk calibration is when the actual
signal starts to deviate from the ideal curve.
If the cross-talk calibration is performed in the linear area of the ranging curve, the
correction factor will be too low, and the correction will have almost no effect.
The valid distance ends when the signal is starting to be too low (ranging distance starting to
decrease).
Figure 4: Cross-talk calibration valid distances gives an example of exclusion areas where
the cross-talk correction should not be performed.
In this figure, the valid distance for cross-talk calibration is from point A to point B.
8/26 DocID029105 Rev 1
UM2039 Initial customer manufacturing calibration
Figure 4. Cross-talk calibration valid distances
2.6.3 Cross-talk calibration procedure
The following procedure has to be performed:
• Perform Offset calibration, refer to Section 2.5: Offset calibration
• Choose the calibration distance, based on a ranging with cover window to be used, as
described in Section 2.6.2: Cross-talk calibration distance.
• Use a grey 17% reflectance target.
• Call the API calibration function: VL53L0X_PerformXTalkCalibration().
• The input of this function is the calibration distance in millimeters.
• The output is the cross-talk factor. This has to be stored on Host memory.
• The function applies and enables the cross-talk correction.
• Store the cross-talk factor on the Host memory. See Section 4.3.4 for loading
calibration data from Host.
Note: The API function VL53L0X_PerformXTalkCalibration() performs several
measurements, means and computation. Nothing has to be done on the Host side, except
calling this function, all is performed by the API.
DocID029105 Rev 1 9/26
26
Range profile phases UM2039
3 Range profile phases
This section describes the 3 phases that are required to perform the first range
measurement after reset, using the VL53L0X.
There are 3 phases:
• Initialization & load calibration data
• Ranging
• Digital housekeeping - see Section 6.2: Limit settings.
3.1 Initialization/calibration phase
The initialization/calibration flow is described in Figure 5: Initialization flow on page 11.
All initialization functions are defined in Section 4: System initialization/calibration on
page 13.
initialization/calibration phase should be run only after reset or system/setup change.
3.2 Ranging phase
The ranging flow is described in Figure 6: VL53L0X API ranging flow on page 12.
The first range measurement (after reset) has to be preceded by an initialization and
calibration flow.
Basic functions used in the ranging flow are described in Section 5: Ranging on page 15.
10/26 DocID029105 Rev 1
UM2039 Range profile phases
Static Init
DataInit
Key
Host call s API
funct ion
Host action
RANGING
Addi tion al or
Optional Settings
SetDeviceMode
SetGPIO
* : Timings are given for information only, they
can vary depending on the Host capabilities
Cali brat ion
data - Host
Calibration
data
Calibration
Data
Calibration
data
Calibration
data
Device
initialization
Calibration data
loading
~40ms*
System settings
~1ms*
~1ms*
Figure 5. Initialization flow
DocID029105 Rev 1 11/26
26
Range profile phases UM2039
GetRangingMeasurementD
ata
GetMeasuremenDataRead
y
GetRangingMeasurementD
ata
Interrupt received
GetRangingMeasureme
nData
Interrupt cleared
GetRangingMeasurementD
ata
Interrupt received
GetRangingMeasurementD
ata
Interrupt cl eared
Key
Host calls API
fu ncti on
Host action
GetMeasuremenDataR eady
GetStopCompletedStatus
GetRangingMeasurementD
ata
CONTINUOUS /
SINGLE
CONTINUOUS & TIMED SINGLE
1- StartSingleMeas
2- WaitDataReady
(on Ranging Status)
3- GetValue
HOST / API
Data
POLLING / INTERRUPTPOLLING
HOST POLLING
API POLLING
API POLLING
INTERRUPT
1- StartSingleMeas
2- WaitDataReady
(on Ranging Status)
Data
StartSingleRanging
HOST POLLING
Data
StartSingleMeas
Data
INTERRUPT
POLLING
Data
StartContinuous
Data
Polling/interrupt
End
CONT INUE
End
CONT INUE
StartContinuous
Data result
API internal actio n
HOST POLLING
HOST POLLING
Clear in terrupt
Data

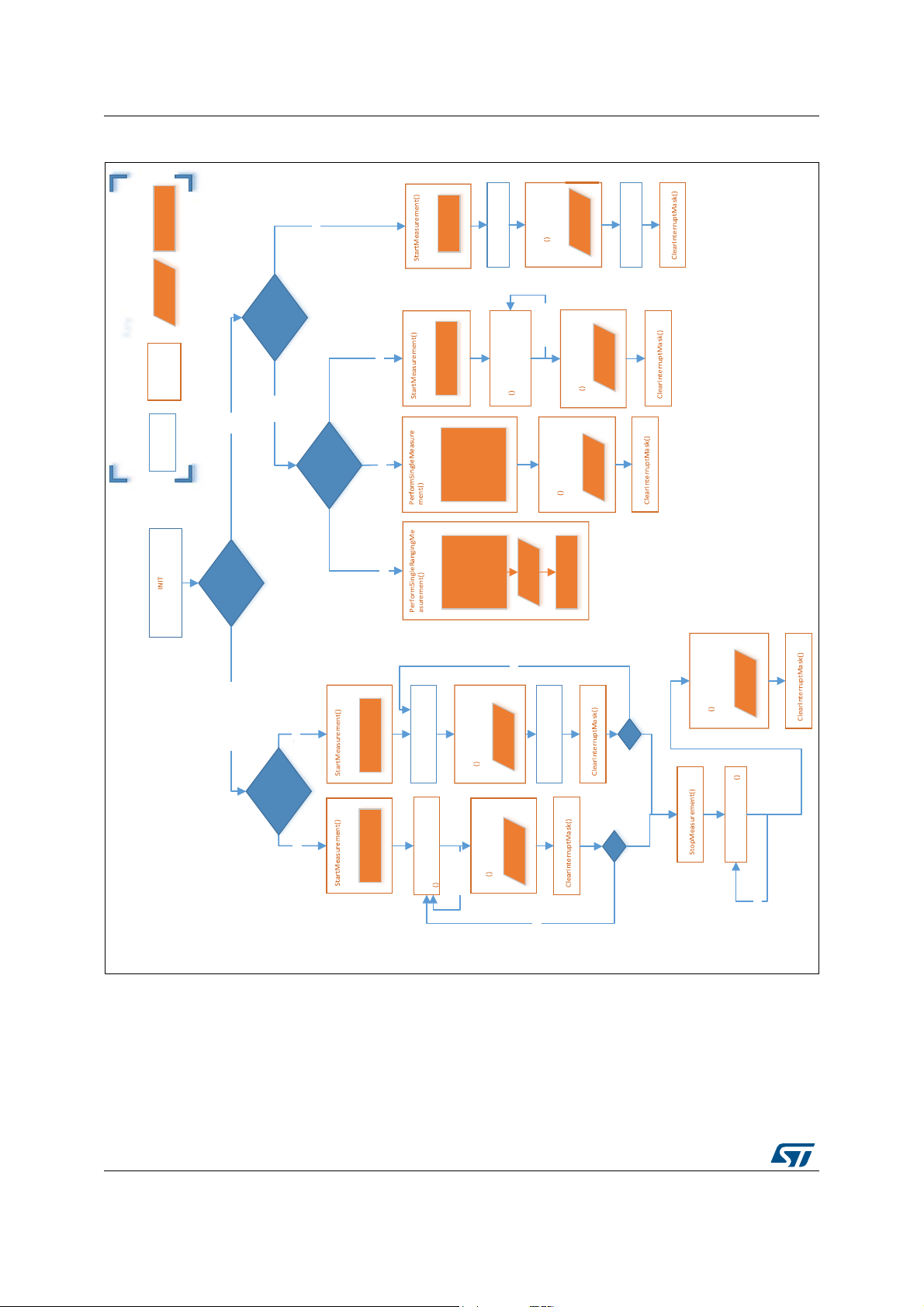

Figure 6. VL53L0X API ranging flow
INT
G
12/26 DocID029105 Rev 1
UM2039 System initialization/calibration
4 System initialization/calibration
The following section shows the API function calls required to perform the system
initialization, before starting the first range measurement after reset.
4.1 Data init
VL53L0X_DataInit() function is called one time, and it performs the device initialization.
To be called once and only once after device is brought out of reset.
4.2 Static Init
VL53L0X_StaticInit() function allows to load device settings specific for a given use
case.
4.3 Load calibration data
4.3.1 Reference SPADs
VL53L0X_SetReferenceSpads() and VL53L0X_GetReferenceSpads() can be used
to set/get the number and type of reference SPADs.
If the calibration has not been performed (using
VL53L0X_PerformRefSpadManagement()), or if the Host has not programmed the
number and type of SPADs (using VL53L0X_SetReferenceSpads()),
VL53L0X_GetReferenceSpads() will return the number and type of reference SPADs
programmed into the device NVM.
4.3.2 Ref calibration
Load calibration parameters by using VL53L0X_SetRefCalibration(). This assumes
that user has previously performed a calibration and stored the two parameters in the Host
memory.
4.3.3 Offset calibration
Host has to load the offset calibration data at each startup of the device.
The offset value expressed in micrometers has to be set in the device using API function:
VL53L0X_SetOffsetCalibrationDataMicroMeter()
4.3.4 Cross-talk correction
In a standard usage, the Host will have to program the cross-talk correction factor and
enable the cross-talk correction.
The correction factor is the result of the calibration and has to be stored in the Host.
DocID029105 Rev 1 13/26
26
System initialization/calibration UM2039
Cross-talk correction value can be set using the API function
VL53L0X_SetXTalkCompensationRateMegaCps(), and is enabled using
VL53L0X_SetXTalkCompensationEnable().
4.4 Device mode
VL53L0X_SetDeviceMode() selects one of the following modes of operation:
• Single Ranging
• Continuous Ranging
• Continuous Timed Ranging
VL53L0X_GetDeviceMode()is used to know which mode is actually programmed.
These modes are described in the VL53L0X datasheet.
4.5 Polling and interrupt mode
Once a measurement is ready, the Host either receives an interrupt or poll on a
measurement status.
VL53L0X_SetGPIOConfig() function configures the system interrupt mode.
Interrupt options and modes of operation are described in a Section 5: Ranging.
14/26 DocID029105 Rev 1
UM2039 Ranging
5 Ranging
5.1 Start a measurement
The API allows to get a measurement in different ways, depending on the user
requirements:
• Start measurement only
• Start measurement and wait for data ready
• Start measurement, wait for data ready and report the data
5.1.1 Start measurement only
VL53L0X_StartMeasurement() function must be called to start a measurement. The
device will start a measurement using the chosen mode (single or continuous)
5.1.2 Start measurement and wait for data ready
VL53L0X_PerformSingleMeasurement() function starts a measurement and waits for
data ready, by polling on the ranging status or on the interrupt status.
The 2 following API functions are called internally:
•
VL53L0X_StartMeasurement()
•
VL53L0X_GetMeasurementDataReady()
5.1.3 Start measurement, wait for data ready and report the data
VL53L0X_PerformSingleRangingMeasurement() function starts a measurement,
waits for data ready (by polling on the ranging status or on the interrupt status) and reports
the data. This function also clears the interrupt after the measurement.
The 3 following API functions are called internally:
•
VL53L0X_PerformSingleMeasurement()
•
VL53L0X_GetRangingMeasurementData()
•
VL53L0X_ClearInterruptMask()
5.2 Stop a measurement
In continuous mode, Host can stop the measurement by calling
VL53L0X_StopMeasurement() function.
If the stop request occurs during a range measurement, then the measurement is
completed before stopping. If it occurs during the inter-measurement period then the stop
command takes immediate effect.
If the user wants to call an additional API function after the stop command (for example ref
temperature calibration if required - see Section 2.4), they have to ensure that the current
ranging measurement is finished first.
Therefore it is recommended to call VL53L0X_GetStopCompletedStatus() and poll
this function to ensure that the ranging measurement is completed, before calling additional
API functions.
DocID029105 Rev 1 15/26
26
Ranging UM2039
5.3 Get a result
5.3.1 Host polling to get the result status
VL53L0X_GetMeasurementDataReady() function allows the Host to get a status on the
ongoing measurement.
5.3.2 Get measurement
VL53L0X_GetRangingMeasurementData() function returns the ranging data.
The function returns a buffer which contains the following:
RangeMilliMeter
RangeDMaxMilliMeter:
SignalRateRtnMegaCps
AmbientRateRtnMegaCps
EffectiveSpadRtnCount
RangeStatus: Refer to Table 1
Table 1. Range Status
RangeStatus
value
0 Range Valid Ranging measurement is valid
1 Sigma Fail
2 Signal Fail
3 Min Range Fail Not enabled as default.
4Phase Fail
5 Hardware Fail Hardware Fail will trigger if a VCSEL failure, or VHV fail are detected.
255 No Update This error should not trigger.
RangeStatus
String
Comment
Sigma fail will trigger particularly in ambient light, when the amount of ambient
light is adding too much noise onto the ranging measurement.
Signal fail will trigger when the return signal is too low to give enough
confidence on the range measured. The limit will be given by either the signal
limit or the RIT (Range Ignore Threshold).
Phase fail will trigger when wraparound conditions are detected or when noise
on signal is too high.
Ranging status string is available by calling VL53L0X_GetRangeStatusString()
function
Note: VL53L0X_GetDeviceErrorStatus()function shall be called only for debug purposes. It
should not be used, unless requested by ST to customer.
Note: SignalRateRtnMegaCps includes the crosstalk correction (if the correction is enabled). If the
user wants to get the signal rate without crosstalk correction, they can call
VL53L0X_GetTotalSignalRate() function.
16/26 DocID029105 Rev 1
UM2039 API useful additional functions
6 API useful additional functions
6.1 Overall timing budget
The timing budget is the time allocated by the user to perform one range measurement. The
API takes care of splitting this timing budget into dedicated sub steps in the ranging process.
The user only has to set the overall timing budget in micro seconds, and the function
allocates the timings internally. A check is performed to know which part of the scheduler is
enabled or disabled, in order to maximize Final Range timing budget.
VL53L0X_SetMeasurementTimingBudgetMicroSeconds()and
VL53L0X_GetMeasurementTimingBudgetMicroSeconds()
The default timing budget value is 33ms, while the minimum is 20ms.
Example of use:
Status =
VL53L0X_SetMeasurementTimingBudgetMicroSeconds(pMyDevice,66000) sets
the overall timing budget to 66ms.
Note: Increasing the timing budget increases the range measurement accuracy.
That is: x N on timing budget => standard deviation / square root of N.
For example is the timing budget is increased by a factor of x 2, then the range
measurement standard deviation decreases by square root of 2.
6.2 Limit settings
User can enable/disable limit checks and values.
Disabling or relaxing these limits can allow longer ranging, in this case, standard deviation
will increase and measurement outliers will be received by the Host.
Applicable limits are:
• Sigma:
VL53L0X_CHECKENABLE_SIGMA_FINAL_RANGE
Sigma is the time difference (shift) between the reference and return SPAD arrays. As
Sigma represents time of flight and this translates to distance, this parameter is expressed
in mm.
• Return Signal Rate
VL53L0X_CHECKENABLE_SIGNAL_RATE_FINAL_RANGE
Return signal rate measurement, expressed in MCPS. This represents the amplitude of the
signal reflected from the target and detected by the device.
• Range Ignore Threshold
VL53L0X_CHECKENABLE_RANGE_IGNORE_THRESHOLD
Signal rate minimum threshold. Measurements with signal rates below this value are
ignored. This ensures that false measurements are not made due to reflection from the
housing.
DocID029105 Rev 1 17/26
26
API useful additional functions UM2039
Use VL53L0X_SetLimitCheckEnable() and VL53L0X_GetLimitCheckEnable() to
enable/disable a limit.
The limit value is set using VL53L0X_SetLimitCheckValue() and
VL53L0X_GetLimitCheckValue().
Two additional functions give access to the current value and state against which the limit is
compared:
VL53L0X_GetLimitCheckCurrent() and VL53L0X_GetLimitCheckStatus()
Table 2 gives the default limit states and values.
Limit ID Default limit state Default limit value
Sigma Enabled 18mm
Return Signal Enabled 0.25Mcps
Range Ignore Threshold Disabled
Example of use:
Table 2. Default limit states and values
N x Xtalk Mcps/spad
where N = 1.5 by default
Status = VL53L0X_SetLimitCheckEnable(pMyDevice,
VL53L0X_CHECKENABLE_SIGNAL_RATE_FINAL_RANGE, 1);
Status = VL53L0X_SetLimitCheckValue(pMyDevice,
VL53L0X_CHECKENABLE_SIGNAL_RATE_FINAL_RANGE, 0.40*65536);
The current sigma value (the actual one, not the limit) can be accessed by calling:
Status = VL53L0X_GetLimitCheckCurrent(pMyDevice,
VL53L0X_CHECKENABLE_SIGMA_FINAL_RANGE, &Sigma);
6.3 Timed ranging
When the ranging mode is set to timed ranging, user has to define the period of time
between two consecutive measurements.
VL53L0X_SetInterMeasurementPeriodMilliSeconds()and
VL53L0X_GetInterMeasurementPeriodMilliSeconds()
6.4 API versions and product revision
User can get the API version and the PAL specification version.
VL53L0X_GetVersion()
VL53L0X_GetPalSpecVersion()
VL53L0X_GetProductRevision() functions returns the device cut ID.
18/26 DocID029105 Rev 1
UM2039 API useful additional functions
6.5 API state and API error
VL53L0X_GetPalState() function gives the state of the API. All different states are
given in Table 3.
VL53L0X_GetPalStateString() function returns the status string.
Table 3. API state description
API state
value
0 POWERDOWN state Device is in HW reset
1 Wait for StaticInit State Device is initialized and wait for static initialization
2 STANDBY State Device is in low power Standby mode
3 IDLE State Not used
4 RUNNING State Device is performing measurement
98 UNKNOWN State Device is in unknown state and needs to be rebooted
99 ERROR State Device is in error state and needs to be rebooted
API state string Comment
An API error code is reported when any API function is called. Possible values for API errors
are described in Table 4.
VL53L0X_GetPalErrorString() function returns the error string.
Table 4. API error values and error strings description
API
error
value
API error string Occurrence Possible root cause
0No Error - -
Calibration
-1
warning error
Not implemented, cannot happen N/A
-2 Min clipped error Not implemented, cannot happen N/A
-3 Undefined error Not implemented, cannot happen N/A
Invalid parameters
-4
error
Not supported
-5
error
-6 Range error
-7 Time out error Aborted due to time out
Mode not
-8
supported error
-9 Buffer too small Cannot happen N/A
Parameter passed is invalid or
out of range
Function is not supported in
current mode or configuration
Device reports a ranging error
interrupt status
Requested mode is not
supported by the device
DocID029105 Rev 1 19/26
Wrong API programming (wrong setting used), or
I2C transaction corrupted
Wrong API programming (non implemented
function called), or I2C transaction corrupted
Wrong API programming (syntax error), or no
target present during offset calibration, or I2C
transaction corrupted
Device is functionally failing, or I2C transaction
corrupted
Wrong API programming (non existent mode
called), or I2C transaction corrupted
26
API useful additional functions UM2039
Table 4. API error values and error strings description (continued)
API
error
value
API error string Occurrence Possible root cause
-10 GPIO not existing
GPIO functionality
-11
not supported
Control Interface
-20
Error
Invalid Command
-30
Error
Division by zero
-40
Error
Reference SPAD
-50
Init Error
Not implemented
-99
error
User tried to set up a non-existing
GPIO pin
Unsupported GPIO functionality
Error reported from IO functions
(comm error)
Cannot happen N/A
Cannot occur in cut1.1 N/A
Error during reference SPAD
initialization
Not implemented N/A
6.6 I2C device address
User can change the I2C address of the device.
VL53L0X_SetDeviceAddress()
Wrong API programming (wrong setting used), or
I2C transaction corrupted
Wrong API programming (wrong setting used), or
I2C transaction corrupted
I2C comm error
Bad NVM programming, module aperture blocked
with high reflective target, I2C transaction
corrupted (wrong programming)
6.7 Reset
This functions resets the device and waits for the boot up.
VL53L0X_ResetDevice()
6.8 Interrupt settings
Use VL53L0X_SetGpioConfig()and VL53L0X_GetGpioConfig() to set/get the
functionality of the interrupt.
Options are:
• No Interrupt
• Level Low (value < thresh_low)
• Level High (value > thresh_high)
• Out Of Window (value < thresh_low OR value > thresh_high)
There is a dedicated procedure embedded in the API for when the interrupt threshold is
programmed to be larger than 254mm and also set to continuous or continuous timed mode.
In this case some specific tuning parameters are loaded by the API at each ranging start
which will introduce a delay of a few milliseconds (depending on the host I2C performance)
to the very first ranging measurement.
20/26 DocID029105 Rev 1
UM2039 API useful additional functions
In single ranging mode, the maximum programmable threshold is 254mm.
The interrupt threshold behaviour is described in Table 5.
Table 5. Interrupt threshold behaviour
Interrupt options Ranging distance Threshold value Ranging mode GPIO state
> thresh_low - all no interrupt
< thresh_low
Level Low
< thresh_low
< thresh_low
< thresh_high - all no interrupt
> thresh_high
Level High
> thresh_high
> thresh_high
thresh_low <
254mm
thresh_low >
254mm
thresh_low >
254mm
thresh_high <
254mm
thresh_high >
254mm
thresh_high >
254mm
all interrupt at GPIO
continuous or
continuous timed
single
all interrupt at GPIO
continuous or
continuous timed
single
interrupt at GPIO
interrupt at GPIO
no interrupt
(limitation)
no interrupt
(limitation)
VL53L0X_SetInterruptThresholds()and
VL53L0X_GetInterruptThresholds()allow to set/get the interrupt thresholds.
After reading a measurement, host has to clear the interrupt by
using the following function.
VL53L0_ClearInterruptMask()
VL53L0X_ClearInterruptMask()and VL53L0X_GetInterruptMaskStatus()allow
to set/get the interrupt.
Example code is provided within the API release to help the implementation of interrupt
settings on the host.
Note: In Table 5, ranging mode all = continuous, continuous timed and single ranging
Note: There is no interrupt generated if no target is detected in threshold high mode (with any
threshold value).
DocID029105 Rev 1 21/26
26
Example API range profiles UM2039
7 Example API range profiles
There are 4 range profiles available via API example code.
Table 6. Example API range profiles
Default mode 30ms 1.2m (white target) standard
High accuracy 200ms 1.2m (white target) precise measurement
Long range 33ms 2m (white target)
High Speed 20ms 1.2m (white target)
7.1 High accuracy
The following settings have to be applied, before ranging:
if (Status == VL53L0_ERROR_NONE) {
Status = VL53L0_SetLimitCheckValue(pMyDevice,
VL53L0_CHECKENABLE_SIGNAL_RATE_FINAL_RANGE,
(FixPoint1616_t)(0.25*65536));
}
if (Status == VL53L0_ERROR_NONE) {
Status = VL53L0_SetLimitCheckValue(pMyDevice,
VL53L0_CHECKENABLE_SIGMA_FINAL_RANGE,
(FixPoint1616_t)(18*65536));
}
Timing budget
Typ ical max
range
Typical application
long ranging, only for
dark conditions
high speed where
accuracy is not priority
if (Status == VL53L0_ERROR_NONE) {
Status =
VL53L0_SetMeasurementTimingBudgetMicroSeconds(pMyDevice,
200000);
}
7.2 Long range
The following setting have to be applied, before ranging:
if (Status == VL53L0_ERROR_NONE) {
Status = VL53L0_SetLimitCheckValue(pMyDevice,
VL53L0_CHECKENABLE_SIGNAL_RATE_FINAL_RANGE,
(FixPoint1616_t)(0.1*65536));
}
22/26 DocID029105 Rev 1
UM2039 Example API range profiles
if (Status == VL53L0_ERROR_NONE) {
Status = VL53L0_SetLimitCheckValue(pMyDevice,
VL53L0_CHECKENABLE_SIGMA_FINAL_RANGE,
(FixPoint1616_t)(60*65536));
}
if (Status == VL53L0_ERROR_NONE) {
Status =
VL53L0_SetMeasurementTimingBudgetMicroSeconds(pMyDevice,
33000);
}
if (Status == VL53L0_ERROR_NONE) {
Status = VL53L0_SetVcselPulsePeriod(pMyDevice,
VL53L0_VCSEL_PERIOD_PRE_RANGE, 18);
}
if (Status == VL53L0_ERROR_NONE) {
Status = VL53L0_SetVcselPulsePeriod(pMyDevice,
VL53L0_VCSEL_PERIOD_FINAL_RANGE, 14);
}
7.3 High speed
The following setting have to be applied, before ranging:
if (Status == VL53L0_ERROR_NONE) {
Status = VL53L0_SetLimitCheckValue(pMyDevice,
VL53L0_CHECKENABLE_SIGNAL_RATE_FINAL_RANGE,
(FixPoint1616_t)(0.25*65536));
}
if (Status == VL53L0_ERROR_NONE) {
Status = VL53L0_SetLimitCheckValue(pMyDevice,
VL53L0_CHECKENABLE_SIGMA_FINAL_RANGE,
(FixPoint1616_t)(32*65536));
}
if (Status == VL53L0_ERROR_NONE) {
Status =
VL53L0_SetMeasurementTimingBudgetMicroSeconds(pMyDevice,
20000);
}
DocID029105 Rev 1 23/26
26
Acronyms and abbreviations UM2039
8 Acronyms and abbreviations
Acronym/ abbreviation Definition
I2C Inter-integrated circuit (serial bus)
NVM Non volatile memory
SPAD Single photon avalanche diode
VCSEL Vertical cavity surface emitting laser
PAL Photonic Abstraction Layer
API Application Program Interface
FMT Final Module Test
XTALK Cross-talk
Table 7. Acronyms and abbreviations
24/26 DocID029105 Rev 1
UM2039 Revision history
9 Revision history
Table 8. Document revision history
Date Revision Changes
02-Jun-2016 1 Initial release.
DocID029105 Rev 1 25/26
26
UM2039
IMPORTANT NOTICE – PLEASE READ CAREFULLY
STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and
improvements to ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on
ST products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order
acknowledgement.
Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or
the design of Purchasers’ products.
No license, express or implied, to any intellectual property right is granted by ST herein.
Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product.
ST and the ST logo are trademarks of ST. All other product or service names are the property of their respective owners.
Information in this document supersedes and replaces information previously supplied in any prior versions of this document.
© 2016 STMicroelectronics – All rights reserved
26/26 DocID029105 Rev 1
Loading...
