Seed Design TCDE1113 Specifications

PAOPAO
www.SeedDesignUSA.com

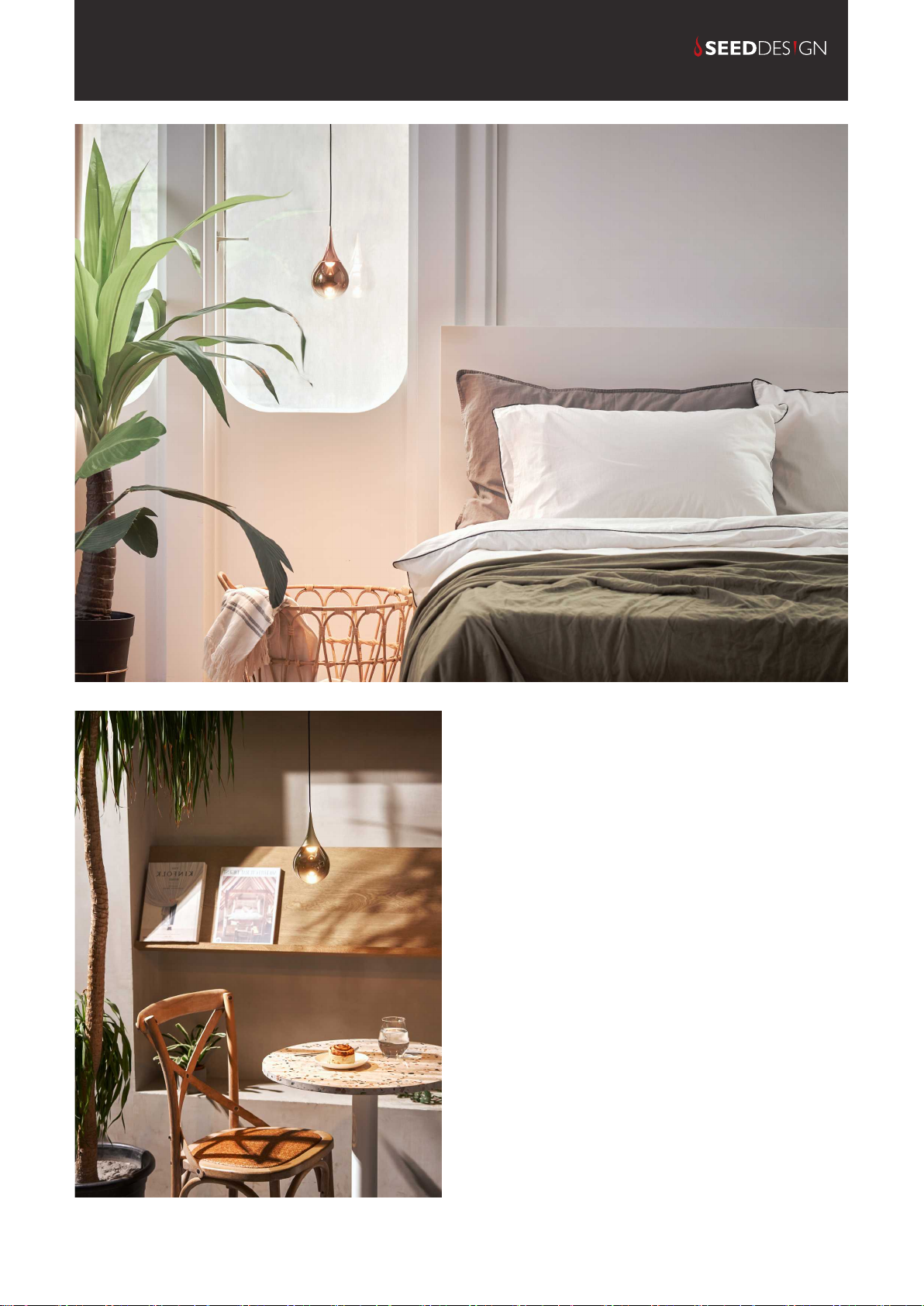

Inspired by organic shapes and the artistry of fine jewelry, the Pao Pao collection earned its name from the word "Bubble" in Mandarin. Available in three colorways, and multiple configurations, the signature tear-drop silhouette of each pendant consists of a matching color glass sphere and metal cap. Each glass sphere is mouth-blown and vacuum plated to create an unique layered effect. The glass sphere visually changes as the light transitions between ON and OFF mode. When the light is OFF, one can appreciate the simplistic beauty of the glass surface and its reflective nature. When the fixture is ON, each pendant glows alluringly, allowing the light to reflect within the glass sphere, creating a dazzling optical effect.
Besides its inherent beauty, the Pao Pao utilizes high quality integrated LED design, that offers Color Rendering of CRI 95, as well as a dimmable function, (Triac Dimming). The light emission is controlled at 58 degrees down beam angle to prevent undesirable glare yet ensuring sufficient illumination.
By Li, Hui-Lun 李慧倫
© 2021 SEED LIGHTING DESIGN CO., LTD. PAOPAO 1 / 8
www.SeedDesignUSA.com
layered copper glass + copper cap
11.7cm / 4.6”
19.1cm / 7.5”
10cm / 3.9”
350cm / 137.8”
layered gold glass + champagne gold cap
Canopy A56 matt black
11.7cm / 4.6” 3.5cm / 1.4”
Bracket A32
11.4cm / 4.5”
layered chrome glass + chrome cap
PAOPAO Pendant P1
Model
SLD-1013P
Material
metal, mouth-blown glass w/ vacuum plating, aluminum
Light Source
LED 5W 2700K CRI 95 200lm
Driver
built-in dimmable driver (Triac dimming)
Weight
2.4cm / 0.9”
0.7kg / 1.6lb
Color
layered copper glass + copper cap
layered gold glass + champagne gold cap
layered chrome glass + chrome cap
© 2021 SEED LIGHTING DESIGN CO., LTD. PAOPAO 2 / 8
PAOPAO
www.SeedDesignUSA.com
© 2021 SEED LIGHTING DESIGN CO., LTD. PAOPAO 3 / 8
www.SeedDesignUSA.com
layered copper glass + copper cap
110cm / 43.3”
19.1cm / 7.5”
11cm / 4.3”
10cm / 3.9”
layered gold glass + champagne gold cap
Canopy C19 matt black
45cm / 17.7”
300cm / 118”
Bracket A39
51cm / 20.1”
45cm / 17.7”
layered chrome glass + chrome cap
PAOPAO Pendant PL5
Model
4cm / 1.6”110cm / 43.3”
SLD-1013PL5
Material
metal, mouth-blown glass w/ vacuum plating, aluminum
11cm / 4.3”10.5cm / 4.1”
Light Source
LED 5 x 5W 2700K CRI 95 1010lm
Driver
built-in dimmable driver (Triac dimming)
Weight
4.3kg / 9.5lb
Color
layered copper glass + copper cap
layered gold glass + champagne gold cap
layered chrome glass + chrome cap
© 2021 SEED LIGHTING DESIGN CO., LTD. PAOPAO 4 / 8
PAOPAO
www.SeedDesignUSA.com
© 2021 SEED LIGHTING DESIGN CO., LTD. PAOPAO 5 / 8
www.SeedDesignUSA.com
layered copper glass + copper cap
90cm / 35.5”
19.1cm / 7.5” 10cm / 3.9”
layered gold glass + champagne gold cap
Canopy C20 matt black
4cm / 1.6”
38cm / 15”
Bracket A40
300cm / 118”
24cm / 9.5”
42cm / 16.5”
38cm / 15”
layered chrome glass + chrome cap
PAOPAO Pendant PZ10
Model
4cm / 1.6”90cm / 35.5”
SLD-1013PZ10
Material
metal, mouth-blown glass w/ vacuum plating, aluminum
24cm / 9.5”
Light Source
LED 10 x 5W 2700K CRI 95 2000lm
Driver
built-in dimmable driver (Triac dimming)
11cm / 4.3”
Weight
8.4kg / 18.6lb
Color
layered copper glass + copper cap
layered gold glass + champagne gold cap
layered chrome glass + chrome cap
© 2021 SEED LIGHTING DESIGN CO., LTD. PAOPAO 6 / 8
PAOPAO
www.SeedDesignUSA.com
© 2021 SEED LIGHTING DESIGN CO., LTD. PAOPAO 7 / 8
www.SeedDesignUSA.com
layered copper glass + copper cap
50cm / 19.7” 45cm / 17.7”
19.1cm / 7.5”
10cm / 3.9”
52cm / 20.5”
400cm / 157.5”
layered gold glass + champagne gold cap
Canopy R2 matt black
45cm / 17.7”
Bracket R2
7cm / 2.8”
37.4cm / 14.7”
4cm / 1.6”
33.4cm / 13.2”
37.4cm / 14.7”
layered chrome glass + chrome cap
PAOPAO Pendant P12
Model
SLD-1013P12
Material
metal, mouth-blown glass w/ vacuum plating, aluminum
Light Source
LED 12 x 5W 2700K CRI 95 2250lm
Driver
built-in dimmable driver (Triac dimming)
Weight
10.4kg / 23lb
Color
layered copper glass + copper cap
layered gold glass + champagne gold cap
layered chrome glass + chrome cap
50cm / 19.7”
45cm / 17.7”
Canopy R2 matt black
45cm / 17.7”
PAOPAO Pendant PC12
Model
SLD-1013PC12
Material
metal, mouth-blown glass w/
4cm / 1.6”
vacuum plating, aluminum
Light Source
adjustable ring height max.150cm / 59"
400cm / 157.5”
Bracket R2
LED 12 x 5W 2700K CRI 95 2250lm
Driver
built-in dimmable driver (Triac dimming)
Weight
11.3kg / 24.9lb
Color
33.4cm / 13.2”
19.1cm / 7.5”
10cm / 3.9”
100cm / 39.4”
7cm / 2.8”
37.4cm / 14.7”
37.4cm / 14.7”
layered copper glass + copper cap
layered gold glass + champagne gold cap
layered chrome glass + chrome cap
© 2021 SEED LIGHTING DESIGN CO., LTD. PAOPAO 8 / 8
