SPECIFICATIONS:
REV. B 1/20
06

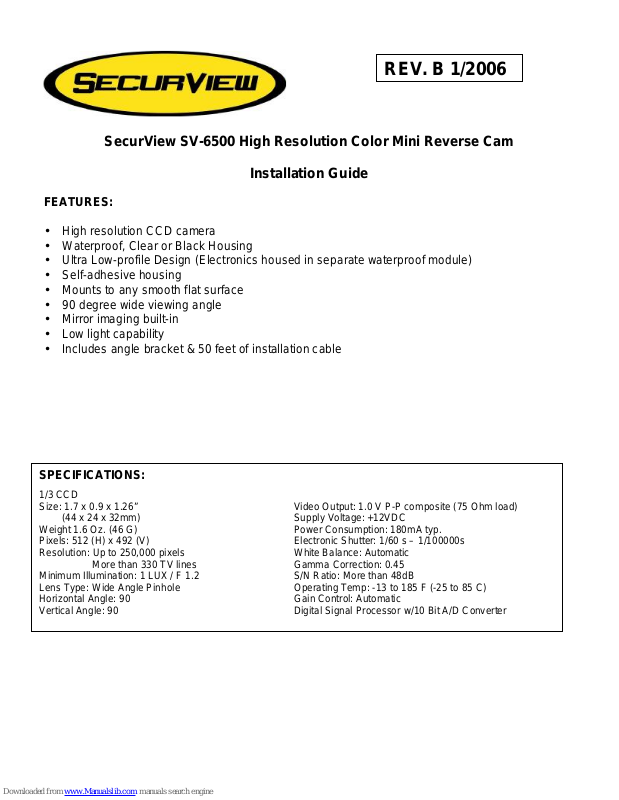

SecurView SV-6500 High Resolution Color Mini Reverse Cam
Installation Guide
FEATURES:
• High resolution CCD camera
• Waterproof, Clear or Black Housing
• Ultra Low-profile Design (Electronics housed in separate waterproof module)
• Self-adhesive housing
• Mounts to any smooth flat surface
• 90 degree wide viewing angle
• Mirror imaging built-in
• Low light capability
• Includes angle bracket & 50 feet of installation cable
1/3 CCD
Size: 1.7 x 0.9 x 1.26” Video Output: 1.0 V P-P composite (75 Ohm load)
(44 x 24 x 32mm) Supply Voltage: +12VDC
Weight 1.6 Oz. (46 G) Power Consumption: 180mA typ.
Pixels: 512 (H) x 492 (V) Electronic Shutter: 1/60 s – 1/100000s
Resolution: Up to 250,000 pixels White Balance: Automatic
More than 330 TV lines Gamma Correction: 0.45
Minimum Illumination: 1 LUX / F 1.2 S/N Ratio: More than 48dB
Lens Type: Wide Angle Pinhole Operating Temp: -13 to 185 F (-25 to 85 C)
Horizontal Angle: 90 Gain Control: Automatic
Vertical Angle: 90 Digital Signal Processor w/10 Bit A/D Converter
Page 2

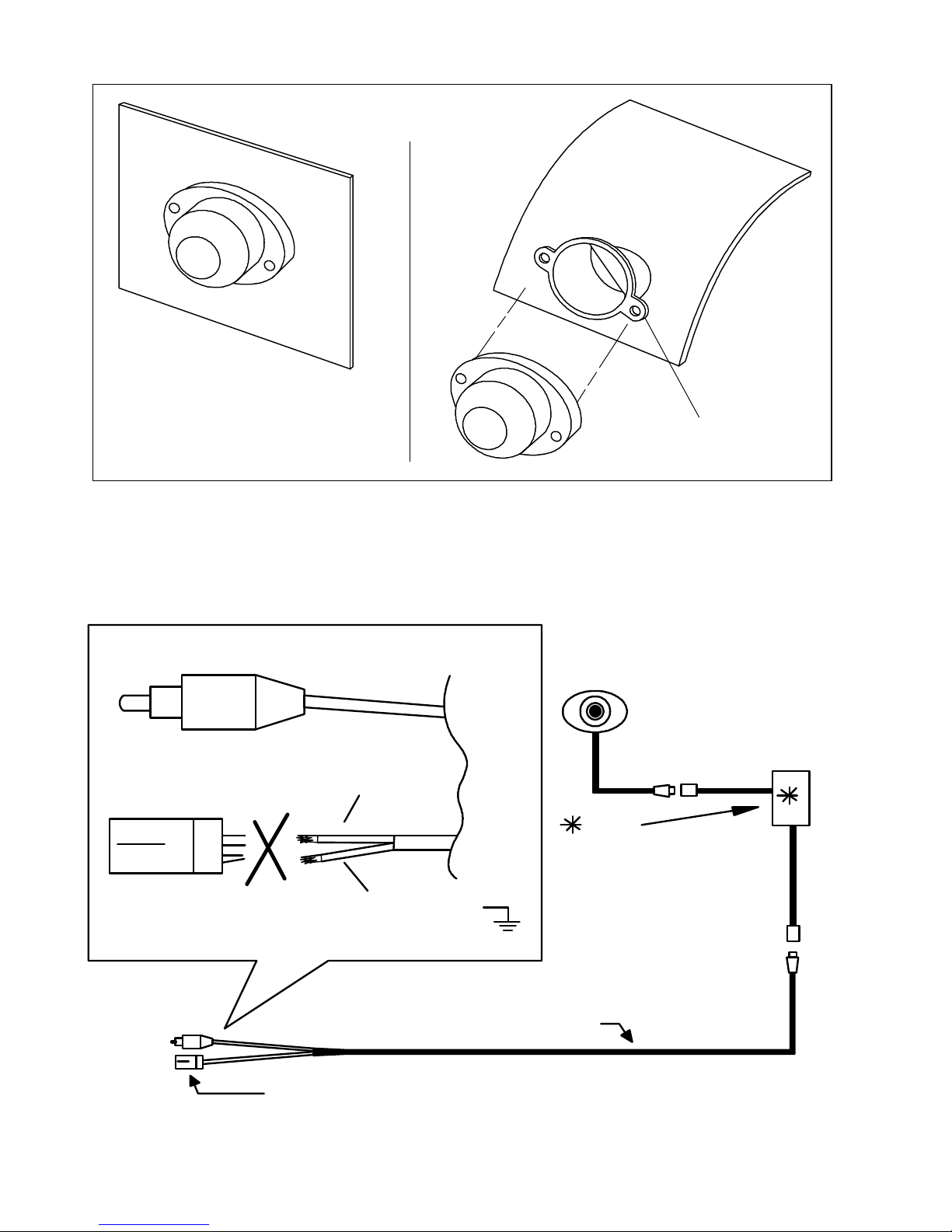

CONNECTIONS:
SV-6500 Mini Cam
ANGLE BRACKET
VIDEO OUT TO MONITOR
RED = +12VDC Input
(From Reverse Light)
BLACK = GROUND
CAMERA HARNESS
This mini plug is used only when installing the 6500 with an optional SecurView SV-7000
video switcher, otherwise cut plug off and hardwire the connections direct. See inset.
MINI SPLIT CAM
SV-6500
Note:
Electronics box now waterproof.
(Improved from prev. version)
