LE910Cx

HW User Guide

Doc#: 1VV0301298

Rev.5 – 2018-09-16

LE910Cx HW User Guide Doc#: 1VV0301298

SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE

NOTICE

While reasonable efforts have been made to assure the accuracy of this document, Telit assumes no liability resulting from any inaccuracies or omissions in this document, or from use of the information obtained herein. The information in this document has been carefully checked and is believed to be reliable. However, no responsibility is assumed for inaccuracies or omissions. Telit reserves the right to make changes to any products described herein and reserves the right to revise this document and to make changes from time to time in content hereof with no obligation to notify any person of revisions or changes. Telit does not assume any liability arising out of the application or use of any product, software, or circuit described herein; neither does it convey license under its patent rights or the rights of others.

It is possible that this publication may contain references to, or information about Telit products (machines and programs), programming, or services that are not announced in your country. Such references or information must not be construed to mean that Telit intends to announce such Telit products, programming, or services in your country.

COPYRIGHTS

This instruction manual and the Telit products described in this instruction manual may be, include or describe copyrighted Telit material, such as computer programs stored in semiconductor memories or other media. Laws in the Italy and other countries preserve for Telit and its licensors certain exclusive rights for copyrighted material, including the exclusive right to copy, reproduce in any form, distribute and make derivative works of the copyrighted material. Accordingly, any copyrighted material of Telit and its licensors contained herein or in the Telit products described in this instruction manual may not be copied, reproduced, distributed, merged or modified in any manner without the express written permission of Telit. Furthermore, the purchase of Telit products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of Telit, as arises by operation of law in the sale of a product.

COMPUTER SOFTWARE COPYRIGHTS

The Telit and 3rd Party supplied Software (SW) products described in this instruction manual may include copyrighted Telit and other 3rd Party supplied computer programs stored in semiconductor memories or other media. Laws in the Italy and other countries preserve for Telit and other 3rd Party supplied SW certain exclusive rights for copyrighted computer programs, including the exclusive right to copy or reproduce in any form the copyrighted computer program. Accordingly, any copyrighted Telit or other 3rd Party supplied SW computer programs contained in the Telit products described in this instruction manual may not be copied (reverse engineered) or reproduced in any manner without the express written permission of Telit or the 3rd Party SW supplier. Furthermore, the purchase of Telit products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of Telit or other 3rd Party supplied SW, except for the normal non-exclusive, royalty free license to use that arises by operation of law in the sale of a product.

Rev. 2.0 Page 2 of 119 2018-09-16

LE910Cx HW User Guide Doc#: 1VV0301298

USAGE AND DISCLOSURE RESTRICTIONS

I. License Agreements

The software described in this document is the property of Telit and its licensors. It is furnished by express license agreement only and may be used only in accordance with the terms of such an agreement.

II. Copyrighted Materials

Software and documentation are copyrighted materials. Making unauthorized copies is prohibited by law. No part of the software or documentation may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, without prior written permission of Telit

III. High Risk Materials

Components, units, or third-party products used in the product described herein are NOT fault-tolerant and are NOT designed, manufactured, or intended for use as on-line control equipment in the following hazardous environments requiring fail-safe controls: the operation of Nuclear Facilities, Aircraft Navigation or Aircraft Communication Systems, Air Traffic Control, Life Support, or Weapons Systems (High Risk Activities"). Telit and its supplier(s) specifically disclaim any expressed or implied warranty of fitness for such High-Risk Activities.

IV. Trademarks

TELIT and the Stylized T Logo are registered in Trademark Office. All other product or service names are the property of their respective owners.

V. Third Party Rights

The software may include Third Party Right software. In this case you agree to comply with all terms and conditions imposed on you in respect of such separate software. In addition to Third Party Terms, the disclaimer of warranty and limitation of liability provisions in this License shall apply to the Third-Party Right software.

TELIT HEREBY DISCLAIMS ANY AND ALL WARRANTIES EXPRESS OR IMPLIED FROM ANY THIRD PARTIES REGARDING ANY SEPARATE FILES, ANY THIRD PARTY MATERIALS INCLUDED IN THE SOFTWARE, ANY THIRD PARTY MATERIALS FROM WHICH THE SOFTWARE IS DERIVED (COLLECTIVELY “OTHER CODE”), AND THE USE OF ANY OR ALL THE OTHER CODE IN CONNECTION WITH THE SOFTWARE, INCLUDING (WITHOUT LIMITATION) ANY WARRANTIES OF SATISFACTORY QUALITY OR FITNESS FOR A PARTICULAR PURPOSE.

NO THIRD PARTY LICENSORS OF OTHER CODE SHALL HAVE ANY LIABILITY FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING WITHOUT LIMITATION LOST PROFITS), HOWEVER CAUSED AND WHETHER MADE UNDER CONTRACT, TORT OR OTHER LEGAL THEORY, ARISING IN ANY WAY OUT OF THE USE OR DISTRIBUTION OF THE OTHER CODE OR THE EXERCISE OF ANY RIGHTS GRANTED UNDER EITHER OR BOTH THIS LICENSE AND THE LEGAL TERMS APPLICABLE TO ANY SEPARATE FILES, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Rev. 2.0 Page 3 of 119 2018-09-16

LE910Cx HW User Guide Doc#: 1VV0301298

APPLICABILITY TABLE

This documentation applies to the following products:

Table 1: Applicability Table

Module Name Description

LE910C1-NA North America – AT&T with global roaming

LE910C1-NS North America - Sprint variant

LE910C1-AP APAC variant

LE910C4-EU Europe variant CAT4 variant

LE910C1-EU Europe variant CAT1 variant

LE910C4-NF North America CAT4 variant

LE910C1-NF North America CAT1 variant

Rev. 2.0 Page 4 of 119 2018-09-16

LE910Cx HW User Guide Doc#: 1VV0301298

CONTENTS

1. INTRODUCTION .............................................................................................9

Scope ............................................................................................................. 9

Audience......................................................................................................... 9

Contact Information, Support .......................................................................... 9

Text Conventions ...........................................................................................10

Related Documents .......................................................................................11

2. PRODUCT DESCRIPTION ............................................................................ 12

Overview........................................................................................................12

Applications ...................................................................................................13

General Functionality and Main Features.......................................................13

Block Diagram ...............................................................................................16

Environmental Requirements .........................................................................17

2.5.1. Temperature Range .......................................................................................17

2.5.2. RoHS Compliance .........................................................................................17

Operating Frequency Bands ..........................................................................18

2.6.1. RF Bands per Regional Variant .....................................................................18

2.6.2. Reference Table of RF Bands Characteristics ...............................................19

RF Parameters ..............................................................................................22

2.7.1. Sensitivity ......................................................................................................22

2.7.2. Output power .................................................................................................22

Mechanical Specifications ..............................................................................23

2.8.1. Dimensions ....................................................................................................23

2.8.2. Weight ...........................................................................................................23

3. MODULE CONNECTIONS ............................................................................ 24

Pin-out ...........................................................................................................24

Signals That Must Be Connected ...................................................................33

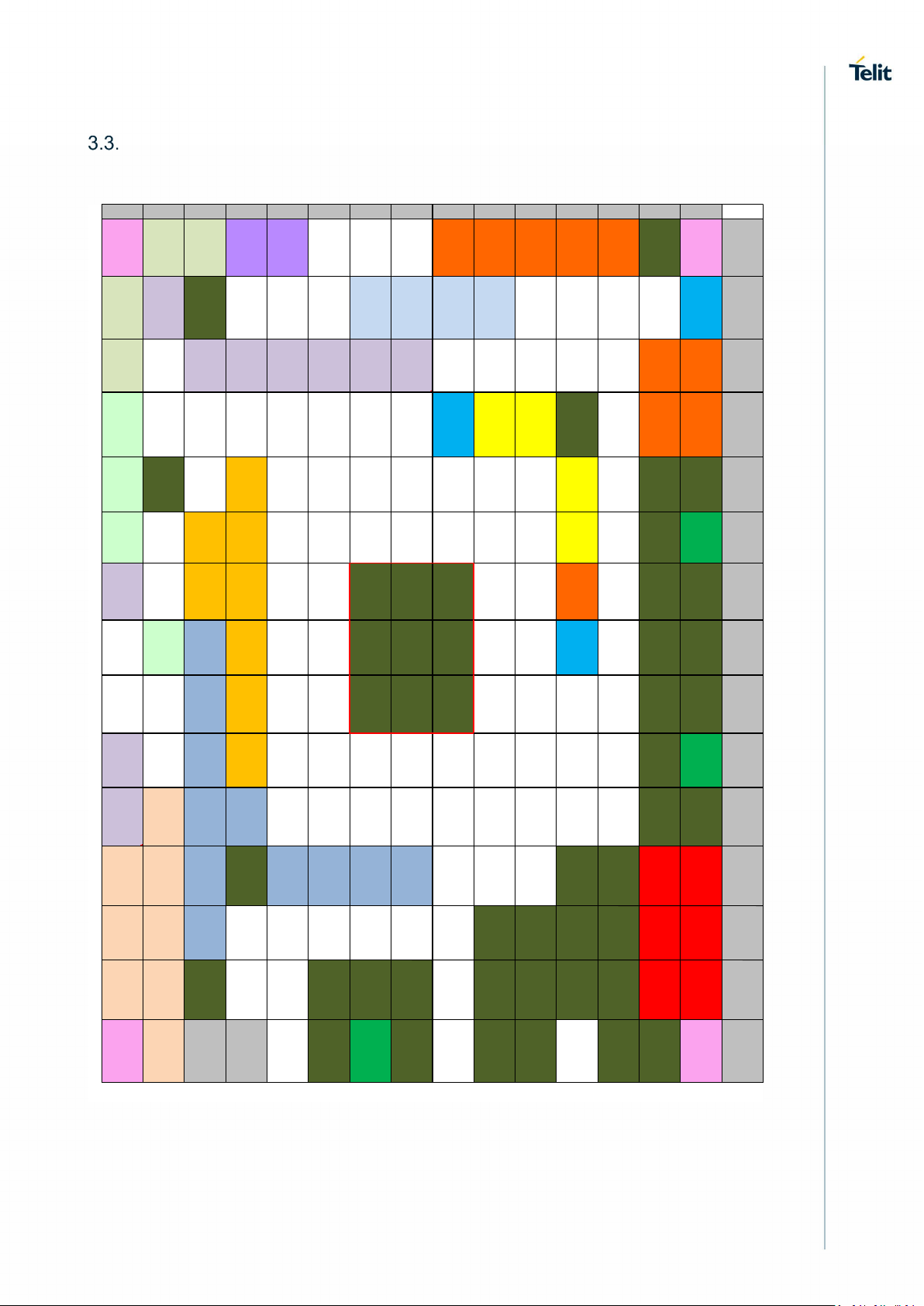

LGA Pads Layout ...........................................................................................35

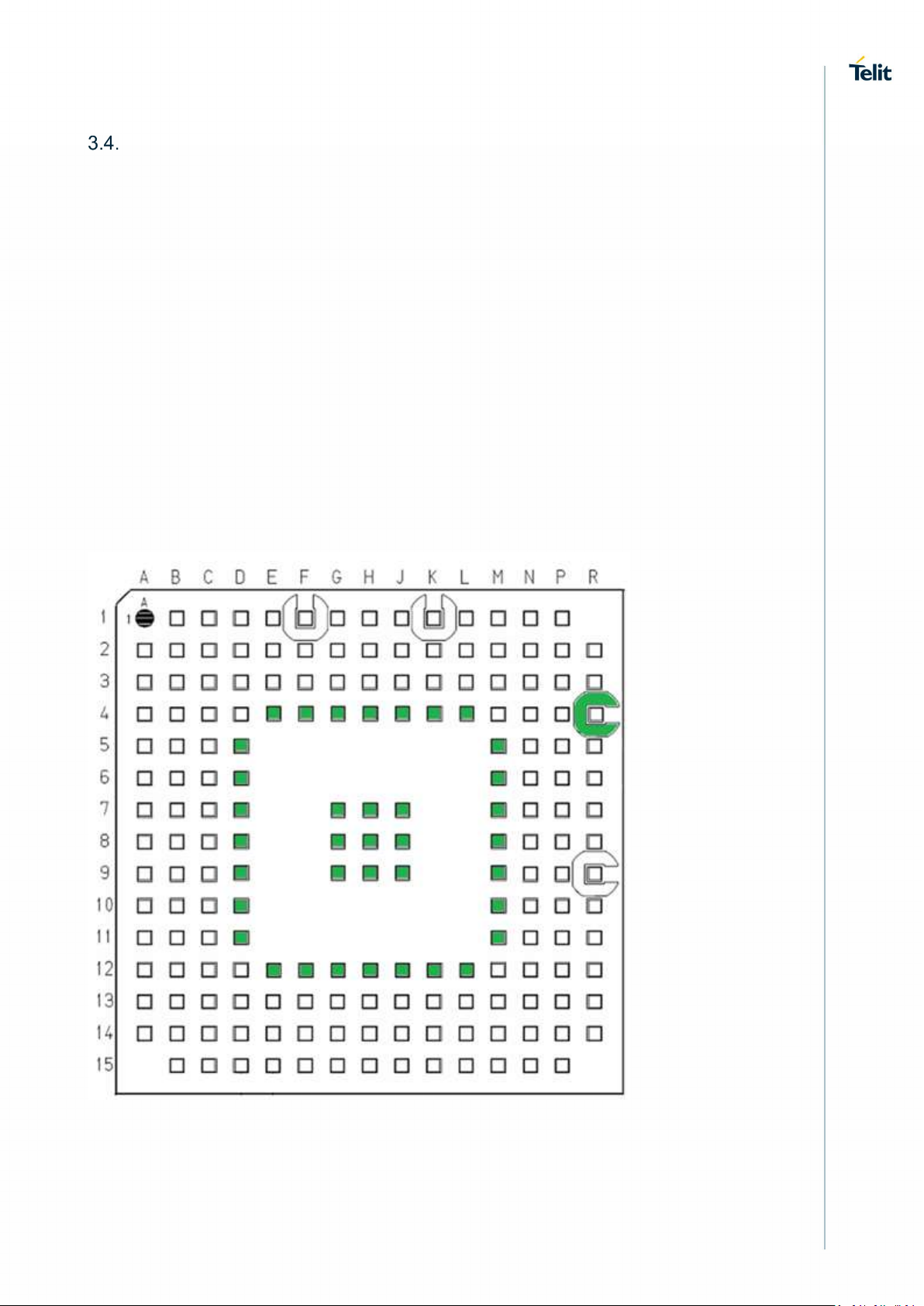

Backward Compatibility to xE910 Family .......................................................36

4. ELECTRICAL SPECIFICATIONS ................................................................. 37

Absolute Maximum Ratings – Not Operational ...............................................37

Recommended Operating Conditions ............................................................37

Logic Level Specifications ..............................................................................38

4.3.1. 1.8V Pads - Absolute Maximum Ratings ........................................................38

4.3.2. 1.8V Standard GPIOs ....................................................................................38

4.3.3. 1.8V SD Card Pads .......................................................................................39

Rev. 2.0 Page 5 of 119 2018-09-16

LE910Cx HW User Guide Doc#: 1VV0301298

4.3.4. 1.8V SIM Card Pads ......................................................................................40

4.3.5. Dual Voltage Pads - Absolute Maximum Ratings ...........................................40

4.3.6. SD Card Pads @ 2.95V .................................................................................41

4.3.7. SIM Card Pads @2.95V.................................................................................41

5. HARDWARE COMMANDS ........................................................................... 42

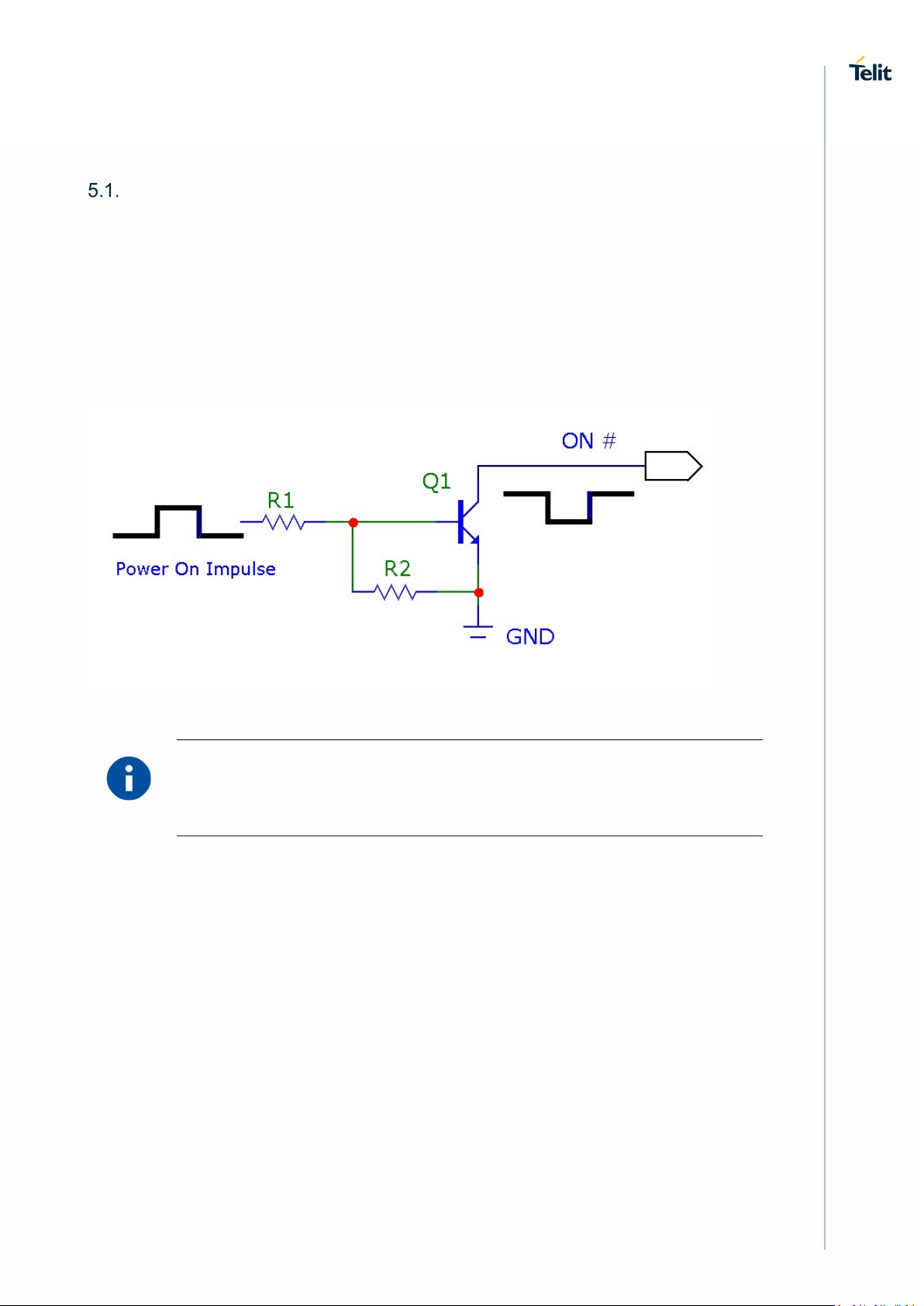

Turning on the LE910Cx Module ...................................................................42

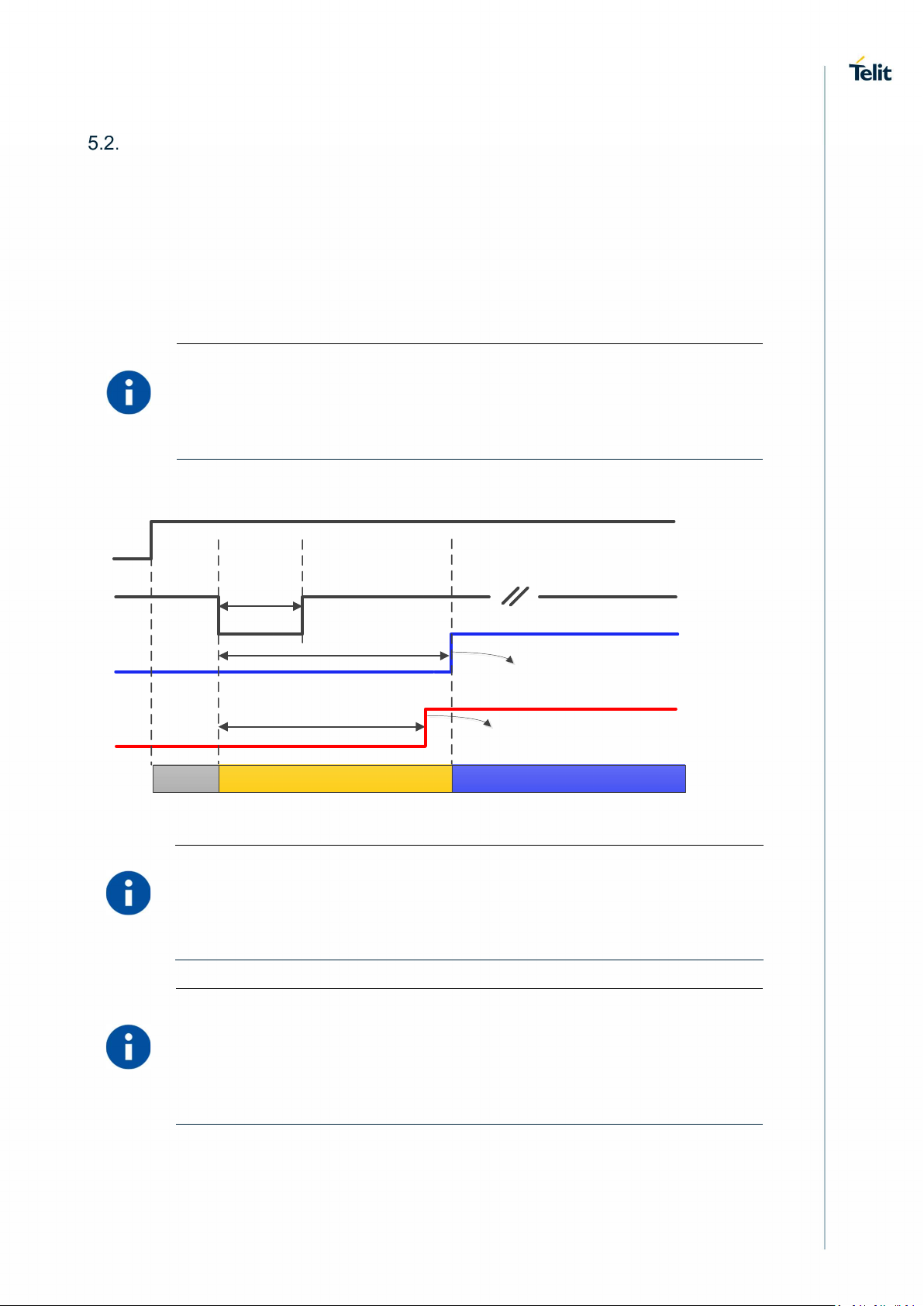

Initialization and Activation State ...................................................................43

Turning off the LE910Cx Module ...................................................................45

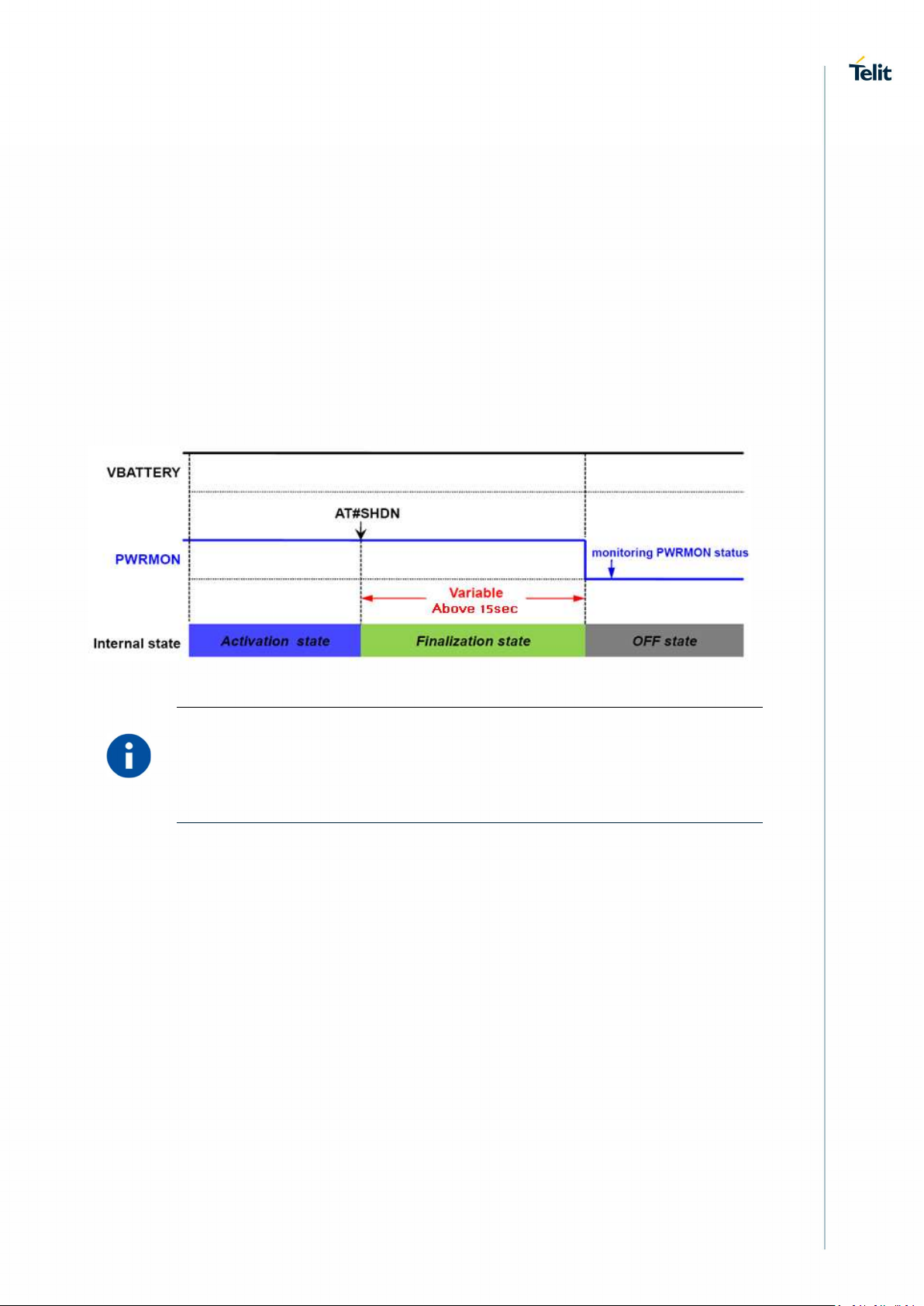

5.3.1. Shutdown by Software Command ..................................................................46

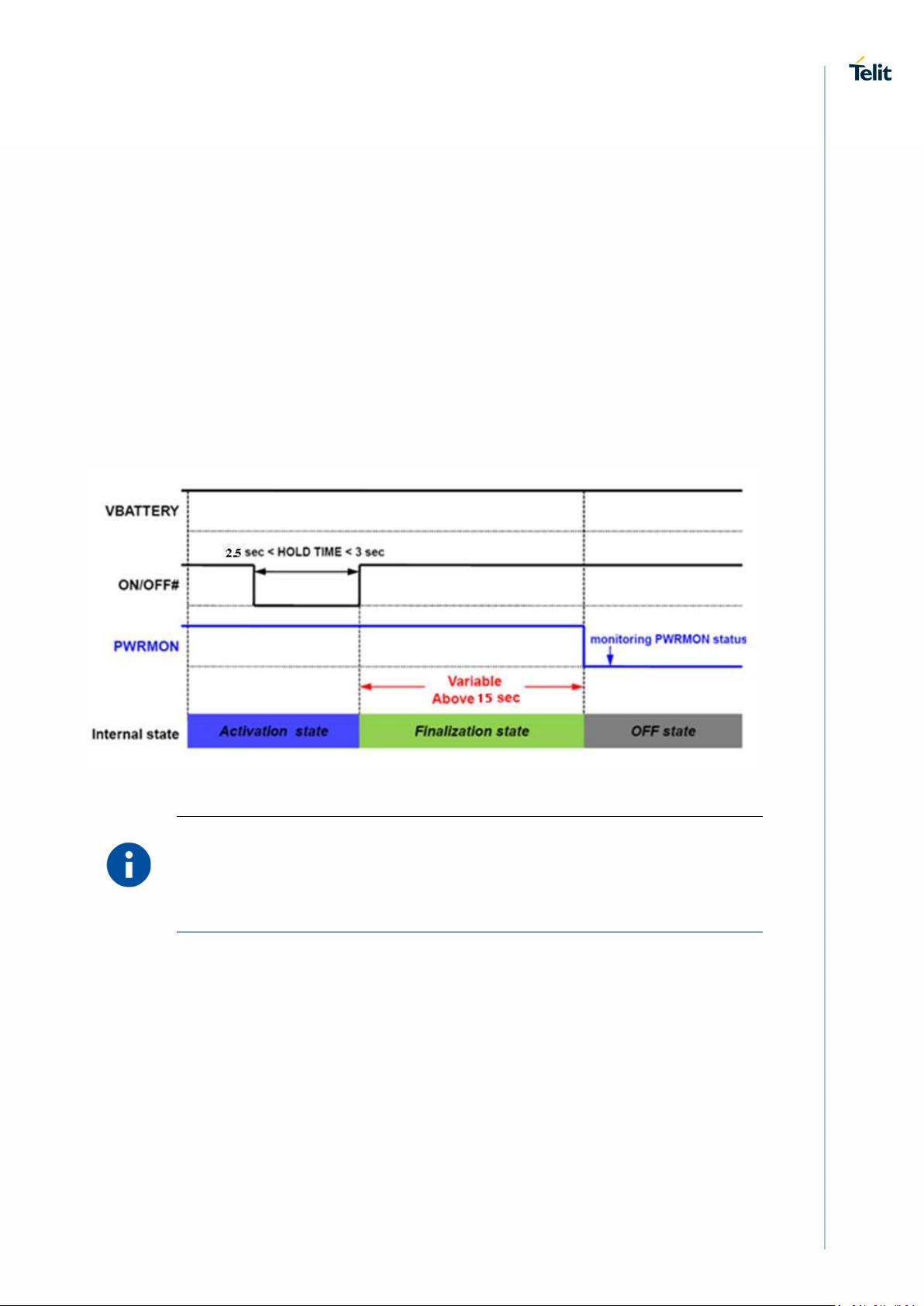

5.3.2. Hardware Shutdown ......................................................................................47

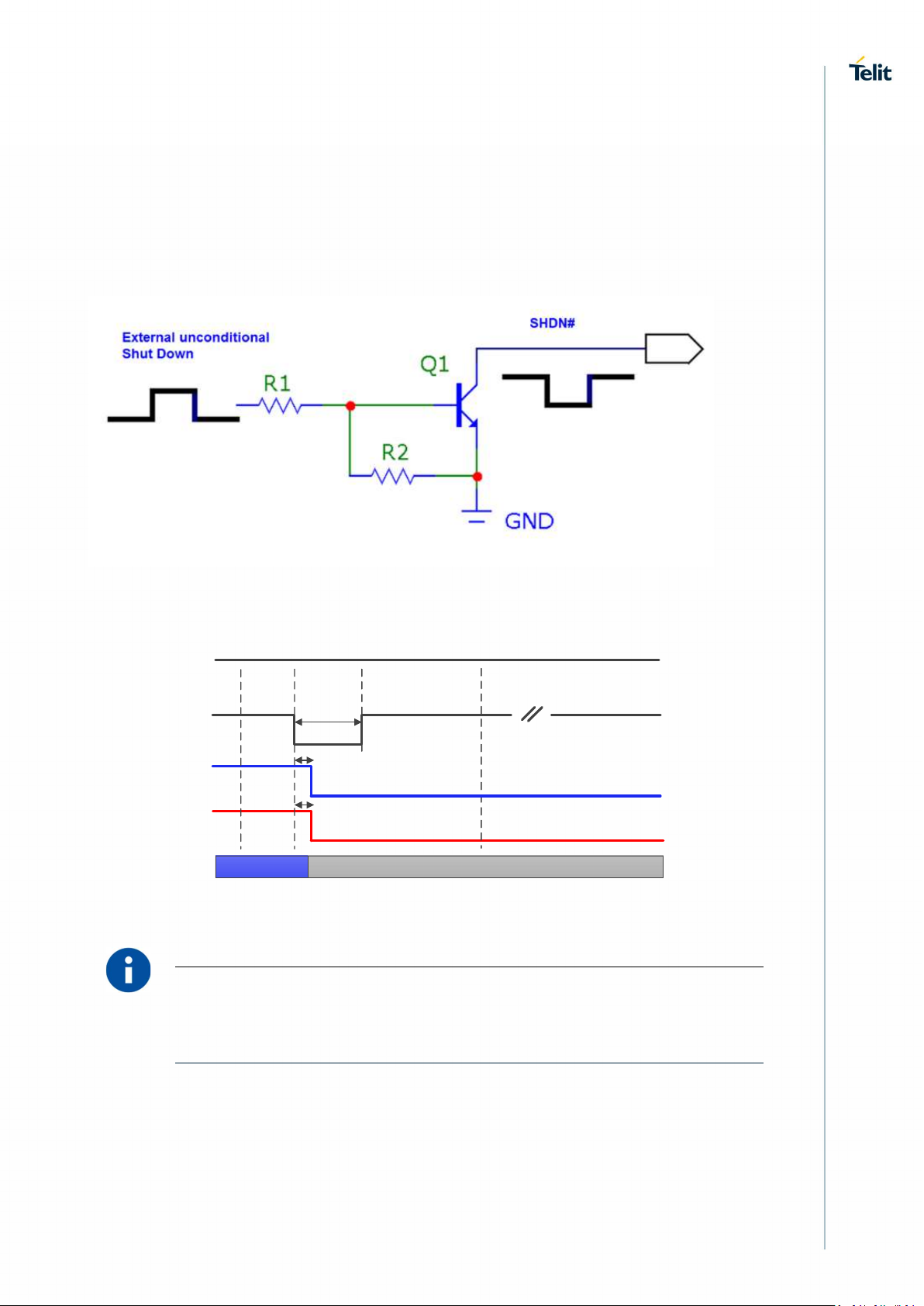

5.3.3. Unconditional Hardware Shutdown ................................................................48

Powering OFF the Module .............................................................................49

6. POWER SUPPLY .......................................................................................... 50

Power Supply Requirements ..........................................................................50

Power Consumption ......................................................................................51

General Design Rules ....................................................................................53

6.3.1. Electrical Design Guidelines ..........................................................................53

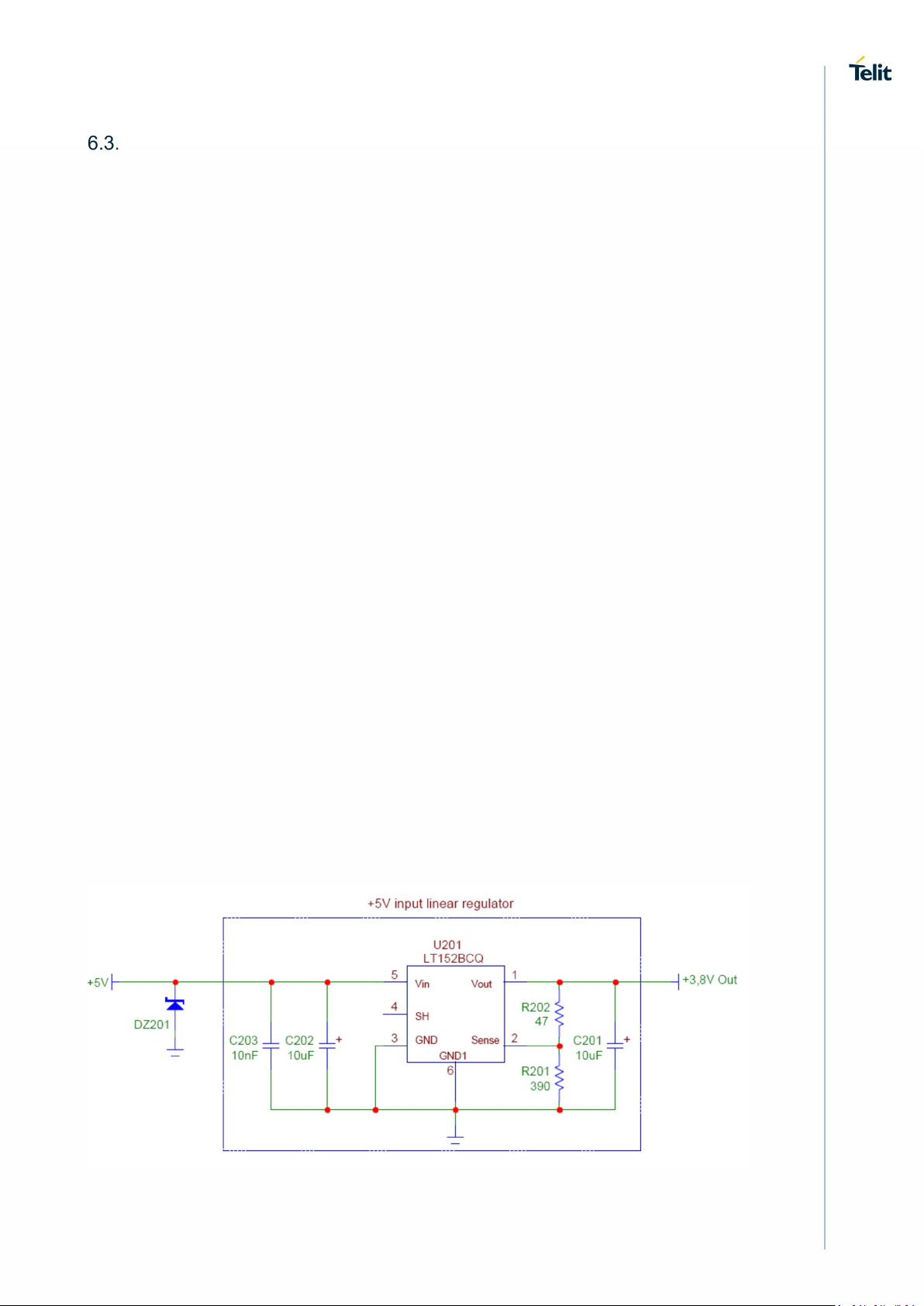

6.3.1.1. + 5V Input Source Power Supply – Design Guidelines ...................................53

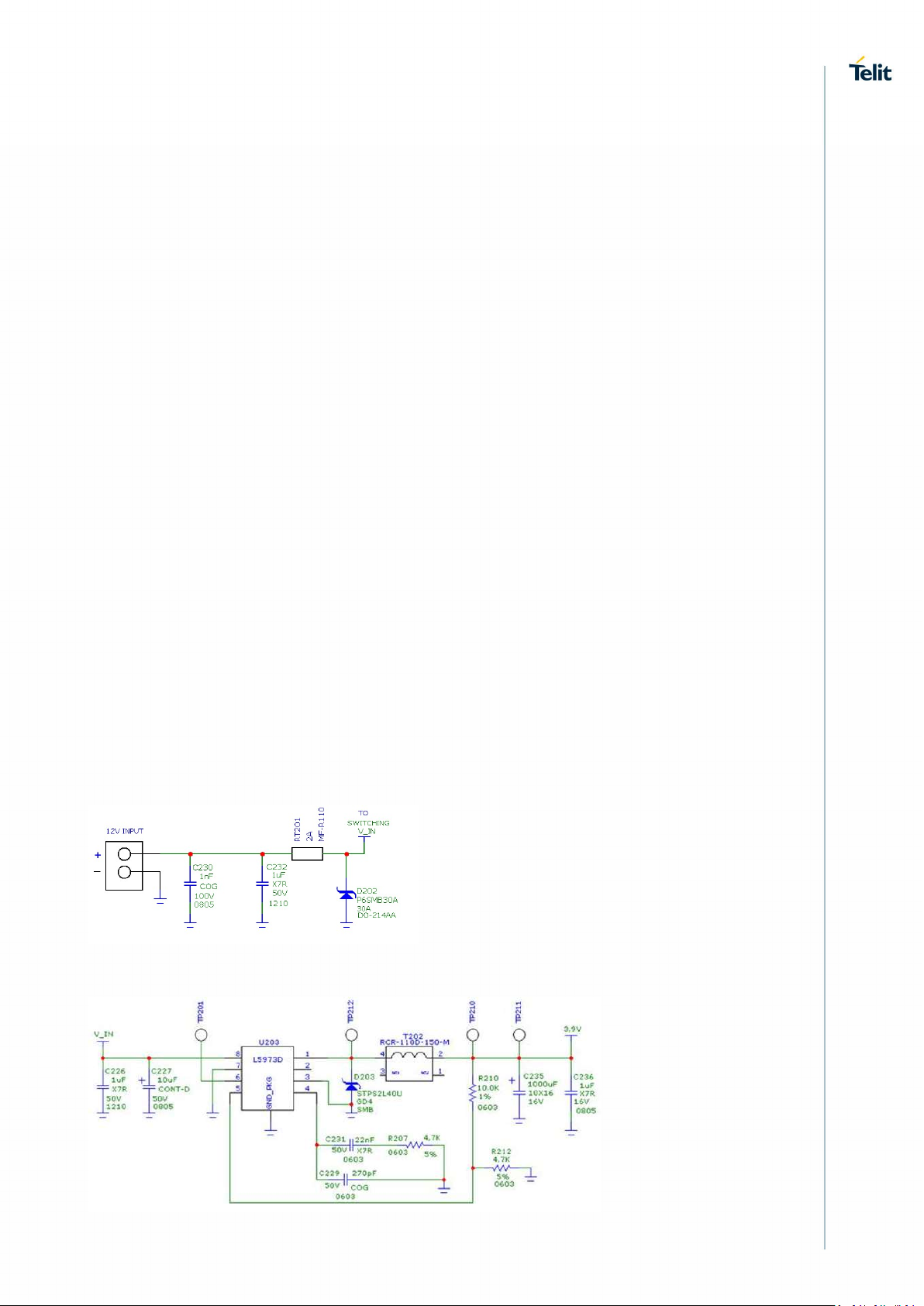

6.3.1.2. + 12V Input Source Power Supply – Design Guidelines .................................54

6.3.1.3. Battery Source Power Supply – Design Guidelines ........................................55

6.3.2. Thermal Design Guidelines ............................................................................55

6.3.3. Power Supply PCB Layout Guidelines ...........................................................56

7. ANTENNA(S) ................................................................................................ 58

GSM/WCDMA/TD-SCDMA/LTE Antenna Requirements ...............................58

GSM/WCDMA/TD-SCDMA/LTE Antenna – PCB Line Guidelines ..................59

GSM/WCDMA/LTE Antenna – Installation Guidelines....................................60

Antenna Diversity Requirements ....................................................................60

GNSS Antenna Requirements .......................................................................61

7.5.1. Combined GNSS Antenna .............................................................................61

7.5.2. Linear and Patch GNSS Antenna ..................................................................61

7.5.3. Front End Design Considerations ..................................................................62

7.5.4. GNSS Antenna – PCB Line Guidelines ..........................................................62

7.5.5. GNSS Antenna – Installation Guidelines ........................................................63

8. HARDWARE INTERFACES .......................................................................... 64

USB Port........................................................................................................65

HSIC Interface (Optional) ...............................................................................66

SGMII Interface..............................................................................................66

Rev. 2.0 Page 6 of 119 2018-09-16

LE910Cx HW User Guide Doc#: 1VV0301298

8.3.1. Ethernet Control interface ..............................................................................67

Serial Ports ....................................................................................................68

8.4.1. Modem Serial Port 1 Signals..........................................................................68

8.4.2. Modem Serial Port 2 ......................................................................................71

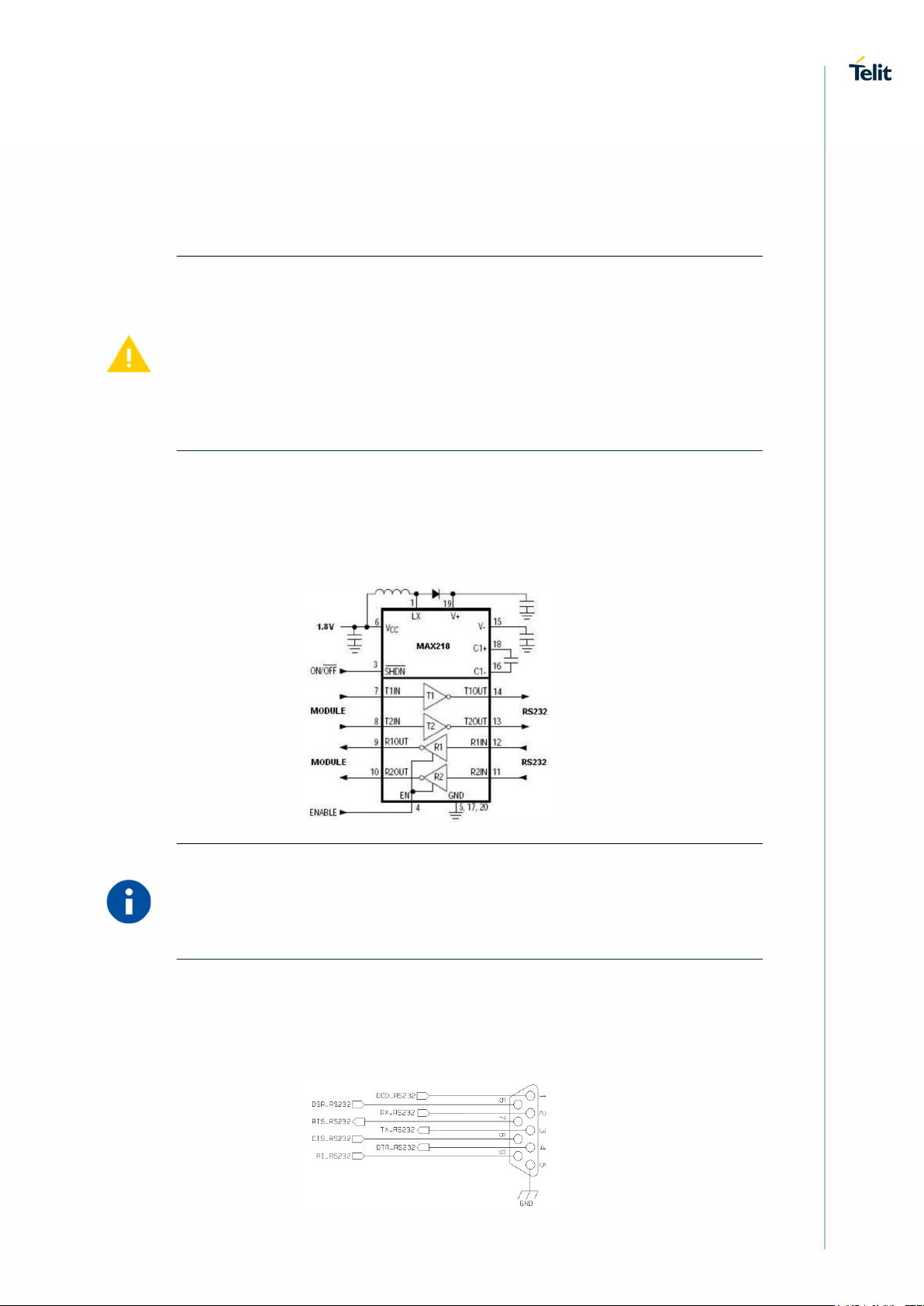

8.4.3. RS232 Level Translation ................................................................................71

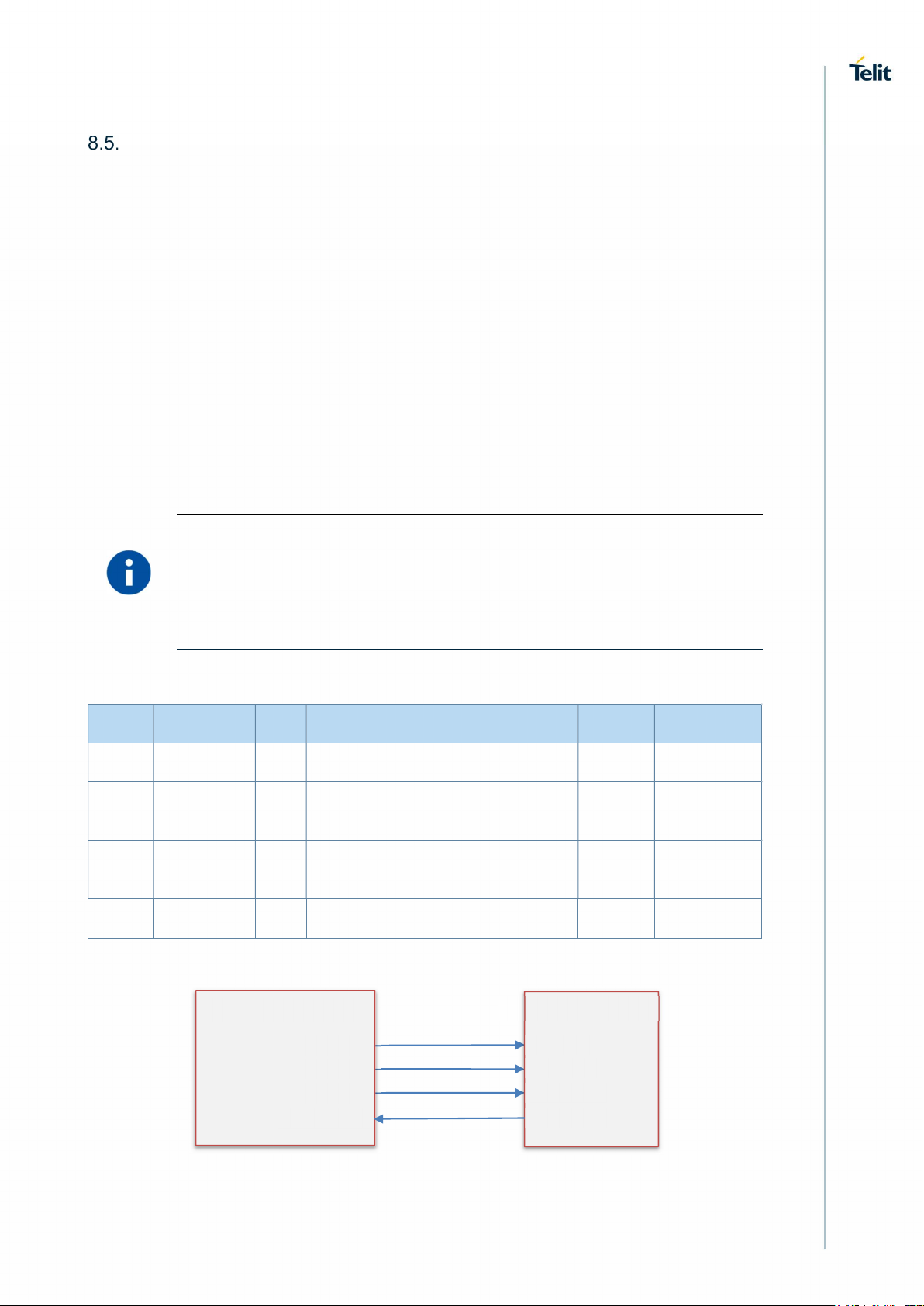

Peripheral Ports .............................................................................................73

8.5.1. SPI – Serial Peripheral Interface ....................................................................73

8.5.2. I2C - Inter-integrated Circuit ...........................................................................74

8.5.3. SD/MMC Card Interface .................................................................................75

8.5.4. WiFi SDIO Interface .......................................................................................77

Audio Interface ..............................................................................................78

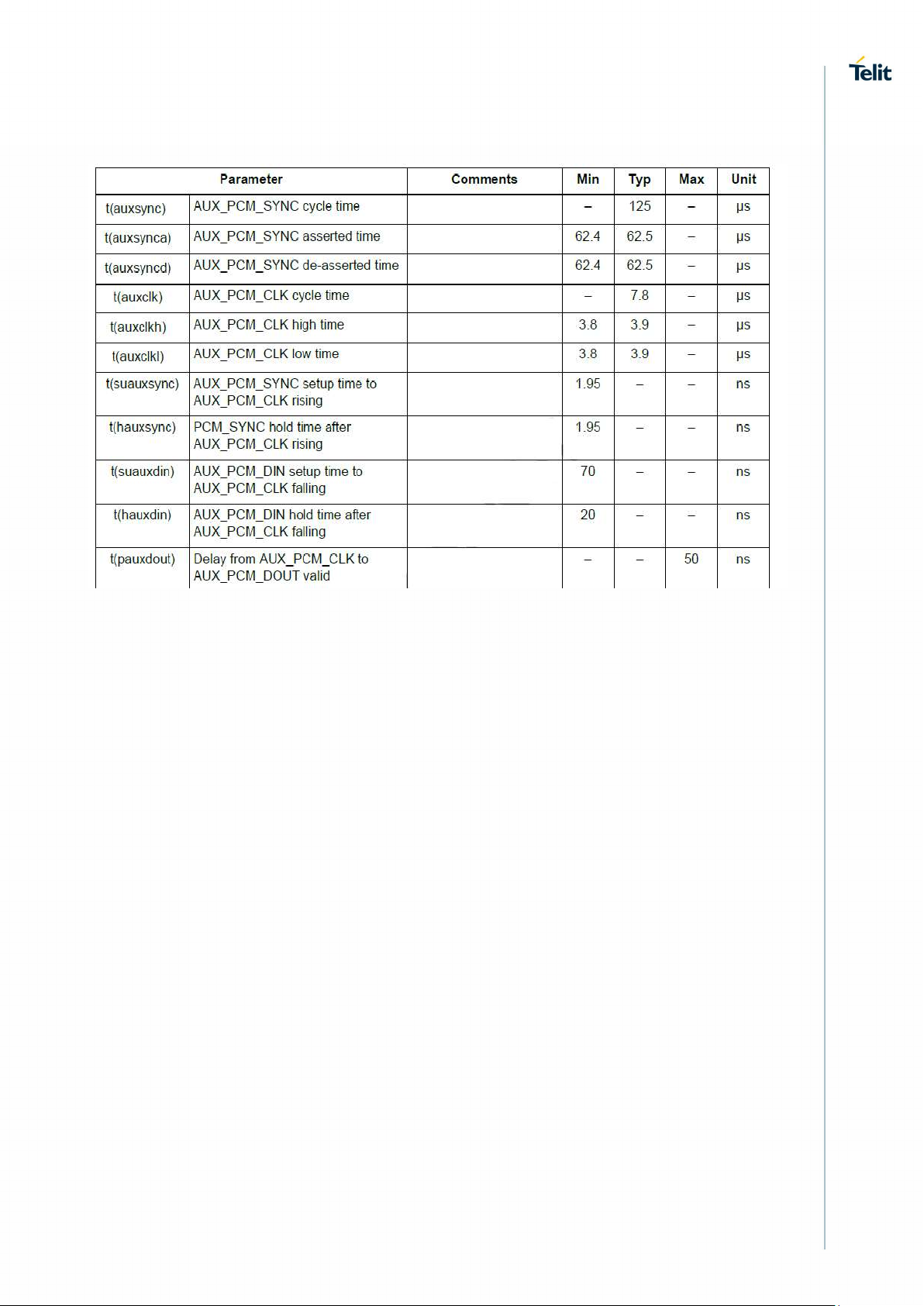

8.6.1. Digital Audio ..................................................................................................78

8.6.1.1. Short Frame Timing Diagrams .......................................................................79

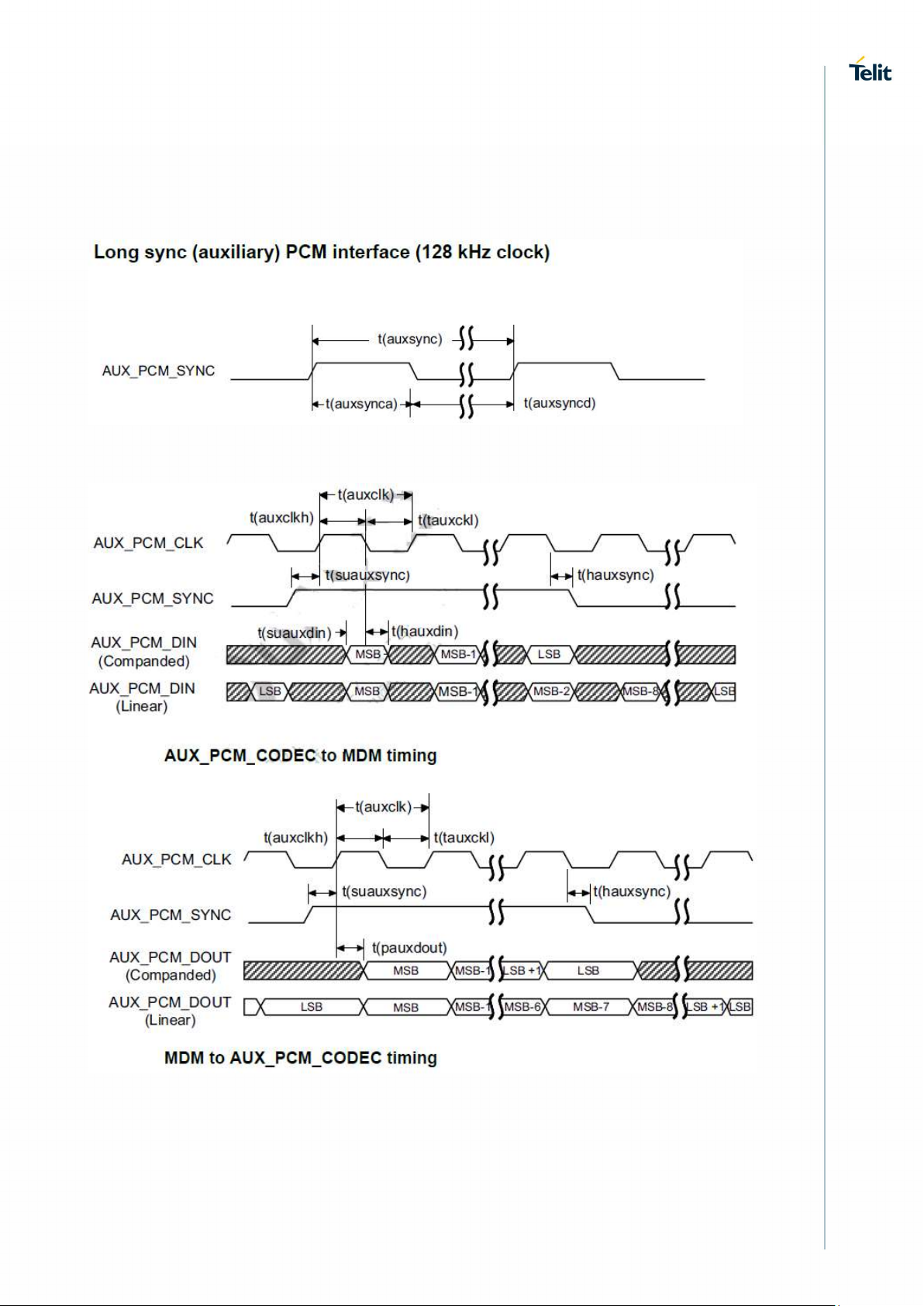

8.6.1.2. Long Frame Timing Diagrams ........................................................................80

General Purpose I/O ......................................................................................82

8.7.1. Using a GPIO Pad as Input ............................................................................84

8.7.2. Using a GPIO Pad as an interrupt / Wakeup source ......................................84

8.7.3. Using a GPIO Pad as Output .........................................................................85

9. MISCELLANEOUS FUNCTIONS .................................................................. 86

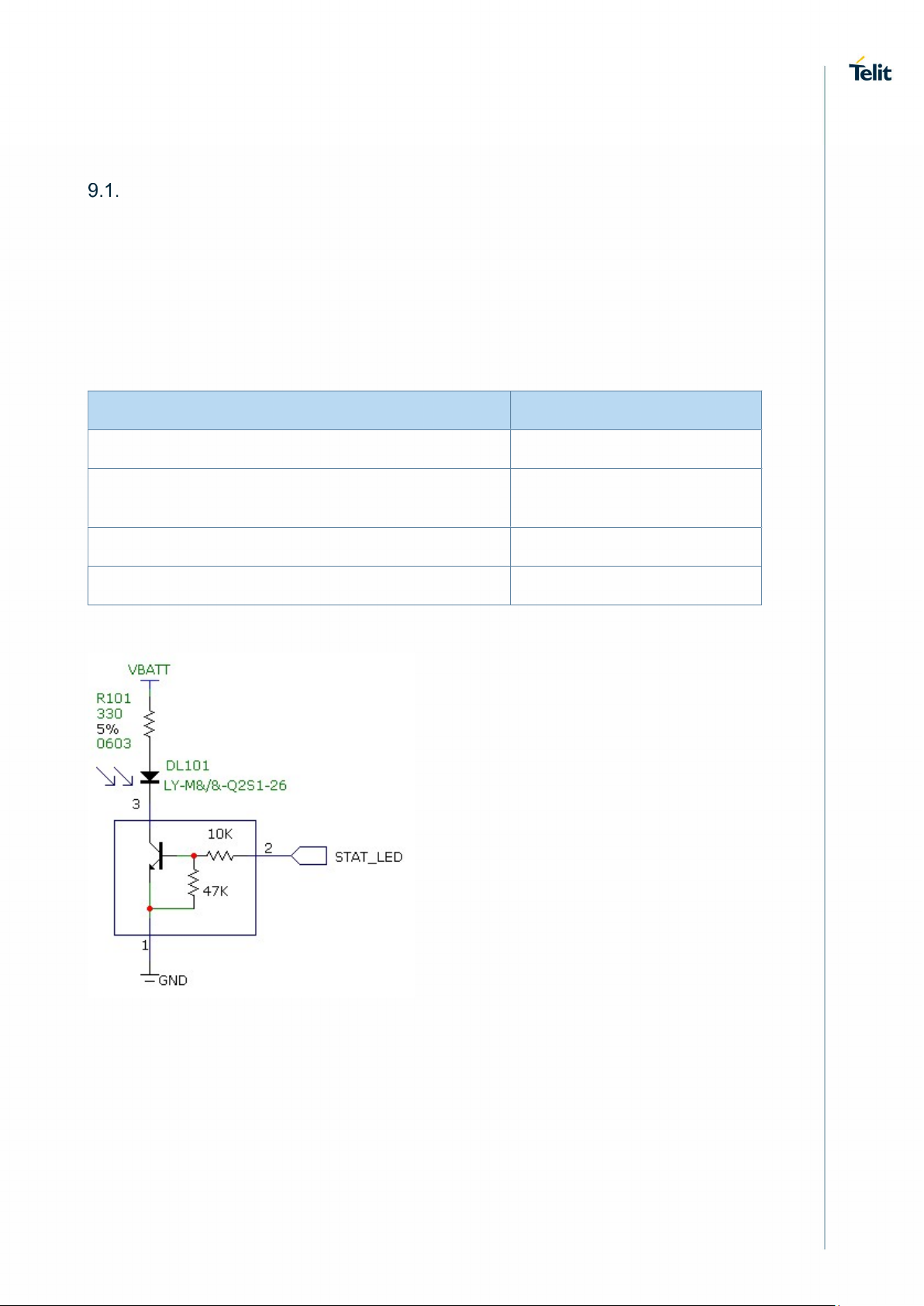

Indication of Network Service Availability .......................................................86

Indication of Software Ready .........................................................................87

RTC – Real Time Clock .................................................................................87

VAUX Power Output ......................................................................................87

ADC Converter ..............................................................................................88

9.5.1. Description .....................................................................................................88

9.5.2. Using the ADC Converter ..............................................................................88

Using the Temperature Monitor Function .......................................................88

GNSS Characteristics ....................................................................................89

10. MOUNTING THE MODULE ON YOUR BOARD ........................................... 90

General ..........................................................................................................90

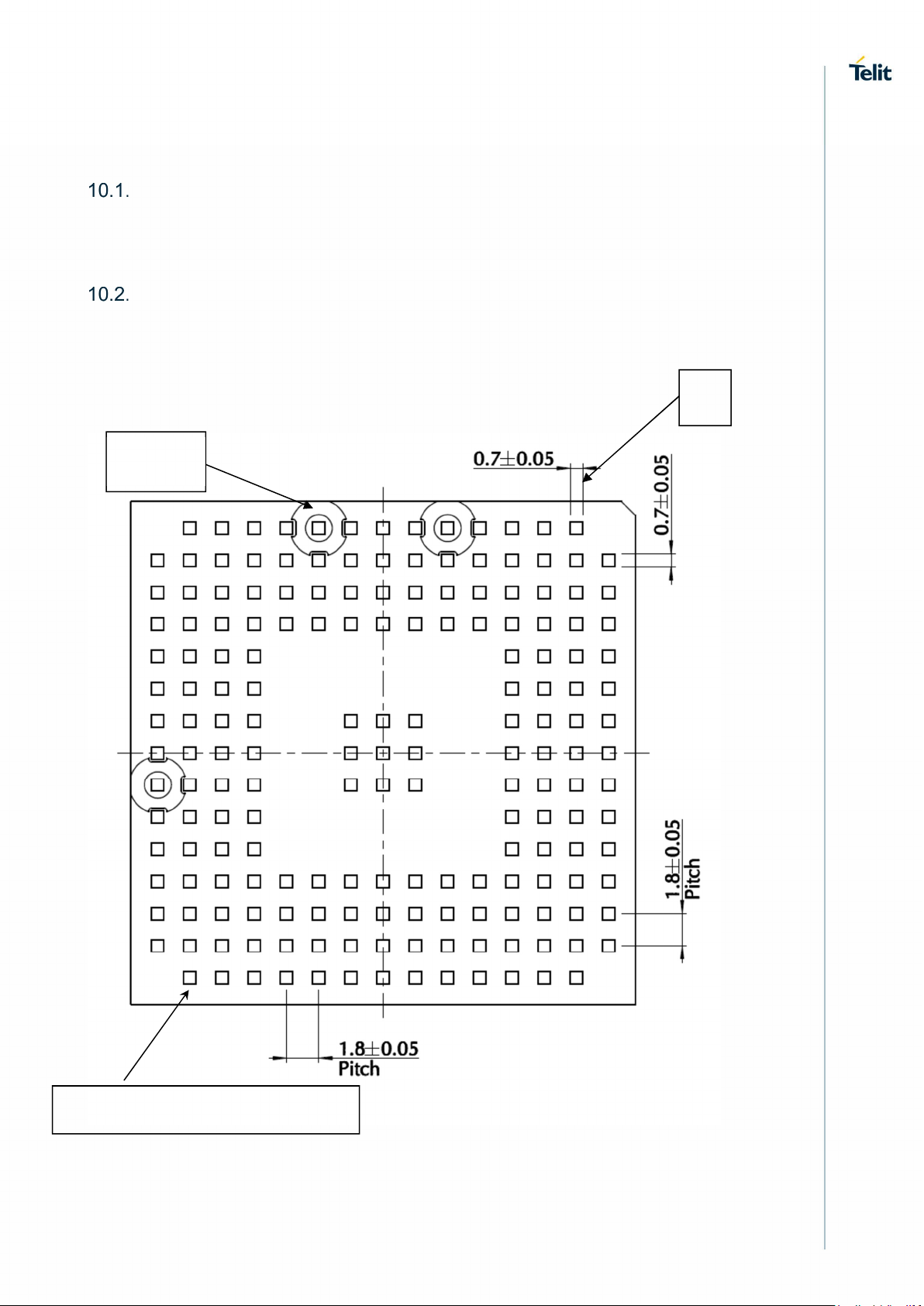

Finishing & Dimensions .................................................................................90

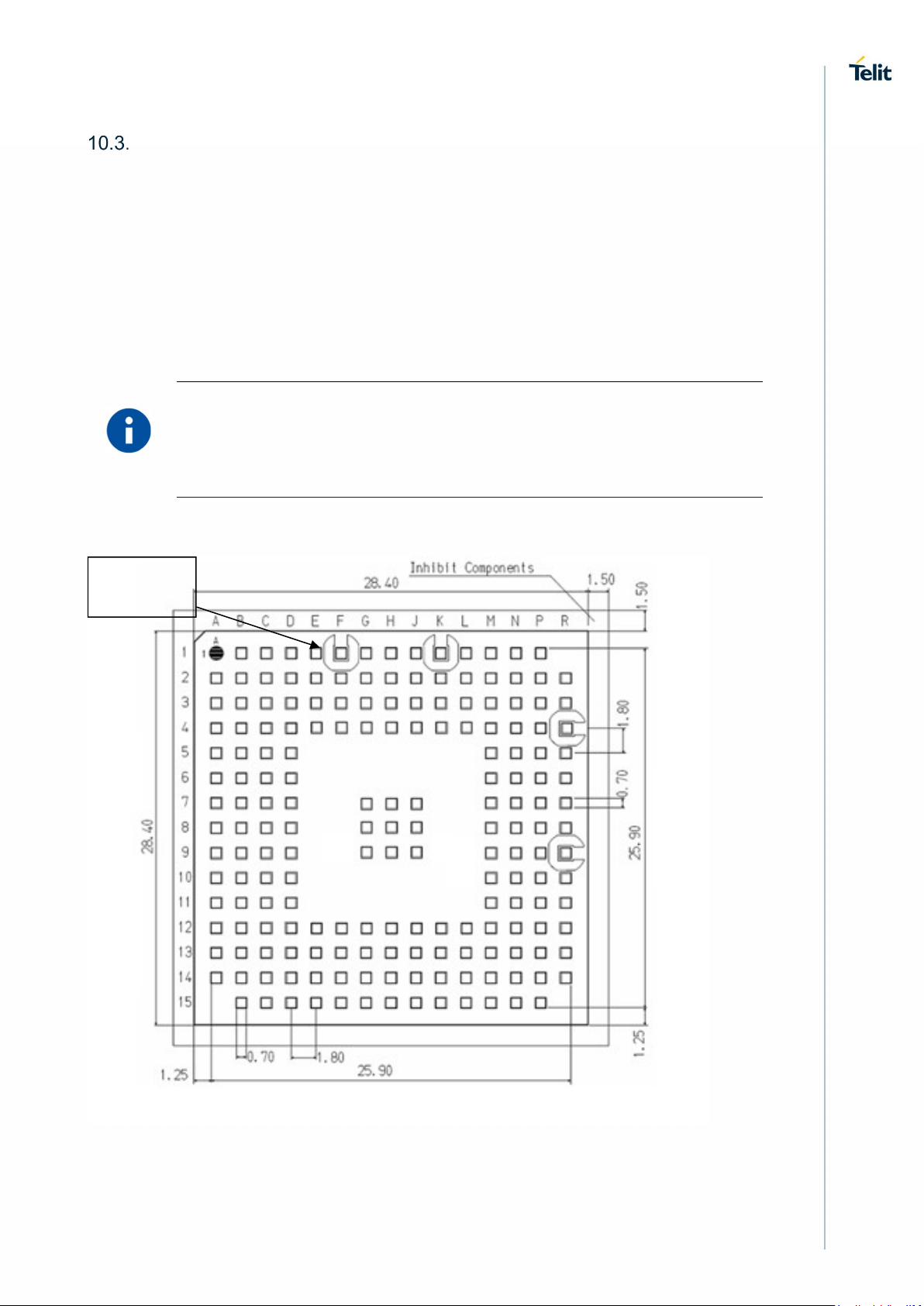

Recommended Footprint for the Application ..................................................93

Stencil ............................................................................................................94

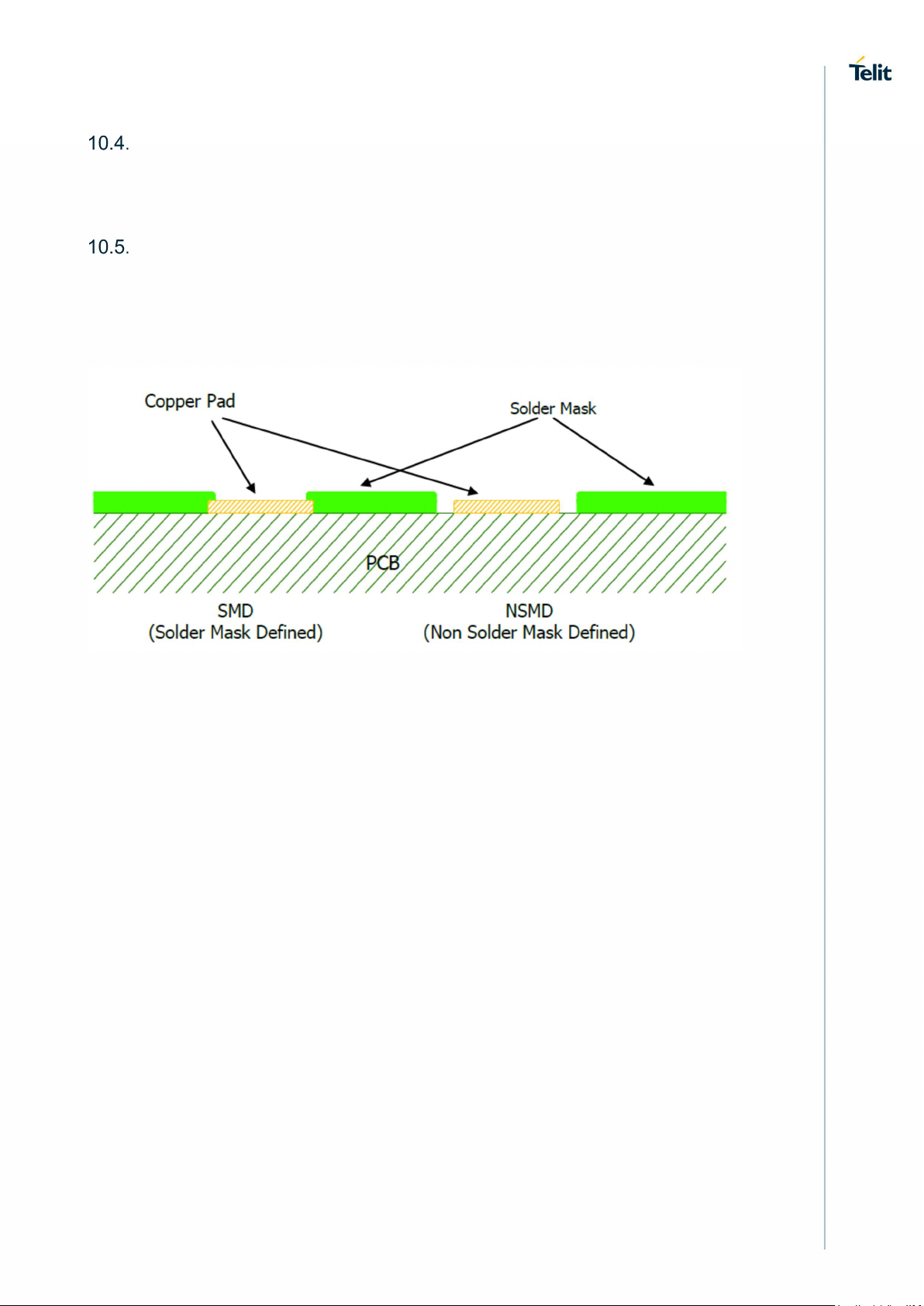

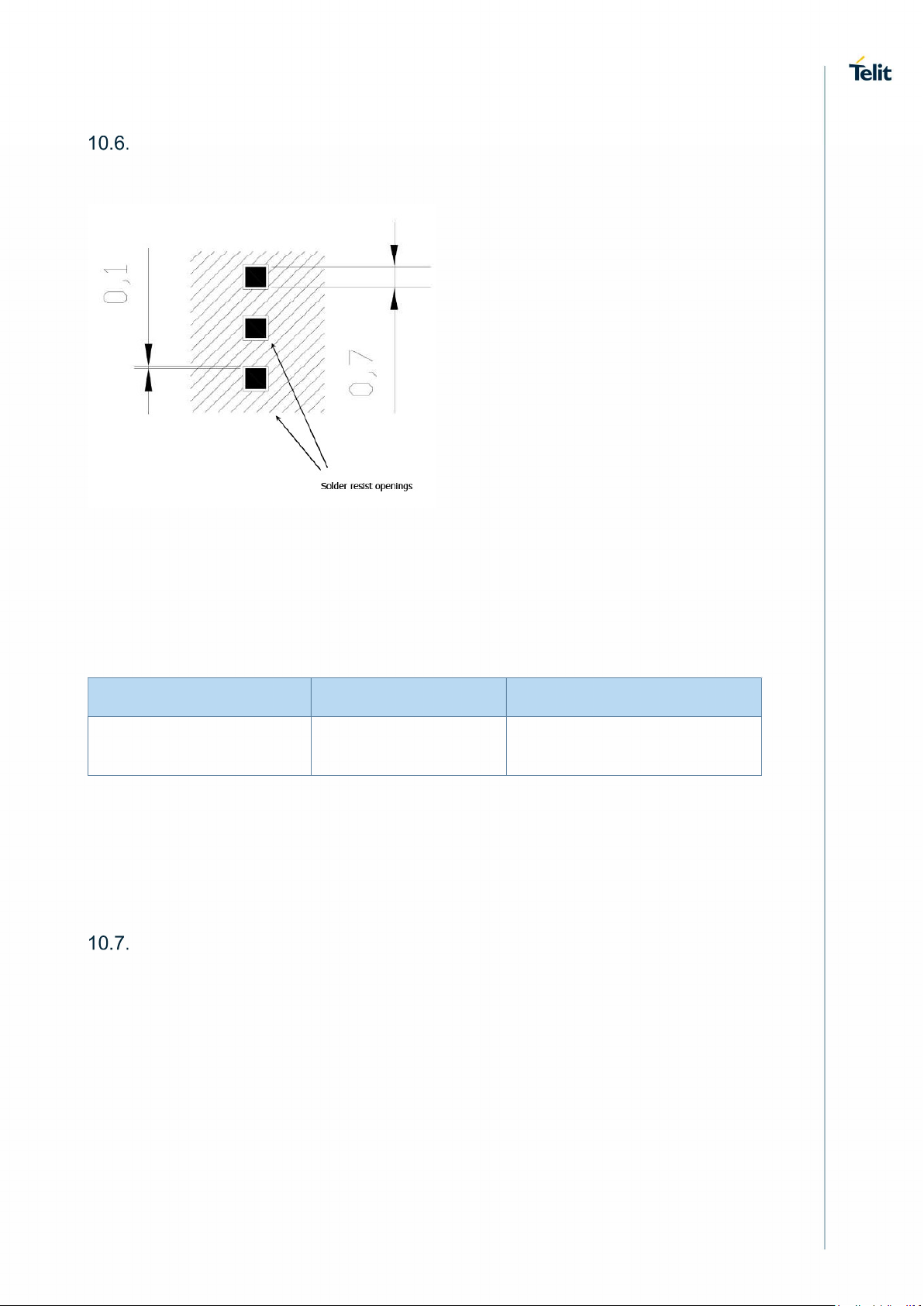

PCB Pad Design ............................................................................................94

Recommendations for PCB Pad Dimensions (mm) ........................................95

Solder Paste ..................................................................................................95

10.7.1. Solder Reflow ................................................................................................96

10.7.2. Cleaning ........................................................................................................98

Rev. 2.0 Page 7 of 119 2018-09-16

LE910Cx HW User Guide Doc#: 1VV0301298

11. APPLICATION GUIDE .................................................................................. 99

Debug of the LE910Cx Module in Production ................................................99

Bypass Capacitor on Power Supplies .......................................................... 100

SIM Interface ............................................................................................... 101

11.3.1. SIM Schematic Example .............................................................................. 101

EMC Recommendations .............................................................................. 102

Download and Debug Port ........................................................................... 102

11.5.1. Fast Boot mode ........................................................................................... 103

11.5.2. Recovery Boot Mode ................................................................................... 103

12. PACKING SYSTEM .................................................................................... 104

Packing System – Tray ................................................................................ 104

Tape & Reel ................................................................................................. 106

Moisture Sensitivity ...................................................................................... 108

13. SAFETY RECOMMENDATIONS................................................................. 109

14. CONFORMITY ASSESSMENT ISSUES ..................................................... 110

FCC/ISED Regulatory Notices ..................................................................... 110

15. ACRONYMS ................................................................................................ 113

16. DOCUMENT HISTORY ............................................................................... 116

Rev. 2.0 Page 8 of 119 2018-09-16

LE910Cx HW User Guide Introduction Doc#: 1VV0301298 Scope

1. Introduction

Scope

This document introduces the Telit LE910Cx module and presents possible and recommended hardware solutions for developing a product based on the LE910Cx module. All the features and solutions detailed in this document are applicable to all LE910Cx variants, where “LE910Cx” refers to the variants listed in the applicability table.

If a specific feature is applicable to a specific product only, it will be clearly marked.

NOTE:

LE910Cx refers to all modules listed in the Applicability Table.

This document takes into account all the basic functions of a wireless module; suggests a valid hardware solution for each function and points out incorrect solutions and common errors to be avoided.

Obviously, this document cannot embrace every hardware solution or every product that can be designed. Obviously, avoiding invalid solutions must be considered mandatory. Where the suggested hardware configurations need not be considered mandatory, the information given should be used as a guide and a starting point for properly developing your product with the Telit LE910Cx module.

NOTE:

The integration of the GSM/GPRS/EGPRS/WCDMA/HSPA+/LTE LE910Cx cellular module within a user application must be done according to the design rules described in this manual.

Audience

This document is intended for Telit customers, especially system integrators, about to implement their applications using the Telit LE910Cx module.

Contact Information, Support

For general contact, technical support services, technical questions and report documentation errors, contact Telit Technical Support at:

 TS-EMEA@telit.com  TS-AMERICAS@telit.com  TS-APAC@telit.com

Rev. 2.0 Page 9 of 119 2018-09-16

LE910Cx HW User Guide Introduction Doc#: 1VV0301298 Text Conventions

Alternatively, use:

http://www.telit.com/support

For detailed information about where you can buy the Telit modules or for recommendations on accessories and components visit:

http://www.telit.com

To register for product news and announcements or for product questions contact Telit’s Technical Support Center (TTSC).

Our aim is to make this guide as helpful as possible. Keep us informed of your comments and suggestions for improvements.

Telit appreciates feedback from the users of our information.

Text Conventions

The following conventions are used to emphasize specific types of information:

DANGER:

Danger – This information MUST be followed, or catastrophic equipment failure or bodily injury may occur.

WARNING:

Caution or Warning – Alerts the user to important points about integrating the module, if these points are not followed, the module and end user equipment may fail or malfunction.

NOTE:

Tip or Information – Provides advice and suggestions that may be useful when integrating the module.

All dates are in ISO 8601 format, i.e. YYYY-MM-DD.

Rev. 2.0 Page 10 of 119 2018-09-16

LE910Cx HW User Guide Introduction Doc#: 1VV0301298 Related Documents

Related Documents

Table 2: Related Documents

Document Title Document Number

Ref 1: LE920x4/LE910Cx AT Command User Guide 80490ST10778A

Ref 2: Telit EVB HW User Guide 1VV0301249

Ref 3: LE910Cx Interface Board HW User Guide 1VV0301323

Ref 4: LE910/LE920 Digital Voice Interface Application Note

Ref 5: Telit_LE920A4_LE910Cx_WiFi_Interface_Application_Note_r1

Ref 6: Antenna Detection Application Note 80000NT10002A

Ref 7: High-Speed Inter-Chip USB Electrical Specification, version 1.0

(a supplement to the USB 2.0 specification, Section 3.8.2)

Ref 8: ETH_Expansion_board_Application Note 80490NT11622A

80000NT11246A

80490NT11511A

Rev. 2.0 Page 11 of 119 2018-09-16

LE910Cx HW User Guide Product Description Doc#: 1VV0301298 Overview

2. Product Description

Overview

LE910Cx is Telit’s new LTE series for IoT applications.

In its most basic use case, LE910Cx can be applied as a wireless communication frontend for telematics products, offering GNSS and mobile communication features to an external host CPU through its rich interfaces.

LE910Cx is available in hardware variants as listed in Table 1: Applicability Table. For differences in the designated RF band sets – refer to Section 2.6.1, RF Bands per

Regional Variant.

NOTE:

(EN) The integration of the LE910Cx cellular module within user application shall be done according to the design rules described in this manual.

(IT) L’integrazione del modulo cellulare LE910Cx all’interno dell’applicazione dell’utente dovrà rispettare le indicazioni progettuali descritte in questo manuale.

(DE) Die Integration des LE910Cx Mobilfunk-Moduls in ein Gerät muß gemäß der in diesem Dokument beschriebenen Kunstruktionsregeln erfolgen.

(SL) Integracija LE910Cx modula v uporabniški aplikaciji bo morala upoštevati projektna navodila, opisana v tem priročniku.

(SP) La utilización del modulo LE910Cx debe ser conforme a los usos para los cuales ha sido deseñado descritos en este manual del usuario.

(FR) L’intégration du module cellulaire LE910Cx dans l’application de l’utilisateur sera faite selon les règles de conception décrites dans ce manuel.

(HE)

The information presented in this document is believed to be accurate and reliable. However, no responsibility is assumed by Telit Communications S.p.A. for its use, nor any infringement of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent rights of Telit Communications S.p.A. other than for circuitry embodied in Telit products. This document is subject to change without notice.

Rev. 2.0 Page 12 of 119 2018-09-16

LE910Cx HW User Guide Product Description Doc#: 1VV0301298 Applications

Applications

LE910Cx can be used for telematics applications where tamper-resistance, confidentiality, integrity, and authenticity of end-user information are required, for example:

 Emergency call  Telematics services  Road pricing  Pay-as-you-drive insurance  Stolen vehicles tracking  Internet connectivity

General Functionality and Main Features

The LE910Cx series of cellular modules features an LTE and multi-RAT modem together with a powerful on-chip application processor and a rich set of interfaces.

The major functions and features are listed below:

Table 3: Features Table

Function Features

Modem

Digital audio subsystem

Two USIM ports – dual voltage

 Multi-RAT cellular modem for voice and data communication

o LTE FDD Cat1 (Other variants) (10/5Mbps DL/UL). o Carrier aggregation is not supported o GSM/GPRS/EDGE o WCDMA up to DC HSPA+, Rel.9

 Support for SIM profile switching  Regional variants with optimal choice of RF bands for

worldwide coverage of countries and MNOs

 State-of-the-art GNSS solution with

GPS/GLONASS/BeiDou/Galileo/QZSS receiver

 PCM/I2S digital audio interface  Up to 48 kHz sample rate, 16-bit words

 Class B and Class C support  Hot swap support  Clock rates up to 5 MHz

Application processor

Rev. 2.0 Page 13 of 119 2018-09-16

Application processor to run customer application code

 32-bit ARM Cortex-A7 up to 1.3 GHz running the Linux

operating system

 Flash + DDR are large enough to allow for customer’s own

software applications

LE910Cx HW User Guide Product Description Doc#: 1VV0301298 General Functionality and Main Features

Function Features

Interfaces Rich set of interfaces, including:

 SD/MMC Card Interface supporting SD3.0 standard  SDIO for external WiFi transceiver supporting SDIO3.0

standard

 SGMII for external Ethernet transceiver

o Compliant with IEEE802.3 o Full duplex operation at 1 Gbps o Half/full duplex operation at 10/100 Mbps o Support for VLAN tagging o Support for IEEE1588, PTP (Precision Time Protocol)

 USB2.0 – USB port is typically used for:

o Flashing of firmware and module configuration o Production testing o Accessing the Application Processor’s file system o AT command access o High-speed WWAN access to external host o Diagnostic monitoring and debugging o NMEA data to an external host CPU

 HSIC (Optional)

o High-speed 480 Mbps (240 MHz DDR) USB transfers are

100% host driver compatible with traditional USB cable connected topologies

o Bidirectional data strobe signal (STROBE) o Bidirectional data signal (DATA) o No power consumption unless a transfer is in progress o Maximum trace length 10 cm o Signals driven at 1.2V standard LVCMOS levels

 Peripheral Ports – SPI, I2C, UART  GPIOs  Antenna ports

Form factor Form factor (28x28mm), accommodating the multiple RF bands in

each region variant

Environment and quality

The entire module is designed and qualified by Telit for satisfying the environment and quality requirements.

requirements

Single supply

The module generates all its internal supply voltages.

module

RTC No dedicated RTC supply, RTC is supplied by VBATT

Rev. 2.0 Page 14 of 119 2018-09-16

LE910Cx HW User Guide Product Description Doc#: 1VV0301298 General Functionality and Main Features

Function Features

Operating temperature

NOTE:

The following interfaces are unique for the LE910Cx and may not be supported on other (former or future) xE910 family. Special care must be taken when designing the application board if future compatibility is required:

- SGMII for Ethernet connectivity

- SDIO for WIFI connectivity

- SD/MMC for SD Card connectivity

Range -40 °C to +85 °C (conditions as defined in Section 2.5.1,

Temperature Range).

Rev. 2.0 Page 15 of 119 2018-09-16

LE910Cx HW User Guide Product Description Doc#: 1VV0301298 Block Diagram

Block Diagram

Figure 1 shows an overview of the internal architecture of the LE910Cx module.

It includes the following sub-functions:

 Application processor, Modem subsystem and Location processing with their

external interfaces. These three functions are contained in a single SOC.

 RF front end and antenna ports.  Digital Audio interface for external codec.  Rich IO interfaces. Depending on which LE910Cx software features are enabled,

some of its interfaces that are exported due to multiplexing may be used internally and thus may not be usable by the application.

 PMIC with the RTC function inside

Figure 1: LE910Cx Block Diagram

GNSS_Sync

GNSS Antennna

LOCATION

JTAG

MEMORIES

MODEM

APPLICATION

PROCESSOR

HSICI2C USB2.0SGMIISPI

UART

GPIO

FRONTEND

PMIC

RTC

2xSDIO

SIM PCM In/out

VBATT_PA

Cellular antenna 1

Cellular antenna 2

VBATT

ADC

Rev. 2.0 Page 16 of 119 2018-09-16

LE910Cx HW User Guide Product Description Doc#: 1VV0301298 Environmental Requirements

Environmental Requirements

2.5.1. Temperature Range

Operating temperature range

Storage and nonoperating temperature range

-20 ~ +55°C. This range is defined by 3GPP (the global standard for wireless

mobile communication). Telit guarantees its modules to comply with all the 3GPP requirements and to have full functionality of the module with in this range.

-40 ~ +85°C. Telit guarantees full functionality within this range as well.

However, there may possibly be some performance deviations in this extended range relative to 3GPP requirements, which means that some RF parameters may deviate from the 3GPP specification in the order of a few dB. For example: receiver sensitivity or maximum output power may be slightly degraded.

Even so, all the functionalities, such as call connection, SMS, USB communication, UART activation etc., will be maintained, and the effect of such degradations will not lead to malfunction.

–40°C ~ +95°C

2.5.2. RoHS Compliance

As a part of the Telit corporate policy of environmental protection, the LE910Cx complies with the RoHS (Restriction of Hazardous Substances) directive of the European Union (EU directive 2011/65/EU).

Rev. 2.0 Page 17 of 119 2018-09-16

LE910Cx HW User Guide Product Description Doc#: 1VV0301298 Operating Frequency Bands

Operating Frequency Bands

The operating frequencies in GSM850, EGSM900, DCS1800, PCS1900, WCDMA & LTE modes conform to the 3GPP specifications.

2.6.1. RF Bands per Regional Variant

Table 4 summarizes all region variants within the LE910Cx family, showing the supported band sets in each variant and the supported band pairs for 2x carrier aggregation.

Table 4: RF Bands per Regional Variant

Region Variant

LE910C1-NA 2, 3, 5, 8 1, 2, 4, 5, 8 2, 4, 12 - -

LE910C1-NS - - 2, 4, 5, 12, 25, 26 - -

LE910C1-AP - 1, 5, 8 1, 3, 5, 8, 28 - -

LE910C4-EU 3, 8 1, 3, 8 1, 3, 7, 8, 20, 28A - -

LE910C1-EU 3, 8 1, 3, 8 1, 3, 7, 8, 20, 28A - -

LE910C4-NF - 2, 4, 5

LE910C1-NF - 2, 4, 5

2G HSPA+ LTE FDD LTE TDD TD-SCDMA

2, 4, 5, 12, 13, 14, 66, 71

- -

Rev. 2.0 Page 18 of 119 2018-09-16

LE910Cx HW User Guide Product Description Doc#: 1VV0301298 Operating Frequency Bands

2.6.2. Reference Table of RF Bands Characteristics

Table 5: RF Bands Characteristics

Mode Freq. Tx (MHz) Freq. Rx (MHz) Channels

PCS 1900 1850.2 ~ 1909.8 1930.2 ~ 1989.8 512 ~ 810 80 MHz

DCS 1800 1710 ~ 1785 1805 ~ 1880 512 ~ 885 95 MHz

GSM 850 824.2 ~ 848.8 869.2 ~ 893.8 128 ~ 251 45 MHz

890 ~ 915 935 ~ 960 0 ~ 124 45 MHz

EGSM 900

880 ~ 890 925 ~ 935 975 ~ 1023 45 MHz

Tx: 9612 ~ 9888

WCDMA 2100 – B1 1920 ~ 1980 2110 ~ 2170

Rx: 10562 ~ 10838

Tx: 9262 ~ 9538

WCDMA 1900 – B2 1850 ~ 1910 1930 ~ 1990

Rx: 9662 ~ 9938

Tx: 937 ~ 1288

WCDMA 1800 – B3 1710 ~ 1785 1805 ~ 1880

Rx: 1162 ~ 1513

Tx-Rx

Offset

190 MHz

80 MHz

95 MHz

WCDMA AWS – B4 1710 ~ 1755 2110 ~ 2155

WCDMA 850 – B5 824 ~ 849 869 ~ 894

WCDMA 900 – B8 880 ~ 915 925 ~ 960

WCDMA 1800 – B9 1750 ~ 1784.8 1845 ~ 1879.8

WCDMA 800 – B19 830 ~ 845 875 ~ 890

TDS CDMA 2000 – B34 2010 ~ 2025 2010 ~ 2025

TDS CDMA 1900 – B39 1880 ~ 1920 1880 ~ 1920

Tx: 1312 ~ 1513

400 MHz

Rx: 1537 ~ 1738

Tx: 4132 ~ 4233

45 MHz

Rx: 4357 ~ 4458

Tx: 2712 ~ 2863

45 MHz

Rx: 2937 ~ 3088

Tx: 8762 ~ 8912

95 MHz

Rx: 9237 ~ 9387

Tx: 312 ~ 363

45 MHz

Rx: 712 ~ 763

Tx: 10054 ~ 10121

0 MHz

Rx: 10054 ~ 10121

Tx: 9404 ~ 9596

0 MHz

Rx: 9404 ~ 9596

LTE 2100 – B1 1920 ~ 1980 2110 ~ 2170

Tx: 18000 ~ 18599 Rx: 0 ~ 599

Rev. 2.0 Page 19 of 119 2018-09-16

190 MHz

LE910Cx HW User Guide Product Description Doc#: 1VV0301298 Operating Frequency Bands

Mode Freq. Tx (MHz) Freq. Rx (MHz) Channels

LTE 1900 – B2 1850 ~ 1910 1930 ~ 1990

LTE 1800 – B3 1710 ~ 1785 1805 ~ 1880

LTE AWS – B4 1710 ~ 1755 2110 ~ 2155

LTE 850 – B5 824 ~ 849 869 ~ 894

LTE 2600 – B7 2500 ~ 2570 2620 ~ 2690

LTE 900 – B8 880 ~ 915 925 ~ 960

Tx-Rx

Offset

Tx: 18600 ~ 19199

80 MHz

Rx: 600 ~ 1199

Tx: 19200 ~ 19949

95 MHz

Rx: 1200 ~ 1949

Tx: 19950 ~ 20399

400 MHz

Rx: 1950 ~ 2399

Tx: 20400 ~ 20649

45 MHz

Rx: 2400 ~ 2649

Tx: 20750 ~ 21449

120 MHz

Rx: 2750 ~ 3449

Tx: 21450 ~ 21799

45 MHz

Rx: 3450 ~ 3799

LTE 1800 – B9 1749.9 ~ 1784.9 1844.9 ~ 1879.9

LTE AWS+ – B10 1710 ~ 1770 2110 ~ 2170

LTE 700a – B12 699 ~ 716 729 ~ 746

LTE 700c – B13 777 ~ 787 746 ~ 756

LTE 700b – B17 704 ~ 716 734 ~ 746

LTE 800 – B19 830 ~ 845 875 ~ 890

LTE 800 – B20 832 ~ 862 791 ~ 821

Tx: 21800 ~ 2149

95 MHz

Rx: 3800 ~ 4149

Tx: 22150 ~ 22749

400 MHz

Rx: 4150 ~ 4749

Tx: 23010 ~ 23179

30 MHz

Rx: 5010 ~ 5179

Tx: 27210 ~ 27659

-31 MHz

Rx: 9210 ~ 9659

Tx: 23730 ~ 23849

30 MHz

Rx: 5730 ~ 5849

Tx: 24000 ~ 24149

45 MHz

Rx: 6000 ~ 6149

Tx: 24150 ~ 24449

-41 MHz

Rx: 6150 ~ 6449

LTE 1500 – B21 1447.9 ~ 1462.9 1495.9 ~ 1510.9

Tx: 24450 ~ 24599 Rx: 6450 ~ 6599

Tx: 26040 ~ 26689

LTE 1900+ – B25 1930 ~ 1995 1850 ~ 1915

Rx: 8040 ~ 8689

Rev. 2.0 Page 20 of 119 2018-09-16

48 MHz

80 MHz

LE910Cx HW User Guide Product Description Doc#: 1VV0301298 Operating Frequency Bands

Mode Freq. Tx (MHz) Freq. Rx (MHz) Channels

LTE 850+ – B26 814 ~ 849 859 ~ 894

LTE 700 – B28A 703 ~ 733 758 ~ 788

LTE 700 – B28 703 ~ 748 758 ~ 803

LTE AWS-3 – B66 1710 ~ 1780 2210 ~ 2200

LTE600 – B71 663 ~ 698 617 ~ 652

LTE TDD 2600 – B38 2570 ~ 2620 2570 ~ 2620

Tx: 26690 ~ 27039 Rx: 8690 ~ 9039

Tx: 27210 ~ 27510 Rx: 9210 ~ 9510

Tx: 27210 ~ 27659 Rx: 9210 ~ 9659

Tx: 131972-132671 Rx: 66436-67335

Tx: 133122-133471 Rx: 68568-68935

Tx: 37750 ~ 38250 Rx: 37750 ~ 38250

Tx-Rx

Offset

45 MHz

55 MHz

400 MHz

46 MHz

0 MHz

LTE TDD 1900 – B39 1880 ~ 1920 1880 ~ 1920

LTE TDD 2300 – B40 2300 ~ 2400 2300 ~ 2400

LTE TDD 2500 – B41M 2555 ~ 2655 2555 ~ 2655

Tx: 38250 ~ 38650

0 MHz

Rx: 38250 ~ 38650

Tx: 38650 ~ 39650

0 MHz

Rx: 38650 ~ 39650

Tx: 40265 ~ 41215

0 MHz

Rx: 40265 ~ 41215

Rev. 2.0 Page 21 of 119 2018-09-16

LE910Cx HW User Guide Product Description Doc#: 1VV0301298 RF Parameters

RF Parameters

2.7.1. Sensitivity

Typical sensitivity levels are as follows:

 -108 dBm @ 2G  -113.5 dBm @ 3G  -103 dBm @ 4G FDD (BW=5 MHz)

2.7.2. Output power

Typical values for Max output level are as follow:

 2G:

- LB: 33dBm

- HB: 30dBm

 3G/TD-SCDMA: 24dBm  4G (FDD & TDD): 23dBm @1RB.

Rev. 2.0 Page 22 of 119 2018-09-16

LE910Cx HW User Guide Product Description Doc#: 1VV0301298 Mechanical Specifications

Mechanical Specifications

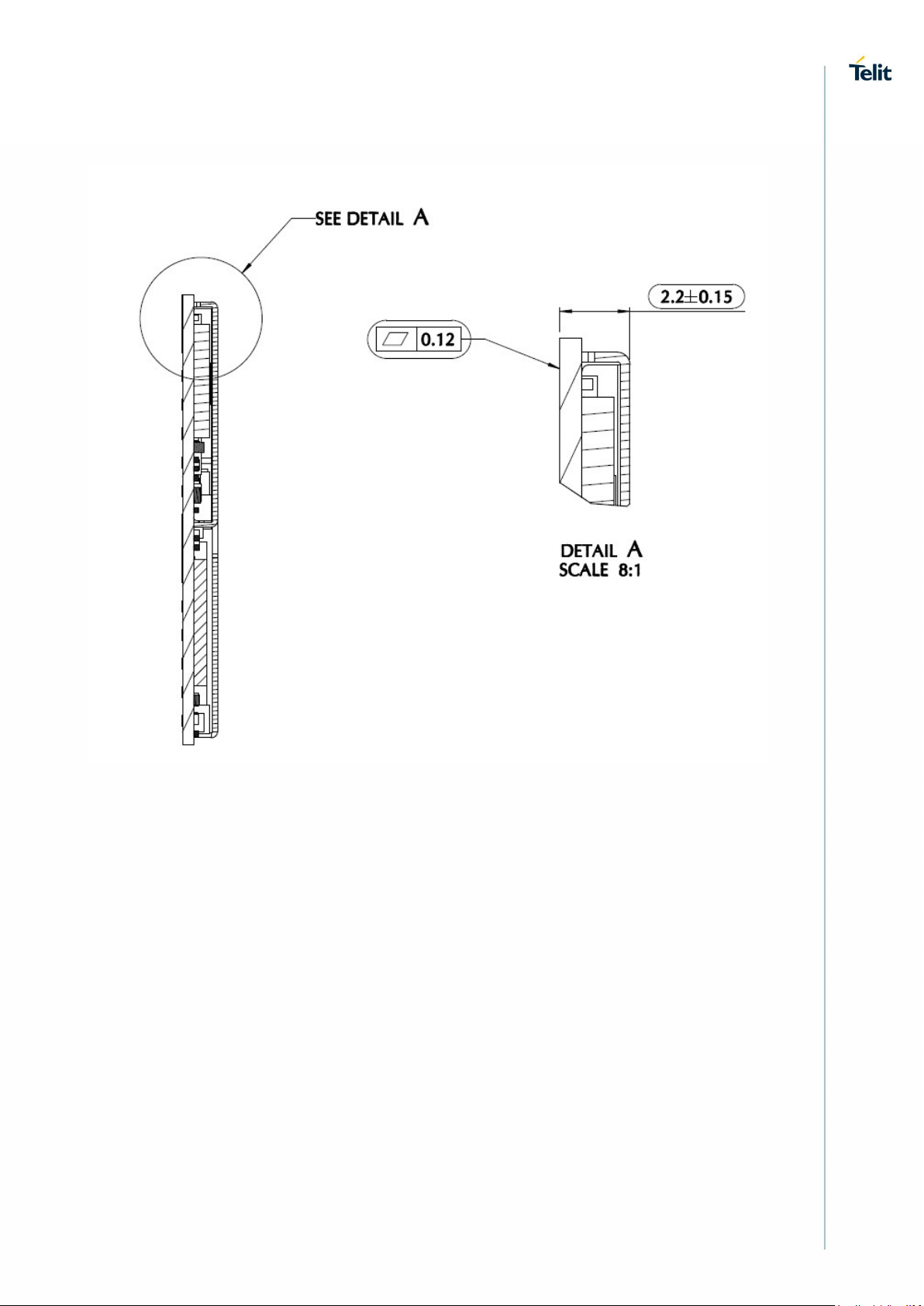

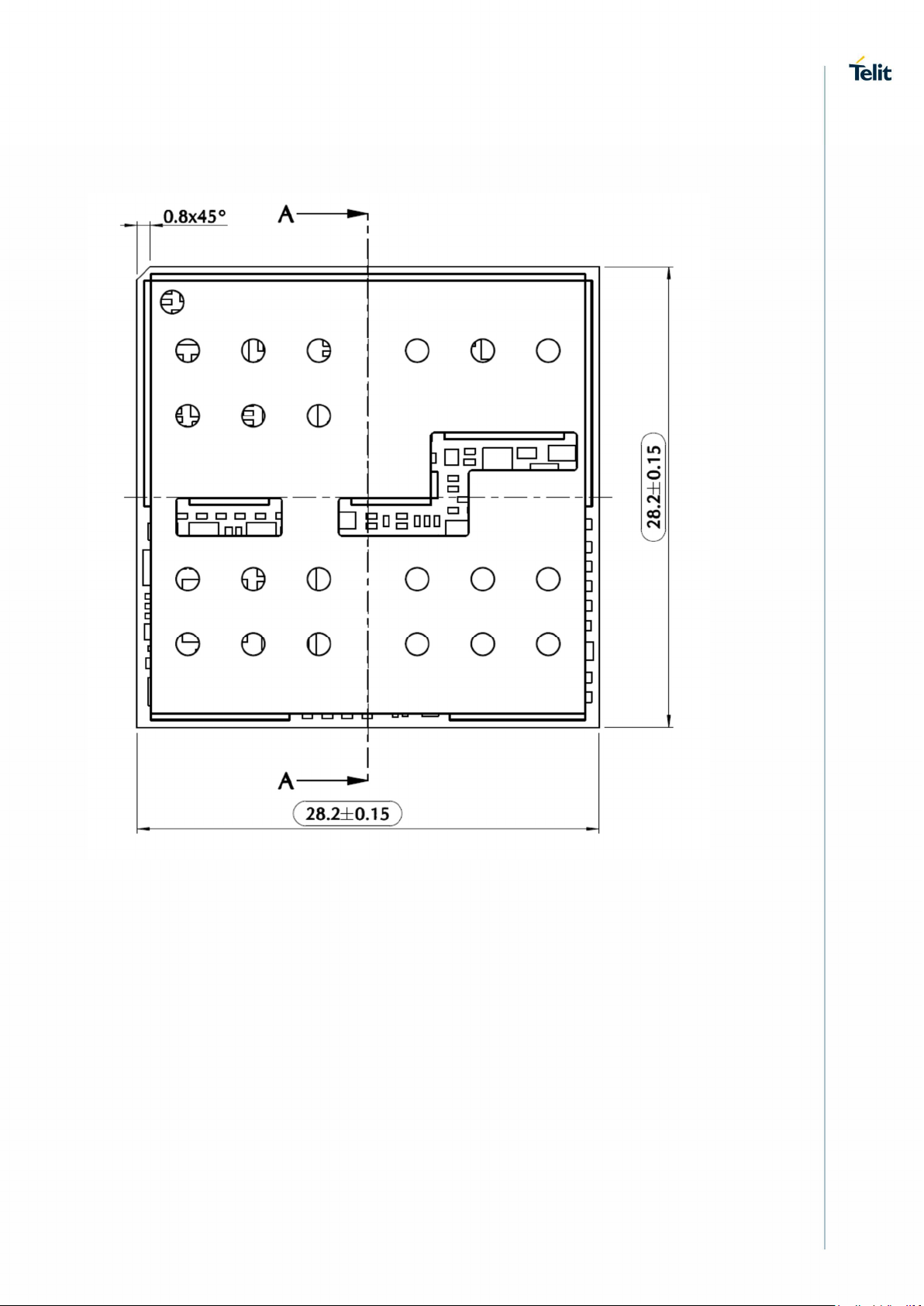

2.8.1. Dimensions

The module’s overall dimensions are:

 Length: 28.2 mm, +/- 0.15 mm tolerance  Width: 28.2 mm, +/- 0.15 mm tolerance  Thickness: 2.2 mm, +/- 0.15 mm tolerance

NOTE:

Consider a typical label thickness of 0.1 mm in addition to the module thickness.

2.8.2. Weight

The nominal weight of the LE910Cx module is 9.0 gram.

Rev. 2.0 Page 23 of 119 2018-09-16

LE910Cx HW User Guide Module Connections Doc#: 1VV0301298 Pin-out

3. Module Connections

Pin-out

Table 6: Pin-out

PAD Signal I/O Function Type Comment

USB HS 2.0 Communication Port

B15 USB_D+ I/O USB differential Data (+)

C15 USB_D- I/O USB differential Data (-)

A13 USB_VBUS AI

A14 USB_ID AI USB ID

Asynchronous UART

N15 C103/TXD I

M15 C104/RXD O Serial data output to DTE 1.8V

L14 C105/RTS I

P15 C106/CTS O

P14 C107/DSR O

M14 C108/DTR I

Power sense for the internal USB transceiver

Serial data input (TXD) from DTE

Input for Request to send signal (RTS) from DTE

Output for Clear to send signal (CTS) to DTE

Output for Data Set Ready (DSR) to DTE

Input for Data Terminal Ready (DTR) from DTE

Power

1.8V

See note below

Alternate Fn GPIO_32

Alternate Fn GPIO_34

N14 C109/DCD O

R14 C125/RING O

SPI – Serial Peripheral Interface / AUX UART

F15 SPI_CLK O SPI Clock output 1.8V

E15 SPI_MISO/ RX_AUX I

D15 SPI_MOSI/TX_AUX O

H14 SPI_CS/GPIO11 O

Output for Data Carrier Detect (DCD) to DTE

Output for Ring Indication (RI) to DTE

SPI data Master Input Slave output / RX_AUX

SPI data Master Output Slave input/ TX_AUX

SPI Chip select output / GPIO11

1.8V

Alternate Fn GPIO_33

Alternate Fn GPIO_31

See note below

Rev. 2.0 Page 24 of 119 2018-09-16

LE910Cx HW User Guide Module Connections Doc#: 1VV0301298 Pin-out

PAD Signal I/O Function Type Comment

SD/MMC Card Digital I/O

J12 SD/MMC_CMD O SD Command 1.8/2.95V

F12 SD/MMC_CLK O SD Card Clock 1.8/2.95V

E12 SD/MMC_DATA0 I/O SD Serial Data 0 1.8/2.95V

G12 SD/MMC_DATA1 I/O SD Serial Data 1 1.8/2.95V

K12 SD/MMC_DATA2 I/O SD Serial Data 2 1.8/2.95V

H12 SD/MMC_DATA3 I/O SD Serial Data 3 1.8/2.95V

G13 SD/MMC_CD I SD card detect input 1.8V Active Low

F13 VMMC -

WiFi (SDIO) Interface

N13 WiFi_SD_CMD O Wi-Fi SD Command 1.8V

L13 WiFi_SD_CLK O Wi-Fi SD Clock 1.8V

J13 WiFi_SD_DATA0 I/O Wi-Fi SD Serial Data 0 1.8V

M13 WiFi_SD_DATA1 I/O Wi-Fi SD Serial Data 1 1.8V

K13 WiFi_SD_DATA2 I/O Wi-Fi SD Serial Data 2 1.8V

H13 WiFi_SD_DATA3 I/O Wi-Fi SD Serial Data 3 1.8V

L12 WiFi_SDRST O

M11 WLAN_SLEEP_CLK O Wi-Fi Sleep clock output 1.8V

M10 RFCLK2_QCA O

Power supply for MMC card pull-up resistors

Wi-Fi Reset / Power enable control

Wi-Fi low noise RF clock output

1.8/2.95V

1.8V Active Low

1.8V

LTE-WiFi Coexistence

M8 WCI_TX O

M9 WCI_RX I

SIM Card Interface 1

A6 SIMCLK1 O External SIM 1 signal – Clock 1.8/2.85V

A7 SIMRST1 O External SIM 1 signal – Reset 1.8/2.85V

Wireless coexistence interface TXD

Wireless coexistence interface RXD

1.8V

Rev. 2.0 Page 25 of 119 2018-09-16

LE910Cx HW User Guide Module Connections Doc#: 1VV0301298 Pin-out

PAD Signal I/O Function Type Comment

A5 SIMIO1 I/O

A4 SIMIN1 I

A3 SIMVCC1 -

SIM Card Interface 2

C1 SIMCLK2 O External SIM 2 signal – Clock 1.8/2.85V

D1 SIMRST2 O External SIM 2 signal – Reset 1.8/2.85V

C2 SIMIO2 I/O

G4 SIMIN2 I

D2 SIMVCC2 -

External SIM 1 signal - Data I/O

External SIM 1 signal Presence

External SIM 1 signal – Power supply for SIM 1

External SIM 2 signal – Data I/O

External SIM 2 signal – Presence

External SIM 2 signal – Power supply for SIM 2

1.8/2.85V

1.8V Active low

1.8/2.85V

1.8V Active low

1.8/2.85V

Internally PU 10 kΩ to SIMVCC1

Internally PU 10kΩ to SIMVCC2

Digital Voice Interface (DVI)

B9 DVI_WAO O

B6 DVI_RX I Digital Voice interface (Rx) 1.8V

B7 DVI_TX O Digital Voice interface (Tx) 1.8V

B8 DVI_CLK O

B12 REF_CLK O

General Purpose Digital I/O

C8 GPIO_01 I/O GPIO_01 / STAT_LED 1.8V

C9 GPIO_02 I/O GPIO_02 1.8V

C10 GPIO_03 I/O GPIO_03 1.8V

Digital Voice interface (WAO master output)

Digital Voice interface (CLK master output)

Reference clock for external Codec

1.8V

See Note below

Alternate Fn I2C

C11 GPIO_04 I/O GPIO_04 1.8V

Alternate Fn I2C

Rev. 2.0 Page 26 of 119 2018-09-16

LE910Cx HW User Guide Module Connections Doc#: 1VV0301298 Pin-out

PAD Signal I/O Function Type Comment

B14 GPIO_05 I/O GPIO_05 1.8V

C12 GPIO_06 I/O GPIO_06 1.8V

C13 GPIO_07 I/O GPIO_07 1.8V

K15 GPIO_08 I/O GPIO_08 / SW_RDY 1.8V

L15 GPIO_09 I/O GPIO_09 1.8V

G15 GPIO_10 I/O GPIO_10 1.8V

RF Section

K1 Antenna I/O

F1 ANT_DIV I

GSM/EDGE/UMTS/LTE Main antenna (50 Ohm)

UMTS/LTE antenna diversity input (50 Ohm)

Alternate Fn I2C

GPS Section

R9 ANT_GPS I GPS antenna (50 Ohm) RF

R7 GPS_LNA_EN O

N9 GPS_SYNC O

Miscellaneous Functions

R12 ON_OFF_N I Power ON / Power OFF input Active low

R13 HW_SHUTDOWN_N I Unconditional Shutdown input Active low

R11 VAUX/PWRMON O

B1 ADC_IN1 AI

H4 ADC_IN2 AI

Enables the external regulator for GPS LNA

GPS sync signal for Dead Reckoning

Supply output for external accessories /

Power ON monitor

Analog/Digital Converter Input 1

Analog/Digital Converter Input 2

1.8V

Analog

D7 ADC_IN3 AI

Analog/Digital Converter Input 3

Analog

Rev. 2.0 Page 27 of 119 2018-09-16

LE910Cx HW User Guide Module Connections Doc#: 1VV0301298 Pin-out

PAD Signal I/O Function Type Comment

SGMII Interface

E4 SGMII_RX_P AI SGMII receive – plus PHY

F4 SGMII_RX_M AI SGMII receive – minus PHY

D5 SGMII_TX_P AO SGMII transmit – plus PHY

D6 SGMII_TX_M AO SGMII transmit - minus PHY

HSIC Interface

A12 HSIC_DATA I/O

A11 HSIC_STB I/O

I2C Interface

B11 I2C_SCL I/O I2C clock 1.8V

B10 I2C_SDA I/O I2C Data 1.8V

Power Supply

M1 VBATT -

M2 VBATT -

N1 VBATT_PA -

High-speed inter-chip interface

- data

High-speed inter-chip interface

- strobe

Main Power Supply (Digital Section)

Main Power Supply (RF Section)

1.2V Optional

Power

Internally PU

2.2kΩ to 1.8V

Internally PU

2.2kΩ to 1.8V

N2 VBATT_PA -

P1 VBATT_PA -

P2 VBATT_PA -

A2 GND - Ground

B13 GND Ground

D4 GND - Ground

E1 GND - Ground

E2 GND - Ground

Main Power Supply (RF Section)

Power

Rev. 2.0 Page 28 of 119 2018-09-16

LE910Cx HW User Guide Module Connections Doc#: 1VV0301298 Pin-out

PAD Signal I/O Function Type Comment

E14 GND - Ground

F2 GND - Ground

G1 GND - Ground

G2 GND - Ground

G7 GND - Ground

G8 GND - Ground

G9 GND - Ground

H1 GND - Ground

H2 GND - Ground

H7 GND - Ground

H8 GND - Ground

H9 GND - Ground

J1 GND - Ground

J2 GND - Ground

J7 GND - Ground

J8 GND - Ground

J9 GND - Ground

K2 GND - Ground

L1 GND - Ground

L2 GND - Ground

M3 GND - Ground

M4 GND - Ground

M12 GND - Ground

N3 GND - Ground

N4 GND - Ground

N5 GND - Ground

N6 GND - Ground

P3 GND - Ground

Rev. 2.0 Page 29 of 119 2018-09-16

LE910Cx HW User Guide Module Connections Doc#: 1VV0301298 Pin-out

PAD Signal I/O Function Type Comment

P4 GND - Ground

P5 GND - Ground

P6 GND - Ground

P8 GND - Ground

P9 GND - Ground

P10 GND - Ground

P13 GND - Ground

R2 GND - Ground

R3 GND - Ground

R5 GND - Ground

R6 GND - Ground

R8 GND - Ground

R10 GND - Ground

Reserved

A8 Reserved - Reserved

A9 Reserved - Reserved

A10 Reserved - Reserved

B2 Reserved - Reserved

B3 Reserved - Reserved

B4 Reserved - Reserved

B5 Reserved - Reserved

C3 Reserved - Reserved

C4 Reserved - Reserved

C5 Reserved - Reserved

C6 Reserved - Reserved

C7 Reserved - Reserved

C14 Reserved - Reserved

D3 Reserved - Reserved

Rev. 2.0 Page 30 of 119 2018-09-16

LE910Cx HW User Guide Module Connections Doc#: 1VV0301298 Pin-out

PAD Signal I/O Function Type Comment

D8 Reserved - Reserved

D9 Reserved - Reserved

D10 Reserved - Reserved

D11 Reserved - Reserved

D12 Reserved - Reserved

D13 Reserved - Reserved

D14 Reserved - Reserved

E3 Reserved - Reserved

E13 Reserved - Reserved

F3 Reserved - Reserved

F14 Reserved - Reserved

G3 Reserved - Reserved

G14 Reserved - Reserved

H3 Reserved - Reserved

H15 Reserved - Reserved

J3 Reserved - Reserved

J4 Reserved - Reserved

J14 Reserved - Reserved

J15 Reserved - Reserved

K3 Reserved - Reserved

K4 Reserved - Reserved

K14 Reserved - Reserved

L3 Reserved - Reserved

L4 Reserved - Reserved

M5 Reserved - Reserved

M6 Reserved - Reserved

M7 Reserved - Reserved

N7 Reserved - Reserved

Rev. 2.0 Page 31 of 119 2018-09-16

LE910Cx HW User Guide Module Connections Doc#: 1VV0301298 Pin-out

PAD Signal I/O Function Type Comment

N8 Reserved - Reserved

N10 Reserved - Reserved

N11 Reserved - Reserved

N12 Reserved - Reserved

P7 Reserved - Reserved

P11 Reserved - Reserved

P12 Reserved - Reserved

Reserved for future use

R4 RFU -

WARNING:

GPIO_09 and WCI_RX are used as special HW flags during boot. If they are used as GPIOs, they must be connected via a 3-state buffer to avoid any undesirable effect during the boot.

NOTE:

When the UART signals are used as the communication port between the host and the modem, the RTS must be connected to GND (on the module side) if flow control is not used.

If the UART port is not used, all UART signals can be left disconnected.

Reserved for future use. Not connected internally

Can be tied to GND

NOTE:

Unless otherwise specified, RESERVED pins must be left unconnected (floating).

Rev. 2.0 Page 32 of 119 2018-09-16

LE910Cx HW User Guide Module Connections Doc#: 1VV0301298 Signals That Must Be Connected

NOTE:

The following pins are unique for the LE910Cx and may not be supported on other (former or future) xE910 family modules. Special care must be taken when designing the application board if future compatibility is required. REF_CLK SPI_CS USB_ID I2C_SCL I2C_SDA ADC_IN2 ADC_IN3

Signals That Must Be Connected

Table 7 lists the LE910Cx signals that must be connected even if not used by the end application:

Table 7: Mandatory Signals

PAD Signal Notes

M1, M2, N1, N2, P1, P2

A2, B13, D4, E1, E2, E14, F2, G1, G2, G7, G8, G9, H1, H2, H7, H8, H9, J1, J2, J7, J8, J9, K2, L1, L2, M3, M4, M12, N3, N4, N5, N6, P3, P4, P5, P6, P8, P9, P10, P13, R2, R3, R5, R6, R8, R10

R12 ON/OFF Main power on off signal

R13 HW_SHUTDOWN_N Emergency power off

B15 USB_D+ If not used, connect to a

VBATT & VBATT_PA

GND

Test Point or an USB connector

C15 USB_D- If not used, connect to a

Test Point or an USB connector

A13 USB_VBUS If not used, connect to a

Test Point or an USB connector

Rev. 2.0 Page 33 of 119 2018-09-16

LE910Cx HW User Guide Module Connections Doc#: 1VV0301298 Signals That Must Be Connected

PAD Signal Notes

N15 C103/TXD If not used, connect to a

Test Point

M15 C104/RXD If not used, connect to a

Test Point

L14 C105/RTS If flow control is not used,

connect to GND

P15 C106/CTS If not used, connect to a

Test Point

D15 TX_AUX If not used, connect to a

Test Point

E15 RX_AUX If not used, connect to a

Test Point

K1 Antenna MAIN antenna

F1 ANT_DIV DIV antenna

R9 ANT_GPS GPS antenna

C4, C5, C6, C7, D3, E3, G3, K4, L4, P11

L15 GPIO_09 If not used, connect to a

M9 WCI_RX If not used, connect to a

Reserved Connect to a Test Point for

Telit internal use

Test Point

Rev. 2.0 Page 34 of 119 2018-09-16

LE910Cx HW User Guide Module Connections Doc#: 1VV0301298 LGA Pads Layout

LGA Pads Layout

Figure 2: LGA Pads Layout

15 USB_D+ USB_D-

SPI_MOSI

/ TX_AUX

SPI_MISO

/RX_AUX

8 RES DVI_CLK GPIO_01 RES GND GND GND WCI_TXD_TGPIO24 RES GND GND

9 RES DVI_WA0 GPIO_02 RES GND GND GND WCI_RXD_TGPIO25 GPS_SYNC GND ANT_GPS

6 SIMCLK DVI_RX RES SGMII_TX_M RES GND GND GND

7 SIMRST DVI_TX RES A DC_IN3 GND GND GND RES RES RES GPS_LNA_EN

4 SIMIN RES RES GND SGMII_RX_P SGMII_RX_M SIMIN2 ADC_IN2 RES RES RES GND GND GND RFU

5 SIMIO RES RES SGMII_TX_P RES GND GND GND

2 GND RES SIMIO2 SIMVCC2 GND GND GND GND GND GND GND VBATT VBATT_PA VBATT_PA GND

3 SIMVCC RES RES RES RES RES RES RES RES RES RES GND GND GND GND

10 RES I2C_SDA GPIO_03 RES RFCLK2_QCA RES GND GND

11 HSIC_STB I2C_SCL GPIO_04 RES WLAN_SLEEP_CLK R ES RES VAUX/PWRMON

12 HSIC_DATA REF_CLK GPIO_06 RES MMC_DAT0 MMC_CLK MMC_DAT1 MMC_DAT3 MMC_CMD MMC_DAT2 WIFI_SDRST GND RES RES ON_OFF*

13 VUSB GND GPIO_07 RES RES VMMC MMC_CD WIFI_SD3 WIFI_SD0 WIFI_SD2 WIFI_SDCLK WIFI_SD1 WIFI_SDCMD GND HW_SHUTDOWN*

14 USB_ID GPIO_05 RES RES GND RES RES SPI_CS / GPIO_11 RES RES C105/RTS C108/DTR C109/DCD C107/DSR C125/RING

A B C D E F G H J K L M N P R

1 ADC_IN1 SIMCLK2 SIMRST2 GND ANT_DIV GND GND GND ANT_MAIN GND VBATT VBATT_PA VBATT_PA

SPI_CLK GPIO_10 RES RES GPIO_8 GPIO_9 C104/RXD C103/TXD C106/CTS

Rev. 2.0 Page 35 of 119 2018-09-16

LE910Cx HW User Guide Module Connections Doc#: 1VV0301298 Backward Compatibility to xE910 Family

Backward Compatibility to xE910 Family

The LE910Cx is a new series in the xE910 form factor

The LE910Cx is fully backward compatible to the previous xE910 in terms of:

 Mechanical dimensions  Package and pin-map

To support the extra features and additional interfaces, the LE910Cx introduces more pins compared to the xE910.

The extra pins of the LE910Cx can be considered as optional if not needed and can be left unconnected (floating) if not used.

In this case, the new LE910Cx can be safely mounted on existing carrier boards designed for the previous xE910.

The additional pins of the LE910Cx are shown in Figure 3 (marked as Green)

Figure 3: LE910Cx vs. LE910 Pin-out Comparison (top view)

Rev. 2.0 Page 36 of 119 2018-09-16

LE910Cx HW User Guide Electrical Specifications Doc#: 1VV0301298 Absolute Maximum Ratings – Not Operational

4. Electrical Specifications

Absolute Maximum Ratings – Not Operational

WARNING:

A deviation from the value ranges listed below may harm the LE910Cx module.

Table 8: Absolute Maximum Ratings – Not Operational

Symbol Parameter Min Max Unit

VBATT Battery supply voltage on pin VBATT -0.5 +6.0 [V]

VBATT TRANSIENT

VBATT_PA Battery supply voltage on pin

Transient voltage on pin VBATT (< 10 ms)

-0.5 +7.0 [V]

-0.3 +6.0 [V]

VBATT_PA

Recommended Operating Conditions

Table 9: Recommended Operating Conditions

Symbol Parameter Min Typ Max Unit

Ambient temperature -40 +25 +85 [°C]

amb

VBATT Battery supply voltage on

pin VBATT

VBATT_PA Battery supply voltage on

pin VBATT_PA

BATT_PA

+ I

Peak current to be used to

BATT

dimension decoupling capacitors on pin VBATT_PA

3.4 3.8 4.2 [V]

- 80 2000 [mA]

Rev. 2.0 Page 37 of 119 2018-09-16

LE910Cx HW User Guide Electrical Specifications Doc#: 1VV0301298 Logic Level Specifications

Logic Level Specifications

Unless otherwise specified, all the interface circuits of the LE910Cx are 1.8V CMOS logic. Only few specific interfaces (such as MAC, USIM and SD Card) are capable of dual voltage I/O.

The following tables show the logic level specifications used in the LE910Cx interface circuits. The data specified in the tables below is valid throughout all drive strengths and the entire temperature ranges.

NOTE:

Do not connect LE910Cx digital logic signals directly to OEM digital logic signals with a level higher than 2.7V for 1.8V CMOS signals.

4.3.1. 1.8V Pads - Absolute Maximum Ratings

Table 10: Absolute Maximum Ratings - Not Functional

Parameter Min Max

Input level on any digital pin when on

Input voltage on analog pins when on

-0.3V +2.16V

-0.3V +2.16 V

4.3.2. 1.8V Standard GPIOs

Table 11: Operating Range – Interface Levels (1.8V CMOS)

Pad Parameter Min Max Unit Comment

VIH Input high level 1.25V -- [V]

VIL Input low level -- 0.6V [V]

VOH Output high level 1.4V -- [V]

VOL Output low level -- 0.45V [V]

IIL Low-level input leakage

current

IIH High-level input leakage

current

RPU Pull-up resistance 30 390 [kΩ]

Rev. 2.0 Page 38 of 119 2018-09-16

-1 -- [uA] No pull-up

-- +1 [uA] No pull-down

LE910Cx HW User Guide Electrical Specifications Doc#: 1VV0301298 Logic Level Specifications

Pad Parameter Min Max Unit Comment

RPD Pull-down resistance 30 390 [kΩ]

Ci Input capacitance -- 5 [pF]

NOTE:

Pull-Up and Pull-Down resistance of GPIO3, GPIO7 and GPIO8 is different than above mentioned GPIO3 pull resistance is specified as 10KΩ to 50KΩ

4.3.3. 1.8V SD Card Pads

Table 12: Operating Range – SD Card Pads Working at 1.8V

Pad Parameter Min Max Unit Comment

VIH Input high level 1.27V 2V [V]

VIL Input low level -0.3V 0.58V [V]

VOH Output high level 1.4V -- [V]

VOL Output low level 0 0.45V [V]

IIL Low-level input leakage

current

IIH High-level input leakage

current

RPU Pull-up resistance 10 100 [kΩ]

RPD Pull-down resistance 10 100 [kΩ]

-2 - [uA] No pull-up

- 2 [uA] No pull-down

Ci Input capacitance 5 [pF]

Rev. 2.0 Page 39 of 119 2018-09-16

LE910Cx HW User Guide Electrical Specifications Doc#: 1VV0301298 Logic Level Specifications

4.3.4. 1.8V SIM Card Pads

Table 13: Operating Range – SIM Pads Working at 1.8V

Pad Parameter Min Max Unit Comment

VIH Input high level 1.35V 2V [V]

VIL Input low level -0.3V 0.43V [V]

VOH Output high level 1.35V 1.875V [V]

VOL Output low level 0V 0.4V [V]

IIL Low-level input leakage

current

IIH High-level input leakage

current

RPU Pull-up resistance 10 100 [kΩ]

RPD Pull-down resistance 10 100 [kΩ]

Ci Input capacitance 5 [pF]

-2 - [uA] No pull-up

- 2 [uA] No pull-down

4.3.5. Dual Voltage Pads - Absolute Maximum Ratings

Table 14: Absolute Maximum Ratings - Not Functional

Parameter Min Max

Input level on any digital pin when on

Input voltage on analog pins when on

-0.3V +3.6V

-0.3V +3.6 V

Rev. 2.0 Page 40 of 119 2018-09-16

LE910Cx HW User Guide Electrical Specifications Doc#: 1VV0301298 Logic Level Specifications

4.3.6. SD Card Pads @ 2.95V

Table 15: Operating Range – For SD Card Pads Operating at 2.95V

Pad Parameter Min Max Unit Comments

VIH Input high level 1.9V 3.1V [V]

VIL Input low level -0.3V 0.7V [V]

VOH Output high level 2.1V 3.05V [V]

VOL Output low level 0V 0.4V [V]

IIL Low-level input leakage

current

IIH High-level input leakage

current

RPU Pull-up resistance 10 100 [kΩ]

RPD Pull-down resistance 10 100 [kΩ]

Ci Input capacitance 5 [pF]

-10 [uA] No pull-up

10 [uA] No pull-down

4.3.7. SIM Card Pads @2.95V

Table 16: Operating Range – For SIM Pads Operating at 2.95V

Pad Parameter Min Max Unit Comment

VIH Input high level 2.1V 3.1V [V]

VIL Input low level -0.3V 0.55V [V]

VOH Output high level 2.25V 3.1V [V]

VOL Output low level 0V 0.4V [V]

IIL Low-level input leakage

current

IIH High-level input leakage

current

RPU Pull-up resistance 10 100 [kΩ]

RPD Pull-down resistance 10 100 [kΩ]

Ci Input capacitance 5 [pF]

Rev. 2.0 Page 41 of 119 2018-09-16

-10 [uA] No pull-up

10 [uA] No pull-down

LE910Cx HW User Guide Hardware Commands Doc#: 1VV0301298 Turning on the LE910Cx Module

5. Hardware Commands

Turning on the LE910Cx Module

To turn on the LE910Cx module, the ON_OFF_N pad must be asserted low for at least 1 second and then released.

The maximum current that can be drained from the ON/OFF # pad is 0.1 mA. This pin is internally pulled up; customers should expect to see ~ 800 mV on the output.

Figure 4 illustrates a simple circuit to power on the module using an inverted buffer output.

Figure 4: Power-on Circuit

NOTE:

Recommended values R2 = 47 kΩ, R1 = 10 kΩ.

Rev. 2.0 Page 42 of 119 2018-09-16

LE910Cx HW User Guide Hardware Commands Doc#: 1VV0301298 Initialization and Activation State

Initialization and Activation State

After turning on the LE910Cx module, a predefined internal boot sequence performs the HW and SW initialization of the module, which takes some time to complete fully. During this process, the LE910Cx is not accessible.

As shown in Figure 5, the LE910Cx becomes operational at least 25 seconds after PWRMON goes HIGH.

NOTE:

During the Initialization state, AT commands are not available. The DTE host must wait for the Activation state prior to communicating with the LE910Cx.

Figure 5: LE910Cx Initialization and Activation

VBATT

ON_OFF

SW_RDY

V_AUX

PWRMON

1 Sec < T_Hold < 2 Sec

T_RDY < 20 Sec

OK to Send AT

commands

18 Sec < T_PWRMON < 20 Sec

OFF State Initialization State Active State

All interfaces and pins

configured

NOTE:

SW_RDY signal is available on GPIO_08 (by default GPIO_08 functions as SW_RDY)

NOTE:

To check whether the LE910Cx has completely powered on, monitor the SW_RDY hardware line. When SW_RDY goes high, the module has completely powered on and is ready to accept AT commands.

Rev. 2.0 Page 43 of 119 2018-09-16

LE910Cx HW User Guide Hardware Commands Doc#: 1VV0301298 Initialization and Activation State

NOTE:

During SW initialization of the LE910Cx, the SW configures all pads and interfaces to their desired mode. When PWRMON goes high, this indicates that the initialization of all I/O pads is completed.

NOTE:

Do not use any pull-up resistor on the ON_OFF_N line as it is internally pulled up. Using a pull-up resistor may cause latch-up problems on the LE910Cx power regulator and improper powering on/off of the module. The ON_OFF_N line must be connected only in an open-collector configuration.

NOTE:

For systems not requiring controlled power ON/OFF, automatic power on can be supported by shorting the ON_OFF signal directly GND In this case, the module will start power on sequence immediately after VBATT supply is applied

NOTE:

Active low signals are labeled with a name that ends with "#" or with “_N”

NOTE:

To avoid a back-powering effect, it is recommended to avoid having any HIGH logic level signal applied to the digital pins of the module when it is powered OFF or during an ON/OFF transition.

Rev. 2.0 Page 44 of 119 2018-09-16

LE910Cx HW User Guide Hardware Commands Doc#: 1VV0301298 Turning off the LE910Cx Module

Turning off the LE910Cx Module

Turning off the device can be done in the following different ways:

 Shutdown by software using AT#SHDN software command  Hardware shutdown using ON_OFF_N pad  Hardware Unconditional Shutdown using the SHDN_N pad

When the device is shut down by a software command or a hardware shutdown, it issues a detach request to the network, informing the network that the device will not be reachable any more.

NOTE:

To check if the device has powered off, monitor the PWRMON hardware line. When PWRMON goes low, this indicates that the device has powered off.

NOTE:

To avoid a back-powering effect, it is recommended to avoid having any HIGH logic level signal applied to the digital pins of the module when it is powered OFF or during an ON/OFF transition.

Rev. 2.0 Page 45 of 119 2018-09-16

LE910Cx HW User Guide Hardware Commands Doc#: 1VV0301298 Turning off the LE910Cx Module

5.3.1. Shutdown by Software Command

The LE910Cx module can be shut down by a software command.

When a shutdown command is sent, LE910Cx goes into the Finalization state and at the end of the finalization process shuts down PWRMON.

The duration of the Finalization state can differ according to the current situation of the module, so a value cannot be defined.

Usually, it will take more than 10 seconds from sending a shutdown command until reaching a complete shutdown. The DTE host should monitor the status of PWRMON to observe the actual power-off.

Figure 6: Shutdown by Software Command

NOTE:

To check whether the device has powered off, monitor the PWRMON hardware line. When PWRMON goes low, the device has powered off.

Rev. 2.0 Page 46 of 119 2018-09-16

LE910Cx HW User Guide Hardware Commands Doc#: 1VV0301298 Turning off the LE910Cx Module

5.3.2. Hardware Shutdown

To turn off the LE910Cx module, the ON_OFF_N pad must be asserted low for at least

2.5 seconds and then released. Use the same circuitry and timing for power-on.

When the hold time of ON/OFF# is above 2.5 seconds, LE910Cx goes into the Finalization state and eventually shuts down PWRMON.

The duration of the Finalization state can differ according to the current situation of the module, so a value cannot be defined.

Usually, it will take more than 15 seconds from sending a shutdown command until reaching a complete shutdown. The DTE host should monitor the status of PWRMON to observe the actual power-off.

Figure 7: Hardware Shutdown

NOTE:

To check whether the device has powered off, monitor the PWRMON hardware line. When PWRMON goes low, the device has powered off.

Rev. 2.0 Page 47 of 119 2018-09-16

LE910Cx HW User Guide Hardware Commands Doc#: 1VV0301298 Turning off the LE910Cx Module

5.3.3. Unconditional Hardware Shutdown

To unconditionally shut down the LE910Cx module, the HW_SHUTDOWN_N pad must be tied low for at least 200 milliseconds and then released.

Figure 8 shows a simple circuit for applying an unconditional shutdown.

Figure 8: Circuit for Unconditional Hardware Shutdown

Figure 9 shows the system power-down timing when using HW_SHUTDOWN_N.

Figure 9: Power down timing using HW_SHUTDOWN_N

VBATT

200mS Sec < T_Hold

SHDN_N

SW_RDY

V_AUX

PWRMON

T_RDY ~0 Sec

T_PWRMON ~0 Sec

OFF StateActive State

NOTE:

Recommended values are as follows: R2 = 47kΩ, R1 = 10kΩ.

Rev. 2.0 Page 48 of 119 2018-09-16

LE910Cx HW User Guide Hardware Commands Doc#: 1VV0301298 Powering OFF the Module

NOTE:

Do not use any pull-up resistor on the HW_SHUTDOWN_N line or any totem pole digital output. Using a pull-up resistor may cause latch-up problems on the LE910Cx power regulator and improper functioning of the module. The HW_SHUTDOWN_N line must be connected only in an open-collector configuration.

NOTE:

The Unconditional Hardware Shutdown must always be implemented on the boards, but the software must use it only as an emergency exit procedure, and not as a normal power-off operation.

Powering OFF the Module

Powering OFF the module should be done gracefully allowing the module to complete all ongoing and pending tasks while properly handling all memory buffers.

In the case where a complete power supply shut down is needed, the following procedure should be followed:

1. Perform a HW shutdown as described in Section 5.3.1

2. Wait for the HW Shutdown procedure to complete (monitor the PWRMON pin).

3. Turn OFF power supply to the module

WARNING:

Follow the recommended procedure for shut down and power off carefully. Not following the recommended shut-down and power off procedures might damage the device and consequently void the warranty.

Rev. 2.0 Page 49 of 119 2018-09-16

LE910Cx HW User Guide Power Supply Doc#: 1VV0301298 Power Supply Requirements

6. Power Supply

The power supply circuitry and board layout are very important parts of the full product design, with critical impact on the overall product performance. Read the following requirements and guidelines carefully to ensure a good and proper design.

Power Supply Requirements

The LE910Cx power requirements are as follows:

Table 17: Power Supply Requirements

Nominal supply voltage 3.8V

Supply voltage range 3.4V – 4.2V

Max ripple on module input supply 30 mV

NOTE:

For PTCRB approval on the final products, the power supply is required to be within the range of “Normal Supply voltage ranger”.

Rev. 2.0 Page 50 of 119 2018-09-16

LE910Cx HW User Guide Power Supply Doc#: 1VV0301298 Power Consumption

Power Consumption

Table 18 provides typical current consumption values of LE910Cx for the various available modes.

Table 18: LE910Cx Current Consumption

Mode

Switched Off

Switched off 25µA Module supplied but switched Off (RTC On)

Idle Mode (Standby Mode; No Call in Progress)

AT+CFUN=4 1.0 mA

GSM

DRX

AT+CFUN=5

WCDMA

LTE

Average

(Typ.)

Tx and Rx disabled; module is not registered on the network (Flight mode)

2.0 mA DRx2

1.4 mA DRx5

1.4 mA DRx7

1.2 mA DRx8

1.8mA Paging cycle #128 frames (1.28 sec DRx cycle)

1.4mA Paging cycle #256 frames (2.56 sec DRx cycle)

Mode Description

Operative Mode (LTE)

LTE CAT 1 channel BW 5 MHz, RB=1, Tx =

180mA

190mA

LTE (0dBm)

210mA

Operative Mode (WCDMA)

WCDMA Voice 200mA WCDMA voice call (Tx = 10 dBm)

WCDMA HSDPA (0 dBm)

150mA

0 dBm (Test case: BAND 1, Channel 300)

LTE CAT 1 channel BW 10 MHz, RB=1, Tx = 0 dBm

(Test case: BAND 1, Channel 300)

LTE CAT 1 channel BW 5 MHz, RB=1, Tx = 0 dBm

With FTP TpT session LTE to USB 10Mbps DL/5Mbps UL

(Test case: BAND 1, Channel 300)

WCDMA data call (Cat 14, Tx = 0 dBm, Max throughput)

Rev. 2.0 Page 51 of 119 2018-09-16

LE910Cx HW User Guide Power Supply Doc#: 1VV0301298 Power Consumption

Mode

WCDMA HSDPA (22 dBm)

Average

(Typ.)

310mA

Mode Description

WCDMA data call (Cat 14, Tx = 22 dBm, Max throughput)

Operative Mode (GSM)

GSM Tx and Rx mode

GSM900 PL5 250 mA

GSM voice call

DCS1800 PL0 170mA

GPRS 4 Tx + 1 Rx

GSM 900 PL5 430mA

GPRS Sending Data mode (CS-4)

DCS 1800 PL0 340mA

Operative Mode (GPS)

GPS tracking 40mA LTE connection is idle

* Worst/best case current values depend on network configuration, not under module control.

NOTE:

The electrical design for the power supply must ensure a peak current output of at least 2.0A.

NOTE:

In GSM/GPRS mode, RF transmission is not continuous, but is packed into bursts at a base frequency of about 216 Hz with relative current peaks as high as about 2.0A. Therefore, the power supply must be designed to withstand these current peaks without big voltage drops. This means that both the electrical design and the board layout must be designed for this current flow. If the layout of the PCB is not well designed, a strong noise floor is generated on the ground. This will reflect on all the audio paths producing an audible annoying noise at 216 Hz. If the voltage drops during the peaks, current absorption is too high. The device may even shut down as a consequence of the supply voltage drop.

Rev. 2.0 Page 52 of 119 2018-09-16

LE910Cx HW User Guide Power Supply Doc#: 1VV0301298 General Design Rules

General Design Rules

The principal guidelines for the Power Supply Design embrace three different design steps:

 Electrical design  Thermal design  PCB layout

6.3.1. Electrical Design Guidelines

The electrical design of the power supply depends strongly on the power source where this power is drained. Power sources can be distinguished by three categories:

 +5V input (typically PC internal regulator output)  +12V input (typically automotive)  Battery

6.3.1.1. + 5V Input Source Power Supply – Design Guidelines

 The desired output for the power supply is 3.8V. So, the difference between the

input source and the desired output is not big, and therefore a linear regulator can be used. A switching power supply is preferred to reduce power consumption.

 When using a linear regulator, a proper heat sink must be provided to dissipate the

power generated.

 A bypass low ESR capacitor of adequate capacity must be provided to cut the

current absorption peaks close to the LE910Cx module. A 100 μF tantalum capacitor is usually suitable on both VBATT and VBATT_PA power lines.

 Make sure that the low ESR capacitor on the power supply output (usually a

tantalum one) is rated at least 10V.

 A protection diode must be inserted close to the power input to protect the

LE910Cx module from power polarity inversion.

Figure 10 shows an example of a linear regulator with 5V input.

Figure 10: Example of Linear Regulator with 5V Input

Rev. 2.0 Page 53 of 119 2018-09-16

LE910Cx HW User Guide Power Supply Doc#: 1VV0301298 General Design Rules

6.3.1.2. + 12V Input Source Power Supply – Design Guidelines

 The desired output for the power supply is 3.8V. Due to the big difference between

the input source and the desired output, a linear regulator is unsuitable and must not be used. A switching power supply is preferable because of its better efficiency, especially with the 2A peak current load expected during GSM Tx.

 When using a switching regulator, a 500-kHz or higher switching frequency

regulator is preferable because of its smaller inductor size and its faster transient response. This allows the regulator to respond quickly to the current peaks absorption.

 In any case, the selection of the frequency and switching design is related to the

application to be developed due to the fact that the switching frequency can also generate EMC interference.

 For car batteries (lead-acid accumulators) the input voltage can rise up to 15.8V.

This must be kept in mind when choosing components: all components in the power supply must withstand this voltage.

 A bypass low ESR capacitor of adequate capacity must be provided to cut the

current absorption peaks. A 100μF tantalum capacitor is usually suitable on VBATT & VBATT_PA power lines.

 Make sure that the low ESR capacitor on the power supply output (usually a

tantalum one) is rated at least 10V.

 For automotive applications, a spike protection diode must be inserted close to the

power input to clean the supply of spikes.

 A protection diode must be inserted close to the power input to protect the

LE910Cx module from power polarity inversion. This can be the same diode as for spike protection.

Figure 13 and Figure 14 show an example of switching regulator with 12V input.

Figure 11: Example of Switching Regulator with 12V Input – Part 1

Figure 12: Example of Switching Regulator with 12V Input – Part 2

Rev. 2.0 Page 54 of 119 2018-09-16

LE910Cx HW User Guide Power Supply Doc#: 1VV0301298 General Design Rules

6.3.1.3. Battery Source Power Supply – Design Guidelines

 The desired nominal output for the power supply is 3.8V, and the maximum

allowed voltage is 4.2V. Hence, a single 3.7V Li-Ion cell battery type is suitable for supplying the power to the LE910Cx module.

NOTE:

Do not use any Ni-Cd, Ni-MH, and Pb battery types directly connected to the LE910Cx module. Their use can lead to overvoltage on the LE910Cx and damage it. Use only Li-Ion battery types.

 A bypass low ESR capacitor of adequate capacity must be provided to cut the

current absorption peaks; a 100μF tantalum capacitor is usually suitable.

 Make sure that the low ESR capacitor (usually a tantalum one) is rated at least

10V.

 A protection diode must be inserted close to the power input to protect the

LE910Cx module from power polarity inversion. Otherwise, the battery connector must be done in a way to avoid polarity inversions when connecting the battery.

 The battery capacity must be at least 500 mAh to withstand the current peaks of

2A.

6.3.2. Thermal Design Guidelines

The thermal design for the power supply heat sink must be done with the following specifications:

 Average current consumption during RF transmission @PWR level max in

LE910Cx as shown in Table 18: LE910Cx Current Consumption

 Average current consumption during Class10 GPRS transmission @PWR level

max as shown in Table 18: LE910Cx Current Consumption

 Average GPS current consumption during GPS tracking (LTE @ idle): mA (40mA)

NOTE:

The average consumption during transmission depends on the power level at which the device is requested to transmit via the network. Therefore, the average current consumption varies significantly.

Rev. 2.0 Page 55 of 119 2018-09-16

LE910Cx HW User Guide Power Supply Doc#: 1VV0301298 General Design Rules

NOTE:

The thermal design for the power supply must be made keeping an average consumption at the max transmitting level during calls of (LTE/HSPA)/GPRS plus average consumption in GPS Tracking mode.

Considering the very low current during Idle, especially if the Power Saving function is enabled, it is possible to consider from the thermal point of view that the device absorbs significant current only during an Active Call or Data session.

For the heat generated by the LE910Cx module, consider it to be 2W max during transmission at Class10 GPRS upload.

In LTE/WCDMA/HSPA mode, the LE910Cx emits RF signals continuously during transmission. Therefore, you must pay special attention how to dissipate the heat generated.

The LE910Cx is designed to conduct the heat flow from the module IC’s towards the bottom of the PCB across GND metal layers

The generated heat is mostly conducted to the ground plane under the LE910Cx module. The application board should be properly designed to dissipate this heat.

Application board design needs to make sure the area under the LE910Cx module is as large as possible. Make sure that the LE910Cx is mounted on the large ground area of application board and provide many ground vias to dissipate the heat.

Even though peak current consumption in GSM mode is higher than in LTE/WCDMA/HSPA, considerations for the heat sink are more important in the case of WCDMA due to the continuous transmission conditions.

6.3.3. Power Supply PCB Layout Guidelines

As seen in the electrical design guidelines, the power supply must have a low ESR capacitor on the output to cut the current peaks and a protection diode on the input to protect the supply from spikes and polarity inversion. The placement of these components is crucial for the correct operation of the circuitry. A misplaced component can be useless or can even decrease the power supply performances.

 The bypass low ESR capacitor must be placed close to the LE910Cx power input

pads, or if the power supply is of a switching type, it can be placed close to the inductor to cut the ripple, as long as the PCB trace from the capacitor to LE910Cx is wide enough to ensure a drop-less connection even during the 2A current peaks.

 The protection diode must be placed close to the input connector where the power

source is drained.

 The PCB traces from the input connector to the power regulator IC must be wide

enough to ensure that no voltage drops occur during the 2A current peaks.

Rev. 2.0 Page 56 of 119 2018-09-16

LE910Cx HW User Guide Power Supply Doc#: 1VV0301298 General Design Rules

Note that this is not done in order to avoid RF power loss but to avoid the voltage drops on the power line at the current peaks frequency of 216 Hz that will reflect on all the components connected to that supply (also introducing the noise floor at the burst base frequency)

For this reason, while a voltage drop of 300-400 mV may be acceptable from the RF power loss point of view, the same voltage drop may not be acceptable from the noise point of view. If your application does not have an audio interface but only uses the data feature of the LE910Cx, this noise is not so disturbing, and the power supply layout design can be more forgiving.

 The PCB traces to LE910Cx and the bypass capacitor must be wide enough to

ensure that no significant voltage drops occur when the 2A current peaks are absorbed. This is needed for the same above-mentioned reasons. Try to keep these traces as short as possible.

 The PCB traces connecting the switching output to the inductor and the switching

diode must be kept as short as possible by placing the inductor and the diode very close to the power switching IC (only for the switching power supply). This is done to reduce the radiated field (noise) at the switching frequency (usually 100500 kHz).

 Use a good common ground plane.  Place the power supply on the board in a way to guarantee that the high current

return paths in the ground plane do not overlap any noise sensitive circuitry, such as the microphone amplifier/buffer or earphone amplifier.

 The power supply input cables must be kept separate from noise sensitive lines,

such as microphone/earphone cables.

Rev. 2.0 Page 57 of 119 2018-09-16

LE910Cx HW User Guide Antenna(s) Doc#: 1VV0301298 GSM/WCDMA/TD-SCDMA/LTE Antenna Requirements

7. Antenna(s)

Antenna connection and board layout design are the most important parts in the full product design, and they have a strong influence on the product’s overall performance. Read carefully and follow the requirements and guidelines for a good and proper design.

GSM/WCDMA/TD-SCDMA/LTE Antenna Requirements

The antenna for the LE910Cx device must meet the following requirements:

Table 19: Primary Antenna Requirements

Frequency range The customer must use the most suitable antenna bandwidth

for covering the frequency bands provided by the network operator and supported by the OEM while using the Telit module.

The bands supported by each variant of the LE910Cx module family are provided in Section 2.6.1, RF Bands per Regional

Variant.

Gain Gain < 3 dBi

Impedance 50 Ohm

Input power > 33 dBm(2 W) peak power in GSM

> 24 dBm average power in WCDMA & LTE

VSWR absolute max <= 10:1

VSWR recommended

Since there is no antenna connector on the LE910Cx module, the antenna must be connected to the LE910Cx antenna pad (AD1) by a transmission line implemented on the PCB.

If the antenna is not directly connected to the antenna pad of the LE910Cx, a PCB line is required to connect to it or to its connector.

This transmission line must meet the following requirements:

Table 20: Antenna Line on PCB Requirements

<= 2:1

Characteristic impedance 50 Ohm

Max attenuation 0.3 dB

Avoid coupling with other signals.

Cold End (Ground Plane) of the antenna must be equipotential to the LE910Cx ground pads.

Rev. 2.0 Page 58 of 119 2018-09-16

LE910Cx HW User Guide Antenna(s) Doc#: 1VV0301298 GSM/WCDMA/TD-SCDMA/LTE Antenna – PCB Line Guidelines

Furthermore, if the device is developed for the US and/or Canada market, it must comply with the FCC and/or IC approval requirements:

This device is to be used only for mobile and fixed application. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. OEM integrators must ensure that the end user has no manual instructions to remove or install the LE910Cx module. Antennas used for this OEM module must not exceed 3dBi gain for mobile and fixed operating configurations.

GSM/WCDMA/TD-SCDMA/LTE Antenna – PCB Line Guidelines

 Make sure that the transmission line’s characteristic impedance is 50 Ohm.  Keep the line on the PCB as short as possible since the antenna line loss should

be less than around 0.3 dB.

 Line geometry should have uniform characteristics, constant cross sections, and

avoid meanders and abrupt curves.

 Any suitable geometry/structure can be used for implementing the printed

transmission line affecting the antenna.

 If a ground plane is required in the line geometry, this plane must be continuous

and sufficiently extended so the geometry can be as similar as possible to the related canonical model.

 Keep, if possible, at least one layer of the PCB used only for the ground plane. If

possible, use this layer as reference ground plane for the transmission line.

 Surround the PCB transmission line with ground (on both sides). Avoid having

other signal tracks facing the antenna line track directly.

 Avoid crossing any un-shielded transmission line footprint with other tracks on

different layers.

 The ground surrounding the antenna line on the PCB must be strictly connected to

the main Ground plane by means of via-holes (once per 2 mm at least) placed close to the ground edges facing the line track.

 Place EM-noisy devices as far as possible from LE910Cx antenna line.  Keep the antenna line far away from the LE910Cx power supply lines.  If EM-noisy devices are present on the PCB hosting the LE910Cx, such as fast

switching ICs, take care to shield them with a metal frame cover.

 If EM-noisy devices are not present around the line, geometries like Micro strip or

Grounded Coplanar Waveguide are preferred because they typically ensure less attenuation compared to a Strip line having the same length.

Rev. 2.0 Page 59 of 119 2018-09-16

LE910Cx HW User Guide Antenna(s) Doc#: 1VV0301298 GSM/WCDMA/LTE Antenna – Installation Guidelines

GSM/WCDMA/LTE Antenna – Installation Guidelines

 Install the antenna in a location with access to the network radio signal.  The antenna must be installed such that it provides a separation distance of at

least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.

 The antenna must not be installed inside metal cases.  The antenna must be installed according to the antenna manufacturer’s

instructions.

Antenna Diversity Requirements

This product includes an input for a second Rx antenna to improve radio sensitivity. The function is called Antenna Diversity.

Table 21: Antenna Diversity Requirements

Frequency range The customer must use the most suitable antenna bandwidth

for covering the frequency bands provided by the network operator and supported by the OEM while using the Telit module.

The bands supported by each variant of the LE910Cx module family are provided in Section 2.6.1, RF Bands per

Regional Variant

Impedance 50Ω

VSWR recommended ≤ 2:1

Since there is no antenna connector on the LE910Cx module, the antenna must be connected to the LE910Cx antenna pad by means of a transmission line implemented on the PCB.

If the antenna is not directly connected at the antenna pad of the LE910Cx (AU9), a PCB line is required to connect to it or to its connector.

The second Rx antenna must not be located in close vicinity of the main antenna. To improve diversity gain and isolation and to reduce mutual interaction, the two antennas should be located at the maximum reciprocal distance possible, taking into consideration the available space within the application.

NOTE:

If Rx Diversity is not used/connected, disable the Diversity functionality using the AT+XRXDIV command (refer to Ref 1: LE920x4/LE910Cx AT Command User Guide) and connect the Diversity pad AU9 to a 50 Ohm termination.

Rev. 2.0 Page 60 of 119 2018-09-16

LE910Cx HW User Guide Antenna(s) Doc#: 1VV0301298 GNSS Antenna Requirements

GNSS Antenna Requirements

LE910Cx supports an active antenna.

It is recommended to use antennas as follow:

 An external active antenna (17dB typ. Gain, GPS only)  An external active antenna plus GNSS pre-filter (17dB typ. Gain)

NOTE:

The external GNSS pre-filter is required for the GLONASS application. The GNSS pre-filter must meet the following requirements: Source and load impedance = 50 Ohm Insertion loss (1575.42–1576.42 MHz) = 1.4 dB (Max) Insertion loss (1565.42–1585.42 MHz) = 2.0 dB (Max) Insertion loss (1597.5515–1605.886 MHz) = 2.0 dB (Max)

NOTE:

It is recommended to add a DC block to the customer’s GPS application to prevent damage to the LE910Cx module due to unwanted DC voltage.

NOTE:

It is recommended to add PI matching network near the GPS connector on the application board in case that RF matching is needed.

7.5.1. Combined GNSS Antenna

The use of a combined RF/GNSS antenna is NOT recommended. This solution can generate an extremely poor GNSS reception. In addition, the combination of antennas requires an additional diplexer, which adds significant power loss in the RF path.

7.5.2. Linear and Patch GNSS Antenna

Using this type of antenna introduces at least 3 dB of loss compared to a circularly polarized (CP) antenna. Having a spherical gain response instead of a hemispherical gain response can aggravate the multipath behaviour and create poor position accuracy.

Rev. 2.0 Page 61 of 119 2018-09-16

LE910Cx HW User Guide Antenna(s) Doc#: 1VV0301298 GNSS Antenna Requirements

7.5.3. Front End Design Considerations

Since there is no antenna connector on the LE910Cx module, the antenna must be connected to the LE910Cx through the PCB to the antenna pad.

If the antenna is not directly connected at the antenna pad of the LE910Cx, a PCB line is required.

This line of transmission must meet the following requirements:

Table 22: Antenna Line on PCB Requirements

Characteristic impedance 50 Ohm

Max attenuation 0.3 dB

Avoid coupling with other signals.

Cold End (Ground Plane) of the antenna must be equipotential to the LE910Cx ground pads.

Furthermore, if the device is developed for the US and/or Canada market, it must comply with the FCC and/or IC requirements.

This device is to be used only for mobile and fixed application.

7.5.4. GNSS Antenna – PCB Line Guidelines

 Ensure that the antenna line impedance is 50 Ohm.  Keep the line on the PCB as short as possible to reduce the loss.  The antenna line must have uniform characteristics, constant cross section,

avoiding meanders and abrupt curves.

 Keep one layer of the PCB used only for the Ground plane; if possible.  Surround (on the sides, over and under) the antenna line on the PCB with Ground.

Avoid having other signal tracks directly facing the antenna line track.

 The Ground around the antenna line on the PCB must be strictly connected to the

main Ground plane by placing vias at least once per 2mm.

 Place EM-noisy devices as far as possible from LE910Cx antenna line.  Keep the antenna line far away from the LE910Cx power supply lines.  If EM-noisy devices are around the PCB hosting the LE910Cx, such as fast

switching ICs, ensure shielding the antenna line by burying it inside the layers of PCB and surrounding it with Ground planes; or shield it with a metal frame cover.

 If you do not have EM-noisy devices around the PCB of LE910Cx, use a Micro

strip line on the surface copper layer for the antenna line. The line attenuation will be lower than a buried one.

Rev. 2.0 Page 62 of 119 2018-09-16

LE910Cx HW User Guide Antenna(s) Doc#: 1VV0301298 GNSS Antenna Requirements

7.5.5. GNSS Antenna – Installation Guidelines

 The LE910Cx, due to its sensitivity characteristics, is capable of performing a fix

inside buildings. (In any case, the sensitivity could be affected by the building characteristics i.e. shielding.)

 The antenna must not be co-located or operating in conjunction with any other

antenna or transmitter.

 The antenna must not be installed inside metal cases.  The antenna must be installed according to the antenna manufacturer’s

instructions.

Rev. 2.0 Page 63 of 119 2018-09-16

LE910Cx HW User Guide Hardware Interfaces Doc#: 1VV0301298 GNSS Antenna Requirements

8. Hardware Interfaces

Table 23 summarizes all the hardware interfaces of the LE910Cx module.

Table 23: LE910Cx Hardware Interfaces

Interface LE910Cx

SGMII For Ethernet support

HSIC x1 (Optional)

SD/MMC x1 dual voltage interface for supporting SD/MMC card

SDIO For WIFI support (1.8V only)

USB USB2.0, Optional OTG support

SPI Master only, up to 50 MHz

I2C For sensors, audio control

UART 2 HS-UART (up to 4 Mbps)

Audio I/F I2S/PCM, Analog I/O

GPIO 10 ~ 27 (10 dedicated + 17 multiplexed with other signals)

USIM x2, dual voltage each (1.8V/2.85V)

ADC Up to x3

Antenna ports

2 for Cellular, 1 for GNSS

Rev. 2.0 Page 64 of 119 2018-09-16

LE910Cx HW User Guide Hardware Interfaces Doc#: 1VV0301298 USB Port

USB Port

The LE910Cx module includes a Universal Serial Bus (USB) transceiver, which operates at USB high-speed (480Mbits/sec). It can also operate with USB full-speed hosts (12Mbits/sec).

It is compliant with the USB 2.0 specification and can be used for control and data transfers as well as for diagnostic monitoring and firmware update.

The USB port is typically the main interface between the LE910Cx module and OEM hardware.

NOTE:

The USB_D+ and USB_D- signals have a clock rate of 480 MHz. The signal traces must be routed carefully. Minimize trace lengths, number of vias, and capacitive loading. The impedance value should be as close as possible to 90 Ohms differential.

Table 24 lists the USB interface signals.

Table 24: USB Interface Signals

Signal Pad

No.

USB_VBUS A13 Power and cable detection for the internal USB transceiver.

Acceptable input voltage range 2.5V – 5.5V @ max 5 mA consumption

USB_D- C15 Minus (-) line of the differential, bi-directional USB signal to/from

the peripheral device

USB_D+ B15 Plus (+) line of the differential, bi-directional USB signal to/from

the peripheral device

USB_ID A14 Used for USB OTG to determine host or client mode

Usage

NOTE:

USB_VBUS input power is internally used to detect the USB port and start the enumeration process. It is a power supply pin with a maximum consumption of 5 mA. Do not use pull up or a voltage divider for sourcing this supply

Rev. 2.0 Page 65 of 119 2018-09-16

LE910Cx HW User Guide Hardware Interfaces Doc#: 1VV0301298 HSIC Interface (Optional)

NOTE:

Even if USB communication is not used, it is still highly recommended to place an optional USB connector on the application board. At least test points of the USB signals are required since the USB physical communication is needed in the case of SW update.

NOTE:

USB OTG support is optional and is not supported by default. An external 5V power supply is required on the application board for supporting USB OTGץ

HSIC Interface (Optional)

The application processor exposes a High-Speed Inter-Chip (HSIC). HSIC eliminates the analog transceiver from a USB interface for lower voltage operation and reduced power dissipation.

 High-speed 480 Mbps (240 MHz DDR) USB transfers are 100% host driver

compatible with traditional USB cable connected topologies

 Bidirectional data strobe signal (STROBE)  Bidirectional data signal (DATA)  No power consumption unless a transfer is in progress

Further details will be provided in a future release of this document.

SGMII Interface

The SOC includes an integrated Ethernet MAC with an SGMII interface, having the following key features:

 The SGMII interface can be used connect to an external Ethernet PHY, or an

external switch.

 When enabled, an additional network interface will be available to the Linux

kernel’s router.

 Further details can be found at Ref 8: ETH_Expansion_board_Application Note

Rev. 2.0 Page 66 of 119 2018-09-16

LE910Cx HW User Guide Hardware Interfaces Doc#: 1VV0301298 SGMII Interface

8.3.1. Ethernet Control interface

When using an external PHY for Ethernet connectivity, the LE910Cx also includes the control interface for managing the external PHY

Table 25 lists the signals for controlling the external PHY

Table 25: Ethernet Control Interface Signals

PAD

C2 MAC_MDC O MAC to PHY Clock 2.85V Logic Level

C1 MAC_MDIO I/O MAC to PHY Data 2.85V

D1 ETH_RST_N O Reset to Ethernet PHY 2.85V

G4 ETH_INT_N I Interrupt from Ethernet

Signal I/O

PHY

NOTE:

The Ethernet control interface is shared with USIM2 port! When Ethernet PHY is used, USIM2 port cannot be used (and vice versa).

Function Type Comment

Specifications are shown in Section 4.3.7, SIM

Card Pads @2.95V, Table 16

1.8V Logic Level Specifications are shown in Table 11

NOTE:

ETH_INT_N is a 1.8V input. It has an internal pull up to 1.8V inside the module thus it should be connected to an open drain interrupt pin of the Ethernet PHY. In case the PHY does not support 1.8V I/O, proper level shifter needs to be used.

Rev. 2.0 Page 67 of 119 2018-09-16

LE910Cx HW User Guide Hardware Interfaces Doc#: 1VV0301298 Serial Ports

Serial Ports

The serial port is typically a secondary interface between the LE910Cx module and OEM hardware. The following serial ports are available on the module:

 Modem Serial Port 1 (Main)  Modem Serial Port 2 (Auxiliary)

Several serial port configurations can be designed for the OEM hardware. The most common are:

 RS232 PC com port  Microcontroller UART @ 1.8V (Universal Asynchronous Receive Transmit)  Microcontroller UART @ 3.3V/5V or other voltages different from 1.8V

Depending on the type of serial port on OEM hardware, level translator circuits may be needed to make the system operate. The only configuration that does not need level translation is the 1.8V UART.

The LE910Cx UART has CMOS levels as described in Section 4.3, Logic Level

Specifications.

8.4.1. Modem Serial Port 1 Signals

On the LE910Cx, Serial Port 1 is a +1.8V UART with 7 RS232 signals. It differs from the PC-RS232 in the signal polarity (RS232 is reversed) and levels. Table 26 lists the signals of LE910Cx Serial Port 1.

Table 26: Modem Serial Port 1 Signals

RS232

Pin#

Signal Pad No. Name Usage

DCD DCD_UART

RXD TX_UART

TXD RX_UART

DTR DTR_UART

N14

M15

N15

M14

Data Carrier Detect

Transmit line *see Note

Receive line *see Note

Data Terminal Ready

Output from LE910Cx that indicates carrier presence

Output transmit line of LE910Cx UART

Input receive line of LE910Cx UART

Input to LE910Cx that controls the DTE READY condition

5 GND

Rev. 2.0 Page 68 of 119 2018-09-16

DSR DSR_UART

A2, B13, D4…

P14

Ground Ground

Data Set Ready

Output from LE910Cx that indicates that the module is ready

LE910Cx HW User Guide Hardware Interfaces Doc#: 1VV0301298 Serial Ports

RS232

Pin#

Signal Pad No. Name Usage

RTS RTS_UART

CTS CTS_UART

RI RI_UART

L14

P15 Clear to Send

R14

Request to Send

Ring Indicator

Input to LE910Cx controlling the Hardware flow control

Output from LE910Cx controlling the Hardware flow control

Output from LE910Cx indicating the Incoming call condition

NOTE:

DCD, DTR, DSR, RI signals that are not used for UART functions can be configured as GPIO using AT commands.

NOTE:

To avoid a back-powering effect, it is recommended to avoid having any HIGH logic level signal applied to the digital pins of the module when it is powered OFF or during an ON/OFF transition.

NOTE:

For minimum implementations, only the TXD and RXD lines need be connected. The other lines can be left open provided a software flow control is implemented.

NOTE:

According to V.24, Rx/Tx signal names refer to the application side; therefore, on the LE910Cx side, these signal are in the opposite direction: TXD on the application side will be connected to the receive line (here named TXD/ RX_UART) of the LE910Cx serial port and vice versa for Rx.

NOTE:

The DTR pin is used to control the UART and system sleep Pulling the DTR pin low prevents the UART and the entire module from entering low power mode. DTR can be left floating if not used (DTR is internally pulled high).

Rev. 2.0 Page 69 of 119 2018-09-16

LE910Cx HW User Guide Hardware Interfaces Doc#: 1VV0301298 Serial Ports

Rev. 2.0 Page 70 of 119 2018-09-16

LE910Cx HW User Guide Hardware Interfaces Doc#: 1VV0301298 Serial Ports

8.4.2. Modem Serial Port 2

On the LE910Cx, Serial Port 2 is a +1.8V UART with Rx and Tx signals only.

The UART functionality is shared with SPI, thus simultaneous use of SPI and UART is not supported.

Table 27 lists the signals of the LE910Cx Serial Port 2.

Table 27: Modem Serial Port 2 Signals

PAD Signal I/O

D15 TXD_AUX O Auxiliary UART (Tx Data to DTE) 1.8V Shared with

E15 RXD_AUX I Auxiliary UART (Rx Data to DTE) 1.8V Shared with

NOTE:

To avoid a back-powering effect, it is recommended to avoid having any HIGH logic level signal applied to the digital pins of the module when it is powered OFF or during an ON/OFF transition.

NOTE:

The Auxiliary UART is used as the SW main debug console. It is required to place test points on this interface even if not used.

Function Type Comment

SPI_MOSI

SPI_MISO

8.4.3. RS232 Level Translation

To interface the LE910Cx with a PC COM port or an RS232 (EIA/TIA-232) application, a level translator is required. This level translator must perform the following actions:

 Invert the electrical signal in both directions  Change the level from 0/1.8V to +15/-15V

The RS232 UART 16450, 16550, 16650 & 16750 chipsets accept signals with lower levels on the RS232 side (EIA/TIA-562), allowing a lower voltage-multiplying ratio on the level translator. Note that the negative signal voltage must be less than 0V and hence some sort of level translation is always required.

The simplest way to translate the levels and invert the signal is by using a single chip-level translator. There are a multitude of them, differing in the number of drivers and receivers and in the levels (be sure to get a true RS232 level translator, not a RS485 or other standards).

Rev. 2.0 Page 71 of 119 2018-09-16

LE910Cx HW User Guide Hardware Interfaces Doc#: 1VV0301298 Serial Ports

By convention, the driver is the level translator from the 0-1.8V UART to the RS232 level. The receiver is the translator from the RS232 level to 0-1.8V UART. To translate the whole set of control lines of the UART, the following is required:

 2 drivers  2 receivers

WARNING:

The digital input lines, operating at 1.8V CMOS levels, have absolute maximum input voltage of 2.0V. The level translator IC outputs on the module side (i.e. LE910Cx inputs) will cause damage to the module inputs if the level translator is powered with +3.8V power. So, the level translator IC must be powered from a dedicated +1.8V power supply.

As an example, RS232 level adaption circuitry could use a MAXIM transceiver (MAX218). In this case, the chipset is capable of translating directly from 1.8V to the RS232 levels (example on 4 signals only).

Figure 13: RS232 Level Adaption Circuitry Example

NOTE:

In this case, the length of the lines on the application must be taken into account to avoid problems in the case of high-speed rates on RS232.

The RS232 serial port lines are usually connected to a DB9 connector as shown in Figure

14. Signal names and directions are named and defined from the DTE point of view.

Figure 14: RS232 Serial Port Lines Connection Layout

Rev. 2.0 Page 72 of 119 2018-09-16

LE910Cx HW User Guide Hardware Interfaces Doc#: 1VV0301298 Peripheral Ports

Peripheral Ports

In addition to the LE910Cx serial ports, the LE910Cx supports the following peripheral ports:

 SPI – Serial Peripheral Interface  I2C - Inter-integrated circuit  SD/MMC Card Interface  SDIO Interface

8.5.1. SPI – Serial Peripheral Interface

The LE910Cx SPI supports the following:

 Master Mode only  1.8V CMOS level  Up to 50 MHz clock rate

NOTE:

SPI is supported only on the Linux side. The LE910Cx module supports Master mode only and cannot be configured as Slave mode.

Table 28: SPI Signals

PAD Signal I/O Function Type Comment

F15 SPI_CLK O SPI clock output 1.8V

E15 SPI_MISO I SPI data Master input Slave

output

D15 SPI_MOSI O SPI data Master output Slave

input

H14 SPI_CS O SPI chip-select output 1.8V

Figure 15: SPI Signal Connectivity

1.8V Shared with RX_AUX

1.8V Shared with TX_AUX

LE910Cx

Rev. 2.0 Page 73 of 119 2018-09-16

(Master)

SPI_CS

SPI_CLK

SPI_MOSI

SPI_MISO

Host (Slave)

SPI_CS SPI_CLK SPI_MOSI

SPI_MISO

LE910Cx HW User Guide Hardware Interfaces Doc#: 1VV0301298 Peripheral Ports

8.5.2. I2C - Inter-integrated Circuit

The LE910Cx supports an I2C interface on the following pins:

 B11 - I2C_SCL  B10 - I2C_SDA

The I2C can also be used externally by the end customer application.

In addition, SW emulated I2C functionality can be used on GPIO pins 1-10. Any GPIO (among GPIO 1-10) can be configured as SCL or SDA.

LE910Cx supports I2C Master Mode only.

NOTE:

SW emulated I2C on GPIO lines is supported only from the modem side. For more information, refer to Ref 1: LE920x4/LE910Cx AT Command User Guide for command settings.

NOTE:

To keep backward compatibility with previous LE910 products, it is recommended to keep using the SW emulated I2C available on GPIO’s 1-10.

Rev. 2.0 Page 74 of 119 2018-09-16

LE910Cx HW User Guide Hardware Interfaces Doc#: 1VV0301298 Peripheral Ports

8.5.3. SD/MMC Card Interface

The LE910Cx provides an SD port supporting the SD3.0 specification, which can be used to support standard SD/MMC memory cards with the following features:

 Interface with SD/MMC memory cards up to 2 TB  Max clock @ 2.95V - 50 MHz SDR  Max Data: 25 MB/s  SD standard: HS-SDR25 at 2.95V  Max clock @ 1.8V - 200 MHz SDR  Max Data: 100 MB/s  SD standard: UHS-SDR104 at 1.8 V  Max clock @ 1.8V - 50 MHz DDR  Max Data: 50 MB/s  SD standard: UHS-DDR50 at 1.8 V

Table 29 lists the LE910Cx SD card signals.

Table 29: SD Card Signals

PAD Signal I/O Function Type Comments

J12 SD/MMC_CMD O SD command 1.8/2.95V

F12 SD/MMC_CLK O SD card clock 1.8/2.95V

E12 SD/MMC_DATA0 I/O SD Serial Data 0 1.8/2.95V

G12 SD/MMC_DATA1 I/O SD Serial Data 1 1.8/2.95V

K12 SD/MMC_DATA2 I/O SD Serial Data 2 1.8/2.95V

H12 SD/MMC_DATA3 I/O SD Serial Data 3 1.8/2.95V

G13 SD/MMC_CD I SD card detect input 1.8V Active Low

F13 VMMC - Power supply for MMC

card pull-up resistors

1.8/2.95V Max Current is 50mA

Rev. 2.0 Page 75 of 119 2018-09-16

LE910Cx HW User Guide Hardware Interfaces

SD/MMC_DATA2

SD/MMC_DATA3

SD/MMC_CMD

SD/MMC_CLK

SD/MMC_DATA0

SD/MMC_DATA1

SD/MMC Interface

SD/MMC_CD

DATA2

DATA3

CMD

VDD

VSS

DATA0

DATA1

MicroSD

MMC_CD

GND GND

C=100nF

GND

Doc#: 1VV0301298 Peripheral Ports

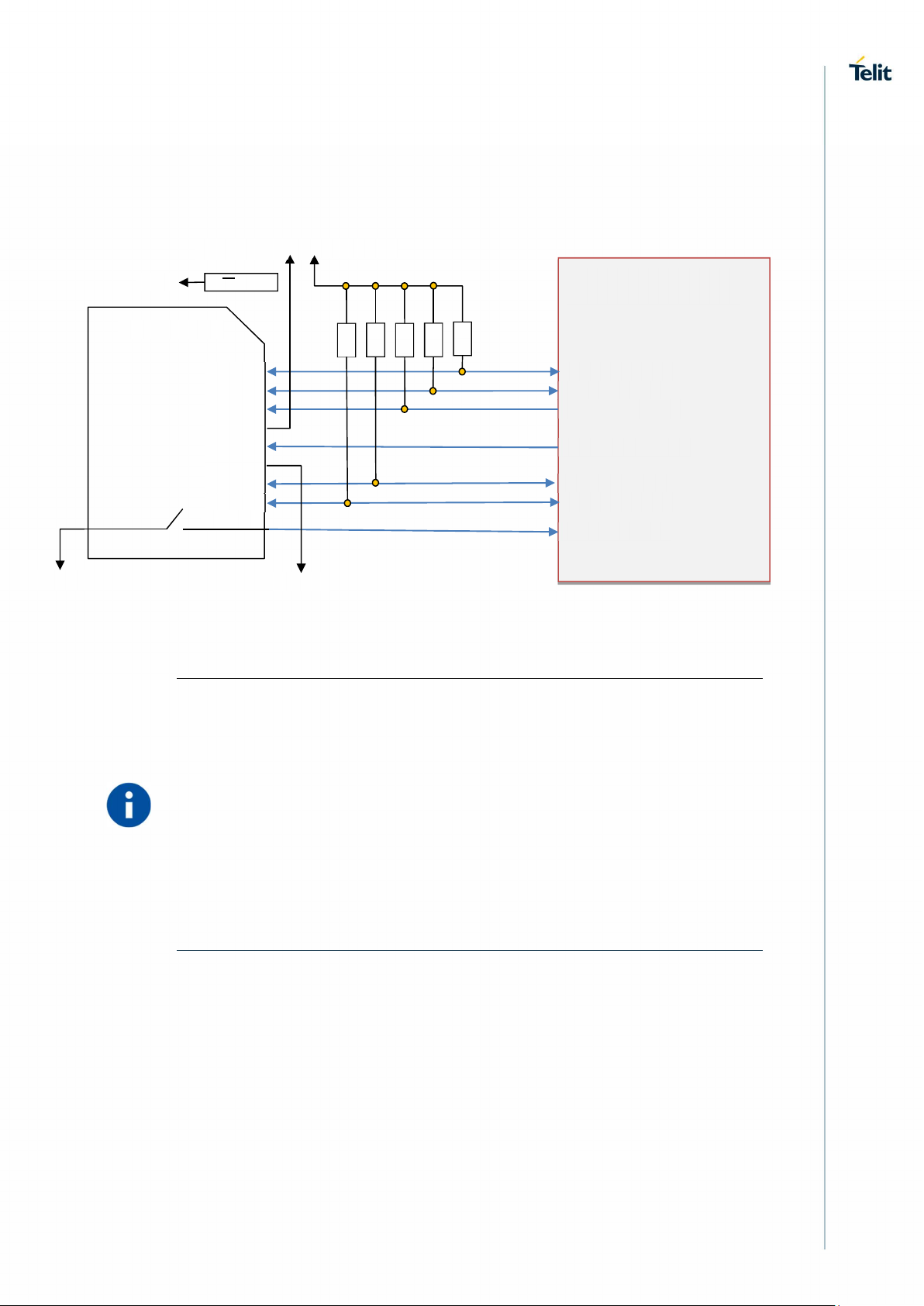

Figure 16 shows the recommended connection diagram of the SD interface.

Figure 16: SD/MMC Interface Connectivity

External PS 3V

VMMC

LE910Cx

NOTE:

SD/MMC is supported only on the Linux side. The power supply to the SD/MMC card is to be provided by the Host application board. The LE910Cx does not provide a dedicated power supply for the SD/MMC card. VMMC Supply is limited to 50mA thus can only supply the MMC card external pull-up resistors. Pull-up resistors must be placed on the host application board. The card detection input has an internal pull-up resistor. VMMC can be used for enabling of the external power supply (LDO Enable signal)

Rev. 2.0 Page 76 of 119 2018-09-16

LE910Cx HW User Guide Hardware Interfaces Doc#: 1VV0301298 Peripheral Ports

8.5.4. WiFi SDIO Interface

The LE910Cx provides an SDIO port supporting the SDIO3.0 specification, which can be used to interface with a WiFi chipset (Qualcomm QCA65x4 chipset or other WiFi solutions). The LE910Cx module includes an integrated SW driver to support the Qualcomm QCA6574 chipset.

NOTE:

Qualcomm QCA9377 WiFi chipset may be supported on some of the LE910Cx variants. Please contact your Telit representative for more details.

The LE910Cx SDIO port supports the SDIO 3.0 specification at 1.8V CMOS only, thus cannot be used as an external SD/MMC card connection.

The LE910Cx module supports an LTE/WiFi coexistence mechanism via the WCI (Wireless Coexistence Interface) port, which connects between the module and the external WiFi IC.

For a detailed explanation, refer to Ref 5: Telit_LE920A4_LE910Cx_WiFi_Interface_Application_Note_r1.

Table 30: WiFi SDIO Interface Signals

PAD Signal I/O Function Type Comments

N13 WIFI_SD_CMD O WiFi SD Command 1.8V

L13 WIFI_SD_CLK O WiFi SD Clock 1.8V 200 MHz

max.

J13 WIFI_SD_DATA0 I/O WiFi SD Serial Data 0 1.8V

M13 WIFI_SD_DATA1 I/O WiFi SD Serial Data 1 1.8V

K13 WIFI_SD_DATA2 I/O WiFi SD Serial Data 2 1.8V

H13 WIFI_SD_DATA3 I/O WiFi SD Serial Data 3 1.8V

L12 WIFI_SDRST O WiFi Reset / Power enable

control

M8 WCI_TX O Wireless coexistence

interface TXD

M9 WCI_RX I Wireless coexistence

interface RXD

Rev. 2.0 Page 77 of 119 2018-09-16

1.8V Active Low

1.8V

LE910Cx HW User Guide Hardware Interfaces Doc#: 1VV0301298 Audio Interface

Audio Interface

The LE910Cx module supports a digital audio interface.

8.6.1. Digital Audio

The LE910Cx module can be connected to an external codec through the digital interface.

The product provides a single Digital Audio Interface (DVI) on the following pins:

Table 31: Digital Audio Interface (DVI) Signals

PAD Signal I/O

B9 DVI_WA0 O Digital Audio Interface (WA0) B-PD 1.8V PCM_SYNC

B6 DVI_RX I Digital Audio Interface (RX) B-PD 1.8V PCM_DIN

B7 DVI_TX O Digital Audio Interface (TX) B-PD 1.8V PCM_DOUT

B8 DVI_CLK O Digital Audio Interface (CLK) B-PD 1.8V PCM_CLK

B12 REF_CLK O Audio Master Clock B-PD 1.8V I2S_MCLK

LE910Cx DVI has the following characteristics:

 PCM Master and slave modes using short or long frame sync modes  16-bit linear PCM format  PCM clock rates of 256 kHz, 512 kHz, 1024 kHz and 2048 kHz (Default)  Frame size of 8, 16, 32, 64, 128 & 256 bits per frame  Sample rates of 8 kHz and 16 kHz

Function Type Comments

In addition to the DVI port, the LE910Cx module provides a master clock signal (REF_CLK on Pin B12) which can either provide a reference clock to an external codec or form an I2S interface together with the DVI port where the REF_CLK acts as the I2S_MCLK.

The REF_CLK default frequency is 12.288 MHz.

When using the DVI with REF_CLK as an I2S interface, 12.288 MHz is 256 x fs (where fs = 48 kHz)

Rev. 2.0 Page 78 of 119 2018-09-16

LE910Cx HW User Guide Hardware Interfaces Doc#: 1VV0301298 Audio Interface

8.6.1.1. Short Frame Timing Diagrams

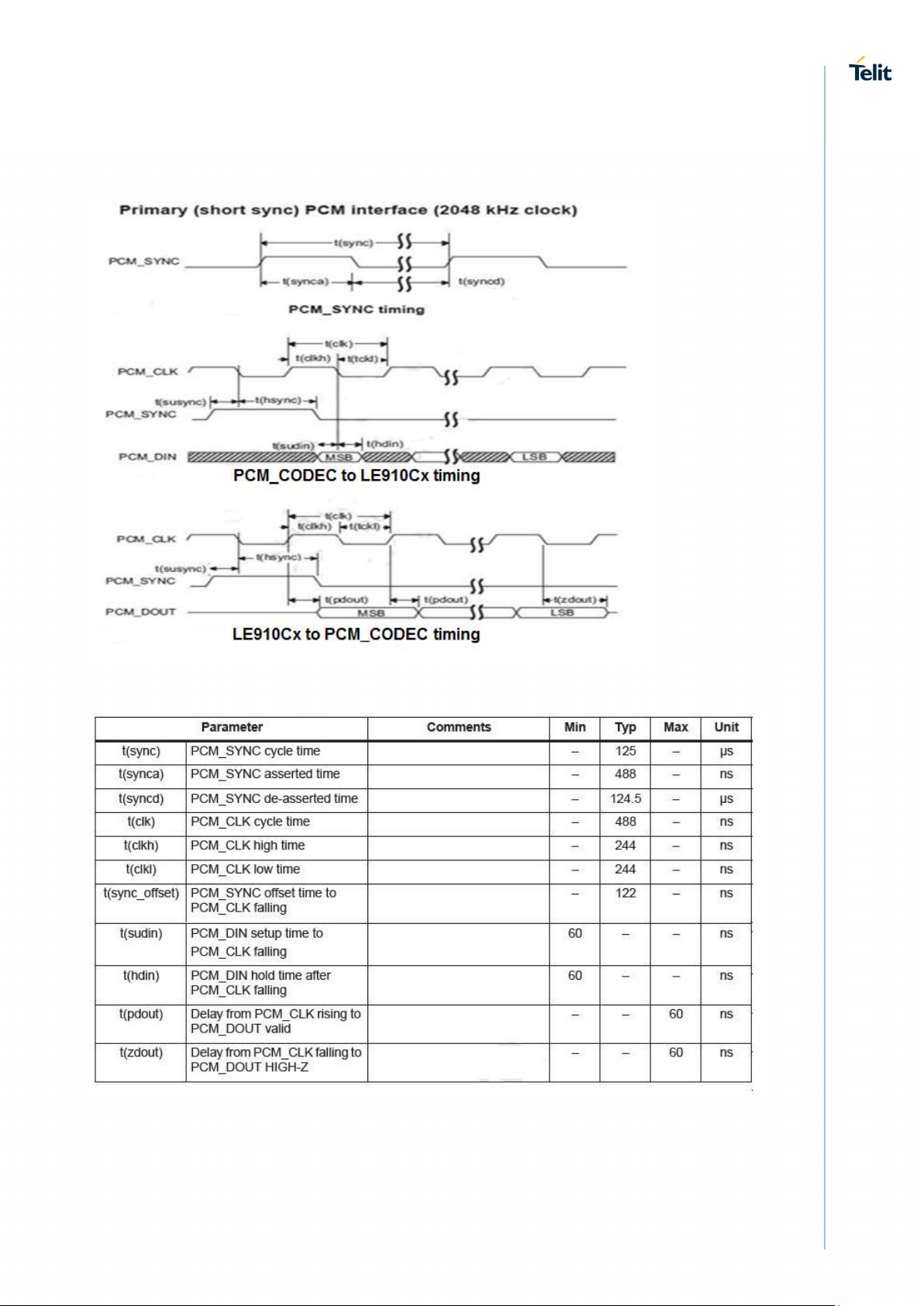

Figure 17: Primary PCM Timing

Table 32: PCM_CODEC Timing Parameters

Rev. 2.0 Page 79 of 119 2018-09-16

LE910Cx HW User Guide Hardware Interfaces Doc#: 1VV0301298 Audio Interface

8.6.1.2. Long Frame Timing Diagrams

Figure 18: Auxiliary PCM Timing

Rev. 2.0 Page 80 of 119 2018-09-16

LE910Cx HW User Guide Hardware Interfaces Doc#: 1VV0301298 Audio Interface

Table 33: AUX_PCM_CODEC Timing Parameters

Rev. 2.0 Page 81 of 119 2018-09-16

LE910Cx HW User Guide Hardware Interfaces Doc#: 1VV0301298 General Purpose I/O

General Purpose I/O

The general-purpose I/O pads can be configured to act in three different ways:

 Input  Output  Alternative function (internally controlled)

Input pads can only be read, reporting digital values (high / low) present on the pad at the reading time. Output pads can only be written or queried and set values on the pad output. Alternative function pads can be internally controlled by LE910Cx firmware and act according to the implementation.

The following GPIOs are always available as a primary function on the LE910Cx.

Table 34: Primary GPIOs

PAD Signal I/O

C8 GPIO_01 I/O Configurable

C9 GPIO_02 I/O Configurable

C10 GPIO_03 I/O Configurable

C11 GPIO_04 I/O Configurable

B14 GPIO_05 I/O Configurable

C12 GPIO_06 I/O Configurable

C13 GPIO_07 I/O Configurable

Function Type

GPIO

CMOS

1.8V

CMOS

1.8V

CMOS

1.8V

CMOS

1.8V

CMOS

1.8V

CMOS

1.8V

CMOS

1.8V

Drive

Strength

2-16 mA *

2-16 mA

2-16 mA *

Note

K15 GPIO_08 I/O Configurable

GPIO

L15 GPIO_09 I/O Configurable

GPIO

G15 GPIO_10 I/O Configurable

GPIO

Rev. 2.0 Page 82 of 119 2018-09-16

CMOS

1.8V

CMOS

1.8V

CMOS

1.8V

2-16 mA

2-16 mA *

2-16 mA

LE910Cx HW User Guide Hardware Interfaces Doc#: 1VV0301298 General Purpose I/O

WARNING:

GPIO’s marked with (*) should not be pulled high externally (by the carrier board) during module power on procedure. Pulling those pads high during module power up might lead to unwanted/non-operational boot mode.

The additional GPIOs below can be used in case their initial functionality is not used:

Table 35: Additional GPIOs

PAD Signal I/O Initial Function

Alternate Function

L12 GPIO_13 I/O WIFI_SDRST Configurable

GPIO

N13 GPIO_14 I/O WIFI_SDIO_CMD Configurable

GPIO

J13 GPIO_15 I/O WIFI_SDIO_D0 Configurable

GPIO

M13 GPIO_16 I/O WIFI_SDIO_D1 Configurable

GPIO

K13 GPIO_17 I/O WIFI_SDIO_D2 Configurable

GPIO

H13 GPIO_18 I/O WIFI_SDIO_D3 Configurable

GPIO

L13 GPIO_19 I/O WIFI_SDIO_CLK Configurable

GPIO

M8 GPIO_24 I/O WCI_TXD Configurable

GPIO

Type

CMOS

1.8V

CMOS

1.8V

CMOS

1.8V

CMOS

1.8V

CMOS

1.8V

CMOS

1.8V

CMOS

1.8V

CMOS

1.8V

Drive

Strength

2-16 mA *

2-16 mA

2-16 mA *

Note

M9 GPIO_25 I/O WCI_RXD Configurable

GPIO

R14 GPIO_31 I/O UART_RI Configurable

GPIO

P14 GPIO_32 I/O UART_DSR Configurable

GPIO

N14 GPIO_33 I/O UART_DCD Configurable

GPIO

M14 GPIO_34 I/O UART_DTR Configurable

GPIO

F15 GPIO_35 I/O SPI_CLK Configurable

GPIO

CMOS

1.8V

CMOS

1.8V

CMOS

1.8V

CMOS

1.8V

CMOS

1.8V

CMOS

1.8V

2-16 mA *

2-16 mA

2-16 mA *

2-16 mA

Rev. 2.0 Page 83 of 119 2018-09-16

LE910Cx HW User Guide Hardware Interfaces Doc#: 1VV0301298 General Purpose I/O

PAD Signal I/O Initial Function

E15 GPIO_36 I/O SPI_MISO Configurable

D15 GPIO_37 I/O SPI_MOSI Configurable

H14 GPIO_11 I/O SPI_CS Configurable

WARNING:

NOTE:

LE910Cx GPIOs 1~10 can also be used as alternate I2C function. Refer to Section 8.5.2, I2C - Inter-integrated Circuit.

Alternate Function

GPIO

Type

CMOS

1.8V

CMOS

1.8V

CMOS

1.8V

Drive

Strength

2-16 mA

Note

8.7.1. Using a GPIO Pad as Input

GPIO pads, when used as inputs, can be connected to a digital output of another device and report its status, provided this device has interface levels compatible with the 1.8V CMOS levels of the GPIO.

If the digital output of the device is connected with the GPIO input, the pad has interface levels different from the 1.8V CMOS. It can be buffered with an open collector transistor with a 10 kΩ pull-up resistor to 1.8V.

8.7.2. Using a GPIO Pad as an interrupt / Wakeup source

GPIO pads that are used as input can also be used as an interrupt source for the software. In general, all GPIO pads can be also used as interrupts. However, not all GPIO’s can be used as a wakeup source of the module (wakeup from sleep).

Only the following GPIO’s can be used for waking up the system from sleep:

 GPIO1  GPIO4  GPIO5  GPIO8

Rev. 2.0 Page 84 of 119 2018-09-16

LE910Cx HW User Guide Hardware Interfaces Doc#: 1VV0301298 General Purpose I/O

8.7.3. Using a GPIO Pad as Output

GPIO pads, when used as outputs, can drive 1.8V CMOS digital devices or compatible hardware. When set as outputs, the pads have a push-pull output, and therefore the pullup resistor can be omitted.

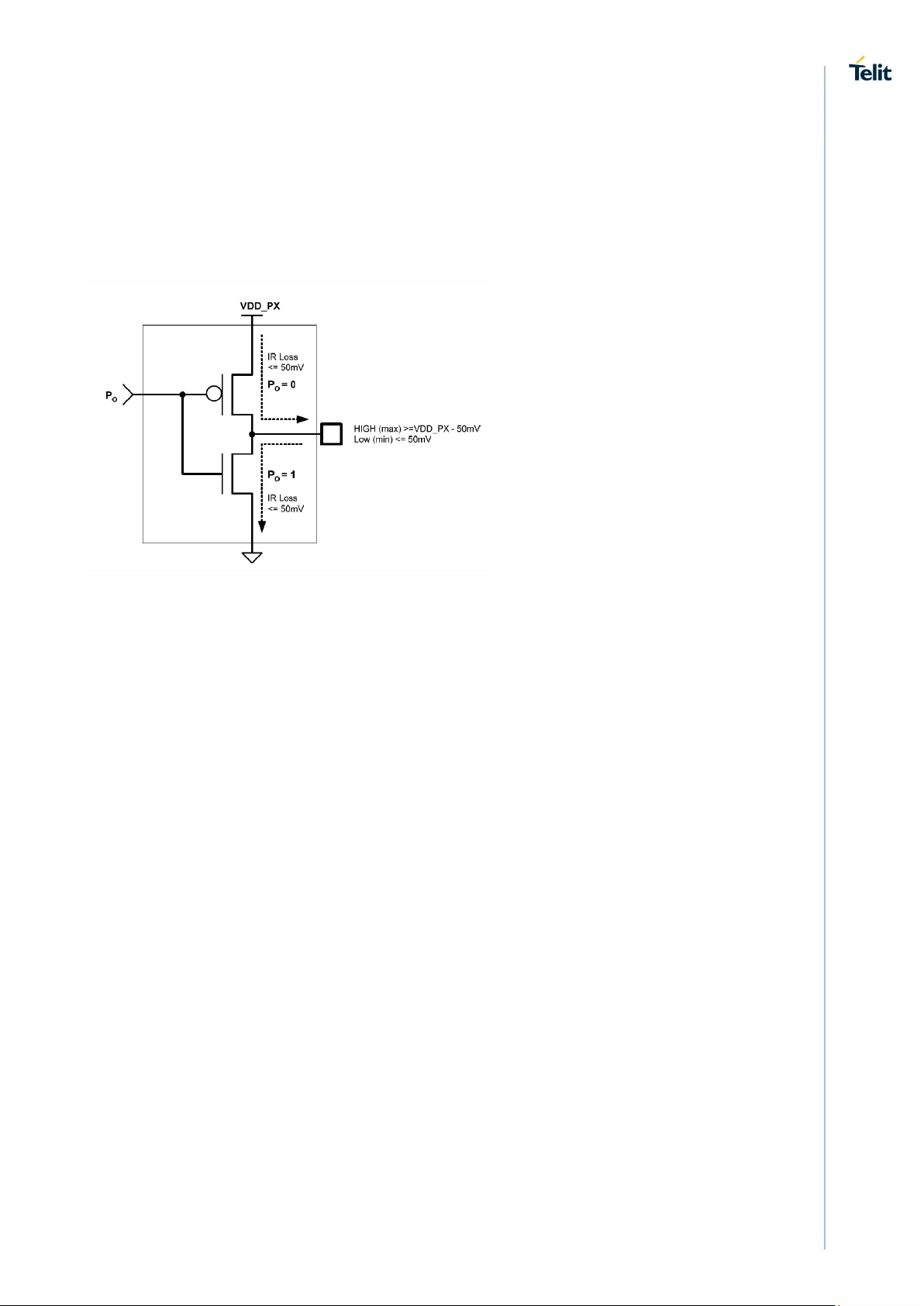

Figure 19: GPIO Output Pad Equivalent Circuit

Rev. 2.0 Page 85 of 119 2018-09-16

LE910Cx HW User Guide Miscellaneous Functions Doc#: 1VV0301298 Indication of Network Service Availability

9. Miscellaneous Functions

Indication of Network Service Availability

The STAT_LED pin status shows information on the network service availability and call status. In the LE910Cx module, the STAT_LED usually needs an external transistor to drive an external LED.

The STAT_LED does not have a dedicated pin. The STAT_LED functionality is available on GPIO_01 pin (by default GPIO_01 functions as STAT_LED)

Table 36: Network Service Availability Indication

LED Status Device Status

Permanently off Device off

Fast blinking (Period 1s, Ton 0,5s) Net search / Not registered /

Turning off

Slow blinking (Period 3s, Ton 0,3s) Registered with full service

Permanently on A call is active

Figure 20: Status LED Circuit Example

Rev. 2.0 Page 86 of 119 2018-09-16

LE910Cx HW User Guide Miscellaneous Functions Doc#: 1VV0301298 Indication of Software Ready

Indication of Software Ready

The SW_RDY signal provides indication about the ability of the module to receive commands. As long as the SW_RDY is asserted low, it indicates that the LE910Cx has not yet finished booting. Once the SW_RDY is asserted high, it indicates that the LE910Cx is ready to receive commands.

The SW_RDY does not have a dedicated pin. The SW_RDY functionality is available on GPIO_08 pin (by default GPIO_08 functions as SW_RDY).

RTC – Real Time Clock

The RTC within the LE910Cx module does not have a dedicated RTC supply pin. The RTC block is supplied by the VBATT supply.

If the battery is removed, RTC is not maintained so if maintaining an internal RTC is needed, VBATT must be supplied continuously.

In Power OFF mode, the average current consumption is ~25uA.

VAUX Power Output

A regulated power supply output is provided to supply small devices from the module. This output is active when the module is ON and goes OFF when the module is shut down. The operating range characteristics of the supply are as follows:

Table 37: Operating Range – VAUX Power Supply

Min Typical Max

Output voltage 1.75V 1.80V 1.85V

Output current 100 mA

Output bypass capacitor (within the module)

1 μF

Rev. 2.0 Page 87 of 119 2018-09-16

LE910Cx HW User Guide Miscellaneous Functions Doc#: 1VV0301298 ADC Converter

ADC Converter

9.5.1. Description

The LE910Cx module provides three on-board 8-bit Analog to Digital converters. Each ADC reads the voltage level applied on the relevant pin, converts it and stores it into an 8bit word.

Table 38: ADC Parameters

Min Max Units

Input voltage range 0.1 1.7 Volt

AD conversion - 8 bits

Resolution - < 6.6 mV

9.5.2. Using the ADC Converter

An AT command is available to use the ADC function.

The command is AT#ADC=1,2. The read value is expressed in mV.

Refer to Ref 1: LE920x4/LE910Cx AT Command User Guide for the full description of this function.

Using the Temperature Monitor Function

The Temperature Monitor supports temperature monitoring by giving periodic temperature indications, to execute some function at extreme state. If properly set (see the #TEMPMON command in Ref 1: LE920x4/LE910Cx AT Command User Guide), it raises a GPIO to High Logic level when the maximum temperature is reached.

Rev. 2.0 Page 88 of 119 2018-09-16

LE910Cx HW User Guide Miscellaneous Functions Doc#: 1VV0301298 GNSS Characteristics

GNSS Characteristics

Table 39 specifies the GNSS characteristics and expected performance. The values are related to typical environment and conditions.

Table 39: GNSS Characteristics

Parameters

Standalone or MS Based Tracking Sensitivity

Sensitivity

TTFF

Accuracy 0.8 m

Min Navigation update rate 1Hz

Dynamics 2g

Acquisition -157.5 dBm

Cold Start Sensitivity -157.5 dBm

Hot 1.1s

Warm 22.1s

Cold 29.94s

Typical

Measurement

-162.3 dBm

Notes

GPS+GLONASS Simulator test

Operation limits 515 m/sec

A-GPS Supported

Rev. 2.0 Page 89 of 119 2018-09-16

LE910Cx HW User Guide Mounting the Module on your Board

4 x Route

Doc#: 1VV0301298 General

10. Mounting the Module on your Board

General

The LE910Cx module is designed to be compliant with a standard lead-free soldering process.

Finishing & Dimensions

The below figure shows the mechanical dimensions of the LE910Cx module.

Figure 21: LE910Cx Mechanical Dimensions (Bottom View)

Inhibit

Lead-free Alloy:

Surface finishing Ni/Au for all solder pads

Rev. 2.0 Page 90 of 119 2018-09-16

LE910Cx HW User Guide Mounting the Module on your Board Doc#: 1VV0301298 Finishing & Dimensions

Figure 22: LE910Cx Mechanical Dimensions (Top view)

Rev. 2.0 Page 91 of 119 2018-09-16

LE910Cx HW User Guide Mounting the Module on your Board Doc#: 1VV0301298 Finishing & Dimensions

Figure 23: LE910Cx Mechanical Dimensions (Side view)

Rev. 2.0 Page 92 of 119 2018-09-16

LE910Cx HW User Guide Mounting the Module on your Board Doc#: 1VV0301298 Recommended Footprint for the Application

Recommended Footprint for the Application

Figure 24 shows the recommended footprint for the application board (dimensions are in mm).

To facilitate replacing the LE910Cx module if necessary, it is suggested to design the application board with a 1.5 mm placement inhibit area around the module.

It is also suggested, as a common rule for an SMT component, to avoid having a mechanical part of the application board in direct contact with the module.

NOTE:

In the customer application, the region marked as INHIBIT WIRING in Figure 24 must be clear of signal wiring or ground polygons.

Figure 24: Recommended Footprint - Top View, 181 pads

4 x Route

Inhibit

Rev. 2.0 Page 93 of 119 2018-09-16

LE910Cx HW User Guide Mounting the Module on your Board Doc#: 1VV0301298 Stencil

Stencil

Stencil’s apertures layout can be the same as the recommended footprint (1:1). The suggested thickness of stencil foil is greater than 120 µm.

PCB Pad Design

The solder pads on the PCB are recommended to be of the Non-Solder Mask Defined (NSMD) type.

Figure 25: PCB Pad Design

Rev. 2.0 Page 94 of 119 2018-09-16

LE910Cx HW User Guide Mounting the Module on your Board Doc#: 1VV0301298 Recommendations for PCB Pad Dimensions (mm)

Recommendations for PCB Pad Dimensions (mm)

Figure 26: PCB Pad Dimensions

It is not recommended to place around the pads a via or micro-via that is not covered by solder resist in an area of 0.15 mm unless it carries the same signal as the pad itself. Micro via inside the pads are allowed.

Holes in pad are allowed only for blind holes and not for through holes.

Table 40: Recommendations for PCB Pad Surfaces

Finish Layer Thickness (um) Properties

Electro-less Ni / Immersion Au

The PCB must be able to resist the higher temperatures, which occur during the lead-free process. This issue should be discussed with the PCB-supplier. Generally, the wettability of tin-lead solder paste on the described surface plating is better compared to lead-free solder paste.

3-7 / 0.05-0.15 Good solder ability protection,

high shear force values

Solder Paste

We recommend using only “no clean” solder paste to avoid the cleaning of the modules after assembly.

Rev. 2.0 Page 95 of 119 2018-09-16

LE910Cx HW User Guide Mounting the Module on your Board Doc#: 1VV0301298 Solder Paste

10.7.1. Solder Reflow

Figure 27 shows the recommended solder reflow profile.

Figure 27: Solder Reflow Profile

Rev. 2.0 Page 96 of 119 2018-09-16

LE910Cx HW User Guide Mounting the Module on your Board Doc#: 1VV0301298 Solder Paste

Table 41: Solder Profile Characteristics

Profile Feature Pb-Free Assembly

Average ramp-up rate (TL to TP) 3°C/second max

Preheat – Temperature min (Tsmin) – Temperature max (Tsmax) – Time (min to max) (ts)

Tsmax to TL – Ramp-up rate

Time maintained above: – Temperature (TL) – Time (tL)

150°C 200°C 60-180 seconds

3°C/second max

217°C 60-150 seconds

Peak temperature (Tp) 245 +0/-5°C

Time within 5°C of actual peak Temperature (tp)

10-30 seconds

Ramp-down rate 6°C/second max

Time 25°C to peak temperature 8 minutes max

NOTE:

All temperatures refer to the top side of the package, measured on the package body surface.

WARNING:

The LE910Cx module withstands one reflow process only.

Rev. 2.0 Page 97 of 119 2018-09-16

LE910Cx HW User Guide Mounting the Module on your Board Doc#: 1VV0301298 Solder Paste

10.7.2. Cleaning

In general, cleaning the module mounted on the carrier board is not recommended.

 Residues between module and host board cannot be easily removed with any

cleaning method.

 Cleaning with water or any organic solvent can lead to capillary effects where the

cleaning solvent is absorbed into the gap between the module and the host board or even leak inside the module (due to the gap between the module shield and PCB) . The combination of soldering flux residues and encapsulated solvent could lead to short circuits between conductive parts. The solvent could also damage the module label.

 Ultrasonic cleaning could damage the module permanently. Especially for crystal

oscillators where the risk of damaging is very high.

Rev. 2.0 Page 98 of 119 2018-09-16

LE910Cx HW User Guide Application Guide Doc#: 1VV0301298 Debug of the LE910Cx Module in Production

11. Application Guide

Debug of the LE910Cx Module in Production

To test and debug the mounting of the LE910Cx module, we strongly recommend adding several test pads on the application board design for the following purposes:

 Checking the connection between the LE910Cx itself and the application  Testing the performance of the module by connecting it with an external computer

Depending on the customer application, these test pads include, but are not limited to the following signals:

 TXD  RXD  ON/OFF  HW_SHUTDOWN_N  GND  VBATT  TX_AUX  RX_AUX  USB_VBUS  USB_D+  USB_D-  GPIO_09  WCI_RX

In addition, the following signals are also recommended (but not mandatory):

 PWRMON  GPIO_01 (STAT_LED)  GPIO_08 (SW_RDY)

Rev. 2.0 Page 99 of 119 2018-09-16

LE910Cx HW User Guide Application Guide Doc#: 1VV0301298 Bypass Capacitor on Power Supplies

Bypass Capacitor on Power Supplies

When a sudden voltage step to or a cut from the power supplies is asserted, the steep transition causes some reactions such as overshoot and undershoot. This abrupt voltage transition can affect the device causing it to not operate or to malfunction.

Bypass capacitors are needed to alleviate this behaviour. The behaviour can appear differently depending on the various applications. Customers must pay special attention to this issue when they design their application board.

The length and width of the power lines must be considered carefully, and the capacitance of the capacitors must be selected accordingly.

The capacitor will also prevent ripple of the power supplies and the switching noise caused in TDMA systems, such as GSM.

Especially, a suitable bypass capacitor must be mounted on the following lines on the application board:

 VBATT & VBATT_PA (M1, M2, N1, N2, P1, P2)  USB_VBUS (Pad A13)

Recommended values are:

 100uF for both VBATT and VBATT_PA together  4.7uF for USB_VBUS (including the 1uF capacitor inside the module)

Customers must still consider that the capacitance mainly depends on the conditions of their application board.

Generally, more capacitance is required when the power line is longer.

Rev. 2.0 Page 100 of 119 2018-09-16
