SECURUS BHV4PLS8 User Manual

4.30.18

BLUband and BLUhome

Foundations Training

SECURUS Technologies | Satellite Tracking of People LLC Monitoring Solutions | 1

FCC & Industry Canada Compliance
FCC: S5EBHV40318
I.C. 9086A-BHV40318
MODEL NUMBER: BluHome®

NOTE: This equipment has been tested and found to com ply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance w ith the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.

The Cellular and ISM transmitters used in BluHome® are not co-located. The ISM transmitter is operational only when it is required to communicate with the associated equipment. BluHome® is set up automatically to prevent simultaneous transmission
between the Cellular and ISM transmitters

This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located
or operating in conjunction with any other antenna or transmitter.”

Canadian Compliance (Industry Canada) for Bluhome®
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

• This device may not cause interference, and

• This device must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suiv antes :

(1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
WARNING – Changes or modifications to these units not expressly approved by the party responsible for compliance could void the user’s authority to operate the

equipment.
BATTERY SAFETY

The BluHome® Device contains a non-removable lithium-Ion battery. Do not attempt to remove the battery. Do not dispose of the BluHome® or the lithium-Ion battery
in a fire. The lithium-Ion battery might present a fire or chemical burn hazard if mistreated. D o not disassemble, crush, or puncture the lithium-Ion battery or the BluHome®
Device. Do not heat the battery or BluHome® Device above 140°F (60°C).

Please return the Device to Satellite Tracking of People LLC, 1212 North Post Oak Road, Suite 100, Houston, Texas 77055 for disposal otherwise only dispose of the battery or
BluHome® device in accordance with the laws and regulations in your area governing disposal of this type of battery.

SERVICE
The BluHome® device contains no serviceable parts and provides no user configurable or tunable internal components. Please retu
Maintenance

SÉCURITÉ DES PILES
Les appareils BluHome contiennent une pile au lithium-ion non amovible. Ne pas tenter de retirer la pile. Ne pas jeter BluHome ou la pile au lithium-ion dans un feu. La pile au lithium-ion présente un risque d'incendie ou de brûlure chimique en cas de mauvais
traitement. Ne pas désassembler, écraser ni percer la pile au lithium-ion ou l'appareil BluTag. Ne pas chauffer la pile ou l'appareil BluHome à des températures supérieures à 60 °C (140 °F).

Veuillez renvoyer l'appareil à Satellite Tracking of People LLC, 1212 North Post Oak Road, Suite 100, Houston, Texas 77055 U.S.A. pour élimination, ou si vous voulez vous charger vous-même de l'élimination de la pile ou de l'appareil veuillez vous conformer
aux lois et à la réglementation de votre région régissant la mise au rebut de ce type de pile.

“This product meets the applicable Innovation, Science and Economic Development Canada technical specifications” .
“The Ringer Equivalence Number (REN) indicates the maximum number of devices allowed to be connected to a telephone interface. The termination of an interface may consist of any combination of devices subject only to the requirement that the sum of the

RENs of all the devices not exceed five.”

Le présent produit est conforme aux spécifications techniques applicables d'Innovation, Sciences et Développement économique Canada.
L'indice d'équivalence de la sonnerie (IES) sert à indiquer le nombre maximal de dispositifs qui peuvent être raccordés à une interface téléphonique. La terminaison d'une interface peut consister en une combinaison quelconque de dispositifs, à la seule condition

que la somme des IES de tous les dispositifs n'excède pas cinq.

rn to manufacturer for calibration or

SECURUS Technologies | Satellite Tracking of People LLC Monitoring Solutions | 2

Index

OverviewOverview EnrollmentEnrollment SchedulesSchedules InstallationInstallation

Assigning DeviceAssigning Device Master TampersMaster Tampers NotificationsNotifications Unassigning

DashboardDashboard

EventsEvents

Unassigning

Device

Device

SECURUS Technologies | Satellite Tracking of People LLC Monitoring Solutions | 3

OVERVIEW

BLUband

 Small, lightweight (2 oz.) one-piece device

 Uses Radio Frequency (RF) technology

 18-month battery

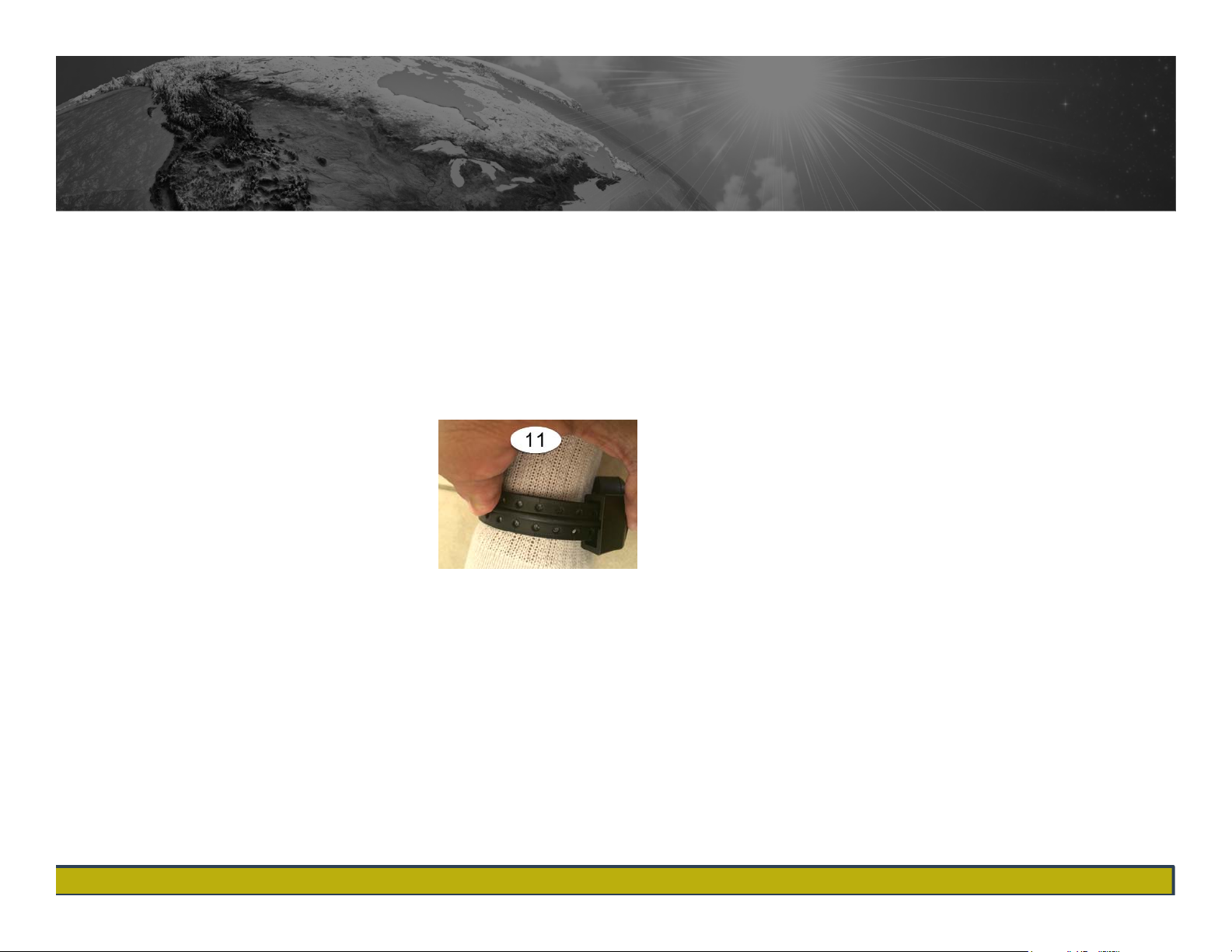

 Tamper-resistant strap

 Waterproof

SECURUS Technologies | Satellite Tracking of People LLC Monitoring Solutions | 5

5

5Copyright©SatelliteTrackingofPeopleLLC www.stopllc.com

5

BLUhome

 Provides an RF tether for BLUband

 Greenfield range of 300 feet (open space with no structural constraints)

- Certain structural elements may impact the maximum range.

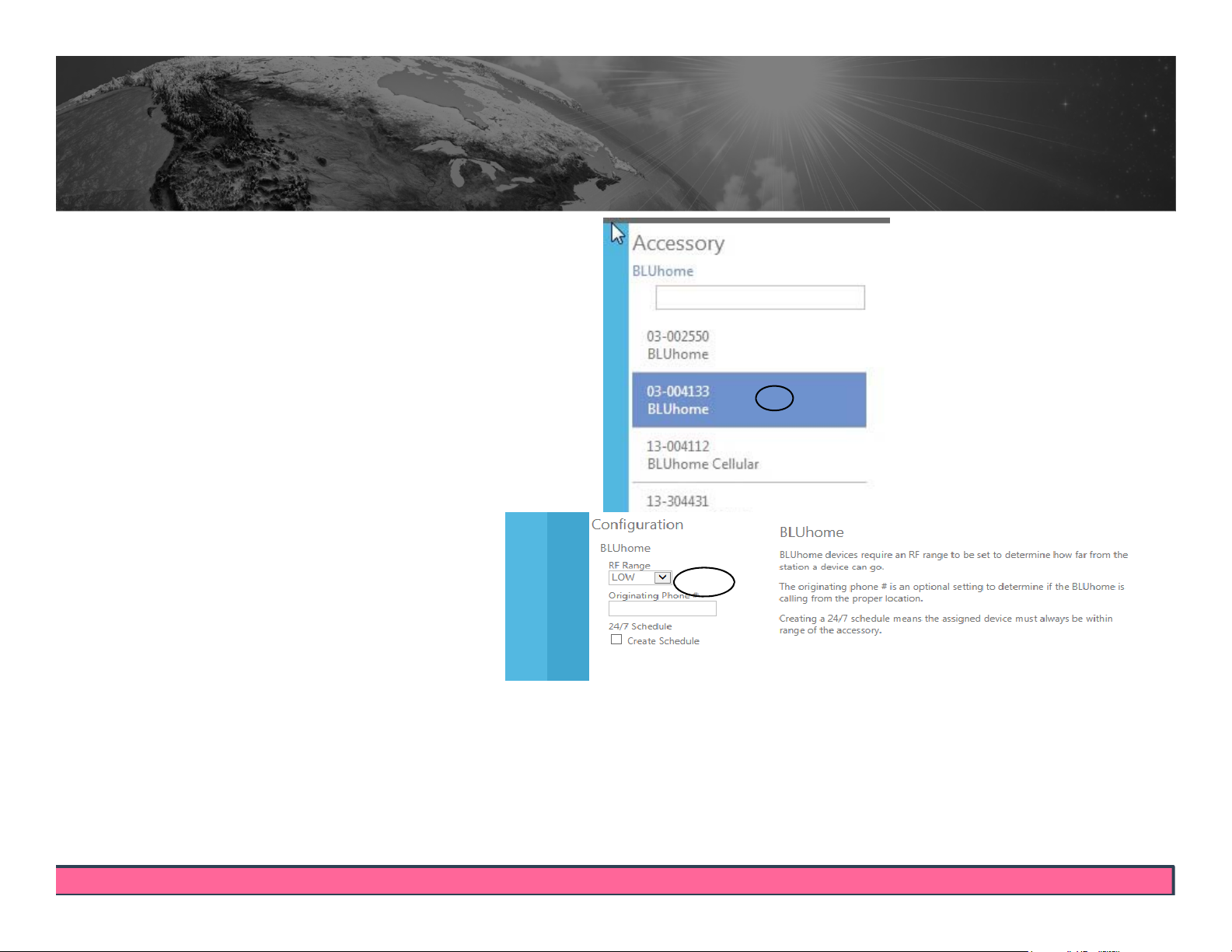

 Range choices of Low/100 feet, Medium/200 feet, and High/300 feet

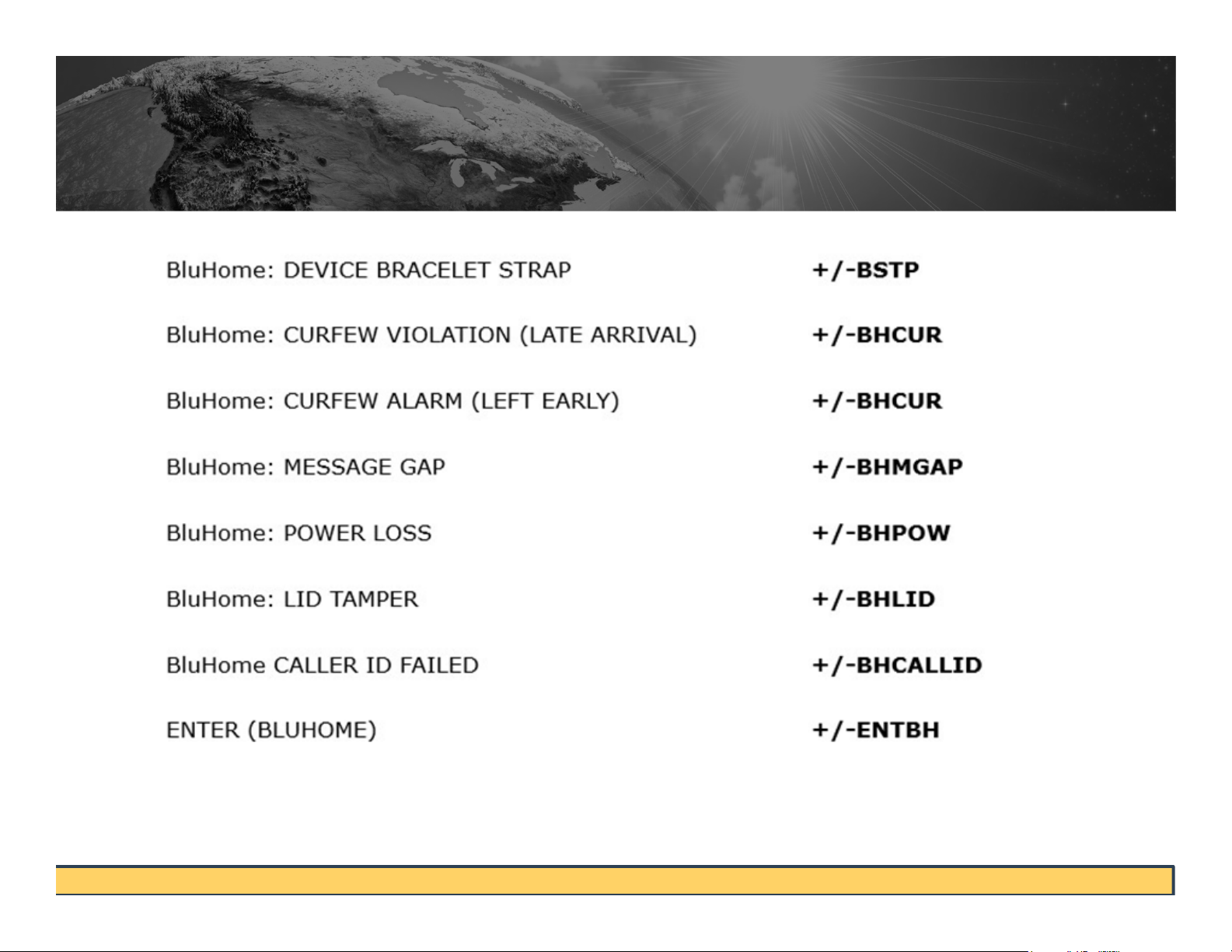

 Reports BluBand’s presence and status (e.g. tampering, battery level)

 BLUhome movement, power loss, tampering, and low battery reporting.

 4-day+ backup battery in case of power loss

 Caller ID Verification

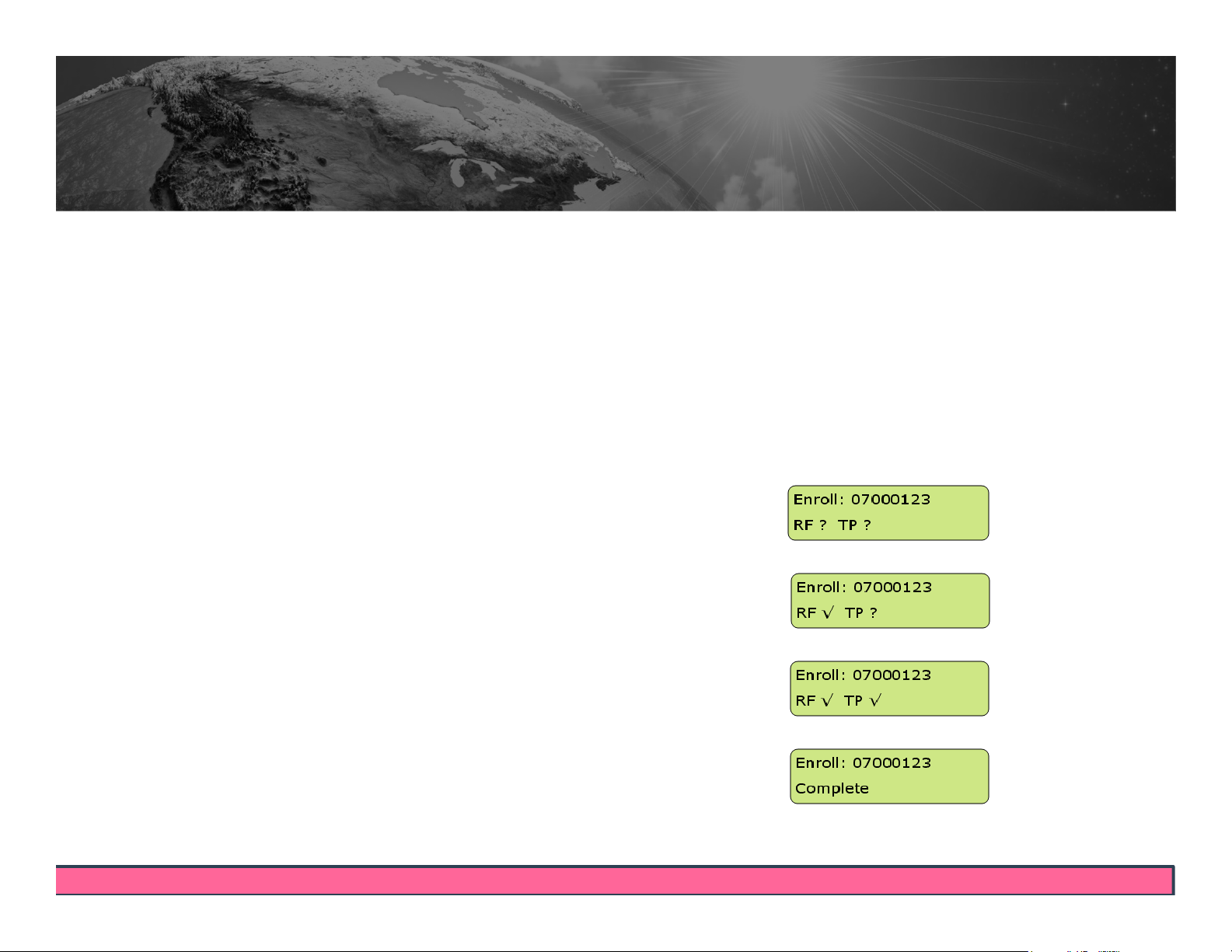

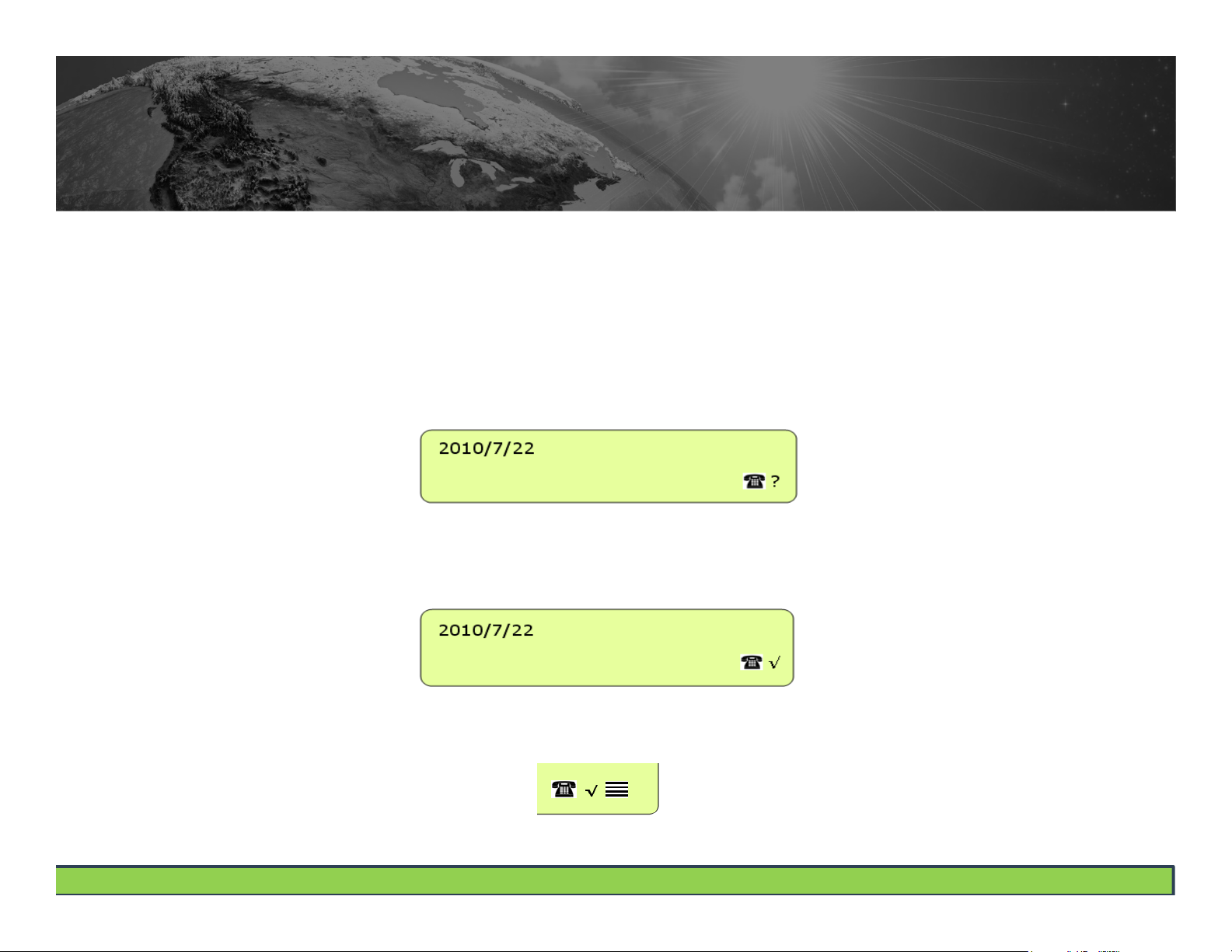

 Password-protected LCD panel for easy on-screen enrollment verification

SECURUS Technologies | Satellite Tracking of People LLC Monitoring Solutions | 6

6

6Copyright©SatelliteTrackingofPeopleLLC www.stopllc.com

6

Key Terms

 RF – Radio Frequency

 Range – Adjustable area that the enrollee must be within to comply

with curfew.

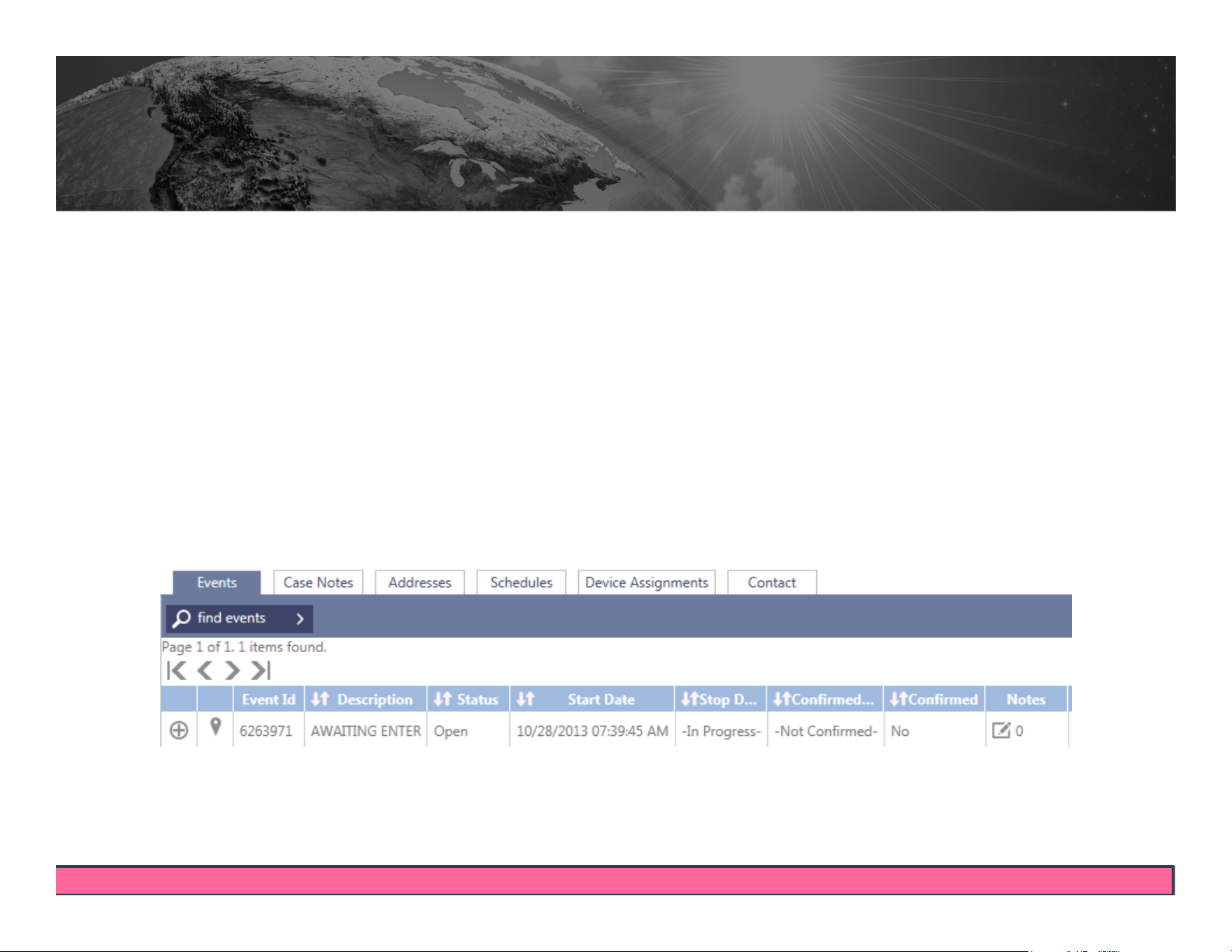

 Enter – BLUband is in range of BLUhome. This event will open when

in range and close when out of range.

 Curfews – Curfews define the time period that an enrollee must be

in range of BLUhome. An event is created when an enrollee is late

arriving in range of BLUhome or leaves the range of BLUhome during

the curfew.

SECURUS Technologies | Satellite Tracking of People LLC Monitoring Solutions | 7

7

7Copyright©SatelliteTrackingofPeopleLLC www.stopllc.com

7

VeriTracks

 Universal software for all hardware

 Web-based application (nothing to install)

 Phone & Tablet-friendly

 Google maps

 Mobile app

SECURUS Technologies | Satellite Tracking of People LLC Monitoring Solutions | 8

8

8

DASHBOARD

Dashboard

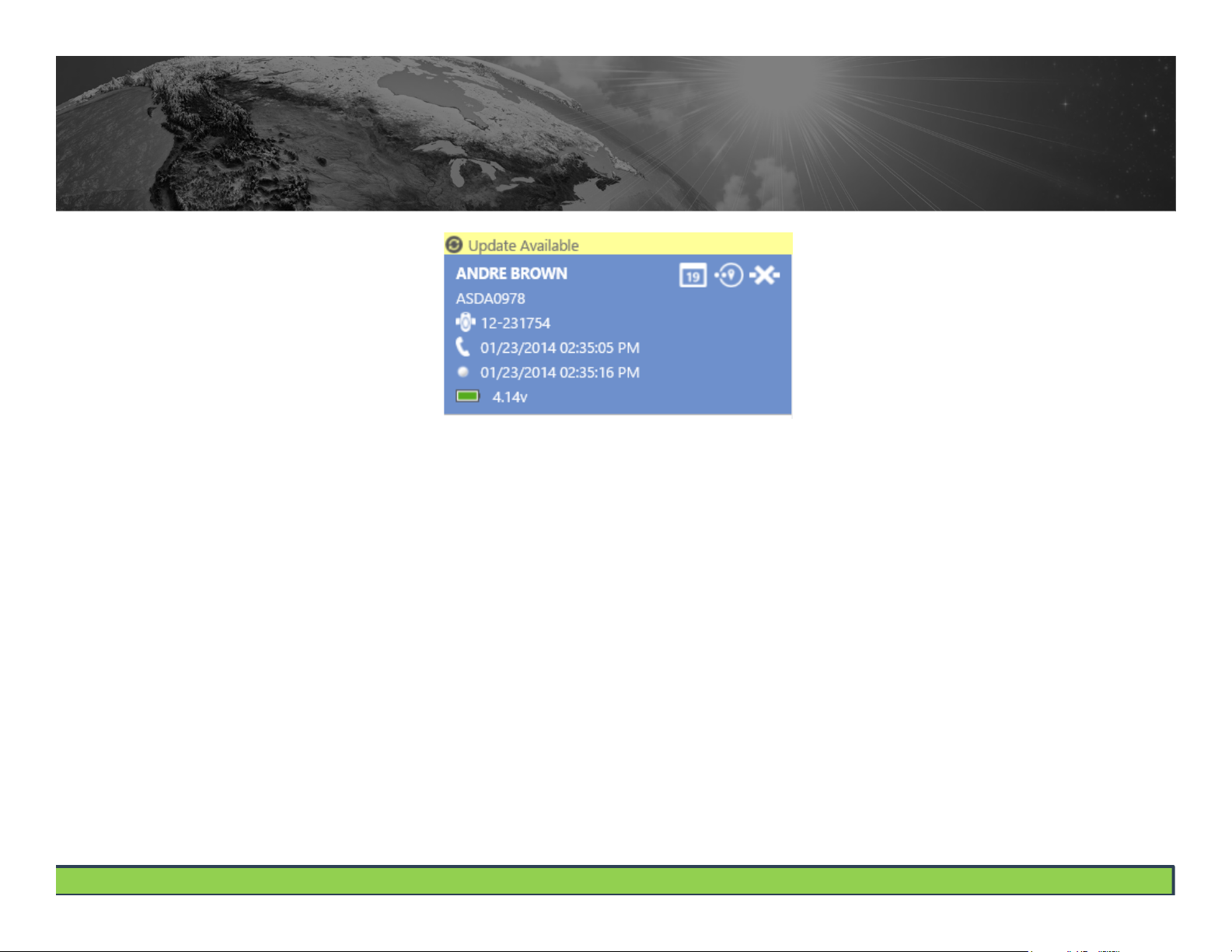

Dashboard Views

There are four views. Each displays an enrollee’s name, Primary ID, and risk level.

General:
Enrollee’s BLUtag’s serial
number.

GPS only:

Serial number, recent call
and GPS dates/times,
battery level, critical
violation status

Events Only:

Number of notes, critical
violation status, zone
violation status by category

RF Only:
Assigned BLUhome and
BLUband number, last
BLUhome call, RF Status,
and Other (RF) event status

SECURUS Technologies | Satellite Tracking of People LLC Monitoring Solutions | 10

10

ENROLLMENT

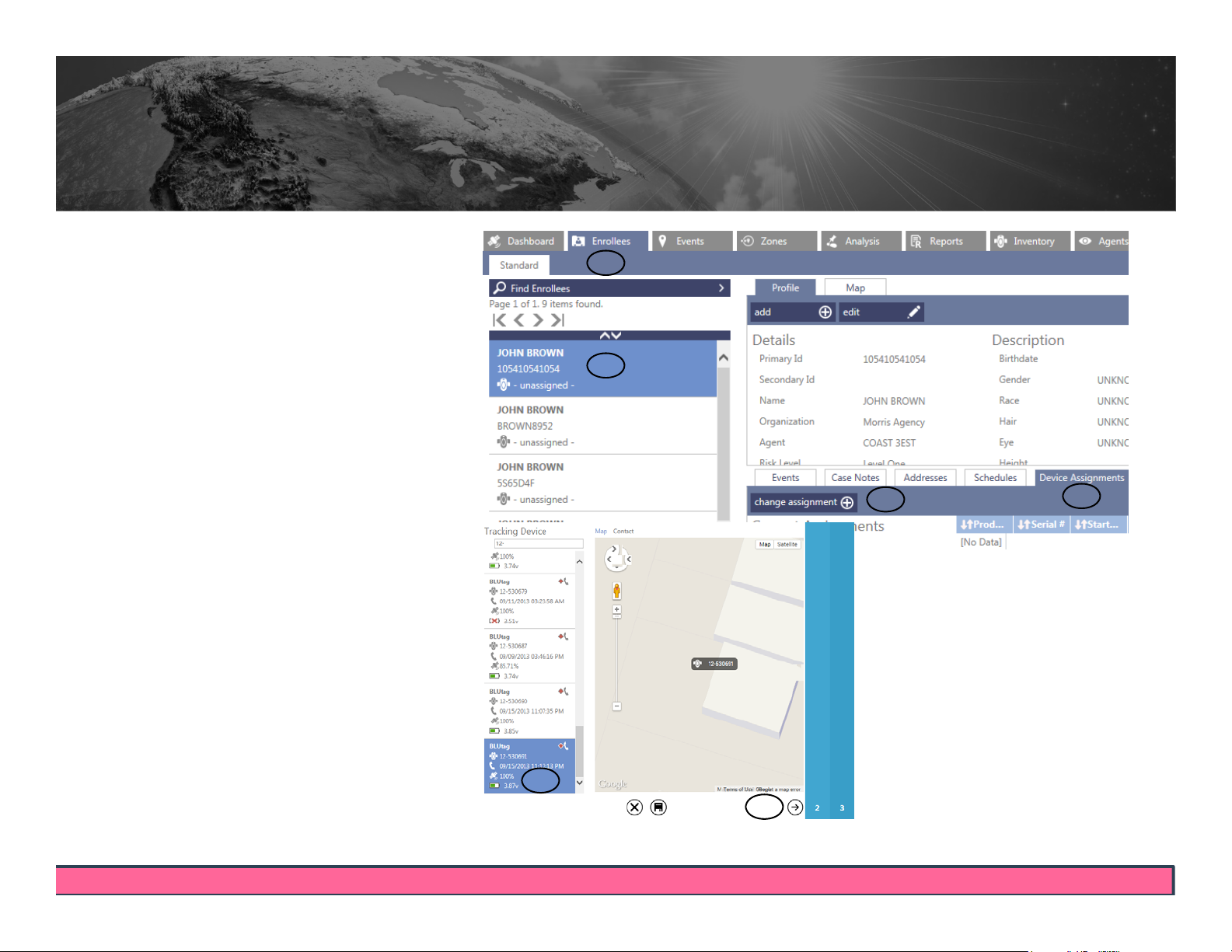

Navigating VeriTracks

Tiles

Menu Options

Tile

Tabs

Varying choices within each tile

SECURUS Technologies | Satellite Tracking of People LLC Monitoring Solutions | 12

12

12

Tile Totals

Enrollee Number of assigned enrollees for the selected agency

Events Number of open events

Tiletotalsreflectthefollowing:

Zones Number of existing zones (assigned & unassigned)

Reports Number of processed reports

SECURUS Technologies | Satellite Tracking of People LLC Monitoring Solutions | 13

13

13

Using the Find & Search Menus

Each Tile has its own Find / Search menu. Each is
designed to display results that are based on default
search criteria or that chosen by the agent.

Find / Search menus remember their settings
from session to session. Therefore, to return to
the default criteria:

1. Click the Find or Search menu.

2. Click the Clear button to reset the criteria

to its defaults.

3. Click Find.

1

3

2
