SecurityTronix ST-PS12VDC1A, ST-PS12VDC2A, ST-PS24VAC Specsheet

ST-BP0029

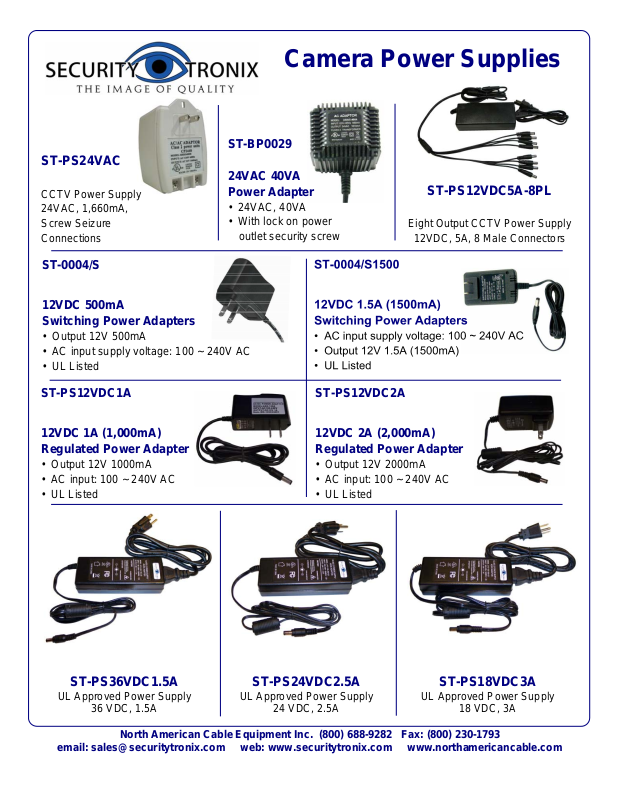

ST-PS24VAC

24VAC 40VA

CCTV Power Supply
24VAC, 1,660mA,
Screw Seizure
Connections

ST-0004/S

12VDC 500mA
Switching Power Adapters

• Output 12V 500mA

• AC input supply voltage: 100 ~ 240V AC

• UL Listed

Power Adapter

• 24VAC, 40VA

• With lock on power
outlet security screw

Camera Power Supplies

ST-PS12VDC5A-8PL

Eight Output CCTV Power Supply

12VDC, 5A, 8 Male Connectors

ST-PS12VDC1A

12VDC 1A (1,000mA)
Regulated Power Adapter

• Output 12V 1000mA

• AC input: 100 ~ 240V AC

• UL Listed

ST-PS36VDC1.5A

UL Approved Power Supply

36 VDC, 1.5A

ST-PS12VDC2A

12VDC 2A (2,000mA)
Regulated Power Adapter

• Output 12V 2000mA

• AC input: 100 ~ 240V AC

• UL Listed

ST-PS24VDC2.5A

UL Approved Power Supply

24 VDC, 2.5A

ST-PS18VDC3A

UL Approved Power Supply

18 VDC, 3A

North American Cable Equipment Inc. [phone] Fax: [phone]

email: [e-mail] web: www.securitytronix.com www.northamericancable.com

AC Input Power: AC 24V
DC Input Power: DC 18V - 48V
Output Power: DC 12V
Output Current: 5A
Total Power: 60W
Output Ripple: <=100mV
Thermal Protection: Yes
Overcurrent Protection: Yes
Short Circuit Protection: Yes

ST-VC24VAC-12DC

Voltage Converter 24VAC to 12VDC

The ST-VC24VAC-12DC is perfect for applications
which require 24VAC power distribution due to long
distances but with cameras that require a 12VDC power source. The
ST-VC24VAC-12DC can also accept a DC power source from 18VDC to
48VDC and convert it to 12VDC.

ST-BP0029/12

24VAC to 12VDC Power Adapter

700 mA

ST-DC21

DC Power Connector

Male DC to 2 Conductor Screw

Seizure Block

ST-PSCPM-PT

Male DC power supply
connector, male power

connector with 90cm,

24awg pigtail power cable

ST-BP0008-12

12V Battery
Connector
With Pig Tail

• Power plug with pig tail cable

• O.D.: 5.5mm

• I.D.: 2.1mm

ST-DC21F

DC Power Connector

Female DC to 2 Conductor Screw

Seizure Block

ContactOur

TechnicalSales

DepartmentFor

CCTVDesign

Assistance

ST-DC21M

DC Power Connector

Male DC to 2 Conductor

Removable Screw Seizure Block

ST-PSCPFM-PT

Female DC power supply

connector, female power

connector with 90cm, 24awg

pigtail power cable

ST-GLI-UTP
Twisted Pair Ground

ST-GLI-BNC/BNC
CCTV Ground Loop Isolator

Loop Isolator

• BNC male to BNC female

• BNC male to terminal block

• Low video loss

• Passive operation, no power needed

• Bandwidth: 20Hz to 11MHz, +0/-3dB

• Prevents video signal distortion caused
by video ground loops

• Eliminates picture tearing, cross talk and rolling

• Guards against power cables interfering with CCTV
systems

North American Cable Equipment Inc. [phone] Fax: [phone]

email: [e-mail] web: www.securitytronix.com www.northamericancable.com

• Built in video filter

• Prevents video-signal distortion
caused by video ground loops

• Passive operation, no power required

• Eliminates picture tearing, cross talk and rolling

• Guards against power cables interfering with CCTV systems

• Built in TVS (Transient Voltage Suppressors) for
surge protection

• Perfect for use with DVRs to reduce DVR interference

Securitytronix Camera

Power Supplies

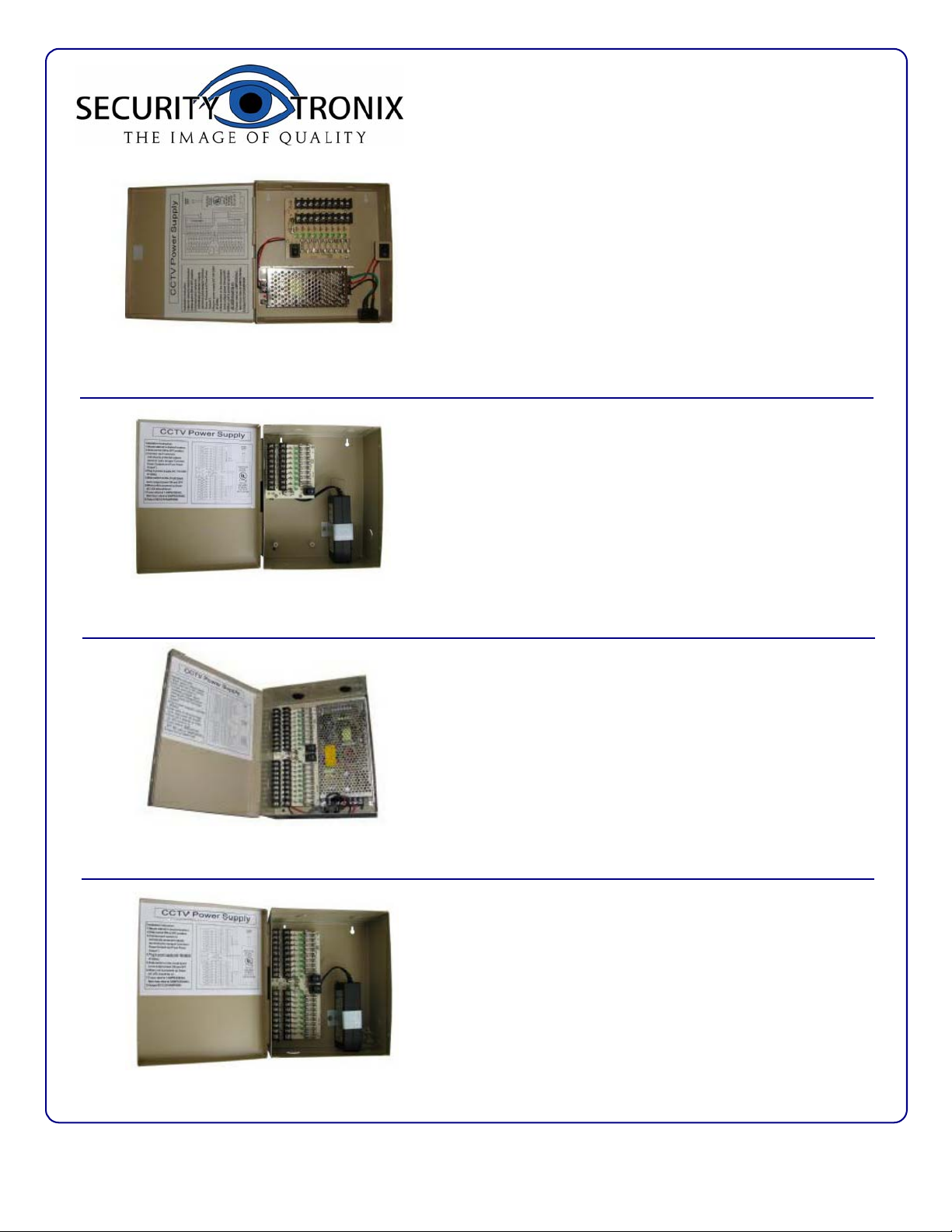

ST-PBX9AC24V5A

• 9 Camera outputs

• Input Voltage: AC110V, 50-60Hz

• Output Voltage: 24VAC

• Output Current: 5A

• 9 Individual PTC fuses for protection against
over-voltage/over-current

• 9 Individual status LEDs

• Package includes: 1 Power supply,
power cord, instruction manual, 2 keys,
wall mounting hardware

• UL Listed

• Dimensions: 7.25”W x 8.5”H x 3”D

ST-PBX18AC24V8A

• 18 Camera outputs

• Input Voltage: AC110V, 50-60Hz

• Output Voltage: 24VAC

• Output Current: 8A

• 18 Individual PTC fuses for protection against
over-voltage/over-current

• 18 Individual status LEDs

• Package includes: 1 Power supply,
power cord, instruction manual, 2 keys,
wall mounting hardware

• UL Listed

• Dimensions: 8.5”W x 8.5”H x 3”D

ST-PBX4DC12V3A

• 4 Camera outputs

• Input Voltage: AC110V, 50-60Hz

• Output Voltage: 12VDC

• Output Current: 3A

• 4 Individual fuses for protection against
over-voltage/over-current

• 4 Individual status LEDs

• Package includes: 1 Power supply,
power cord, instruction manual, 4 fuses,
2 keys, wall mounting hardware

• UL Listed

• Dimensions: 6.5”W x 6.5”H x 2.0”D

North American Cable Equipment Inc. [phone] Fax: [phone]

email: [e-mail] web: www.securitytronix.com www.northamericancable.com

Securitytronix Camera

Power Supplies

Features:

• 9 Camera outputs

• Input Voltage: AC 110V, 50-60Hz

• Output Voltage: 12VDC

• Output Current: 10A

• 9 Individual fuses for protection against
over-voltage/over-current

• 9 Individual status LEDs

• Package includes: 1 Power supply, power cord, instruction
manual, 4 replacement fuses, wall mounting hardware

• UL Listed

• Dimensions: 10.0”H x 8.3”W x 3.55”D

Ordering Information:

ST-PBX9DC12V10A Camera power supply, 9 Outputs, 12VDC, 10A

Ordering Information:

ST-PBX9DC12V5A Camera power supply, 9 Outputs, 12VDC, 5A

• Weight: 5.3 lbs.

Features:

• 9 Camera outputs

• Input Voltage: AC 110V, 50-60Hz

• Output Voltage: 12VDC

• Output Current: 5A

• 9 Individual fuses for protection against
over-voltage/over-current

• 9 Individual status LEDs

• Package includes: 1 Power supply, power cord, instruction
manual, 4 replacement fuses, wall mounting hardware

• UL Listed

• Dimensions: 10.0”H x 8.3”W x 3.55”D

• Weight: 5.0 lbs.

Features:

• 18 Camera outputs

• Input Voltage: AC 110V, 50-60Hz

• Output Voltage: 12VDC

• Output Current: 10A

• 18 Individual fuses for protection against
over-voltage/over-current

• 18 Individual status LEDs

• Package includes: 1 Power supply, power cord, instruction
manual, 4 replacement fuses, wall mounting hardware

• UL Listed

• Dimensions: 10.0”H x 8.3”W x 3.55”D

Ordering Information:

• Weight: 6.3 lbs.

ST-PBX18DC12V10A Camera power supply, 18 Outputs, 12VDC, 10A

Features:

• 18 Camera outputs

• Input Voltage: AC 110V, 50-60Hz

• Output Voltage: 12VDC

• Output Current: 5A

• 18 Individual fuses for protection against
over-voltage/over-current

• 18 Individual status LEDs

• Package includes: 1 Power supply, power cord, instruction
manual, 4 replacement fuses, wall mounting hardware

• UL Listed

• Dimensions: 10.0”H x 8.3”W x 3.55”D

Ordering Information:

ST-PBX18DC12V5A Camera power supply, 18 Outputs, 12VDC, 5A

• Weight: 4.85 lbs.

North American Cable Equipment Inc. [phone] Fax: [phone]

email: [e-mail] web: www.securitytronix.com www.northamericancable.com
