DIGITAL VIDEO RECORDER

ST-DVR4CH ST-DVR8CH

ST-DVR16CH

DVR User’s installation

and operation Manual

Edition V1.0

Welcome

Thank you for purchasing our DVR! This manual is designed to be a reference tool for the installation and operation of your system. Here you can find information about this series DVR features and functions, as well as a detailed menu tree. Before installation and operation please read the following safeguards and warnings carefully!

Important Safeguards and Warnings

Do not place heavy objects on the DVR. Do not let any solid or liquid fall into or infiltrate the DVR. Please brush printed circuit boards, connectors, fans, machine box and so on regularly. Before the dust cleaning please switch off the power supply and unplug it. Do not disassemble or repair the DVR by yourself. Do not replace the components by yourself.

Environment

Please place and use the DVR between 0℃ and 40℃.Avoid

direct sunlight. Stay away from heat source. Do not install the DVR in damp environment. Do not use the DVR in smoky or dusty environment. Avoid collision or strong fall.

Please insure the DVR level installation in a stable workplace. Please install in ventilated place. Keep the vent clean.

Use within the rating input and output scope.

Page 1

Directory

1 Production Introduction ............................................................ 4

1.1 Product overview............................................................ 4

1.2 Main functions ................................................................ 4

2 Open-package check and cable connections ........................... 6

2.1 Open-package check ..................................................... 6

2.2 Hard disk installation guidance ....................................... 6

2.3 Front panel ..................................................................... 7

2.4 Rear panel ..................................................................... 8

2.5 Audio and video input and output connections................ 8

2.5.1 Video input connections ....................................... 8

2.5.2 Video output connections and options .................. 8

2.5.3 Audio signal input ................................................. 9

2.5.4 Audio signal output ............................................... 9

2.6 Alarm input and output connections ............................... 9

2.6.1 Alarm input port specification.............................. 10

2.6.2 Alarm output port specification ........................... 10

2.6.3 Alarm output port relay parameters .................... 10

2.7 Speed dome connections ............................................. 11

3 Basic operation ...................................................................... 11

3.1 Turn on ........................................................................ 11

3.2 Turn off ........................................................................ 11

3.3 System Login ............................................................... 12

3.4 Preview ........................................................................ 13

3.5 Desktop shortcut menu ................................................ 13

3.5.1 Main menu ......................................................... 13

3.5.2 Playback ............................................................ 14

3.5.3 Record Mode ..................................................... 17

3.5.4 Alarm output ....................................................... 18

3.5.5 PTZ control ........................................................ 19

3.5.6 Color setting ....................................................... 25

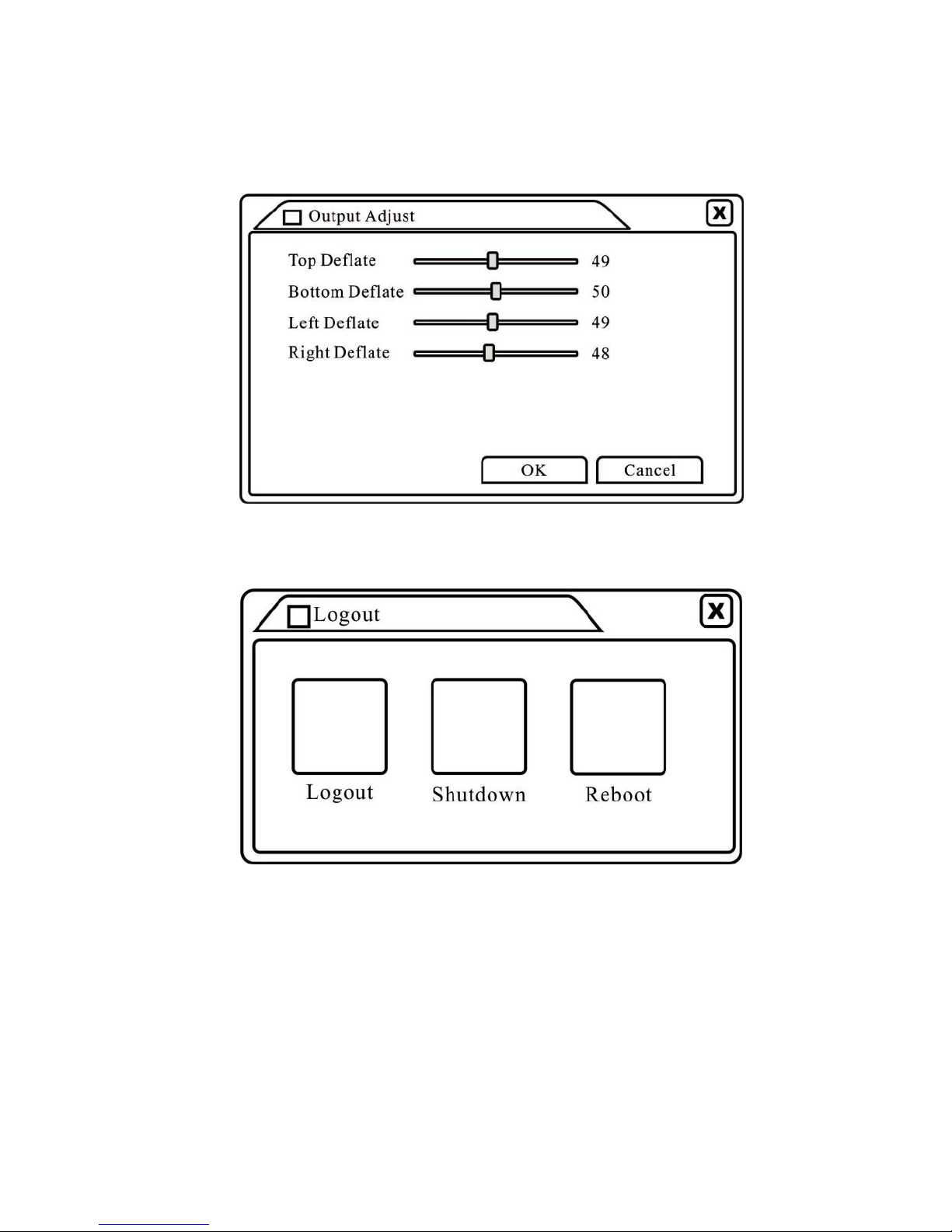

3.5.7 Output Adjust ..................................................... 26

3.5.8 Logout .............................................................................. 26

4 Main menu ............................................................................. 27

4.1 Main menu navigation .................................................. 27

4.2 Record ......................................................................... 29

4.2.1 Record Config .................................................... 29

4.2.3 Playback ............................................................ 31

Page 2

4.2.4 Backup ............................................................... 31

4.3 Alarm Function ............................................................. 33

4.3.1 Motion Detect ..................................................... 33

4.3.2 Video Blind ......................................................... 36

4.3.3 Video Loss ......................................................... 37

4.3.4 Alarm input ......................................................... 38

4.3.5 Alarm output ....................................................... 38

4.3.6 Abnormal ........................................................... 38

4.4 System setup ............................................................... 39

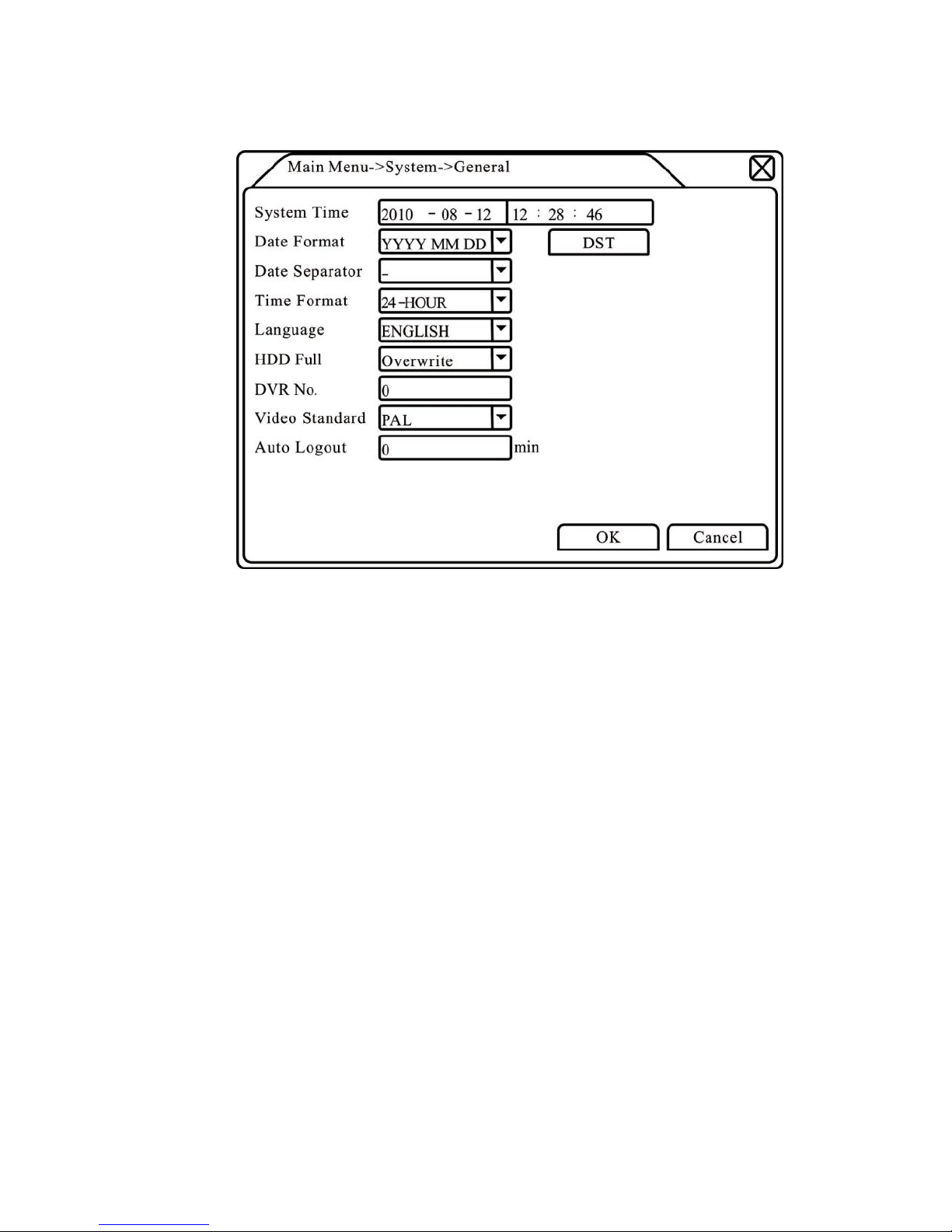

4.4.1 General .............................................................. 40

4.4.2 Encode setup ..................................................... 41

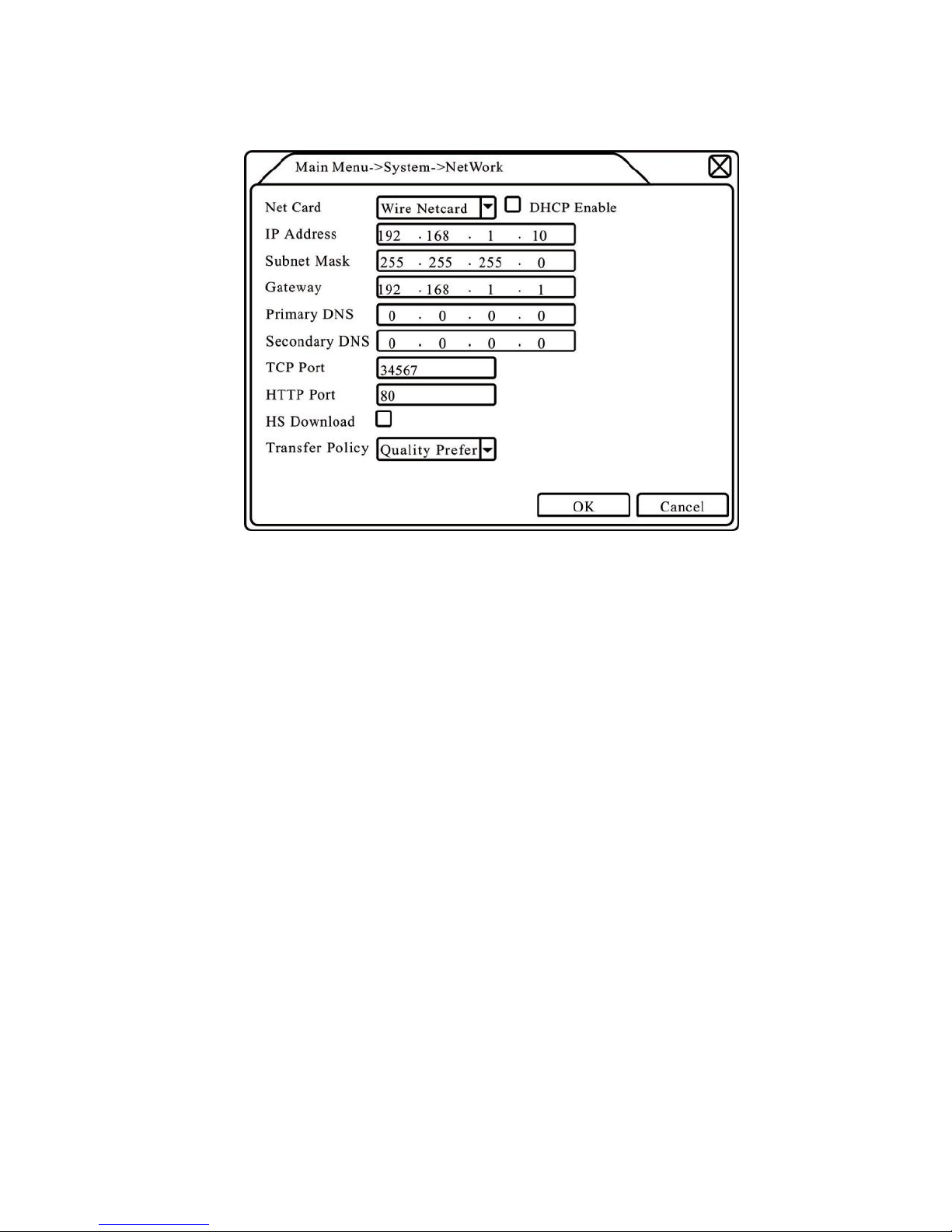

4.4.3 Network setup .................................................... 43

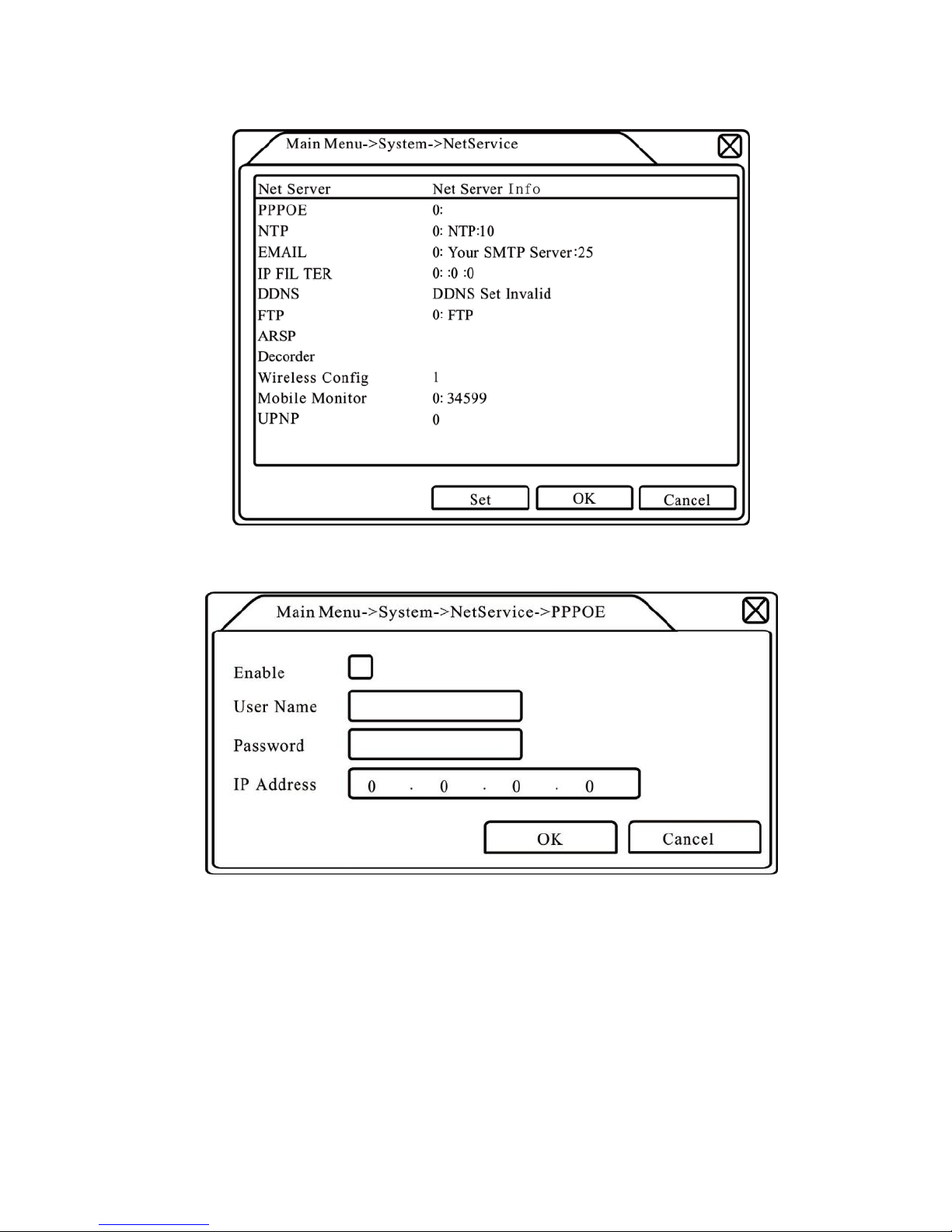

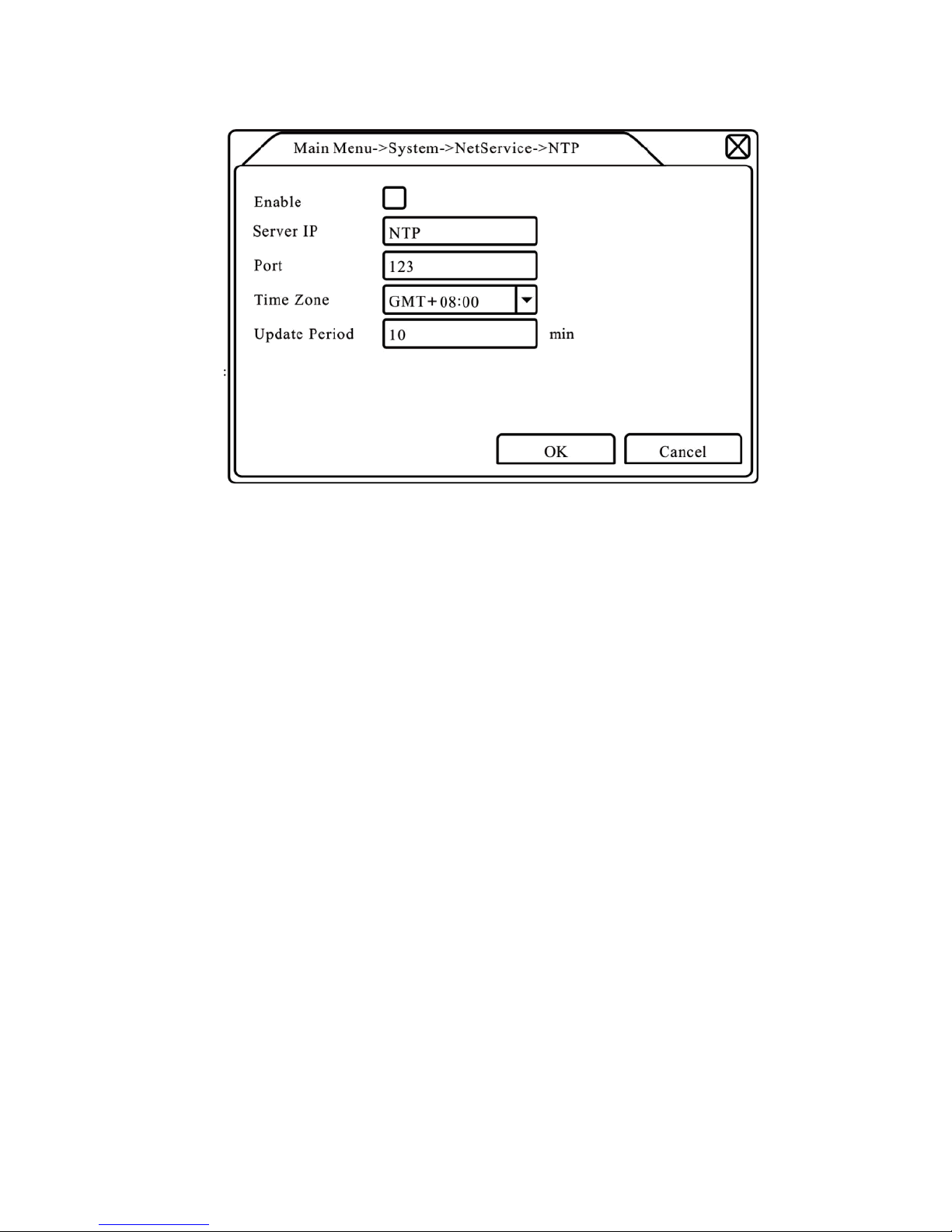

4.4.4 Net Service ........................................................ 43

4.4.5 GUI Display ........................................................ 50

4.4.6 PTZ setup .......................................................... 52

4.4.8 Tour setup .......................................................... 53

4.5 Advanced ..................................................................... 54

4.5.1 HDD Manage ..................................................... 54

4.5.2 Account .............................................................. 54

4.5.3 Online User ........................................................ 57

4.5.4 TV adjust ............................................................ 57

4.5.5 Auto Maintain ..................................................... 57

4.5.6 Restore .............................................................. 58

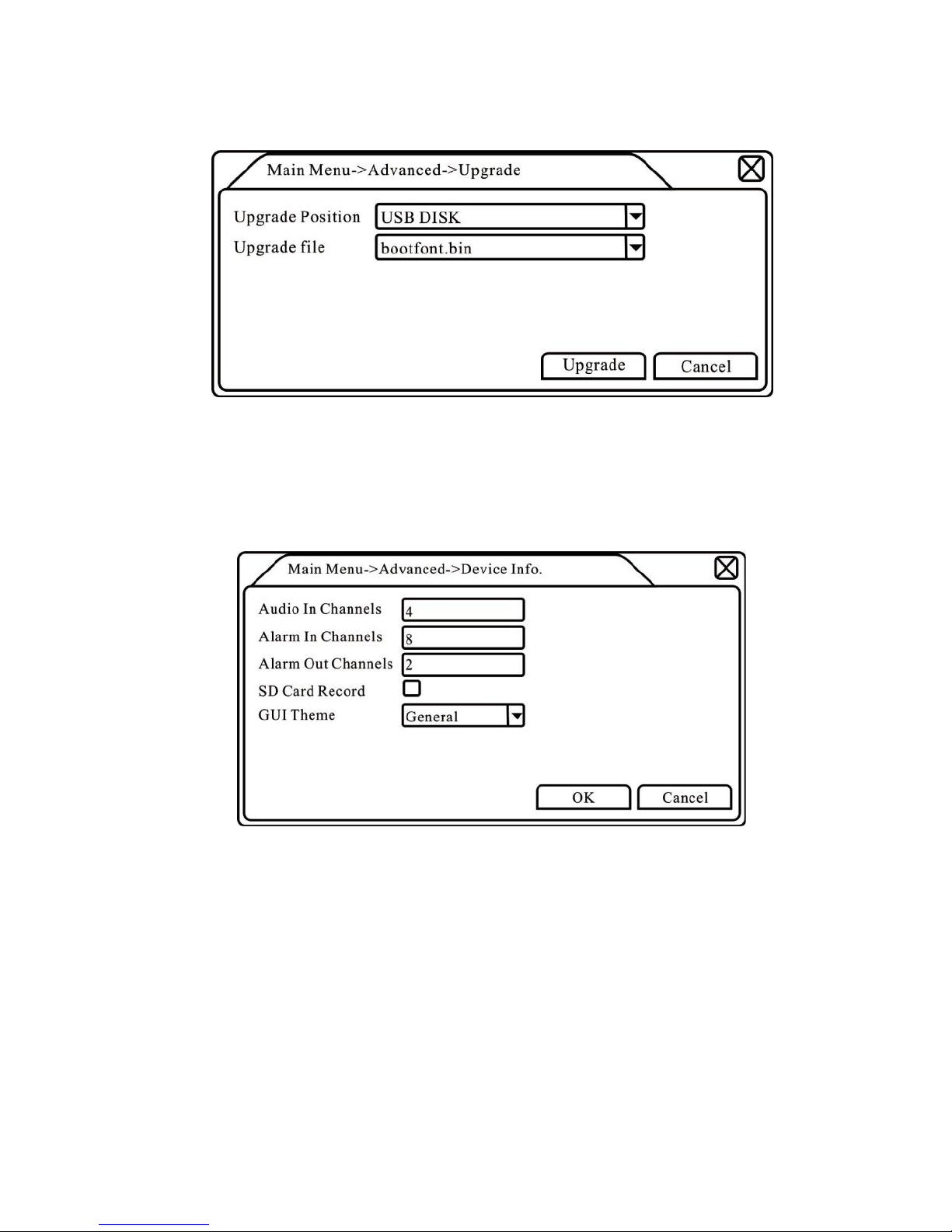

4.5.7 Upgrade ............................................................. 59

4.6 Info............................................................................... 59

4.6.1 HDD info ............................................................ 59

4.6.2 BPS ................................................................... 60

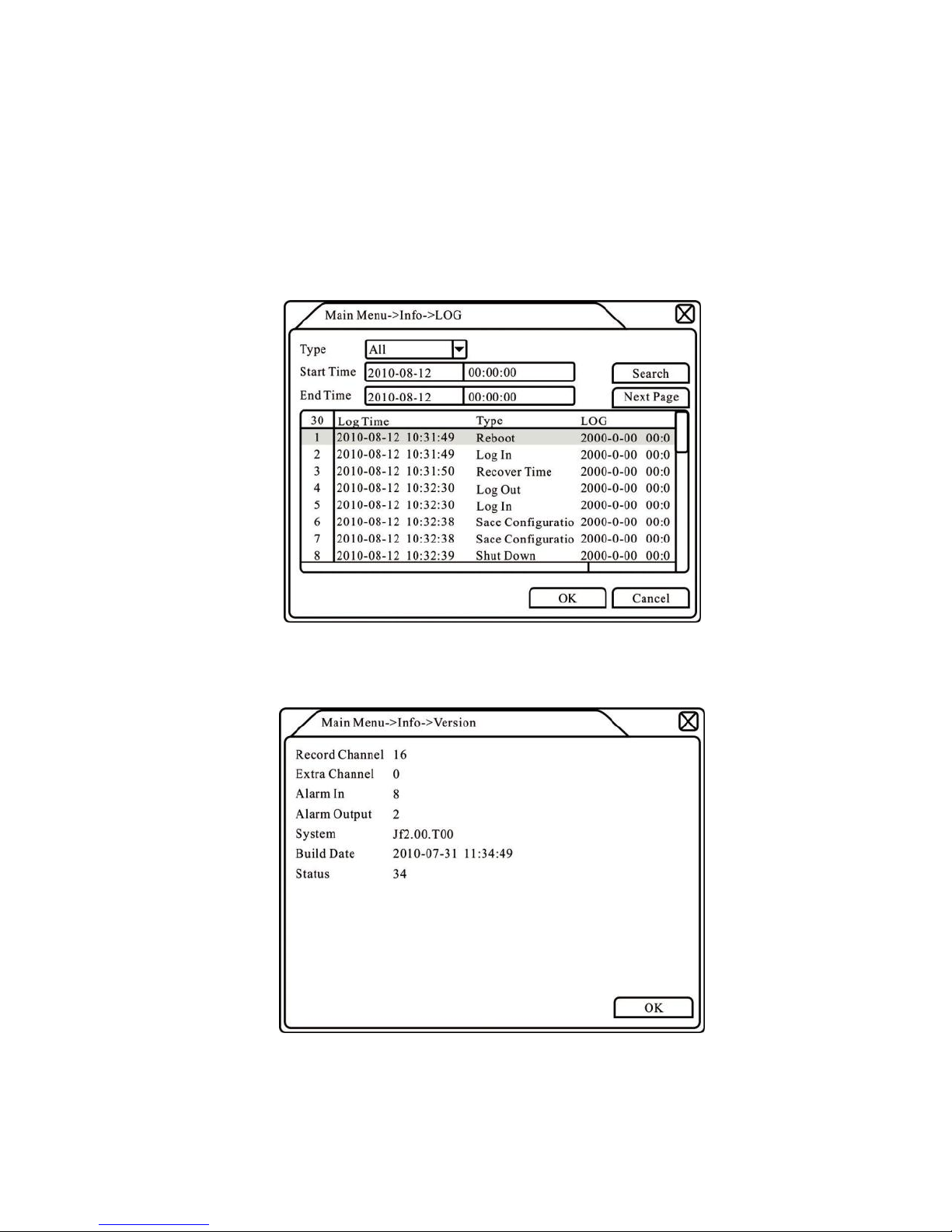

4.6.3 LOG ................................................................... 61

4.6.4 Version ............................................................... 61

4.7 Shut down system ........................................................ 61

5 FAQ and maintenance ........................................................... 62

5.1 FAQ ............................................................................. 62

5.2 Maintenance ................................................................ 66

Appendix 1.Remote controller operation.................................... 67

Appendix 2.Mouse operation ..................................................... 68

Appendix 3.Hard disk capability calculation ............................... 68

Appendix 4.Technique parameters ............................................ 69

Appendix 5.Rear panel .............................................................. 73

Page 3

1 Production Introduction

1.1 Product overview

This series DVR is designed especially for security and defense field which is an outstanding digital surveillance product. It introduces embedded LINUX operating system which is more stable. It introduces standard H.264mp video compressed format and G.711A audio compressed format which insures the high quality image, low error coding ratio and single frame playing. It introduces TCP/IP network technology which achieves the strong network communication ability and telecommunication ability.

The series DVR can be used individually or online applied as a part of a safety surveillance network. With the professional network video surveillance software it achieves the strong network communication ability and telecommunication ability.

The series DVR can be applied in the bank, telecom, electric power system, judicial system, transportation, intelligent housing, factory, storehouse, water conservancy and so on.

1.2 Main functions

Real-time surveillance

Analog interface and VGA interface (VGA interface is equipped selectively)surveillance function through monitor or display

Storage

non-working hard disk dormancy processing which is convenient to radiate heat, reduce power and extend the life-span special storage format which insures the data safety

Compression

real-time compression by individual hard disk which insures the audio and video signal stable synchronization

Backup

through SATA interface and USB interface such as USB equipment,

removable hard disk and so on through net download the files in the hard disk

Playback

Individual real-time video recording as well as searching, playback, network surveillance, recording check, downloading and so on

multi-playback mode zoom at arbitrary region

Page 4

Net operating

through net tele-surveillance in the real time tele-PTZ control tele-recording check and real-time playback

Alarm linkage

multi-route relay alarm output which is convenient for the alarm linkage and light control at the spot protecting circuits at the alarm input and output interface which protects the main machine from damage

Communication interface

RS485 interface which fulfills the alarm input and PTZ control standard ethernet network interface which fulfills the telecommuting function

Intelligent operating

mouse action function

fast copy and paste operating for the same setting

Page 5

2 Open-package check and cable connections

2.1 Open-package check

When you receive the DVR, please check first.

First, please check whether there is any visible damage to the package appearance. The protective materials used for the package of the DVR can protect most accidental clashes during transportation.

Then, please open the box and get rid off the plastic protective materials. Check whether there is any visible damage to the DVR appearance.

At last, please open the machine crust and check the data wire in the front panel, power wire, the connection between the fan power and the main board.

Front panel and rear panel

♦ The key function specification in the front panel and the interface

specification in the real panel are in the specification.

♦ Please check the product type in the front panel whether is

accordant with the product type you order.

The label in the rear panel is very important for the after service. Please protect it carefully. When you contact us for after service, please provide the product type and serial number in the label.

2.2 Hard disk installation guidance

For the first use，please install the hard disk.

① disassemble the screw ②disassemble the cover

③fix the screw of hard disk ④fix the screw of hard disk

Page 6

⑤connect the data wire

⑦cover the machine

2.3 Front panel

⑥connect the power wire

⑧fix the cover

(1) IR remote receiver

(2)

HDD indicator light

(3)

Record indicator light

(4) Alarm indicator light

(5)

Network indicator

(6)

Function indicator

light

(7) Number and play control

(8)

(9)

ESC

(10) Record

(11) Function button

(12) Direction and enter

(13) Power switch

(14) USB connector

Page 7

2.4 Rear panel

(1) Video input

(2)

BNC output

(3) Audio input

(4) Audio output

(5)

Network connector

(6)

USB connector

(7) PTZ connector

(8)

Power supply

(9)

VGA output

(10) Power switch

(11) Alarm output

(12) Alarm input

2.5 Audio and video input and output connections

2.5.1 Video input connections

The video input port is BNC connector plug. The demand of input signal

is PAL/NTSC BNC (1.0VP-P, 75Ω).

The video signal must be accorded with the state standard which has

the high signal to noise ratio, low aberration and low interference. The image must be clear and has natural color in the appropriate brightness.

Insure the camera signal stable and credible

The camera should be installed in the appropriate location where is

away from backlighting and low illumination or adopts the better backlighting and low illumination compensation.

The ground and power supply of the camera and the DVR should be

shared and stable.

Insure the transmission line stable and credible

The video transmission line should adopt high quality coaxial pair which is chosen by the transmission distance. If the transmission distance is too far, it should adopt shielded twisted pair, video compensation equipment and transmit by fiber to insure the signal quality.

The video signal line should be away from the electromagnetic Interference and other equipments signal lines. The high voltage current should be avoided especially.

Insure the connection stable and credible

The signal and shield lines should be firm and connected credible which avoid false and joint welding and oxidation.

2.5.2 Video output connections and options

The video output is divided into PAL/NTSC BNC (1.0VP-P, 75Ω) and

VGA output (selective configuration).

When replace the monitor by the computer display, there are some

Page 8

issues to notice.

1. Do not stay in the turn-on state for a long time.

2. Keep the computer display normal working by demagnetizing regularly.

3. Stay away from the electromagnetic Interference.

TV is not a credible replacement as a video output. It demands reducing the use time and control the power supply and the interference introduced by the nearby equipments strictly. The creep age of low quality TV can lead to the damage of other equipments.

2.5.3 Audio signal input

Audio port is BNC connection.

The input impedance is high so the tone arm must be active.

The audio signal line should be firm and away from the electromagnetic Interference and connected credible which avoid false and joint welding and oxidation. The high voltage current should be avoided especially.

2.5.4 Audio signal output

Commonly the output parameter of DVR audio signal is greater than 200mv 1KΩ (BNC) which can connect the low impedance earphone and active sound box or other audio output equipments through power amplifier. If the sound box and the tone arm cannot be isolated, howling phenomena is often existed. There are some methods to deal with the above phenomena.

1. Adopt better directional tone arm.

2. Adjust the sound box volume to be under the threshold that produces the howling phenomena.

3. Use fitment materials that absorb the sound to reduce reflection of the sound.

4. Adjust the layout of the sound box and the tone arm.

2.6 Alarm input and output connections

1. Alarm input

A. Alarm input is grounding alarm input. B. Alarm input demand is the grounding voltage signal. C. When the alarm is connected with two DVRs or connected with

DVR and other equipments, it should be isolated by relay.

2. Alarm output

Alarm output cannot be connected with high-power load (no more than 1A).When forming the output loop it must prevent the big current from relay damage. Use the contact isolator when there is a high-power load.

3. PTZ decoder connections

A.The grounding of the PTZ decoder and DVR must be shared

otherwise the common-mode voltage will lead to the PTZ control failure. The shielded twisted pair is recommended.

B. Avoid the entrance of high voltage. Make the layout reasonably.

Take precaution from the thunder.

C. In the outlying end connect 120Ω resistance paralleled to reduce the

inflection and insure the signal quality.

Page 9

D.The 485 AB lines of DVR cannot connect with other 485 output

equipments paralleled.

E. The voltage between the AB lines of the decoder must be less than

5V.

4. Front equipment grounding note

Bad grounding can lead to the burnout of the chip.

5. Alarm input type unlimited

The DVR alarm output port is constant opening type.

(1) Alarm input (2) Grounding (3) Alarm output (4) +12Voltage

parameter

meaning

ALM IN

Alarm input

ALM OUT(C, NO)

Alarm output interface(constant open type)

GND

Grounding

+12V

+12 Voltages

2.6.1 Alarm input port specification

1 channels alarm input. Alarm input type unlimited. The grounding and the com port of the alarm sensor are parallel (The alarm sensor is external power supply). The grounding of the alarm and the DVR should be shared. The NC port of the alarm sensor must be connected with the DVR alarm input port. The grounding of the power supply and the alarm sensor must be shared when used in external power supply.

2.6.2 Alarm output port specification

1 channels alarm output. There is external power supply when using the external alarm equipment. Please refer to the relay relevant parameters to avoid the overload that damages main machine.

2.6.3 Alarm output port relay parameters

Type：JRC-27F

Interface

silver

material

rating

Rating switch capacity

30VDC 2A, 125VAC

(resistance load)

maximal switch power

125VA 160W

Page 10

maximal switch voltage

250VAC, 220VDC

maximal switch current

Homo-polarity interface

1000VAC 1minute

isolation

In homo-polarity interface

1000VAC 1 minute

Interface and winding

1000VAC 1 minute

Surge voltage

Homo-polarity interface

1500VAC (10×160us)

Turn-on time

3ms max

Turn-off time

3ms max

longevity

mechanical

50×106 MIN<3Hz)

electric

200×103 MIN (0.5Hz)

Environment

-40~+70℃

temperature

2.7 Speed dome connections

1. Connect the 485 lines of the speed dome with the DVR 485 interface.

2. Connect the video line with the DVR video input.

3. Electrify the speed dome.

3 Basic operation

Note: The button in gray display indicates nonsupport.

3.1 Turn on

Plug the power supply and turn on the power supply switch. Power supply indicator light shining indicates turning on the video recorder. After the startup you will hear a beep. The default setting of video output is multiplewindow output mode. If the startup time is within the video setting time, the timing video recording function will start up automatically. Then the video indicator light of corresponding channel is shining and the DVR is working normally. Note: 1. Make sure that the input voltage corresponds with the switch of the DVR power supply.

2. Power supply demands: 220V±10% /50Hz.

Suggest using the UPS to protect the power supply under allowable conditions.

3.2 Turn off

There are two methods to turn off the DVR. Entering [main menu] and choosing [turn off] in the [turn off the system] option is called soft switch. Pressing the power supply switch is called hard switch.

Page 11

Illumination:

1. Auto resume after power failure

If the DVR is shut down abnormally, it can automatically backup

video and resume previous working status after power failure.

2. Replace the hard disk

Before replacing the hard disk, the power supply switch in the real

panel must be turned off.

3. Replace the battery

Before replacing the battery, the setting information must be saved and

the power supply switch in the real panel must be turned off. The DVR uses button battery. The system time must be checked regularly. If the time is not correct you must replace the battery, we recommend replacing the battery every year and using the same battery type.

Note: The setting information must be saved before replacing the battery otherwise information will lose.

3.3 System Login

When the DVR boots up, the user must login and the system provides the corresponding functions with the user purview. There are three user settings. The names are admin, guest and default and these names have no password. Admin is the super user purview; guest and default’s permissions are preview and video playback. User admin and guest’s

password can be revised, while their permissions can’t be revised; user

default is the default login user whose permission can be revised but not its password.

Picture 3.1 System Login

Password protection: If the password is continuous wrong three

times, the alarm will start. If the password is continuous wrong five

Page 12

times, the account will be locked. (Through reboot or after half an hour, the account will be unlocked automatically).

For your system security, please modify your password after first

3.4 Preview

You can right click mouse to choose the switch between the windows. The system date, time and channel name are shown in each viewing

window. The surveillance video and the alarm status are shown in each window.

Recording status

Video

loss

Motion detect

Camera

lock

Table 3.1 Preview icon

3.5 Desktop shortcut menu

In preview mode you can right click mouse to get a desktop shortcut

menu. The menu includes: Main menu, Record mode, Playback, PTZ

control, High Speed PTZ, Alarm Output, Color Setting, Output adjust, Logout, view1/4/8/9/16 screens.

Picture 3.2 Shortcut Menu

3.5.1 Main menu

When you login, the system main menu is shown as

below. Page 13

Picture3.3 Main Menu

3.5.2 Playback

There are two methods for you to play the video files in the hard disk.

1. In the desktop shortcut menu.

2. Main menu>Record->Playback

Note: The hard disk that saves the video files must be set as read-write or read-only state. (4.5.1)

Picture 3.4 video playback

1. Listed files 2. File information 3. File searching

Page 14

4. File backup 5. Operation hint 6. Playback control 【Listed files】Look up the listed files that accord with the searching

criteria.

【File information】Look up the found file information. 【File backup】Backup the chosen file. Click the button and operate as

followed.

Note: The storage must be installed before the file backup. If the

backup is terminated, the already backup can playback individually.

Picture 3.5 detect the storage

Detect: Detect the storage connected with the DVR such as hard

disk or universal disk.

Erasure: Choose the file to delete and click erasure to delete the file. Stop: Stop the backup. Backup: Click backup button and the dialog box is popped up. You

can choose the backup file according to the type, channel and time.

Page 15

Picture 3.6 recording back

Remove：Clear the file information.

Add：Show the file information satisfying the set

file attributes. Start/Pause：Click the play button to start the backup and click

the pause button to stop the backup.

Cancel：During backup you can exit the page layout to

carry out other functions.

【File searching】Search the file according to the searching parameter.

Picture 3.7 file searching File type: Set the searching file type. Channel: Set the searching channel. Start Time: Set the searching time scan.

【Playback control】Refer to the following sheet for more information.

Page 16

Button

Function

Button

Function

Play/pause

Backward

Stop

Slow play

Fast play

Previous frame

Next frame

Previous file

Next file

Circulation

Full screen

Table 3.2 Playback control key

Note: Frame by frame playback is only performed in the pause playback state.

【Operation hint】Display the function of the cursor place.

Special functions：

Accurate playback：Input time (h/m/s) in the time column and then click

play button. The system can operate accurate playback according to the searching time.

Local zoom：When the system is in single-window full-screen playback

mode, you can drag your mouse in the screen to select a section and then left click mouse to realize local zoom. You can right click mouse to exit.

3.5.3 Record Mode

Please check current channel status: “ ○” means it is not in recording

status, “●” means it is in recording status.

You can use desktop shortcut menu or click [main menu]> [recording

function]> [recording set] to enter the recording control interface.

Page 17

Picture 3.8 Record Mode

【Schedule】Record according to the configuration.

【Manual】Click the all button and the according channel is recording

no matter the channel in any state.

【Stop】Click the stop button and the according channel stops

recording no matter the channel in any state.

3.5.4 Alarm output

Please check current channel status: “○” means it is not in alarming

status, “●” means it is in alarming status.

You can use desktop shortcut menu or click [main menu]> [alarm

function]> [alarm output] to enter the alarm output interface.

Picture 3.9 alarm output

【Configuration】Alarm is on according to the configuration. 【Manual

】Click the all button and the according channel is alarming no

matter the channel in any state.

【Stop】Click the stop button and the according channel stops alarming

Page 18

no matter the channel in any state.

3.5.5 PTZ control

Operation interface is as followed. The functions include: PTZ direction

control, step, zoom, focus, iris, set up operation, patrol between spots, trail patrol, boundary scan, assistant switch, light switch, level rotation and so on.

Note1. Decoder A (B) line connects with DVR A (B) line. The connection is right.

2. Click [main menu] > [system configuration] > [PTZ setup] to set the

PTZ parameters.

3. The PTZ functions are decided by the PTZ protocols.

Picture 3.10 PTZ setup

【Speed】Set the PTZ rotation range. Default range: 1 ~ 8.

【Zoom】Click / button to adjust the zoom multiple of the camera.

【Focus】Click / button to adjust the focus of the camera . 【Iris】Click / button to adjust the iris of the camera. 【Direction

control】Control the PTZ rotation. 8 directions control is

supportive.(4 directions in Front panel is supportive )

【High speed PTZ】Full-screen show channel image. Left press mouse

and control PTZ to rotate orientation. Left press mouse and then rotate the mouse to adjust the zoom multiple of the camera.

【Set】Enter the function operation menu. 【Page switch】Switch between different pages.

Special functions：

Page 19

1. Preset

Set a location for the preset, calls the preset points, PTZ

automatically turns to the setting position

1>Preset option

Set a location for the preset, procedure is as follows: Step1: in Picture 3.10, click the Direction button will turn into preset

position, click the Settings button to enter Picture 3.11.

Step 2: click the Preset button, and then write the preset points in the

input blank,

Step 3: click Settings button, return the Picture 3.10 Complete setup,

that is the preset points and preset position corresponds.

Clear Preset：Input preset points, click Remove button, remove the

preset.

Preset point input

blank

Preset button

Picture 3.11 Preset Settings

2>Preset Point Calls

In Picture 3.10, click Page Shift button, enter PTZ control interface

as shown in Picture 3.12. In the input blank, write the preset points, then click Preset button, PTZ turn to the corresponding preset point.

Page 20

Value input

blank

Picture 3.12 PTZ Control

2. Cruise between Points

Multiple preset points connected cruise lines, call cruise between

points, the PTZ run around on the line

1>Cruise Between Points Settings

Cruise lines are connected by multiple preset points, setting

procedure is as follows:

Step1: In Picture 3.10, the Direction key will turn PTZ to

designated location, click Settings button to enter Picture 3.13.

Step 2: click Cruise buttons, the write proper value into the Cruise

Line and Preset Points blank，then click Add Preset Points button, complete setting (also can add and delete cruise line which has been set up)

Step 3: repeat step1 and step2 , until set out all the preset

designated cruise lines.

Remove Preset：Please input preset value in the blank, click

Remove Preset button, then remove the preset points.

Remove Cruise Line ：Input the number of cruise line, click

Remove Cruise Lines button, then remove the cruise lines set.

Page 21

Preset Points Blank

Cruise Line Blank

Cruise Button

Picture 3.13 Cruise between Points Settings

2>The Calls of Cruise between Points

In Picture 3.10, click Page Shift button, enter PTZ control menu as shown in Picture 3.12. Please input the number of cruise in the value blank, then click Cruise between Points button, PTZ begins to work on the cruise line. Click Stop button to stop cruise.

3. Scan

PTZ also can work on the preset scan line

repeatedly. 1>Scan setup

Step1：In Picture 3.10, click Setup button ，enter Picture 3.14； Step2：Click Scan button，the input proper value in the scan value

blank;

Step3：Click Start button, enter Picture3.10，here you can set the

following items: Zoom. Focus. Aperture. Direction and so on. Click Setup button to go back Picture 3.14；

Step4：Click End button to complete setup。Click the right button of

the mouse to exit.

Page 22

Scan (Pattern)

value blank

Scan Button

Picture 3.14 Scan Setup

2>Scan Calls

In Picture 3.10, click Page Shift button, then enter PTZ control menu as shown in Picture 3.12. Please input the number of scan in the value blank , then click Scan button，PTZ begins to work on the scan line. Click Stop button to stop.

4. Boundary Scan

1>Boundary Scan setup

Step1：In Picture 3.10, click Direction button to turn the PTZ to preset direction, then click Setup button enter Picture 3.15, select the left boundary, return to Picture 3.10;

Step2：Please click direction arrows to adjust PTZ direction, click

Setup button enter Picture3.15, then select the right boundary, return to Picture 3.10;

Step3: Complete setup, that is the position of left and right boundary

Page 23

Line scan button

border

Picture 3.15 Boundary Scan Setup

2>Boundary Scan Calls

In Picture 3.10, click Page Shift button, then enter PTZ control menu as shown in Picture 3.12. Please input the number of scan in the value blank, then click Scan button，PTZ begins to work on the scan line. Click Stop button to stop.

5. Horizontal Rotating

Click Horizontally Rotating button, PTZ begins to rotate horizontally

(relative to the original position of the camera). Click the Stop button to stop.

6. Rotate

Click on horizontal Rotating button, PTZ turn around.

7. Reset

PTZ restart, all the data clears to 0.。

8. Page Shift

In Picture 3.12, click Page Shift button into Picture3.16, setting

auxiliary function. Auxiliary number corresponds to auxiliary switch on the decoder.

Page 24

Picture 3.16 Auxiliary Function Control

【Intuitive Auxiliary Operation】 choose auxiliary equipment, select

Open or Close button, switch control；

【Auxiliary Number】The operation of corresponding auxiliary

switch according to PTZ agreement；

【Page Shift】In Picture 3.16，click Page Shift button enter

the Picture 3.17 PTZ Main Menu , the menu itself can be control by the menu control buttons

3.5.6 Color setting

Set the selective image parameters (current channel for single window

display and cursor place for multi-window display). You can use the desktop shortcut menu and enter the interface. The image parameters include: tonality, brightness, contrast, saturation. You can set different parameters at different time sections.

Picture 3.18 Color Setting

Page 25

3.5.7 Output Adjust

Adjust TV output area parameters. You can use the desktop shortcut

menu or enter [main menu]> [management tools]> [Output adjust].

Picture 3.19 Output Adjust

3.5.8 Logout

Logout shut down the system or reboot up. You can use the desktop

shortcut menu or enter [main menu].

Picture 3.20 Logout/Shutdown/Reboot the system

【logout】Quit the menu. Offer password next entrance. 【 shut down】Quit the system. Turn off the power supply.

When press the shut down button, there is schedule hint. After three seconds, the system is shut down. Cancel midway is of no effect.

【reboot】Quit the system. Reboot up the

system.. 3.5.9 Window switch

Preview in single window/four windows/eight windows/nine

windows/sixteen windows according to your choice.

Page 26

4 Main menu

4.1 Main menu navigation

Main

Sub menu

Function

Config

Set the recording configuration, recording

type, recording time section

Record

playback

Set recording look-up, recording play, video

file storage

backup

Detect or format backup equipment, back the

selective files

Set motion detect alarm channel, sensitivity,

Motion

area, linkage parameters: defending time

detection

section, alarm output, screen hint, recording,

PTZ, patrol

Set camera mask alarm channel, sensitivity,

Video

linkage parameters: defending time section,

blind

alarm output, screen hint, recording, PTZ,

patrol

Alarm

Video

Set video loss alarm channel, linkage

parameters: defending time section, alarm

loss

output, screen hint, recording, PTZ, patrol

Set alarm input channel, equipment type,

Alarm

linkage parameters: defending time section,

input

alarm output, screen hint, recording, PTZ,

patrol

Alarm output

Set alarm mode: configuration, manual, shut

down

Set system time, data format, language, hard

General

disk full time operation, machine number,

configuration

video format, output mode, summertime, stay

time

Set main(assistant)coding parameter: code

System

Encode

mode, resolving ability, frame rate, code

stream control, image quality type, code

configuration

configurat

stream value, frame between value,

ion

video/audio enable

Network

Set basic network parameters, DHCP and

DNS parameters, network high speed

configuration

download

Net-Service

PPPOE. NTP. Email. IP purview. DDNS

parameter

Page 27

Set channel name, preview hint icon state,

GUI display

transparency, cover area, time title, channel

time fold

PTZ

Set channel, PTZ protocol, address, baud

configuration

rate, date bit, stop bit, check

Serial port

Set serial port function, baud rate, date bit,

Configuration

stop bit, check

(RS232)

Tour

Set patrol mode and interval time

Hard disk

Set appointed hard disk as read-write disc,

read-only disc or redundant disc, clear data,

management

resume date and so on

User

Modify user, team or password. Add user or

management

team. Delete user or team.

Break the connection with the already login

Manage

Online user

user. Lock the account after break until

booting up again.

ment

Adjust TV upside, downside, nearside,

tools

TV adjust

starboard distance

Automatic

Set automatic reboot system and automatic

maintenance

deleting files.

Resume setup state: common setup, code

Restore

setup, recording setup, alarm setup, network

setup, network service, preview playback,

serial port setup, user management

Hard disk

Display hard disk capability and recording

information

time

Code stream

Display code stream information

System

statistics

informatio

Log information

Clear all log information according to the log

video and time

Edition

Display edition information

information

Shut

Logout, shut down or reboot

down

Page 28

4.2 Record

4.2.1 Record Config.

Set the recording parameters in the surveillance channel. The system is

set 24 hours consecutive recording in the first startup. You can enter [main menu]> [recording function]> [recording setup] to set.

Note：There is at least one read-write hard disk.<refer to chapter 4.5.1>

Picture 4.1 Record Config

【 Channel】 Choose the corresponding channel number to set the

channel. Choose the all option to set the entire channels.

【Redundancy】Choose the redundancy function option to implement the file double backup function. Double backup is writing the video files in two hard disks. When you do the double backup, make sure that there are two hard disks installed. One is read-write disk and the other is redundant disk. (Refer to 4.5.1)

【Length】Set the time length of each video file. 60minutes is default value.

【Prerecord】Record 1-30 seconds before the

action. (Time length is decided by the code stream)

【Record mode】Set video state: Schedule manual or stop. Schedule:

Record according to the set video type (common,

detection and alarm) and time section.

Manual: Click the button and the according channel is recording no matter the channel in any state.

Stop: Click the stop button and the according channel stops

recording no matter the channel in any state.

【Period】Set the time section of common recording, The recording will

Page 29

start only in the set range.

【Record type】Set recording type: Regular detection or alarm. Regular:

Perform the regular recording in the set time section. The

video file type is “R”.

Detect: Trigger the “motion detect”, “camera mask” or “video

loss” signal. When above alarm is set as opening recording, the “detection recording” state is on. The

video file type is “M”.

Alarm: Trigger the external alarm signal in the set time

section. When above alarm is set as opening

recording, the “detection recording” state is on. The

video file type is “A”.

Note：Refer to chapter 4.3 to set corresponding alarm

function.

4.2.2 Snapshot Storage

Setup snapshot parameters for different channels. At first time it's set for

24hours snapshot continuously, please go to Main Menu->Record>Snapshot Storage for appropriate settings.

Note: If normal snapshot storage, please setup Snap at Main Menu>Advanced->Snapshot (please refer to chapter 4.5.1 HDD Manage)

Picture 4.2

【 Channel 】 Select the related channel to set, click "all" to set all

channels.

【Pre-snap】Setup pre-snap picture quantity before recording, default

is Page 30

5 pieces.

【Record】Set record status, "Schedule”, “Manual" and "Stop"

Schedule: Realize snapshot according to record type (regular,

detect and alarm) and period.

Manual: No matter what the present channel is in a state,

once choose "manual" button, it will have snapshot at related channels. Stop: No matter what the present channel is in a state, once

choose "stop" button, it will stop snapshot at related channels.

【Period】Set normal record period, it only startup Snapshot Storage at

set period.

【Type】Three types: Regular, detect and alarm 【Record type】Three types: Regular, detect and alarm

Regular: snapshot at set period

Detect: snapshot at set period when motion detect, video

blind and video loss which are preset for snapshot enable.

Alarm: snapshot at set period when alarm in which is preset

for snapshot enable.

Note: for related alarm function, please refer to chapter

4.3. 4.2.3 Playback

Refer to chapter 3.5.2.

4.2.4 Backup

You can back-up the video files to external storage through setup.

Note：The storage must be installed before the file backup. If the

backup is terminated, the already backup can playback individually.

Page 31

Picture 4.3 Backup

【Detect】Detect the storage connected with the DVR such as hard disk

or universal disk.

【Erase】Choose the file to delete and click erasure to delete the file. 【Stop】Stop the backup. 【Backup】Click backup button and the dialog box is popped up. You

can choose the backup file according to the type, channel and time.

Page 32

Picture 4.4 File Backup

Remove：Clear the file information.

Add：Show the file information satisfying the set file attributes.

Start/pause：Click the play button to start the backup and click the

pause button to stop the backup.

Cancel：During backup you can exit the page layout to carry out other functions.

4.3 Alarm Function

Alarm functions include: motion detect, video blind, video loss, alarm

input and alarm output.

4.3.1 Motion Detect

When system detects the motion signal that reaches the set sensitivity,

the motion detect alarm is on and the linkage function is turned on.

Page 33

Picture 4.4 Motion Detect

【Channel】Choose the set motion detect channel. 【 Enable】■ means that the motion detect function is on. 【Sensitivity】Choose in the six options according to the sensitivity. 【 Region】Click setup and enter the set area. The area is divided into 8*8

for 4/8CH,16*12 for 16CH. Green block means the current cursor area. Yellow block means the dynamic detect defensive area. Black block means the unfenced area. You can set the area as followed, Drag the mouse and draw the area.

Picture 4.5 Region

Page 34

【Period】Trigger the motion detect signal in the set time section. You

can set according to week or set uniformly. Each day is divided into four time sections.■ means the set valid.

Picture 4.6 set the time section

【Interval】Only one alarm signal is turned on even there are several

motion detect signals in the set interval.

【Alarm output】Start the external equipment of corresponding

linkage alarm when the motion detect alarm is turned on.

【Delay】Delay a few moments and stop when the alarm state is

turned off. The range is 10~300 seconds.

【Record channel】Choose the recording channel (multiple option

supportive). Trigger the video signal when the alarm is turned on.

Note: Set in the [recording setup] and perform the linkage

recording. Start detecting video files in the corresponding time section.

【Tour】■ means that the selective channel is single window alternate

patrol preview. The interval is set in the [Main Menu]>[System] > [Tour].

【Snapshot】Choose record channels, when alarm happens, system triggers related channels for snapshot signal.

Note: For Snapshot activation, please go to set period, detect and alarm

enable at Main Menu->Record->Record config,

【PTZ Activation】Set the PTZ activation when the alarm is turned on.

Note: PTZ activation is set in the [shortcut menu] >[ PTZ control].

Set the patrol between spots, trail patrol and so on.

Page 35

Picture 4.8 PTZ Activation

【Delay】When alarm is over, recording will last some seconds(10~300sec),then stop.

【Show message】Pop the alarm information dialog box in the local host computer screen.

【Send EMAIL】 means sending an email to user when the alarm is turned on.

Note: Set in the [Net Service] and send email.

4.3.2 Video Blind

When the video image is influenced by the environment such as bad

brightness or reaching the set sensitive parameter, the camera mask function is turned on and the linkage function is turned on.

Page 36

Picture 4.9 Video Blind

Set method: refer to chapter 4.3.1. Motion detect

Note:"Advanced" button is the same as right click.

4.3.3 Video Loss

When the equipment cannot obtain the channel video signal, the video

loss alarm is turned on and the linkage function is turned on.

Page 37

Picture 4.10 Video loss

Set method: refer to chapter 4.3.1. Motion detect

Note:"Advanced" button is the same as right click.

4.3.4 Alarm input

When the equipment obtains the external alarm signal, the alarm

function is turned on.

Picture 4.11 Alarm input

Set method: refer to chapter 4.3.1. Motion detect

Note:"Advanced" button is the same as right click.

4.3.5 Alarm output

Refer to chapter 3.5.4.

4.3.6 Abnormal

Analyzing and inspecting current software and hardware of the device:

When some abnormal events happen, the device will make a relative answer such as show message and buzzer.

Page 38

Picture 4.12 Abnormal

【Event Type】selecting abnormity you want to inspect 【 Enable】 Select it to make sure abnormal function workable 【Show message】 Automatically alarm cue dialog box come out of the

main screen

【Buzzer】Device will have two long “beep” while alarm is happening

4.4 System setup

Set the system parameters such as General, Encode, Network, Net

Service, GUI display, PTZ config, RS232 and Tour setup.

Page 39

4.4.1 General

Picture 4.13 General setup

【System time】Set the system data and time.

【Date format】Choose the data format: YMD, MDY, DMY. 【

Date Separator】Choose list separator of the data format. 【 Time Format】Choose time format: 24-hour or 12-hour.

【Language 】 Simple Chinese, Traditional Chinese, English, Farsi, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Poland, Portugal, Russian, Spanish, Thai, Turkey, Vietnamese, Romanian, Brazilian, Korean, Indonesian, Swedish, Arabic, Bulgarian, Czech

【HDD full】Choose stop record: Stop recording when the hard disk is full.

Choose overwrite: Cover the earliest recording files and

continue recording when the hard disk is full.

【DVR No.】Only when the address button in the remote controller and

the corresponding DVR number is matched, the remote operation is valid.

【Video Standard】PAL or NTSC.

【Auto Logout】Set the latency time in 0-60. 0 means no latency time. 【DST】Choose the summer time option and pop the dialog box as

followed.

Page 40

Picture 4.14 DST (week)

Picture 4.15 DST (date)

4.4.2 Encode setup

Set the video/audio code parameter: video file, remote monitoring and so on. Set every independent channel’s coding parameter in the left part, and set the combine encode parameter in the right part.

Note: Combine encode introduces video compression technique which combines and compresses multi-channel’s video to a special channel. Applying for multi-channel playback simultaneously, Dial-up multi-channel real-time monitor, mobile monitor and so on.

Page 41

Picture 4.16 Encode setup

【Channel】Choose the channel number. 【

Compression】Standard H.264 main profile. 【

Resolution】Resolution type: D1/ HD1/CIF /QCIF.

【Frame Rate】P:1 frame/s~25frame/s; N:1 frame/s~30 frame/s

【Bit Rate Type】You can choose limited code stream or variable code

stream. When you choose the variable code stream there are six image quality options.

【Bit Rate】Set the code stream value to modify the image quality. The larger code stream value the better image quality.

D1<1000~1500kbps>,CIF<384~1500kbps>, QCIF(64~512kbps) 【

Video/Audio】When the icons are all in reverse displayed, the video file

is video and audio multiplex stream.

Combine Enable

【 Combine Enable 】 When the icons are all in reverse displayed, opening combination coding functions.

【 Mode 】 multi-channel playback is used in all channels playback simultaneously, and the narrowband transmission is used in multi-channel real-time remote monitoring simultaneously at narrowband state, especially used in mobile monitor.

Page 42

4.4.3 Network setup

Picture4.17 Network

【Net Card】You can choose cable network card or wireless network

card.

【DHCP Enable】Obtain IP address automatically(not

suggested) Note：DHCP server is preinstalled.

【IP address】Set the IP address. Default: 192.168.1.10.

【Subnet mask】Set the subnet mask code. Default: 255.255.255.0. 【

Gateway】Set the default gateway. Default: 192.168.1.1.

【DNS setup】Domain Name Server. It translates the domain name into

IP address. The IP address is offered by network provider. The address must be set and reboot then it works.

【TCP port】Default: 34567.

【HTTP port】Default: 80. 【

HS Download】

【 Transfer Policy】 There are three strategies: self-adaption, image

quality precedence and fluency precedence. The code stream will adjust according to the setup. Self-adaption is the tradeoff between the image quality precedence and fluency precedence. Fluency precedence and selfadaption are valid only when the assistant code stream is turned on. Otherwise image quality precedence is valid.

4.4.4 Net Service

Choose the network service option and click the set button to configure

the advanced network functions or double click the service button to configure the parameters.

Page 43

Picture 4.18 Net-Service

【PPPOE setup】

Picture4.19 PPPOE

Input the user name and password that ISP<Internet service provider>provides. After saving it reboot up your system. Then the DVR will build a network connection based on PPPOE. The IP address will change into dynamic IP address after above operation is well done.

Operation：After PPPOE dialing successfully look up the IP address in

the [IP address] and obtain the current IP address. Then use this IP address to visit the DVR through user port. 【NTP setup】

Page 44

Picture 4.20 NTP

The NTP server must be installed in the PC.

Host computer IP: Input the IP address installed NTP server. Port: Default: 123. You can set the port according to NTP server.

Time zone: London GMT+0 Berlin GMT +1 Cairo GMT +2 Moscow GMT +3 New Delhi GMT +5 Bangkok GMT +7 HongKong Beijing GMT +8 Tokyo GMT +9 Sydney GMT +10 Hawaii GMT-10 Alaska GMT-9 Pacific time GMT-8 American mountain time GMT-7 American mid time GMT-6 American eastern time GMT-5 Atlantic time GMT-4 Brazil GMT-3 Atlantic mid time GMT-2.

Update Period: The same with the NTP server check interval. Default:

10minutes. 【EMAIL setup】

If the alarm is turned on or the alarm linkage photos are taken, send an email about the alarm information and the photos to appointed address.

Page 45

Picture 4.21 EMAIL

SMTP server: Email server address. It could be an IP address or domain name. Domain name can be translated only it is the correct DNS configuration.

Port: Email server port number. SSL: Decide whether using Secure Socket Layer protocol to login. User Name: Apply the email server user name. Password: Input the password corresponding to the user. Sender: Set the email sender address.

Receiver: Send the email to appointed receivers when the alarm is

turned on. You can set three receivers at most.

Title: You can set as you

wish. 【IP Filter setup】

When choosing the white list, only the listed IP address can connect the DVR. The 64 IP addressed are supportive in the list.

When choosing the black list, the listed IP address cannot connect the DVR. The 64 IP addressed are supportive in the list.

You can delete the set IP address by √ in the options. Note：When the same IP address is in the white and black list at the same time, the black list precedence is higher.

Page 46

Picture 4.22 IP IPFILTER

【DDNS】

It is the abbreviation of dynamic domain name server.

Local domain name：Provide the domain name registered by DDNS. User name：Provide the account registered by DDNS. Password：Provide the password registered by DDNS. When the DDNS is successfully configured and start, you can connect

the domain name in the IE address column to visit.

Note：The DNS setup must be configured correctly in the network

setup.

Picture 4.23 DDNS setup

Page 47

【FTP setup】FTP is available only when alarm happens, or alarm activates record and snapshot, it will upload related record and snapshot pictures to FTP server.

Picture 4.24 FTP setup

【Enable】Click Enable, then all settings will be available 【Server IP】IP address for FTP server

【Port】Domain Port of FTP, default 21 【User Name】User name of FTP 【 Password】Password of user

【Max File Length】Max length for upload files at every packed, default

128M

【Dir-Name】Directory of uploading files

【Wireless Config】ADSL through 3G net card, use CMS to visit and

config the device

Page 48

Picture 4.25 Wireless Config

【Enable】Choose Enable to make all settings available 【Type】Dial type, default AUTO

【Wireless AP】3G access point 【Dial Number】3G Dial Number 【User Name 】User name of 3G 【Password】 Password of dial user 【IP Address】IP address, got from dial

【Mobile Monitor Setup】

To visit the device by mobile, please make a router mapping of this port

and use CMS to monitor and operate it by protocol.

Picture 4.26 Mobile Monitor Setup 【

Enable】 Select it to make sure abnormal function workable 【Port】 It’s a port of mobile monitoring which you need to make a router

mapping of if want to visit it by mobile

【UPNP】UPNP protocol can auto port forwarding on router, make sure

Page 49

UPNP is running on router before use it.

Picture 4.27

【Enable】Choose Enable to make sure all UPNP settings available 【

HTTP】Route will automatically distribute HTTP port for the device, when IE viewing, it need this port(e.g. 60.12.9.26:66)

【TCP】Router will automatically distribute TCP port for the device, when monitoring via CMS, it need this port.

【Mobile Port】Router will automatically distribute Mobile Port for the device, when mobile monitor, it need this port.

4.4.5 GUI Display

Configure the video output parameters including the front output mode and code output mode.

Front output： In the local preview mode include: channel title, time display, channel title, record status, alarm status, bit rate info, transparency and region cover.

Code output：In the network surveillance and video file mode include: channel title, time display, channel title, record status, alarm status, bit rate info, transparency and region cover.

Page 50

Picture 4.28 GUI Display

【Channel Title】Click the channel name modify button and enter the channel name menu. Modify the channel name. The 16 Chinese characters and 25 letters are supportive.

【Time Display】means the selective state. Display the system data and time in the surveillance window. 【 Channel Title 】 means the selective state. Display the system channel number in the surveillance window. 【 Record Status 】 means the selective state. Display the system

recording status in the surveillance window.

【Alarm Status】means the selective state. Display the system alarm status in the surveillance window.

【Bit rate info】means the selective state. The ninth window displays the code stream information in the nine-window preview status.

【Transparency】Choose the background image transparency. The range is 128~255.

【Resolution】set display resolution. 【Channel】Choose

the set code output channel number.

【Region Cover】means the selective state. Click the cover area button

and enter the corresponding channel window. You can cover the arbitrary using mouse. (Black region is for output)

【Time display】and 【Channel Title】

Page 51

4.4.6 PTZ setup

Picture 4.29 PTZ setup

【Channel】Choose the dome camera input channel. 【Protocol】

Choose the corresponding dome protocol. (PELCOD as an example)

【Address】Set as the corresponding dome address. Default: 1.<Note：

The address must be consistent with the dome address.> 【Baud rate】

Choose the corresponding dome baud rate length. You can

control the PTZ and vidicion. Default: 115200. 【

Data bits】Include 5-8 options. Default: 8. 【

Stop bits】Include 2 options. Default: 1.

【Parity】Include odd check, even check, sign check, blank check. Default: void.

4.4.7 RS232 setup

Page 52

Picture 4.30 RS232 setup

【 Serial Port Function】 Common serial port is used to debug and update program or set up specific serial port.

【Baud rate】Choose the corresponding baud rate

length. 【Data bits】Include 5-8 options.

【Stop bits】Include 2 options. 【Parity】

Include odd, even, mark, space.

4.4.8 Tour setup

Set the patrol display. means that the tour mode is turned on. You can

choose the single window, four windows, nine windows, sixteen windows patrol display or single display.

Picture 4.31 tour setup

【interval】Set the patrol switch interval. The set range is 5-120 seconds.

Page 53

Note： / means turn off/on the patrol.

4.5 Advanced 4.5.1

HDD Manage

Configure and manage the hard disk. The menu displays current hard disk information: hard disk number, input port, type, status and overall capability. The operation include: setup the write-read disk, read-only disk, redundant disk, hard disk format, resume default. Choose the hard disk and click the right function button to execute. Note：Read/Write Disk: The equipment can write or read data.

Read-only Disk: The equipment can read data but cannot write data. Redundant Disk: Double backup the video files in the write-read disk.

Picture4.32 HDD Manage

4.5.2 Account

Manage the user purview.

Note：1. The character length is 8 bytes at most for the following user and

user team name. The blank ahead or behind the character string is invalid. The middle blank in the character string is valid. Legal characters include: letter, number, underline, subtraction sign, dot.

2. There is no limit in the user and user group. You can add or delete the user group according to user definition. The factory setup include: user\admin. You can set the team as you wish. The user can appoint the purview in the group.

3. The user management include: group/ user. The group and user

name cannot be the same. Each user only belongs to one group.

Page 54

Picture 4.33 Account

【Modify User】Modify the existed user attribute. 【 Modify Group】Modify the existed team attribute.

【Modify Password】 Modify the user password. You can set 1-6 bit

password. The blank ahead or behind the char string is invalid. The middle blank in the char string is valid.

Note：The user who possess the user control purview can modify

his/her own or other users password

Picture 4.34 Modify Password

【Add user】Add a user in the team and set the user purview. Enter the menu interface and input the user name and password. Choose the team and choose whether cover using the user. Cover using means that the account can be used by multiple users at the same time.

Page 55

Once choose the team the user purview is the subclass of the team.

We recommend that the common user’s purview is lower than the

advanced user.

Picture 4.35 add user

【Add Group】 Add a user team and set the purview. There are 36 different purviews: shut down the equipment, real time surveillance, playback, recording setup, video file backup and so on.

Picture 4.36 Add Group

【Delete User】Delete the current user. Choose the user and click

delete user button.

Page 56

【Delete Group】Delete the current group. Choose the group and click

delete group button.

Picture 4.37 Delete Group

4.5.3 Online User

Look up the network user information in the local DVR. You can choose

the network user and cut the connection. Then the user is locked until next boot-strap.

Picture 4.38 Online User

4.5.4 TV adjust

Refer to chapter 3.5.7

4.5.5 Auto Maintain

The user can set the auto reboot time and auto file deleting time limit.

Page 57

Picture 4.39 Auto maintain

4.5.6 Restore

The system restore to the default setup. You can choose the items

according to the menu.

Picture 4.40 Restore

Page 58

4.5.7 Upgrade

Picture 4.41 Upgrade

【Upgrade】choose USB interface.

【Upgrade file】choose the file which needs upgraded.

4.5.8 Device Info

Provide device interface info like audio in, alarm in/out to be conveniently used for user.

Picture 4.42 Device Info

4.6 Info

4.6.1 HDD info

Display the hard disk state: hard disk type, overall capability, residual

capability, the recording time and so on.

Page 59

Picture 4.43 HDD Info

Clue: Means that the hard disk is normal. X means that the hard disk is broken-down and there is no hard disk. If the user needs to change the damaged hard disk, you must shut down the DVR and take up all the damaged hard disks, then install a new one.

* Behind serial number means the current working disk such as 1*. If the

corresponding disk is damaged, the information will show “？”.

4.6.2 BPS

Display the code stream<Kb/S>and hard disk capability <MB/H>in real

time. It displays as the wave sketch map.

Picture 4.44 BPS

Page 60

4.6.3 LOG

Look up system log according to the set mode.

Log information include: system operation, configuration operation, data management, alarm affair, recording operation, user management, file management and so on. Set the time section to look up and click the look up button. The log information will display as a list. (page one is 128 items) Press Page up or Page down button to look up and press delete button to clear all the log information.

Picture4.45 LOG

4.6.4 Version

Display the basic information such as hardware information, software

edition, issued data and so on.

Picture 4.46 Version

4.7 Shut down system

Refer to chapter 3.5.8.

Page 61

5 FAQ and maintenance

5.1 FAQ

If the problems are not listed, please contact the local service or call the HQ service. We are willing to offer the service.

1. The DVR cannot boot up normally.

Possible reasons are as followed:

1 The power supply is not correct. 2 Switch power supply line is not in good connection. 3 Switch power supply is damaged. 4 The program updating is wrong. 5 The hard disk is damaged or the hard disk lines are broken. 6 The front panel is damaged. 7 The main board of the DVR is damaged.

2. The DVR reboots automatically or stops working after boot up a few minutes.

Possible reasons are as followed:

1 The input voltage is not stable or too low. 2 The hard disk is damaged or the hard disk lines are broken. 3 The power of the switch power supply is low. 4 Frontal video signal is not stable. 5 Bad heat radiator or too much dust or bad running

circumstance for the DVR.

6 The hardware of the DVR is damaged.

3. System cannot detect hard disk.

Possible reasons are as followed:

1 The hard disk power supply line is not connected. 2 The cables of the hard disk are damaged. 3 The hard disk is damaged. 4 The SATA port of main board is damaged.

4. There are no video outputs in single channel, multiple channels and all channels.

Possible reasons are as followed:

1 The program is not matched. Please update the program. 2 The image brightness is all 0. Please restore the default

setup. 3 There is no video input signal or the signal is too weak. 4 The channel protection or the screen protection is set. 5 The hardware of the DVR is damaged.

5. Real-time image problems such as the image color or the brightness distortion.

Possible reasons are as followed:

1 When using the BNC output, the option between the N mode

or PAL mode is wrong and the image becomes black and

white. 2 The DVR is not matched the monitor impedance.

Page 62

3 The video transmission distance is too far or the loss of the

video transmission line is too large. 4 The color and brightness setting of the DVR is wrong.

6. I cannot find the video files in local playback mode.

Possible reasons are as followed:

1 The data line of the hard disk is damaged. 2 The hard disk is damaged. 3 Update the different program with the origin program files. 4 The video files to look up are covered. 5 The recording is not on.

7. The local video is not clear.

Possible reasons are as followed:

1 The image quality is too bad. 2 The reading program is wrong. Reboot up the DVR. 3 The data line of the hard disk is damaged. 4 The hard disk is damaged. 5 The hardware of the DVR is damaged.

8. There is no audio signal in the surveillance window.

Possible reasons are as followed:

1 It is not an active tone arm. 2 It is not an active sound box. 3 The audio lines are damaged. 4 The hardware of the DVR is damaged.

9. There is audio signal in the surveillance window but mo audio signal in the playback state.

Possible reasons are as followed:

1 Setting issues: the audio option is not chosen. 2 The according channel is not connected with the video.

10. The time is wrong.

Possible reasons are as followed:

1 Setting is wrong. 2 The battery is in bad connection or the voltage is too low. 3 The oscillation is damaged.

11. The DVR cannot control the PTZ.

Possible reasons are as followed:

1 There is something wrong with the frontal PTZ. 2 The setting, connection or the installation of the PTZ decoder

is not correct. 3 The connections are not correct. 4 The PTZ setting of the DVR is not correct. 5 The protocols of the PTZ decoder and the DVR are not

matched. 6 The address of the PTZ decoder and the DVR are not

matched.

Page 63

7 When multiple decoders are connected, the far port of the

PTZ decoder line A (B) must connect a 120 Ω resistance to

reduce the reflection otherwise the PTZ control is not stable. 8 The distance is too far.

12. The motion detect is not working,

Possible reasons are as followed:

1 The time range set is not correct. 2 The motion detect area set is not correct. 3 The sensitivity is too low. 4 Limited by some hardware edition.

13. I cannot login via web or CMS.

Possible reasons are as followed:

1 The system is windows 98 or win. We recommend updating

to windows 2000sp4 or higher Version or installing the

software for low edition. 2 ActiveX is hold back. 3 The version is not exceeded dx8.1. Update the display card

driver. 4 Network connection failure. 5 Network setting issues. 6 Invalid password or user name. 7 The CMS is not matched the DVR program version.

14. The image is not clear or there is no image in network preview state or video file playback state.

Possible reasons are as followed:

1 Network is not stable. 2 The user machine is resource limited. 3 Choose the play-in-team mode in the network setup of DVR. 4 The region shelter or channel protection is set. 5 The user has no surveillance purview. 6 The real-time image of the hard disk recording machine itself

is not clear.

15. Network connection is not stable.

Possible reasons are as followed:

1 Network is not stable. 2 IP address is conflicted. 3 MAC address is conflicted. 4 The net card of the DVR is bad.

16. There is something wrong with the USB backup or writing a

CD.

Possible reasons are as followed:

1 The rewritable machine and the hard disk are shared the

same data lines. 2 The data is too much. Please stop recording and backup. 3 The data exceeds the backup storage.

Page 64

4 The backup equipment is not compatible. 5 The backup equipment is damaged.

17. The keyboard cannot control the DVR.

Possible reasons are as followed:

1 The serial port of the DVR is not set correctly. 2 The address is not correct. 3 When multiple transformers are connected, the power supply

is not large enough. Please give each transformer individual

power supply. 4 The distance is too far.

18. Alarm cannot be recessional.

Possible reasons are as followed:

1 The setting of the alarm is not correct. 2 The alarm output is turned on manually. 3 The input machine is damaged or the connections are not

correct. 4 There are some problems for specific program edition,

Please update the program.

19. Alarm is not working.

Possible reasons are as followed:

1 The setting of the alarm is not correct. 2 The connection of the alarm is not correct. 3 The alarm input signal is not correct. 4 A alarm is connected with two loops synchronously.

20. The remote controller is not working,

Possible reasons are as followed:

1 The remote control address is not correct.

2 The remote control distance is too far or the angle is too large.

3 The battery is used up. 4 The remote controller or the front panel of the recording

machine is damaged.

21. The storage time is not enough.

Possible reasons are as followed:

1 Front camera quality is bad. The lens is too dirty. The camera

is in backlighting installation. 2 The hard disk capability is not enough. 3 The hard disk is damaged.

22. The downloading files cannot play.

Possible reasons are as followed:

1 There is no media player. 2 There is no DX8.1 software or higher edition. 3 There is no DivX503Bundle.exe file to play AVI video files. 4 The DivX503Bundle.exe and ffdshow-20041012. exe

files must be installed in the windows XP system.

23. I cannot remember the advanced code or network code in the

Page 65

local menu operation.

Please contact the local service or call the HQ service. We will offer

the service according the machine type and the program edition.

5.2 Maintenance

1 Please brush printed circuit boards, connectors, fans,

machine box and so on regularly. 2 Please keep the grounding well done to prevent the video or

audio signal interfered and the DVR from static or inductive

electricity. 3 Do not pull out the video signal line or RS-232 port or RS-485

port with the power on. 4 Do not use the TV in the local video output port (VOUT) of

DVR. It will damage the video output circuit easily. 5 Do not turn off the switch directly. Please use the turn-off

function in the menu or press the turn-off button in the panel

(3 seconds or longer) to protect the hard disk. 6 Please keep the DVR away from heat resource. 7 Please keep the DVR ventilated for better heat

radiator. Please check the system and maintain regularly.

Page 66

Appendix 1.Remote controller operation

Serial

Name

Function

number

Power

Press to turn on/off the device

Esc

Close menu windows

Rec

Press to start the manual recording

Add

Input the number of DVR to control it

Numeric

Code input/number input/channel switch

button

Press to enter into the PTZ control window

and the color setting menu

Press to enter the sub menu

Direction

Same function as direction button in the front

button

panel

Multi-window

Same function as Multi-window button in the

button

front panel

Press to enter into the playback window

Playback

Control play, pause, step, fast forward, stop

controls

and so on

Page 67

Appendix 2.Mouse operation

*Take right hand as an example

The mouse in USB connection is supported.

Operation

Function

Double click one item in the file list to playback the video

Double left click

Double click the playback video to zoom in or out the screen

Double click the channel to make it full screen display

double click again to resume the multi-window display

Left click

Choose the according function in the menu

Right click

Pop desktop shortcut menu in preview state

Current shortcut menu in the menu

Press middle

Add or subtract number in the number setting

Switch the items in the combo box

button

Page up or down in the list

Move mouse

Choose the widget or move the item in the widget

Drag mouse Set the motion detect area

Set the cover area

Appendix 3.Hard disk capability calculation

Make sure the hard disk installed to the DVR for the first time. Pay

attention to the IDE hard disk lines connection.

1. Hard disk capability

There is no limit for recording machine. We recommend 120G~

250G to keep better stability.

2. Overall capability option The

hard disk capability formula is: Overall capability<M>=channel number*time<hour>*capability in an

hour<M/hour>

The recording time formula is:

overall capability<M>

Capability in an hour<M/hour>*channel

number

The DVR introduces the H.264 compression technology. Its dynamic range is very large so the hard disk capability calculation is based on the estimation values of each channel creating files in an hour.

Example:

For one piece 500G HDD, real time CIF for recording, it will keep recording for about 25 days.HDD spaces per channel is 200M/H, if 4channels real time CIF at 24hours recording uninterrupted, it can last:500G/(200M/H*24H*4ch)=26 days

Page 68

Recording time<hour>=

Appendix 4.Technique parameters

Model NO.

4CH

8CH

16CH

OPERATION

LINUX

SYSTEM

Main Feature

CPU

High Speed 400MHz

Memory Space

1Gb

3Gb

Flash Memory

16MB

VIDEO

NTSC/PAL

VIDEO SYSTEM

Switch

Selectable

INPUT

BNC*4,1.0Vp-p,

BNC*8,1.0Vp-p,7

BNC*16,1.0Vp-p,

75ohm

5ohm

75ohm

CVBS

1CH, BNC

1CH,BNC

SPOT

LOOP OUT

STANDARD

VGA OUTPUT

VGA*1: 1280

VGA*1: 1280 x

x 1024

1024

AUDIO

1CH,

1CH, RCA(could

RCA(could be

INPUT

be expanded to 4

1CH, RCA

expanded to 4

CH)

OUTPUT

1CH,RCA

TALK BACK

YES

CONTROL

MOUSE

2*USB2.0

YES

CONTROLLER

Page 69

STORAGE

BUILD IN

SATA 2.6

INTERFACE

*2(2*HDD 2TB )

DISPLAY

DIVISION

1,4

1, 4, 8, 9

1, 4, 9, 16

Preview and

ZOOM

Playback Zoom

Support

RECORDING

COMPRESSIO

H.264 Main

Profile

RECORDING

Manual/Schedule/

Manual/Schedule

Motion

/Motion

MODE

Detection/Sensor

NTSC:704*480,70

NTSC:704*480,7

NTSC:352*240

RESOLUTION

4*240,352*240

04*240,352*240

PAL:704*576,704

PAL:704*576,70

PAL:352*288

*288,352*288

4*288,352*288

NTSC:120FPS@D

NTSC:120FPS@

NTSC:480FPS@

D1,

1, 120FPS@HD1,

240FPS@HD1,

CIF

120FPS@CIF

RECORD

240FPS@CIF

PAL:100FPS@D1,

PAL:100FPS@D1

PAL:400FPS@C

FRAME RATE

100FPS@HD1,

, 200FPS@HD1,

100FPS@CIF

200FPS@CIF

(4CH D1)

(2CH D1 +6 CH

(16CH CIF)

CIF)

Worst, Worse,

QUALITY

General, Good,

Better, Best

MOTION

Sensitivity: Multi

DETECTION

Level,8*8Grid

Level,16*12Grid

WATER MARK

YES

PLAYBACK

120(100)FPS@CI

240(200)FPS@

FRAME

CIF

RATE(PAL)

MULTI

CHANNEL

1/4

1/4/8

1/4/9/16

PLAYBACK

Page 70

Normal,

SLOW&FF(1/4,

SPEED

SLOW&FF(1/4,1/

1/3,1/2,1*,2*,3*,

3,1/2,1*,2*,3*,4*)

4*)

Time, Even,

Channels and

METHOD

Calendar

COMMUNICATION

Remote Client,

IE Brower,

REMOTE

Mobile, CMS,

SOFTWARE

Firefox, Google

Chrome, Mac

Safari

Remote view,

REMOTE

remote

remote playback,

OPERATION

playback,

remote setup

TCP/IP, UDP,

NETWORK

HTTP, DDNS,

SMTP(SSL),

SERVICE

LAN, DHCP,

PPPOE

Supported GUI

GUI INTERFACE

16 Bit True

16 Bit True Color

Color

1*RS485,

Support 18

PTZ PROTOCOL

Support 18 Kinds

Kinds of

of Protocol

Protocol

WAN RJ45

10/100 M bit/s

10/100/1000 M

bit/s

Win Mobile,

Symbian S60

3rd/5th, I phone,

Mobile DEVICE

3rd/5th, I phone,

IPAD,

IPAD, Blackberry

Blackberry

OS5.0, Android

Page 71

3G External

YES, with USB

2.0 Port,

Module

WCDMA Signal

WIFI External

Yes, with USB

2.0 Port,

Module

100Meter

BACKUP

INTERNAL

Not supported

2*USB2.0,

EXTERNAL

Removable

DVD-RW, USB

Disk up to 32G

NETWORK

YES

H.264

FILE

Compression /

AVI

GENERAL

4 CH / 1CH

ALARM IN/OUT

(Need to

1CH / 1CH

(Need to expand)

expand)

RS-485

1 1 1

UNIT

W340xD268xH

W340xD268xH6

DIMENSION(mm)

64mm

4mm

OPERATION

10°～40°

TEMPERATURE

WORKING

10% ~ 90%

HUMIDITY

POWER

DC 12V,4A,10～

12V,4A,10～

15W (Exclude

CONSUMPTION

15W (Exclude

HDD)

Page 72

Appendix 5.Rear panel

4CH without alarm

4CH with alarm

8CH without alarm

8CH with alarm

16CH

Page 73

Security Tronix ST-DVR4CH, ST-DVR8CH, ST-DVR16CH User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
