FOUR ZONE AUDIO
MIXING AMPLIFER
www.symphonicdesigns.net www.nacebrands.com
SYMPHONIC DESIGNS 2-Year Limited Warranty
SYMPHONIC DESIGNS. (the "Company") warrants to the Original Purchaser that the item purchased is free from
defects in workmanship or material under normal use. This warranty starts on the date of shipment of the hardware
to the Original Purchaser.
During the warranty period, the Company agrees to repair or replace, at its sole option, without charge to Original
Purchaser, any defective component. To obtain service, the Original Purchaser must return the item to the Company
properly packaged for shipping. All defective products must be returned to the Company within thirty (30) days of
failure. Products must be returned with a description of the failure and Return Merchandise Authorization (RMA)
number supplied by the Company. To receive a RMA number and a return shipping address on where to deliver the
hardware, call 610-429-1821. The shipping, and insurance charges incurred in shipping to the Company will be paid
by Original Purchaser, and all risk for the hardware shall remain with the Original Purchaser until such time as
Company takes receipt of the hardware. Upon receipt, the Company will promptly repair or replace the defective
unit, and then return said unit to Original Purchaser, shipping prepaid. The Company may use reconditioned or likenew parts or units, at its sole option, when repairing any hardware. Repaired products shall carry the same amount of
outstanding warranty as from original purchase. Any claim under the warranty must include dated proof of purchase
or invoice. In any event, the Company's liability for defective hard ware is limited to repairing or replacing the
hardware.
This warranty is contingent upon proper use of the hardware by Original Purchaser and does not cover: if damage is
due to Acts of God (including fire, flood, earthquake, storm, hurricane or other natural disaster), accident, unusual
physical, electrical, or electromechanical stress, modifications, neglect, misuse, operation with media not approved
by the Company, tampering with or altering of the hardware, riot, war, invasion, act of foreign enemies, hostilities
(regardless of whether war is declared), civil war, rebellion, revolution, i nsurrection, military or usurped power or
confiscation, terrorist activities, nationalization, government sanction, blockage, embargo, labor dispute, strike,
lockout or interruption or failure of electricity, air conditioning, or humidit y control, internet, network, or telephone
service
The warranties given herein, together with any implied warranties covering the hardware, including any warranties
of merchantability or fitness for a particular purpose, are limited in d uration to two years from the date of shipment
to the Original Purchaser. Jurisdictions vary with regard to the enforceability of warranty limitations, and you should
check the laws of your local jurisdiction to find out whether the above limitation applies to you.
The Company shall not be liable to you for loss of data, loss of profits, lost savings, special, incidental,
consequential, indirect, or other similar damages arising from breach of warranty, breach of contract, negligence, or
other legal action even if the Company or its agent has been advised of the possibility of such damages, or for any
claim brought against your by another party. Jurisdictions vary with regard to the enforceability of provisions
excluding or limiting liability for incidental or consequential damages. You should check the laws of your local
jurisdiction to find out whether the above exclusion applies to you.
This warranty allocates risks of product failure between Original Purchaser and the Company. The Company's
hardware pricing reflects this allocation of risk and the limitations of liability contained in this warranty. The
warranty set forth above is in lieu of all other express warranties, whether oral or written. The agents, employees,
distributors, and dealers of the Company are not authorized to make modification to this warranty, or additional
warranties binding on the Company. Accordingly, additional statements such as dealer advertising or presentations,
whether oral or written, do not constitute warranties by the Company and should not be relied upon.
This warranty gives you specific legal rights. You may also have other rights which vary from one jurisdiction to
another.
USE ONLY WI TH 250V FUSE
1
10
www.symphonicdesigns.net www.nacebrands.com
At all times the amplifier must be operated under appropriate conditions. This includes sufficient
ventilation for the device and not exposed to direct sunlight, radiation or reflection from any heat
source. When installing the amplifier, choose a location that is not affected by vibration. Install the
amplifier in an environment that is free from dust and moisture.
To reduce the risk of shock, all connections must be made before connecting the
amplifier to the main supply. Follow all building codes!
s
*ENSURE PROPER GROUNDING AND BONDING OF THE UNIT
input window
9
Audio
/Ground
2
www.symphonicdesigns.net www.nacebrands.com
window
go back
of the available functions.
Press and hold to momentarily pause the song.
player.
player.
This remote control features all the necessary buttons to easily operate your Mp3 payer at a distance
of up to 3 meters (9.84 ft) from the front of the unit.
3
8
www.symphonicdesigns.net www.nacebrands.com
REF ER T O DI AGRAM ON PAG E 9
and
SD-MA240W
You can only use one of these outputs at any one time, any attempt to use two or more of these may result in damage
to the amplifier. These outputs reproduce any input signal into the amplifier (INPUT’s 1-4, Mp3 player interface)
They also incorporate a 24V phantom power position for condenser microphones.
Turn the front panel knobs (1)* clockwise to increase the volume or counter-clockwise to reduce the volume.
SD-MAW240W
Turn the front knobs (2)* clockwise to increase the volume or counter-clockwise to reduce the volume. .
The CD/A UX I NPU T sockets (20)* are standard RCA phonos two sockets are supplied and these are linked
together internally in parallel. This allows the stereo signal sources to be used without the need to obtain a
special combiner, however you may wish to check with manufacturer of the signal source to ensure no damage
will result if the left and right output channels are connected together in parallel.
*
Sleeve - Ground
Pin - Signal
*
* Refer to Page 9 diagram
7
4
www.symphonicdesigns.net www.nacebrands.com

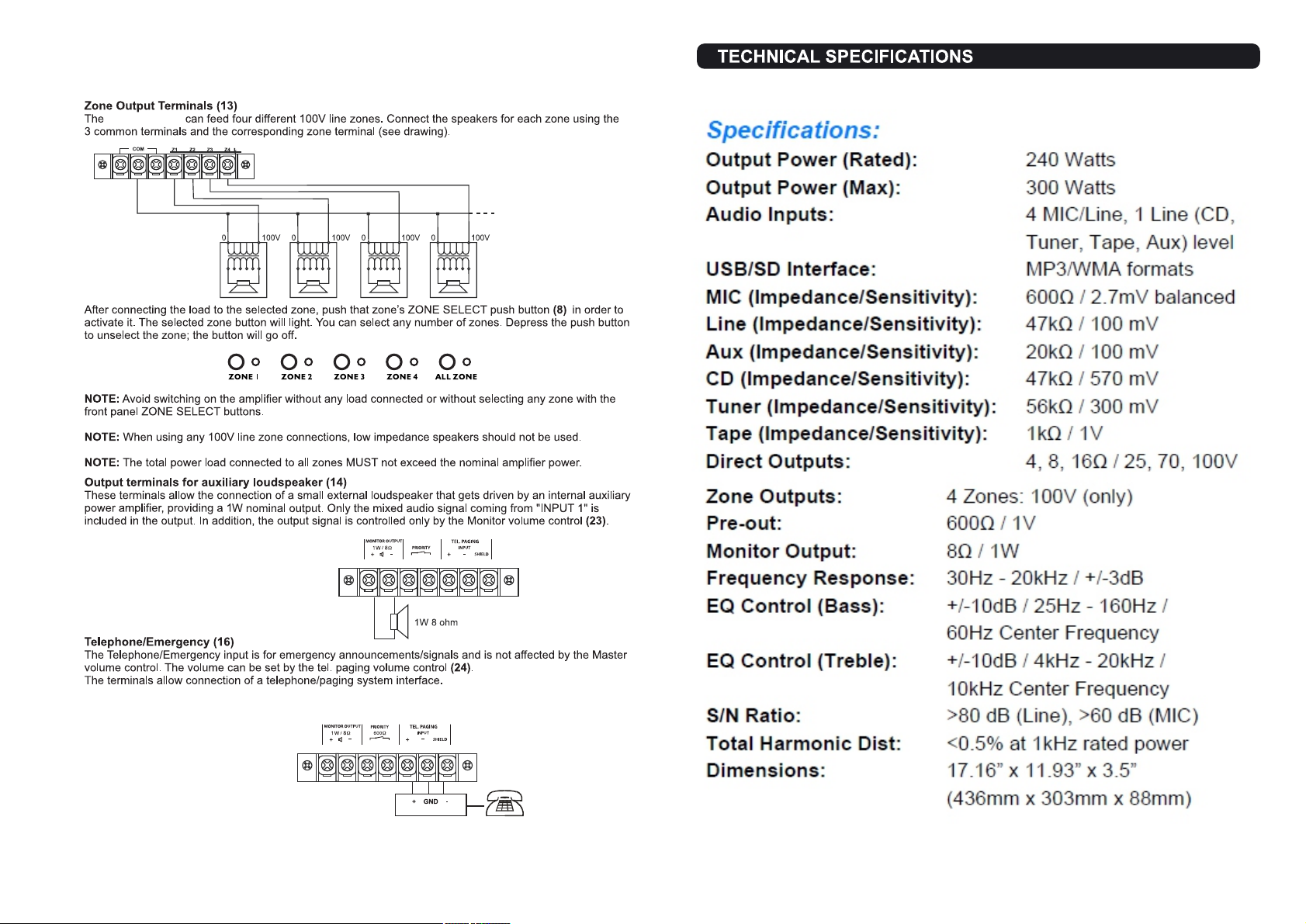

SD-MA240W
*
*
*
*
*
NOTE: The telephone/Emergency input has the highest priority; all other inputs will be overridden.
*Refer to page 9 diagram
5
6
www.symphonicdesigns.net www.nacebrands.com
