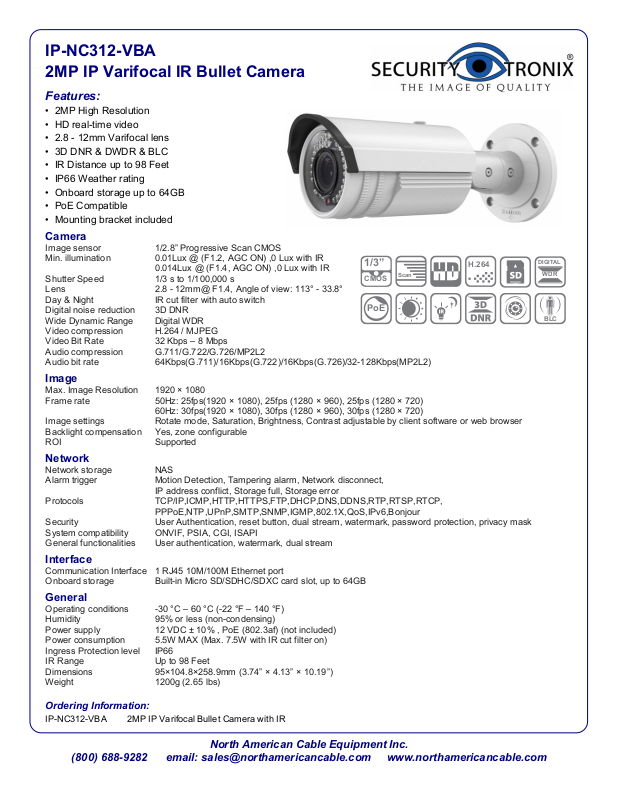

SecurityTronix IP-NC312-VBA Specsheet

IP-NC312-VBA
2MP IP Varifocal IR Bullet Camera

Features:

• 2MP High Resolution

• HD real-time video

• 2.8 - 12mm Varifocal lens

• 3D DNR & DWDR & BLC

• IR Distance up to 98 Feet

• IP66 Weather rating

• Onboard storage up to 64GB

• PoE Compatible

• Mounting bracket included

Camera

Image sensor 1/2.8” Progressive Scan CMOS
Min. illumination 0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR

0.014Lux @ (F1.4, AGC ON) ,0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Lens 2.8 - 12mm@ F1.4, Angle of view: 113° - 33.8°
Day & Night IR cut filter with auto switch
Digital noise reduction 3D DNR
Wide Dynamic Range Digital WDR
Video compression H.264 / MJPEG
Video Bit Rate 32 Kbps – 8 Mbps
Audio compression G.711/G.722/G.726/MP2L2
Audio bit rate 64Kbps(G.711)/16Kbps(G.722)/16Kbps(G.726)/32-128Kbps(MP2L2)


Max. Image Resolution 1920 × 1080
Frame rate 50Hz: 25fps(1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720)
60Hz: 30fps(1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720)
Image settings Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
Backlight compensation Yes, zone configurable
ROI Supported

Network

Network storage NAS
Alarm trigger Motion Detection, Tampering alarm, Network disconnect,
IP address conflict, Storage full, Storage error
Protocols TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
Security User Authentication, reset button, dual stream, watermark, password protection, privacy mask
System compatibility ONVIF, PSIA, CGI, ISAPI
General functionalities User authentication, watermark, dual stream

Interface

Communication Interface 1 RJ45 10M/100M Ethernet port
Onboard storage Built-in Micro SD/SDHC/SDXC card slot, up to 64GB

General

Operating conditions -30 °C – 60 °C (-22 °F – 140 °F)
Humidity 95% or less (non-condensing)
Power supply 12 VDC ± 10% , PoE (802.3af) (not included)
Power consumption 5.5W MAX (Max. 7.5W with IR cut filter on)
Ingress Protection level IP66
IR Range Up to 98 Feet
Dimensions 95×104.8×258.9mm (3.74” × 4.13” × 10.19”)
Weight 1200g (2.65 lbs)

1/3”

CMOS

PoE

Scan

H.264

®

DIGITAL

WDR

BLC

Ordering Information:

IP-NC312-VBA 2MP IP Varifocal Bullet Camera with IR
