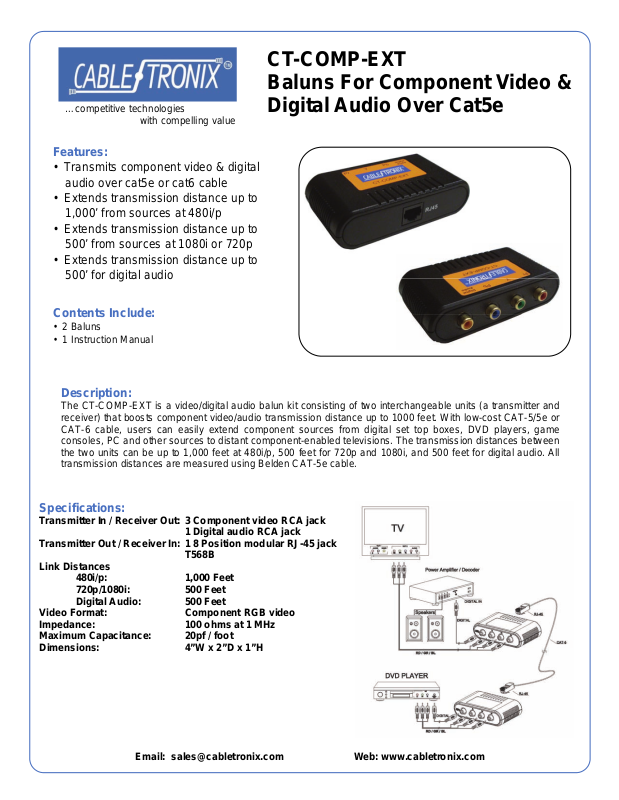

SecurityTronix CT-COMP-EXT Specsheet

CT-COMP-EXT
Baluns For Component Video &

…competitive technologies

with compelling value

Digital Audio Over Cat5e

Features:

• Transmits component video & digital
audio over cat5e or cat6 cable

• Extends transmission distance up to
1,000’ from sources at 480i/p

• Extends transmission distance up to
500’ from sources at 1080i or 720p

• Extends transmission distance up to
500’ for digital audio

Contents Include:

• 2 Baluns

• 1 Instruction Manual

Description:

The CT-COMP-EXT is a video/digital audio balun kit consisting of two interchangeable units (a transmitter and
receiver) that boosts component video/audio transmission distance up to 1000 feet. With low-cost CAT-5/5e or
CAT-6 cable, users can easily extend component sources from digital set top boxes, DVD players, game
consoles, PC and other sources to distant component-enabled televisions. The transmission distances between
the two units can be up to 1,000 feet at 480i/p, 500 feet for 720p and 1080i, and 500 feet for digital audio. All
transmission distances are measured using Belden CAT-5e cable.

Specifications:

Transmitter In / Receiver Out: 3 Component video RCA jack
1 Digital audio RCA jack
Transmitter Out / Receiver In: 1 8 Position modular RJ-45 jack
T568B
Link Distances
480i/p: 1,000 Feet
720p/1080i: 500 Feet
Digital Audio: 500 Feet
Video Format: Component RGB video
Impedance: 100 ohms at 1 MHz
Maximum Capacitance: 20pf / foot
Dimensions: 4”W x 2”D x 1”H

Email: [e-mail] Web: www.cabletronix.com
