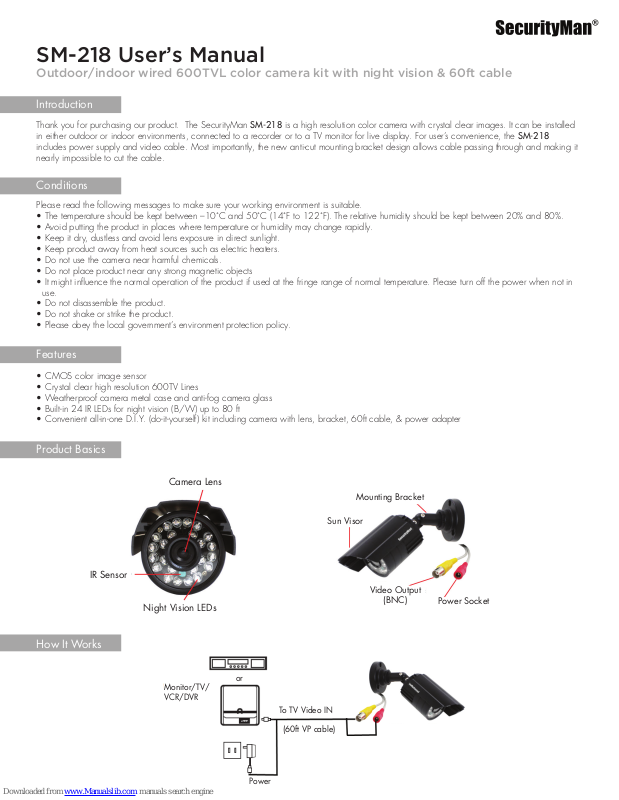

SM-218 User’s Manual
Outdoor/indoor wired 600TVL color camera kit with night vision & 60ft cable
Introduction
Thank you for purchasing our product. The SecurityMan SM-218 is a high resolution color camera with crystal clear images. It can be installed
in either outdoor or indoor environments, connected to a recorder or to a TV monitor for live display. For user’s convenience, the SM-218
includes power supply and video cable. Most importantly, the new anti-cut mounting bracket design allows cable passing through and making it
nearly impossible to cut the cable.
Conditions
Please read the following messages to make sure your working environment is suitable.
• The temperature should be kept between –10˚C and 50˚C (14˚F to 122˚F). The relative humidity should be kept between 20% and 80%.
• Avoid putting the product in places where temperature or humidity may change rapidly.
• Keep it dry, dustless and avoid lens exposure in direct sunlight.
• Keep product away from heat sources such as electric heaters.
• Do not use the camera near harmful chemicals.
• Do not place product near any strong magnetic objects
• It might inuence the normal operation of the product if used at the fringe range of normal temperature. Please turn off the power when not in
use.
• Do not disassemble the product.
• Do not shake or strike the product.
• Please obey the local government’s environment protection policy.
Features
• CMOS color image sensor
• Crystal clear high resolution 600TV Lines
• Weatherproof camera metal case and anti-fog camera glass
• Built-in 24 IR LEDs for night vision (B/W) up to 80 ft
• Convenient all-in-one D.I.Y. (do-it-yourself) kit including camera with lens, bracket, 60ft cable, & power adapter

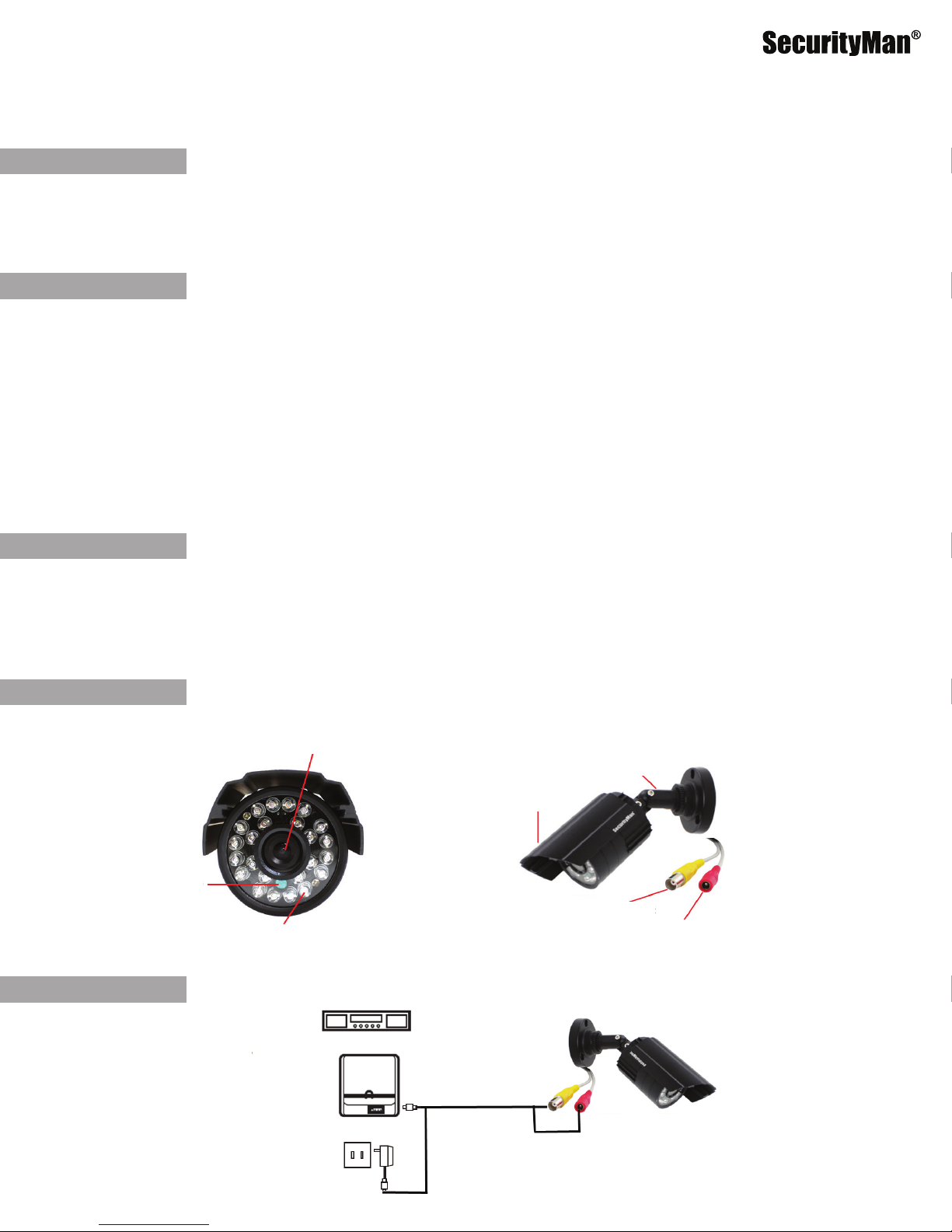

Product Basics
Camera Lens
Mounting Bracket
Sun Visor
IR Sensor
Video Output
Night Vision LEDs
(BNC)
Power Socket
How It Works
Monitor/TV/
VCR/DVR
or
To TV Video IN
(60ft VP cable)
Power
Contents
• 1x Weatherproof color camera with mounting bracket (SM-218)
• 1x 60 ft VP (video/power) cable
• 1x 12V DC power adapter
• 1x Users manual
Specifications
Image Sensor
Effective Pixels
Signal System
Horizontal Resolution
Lens/Viewing Angle
Weatherproof
Minimum illumination
Shutter Speed
White Balance
S/N Ratio
IR Distance
Power Requirement
Power Consumption
Dimensions (LxWxH)
Camera Weight (net/gross)
1/3” Color CMOS
NTSC: 512 (H) x 492 (V)
PAL/NTSC
600TV Lines
6mm / 60 degree
IP66 and anti-fog camera glass/metal case
Standard 0.2Lux; with LEDs 0Lux
1/50(1/60)--1/100,000 (sec)
Auto Tracking White Balance
More than 48db (AGC OFF)
Up to 80ft (Night vision B/W)
DC12V/500mA
3.5W
3.3”x2.2”x2.3” (camera body)
0.8lbs (without bracket)/2.4lbs
