SecurityMan
®
SM-140SD
14" CCTV digital color monitor (CRT)
User Manual
2
© Copyright 2006
This manual is furnished under license and may be used or copied only in accordance with the terms of such
license.
Except as permitted by such license, no part of this publication may be reproduced, stored in a retrieval system, or
transmitted, in any form or any means, electronic, mechanical, recording, or otherwise, including translation to
another language or format, without the prior written permission of Part.
The content of this manual is furnished for informational use only, is subject to change without Notice, and should
not be construed as a commitment by SecurityMan Inc,. SecurityMan Inc,. assumes no responsibility or liability for
any errors or inaccuracies that may appear in this book.
FCC Information
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Operation of this equipment in a residential area is likely to cause interference in which case the user at his or her
own risk and expense will be required to correct the interference.
Declaration of Conformity
SecurityMan declares that the SM-140SD conforms to the following standards, in accordance with the provisions of
the EC Directive 89/366/EEC: EN 55022 (CISPR 22:1985), Class A.
Warranty
SecurityMan Inc,. warrants that this product will be free from defects in title, materials and manufacturing workmanship for one year from the date of the purchase. If the product is found to be defective then, as your sole remedy
and as the manufacturer’s only obligation, SecurityMan will repair or replace the product.
This warranty is exclusive and is limited to SM-140SD. This warranty shall not apply to products that have been
subjected to abuse, misuse, abnormal electrical or environmental conditions, or any condition other than what can
be considered normal use.
Warranty Disclaimers
SecurityMan Inc,. makes no other warranties, express, implied or otherwise, regarding the SM-140SD-04, and
specifically disclaims any warranty for merchantability or fitness for a particular purpose.
The exclusion of implied warranties is not permitted in some states and the exclusions specified herein may not
apply to you. This warranty provides you with specific legal rights. There may be other rights that you have which
vary from state to state.
Limitation of Liability
The liability of SecurityMan Inc,. arising from this warranty and sale shall be limited to a refund of the purchase
price. In no event shall SecurityMan be liable for costs of procurement of substitute products or services, or for any
lost profits, or for any consequential, incidental, direct or indirect damages, however caused and on any theory of
liability, arising from this warranty and sale. These limitations shall apply not with standing any failure of essential
purpose of any limited remedy.
SecurityMan
15861 Tapia Street, Irwindale, CA91706, USA
Tel: 888-977-3777 Tel: 626-338-2028 Fax: 626-338-3585
Email: info@securitymaninc.com
Website: http://www.securitymaninc.com
Copyright 2006 by SecurityMan v1.0
For Customer Service: 888-977-3777
2
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER
(OR BACK). NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
Explanation of Graphical Symbols
Warning - To prevent fire or shock hazard, DO NOT expose this monitor to
rain or moisture.
This product must be grounded.
Product specification is subject to change without notice.
The lightning flash with arrowhead symbol, within
an equilateral triangle is intended to alert the
user to the presence of uninsulated 'dangerous
voltage' within the product's enclosure that may
be of sufficient magnitude to constitute a risk of
electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to the presence
of important operating and maintenance (servicing) instructions in the literature accompanying
the appliance.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
3
4
Contents
Important Safeguards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Front panel components and control . . . . . . . . . . . . . . . . . .8
Back panel components and control . . . . . . . . . . . . . . . . . . .10
Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Important Safeguards
1) Read instructions:
All the safety and operating instructions should be read before the appliance is
operated.
2) Follow instructions:
All installation and operating instructions should be followed.
3) Accessories:
Do not place this monitor on an unstable stand, tripod, bracket, or table. The
monitor may fall, causing serious injury to a child or adult, and serious damage
to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by supplier, or sold with the monitor.
4) Cleaning:
Unplug this monitor from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
5) Water and Moisture:
Do not use this monitor near water, for example, near a bathtub, wash bowl,
kitchen sink, laundry tub, in a wet basement, near a swimming pool, etc...
6) Ventilation:
Slots and openings in the cabinet are provided for ventilation and ensure reliable
operations of the monitor and protect it from overheating. These openings
should never be blocked by placing the monitor on a bed, sofa, rug, or other
similar surfaces. This monitor should never be placed near or over a radiator or
heat register. This monitor should not be placed in an enclosed area such as a
bookcase or rack unless proper ventilation is provided or supplier instructions
have been adhered to.
Caution
Power source is dedicated on the back of the set. It contains high
voltage parts, if the cover is removed, it may cause fire or electric
shock. Do not remove the cover by yourself.
5
7) Object and Liquid Entry:
Never push objects of any kind into this monitor through openings as they may
touch dangerous voltage points or short-circuit parts that would result in a fire or
electric shock. Never spill liquid of any kind on the monitor.
8) Repair (Servicing):
Do not attempt to repair this monitor yourself as opening or removing covers
may expose you to dangerous voltage or other hazards. Refer to qualified service personnel.
9) Replacement Parts:
When replacement parts are required, be sure the service technician uses
replacement parts specified by supplier or have the same characteristics as the
original parts. Unauthorized substitutions may result in fire, electric shock, or
other hazards.
10) Safety Check:
Upon completion of any service or repair to this monitor, ask the
service technician to perform safety checks to determine that the
monitor is in proper operating condition.
11) Retain Instructions:
The safety and operating instructions should be retained for future reference.
General
Scope
1) The information in this instruction manual covers installation and operations
of the Color Monitor.
2) These units should be installed with approved materials and wiring practices
in accordance with the National Electrical Code and applicable local wiring ordinances.
Introduction
1) The Color Monitor, having a resolution of more than 450/500 lines (NTSC) or
520/600 lines (PAL), produces high quality pictures on a 14" screen. Designed
primarily for industrial applications, this monitor accepts standard EIA color input
signals.
2) The menu’s picture settings include: Contrast, Bright, Color, Tint, Sharp, B.B.
6
Features
• 14" High Quality Pictures
• High Resolution NTSC 450 lines / PAL 520 lines
• 1 Channel Video Input/Output
• 1 Channel Audio Input/Output
• Worldwide Multiple System (NTSC/PAL)
• On screen digital (OSD) control buttons
Specifications
CRT 14" CRT
Video Input /Output 1 Channel (BNC interface) input/output.
Audio Input /Output 1 Channel RCA input/output
Control Front Menu (Contrast, Bright, Color, Tint, Sharp,
B.B), Adjust, Select, and Power switch.
Power Source Control Range of Main Section 100V ~ 230VAC
Indicated on the back of the Monitor.
Power Consumption Max: 60W
Resolution Max: NTSC 450 lines / PAL 520 lines
Video System Worldwide Multiple System (NTSC/PAL)
Horizontal Stabilization 15.625 KHz +/- 500 Hz
Vertical Stabilization 50 Hz/60Hz +/- 3 Hz
Audio Frequency Max: 1.0W
Operating Temperature 0˚C ~ 40˚C
Operating Humidity 10 ~ 90%
Weight 12Kg
Dimensions (WxHxD) 14.5" x 13.5" x 15.4" (367mm x 342mm x 392mm)
7

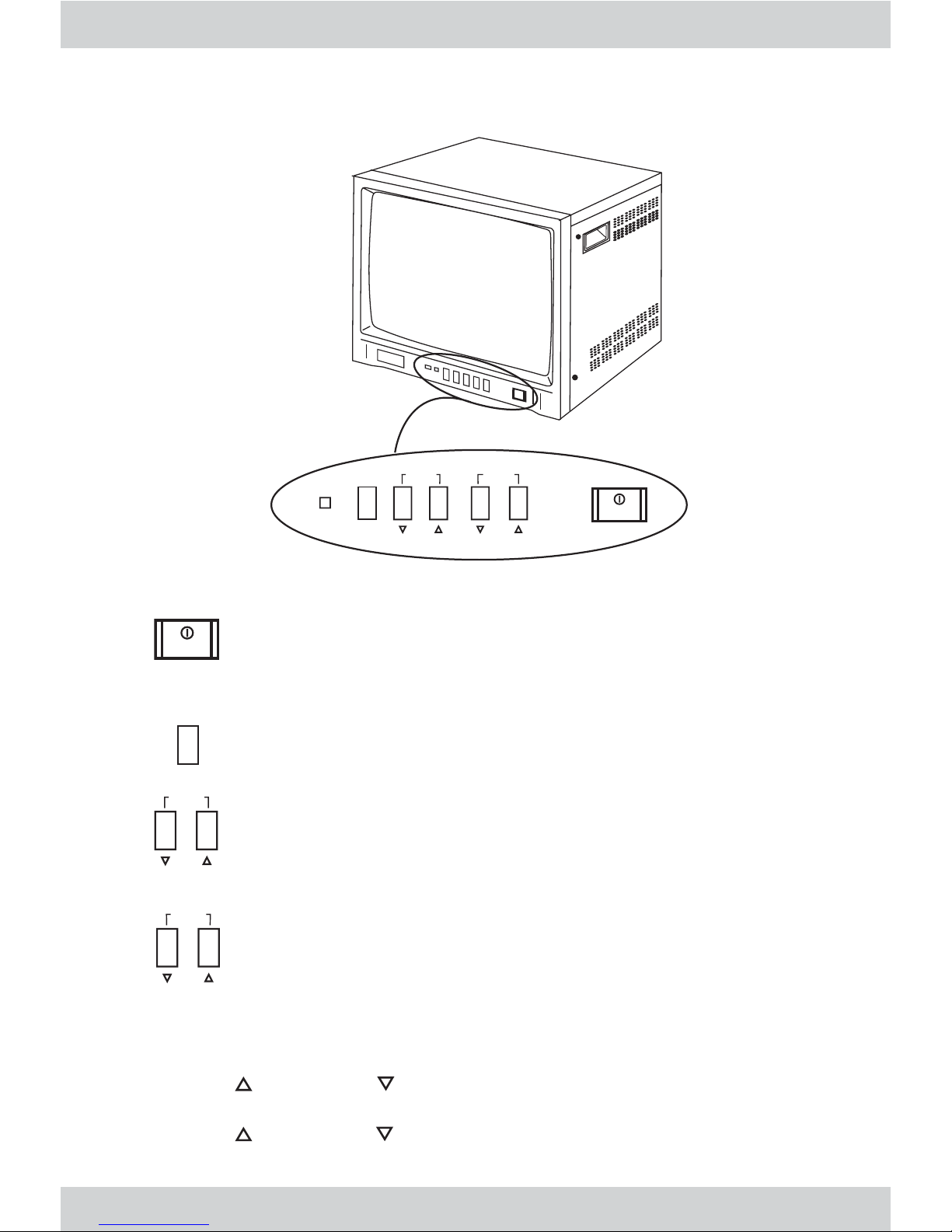

Front panel components and controls
1) Press the MENU button to select Menu mode.
2) Press the SELECT or SELECT button to select the setting.
3) Press the ADJUST or ADJUST button to adjust its parameter.
Picture Setting Selection Buttons
Press these buttons to choose which setting to
modify.
SELECT
Adjusting Volume Buttons
These two buttons have a dual capability.
• Adjust V olume.
• In the menu mode, to select setting value.
ADJUST
Menu Selection Buttons
Press this button to access the PICTURE settings
menu.
MENU
Power Switch
On/Off Switch. If you press this switch, the monitor
will turn on and a green LED will show.
POWER
POWER
MENU
ADJUST
SELECT
(LED)
8
Settings range in each Menu
Exiting From Menu Mode
After 10 seconds of no button activity in Menu mode, the Menu mode will close.
Adjusting Volume
1) Press ADJUST button to turn the volume down. Press the ADJUST button to turn the volume up.
2) After 4 seconds of no button activity with the volume bar displayed, the volume bar will close, and save the change.
Explanation
Settings range
Menu
Color
To select a specific Contrast level
within the setting range
To select a specific Color level
within the setting range
To select a specific Brightness level
within the setting range
Select from a black or blue
background (no video input and B.B
off will produce black background)
0 ~ 100
0 ~ 100
0 ~ 100
0 ~ 100
ON / OFF
Contrast
Bright
Sharp
Volume
0 ~ 100
To select a specific Volume
within the setting range
Tint
B.B
-50 ~ +50
To select a specific Sharpness level
within the setting range
To select a specific Tint level
within the setting range (Effective
on System of NTSC)
9

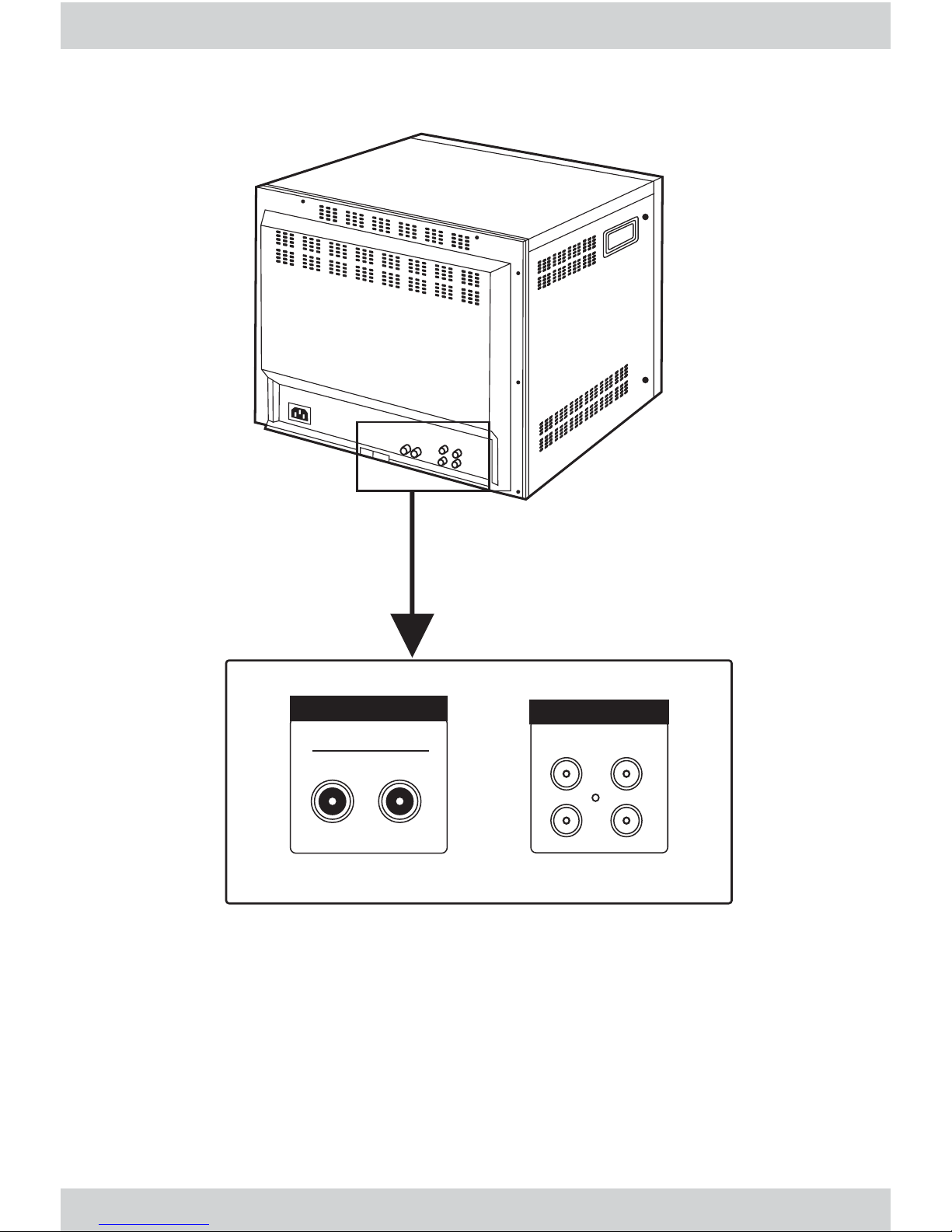

Back panel components and controls
VIDEO LINE
Video input/output
AUDIO LINE
Audio input/output
IN
OUT
IN
OUT
AUDIO LINE
VIDEO LINE
VIDEO
10
Connection
Maintenance
If the quality of the picture on the COLOR MONITOR is poor and cannot be
improved, inspect all system connections and cable runs.
Repair should be performed by a qualified technician with adequate test equipment and facilities.
IN
OUT
IN
OUT
AUDIO LINE
VIDEO LINE
VIDEO
CCD CAMERA
11
