Security Camera King TVIPTZ-TP2IR18XME User Manual

Download

IPPTZ User's Manual

TVIPTZ-TP2IR18XME

PTZ

Control

Activated Recording

Motion

Warranty

View From

Anywhere

1080p

Resolution

WARNINGS AND CAUTIONS

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS

THROUGH VENTILATION GRILLS OR OPENINGS ON THE EQUIPMENT.

CAUTION

EXPLANATION OF GRAPHICAL SYMBOLS

This symbol, is intended to alert the user the presence of non-insulated

“dangerous voltage” within the product’s enclosure that maybe of sufficient

magnitude to cause shock.

This symbol, is intended to alert the user of the presence of important operating and

maintenance (servicing) instructions in the literature accompanying this product

PRECAUTIONS:

Anyone without technical qualifications should not attempt to operate this dome

device before reading this manual thoroughly.

Remove any power to the dome before attempting a ny operations or adjustments

inside the dome cover to avoid potential damage to the mechanism.

Inside the dome cover there are precision optical and electrical devices. Heavy

pressure, shock and other sudden adjustments or operations should be avoided.

Otherwise, you may cause irreparable damage to the product.

Please DO

NOT remove or disassemble any intern al parts of the video camera to

avoid abnormal operation and voiding the warranty. There are no serviceable

parts inside this camera.

All electrical connections to the dome should be made in strict accordance with the

attached labels and wiring instructions in this manual. Failure to do so may

damage the dome beyond repair and void the warranty.

For

outdoor installation, especially in high places or poles, it is highly recommended

that the proper lightning arrestors and surge suppressors are installed before the

dome is started.

IMPORTANT SAFEGUARDS

1. Read these instructions before attempting installation or operation of dome device

2. Keep these instructions for future reference

Heed all warnings and adhere to electrical specifications

4. Clean only with non abrasive dry cotton cloth, lint free and approved acrylic cleaners

5. Should the lens of the camera become dirty, use special lens cleaning cloth and solution to

properly clean it.

6. Do not block any ventilation openings. Install in accordance with manufacturer’s

instructions

7. Use only attachments or accessories specified by the manufacturer

8. Verify that the surface you are planning to use for attaching the dome can adequately

support the weight of the device and mounting hardware

Protect the device against lighting storms wi

th proper power supplies

10.

Refer all servicing to quali

fied service personnel. Servicing is required when the device has

been damaged in any way, when liquid traces are present, when the presence of loose

objects is evident or if the device does not function properly, or has received sever

impact.

11. Indoor dome is for indoor use only and not suitable for outdoor or high humidity locations.

Do not use this product under circumstances exceeding specified temperature and

humidity ratings.

12.

Avoid pointing the camera directly to the sun or other extremely bright objects for

prolonged period of time to avoid the risk of permanent damages

to the imaging sensor.

13.

The attached instructions are for use

by qualified personnel only. To reduce the risks of

electric shock do not perform any servicing other than whats in the operating

instructions unless you are qualified to do so.

14. During usage, user should abide by all electrical safety standards and adhere to electrical

specifications for the operation of the dome. The control cable for RS485 communications

as well as the video signal cables should be isolated from high voltage equipment and or

high voltage cables.

15. Use supplied power supply transformer only.

INDEX

1 Product Introduction................................................................................................................... 5

1.1 Package Contents...............................................................................................................5

1.2 Specification.........................................................................................................................6

1.3 Function Description...........................................................................................................7

2 Installation..................................................................................................................................... 9

2.1 DIP Swi

tch Settings............................................................................................................ 9

2.1.1 Preparation............................................................................................................... 9

2.1.2 Address Settings......................................................................................................9

2.1.3 Baud Rate Settings............................................................................................... 10

2.1.4 RS-485 Bus Matching Resistance...................................................................... 10

2.2 Bracket Dimensions..........................................................................................................

2.2.1 Wall Mounted Bracket........................................................................................... 11

2.2.2 Corner Mounted Bracket...................................................................................... 11

2.2.3 Pole Mounted Bracket...........................................................................................11

2.2.4 Ceiling Mounted.....................................................................................................12

2.3 Installation of Brackets.

....................................................................................................12

2.3.1 Wall Mounted......................................................................................................... 12

2.3.2 Corner Mounted.....................................................................................................13

2.3.3 Pole Mounted......................................................................................................... 14

2.3.4 Ceiling Mounted.....................................................................................................15

2.4 Connection.........................................................................................................................16

3. Function Instruction.................................................................................................................17

3.1 Power Up Action............................................................................................................... 17

3.2 Basic Function...................................................................................................................17

3.3 Special Function...............................................................................................................

3.4 Screen Character Operation...........................................................................................18

4 OSD Menu.................................................................................................................................... 20

4.1 Menu Index........................................................................................................................ 20

4.2 System Information...........................................................................................................21

4.3 Dome.................................................................................................................................. 21

4.3.1 Communication...................................................................................................... 22

4.3.2 IR Display............................................................................................................... 22

4.3.3 Guard Tours............................................................................................................23

4.3.4 A-B Scan................................................................................................................. 23

4.3.5 Pan Scan

................................................................................................................

4.3.6 Park Action............................................................................................................. 24

4.3.7 Privacy Zone.......................................................................................................... 25

4.3.8 Alarm (Optional).....................................................................................................25

4.3.9 Advanced................................................................................................................ 26

4.4 Camera...............................................................................................................................26

4.5 Language........................................................................................................................... 27

4.6 Display................................................................................................................................

4.7 R

eset...................................................................................................................................27

5. Auto Temperature Control......................................................................................................28

Appendix

Ⅰ

Anti-lightning, Anti-surge..................................................................................28

Appendix

Ⅱ

Clean Transparent Cover.................................................................................. 29

Appendix

Ⅲ

Common Knowledge on RS-485 Bus............................................................ 29

1. Basic Feature of RS-485bus.............................................................................................29

Mode of Connection and Terminal Resistance.............................................................. 29

AppendixⅣAddress Code Mapping Table............................................................................30

Appendix

Ⅲ

Exception Handling............................................................................................ 32

Copyright Statement.................................................................................................................... 32

* Indicates the functions with default protocol, it might not function by using other protocols

※

Indicates the optional functions, only with certain mode.

1 Product Introduction

1.1 Package Contents

IR Speed dome 1pc

Wall mount bracket 1pc

Power supply 1pc

Screws kits 1pc

User manual 1pc

1.2 Specification

Model#: TVIPTZ-TP2IR18XE

Camera

Image Sensor 1/2.8” SONY CMOS Sensor 2.4MP

Image Resolution 1080P

S/N Ratio ≥58dB

PTZ

Horizontal Rotation Speed 60°/s

Horizontal Rotation Range 360°

Tilt Rotation Speed 360°

Tilt Rotation Range 93°

Auto Flip Horizontal 180°, Vertical 93°

Ratio Speed Support

360° Scan User programmable

360° Scan Speed 01-64speed setting available

A-B Scan User programmable

A-B Scan Speed 01-64speed setting available

PWR on Action Memory/Tour/360 scan/AB scan/Home/Nop

Park Time 1-60 mins setting available

Dwell Preset 1-60s interval available

Preset Points 220

Go to Preset Speed 200°/s

Guard Tours 4 groups

Guard Points Max.16 points, dwell time user selectable

Lens

Focus Length 5.35mm-96.3mm

Focus Control 18X Optical Zoom

Night Vision

Infrared LED 22x8PCS + 16x6PCS

IR Range 390 Feet (120m)

Auxiliary Interface

Communication Protocol Pelco-D, Pelco-P

Communication RS485

Baud Rate 1200/2400/4800/9600bps

General

Weatherproof

IP66

Operating Humidity ≤95% Non Condensing

Heater & Blower Auto temperature control

Auto Control IR LED PWM

OSD Menu Yes English

Power DC12V/3A

Power Consumption ≤ 36W

Lightning Protection Transient voltage 6000V

Dimension 32x32x43(cm)

Weight 7kgs

Operating Temperature

Indoor: 32°~104°, Outdoor: -40°~140°

Model#: TVIPTZ-TP2IR18XME

Camera

Image Sensor 1/2.8” SONY CMOS Sensor 2.4MP

Image Resolution 1080P

S/N Ratio ≥58dB

PTZ

Horizontal Rotation Speed 45°/s

Horizontal Rotation Range 360°

Tilt Rotation Speed 30°/s

Tilt Rotation Range 93°

Auto Flip Horizontal 180°, Vertical 93°

Ratio Speed Support

360° Scan User programmable

360° Scan Speed 01-64speed setting available

A-B Scan User programmable

A-B Scan Speed 01-64speed setting availabl

PWR on Action Memory/Tour/360 scan/AB scan/Home/Nop

Park Time 1-60 mins setting available

Dwell Preset 1-60s interval available

Preset Points 220

Go to Preset Speed 200°/s

Guard Tours 3 groups

Guard Points Max.16 points, dwell time user selectable

Lens

Focus Length 5.35mm-96.3mm

Focus Control 18X Optical Zoom

Night Vision

Infrared LED 42x6PCS

IR Range 195 Feet (60m)

Auxiliary Interface

Communication Protocol Pelco-D, Pelco-P

Communication RS485

Baud Rate 1200/2400/4800/9600bps

General

Weatherproof IP66 Rated

Operating Temperature Indoor: 0°~ +40° Outdoor: -40°~ +60°

Operating Humidity ≤95% Non Condensing

Heater & Blower Auto temperature control

Auto Control IR LED PWM

OSD Menu Yes English

Power DC12V/3A

Power Consumption ≤ 36W

Lightning Protection Transient voltage 3000V

Dimension 29.5x28x17(cm)

Weight 2.5kgs

Operating Temperature

Indoor: 32°F~104°F, Outdoor: -40°F~140°F

1.3 Function Description

Super Communication Address, baud rate and protocol can be changed both from Dip switch or from software.

Multilanguage OSD Menu The language display on screen menu, User can set the function or parameter, or check the related information through the OSD.

Privacy Mask

Privacy masking is a feature found in many IP cameras which is used to protect personal privacy by concealing parts of the image from view with a masked area.

Alarming Set

Details please refer to the OSD menu.

IR Detection Time

Time duration switching from Color to B/W or B/W to Color.It can be set through OSD Focus The auto focus enables the camera to focus automatically to maintain clear image. User can use manual focus to in special condition. Under the following conditions camera will not auto focus on the camera target: (1) Target is not in the center of the screen; (2) When attempting to view images that are far and near at the same time; (3) Target is strongly lighted object, such as neon lamp. (4) Targets are behind glass covered with water droplets or dust. (5) Targets are moving quickly. (6) Monotonous large area targets, such as wall. (7) Targets are too dark or faint.

BLC

If a bright backlight is present, the target in the picture may appear dark or as a silhouette, BLC enhances the target in the center of the picture, the dome uses the center of the pictures to adjust the iris. if there is a bright light source outside this area, it will wash out to white, the camera will adjust the iris so that the target in the sensitive area will properly exposed.

Iris Control

Factory default is automatic camera aperture, in mode of which camera senses changes in ambient light through moving and adjust automatically lens aperture to make the brightness of output image stable.

Users can manually adjust the aperture size to get the required picture brightness

through pressing OPEN or

CLOSE keys.

Auto-recognize to Protocol and Module

The dome can auto-recognize to the corresponding protocol and module during

self-inspection.

eg. Module: Sony, CNB, LG, Samsung, domestic etc.

Protocol: PELCO_P, P

ELCO_D etc.

Day/Night Switch

With auto day/night switch function, when the illumination is low the picture will auto switch

from day to night mode and when the illumination is high enough the picture will auto switch

from night to day mode

Ratio Speed

PTZ speed is will vary depending on the zoom factor. When zooming in, the speed will

become slower and when zooming out, the speed will become quicker.

A-B Scan

Dome circularly scans close-up real-time scene according to A-B points at setting speed

in both horizontal and vertical directions.

Pan Scan

Dome will 360°clockwise continuously scan the display scene at setting speed in

horizontal direction under the condition that pitch angle remains the same.

Preset

After the dome camera keeps arbitrary PTZ location, it will automatically move to the

defined position when preset is called.

Guard To ur Scan

Dome patrol scans according to certain edited preset order.

Power Off Memory

This feature allows the dome to resume its previous preset or status after powered off and

on.

Park Action

If unsed for a certain amount of time dome will automatically run preset specific mode

Zero Alignment

There is a point specified as zero point. When the dome is working, the preset point is not

accurate. User can make the dome automatically enable the zero alignment .

Auto Flip

In the manual tracking mode, when a target goes

directly beneath the dome, the dome will

automatically rotate 180 degree in horizontal direction to maintain tracking. When the dome

flips, the camera starts moving upward as long as you hold the joystick in the down

position.

2 Installation

2.1 DIP Switch Settings

2.1.1 Preparation

Before installation, make sure that the protocol , baud rate and address code used by the

product is fully consistent with th e control system. Corresponding DIP switch site ca n be

seen below:

2.1.2 Address Settings

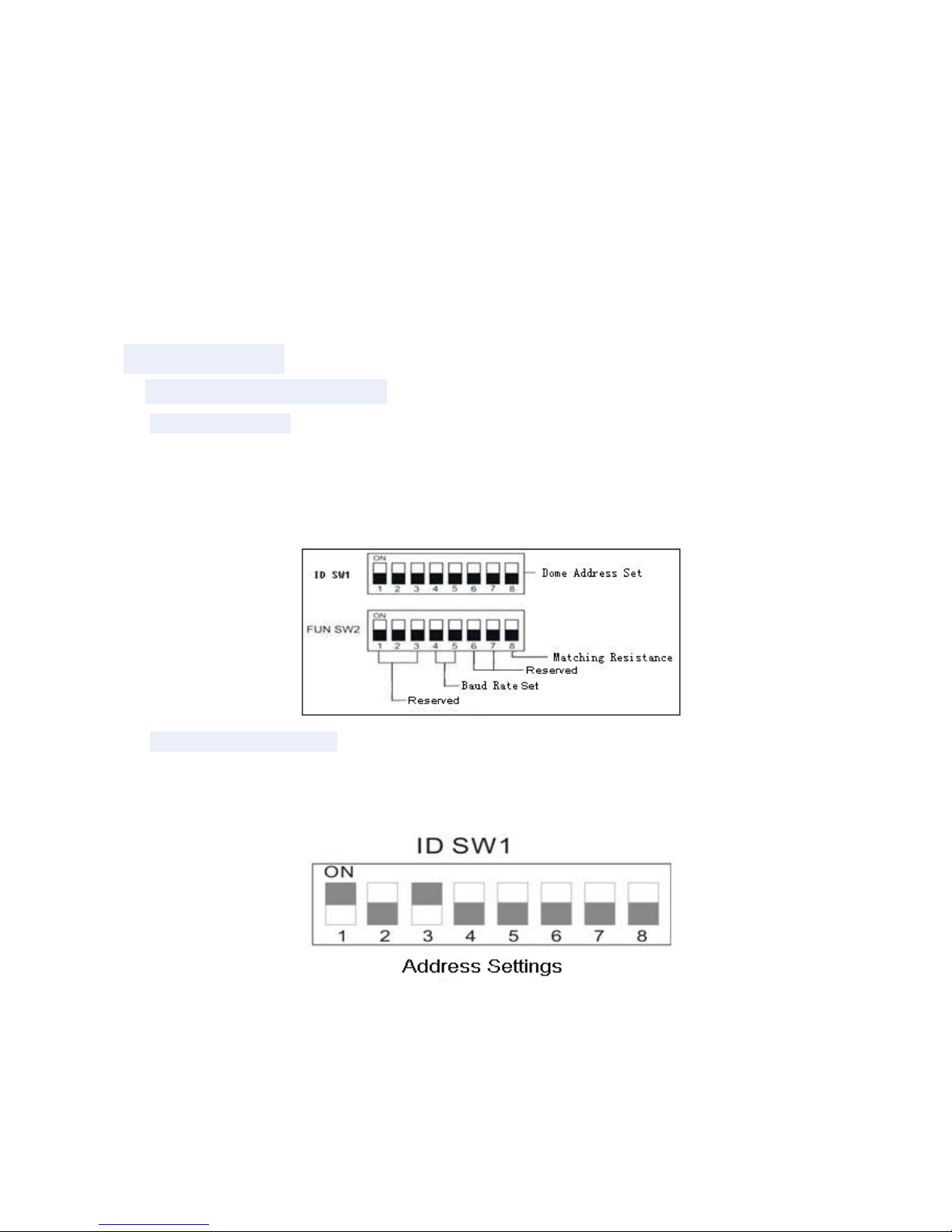

DIP switch SW1 is the address settings of camera. It is a 8-bit switch, each switch

corresponds with 0 or 1 in the Binary code. OFF status means 0 while ON status means 1.

(See illustration above) Turn on the 1st and 3rd (allocated to ON position) and get the

binary code 00000101, so the correspondence address is 5.

Detailed settings please refer to the back “Address Code Mapping Table”(appendixⅣ).

2.1.3 Baud Rate Settings

The 4th and 5th DIP Switches set the Baud rate. Factory-default setting is 2400bps.

Baud rate: 1200bps, 2400bps, 4800bps, 9600bps selectable

2.1.4 RS-485 Bus Matching Resistance

The 8

bit of DIP switch SW2 is to select the matching resistor. To the control center, in

order to prevent the reflection and interference of RS-485 communication signal and other

signals, the parallel matching resistor is needed in the communication interface of dome

camera at the end away from the control center.

DIP switch SW2 has a control switch of matching resistor. That the 8

bit micro-switch turn

to the ON state (set as below) means having connected the matching electricity to RS-485

bus.

2.2 Bracket Dimensions

2.2.1 Wall Mounted Bracket

2.2.2 Corner Mounted Bracket

2.2.3 Pole Mounted Bracket

2.2.4 Ceiling Mounted

2.3 Installation of Brackets.

2.3.1 Wall Mounted

Fig 1

Installation conditions:

Wall mounted dome can be used in the hard wall structure with a thickness that should be enough to install expansion bolt in indoor and outdoor environment. The wall can bear at least 4 times the weight of the dome. Install wall hanging bracket:

a. As shown in fig 2, with the installation holes in the underside of the wall hanging bracket as

pattern, draw punched locations and punch.

Fig 2

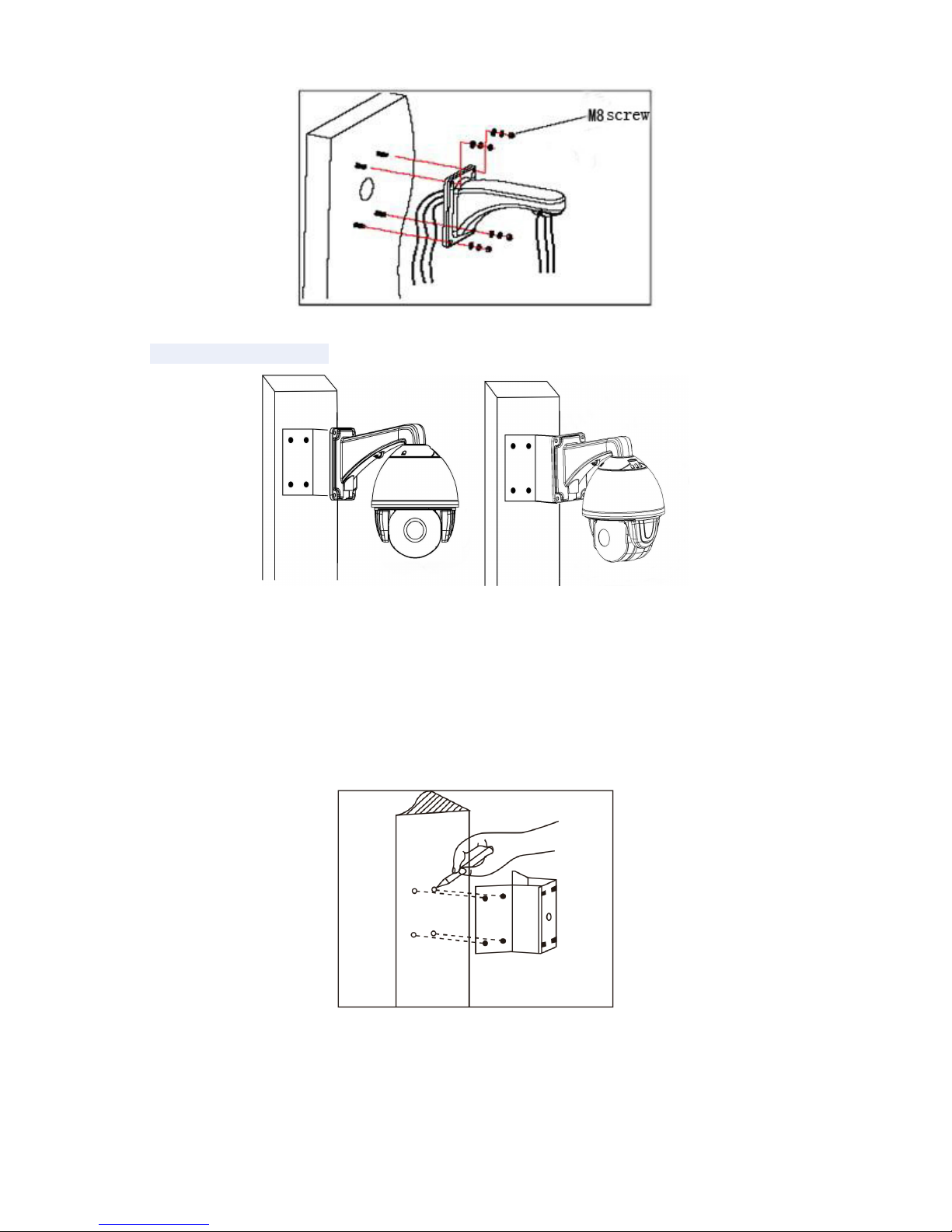

b. As shown in fig 3, fix the wall hanging bracket on the wall with wire and cable through it.

Fig 3

2.3.2 Corner Mounted

Fig 11

Installation conditions:

Corner

mounted dome can be used in the hard wall structure with an angle of 90° with a thickness that should be enough to install expansion bolt in indoor and outdoor environment. The wall can bear at least 4 times the weight of the dome. Install corner mounted attachment and wall hanging bracket:

a. As shown in fig 12, with the installa tion holes in the corner mounted attachment as pattern, draw punched locations on the wall with an angle of 90°and punch to install expansion bolt.

Fig 12

b. As shown in fig 13, use M8 screw nut to fix the base of corner mounted on the wall with all cables through the center holes of the corner mounted, marine glue and bracket. Enough wiring length should be left.

Fig 13

c. As shown in fig 14, fix the wall hanging bracket with all cables power through it on the corner mounted attachment.

Fig 14

2.3.3 Pole Mounted

Fig 15

Installation conditions:

Pole mounted dome can b e used in the hard pole structure in indoor and outdoor environment whose diameter should match the installation size of stainless hose clamps. Factory default is 6 inches stainless hose clamps (fit φ130-152mm pillar). The pole structure can bear at least 4 times the weight of the dome. Install corner mounted attachment and wall hanging bracket:

a. As shown in fig 16, use the stainless hose clamps to fix the pole mounted attachment with all cable through it on the pole structur

Fig 16

b. As shown in fig 17, fix the wall hanging bracket with all cables through it on the pole mounted attachment.

Fig 17

2.3.4 Ceiling Mounted

Fig

Installation conditions:

Ceiling mounted dome with

thick pole can be used in the hard ceiling structure with a thickness

that should be enough to install expansion bolt in indoor and outdoor environment. The ceiling

can bear at least 4 times the weight of the dome. Install the base of ceiling and boom:

a. As shown in fig 19, with the installation holes in the base of ceiling as pattern, draw punched locations in the ceiling and punch to install M6 expansion bolt.

Fig 19

As sho

wn in fig 20, at first unscrew the M4 screw at the side of the base of ceiling.

Then make the three groups of

cables Power,video/control and alarming insert into the side recessing seal groove of the ceiling connector bottom and through the core hole of the base of ceiling mount.

Fig 20

Note: If the dome is used in outdoor conditions, use the silica gel on the surface of the ba

of ceiling and the ceiling board and around the out-holes to be sure its water sealed.

c. As shown in the fig 21, tighten the boom with electrical wire and cable through it on the base of ceiling and screw up the M4 screw.

Fig 21

Note: If the dome is used in the outdoor conditions, after using enough raw materials to wrap the thread at the upper end of boom, tighten the boom on the base of ceiling. Use the silica gel around the joint sleeve and connector of the boom to be sure water proof

Fig 24

3. Function Instruction

3.1 Power Up Action

Power Up Self Testing Pan, Tilt, Camera Self-test Completion

Pan action: Pan rotate in certain direction and stop in zero coordinate.

Tilt action: Tilt rotate in certain direction and stop in zero coordinate.

Lens action: Lens zooms out to the widest angle.

From running the action above to power up mode completion, power up self-testing finishes.

3.2 Basic Function

Dome Running

Control joystick or up, down, left

and right

Zoom

Press ZOOM- button to make the lens farther and minify the scene.

Press ZOOM+ button to make the lens closer and magnify the scene.

Focus

MFG PROTOCOL AUTO DOME ID COMM VERSION TEMPERATURE PAN: XXX TILT: XXX

MFG PROTOCOL AUTO DOME ID COMM VERSION TEMPERATURE DETECTING…

2.4 Connection

Connection of RS485

After FOCUS- button is pressed, the object in vicinity will become clearer while the object far away will become ambiguous.

After FOCUS+ button is pressed, the object far away will become clearer while the object in vicinity will be ambiguous.

Iris

Press IRIS- to gradually shrink the iris and decrease the image brightness.

Press IRIS+ to enlarge the iris and increase the image brightness.

Preset Point

Setting preset press botton “preset”+”number”+”enter”.

Calling preset press botton “call”+”number”+”enter”.

Deleting preset press botton “clear”

+”number”+”enter”.

Remark: Some preset points are used tentatively for special functions.

3.3 Special Function

The follow presets are predefined as special function, please shot+ prese t No+ enter to enable those functions:

PREST FUNCTION PRESET FUNCTION

33 Pan scan180 º 86 BLC on

34 Reset 87 BLC off

35 Wiper on 88 Freeze on

36 Wiper off 89 Freeze off

79 Digital zoom on 92 A-B scan

80 Digital zoom off 94 OSD off

81 Auto day/night 95 OSD on

Switch to night

Guard tour 3

83 Switch to day 97 Guard tour 2

84 Force on far light 98 Guard tour 1

85 Force on near light 99 Pan scan

Remark: If use some other equipments to control IR dome, some special functions probably can’t be effective because of the limite of protocol.

3.4 Screen Character Operation

Call preset 95 to enter the OSD, call preset 94 to exit the OSD.

Up or Down: Move the option of the OSD, change the value on the OSD.

Right: Enter the option, select the item or confirm.

Left: Return to main menu or cancel

Angle Display: XXX.XX(pan)/XXX.XX(tilt)

IR Display: Display on the lower right corner of the screen.

Remark: 1. Items with“< >” mean they have sub menu.

2. “→”means the cursor selecting some option.

3. “※” means editing the content of some option selected.

4. When entering the setting page in menu, it is useless to call preset 94 to exit

the menu directly. Such as the submenu <SET> in menu <GUARD TOUR SET>.

4 OSD Menu

4.1 Menu Index

Get into the Menu Screen

4.2 System Information

MFG: Max 15 characters displayed on the screen.

PROTOCOL: Display the protocol of the dome

DOME ID: Display the dome address

COMM: Form: Baud rate. Check bit. Data bit. Start bit

VERSION: Version will update along with the product upgrading

TEMPERATURE: Display the temperature of the camera, it changes along with the

temperature of the camera, the data is unchangeable by manual.

Remark: Protocol, ID and COMM all can be set in menu <COMM>.

4.3 Dome

<SYSTEM> <DOME> <CAMERA> <LANGUAGE> <DISPLAY> <RESET> EXIT

MFG PROTOCOL AUTO DOME ID 001 COMM 2400.N.8.1 VERSION TEMPERATURE EXIT

<DOME>

<COMM> <IR DISPLAY> <GUARD TOURS> <A-B SCAN> <PAN SCAN> <PARK ACTION> <PRIVACY ZONE> <ALARM> <ADVANCED> EXIT

4.3.1 Communication

DEVICE ID

: Used to distinct from the ID of other domes.

CHECK ID: Distinguish several domes with same ID. And altering target ID, soft protocol and baud rate needs to enter check ID in line with the device ID, otherwise altering can’t be completed.

TARGET ID: Target ID is available from 001 to 250.

SOFT PROTOCOL: Soft protocol is auto, Pelco-D and Pelco-P available

BAUD RATE: 1200BPS, 2400BPS, 4800BPS, 9600BPS available

<COMM RESET>: As shown in fig 4.3.1.2, carry out YES to reboot the dome and

communication reset to dial the code and baud rate.

SAVE: Please save the change of communication. After saving, the dome will reboot.

Remark: The out-of-factory default of dome camera is hardware DIP

set. After the COMM. is changed in menu, it can’t be effective until saved. If you need to get hardware DIP set again, run the COMM RESET.

4.3.2 IR Display

WORKING MODE: Working mode has auto, black/white, color selectable. Default is auto.

TESTING TIME: The IR

will execute the programmed action, .

OUTPUT POWER: Output power has 40%,60%,80%,100% for selection!

ILLUMINATION ON

: IOn the auto IR working mode, if the illumination on level is less than the ambient light, the picture will change to color, the IR illumination will turn off automatically. If the illumination on level is more than the ambient light, the picture will change to black , the IR illumination will turn on

WORKING MODE AUTO TESTING TIME 08S OUTPUT POWER 100% ILLUMINATION ON 3 AMBIENT LIGHT IR SWITCH ZOOM 06

EXIT

<COMM>

DEVICE ID CHECK ID 000000 TARGET ID 001 SOFT PROTOCOL AUTO BAUD RATE 2400BPS <COMM RESET> SAVE

EXIT

RESET TO DIAL THE CODE

YES EXIT

automatically.

AMBIENT LIGHT: Ambient light is a system data. User can not change it manually. It changes according to the environment all the time. The data will refresh every time when user enter the OSD. It is from 0 to 50 grade.

SWITCH ZOOM: When zoom value changes the IR LEDs with auto switch

dependingonthe amount of zoom selected 01-23.

4.3.3 Guard Tours

GUARD TOUR: Total 3 guard tours selectable: 01, 02, 03.

SETTING: Each guard tour includes max 16 presets. The number of the preset is from 0-64,

but 0 is not valid. Dwell time is 1 to 60s selectable. Speed is 1 to 64 grade selectable.

INIT: After init., preset point, dwell time, speed will resume to default setting.

RUNNING: Running the present guard tour.

DELETE: Delete the guard tour set. After deleting, the present preset points in the guard

tours all display as 0. While the exact preset point information doesn’t be deleted. So it is c

onvenient for user to select the preset point needing to be guarded tour.

4.3.4 A-B Scan

PRESET A: On A-B scan, A point can be preset from 0 to 64.

PRESET B: On A-B scan, B point can be preset from 0 to 64.

SCAN SPEED: A-B scan speed is 1 to 64 grade selectable.

DWELL TIME: Dwell time between A to B is 2s to 60s selectable.

RUNNING: Running the A-B scan. Check Fig. 4.3.4.2.

GUARD TOUR 01 <SETTING> INIT RUNNING DELETE

EXIT

ID POINT TIME(S) SPEED

1 01 06 64 2 02 06 64 3 03 06 64 4 04 06 64 5 05 06 64 6 06 06 64 7 07 06 64 8 08 06 64

<A-B SCAN>

PRESET A 01 PRESET B 02 SCAN SPEED 20 DWELL TIME 06S RUNNING DELETE EXIT

A-B SCAN

RUNNING… LEFT KEY TO EXIT

PAN：XXX TILT：XX

DELETE: After deleted, the preset points of A and B display as 0. While the exact preset point information doesn’t be deleted. So it is convenient for user to select the preset point needing to be scanned. Speed and dwell time will reset as default setting.

4.3.5 Pan Scan

PAN SCAN SPEED: Pan scan speed is 1 to 64 grade selectable.

INIT: Reset the scan speed and tilt degree as default setting.

RUNNING: Running the scan speed and tilt degree set.

4.3.6 Park Action

PARK MODE: Park mode includes OFF, Park action, A-B scan, Pan scan, guard tour 01,

guard tour 02, guard tour 03 and Preserve action.

When park mode is OFF status, the dome doesn’t run park mode.

When park mode is PRESERVE ACTION status, it records previous action

order(A-B scan, Pan scan, Guard tour 01, Guard tour 02, Guard tour 03).

Example: Running A-B scan at first, when the action stops unexpectedly, it enters the park mode to continue to run A-B scan.

PARK TIME: Park time is 01~60 mins selectable.

SETTING: After entering the OSD men

u, as 4.3.6.2, move to the desired position and save

the settings.

RUNNING: Running the park action, if there is no setting, system will remind that “Please set park action”.

DELETE: Delete the settings.

PAN SCAN SPEED 20 INIT RUNNING EXIT

PAN SCAN

RUNNING… LEFT KEY TO EXIT

PAN: XXX TILT: XX

PARK MODE OFF PARK TIME 01M <SETTING> RUNNING DELETE

EXIT

PRESET 1: SAVE PRESET 2: BACK

4.3.7 Privacy Zone

MASK NO.: Mask No. depends on the number of the module supported. The selective

range of Sony is from 1 to 24.

MASK: Mask has on and off selectable.

SETTING: Set the specific parameter of present mask NO. And call preset 1 to save the

settings.

Direction operation—Modify the coordinate of dome

Zoom operation—Modify the size of scenery

Iris operation—Modify the size of privacy zone

Remark: The mask size is better more than double the target size. If needing to modify mask NO.02, set it again. If needing to stop it, set mask to OFF

status.

If the module doesn’t support privacy mask, the screen will display the interface as Fig.

4.3.7.3.

4.3.8 Alarm (Optional)

ALARM: Alarm has OFF and ON selectable.

PATROL TIME: Patrol time is 2~60s selectable.

ALARM LINKAGE: Alarm linkage has OFF and ON selectable.

ALARM 1: To run alarm 1, presets 1-64 are available.

ALARM 2: To run alarm 2, presets 1-64 are available.

ALARM 3: To run alarm 3, presets 1-64 are available.

ALARM 4: To run alarm 4, presets 1-64 are available.

RELEASE TIME: Alarming release time, 2-60s selectable, the default is OFF.

MASK NO. 01 MASK OFF <SETTING>

EXIT

PRESET 1: SAVE

PRIVACY PROPOSED TO OPEN

<ALARM>

ALARM OFF PATROL TIME 06S ALARM LINKAGE OFF ALARM 1 01 ALARM 2 02 ALARM 3 03 ALARM 4 04 RELEASE TIME OFF

EXIT

4.3.9 Advanced

PWR ON ACTION: Power on action can be set as Memory, A-B scan, Pan scan, Park

action, Guard tour 01, Guard tour 02, Guard tour 03 and No action.

RATIO SPEED: Ratio speed can be set as ON or OFF status.

AUTO FLIP: Auto flip ca n be set as ON or OFF status.

WIPER MODE: Wiper mode can be set as ON or OFF status.

WIPER SPEED: Wiper speed 1-5 level adjustable.

WIPER TIMES: Wiper times 1-5 times adjustable.

<OTHERS>: Set other options.

4.4 Camera

CAM: Display the information of module supported by this dome.

ZOOM SPEED: Zoom speed is quick and slow selectable.

DIGITAL ZOOM: Digital zoom is on/off selectable.

FOCUS: Focus is auto and manual selectable

IRIS: Iris is auto and manual selectable

BLC: BLC is ON and OFF selectable

FREEZE: Video freeze is ON and OFF selectable

Remark: Only if those functions are available on the present module, the user can use them.

PWR ON ACTION MEMORY RATIO SPEED ON AUTO FLIP ON WIPER MODE OFF

WIPER SPEED 5

WIPER TIMES 2 <OTHERS> EXIT

CAM AUTO ZOOM SPEED QUICK DIGITAL ZOOM OFF FOCUS AUTO IRIS AUTO BLC OFF FREEZE OFF EXIT

4.5 Language

LANGUAGE: Language can be set as Chinese or English. Default settings is English.

4.6 Display

SYSTEML: Video system includes NTSC and PAL. N means NTSC and P means PAL.

P AND T: On screen, it displays the pan and tilt degree, user can enable or disable it.

ACTION: On the screen, it displays the current action, such as A-B scan, Call preset, Save

preset, Call park action, Pan scan etc. User can enable or disable it.

IR: IR is ON and OFF selectable.

DOME ID: At the top left co rner of screen, it displays the dome ID. User can enable or disable it.

COMM: At the top left corner of screen, it displays the dome communication informati

on. User

can enable or disable it.

4.7 Reset

CONFIRM: Delete the presets information

saved by the dome.

LANGUAGE ENGLISH

EXIT

SYSTEM PAL P AND T ON ACTION ON IR ON DOME ID ON COMM ON

EXIT

<RESET>

EXIT

CONFIRM: Save data,

dome restart

EXIT

CONFIRM: Factory default

EXIT

CONFIRM: Factory default

EXIT

CONFIRM: DEL ALL PRESETS CONFIRM 1: DEL 01 TO 16 CONFIRM 2: DEL 17 TO 32 CONFIRM 3: DEL 33 TO 48 CONFIRM 4: DEL 49 TO 64

EXIT

5. Auto Temperature Control

This product has built-in fan and heater, which accordingly cool or heat through temperature sensitive circuit inside the dome.

Appendix

Ⅰ

Anti-lightning, Anti-surge

This product is extremely air discharge and lightning protection with TVS tube technology,

which can effectively prevent the transient lightning below voltage 3000V, surge and

damages caused by other types of pulse signals.

However, necessary protective measures should be made in the premise of ensuring

electrical safety for outdoor installation according to the actual situation :

Signal transmission line must be at least 50 meters far away from the high-voltage

equipment or high voltage cable.

Try to choose outdoor wiring laid down along the roof line.

Way of sealed steel pipe buried wiring is used in the area which opened, and steel

pipe units grounded in one point. Overhead wiring is absolutely prohibited.

In the strong thunderstorms area or areas with high induced voltage (such as high

voltage substations), measure of installation of a dditional high power lightning

protection equipment and lightning rod must be taken.

Lightning protection and grounding o f outdoor devices and lines must take the

lightning-protection requirements of buildings into consideration, and comply with the

related national standards and industry standards.

System must be equipotential grounding. Grounding device must meet dual

requirements of anti-interference and electrical safety, and should not be shorted or

mixed with the adjacent lines in the strong power grid. When system is independently

grounded, grounding impedance should be less than 4Ω, and cross-sectional area of

grounding conductor must be not less than 25m

Fig 1

Appendix

Ⅱ

Clean Transparent Cover

In order to assure a clear image of dome, the under cover of dome should be cleaned

regularly.

Be careful when cleaning and hold the outer ring of under cover b y hands to avoid

directly touching with it. Because the acid sweat of finger membrane may corrode the

surface coating of under cover. Hard tool scratching the under cover may lead to

blurring the images of dome so that affecting image quality.

Please use a soft enough dry cloth or other alternatives to wipe inte rnal and

external surface.

If dirt is serious, user can use a mild detergent. Any senior furniture cleaning

products can be used to clean the under cover.

Appendix

Ⅲ

Common Knowledge on RS-485 Bus

1. Basic Feature of RS-485bus

According to industry bus standard of RS-485, RS-485 bus is half-duplex communication

bus with the characteristic impedance of 120Ω, whose maximum load capacity is 32

payloads (including the master device and the controlled device).

2. Mode of Connection and Terminal Resistance

2.1 Industry standard of RS485 bus requires that connection in a daisy chain should be

used between the devices with 120Ω terminal resistances connected at the both ends.

As shown in fig. 26 and fig. 27 is simplified connection, but the distance of part "D" shall not

beyond 7 meters.

Fig 2 Fig 3

2.2 120Ω terminal resistance is connected as shown in fig 2.

120Ω terminal resistance is available in the circuit board and the connection is shown as

following:

When needing to connect 120Ω resistance, toggle the 8

bit of DIP switch SW2 to "ON" .

This way the 120Ω resistance is connected to the circuit.

Appendix

Ⅳ

Address Code Mapping Table

SW1 DIP Switch sets the dome address, which using binary encoded. The 8th is the top

bits, and 1st is the lowest bits.

Toggle the code bits of DIP Switch to ON, then the corresponding location is “1”. Conversely,

it’s “0”.

Following is a dome address code mapping table to set PELCO_D:

Following is a dome address code mapping table to set PELCO_P:

Address

Switch Settings

Address

Switch Settings

SW1-1

SW1-2

SW1-3

SW1-4

SW1-5

SW1-6

SW1-7

SW1-8

OFF

1ONOFF

OFF

3ONON

OFF

5ONOFF

OFF

OFFONON

OFF

7ONON

OFF

9ONOFF

OFF

11ONON

OFF

13ONOFF

OFF

OFFONON

OFF

15ONONONON

OFF

17ONOFF

OFF

19ONON

OFF

21ONOFF

OFF

OFFONON

OFF

23ONON

OFF

ONONOFF

OFF

25ONOFF

OFF

ONONOFF

OFF

---

----

251ONON

OFF

ONONONONON

252

OFF

ONONONONON

253

OFF

ONONONONON

254

OFFONONONONONON

255ONONONONONONONON

SW1-1

SW1-2

SW1-3

SW1-4

SW1-5

SW1-6

SW1-7

SW1-8

OFF

2ONOFF

OFF

4ONON

OFF

6ONOFF

OFF

OFFONON

OFF

8ONONONOFF

OFF

12ONON

OFF

OFFONON

OFF

OFFONON

OFF

OFFONON

OFF

16ONONONON

OFF

20ONON

OFF

OFFONON

OFF

24ONONONOFF

OFF

---

----

251

OFF

ONONON

252

ONONOFF

ONONONONON

253

OFF

OFFONONONONONON

254

OFFONONONONONON

255

OFFONONONONONON

256

ONONONONONONON

After power is applied, there is no motion (self-test) and no video image.

Cable harness is improperly connected

Verify that the orientation of the connector input

Input power voltage is too low Verify the voltage of the input power

Power supply is not work

Change a to new power supply

Self-test is normal, but cannot control dome

Wrong communication settings

Set the correct protocol, baud rate and address of dome device

Improper connection of control cable (polarity)

Verify the polarity of the RS485 connection as per the instruction manual

Noise after self-testing

Mechanical obstruction Verify and correct it Camera module is not installed

correct

Reinstall correctly

Low power Change the correct power supply

Image is not stable

Low power

Check th e power supply or make sure the power input is DC 12V

Video cable is improperly contact

Verify the contact of the video cable

Image is blurring

Camera is on manual focus Change to auto focus

The lens is dusted Clean the lens

Control to the dome is not smooth

Power is too low Change the DC 12V Power supply Communication distance is too

long

Make sure the distance is in the allowed range

RS485 cable is not properly contact

Make the RS485 is properly contact

Too many domes connected

Make sure the connected dome is in the allowed quantity

This copyright is merely belong to the manufacturer. Without permission, please don’t

plagiarize or copy the contents of this book in any form or by any means.

The company follows the policy of continuous development. Therefore, the company

reserves the right to modify or improve the products described in this manual without

notice.

The content of manual is offered according to the "current state". Unless applicable law

otherwise specified, the company does not make any kind of clear or tacit reassurance

about the accuracy, reliability and contents of this manual. The company reserves the right

to revise or recoup this manual at any time without notice.

Appendix

Ⅲ

Exception Handling

Issue Possible Reason Solution

Security Camera King TVIPTZ-TP2IR18XME User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
