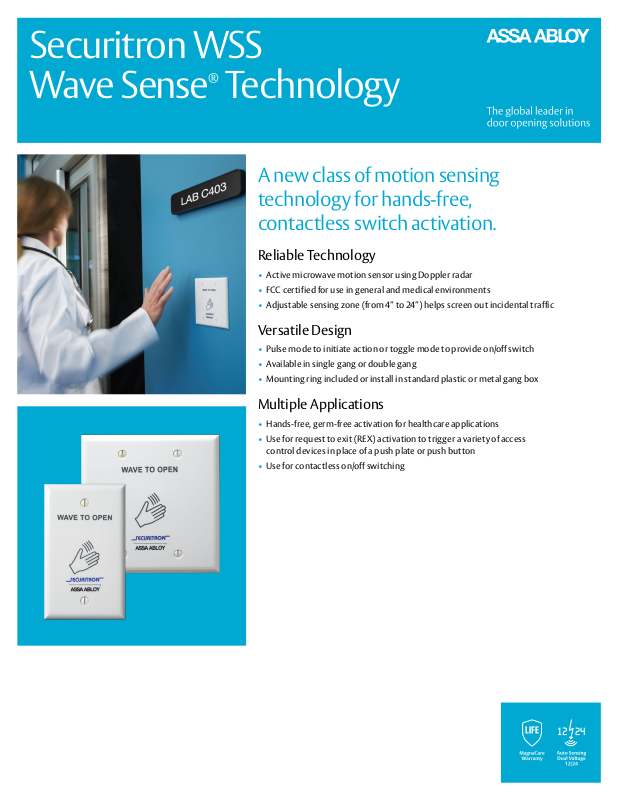

Securitron WSS-W1, WSS-W2 Specsheet

Securitron WSS

®

Wave Sense

Technology

A new class of motion sensing
technology for hands-free,
contactless switch activation.

Reliable Technology

• Active microwave motion sensor using Doppler radar

• FCC certified for use in general and medical environments

• Adjustable sensing zone (from 4” to 24”) helps screen out incidental traffic

Versatile Design

• Pulse mode to initiate action or toggle mode to provide on/off switch

• Available in single gang or double gang

• Mounting ring included or install in standard plastic or metal gang box

Multiple Applications

• Hands-free, germ-free activation for healthcare applications

• Use for request to exit (REX) activation to trigger a variety of access

control devices in place of a push plate or push button

• Use for contactless on/off switching

Microwave | Motion Sensor & Switch | No-Touch Activation

Need an Outdoor Solution?

WCC WBB

WCC and WBB allow the Wave Sense Switch to be mounted
in outdoor locations, not directly exposed to rain or snow

Specifications

Certifications

• Electromagnetic compatibility

to 2004/108/EC

• FCC: G9B-MS08 and IC: 4680A-MS08

Dimensions

• Single gang faceplate

4-1/2” x 2-3/4” [114mm x 70mm]

• Double gang faceplate

4-1/2” x 4-1/2” [114mm x 114mm]

Electrical

• Self-sensing 12 or 24 VDC

or AC input (± 10%)

Maximum Power Consumption

• Less than 1.5W (125 mA at 12 VDC)

1A SPDT contact can be operated
in toggle or pulse mode

• Pulse output: 0.5 seconds

Operating Temperature

• -4˚ to 131˚F [-20˚ to 55˚C]

• Indoor use

Shipping Weight

• 0.5 lbs

Features

Standard Features

• Active microwave motion sensing

using Doppler radar that is more
reliable than infrared sensors

• Adjustable sensing zone from

4” to 24” (102mm to 610mm) helps
screen out incidental traf fic

• FCC certified for use in general

and medical environments

• Touchless activation for

hands-free operation, reduces
transmission of germs

• Pulse mode to initiate action or toggle

mode to provide on/off switch

• Mounting ring included or install in

standard plastic or metal gang box

• Water-resistant foam gasket included

• MagnaCare

no-fault, no questions asked warranty

Optional Features

• Weather-resistant cover

• Weather-resistant backbox

• Offered in a single-gang

or double-gang model

®

lifetime replacement,

How to Order

Model Series Finish Mounting Method

WSS – W 1

WSS Wave Sense Sw itch W White 1 Single Gang

2 Double Gang

assaabloyesh.com | 800.626.7590 | 10027 S. 51st Street, Ste. 102 Phoenix, AZ 85044 USA

ESH-SEC-29-0818

Patent pending and/or patent www.assaabloydss .com/patents
Copyright © 2018, Hanchett Entr y Systems, Inc., an ASSA ABLOY Group
