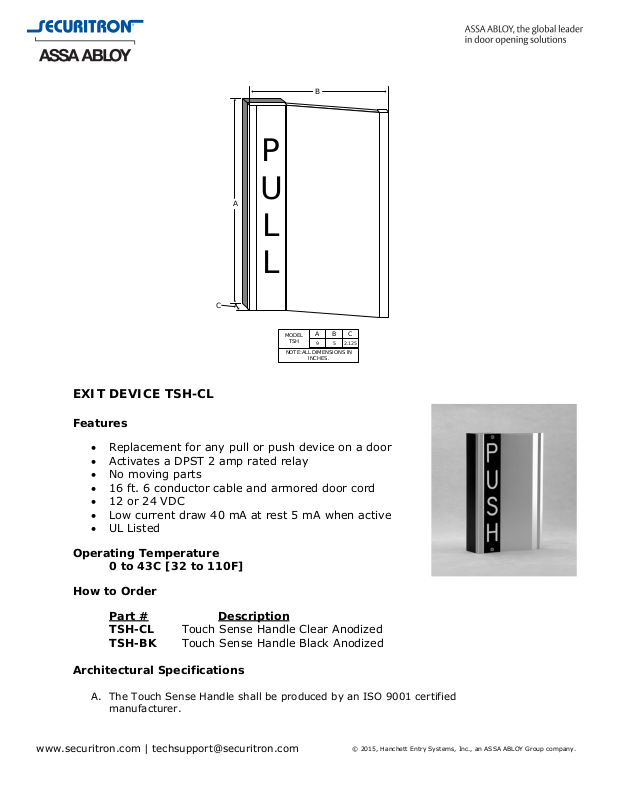

Securitron TSH-CL Specsheet

B

www.securitron.com | [e-mail]

© 2015, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company.

P

U

A

L
L

C

MODEL

A9B5C

TSH

NOTE:ALL DIMENSIONS IN

INCHES.

2.125

EXIT DEVICE TSH-CL

Features

• Repla

• Activates a DPST 2 amp rated relay

• No moving parts

• 16 ft. 6 conductor cable and armored door cord

• 12 or 24 VDC

• Low current draw 40 mA at rest 5 mA when active

• UL Listed

Operating Temperature

0 to 43C [32 to 110F]
How to Order
Part #

TSH-CL Touch Sense Handle Clear Anodized

TSH-BK Touch Sense Handle Black Anodized

cement for any pull or push device on a door

Description

Architectural Specifications

A. The Touch Sense Handle shall be produced by an ISO 9001 certified

manufacturer.

EXIT DEVICE TSH-CL (cont’d)

B. The exi

direct replacement for any pull or push device on an swinging door.

C. It shall activate a DP/ST 2 Amp rated relay when touched (no mechanical

movement) which will allow free egress.

D. The exit device shall have a backup push button, 16’ ft. of 20AWG 6 conductor

cable and a Stainless Steel - 630/US32D armored door cord shall be included

with the handle.

E. The device shall operate on either 12 or 24 VDC

t device shall employ an anodized aluminum finish and is intended to be a
