Securitron TM-2 Specsheet

B

www.securitron.com | [e-mail]

© 2015, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company.

A

MODEL

TM-2

NOTE:ALL DIMENSIONS IN

A

4.125B3.187

INCHES.

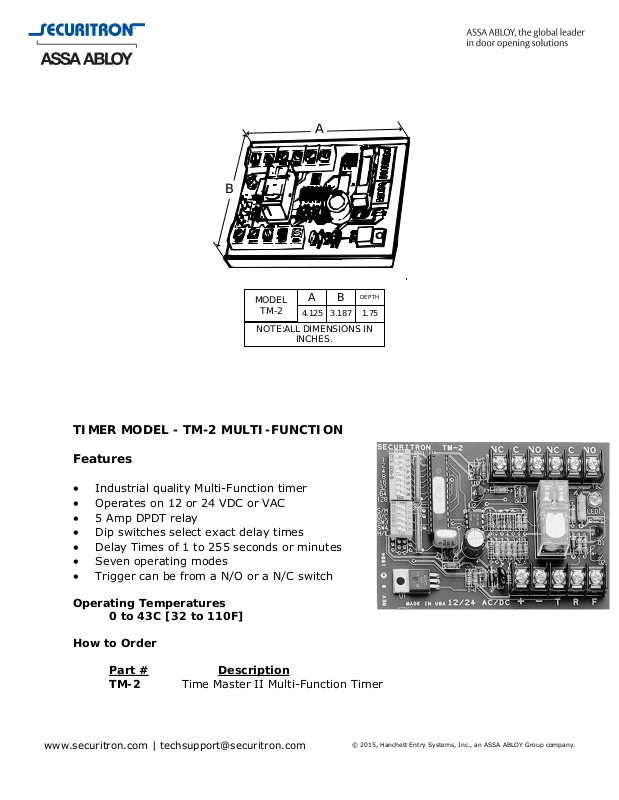

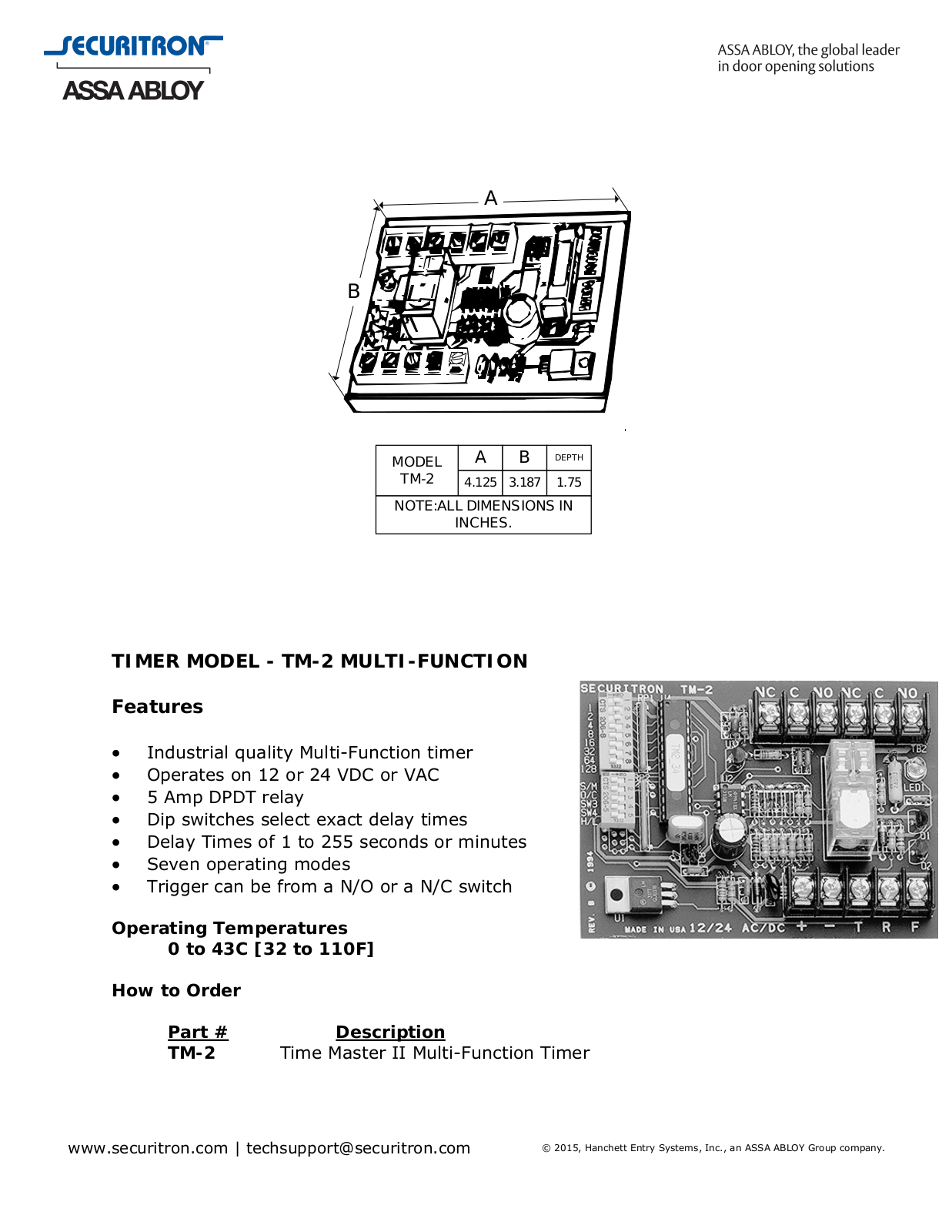

TIMER MODEL - TM-2 MULTI-FUNCTION

Features

• Industrial quality Multi-Function timer

• Operates on 12 or 24 VDC or VAC

• 5 Amp DPDT relay

• Dip switches select exact delay times

Delay Times of 1 to 255 seconds or minutes

•

• Seven operating modes

•

Trigger can be from a N/O or a N/C switch

DEPTH

1.75

Operating Temperatures

0 to 43C

[32 to 110F]

How to Order

Part #

Description

TM-2 Time Master II Multi-Function Timer

TIMER MODEL - TM-2 MULTI-FUNCTION (cont’d)

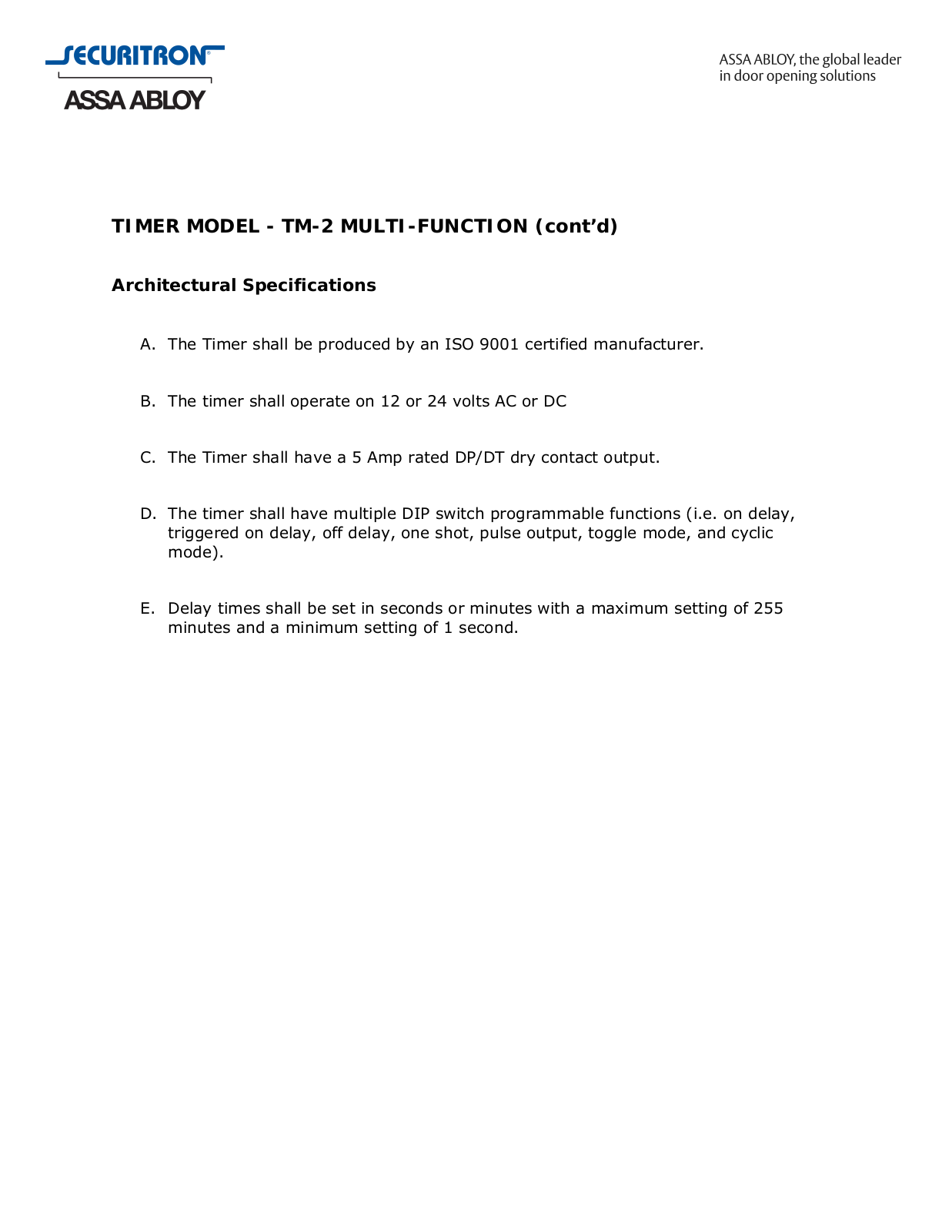

Architectural Specifications

A. The Timer shall be produced by an ISO 9001 certified manufacturer.

B. The timer shall operate on 12 or 24 volts AC or DC

C. The Timer shall have a 5 Amp rated DP/DT dry contact output.

D. The timer shall have multiple DIP switch programmable functions (i.e. on delay,

triggered on delay, off delay, one shot, pulse output, toggle mode, and cyclic
mode).

E. Delay times shall be set in seconds or minutes with a maximum setting of 255

minutes and a minimum setting of 1 second.
