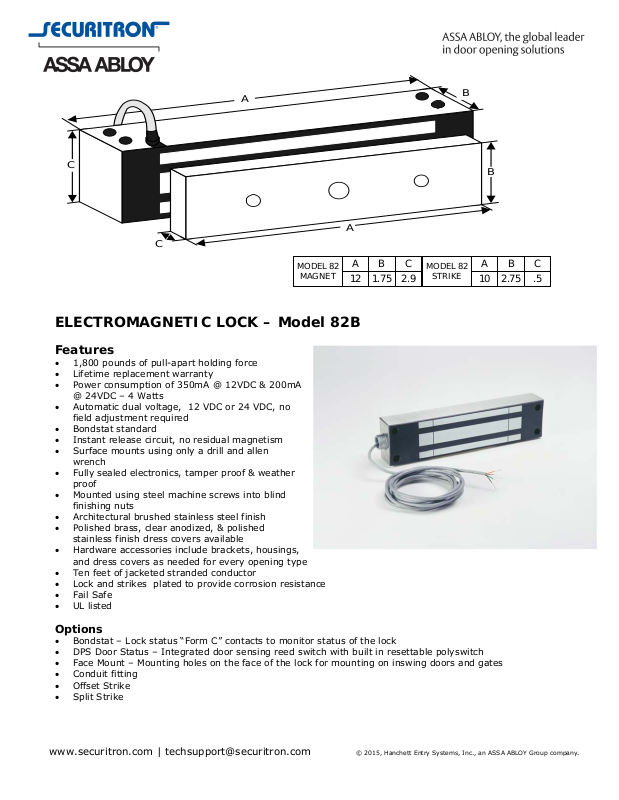

Securitron M82GBD, M82GB, M82FGBD, M82FGB, M82FBD Specsheet

A

www.securitron.com | [e-mail]

© 2015, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company.

B

C

A

C

MODEL 82

MAGNET

A12B

ELECTROMAGNETIC LOCK – Model 82B

Features

• 1,800 pounds of pull-apart holding force

• Lifetime replacement warranty

• Power consumption of 350mA @ 12VDC & 200mA

@ 24VDC – 4 Watts

• Automatic dual voltage, 12 VDC or 24 VDC, no
field adjustment required

• Bondstat standard

• Instant release circuit, no residual magnetism

• Surface mounts using only a drill and allen

wrench

• Fully sealed electronics, tamper proof & weather
proof

• Mounted using steel machine screws into blind
finishing nuts

• Architectural brushed stainless steel finish

• Polished brass, clear anodized, & polished

stainless finish dress covers available

• Hardware accessories include brackets, housings,
and dress covers as needed for every opening type

• Ten feet of jacketed stranded conductor

• Lock and strikes plated to provide corrosion resistance

• Fail Safe

• UL listed

1.75C2.9

MODEL 82

STRIKE

B

A10B

2.75C.5

Options

• Bondstat – Lock status “Form C” contacts to monitor status of the lock

• DPS Door Status – Integrated door sensing reed switch with built in resettable polyswitch

• Face Mount – Mounting holes on the face of the lock for mounting on inswing doors and gates

• Conduit fitting

• Offset Strike

• Split Strike
