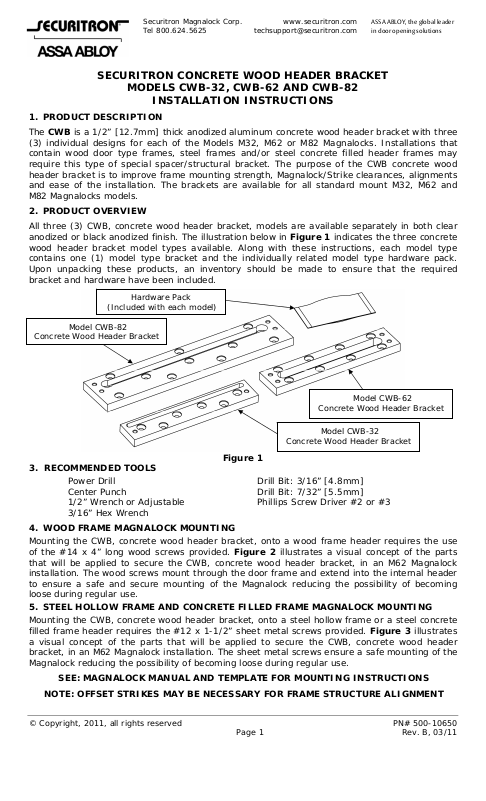

Securitron CWB-32BK, CWB-32CL, CWB-62BK, CWB-62CL, CWB-82BK Installation Instructions

Securitron Magnalock Corp. www.securitron.com ASSA ABLOY, the global leader

Tel [phone] [e-mail]

in door opening solutions

SECURITRON CONCRETE WOOD HEADER BRACKET

MODELS CWB-32, CWB-62 AND CWB-82

INSTALLATION INSTRUCTIONS

1. PRODUCT DESCRIPTION

The CWB is a 1/2” [12.7mm] th ick anodiz ed aluminum concrete wood h eader bracket with th ree
(3) individual designs for each of the Models M32, M62 or M82 Magnalocks. Installations that
contain wood door type frames, steel frames and/or steel concrete filled header frames may
require this type of special spacer/structural bracket. The purpose of the CWB concrete wood
header bracket is to improve frame mounting strength, Magnalock/Strike clearances, alignments
and ease of the installation. The brackets are available for all standard mount M32, M62 and
M82 Magnalocks models.

2. PRODUCT OVERVIEW

All three (3) CWB, concrete wood header bracket, models are available separately in both clear
anodized or black anodized finish. The illustration below in Figure 1 indicates the t hree concrete
wood header bracket model types available. Along with these instructions, each model type
contains one (1) model type bracket and the individually related model type hardware pack.
Upon unpacking these products, an inventory should be made to ensure that the required
bracket and hardware have been included.

Hardware Pack

(Included with each model)

Model CWB-82

Concrete Wood Header Bracket

Model CWB-62

Concrete Wood Header Bracket

Model CWB-32

Concrete Wood Header Bracket

Figure 1

3. RECOMMENDED TOOLS

Power Drill Drill Bit: 3/16” [4.8mm]
Center Punch Drill Bit: 7/32” [5.5mm]
1/2” Wrench or Adjustable Phillips Screw Driver #2 or #3
3/16” Hex Wrench

4. WOOD FRAME MAGNALOCK MOUNTING

Mounting the CWB, concrete wood header bracket, onto a wood frame header requires the use
of the #14 x 4” long wood screws provided. Figure 2 illustrates a visual concept of the p arts
that will be applied to secure the CWB, concrete wood header bracket, in an M62 Magnalock
installation. The wood screws mount through the door frame and extend into the internal header
to ensure a safe and secure mounting of the Magnalock reducing the possibility of becoming
loose during regular use.

5. STEEL HOLLOW FRAME AND CONCRETE FILLED FRAME MAGNALOCK MOUNTING

Mounting the CWB, concrete wood header bracket, onto a steel hollow frame or a steel concrete
filled frame header requires the #12 x 1-1/2” sheet metal screws pro vided. Figure 3 illustrates
a visual concept of the parts that will be applied to secure the CWB, concrete wood header
bracket, in an M62 Magnalock installation. The sheet metal screws ensure a safe mounting of the
Magnalock reducing the possibility of becoming loose during regular use.

SEE: MAGNALOCK MANUAL AND TEMPLATE FOR MOUNTING INSTRUCTIONS

NOTE: OFFSET STRIKES MAY BE NECESSARY FOR FRAME STRUCTURE ALIGNMENT

© Copyright, 2011, all rights reserved PN# 500-10650
Page 1 Rev. B, 03/11

CWB - Concrete Wood Header Bracket

(

#12 x 1-1/2” Screw

(Included)

#14 x 4” Screw

(Included)

Magnalock

(Sold Separately)

Included)

1/4-20 Socket Cap Screws

(Included)

1/4” Flat Washers

(Included with Magnalock)

Figure 2 Figure 3

(Wood Type Frames) (Steel Type Frames)

Wood Type Frames – Step-By-Step Installation Procedures:

 Position the bracket in the Magnalock mounting location on the frame.
 Utilizing the bracket as a template, mark the counter-sink holes where the wood screws will

be located.

 Drill the marked locations in the frame using a 7/32” [5.5mm] drill at a minimum depth of

approximately 2-1/2”.

 Mount the bracket onto the frame and securely tighten using the #14 x 4” long wood screws

provided.

 Drill the hole for the cable access into the frame utilizing the slotted area provided in the

center locations of the concrete wood header bracket.

 Position the Magnalock onto the CWB concrete wood header bracket while running the cables

into the cable access area.

 Using the 1/4-20 socket head cap screws provided with the bracket hardware and the flat

washers provided with the Magnalock hardware, securely mount the Magnalock into place.

Steel Hollow and Concrete Filled Type Frames – Step-By-Step Installation Procedures:

 Position the bracket in the Magnalock mounting location on the frame.
 Utilizing the bracket as a template, mark the counter-sink holes where sheet metal screws

will be located.

 Drill the marked locations in the frame using a 3/16” [4.8mm] drill at a minimum depth of

approximately 1-1/2”.

 Mount the bracket onto the frame and securely tighten using the #12 x 1-1/2” sheet metal

screws provided.

 Drill the hole for the cable access into the frame utilizing the slotted area provided in the

center locations of the concrete wood header bracket.

 Position the Magnalock onto the CWB concrete wood header bracket while running the cables

into the cable access area.

 Using the 1/4-20 socket head cap screws provided with the bracket hardware and the flat

washers provided with the Magnalock hardware, securely mount the Magnalock into place.

PN# 500-10650

Page 2 Rev. B, 03/11
