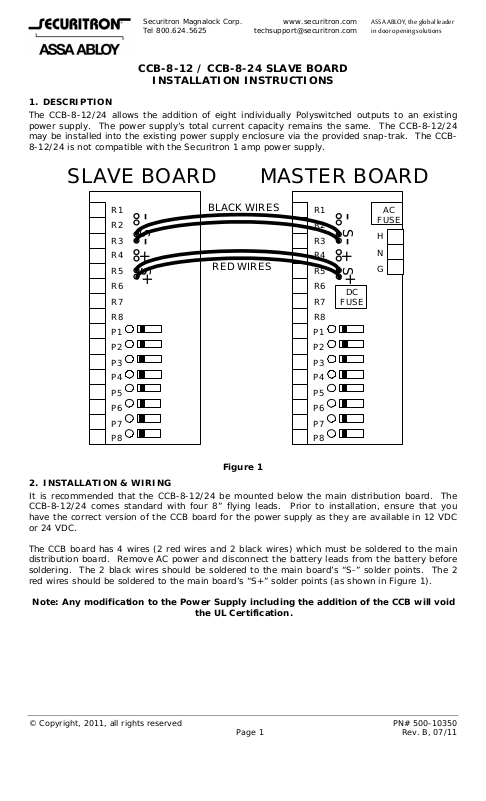

Securitron CCB-8-12, CCB-8-24 Installation Instructions

Securitron Magnalock Corp. www.securitron.com ASSA ABLOY, the global leader

Tel [phone] [e-mail]

in door opening solutions

CCB-8-12 / CCB-8-24 SLAVE BOARD

INSTALLATION INSTRUCTIONS

1. DESCRIPTION

The CCB-8-12/24 allows the addition of eight individually Polyswitched outputs to an existing
power supply. The power supply’s total current capacity remains the same. The CCB-8-12/24
may be installed into the existing power supply enclosure via the provided snap-trak. The CCB­8-12/24 is not compatible with the Securitron 1 amp power supply.

SLAVE BOARD

R1
R2

R3
R4

R5
R6

R7
R8

P1
P2

P3
P4

P5
P6

- +

S

-

S

+

BLACK WIRES

MASTER BOARD

RED WIRES

R1
R2

R3
R4

R5
R6

R7
R8

P1
P2

P3
P4

P5
P6

- +

S

-

S

+

DC

FUSE

AC

FUSE
H
N
G

P7
P8

Figure 1

2. INSTALLATION & WIRING

It is recommended that the CCB-8-12/24 be mounted below the main distribution board. The
CCB-8-12/24 comes standard with four 8” flying leads. Prior to installation, ensure that you
have the correct version of the CCB board for the power supply as they a re available in 12 VDC
or 24 VDC.

The CCB board has 4 wires (2 red wires and 2 black wires) which must b e soldered to the main
distribution board. Remove AC power and disconnect the battery leads from the b attery before
soldering. The 2 black wires should be soldered to the main board’s “S-” solder p oints. The 2
red wires should be soldered to the main board’s “S+” solder points (as shown in Figure 1).

Note: Any modification to the Power Supply including the addition of the CCB will void

the UL Certification.

P7
P8

© Copyright, 2011, all rights reserved PN# 500-10350
Page 1 Rev. B, 07/11
