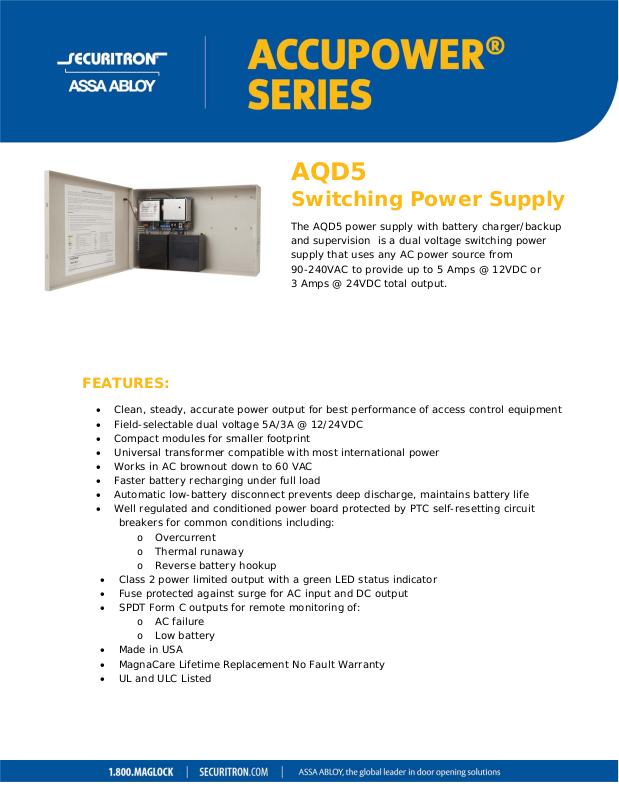

Securitron AQD5 Specsheet

AQD5

FEATURES:

Switching Power Supply

The AQD5 power supply with battery charger/backup
and supervision is a dual voltage switching power
supply that uses any AC power source from
90-240VAC to provide up to 5 Amps @ 12VDC or
3 Amps @ 24VDC total output.

• Clean, steady, accurate power output for best performance of access control equipment

• Field-se lectable dual voltage 5A/3A @ 12/24VDC

• Compact modules for smaller footprint

• Universal transformer compatible with most international power

• Works in AC brownout down to 60 VAC

• Faster battery recharging under full load

• Automatic low-battery disconnect prevents deep discharge, maintains battery life

• Well regulated and conditioned power board protected by PTC self-resetting circuit

breakers for common conditions including:

o Overcurrent
o Thermal runaway
o Reverse battery hookup

• Class 2 power limited output with a green LED status indicator

• Fuse protected against surge for AC input and DC output

• SPDT Form C outputs for remote monitoring of:

o AC failure
o Low battery

• Made in USA

• MagnaCare Lifetime Replacement No Fault Warranty

• UL and ULC Listed

Electrical

Supervision/Monitoring

SPECIFICATIONS: AQD5

Regulatory

Input Voltage Operating Range

90-240VAC
50-60Hz

Maximum Output Voltage

72 VA
6 Amps @ 12VDC
3 Amps @ 24VDC

Continuous Output Voltage

60 VA
5 Amps @ 12VDC
3 Amps @ 24VDC

Voltage Range

9.8 – 13.8VDC/ 13.65 typical

19.6– 28VDC/ 27.3 typical

Operating Fr e quency

132KHz

Onboard Power Output

One (1) Class 2 Power Limited

AC ON LED indicator: 6mA
DC ON LED indicator: 6mA
AC Fail notification: SPDT Form C 2 Amp
Low Battery: SPDT Form C 3 Amp

Environment

Operating Temperature: -4 to +104˚F
[-20 to +40˚C]
Humidity: 95% RH non condensing

Mechanical

Enclosure: 14”x 9” x 3.5”

Power Board: 6.05” x 3.87” x 2.28”
Mounting: 4.5” x 3.41”

Shipping Weight: 6.85 lbs

Fuse Protection

AC fuse: GMA-2 2 Amp
Battery: PTC 6 Amp
Current Overload: PTC, self-resetting
Thermal Runaway: PTC, self-resetting

UL 294
UL 603

ULC-S318-96

CAN/ULC-S533-02

RoHS lead free
