Securifi ALP Users Manual

Product Name: Almond+ (Wireless Router) Model Name: Almond+

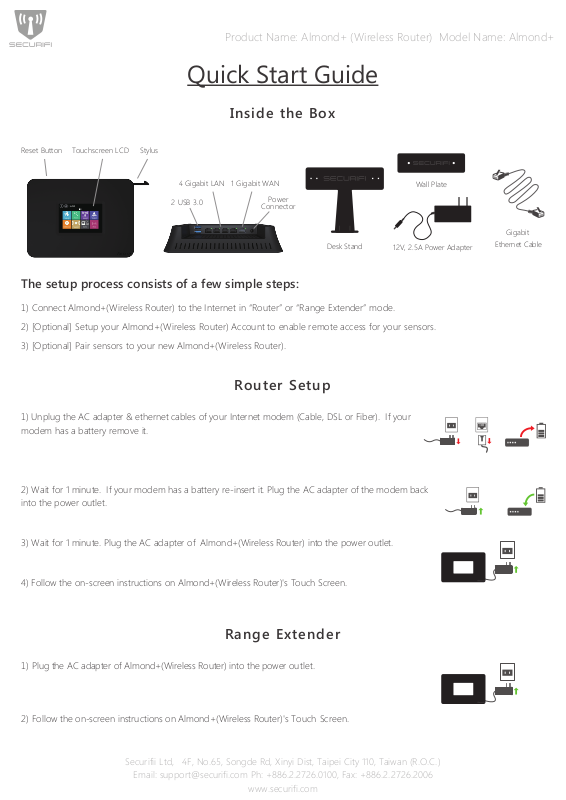

Quick Start Guide

Securifii Ltd, 4F, No.65, Songde Rd, Xinyi Dist, Taipei City 110, Taiwan (R.O.C.)

Email: [e-mail] Ph: +886.2.2726.0100, Fax: [phone]

www.securifi.com

Inside the Box

StylusTouchscreen LCDReset Button

4 Gigabit LAN 1 Gigabit WAN

2 USB 3.0

Power

Connector

Desk Stand

Wall Plate

12V, 2.5A Power Adapter

The setup process consists of a few simple steps:

1) Connect Almond+(Wireless Router) to the Internet in “Router” or “Range Extender” mode.

2) [Optional] Setup your Almond+(Wireless Router) Account to enable remote access for your sensors.

3) [Optional] Pair sensors to your new Almond+(Wireless Router).

Router Setup

1) Unplug the AC adapter & ethernet cables of your Internet modem (Cable, DSL or Fiber). If your
modem has a battery remove it.

Gigabit

Ethernet Cable

2) Wait for 1 minute. If your modem has a battery re-insert it. Plug the AC adapter of the modem back
into the power outlet.

3) Wait for 1 minute. Plug the AC adapter of Almond+(Wireless Router) into the power outlet.

4) Follow the on-screen instructions on Almond+(Wireless Router)'s Touch Screen.

Range Extender

1) Plug the AC adapter of Almond+(Wireless Router) into the power outlet.

2) Follow the on-screen instructions on Almond+(Wireless Router)'s Touch Screen.

Product Name: Almond+ (Wireless Router) Model Name: Almond+

Pairing Sensors

Securifii Ltd, 4F, No.65, Songde Rd, Xinyi Dist, Taipei City 110, Taiwan (R.O.C.)

Email: [e-mail] Ph: +886.2.2726.0100, Fax: [phone]

www.securifi.com

This typically involves the following steps:

1) On the Almond+(Wireless Router) LCD, inside the “Add sensor” section tap “Add”.

2) Set the sensor/device in pairing mode as per its instructions.

Controlling Sensors and Almond+(Wireless Router)

Almond+(Wireless Router) and the connected sensors can be controlled through a variety of interfaces:

1) Almond+(Wireless Router) iOS App

2) Almond+(Wireless Router) Android App

3) Remote Web Interface: https://connect.securifi.com

4) Local Browser Interface: http://10.10.10.254 (default)

5) LCD UI.

Range Extender Location

Ideal location is 50-100 feet from the main router epending on the number of walls. Please also
make sure it is not so far from the main router that it can’t maintain a stable connection with the
main router.

Trouble Shooting

1) How can I change the Wireless Network (SSID) name and Password?
You can edit these settings in the “Wireless” app on the LCD.

2) I just finished setting up the Range Extender. Why am I not seeing any improvement in the Range?
Please note that the Range extender by default creates a new wireless network with Almond+(Wireless Router) appended to your

original network’s name.

3) Can I have the same name for the extended network as my main network?
Yes, you can change the network name in the “Wireless” app on the LCD.

4) In the range extender mode, Almond+(Wireless Router) was unable to connect though I am close to the main Router.
Some routers don't allow you to connect range extenders. Please try using the “Wireless WAN” app on the LCD for such routers.

Join our Forums

Get the most out of your Almond+(Wireless Router) and learn from the Pros in our Forums.
We also have sensor giveaways from time to time.

http://forum.securifi.com
