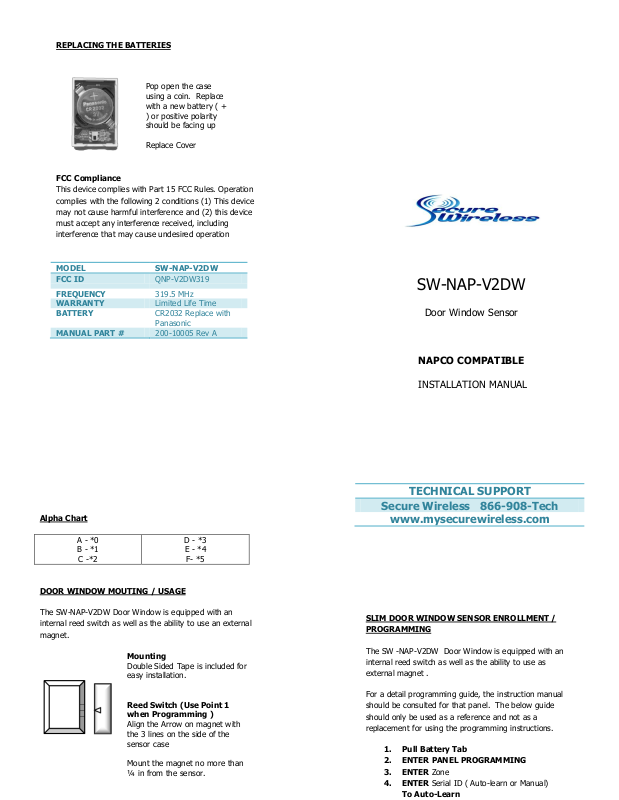

SW-NAP-V2DW
Door Window Sensor
NAPCO COMPATIBLE
INSTALLATION MANUAL
TECHNICAL SUPPORT
Secure Wireless 866-908-Tech
www.mysecurewireless.com
SLIM DOOR WINDOW SENSOR ENROLLMENT /
PROGRAMMING
The SW -NAP-V2DW Door Window is equipped with an
internal reed switch as well as the ability to use as
external magnet .
For a detail programming guide, the instruction manual
should be consulted for that panel. The below guide
should only be used as a reference and not as a
replacement for using the programming instructions.
1. Pull Battery Tab
2. ENTER PANEL PROGRAMMING
3. ENTER Zone
4. ENTER Serial ID ( Auto-learn or Manual)
To Auto-Learn
REPLACING THE BATTERIES
Pop open the case
using a coin. Replace
with a new battery ( +
) or positive polarity
should be facing up
Replace Cover
FCC Compliance
This device complies with Part 15 FCC Rules. Operation
complies with the following 2 conditions (1) This device
may not cause harmful interference and (2) this device
must accept any interference received, including
interference that may cause undesired operation
MODEL
SW-NAP-V2DW
FCC ID
QNP-V2DW319
FREQUENCY
319.5 MHz
WARRANTY
Limited Life Time
BATTERY
CR2032 Replace with
Panasonic
MANUAL PART #
200-10005 Rev A
Alpha Chart
A - *0
B - *1
C -*2
D - *3
E - *4
F- *5
DOOR WINDOW MOUTING / USAGE
The SW-NAP-V2DW Door Window is equipped with an
internal reed switch as well as the ability to use an external
magnet.
Mounting
Double Sided Tape is included for
easy installation.
Reed Switch (Use Point 1
when Programming )
Align the Arrow on magnet with
the 3 lines on the side of the
sensor case
Mount the magnet no more than
ΒΌ in from the sensor.
