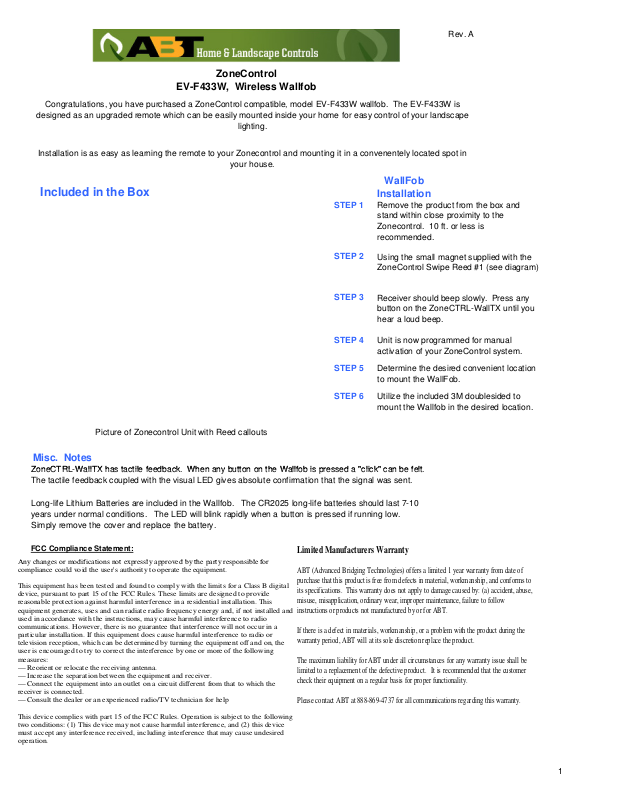

EV-F433W, Wireless Wallfob
Congratulations, you have purchased a ZoneControl compatible, model EV-F433W wallfob. The EV-F433W is
designed as an upgraded remote which can be easily mounted inside your home for easy control of your landscape
Installation is as easy as learning the remote to your Zonecontrol and mounting it in a convenentely located spot in
your house.
WallFob
Installation
Remove the product from the box and
1
3
stand within close proximity to the
Zonecontrol. 10 ft. or less is
recommended.
Using the small magnet supplied with the
ZoneControl Swipe Reed #1 (see diagram)
Receiver should beep slowly. Press any
button on the ZoneCTRL-WallTX until you
hear a loud beep.
Rev. A
Unit is now programmed for manual
activation of your ZoneControl system.
Determine the desired convenient location
4
to mount the WallFob.
Utilize the included 3M doublesided to
mount the Wallfob in the desired location.
Picture of Zonecontrol Unit with Reed callouts
Misc. Notes
The tactile feedback coupled with the visual LED gives absolute confirmation that the signal was sent.
Long-life Lithium Batteries are included in the Wallfob. The CR2025 long-life batteries should last 7-10
years under normal conditions. The LED will blink rapidly when a button is pressed if running low.
Simply remove the cover and replace the battery.
FCC Compliance Statement:
compliance could void the user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help
This device complies with part 15 of the FCC Rules. Oper
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Limited Manufacturers Warranty
ABT (Advanced Bridging Technologies) offers a limited 1 year warranty from date of
its specifications. This warranty does not apply t
misuse, misapplication, ordinary wear, improper maintenance, failure to follow
instructions or products not manufactured by or for ABT.
If there is a defect in materials, workmanship, or a problem with the product during the
warranty period, ABT will at its sole discretion replace the product.
The maximum liability for ABT under all circumstances for any warranty issue shall be
limited to a replacement of the defective product. It is recommended that the customer
check their equipment on a regular basis for proper functionality.
Please contact ABT at 888-869-4737 for all communications regarding this warranty.
1
