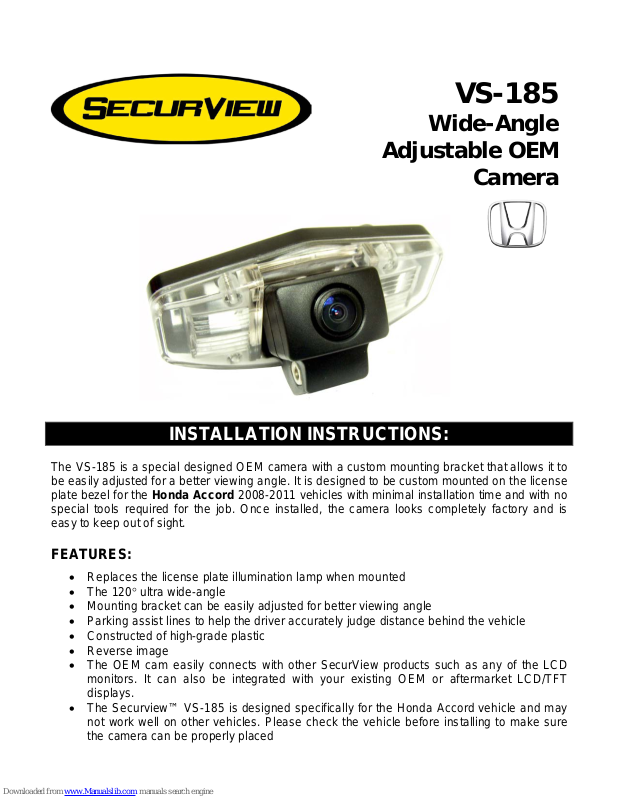

secureView VS-185 Installation Instructions Manual

VS-185

Angle

OEM

Camera

Wide-

Adjustable

INSTALLATION INSTRUCT IONS:

The VS-185 is a special designed OEM camera with a custom mounting bracket that allows it to
be easily adjusted for a better viewing angle. It is designed to be custom mounted on the license
plate bezel for the Honda Accord 2008-2011 vehicles with minimal installation time and with no
special tools required for the job. Once installed, the camera looks completely factory and is
easy to keep out of sight.

FEATURES:

• Replaces the license p lat e illumination lamp when mounted

• The 120° ultra wide-angle

• Mounting bracket can be easily adjusted for better viewing angle

• Parking assist lines to help the driver accurately judge distance behind the vehicle

• Constructed of high-grade plastic

• Reverse image

• The OEM cam easily connects with other SecurView products such as any of the LCD

monitors. It can also be integrated with your existing OEM or aftermarket LCD/TFT
displays.

• The Securview™ VS-185 is designed specifically for the Honda Accord vehicle and may
not work well on other vehicles. Please check the vehicle before installing to make sure
the camera can be properly placed

STEP 1

STEP 2

STEP 3

STEP 4

Snap the VS-185 camera into place

Camera Lens

Remove factory
license plate lamp

Connect the camera lamp illumination wires

Route the wiring
harness into the
vehicle

Adjustable
Bracket

Mounting Surface

Illumination
Wires

Cable

MOUNTING:

1. The VS-185 is design to be mounted on the License Plate bezel of a Honda Accord vehicle. If

you wish to mount this camera on any other vehicle, double check the mounting location to
see if the camera will fit on your vehicle in your location of choice.

2. Unclip and remove the factory license plate illumination lamp using a screw driver or panel

removing tool (STEP 1)

3. Connect the license plate lamp illumination wires of the VS-185 to the factory license plate

illumination lamp harness that was connected to the factory lamp (STEP 2)

4. Route the wiring harness into the vehicle (STEP 3). There may be an existing factory rubber

grommet that you can use to run the wiring into the trunk area. If you have to drill a hole,
make sure to double check behind the drilling location before drilling. Once the hole is drille d
and the wiring is run into the vehicle, seal the edges of the hole with silicon or caulking to
prevent moisture damage.

5. Snap the camera securely into place in the mounting location (STEP 4). If need be, you can

adjust the bracket for a better viewing angle after the camera is powered up

INSTALLATION

CAMERA:

1. The color CMOS camera is maintenance-free, waterproof (IP-68) and vibration resistant.

2. This camera is designed to work well in day time or night time conditions.

3. The camera is completely electronic. There are NO manual adjustments for focus, etc.

WIRING:

Connect to +12V

Reverse Light

MONITOR

Ground

RED WIRE

BLACK WIRE

YELLOW: RCA Video Plug

Connect to Monitor

VS-185

Ground

RED WIRE

BLACK WIRE

Connect to +12V

License Plate

Illumination Wire

SPECIFICATIONS:

Vertical Angle: 90°

1. Carefully choose a hidden out-of-sight location for drilling the cable hole. Some vehicles may
have an existing hidden rubber grommet or plug available to avoid having to drill into the body.
Be sure to double-check for any wiring or obstructions behind the surface where you are going to
drill the cable hole. Make sure to seal the hole using silicon or caulking to prevent moisture
damage.

2. Choose a convenient place to run the camera cable up the left, right or center of the vehicle. As
a rule of thumb, try to avoid main factory harness looms that may contain high levels or RF noise
or interference.

3. You can connect the camera power at the rear of the vehicle behind the reverse lights. You may
also connect power inside the vehicle under the dash or in the trunk. The Red power wire goes to
Reverse Light +12V, and the Black wire to Ground.

4. The other pair of Red and Black wires is for license plate illumination. Connec t the Red wire to
the +12 volt license plate illumination wire in the factory light harness, and c onnect the Black wire
to the Ground wire in the license plate illumination harness

5. Run the Yellow RCA video cable to the monitor’s video input or reverse camera input.

TECH SUPPORT: [phone]

1/4 Inch Color CMOS Sensor Video Output: 1.0 V P-P composite (75 Ohm load)

Dimension (In.): 2¼"(L) × 2⅛"(W) × 1⅜"(D) Supply Voltage: +12VDC
Weight: 5 Oz. Power Consumption: 70mA
Pixels: 640 (H) x 480 (V) Shutter: 1/50 s – 1/100000s
Resolution: > 250,000 pixels White Balance: Automatic
420 TV lines Gamma Correction: 0.45
Minimum Illumination: 0.5 LUX / F 1.2 S/N Ratio: More than 48dB
Lens Type: Wide Angle Operating Temp: -22° to 176° F (-30° to 80° C)
Horizontal Angle: 120° Gain Control: Automatic

DISCLAIMER:

Under no circumstances shall the manufacturer or distributor of the Securview™ be held liable for
consequential or incidental damages sustained in connection with the use of the Securview™ Rear
Vision System. The Securview™ is designed as a safety enhancement device and is in no way intended
as a replacement for rear-view mirrors, side-view mirrors or physically checking the surroundings when
backing a vehicle. Always check surroundings for safety when backing! Objects on the monitor are
closer than they appear. For the best fit, modification of the vehicle license may or may not be
necessary. It is the sole responsibility of the vehicle owner to check and verify any and all State or
Federal Motor vehicle codes with regards to modifications of vehicle license plates. The m anuf acturer of
the Securview™ assumes no liability or responsibility whatsoever with regards modifications of the
license plate.
