ChannelPlus H37XL Series 2
User Operating Instructions
Three Channel Central Heating and Hot Water Programmer
The ChannelPlus family of electronic programmers offer a range of advanced features
coupled with simplied ‘menu driven’ programming all designed to help save energy.
The Horstmann ChannelPlus H37XL series 2 is designed to give independent time control
over 3 channels of heating or hot water on a 7 day weekly programme.
Each channel offers up to 3 programmed On/Off operations per day
for each day of the week.
For day to day operation each channel has a manual 1 or 2 hour boost button
as well as an advance button to bring forward the next programmed operation.
The back lit display, automatic clock and menu driven programming are all features
designed to make the operation of the ChannelPlus H37XL as simple as possible to use.
All series 2 ChannelPlus programmers are direct replacements for earlier ChannelPlus models.
1
The ChannelPlus H37XL Series 2 Programmer
The simple instructions contained in this user guide are designed to help with the
programming and operation of the unit. Most of the following instructions require the front
ap to be lowered. Please replace the ap when normal operation is required.

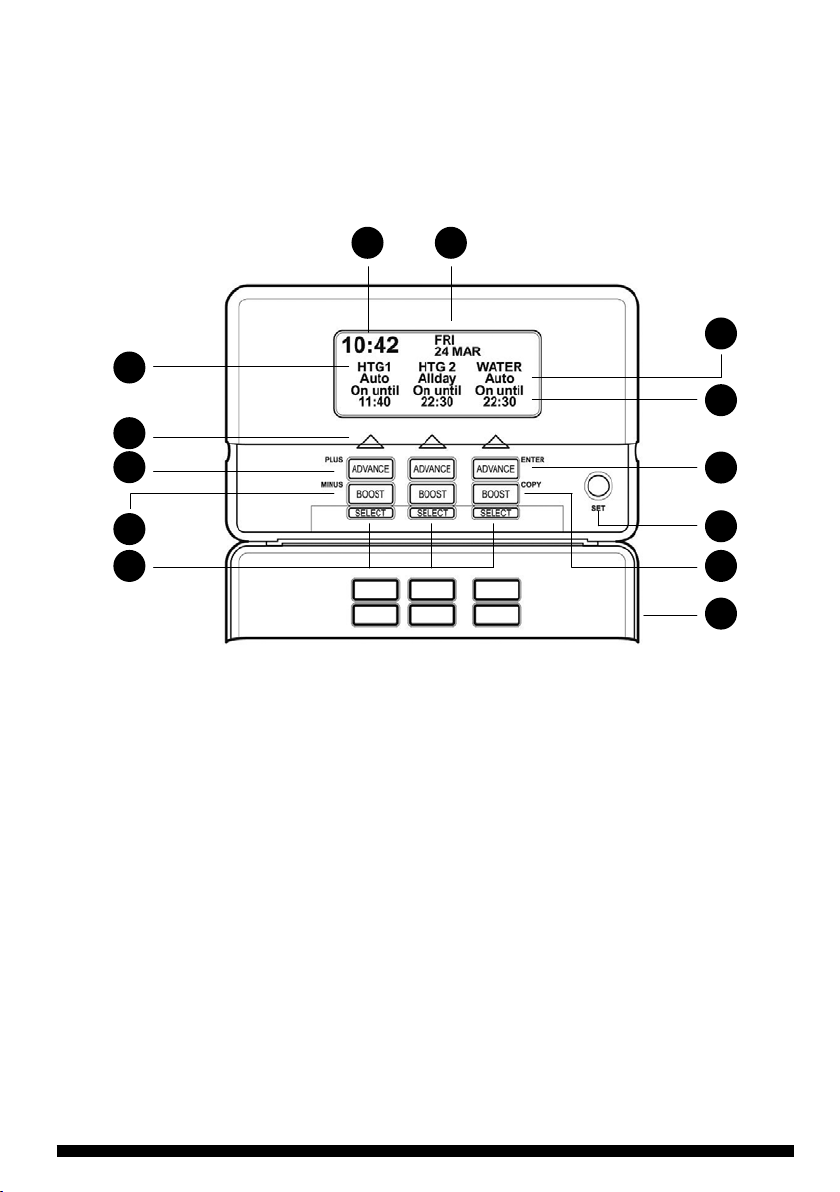

PRODUCT OVERVIEW - DETAIL SHOWN WITH THE FLAP LOWERED
3
6
8
10
11
1
1 Current time of day
2 Day of week and date
3 Channel Heading
4 Current Channel programme
5 Next On/Off time
6 Channel ON indicator
7 ADVANCE and ENTER button ILLUMINATED WHEN ACTIVE
8 ADVANCE and PLUS button ILLUMINATED WHEN ACTIVE
9 BOOST and COPY button ILLUMINATED WHEN ACTIVE
10 BOOST and MINUS button ILLUMINATED WHEN ACTIVE
11 Programme Select buttons (Coloured Blue)
12 SET button (Coloured Green)
13 Front Flap (Lowered)
2
12
13
4
5
7
9
2
Display Information
The ChannelPlus H37XL Series 2
programmer has a fully graphical, backlit display. In the normal run mode the
display is divided into 3 sections, each
section represents a controlled channel.
The information displayed will change
depending upon the settings made and
which mode you are in. During different
programming modes and/or setting
screens the current time, day/date,
holiday indicator will only appear when
necessary, this is to reduce confusion
during the programming process. This is
explained further in later sections of this
guide.
ACTIVATING THE BACK–LIT DISPLAY
The display will illuminate for
approximately 1 minute whenever a
button is pressed.
To illuminate the display for viewing
purposes only press the green menu
button under the front ap twice.
Channel
header
Time
Channel/
Zone 1
status
Day
Date
Channel/
Zone 2
status
Holiday
function
active
Channel/
Zone 3
status
SETTING AND ADJUSTING
When setting or adjusting, the programmer will automatically return to the running mode
if no buttons are pressed for approximately 1 minute.
If the setting or adjusting has not been nished, please start the procedure again.
TIME OF DAY
The ChannelPlus H37XL incorporates a factory set clock and calendar which means that no
adjustments should be necessary to the time of day and BST/GMT time changes take place
automatically.
3
Manual Overrides
BOOST FUNCTION - 1 OR 2 HOUR TEMPORARY OVERRIDE
The boost facility will allow the user to either activate a channel which is currently ‘OFF’
for 1 or 2 hours, or to extend a current ‘ON’ period by 1 or 2 hours. To indicate the boost
being activated the ‘BOOST’ button under the selected channel will stay illuminated for the
duration of the boost/extension period. The display will also indicate the extension to the
time visually on the screen.
Press BOOST button
once for 1 hour of
hot water or central
heating
ADVANCE FUNCTION - BRINGS FORWARD THE NEXT ON OR OFF OPERATION
The advance facility will allow the user to either bring a channel ‘ON’ which is currently
‘OFF’ or switch a channel ’OFF’ which is currently ‘ON’. To indicate the advance feature
being activated the ‘ADVANCE’ button under the selected channel will stay illuminated
until the next programme switching time, the user display will change to also indicate the
status of the channel and the next switching time.
Press ADVANCE
button once to
move to the next
ON/OFF time
Press BOOST button
twice for 2 hours of
hot water or central
heating
To cancel the advance
press the ADVANCE button
again. This will return
the unit to its normal
programme
Press BOOST button
a third time to
cancel the period
and return to the
normal programme
4
Programme Override Facilities
With the ChannelPlus H37XL Series 2 programmer operating in the normal running mode
it is possible to alter the functionality of the programme on each individual channel by
means of the blue ‘select’ buttons under the front ap.
The options include;
AUTO - Programmer follows all programmed ‘ON’ and ‘OFF’ times.
ALL DAY - Channel operates from 1st ‘ON’ time until 3rd ’OFF’, ignoring all switching
times in between.
ON - Channel will be constantly ‘ON’.
OFF - Channel will be constantly ‘OFF’, there is the ability to turn off heating
during summer without altering the programme times. 1 or 2 hour boost
still available.
All of the settings above will be permanent, i.e. unaffected by programme times, until
alteration by the user.
The diagram below illustrates how to alter the setting, it assumes that the channel is in
the AUTO mode to begin with. As all channels are totally independent it is possible to have
them set differently if necessary*.
Press SELECT
once.
Programme
goes from
AUTO to
ALL DAY
Channel
will operate
from first ON
until last OFF
period
*
It may not be possible to programme heating and hot water independently on certain systems.
Press SELECT
again.
Programme
goes from
ALL DAY to
ON
Channel
will be
continuously
ON
Press SELECT
again.
Programme
goes from
ON to OFF
Channel
will be
continuously
OFF
Press SELECT
again.
Programme
goes from
OFF to AUTO
Programme
will return
to normal
ON and OFF
times
5
Setting the Programme Times
The programme times have been preset as shown in the chart below.
DEFAULT TIME SETTINGS - AM/PM
1st ON 1st OFF 2nd ON 2nd OFF 3rd ON 3rd OFF
Mon - Fri 6.30AM 8.30AM 12.00PM 12.00PM 4.30PM 10.30PM
Sat/Sun 7.30AM 10.30AM 12.00PM 12.00PM 5.00PM 11.00PM
If any changes are required to the programme times please
Open cover
Press the green
‘SET’ button
Use the ‘+’ and ‘-’
buttons to select
required day
Press ‘ENTER’
Adjust OFF time
complete the operation as described in the owchart left.
Use the ‘+’ and ‘-’
buttons to select
the Heating or
Hot Water Channel
to be adjusted
Select the required channel setting
Press ‘ENTER’
Use the ‘+’ and ‘-’
buttons to adjust
required ON time
Press ‘ENTER’
SAMPLE DISPLAYS
SET HEATING 1
SET HEATING 1
SET HEATING 2
SET WATER
SET HOLIDAY MODE
SET DEFAULTS
Select the day to set
SET HEATING 1
FOR
WEDNESDAYS
Select ‘Set ON/OFF times’
SETTING HEATING 1 - WEDNESDAYS
ON 06.30
ON 06.30 ON 12.00 ON 16.30
OFF 08.30 OFF 12.00 OFF 22.30
PERIOD 1 PERIOD 2 PERIOD 3
Press ‘ENTER’
Programme the
remaining days
Press the green
‘SET’ button
Repeat process for
the 2nd and 3rd
time settings
If you require this
programme on any
other day of the
week use ‘+’ and
‘-’ buttons to select
day and copy
ADJUSTING SETTINGS
When carrying out any alterations to
the programmed times and settings
Press the green
‘SET’ button
Close cover
the programmer will return to its
normal run mode in 1 minute if no
adjustments are made in that time.
6
Setting the Holiday Mode
The holiday mode can be used to suspend the program function of the ChannelPlus
programmer, it can be set in advance of your departure date and for as long a period as
required. The holiday function operates from mid-day to mid-day, this means it can be
easily set to ensure your home is warm for your return. When the holiday mode has been
set a smiley face will appear on the display. When the holiday mode is active only the
day/date and smiley face will be displayed.
To cancel an active holiday period please
press any of the Select buttons under the
front ap.
PLEASE NOTE: Any alteration to the current
time or date will cancel any Holiday
programme set.
N.B. Do not use the holiday
programme when conditions are
such that frost damage to the heating
system is possible (unless a frost
protection thermostat is tted to
your system).
SAMPLE DISPLAYS
Enter holiday dates
SETTING HOLIDAY MODE
START AT MID-DAY ON
SEPT 2009
1
FINISH AT MID-DAY ON
21 SEPT 2009
Open cover
Press the green
‘SET’ button
Use the ‘+’ and ‘-’
buttons to adjust
START DATE
Press ‘ENTER’
Use the ‘+’ and ‘-’
buttons to adjust
START YEAR
Press ‘ENTER’
Use the ‘+’ and ‘-’
buttons to select
‘HOLIDAY MODE’
Press ‘ENTER’
Use the ‘+’ and ‘-’
buttons to adjust
START MONTH
Press ‘ENTER’
Repeat process for
end period
Display when holiday mode is set
THURS 16 SEPT
Press the green
‘SET’ button
Press the green
‘SET’ button
Press ‘ENTER’
Close cover
7
Adjusting Default Settings
The ChannelPlus H37XL Series 2 has a number of default settings which are normally
installed. These settings are designed to reduce the need for user intervention upon
installation of the programmer. However it is possible to customise the user display by
following the procedures in the following pages. The factory default normally installed are
illustrated below;
Time and Date
Time and calendar
are factory set
Options
The programmer has
been set with the current
time and date during
manufacture.
No alteration should be
required to the time and
date. However, if any
modication is required
please refer to the
owchart on page 9
Clock Options
Time displayed in
24hr clock format
22.42
Options
24 hour
or
AM/PM
Headings
Channel heading set to
standard installation
i.e. Heating 1, Heating 2
and Hot Water
Options
Heating/Water
Zones
Channels
8
Adjusting Time and Date
The ChannelPlus H37XL Series 2 programmer has been set with the current time and date
during manufacture. No alteration should be required to the time and date, however if any
modication is required please refer to the owchart below.
PLEASE NOTE: Any alteration to the current time or date
Open cover
will cancel any Holiday programme set. It will also
cause any boost or advance operations to be cancelled.
Press the green
‘SET’ button
Use the ‘+’ and ‘-’
buttons to adjust
‘TIME AND DATE’
Press ‘ENTER’
Use the ‘+’ and ‘-’
buttons to adjust
THE DAY
Press ‘ENTER’
Use the ‘+’ and ‘-’
buttons to adjust
THE YEAR
Use the ‘+’ and ‘-’
buttons to select
‘SET DEFAULTS’
Press ‘ENTER’
Use the ‘+’ and ‘-’
buttons to adjust
THE CURRENT TIME
Press ‘ENTER’
Use the ‘+’ and ‘-’
buttons to adjust
THE MONTH
Press ‘ENTER’
SAMPLE DISPLAYS
SET HEATING 1
SET HEATING 2
SET WATER
SET HOLIDAY MODE
SET DEFAULTS
SET DEFAULTS
SET DEFAULTS
TIME AND DATE
TIME AND DATE
CLOCK OPTIONS
HEADINGS
30 SEP 2009
Press ‘ENTER’
Close cover
Press the green
‘SET’ button
Press the green
‘SET’ button
TIME AND DATE
23.00
23.00
30 SEP 2009
9
Adjusting Clock Options
Open cover
Press the green
‘SET’ button
Use the ‘+’ and ‘-’
buttons to adjust
‘CLOCK OPTIONS’
Press ‘ENTER’
Press the green
‘SET’ button
Press the green
‘SET’ button
The programmer has been preset to display the time in 24 hour
clock format, should you prefer AM/PM format then please use
the procedure given in the owchart
Use the ‘+’ and ‘-’
buttons to select
‘SET DEFAULTS’
Press ‘ENTER’
Use the ‘+’ and ‘-’
buttons to adjust
24 HRS OR AM/PM
Press ‘ENTER’
Close cover
opposite.
SAMPLE DISPLAYS
SET HEATING 1
SET HEATING 2
SET WATER
SET HOLIDAY MODE
SET DEFAULTS
SET DEFAULTS
SET DEFAULTS
TIME AND DATE
CLOCK OPTIONS
CLOCK OPTIONS
HEADINGS
CLOCK OPTIONS
24 HOURS
24 HOURS
AM/PM
General Information
BATTERY
The programmer is tted with a non-rechargeable, non-serviceable long life battery,
which will maintain the clock and programmed time settings with the mains supply
disconnected.
THIS RESERVE SHOULD BE SUFFICIENT TO COVER POWER INTERRUPTIONS DURING THE LIFE OF
THE UNIT.
During power interruptions the display will be blank.
SERVICE AND REPAIR
This programmer is NOT user serviceable. Please do not dismantle the unit. In the unlikely
event of a fault developing please refer to the RESETTING THE CHANNELPLUS H37XL section
on the right. If this fails to resolve the problem please contact a local heating engineer or a
qualied electrician.
10
Adjusting Channel Headings
Open cover
Press the green
‘SET’ button
Use the ‘+’ and ‘-’
buttons to adjust
‘HEADINGS’
Press ‘ENTER’
Press the green
‘SET’ button
Press the green
‘SET’ button
The programmer has been preset to display the channel heading
as ‘Heating and Hot Water’, should you require either the ‘Zone’
or ‘Channel’ options then please follow
Use the ‘+’ and ‘-’
buttons to select
‘SET DEFAULTS’
Press ‘ENTER’
Use the ‘+’ and ‘-’
buttons to adjust
HEATING/WATER
ZONES OR CHANNELS
Press ‘ENTER’
Close cover
the owchart opposite.
SAMPLE DISPLAYS
SET HOLIDAY MODE
HEATING/WATER
HEATING/WATER
SET HEATING 1
SET HEATING 2
SET WATER
SET DEFAULTS
SET DEFAULTS
SET DEFAULTS
TIME AND DATE
CLOCK OPTIONS
HEADINGS
HEADINGS
HEADINGS
ZONES
CHANNELS
General Information
RESETTING THE CHANNELPLUS H37XL SERIES 2
Electronic equipment can in some circumstances be affected by electrical interference.
If the display becomes frozen or scrambled; or if you wish to revert back to the default
settings please use the following procedure:
RESET PROCEDURE
PLEASE NOTE: Using this procedure will restore the ChannelPlus to the original factory
programme settings, the time setting will remain correct.
Lower the front ap of the unit. On the right
hand Channel press the ADVANCE (Enter)
and SELECT (Blue) buttons together, then
release and the programmer will return to
the preset factory settings.
ADVANCE
BOOST
SELECT
RESET
11
What is a programmer?
... an explantion for householders.
Programmers allow you to set ‘On’ and ‘Off’ time periods. Some models switch the central
heating and domestic hot water on and off at the same time; while others allow the
domestic hot water and heating to come on and go off at different times.
Set the ‘On’ and ‘Off’ time periods to suit your own lifestyle. On some programmers you
must also set whether you want the heating and hot water to run continuously, run under
the chosen ‘On’ and ‘Off’ heating periods, or be permanently off.
The time on the programmer must be correct. Some types have to be adjusted in Spring
and Autumn at the changes between Greenwich Mean Time and British Summer Time.
You may be able to temporarily adjust the heating programme, for example, ‘Override’,
‘Advance’ or ‘Boost’. These are explained in the manufacturer’s instructions.
The heating will not work if the room thermostat has switched the heating off. And, if
you have a hot-water cylinder, the water heating will not work if the cylinder thermostat
detects that the hot water has reached the correct temperature.
12
Email: sales@horstmann.co.uk
Website: www.horstmann.co.uk
Horstmann Controls Limited, Bristol BS4 1UP
Leaflet number P82723 – Issue 2
Loading...
