Secure Data SecureUSB BT User Manual

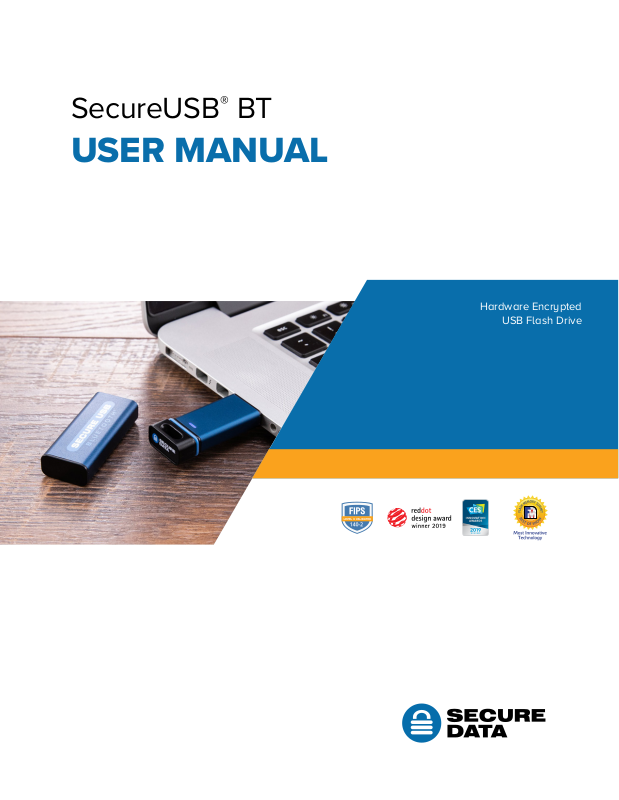

SecureUSB® BT
USER MANUAL
Hardware Encrypted
USB Flash Drive
TABLE OF CONTENTS
SECUREUSB BT OVERVIEW ................................................................. 2
Safety Information ............................................................................................. 2
SecureUSB BT Features ...................................................................................... 4
Icon Interpretations ........................................................................................... 5
Installing SecureData Lock App .......................................................... 6
Passwords and Procedures ................................................................ 6
Password Requirements ..................................................................................... 6
Procedural Conventions ..................................................................................... 6
Adding the USB to the App (Pairing) ................................................................... 7
Unlocking the USB .............................................................................................. 7
Disconnecting the USB from Your Computer ...................................................... 8
Locking without Unplugging from the Computer ............................................... 8
Setting Options ................................................................................. 9
Entering Settings Mode ...................................................................................... 9
Password Options ............................................................................................ 10
Access Options and Locking Options ................................................................ 14
Managing the USB ........................................................................... 19
Removing a USB ............................................................................................... 19
Brute Force Hacking Detection ......................................................................... 19
Resetting (Deleting) the USB ............................................................................ 20
Reformatting the USB....................................................................................... 20
CONTACT AND WARRANTY INFORMATION ...................................... 23
Troubleshooting ............................................................................................... 24
Warranty and RMA Information ....................................................................... 25
SECUREUSB BT OVERVIEW
Thank you for purchasing the SecureUSB BT Model (‘USB’ hereafter). It’s an easy to use, hardware encrypted, password activated USB 3.0 USB. This Bluetooth® capable model uses an application via wireless user-authentication on a smartphone—iOS and Android. (Apple iOS includes Apple watch and iPad.)
The SecureUSB uses military grade XTS-AES 256-bit hardware encryption, which encrypts all data stored on it in real-time. It works on all computer and embedded systems that support standard USB protocol.
Should your USB get lost or stolen, rest assured that all data on it is protected by military grade encryption and cannot be accessed without entering the password via the SecureData Lock App.
Note: For extra security with multiple users, the Remote Management Model allows a User and an Admin password as well as allowing the admin to remotely make settings to Users’ USBs. This makes it perfect for corporate and government deployment (not covered in this manual.)
Your USB may have Cloud Backup and built-in Antivirus features installed. For more information, please contact Support at SecureData™.
Requirements
The USB must be connected to a computer for use. It works on Windows, Mac, Android, Linux, or Chrome operating system, or any host such as an embedded system. The computer/host must have a USB 2.0 port, minimum.
Included: • 1 USB • 1 Quick Start Guide
Safety Information
Do not expose the USB to water or moisture.
Resetting the USB will delete all stored data as well as all passwords.
Forgetting your password will render the USB inaccessible. There is no ‘backdoor.’
Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the device.
This icon indicates important information regarding the safety of the product (Cautions). Please be mindful of these messages. Contact support if you have questions.
Precaution
EMI Cautions
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
Cautions
Changes or modifications not expressly approved by the party responsible could void the user’s
authority to operate this device.The normal function of the product may be disturbed by strong Electro Magnetic Interference. If so, simply reset the product to resume normal operation by following the instruction manual. In case the function could not resume, please use the product in other location.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference
received, including interference that may cause undesired operation.
RF Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
SecureUSB BT Features
Figure 1.1: SecureUSB BT layout showing LEDs, Device ID number,
Serial number, and Part number
Icon Interpretations
LED
Meaning
(one blink)
Plugged into computer; LED test
= Red solid
Powered and locked but not BT-connected
= Red blinking
Powered and locked and BT-connected
= Blue solid
= Blue blinking
The USB is unlocked and accessed (USB is transferring data).
Note: The blue LED may be on or blinking during any procedure after the USB is unlocked.
App Icon
Meaning
USB is locked
USB is unlocked
USB is blank such as when not formatted
The USB is BT-connected to the app and Authenticated. If you don’t see this icon, the USB is BT-connected but not Authenticated which means that if the USB is unlocked you can access your files but cannot access the Settings Menu or swipe right to lock.
Change the password
Touch ID
Face ID
App will remember the password
Inactivity AutoLock
Step-away AutoLock
Read-Only Mode
Enable Apple Watch®
Reset the USB (erase all data and settings)
Password Recovery
Remote Wipe
On the USB:
On the App:
Installing SecureData Lock App
The app, named SecureData Lock User, for your new USB must be installed on an iOS or Android device to control all the USB’s functions.
Only one app is required to control multiple USBs. Download the app for an iOS device from the Apple App Store or for an
Android device from Google Play. It can be installed just like any other app, clicking Download then Install.
Download the SecureData Lock User App and then install it.
Passwords and Procedures
The SecureUSB BT Model is shipped with password 11223344. We strongly suggest changing the password for security.
CAUTION: Risk of loss of data. If you forget your password all data will be inaccessible and
reformatting will be required. There is no ‘backdoor.’
Password Requirements
Your password must:
be 7-15 characters in length, letters or numbers. Special characters are okay. not contain only repetitive numbers or letters, e.g. (3333333) or (ccccccc) not contain only consecutive numbers or letters, e.g. (1234567), (7654321), (abcdefg)
Procedural Conventions
All actions require the USB to be connected to a computer with the USB cable. The procedures in this manual show LED status that you should see after performing each step. Next to it is what the app displays at some point during the procedure.
Adding the USB to the App (Pairing)
Adding the USB
LED
1. Plug the USB into a computer.
(blink once)
then
2. Start the SecureData Lock App on your device. Note: Ensure your
device is BT enabled.
3. Tap if you don’t see the new USB’s SN in the list.
4. Tap the USB name that appears and follow the app instructions.
5. Tap Continue and follow the app instructions.
Unlock the USB – When NOT Connected
LED
APP
1. Connect the USB to a computer with the USB cable.
(blink once)
then
-
2. Start the SecureData Lock App on your device.
-
3. After it initializes, tap the USB name.
4. Type in the password1 and tap Unlock.
Unlock the USB – After waking up from sleep
LED
APP
1. Open the app.
or
2. After it initializes, tap the USB name.
-
3. Type in the password.
-
4. Tap Unlock.
The eight-digit Device ID is required; is it printed on the USB connector. To add the USB, follow these steps:
Unlocking the USB
CAUTION: Possible loss of data. After ten failed attempts to unlock the USB, the password, all
data, and the formatting will be deleted. Refer to Brute Force Hacking Detection on page 19.
Until the USB is unlocked it does not display in your computer’s File Manager (Explorer or Finder).
To unlock the USB, follow these steps:
