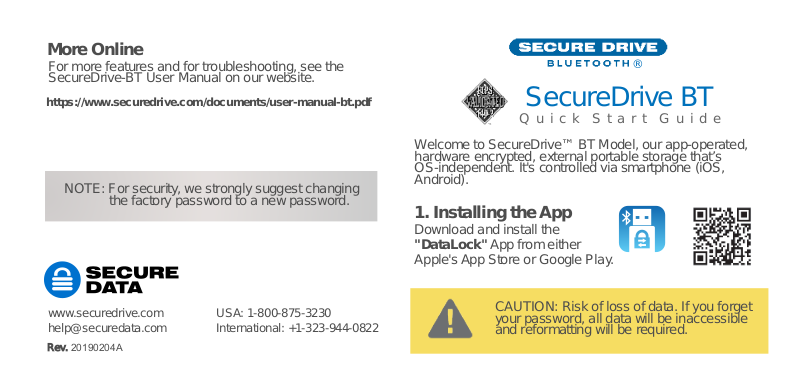

Secure Data SecureDrive BT Quick Start Manual

More Online

USA: 1-800-875-3230
International: [phone]

Welcome to SecureDrive™ BT Model, our app-operated,
hardware encrypted, external portable storage that’s
OS-independent. It's controlled via smartphone (iOS,
Android).

®

CAUTION: Risk of loss of data. If you forget
your password, all data will be inaccessible
and reformatting will be required.

Download and install the
"DataLock" App from either
Apple's App Store or Google Play.

1. Installing the App

For more features and for troubleshooting, see the
SecureDrive-BT User Manual on our website.

https://www.securedrive.com/documents/user-manual-bt.pdf

NOTE: For security, we strongly suggest changing

the factory password to a new password.

SecureDrive BT

Q u i c k S t a r t G u i d e

www.securedrive.com
[e-mail]

Rev. 20190204A

B. Start the app, tap the Drive name and follow

the on-screen instructions.

Represents the
LED on the drive

Locked or ready
for input

The drive is locked,
or may indicate
procedure failed

Green LED
is ON, solid

Red LED is
ON, solid

Red LED
is blinking

Blue LED
is blinking

Represents the
icons in the app

Transferring data

Drive is unlocked

A. Connect the Drive to a computer with the USB

cable.

2. Adding the Drive to the App (Pairing)

Changing the Password

Disconnecting and Locking

After unlocking the drive in the app:

B. Tap Change Password and enter your

current password.

C. Enter your new password (see requirements

below) and then retype it into the Conrm eld.

D. Tap Change Password.

A. Tap the desired drive name.

Unplug the cable—the Drive locks automatically.
Generally,ejecting it rst is not necessary.
To lock the Drive without unplugging it, swipe the Drive
name left and tap Lock.

NOTE: After 10 failed attempts to unlock it, the drive
will be erased (reset). Refer to Brute Force Hacking in
the User Manual.

B. Tap unlock.

A. Enter password (the factory preset 11223344 )

With the app running, after tapping the drive name:

3. Unlocking the SecureDrive-BT

PASSWORD REQUIREMENTS

• 7-15 digits, special characters okay

• Cannot all be the same number/letter or
consecutive numbers/letters.

LOCK
