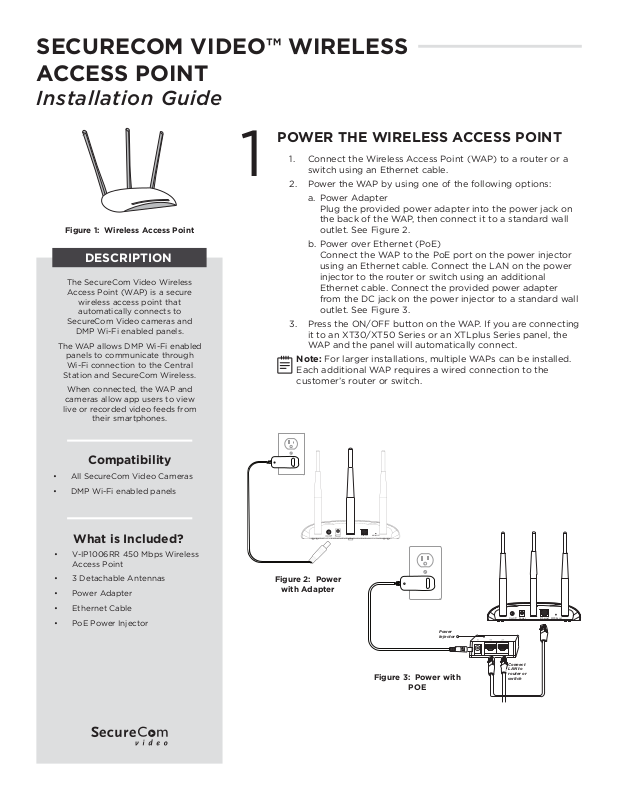

SECURECOM VIDEO™ WIRELESS ACCESS POINT

Installation Guide

POWER THE WIRELESS ACCESS POINT

1. Connect the Wireless Access Point (WAP) to a router or a

Figure 1: Wireless Access Point

DESCRIPTION

The SecureCom Video Wireless Access Point (WAP) is a secure

wireless access point that automatically connects to

SecureCom Video cameras and

DMP Wi-Fi enabled panels.

The WAP allows DMP Wi-Fi enabled

panels to communicate through

Wi-Fi connection to the Central

Station and SecureCom Wireless.

When connected, the WAP and

cameras allow app users to view

live or recorded video feeds from

their smartphones.

switch using an Ethernet cable.

2. Power the WAP by using one of the following options: a. Power Adapter

Plug the provided power adapter into the power jack on the back of the WAP, then connect it to a standard wall outlet. See Figure 2.

b. Power over Ethernet (PoE)

Connect the WAP to the PoE port on the power injector using an Ethernet cable. Connect the LAN on the power injector to the router or switch using an additional Ethernet cable. Connect the provided power adapter from the DC jack on the power injector to a standard wall outlet. See Figure 3.

3. Press the ON/OFF button on the WAP. If you are connecting it to an XT30/XT50 Series or an XTLplus Series panel, the WAP and the panel will automatically connect.

Note: For larger installations, multiple WAPs can be installed. Each additional WAP requires a wired connection to the customer’s router or switch.

Compatibility

• All SecureCom Video Cameras

• DMP Wi-Fi enabled panels

What is Included?

• V-IP1006RR 450 Mbps Wireless Access Point

• 3 Detachable Antennas

• Power Adapter

• Ethernet Cable

• PoE Power Injector

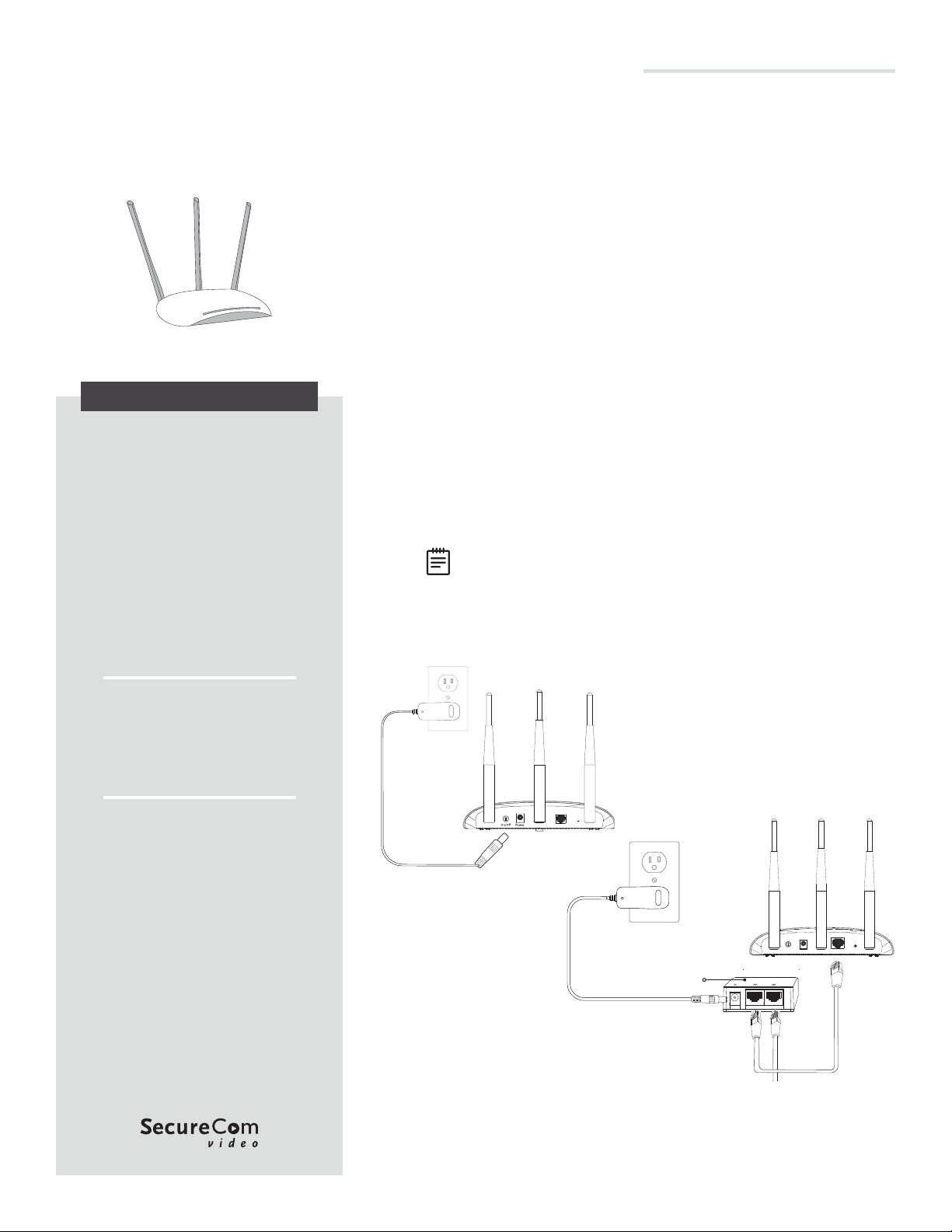

Figure 2: Power

with Adapter

WPS/RESETEthernet

Power Injector

Figure 3: Power with

POE

PowerOn/O

Connect LAN to router or switch

Ethernet

WPS/Reset

Page 2

CONNECT A CAMERA

For best results, ensure the WAP and camera are no more than 20 feet apart during pairing.

Pair Automatically

On power up, SecureCom cameras search for the WAP and pair to it automatically.

Pair Manually

WARNING: Do not press and hold the WPS button on the back of the WAP for 30 seconds or more. Thisresets the unit to default ﬁrmware, which causes paired devices to lose connection and prevents SecureCom devices from pairing automatically. To have ﬁrmware reloaded, the unit must be returned toDMP.

1. To enable pairing, press the WPS button on the back of the WAP for 1.5 seconds, then release it. The lock indicator on the WAP starts ﬂashing once per second.

2. Press the WPS button on the camera. When the camera is connected to the WAP, the lock indicator stops ﬂashing.

3. Repeat the previous steps to manaully pair another device.

ACTIVATE THE CAMERA

1. Log in to Dealer Admin at dealer.securecomwireless.com.

2. Go to Customers.

3. Select the system’s name.

4. Press Add Camera and enter the 12-digit MAC Address located on the back of the camera. Press Next.

5. Enter a name for the camera, then conﬁgure time settings as needed.

6. If the camera image needs to be inverted due to mounting position, toggle Flip Image.

7. To allow this camera to record motion triggered video clips, select Clips. a. If you only want this camera to oer a live camera view through the Virtual Keypad app, choose

Never Record Motion.

b. If you want this camera to record video clips any time it detects motion, choose Always Record on

Motion.

c. If you want the camera to record motion triggered clips only when the system is armed, choose

Record Motion When Armed.

8. To record video clips continuously during the ﬁrst minute after the system triggers an alarm, select Record on Alarm.

9. Press Save.

The device status is displayed next to the camera name. Refresh the page to display the latest status.

To view the camera’s live feed for the ﬁrst 60minutes after it is activated, go to System Information > Video Devices and select the camera. This enables you to troubleshoot issues and adjust camera positioning. Once 60minutes has expired, the camera feed can only be viewed by the user from Virtual Keypad.

SECURECOM VIDEO WIRELESS ACCESS POINT

Speciﬁcations

Power 9 VDC Dimensions 1.4” H × 7.1” W × 4.9” D Wireless Speed 450 Mbps Range Max 100 ft.

LT-1440 21041

Ordering Information

V-IP1006RR Wireless Access Point

Compatibility

All SecureCom Video Cameras DMP Wi-Fi enabled panels

INTRUSION • FIRE • ACCESS • NETWORKS

2500 North Partnership Boulevard

Springﬁeld, Missouri 65803-8877

800.641.4282 | DMP.com
