Your specialist for Network Components & IT Accessories

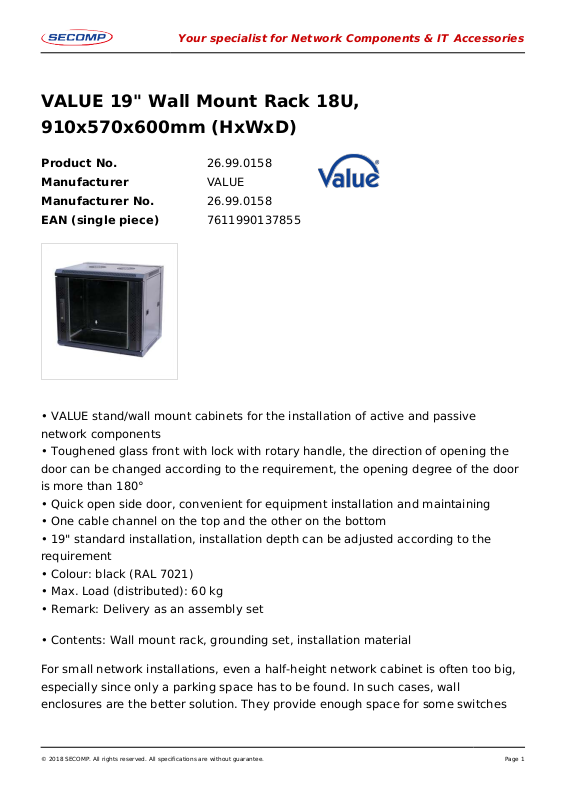

VALUE 19" Wall Mount Rack 18U,
910x570x600mm (HxWxD)
Product No. 26.99.0158
Manufacturer VALUE
Manufacturer No. 26.99.0158
EAN (single piece) 7611990137855
VALUE stand/wall mount cabinets for the installation of active and passive
network components
Toughened glass front with lock with rotary handle, the direction of opening the
door can be changed according to the requirement, the opening degree of the door
is more than 180°
Quick open side door, convenient for equipment installation and maintaining
One cable channel on the top and the other on the bottom
19" standard installation, installation depth can be adjusted according to the
requirement
Colour: black (RAL 7021)
Max. Load (distributed): 60 kg
Remark: Delivery as an assembly set
Contents: Wall mount rack, grounding set, installation material
For small network installations, even a half-height network cabinet is often too big,
especially since only a parking space has to be found. In such cases, wall
enclosures are the better solution. They provide enough space for some switches
© 2018 SECOMP. All rights reserved. All specifications are without guarantee. Page 1
Page 2
Your specialist for Network Components & IT Accessories
and patch panels and do not require space on the floor due to wall mounting. In
addition, the network administrator can easily read the status of the switches
without compromising their knees, or patch a patch cable without slipping on the
ground.
The VALUE wall enclosures prove that such practical solutions can also be
attractive. The black, slightly shiny housings are quite office-appropriate. A
generous glass insert in the door allows a clear view of all built-in active and
passive components even when the door is closed. Both the door and the side walls
can be removed for optimum access to the inside of the housing; The cable feed
can be carried out from above or below. The door of the VALUE wall housing comes
with lockable swivel lever.
Technical specifications
Manufacturer VALUE
Product group 19"-/10"-Cabinet
Product type Wall Mount Rack
Scope of delivery Wall mount rack, grounding set, installation material
Server cabinet No
Height units U 18
Socket No
Socket with tilt
No
protection
Dimensions (HxWxD)
900x570x600mm
w/o socket
Utilisable installation
450 mm
dept in mm
Front Glass door with frame
Side panel Plug door
19" level Ahead
Roof Cable entry possibility
© 2018 SECOMP. All rights reserved. All specifications are without guarantee. Page 2
Page 3
Your specialist for Network Components & IT Accessories
Roof raised No
Floor Closed
Ventilation Passive
Grounding set mounted No
Fan ready Yes
Colour (Cabinet) black
Colour (Covering) black
Colour black
