Datenblatt - Fiche technique - Data sheet
12.03.3205
ROLINE Typ C - DVI Adapter, ST/BU
ROLINE Adaptateur Type C - DVI, M/F
ROLINE Type C - DVI Adapter, M/F
Page 2
Item no.: 12.03.3205

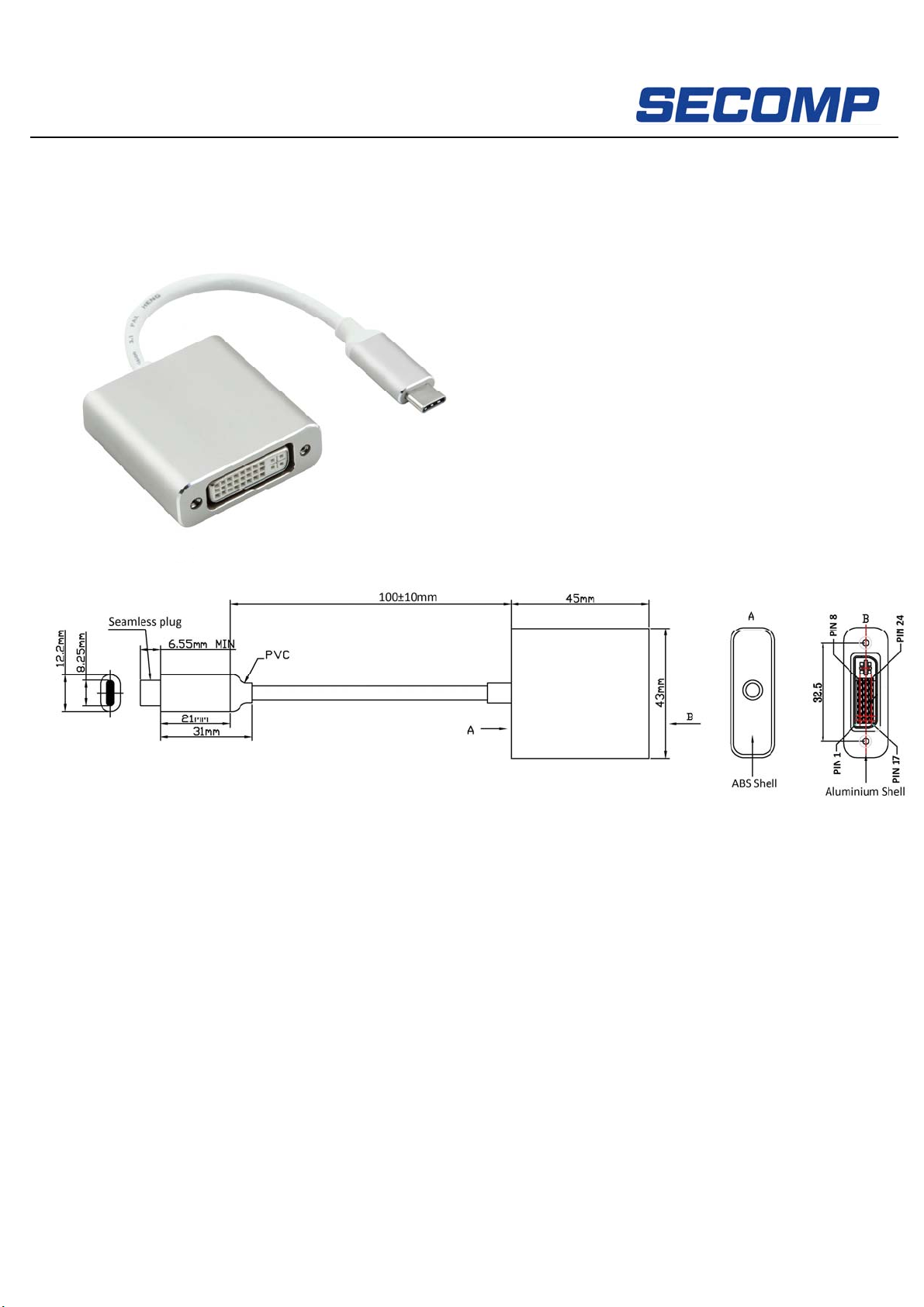

ROLINE USB 3.1 Cable Adapter, C – DVI (24+5), M/F
Aluminum, silver
Features:
Support DVI (24+5) Video output 1920*1080@60 Hz resolution
Aluminum Housing in silver color
No driver needed
USB 3.1 Type-C interface supports plug and play, hot swap
Easy to carry and use
With 10cm Cable in white color
Connector: USB 3.1 Type-C Male*1 (input) + DVI(24+5) Female*1 (output)
Operating Temperature: 0℃~45℃
Storage Temperature: -20℃~ 70℃
Operating Humidity: 10% ~ 85 % RH (no condensation)
System requirements: Windows, MAC OS X, Google Chrome
Page 3
USB 3.1 Type-C™ to DVI 24+5
Socket Converter
User Manual
Page 4
USB 3.1 Type-C™ to DVI 24+5 Socket Converter
Contents
1.0 INTRODUCTION .............................................. 1
2.0 FEATURES ..................................................... 1
3.0 SPECIFICATIONS ............................................ 1
4.0 PACKAGE CONTENTS ....................................... 2
5.0 OPERATION ................................................... 2
6.0 CONNECTION DIAGRAM .................................. 2
Page 5
USB 3.1 Type-C™ to DVI 24+5 Socket Converter
USB 3.1 Type-C™ to DVI 24+5 Socket
converter
DEAR CUSTOMER
Thank you for purchasing this product. For optimum performance and safety,
please read these instructions carefully before connecting, operating or
using this product. Please keep this manual for future reference.
1.0 INTRODUCTION
This is a USB 3.1 Type C™ to DVI24+5 Socket, designed for connecting DVI
Monitor to host computer, the host computer can easily connect to the DVI
Monitor. Connecting the monitor with a DVI cable which is contacted with
DVI socket of this converter It can work on Macbook or Google new
Chromebook Pixel or Asus Zen AiO and other USB 3.1 Type C™ supported
devices.
2.0 FEATURES
Support USB 3.1 Type C™ Video output 1920*1080@60hz resolution
NO driver needed
ABS Housing
With 10cm Cable
USB 3.1 Type C™ interfaces support plug and play, hot swap
Easy to carry and use
3.0 SPECIFICATIONS
Item No.:
ABS Housing 716107 716107S
Aluminium Housing 716107V 716107D 716107X
Size(L*W*H) 200*48*14mm
Input/Output Connector
Input port USB 3.1 Type C™ Male*1
Output port DVI24+5 Socket
Warranty
Limited Warranty 1 Year
Environmental
Operating Temperature
Operating Humidity 10% ~ 85 % RH (no condensation)
Storage Temperature
0℃~45℃
-20℃~ 70℃
1
Page 6
USB 3.1 Type-C™ to DVI 24+5 Socket Converter
Storage Humidity 5% ~ 90 % RH (no condensation)
System requirements Windows, MAC OSX, Google Chrome
Regulatory Approvals
FCC CE Certification
RoHS 2.0 & REACH Compliant
Accessories Adapter
User Manual English Version
4.0 PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and make
sure the following items are contained in the shipping carton:
Main unit x1
User Manual x1
5.0 OPERATION
1) Connect the DVI 24+5 Socket to DVI Monitor
2） Connect the USB 3.1 Type C™ male port of this product to computer
6.0 CONNECTION DIAGRAM
