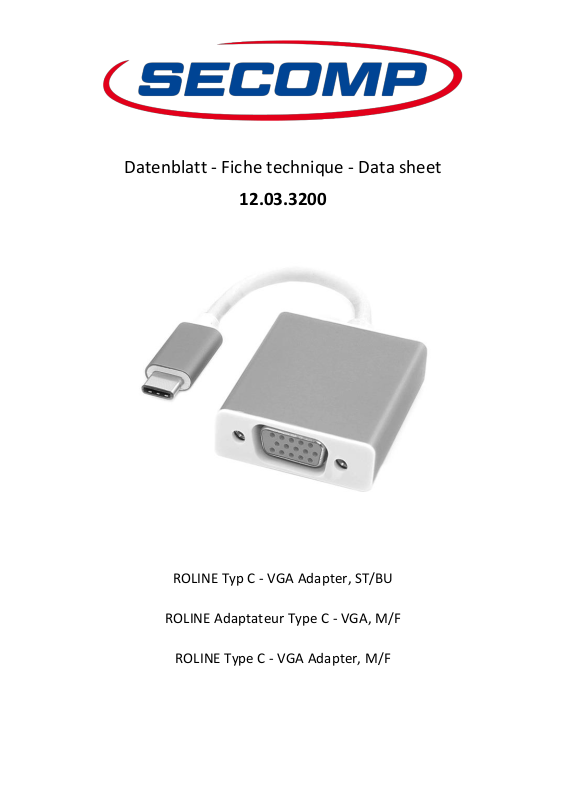

Datenblatt - Fiche technique - Data sheet
12.03.3200

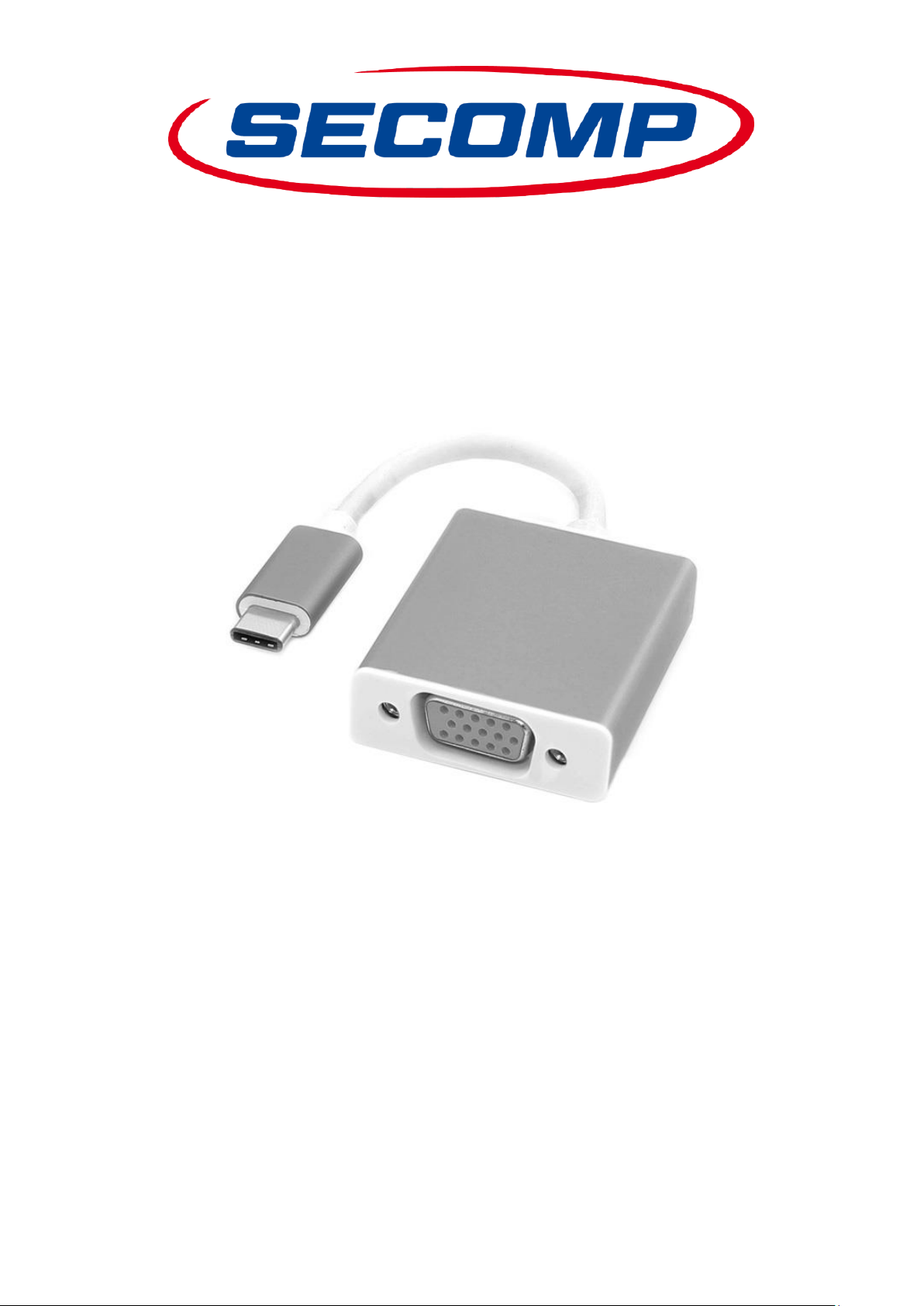

ROLINE Typ C - VGA Adapter, ST/BU
ROLINE Adaptateur Type C - VGA, M/F
ROLINE Type C - VGA Adapter, M/F
Page 2

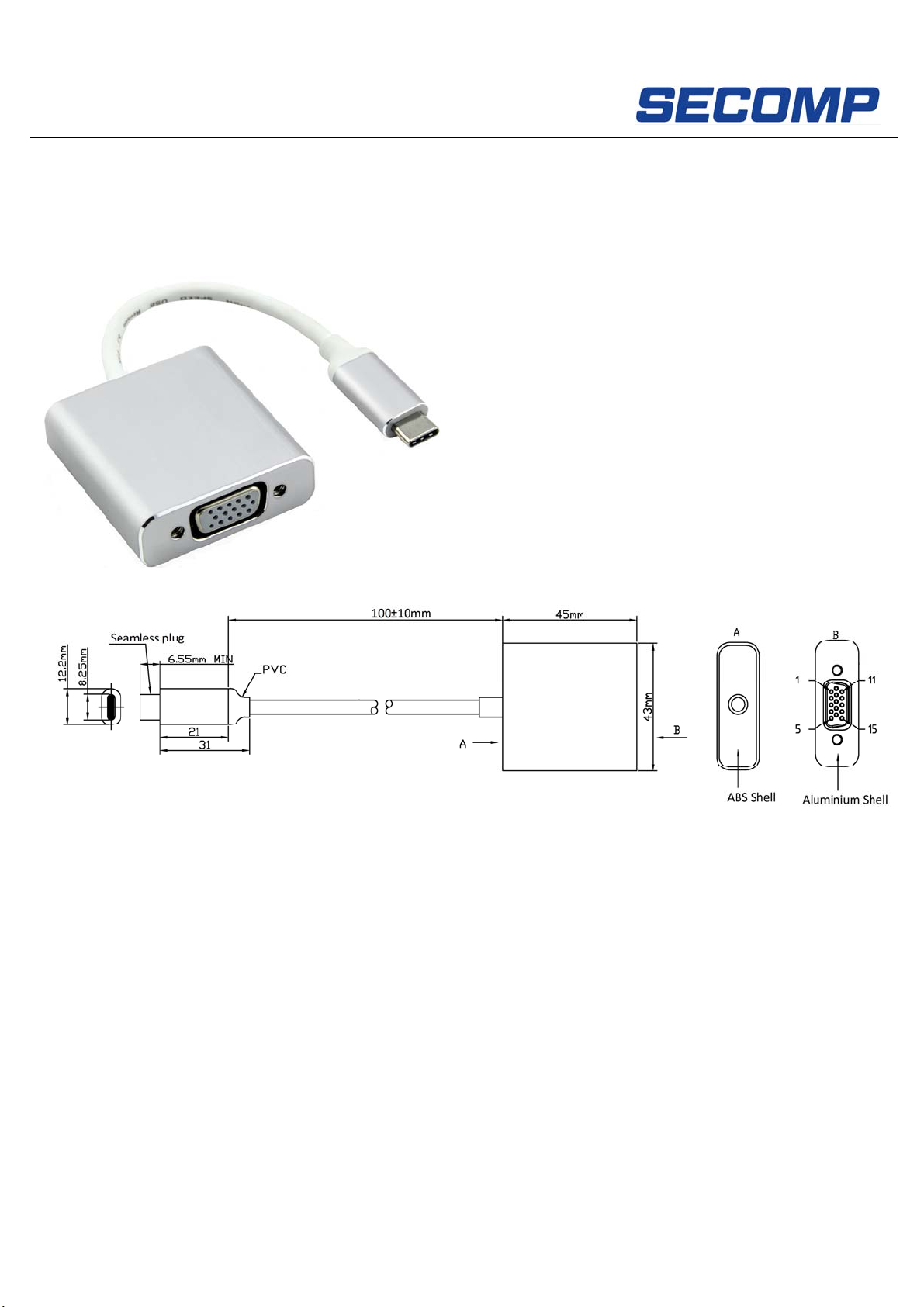

Item no.: 12.03.3200
ROLINE USB 3.1 Cable Adapter, C – VGA, M/F
Aluminum, silver
Features:
Support VGA Video output 1080P@60Hz resolution
Aluminum Housing in silver color
No driver needed
USB 3.1 Type-C interface supports plug and play, hot swap
Easy to carry and use
With 10cm Cable in white color
Connector: USB 3.1 Type-C Male*1 (input) + HD VGA Female*1 (output)
Operating Temperature: 0℃~45℃
Storage Temperature: -20℃~ 70℃
Operating Humidity: 10% ~ 85 % RH (no condensation)
System requirements: Windows, MAC OS X, Google Chrome
Page 3

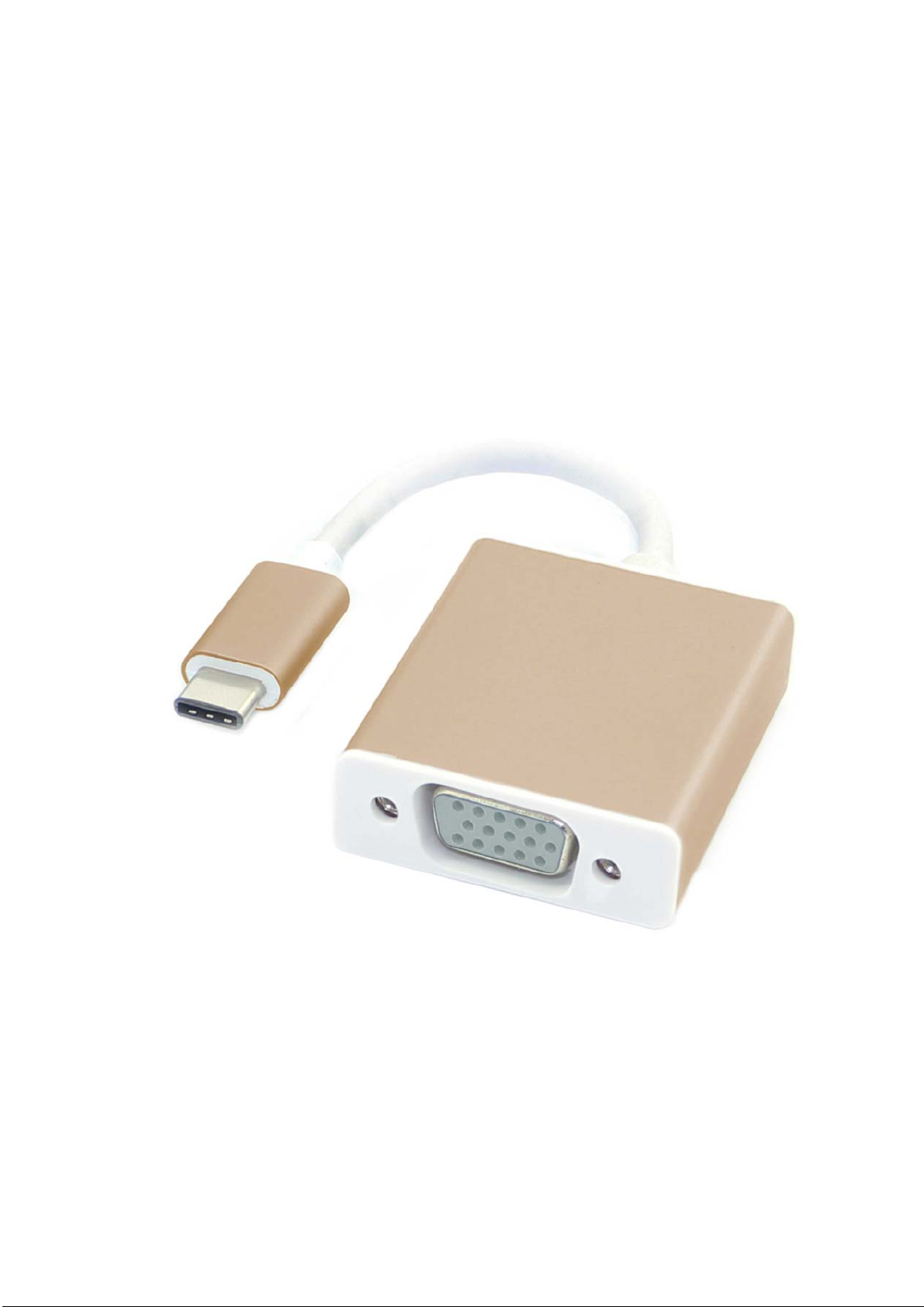

USB 3.1 Type-C™ to VGA Socket
Converter
User Manual
Page 4
USB 3.1 Type-C™ to VGA Socket Converter
Contents
1.0 INTRODUCTION .............................................. 1
2.0 FEATURES ..................................................... 1
3.0 SPECIFICATIONS ............................................ 1
4.0 PACKAGE CONTENTS ....................................... 2
5.0 OPERATION ................................................... 2
6.0 CONNECTION DIAGRAM .................................. 2
Page 5
USB 3.1 Type-C™ to VGA Socket Converter
USB 3.1 Type-C™ to VGA Socket converter
DEAR CUSTOMER
Thank you for purchasing this product. For optimum performance and safety,
please read these instructions carefully before connecting, operating or using
this product. Please keep this manual for future reference.
1.0 INTRODUCTION
This is a USB 3.1 Type C™ to HD15 VGA Socket, designed for connecting VGA
Monitor to host computer, the host computer can easily connect to the
Monitor .
socket of this converter.
Pixel or Asus Zen AiO and other USB 3.1 Type C™ supported devices.
2.0 FEATURES
Connecting the projector with a VGA cable which is contacted with the VGA
It can work on Mac book or Google new Chromebook
Support USB-Type C™ Video output 1080P@60hz resolution
NO driver needed
ABS Housing Provide white，black two colors
Aluminium Housing Provide gold，silver，grey space，three colors
Slim Type ABS Housing Provide white，black two colors
With 10cm Cable
USB 3.1 Type C™ interfaces support plug and play, hot swap
Easy to carry and use
3.0 SPECIFICATIONS
Item No.:
ABS Housing 716091 716091S
ABS Slim Type 716103 716103S
Aluminium Housing 716091V 716091D 716091X
Size(L*W*H)
ABS Housing 200*45*15.2mm
ABS Slim Type housing 200*25*11.5mm
Aluminium Housing 200*38*13mm
Input/Output Connector
Input port USB 3.1 Type-C™ Male*1
Output port HD15 VGA Socket
Warranty
Limited Warranty 1 Year
Environmental
Operating Temperature
0℃~45℃
1
Page 6
USB 3.1 Type-C™ to VGA Socket Converter
Operating Humidity 10% ~ 85 % RH (no
condensation)
Storage Temperature
-20℃~ 70℃
Storage Humidity 5% ~ 90 % RH (no condensation)
System requirements Windows, MAC OSX, Google
Chrome
Regulatory Approvals
FCC CE Certification
RoHS 2.0 & REACH Compliant
Accessories Adapter
User Manual English Version
4.0 PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and make sure
the following items are contained in the shipping carton:
Main unit x1
User Manual x1
5.0 OPERATION
1) Connect the VGA Socket to Monitor
2） Connect the USB 3.1 Type C™ male port of this product to computer
6.0 CONNECTION DIAGRAM
2
