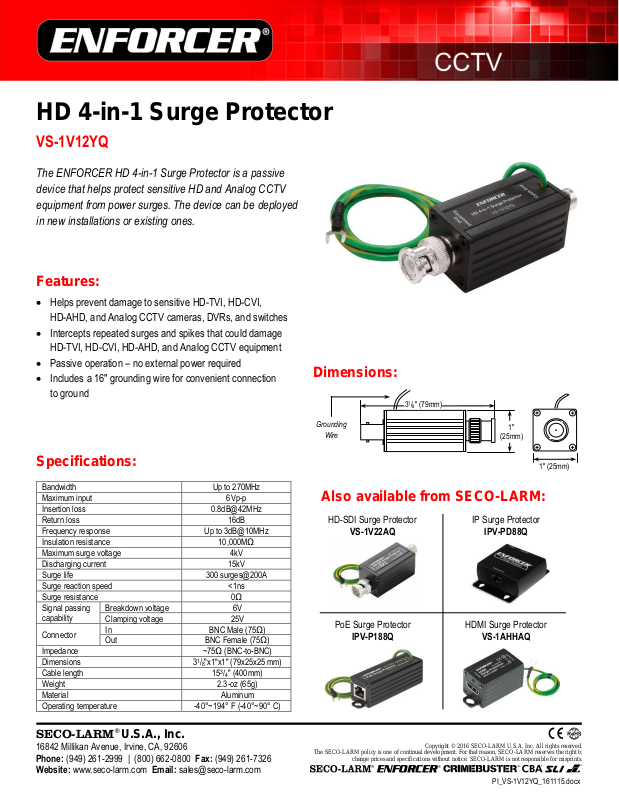

VS-1V12YQ

The ENFORCER HD 4-in-1 Surge Protector is a passive
device that helps protect sensitive HD and Analog CCTV
equipment from power surges. The device can be deployed
in new installations or existing ones.

Features:

 Helps prevent damage to sensitive HD-TVI, HD-CVI,

HD-AHD, and Analog CCTV cameras, DVRs, and switches

 Intercepts repeated surges and spikes that could damage

HD-TVI, HD-CVI, HD-AHD, and Analog CCTV equipment

 Passive operation – no external power required
 Includes a 16" grounding wire for convenient connection

to ground

Specifications:

Bandwidth

Up to 270MHz

Maximum input

6Vp-p

Insertion loss

0.8dB@42MHz

Return loss

16dB

Frequency response

Up to 3dB@10MHz

Insulation resistance

10,000MΩ

Maximum surge voltage

4kV

Discharging current

15kV

Surge life

300 surges@200A

Surge reaction speed

<1ns

Surge resistance

0Ω

Signal passing
capability

Breakdown voltage

6V

Clamping voltage

25V

Connector
In

BNC Male (75Ω)

Out

BNC Female (75Ω)

Impedance

~75Ω (BNC-to-BNC)

Dimensions

31/8"x1"x1" (79x25x25 mm)

Cable length

153/4" (400mm)

Weight

2.3-oz (65g)

Material

Aluminum

Operating temperature

-40°~194° F (-40°~90° C)

Also available from SECO-LARM:

IP Surge Protector

IPV-PD88Q

HD-SDI Surge Protector

VS-1V22AQ

PoE Surge Protector

IPV-P188Q

HDMI Surge Protector

VS-1AHHAQ

HD 4-in-1 Surge Protector

Dimensions:

1"

(25mm)

31/8" (79mm)

Grounding

Wire

1" (25mm)
