VG-1C12YQ
4-in-1 HD Ground Loop Isolator
Manual
Features:
TVI / CVI / AHD / Analog compatible
Reduces ground loop interference
BNC terminals for easy installation
Built-in surge protection
Prevents video-signal distortion, picture tearing,
cross talk, and other picture quality problems
Passive operation - No external power required
ENFORCER 4-in-1 HD Ground Loop Isolator
Introduction:
The ENFORCER 4-in-1 HD Ground Loop Isolator is a passive device that helps to reduce ground
loop interference caused by a difference in ground potential. Ground loop isolators can be
deployed in new installations or added to existing installations.
ENFORCER 4-in-1 HD Ground Loop Isolators should be installed on the DVR side of the cable
and can be used with standard BNC coax cables or with 4-in-1 HD video baluns.
Parts List:
1x HD Ground Loop Isolator 1x Manual
Specifications:
Bandwidth Video DC to 40MHz
Insertion loss ≤0.5dB
Frequency response 5Hz~10MHz
Isolation voltage 800VDC (min.)
Insulation resistance ≥100MΩ
Surge protection 4kV, 10/700μs IEC 61000-4-5/1955
Connector
Impedance 75Ω (BNC-to-BNC)
Cable length 77/8" (200mm) each side
Housing material ABS Plastic
Operating humidity 0~95% non-condensing
Operating temperature -4°~140° F (-20°~60° C)
Housing dimensions 111/16"x11/8"x13/16" (43x28x21 mm)
Weight 2.0-oz (57g)
In
Out
BNC Male
BNC Female
Overview:
111/16"
(43mm)
Housing End View
13
/16" (21mm)
11/8" (28mm)
2 SECO-LARM U.S.A., Inc.
77/8" (200mm) 77/8" (200mm)
ENFORCER 4-in-1 HD Ground Loop Isolator
s
Installation:
1. Detach the video cable BNC connector from the DVR BNC connector.
2. Attach the equipment side of the 4-in-1 HD Ground Loop Isolator to the DVR BNC connector.
3. Attach the video cable BNC connector to the cable side of the 4-in-1 HD Ground Loop Isolator.

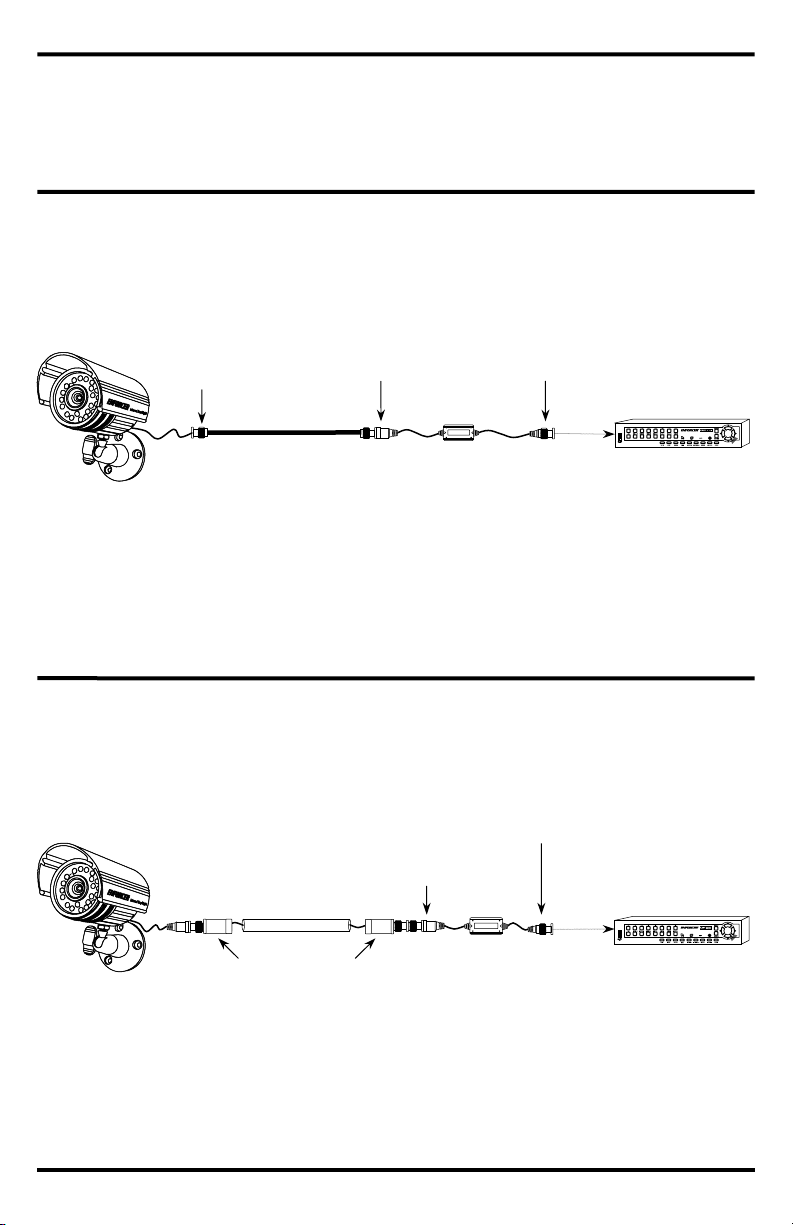

Sample Application:
Shorter run using coax cable
BNC Connector
ENFORCER
HD Bullet Camera
*Distance determined by camera and DVR
BNC Input connector
(Cable side)
Coax cable*
Sample Application:
Longer run using CAT5e/6 cable and HD video balun
BNC Input connector
(Cable side)
BNC Output connector
(Equipment side)
4-in-1 HD Ground
Loop Isolator
(VG-1C12YQ)
BNC Output connector
(Equipment side)
Remote DVR, monitor,
switch, etc.
Cat5e/6 Cable*
4-in-1 HD Video Balun
ENFORCER
HD Bullet Camera
*Distance determined by camera, DVR, and balun
(EB-P101-01HQ)
4-in-1 HD Ground
Loop Isolator
(VG-1C12YQ)
Remote DVR, monitor,
switch, etc.
SECO-LARM U.S.A., Inc. 3
ENFORCER 4-in-1 HD Ground Loop Isolator
p
A
(
Troubleshooting:
Wavy or ghost image if
connected to image processor
(e.g., multiplexer or DVR), but
not if directly to monitor
Image background flutters
between dark and light
Image is wavy and shakes
Move the cable away from possible sources of interference
Ensure that the same twisted pair connects to a balun at both
ends of the cable
Replace the cable with a new cable
Remove a local power source, or adjust the monitor's brightness
and contrast
Try reversing the polarity of the two wires at one end of the cable
Reduce the cable length
Image is weak or faded
Replace with a higher-grade cable. CAT5 cable meets the
specifications in the manual. CAT6 cable allows longer range.
No image
Double-check that the cables were connected properly
Run a continuity test on all wires in the cable
Also Available from SECO-LARM®:
4-in-1 HD Video
Distributors
4-in-1 HD Surge
Protector
4-in-1 Passive HD Video
Baluns
VA-1102B-WYQ shown VS-1V12YQ shown EB-P101-01HQ shown
IMPORTANT:
state, and local laws and statutes related to monitoring and recording audio and video signals. SECO-LARM will not be
held res
WARNING: Incorrect mounting which leads to exposure to rain or moisture inside the enclosure could cause a dangerous
electric shock, damage the device, and void the warranty. Do not open the case of this device, as there are no
field-serviceable components inside.
WARRANTY:
service for one (1) year from the date of sale to the original customer. SECO-LARM’s obligation is limited to the repair or
replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM. This Warranty is void if
damage is caused by or attributed to acts of God, physical or electrical misuse or abuse, neglect, repair or alteration,
improper or abnormal usage, or faulty installation, or if for any other reason SECO-LARM determines that such equipment
is not operating properly as a result of causes other than defects in material and workmanship. The sole obligation of
SECO-LARM and the purchaser’s exclusive remedy, shall be limited to the replacement or repair only, at SECO-LARM’s
option. In no event shall SECO-LARM be liable for any special, collateral, incidental, or consequential personal or property
damage of any kind to the purchaser or anyone else.
NOTICE: The SECO-LARM policy is one of continual development and improvement. For that reason, SECO-LARM
reserves the right to change specifications without notice. SECO-LARM is also not responsible for misprints.
are the property of SECO-LARM U.S.A., Inc. or their respective owners. Copyright © 2017 SECO-LARM U.S.A., Inc. All
rights reserved.
