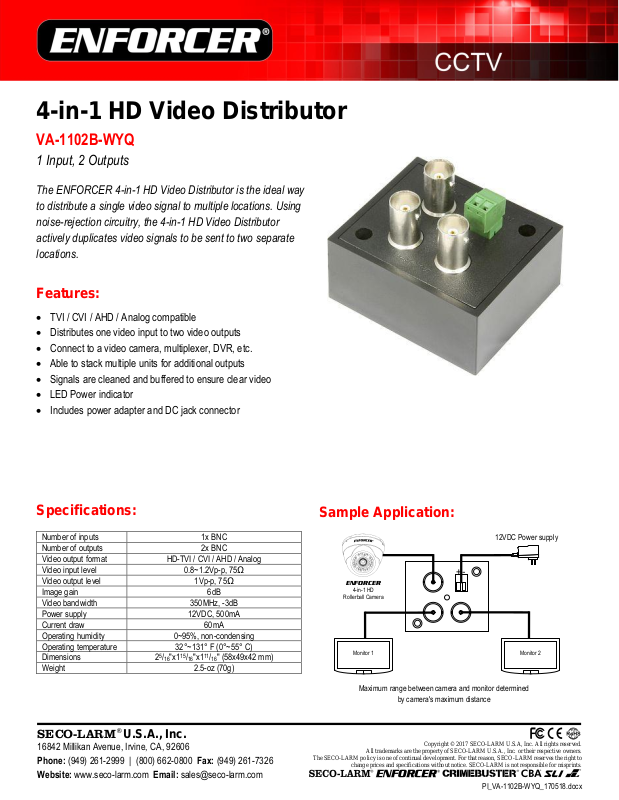

4-in-1 HD Video Distributor

VA-1102B-WYQ

1 Input, 2 Outputs

The ENFORCER 4-in-1 HD Video Distributor is the ideal way
to distribute a single video signal to multiple locations. Using
noise-rejection circuitry, the 4-in-1 HD Video Distributor
actively duplicates video signals to be sent to two separate
locations.

 TVI / CVI / AHD / Analog compatible
 Distributes one video input to two video outputs
 Connect to a video camera, multiplexer, DVR, etc.
 Able to stack multiple units for additional outputs
 Signals are cleaned and buffered to ensure clear video
 LED Power indicator
 Includes power adapter and DC jack connector

Features:

Specifications:

Number of inputs

1x BNC

Number of outputs

2x BNC

Video output format

HD-TVI / CVI / AHD / Analog

Video input level

0.8~1.2Vp-p, 75Ω

Video output level

1Vp-p, 75Ω

Image gain

6dB

Video bandwidth

350MHz, -3dB

Power supply

12VDC, 500mA

Current draw

60mA

Operating humidity

0~95%, non-condensing

Operating temperature

32°~131° F (0°~55° C)

Dimensions

25/16"x115/16"x111/16" (58x49x42 mm)

Weight

2.5-oz (70g)

Monitor 2

Maximum range between camera and monitor determined

by camera's maximum distance

+

-

Sample Application:

Monitor 1

12VDC Power supply

ENFORCER

4-in-1 HD

Rollerball Camera
