Installation Manual
SD-962SR-36I
Grade 1 Rim-Type Exit Device
Features:
What It Does:
SECO-LARM’s SD-962AR-36I exit device, when mounted on the inside of a door to block entry to a protected premises,
securely locks the door from outside access while allowing users inside the protected premises to exit. The stainlesssteel enclosure protects the exit device from abuse, yet easily unlocks the door from the inside by users who require exit.
It can be connected to an entry-type lever trim or to any physical locking device on the outside of the door in order to
allow entry to authorized personnel.
Dimensions:
25/16”
(59mm)
Heavy-duty ANSI Grade 1 stainless-steel construction.
Allows exit from inside while locked from outside.
Reversible non-handed design.
For metal or wood doors up to 1
3
/4” thick.
Separate deadlocking latch –
Prevents the use of credit cards or similar means to
open the latch bolt.
Allen-type
1
/4-turn dogging lock – Allows the exit
device to be unlocked for extended period of time.
Includes all needed hardware for typical
installation.
Works with standard external door handle/lock
devices (not included).
Fits doors from 36” to 48” wide.
321/8” (787mm)
6”
(154mm)
29/16”
(65mm)
15/8”
(42mm)
21”
(533mm)
ENFORCER Grade 1 Rim-Type Exit Device
Fig. 3 – Possible Applications
27/16”
Single Door
Double Door
with Mullion
Double Door
without Mullion
Door
Exit device
Trim
Door
Exit device
Trim
Trim
Door
Exit device
Trim
Trim
Door
Door
Exit device
Exit device
27/16”
215/16”
Double-door strike
(not included)
Fig. 2 – Parts Description
Chassis cover
Chassis
Mechanism housing
Push bar
Dogging device –
Use Allen key to lock
in the open position
so the door can be
opened from outside
the protected
premises.
End cap
Strike
End cap bracket
Sliding shim
2 SECO-LARM U.S.A., Inc.

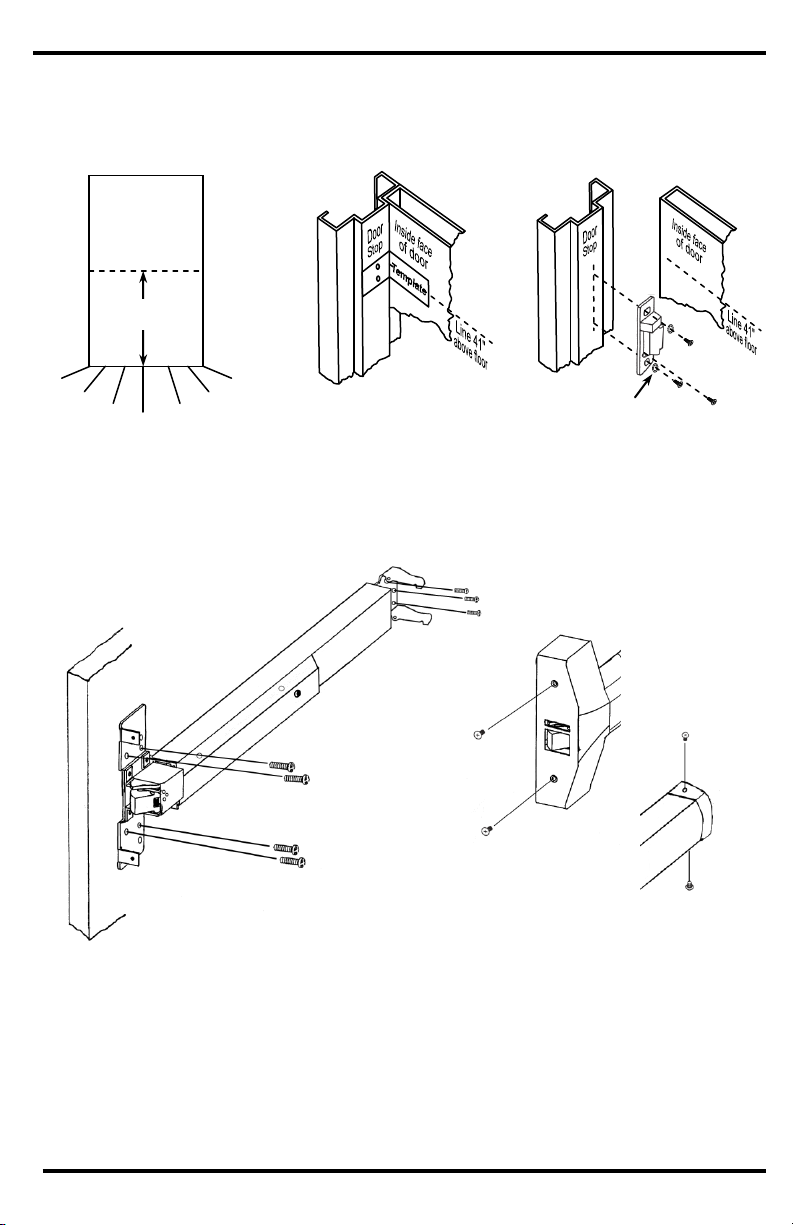

Fig. 4 – Mounting
Location
Fig. 5 – Using the
Template
Fig. 6 – Mounting the
Strike
Door
Draw line here
41”
Fig. 7– Final Installation
1. Mark the vertical center line of the exit bar by drawing a line across the door at 41” above the floor.
See fig. 4.
2. Fold the included template, and align the center lines on the template with the center line just drawn on
the door. Then mark the position of the mounting holes for the latch assembly. See fig. 5.
3. Move the template against the door stop and then mark the mounting holes for the strike.
4. Drill the holes as marked on the door and the mullion. See fig. 6.
Note: If holes exist on door or door jamb from previous installations, use the included cover plates to cover
these areas.
Toothed lock
washer
If necessary, use the included plate spacer.
ENFORCER Grade 1 Rim-Type Exit Device
SECO-LARM U.S.A., Inc 3 SECO-LARM U.S.A., Inc. 33 3
ENFORCER Grade 1 Rim-Type Exit Device
Specifications
Construction
ANSI Grade 1 steel
Hand
Non-handed
Latch bolt
Stainless steel 3/4” throw
Dead latch
Stainless steel 5/8” stop plus shim for 1/2” stop
Strike 5/8” stop plus shim for 1/2” stop
Spring
Stainless steel
Chassis
Stainless steel
Cover
Stainless steel
Rail assembly
Stainless steel
End cap
Stainless steel
Dogging
Allen-type dogging standard
Dimensions
321/8”x6”x29/16” (787x154x65 mm)
Weight
6-lb, 12-oz (3kg)
WARNING Incorrect mounting that leads to exposure or moisture inside the enclosure could damage the device and will void the warranty.
PITDW1
WARRANTY: This SECO-LARM product is warranted against defects in material and workmanship while used in normal service for a period of
one (1) year from the date of sale to the original consumer customer. SECO-LARM’s obligation is limited to the repair or replacement of any
defective part if the unit is returned, transportation prepaid, to SECO-LARM.
This Warranty is void if damage is caused by or attributed to acts of God, physical or electrical misuse or abuse, neglect, r epair or alteration,
improper or abnormal usage, or faulty installation, or if for any other reason SECO-LARM determines that such equipment is not operating
properly as a result of causes other than defects in material and workmanship.
The sole obligation of SECO-LARM, and the purchaser’s exclusive remedy, shall be limited to replacement or repair only, at
SECO-LARM’s option. In no event shall SECO-LARM be liable for any special, collateral, incidental, or consequential personal or property
damages of any kind to the purchaser or anyone else.
NOTICE
The information and specifications printed in this manual are current at the time of publication. However, the SECO -LARM policy is one of
continual development and improvement. For this reason, SECO-LARM reserves the right to change specifications without notice.
SECO-LARM is also not responsible for misprints or typographical errors.
Copyright © 2011 SECO-LARM U.S.A., Inc. All rights reserved. This material may not be reproduced or copied, in whole or in part, without
the written permission of SECO-LARM.
SECO-LARM U.S.A., Inc.
16842 Millikan Avenue, Irvine, CA 92606
Tel: 800-662-0800 / 949-261-2999
Website: www.seco-larm.com
E-mail: sales@seco-larm.com
Parts List:
1 x Entry-Level Grade 1
Rim-Type Exit Device
1 x Manual
MiSD-962SR-36I_1108.docx
1 x Mounting template
1 x Strike
1 x Hex wrench
1 x End cap
1 x End cap bracket
Screws Included:
What’s Included:
1 x Cover plate (door)
1 x Cover plate (strike)
1 x Plate spacer for door strike
4x Mounting screws (for wood doors)
4x Mounting screws (for metal doors)
5x Screws for securing the chassis to the Rim-Type Exit Device
For the chassis:
3x Mounting screws (for wood doors)
3x Mounting screws (for metal doors)
2x Screws for securing the end cap to the end cap bracket
For the end cap:
3x Mounting screws (for wood doors)
3x Mounting screws (for metal doors)
2x Toothed lock washers
For the door strike:
4x Mounting screws
For the cover plates:
