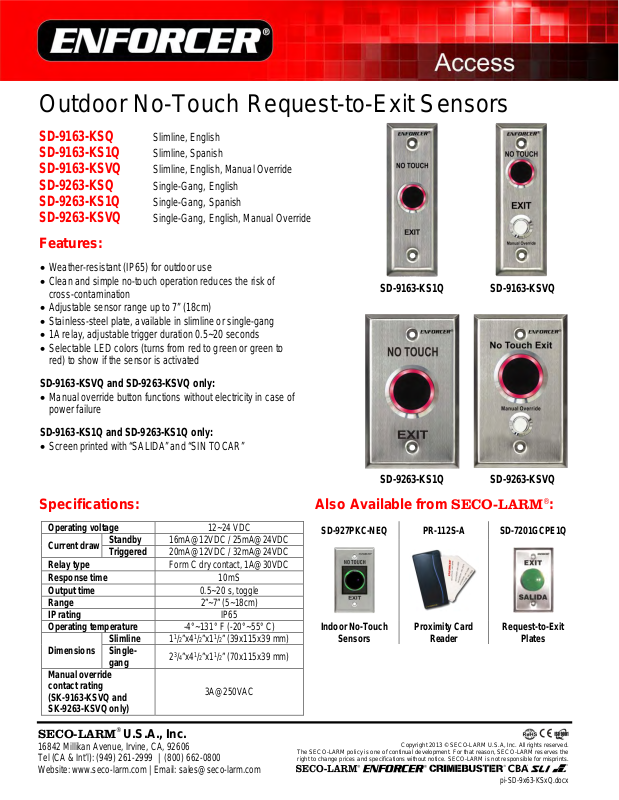

Outdoor No-Touch Request-to-Exit Sen s ors

SD-9163-KSQ

SD-9263-KSVQ

Features:

• Weather-resistant (IP65) for outdoor use

Specifications:

Operating voltage

12~24 VDC

Standby

16mA@12VDC / 25mA@24VDC

Triggered

20mA@12VDC / 32mA@24VDC

Relay type

Form C dry contact, 1A@30VDC

Response time

10mS

Output time

0.5~20 s, toggle

Range

2”~7” (5~18cm)

IP rating

IP65

Operating temperature

-4°~131° F (-20°~55° C)

Slimline

11/2”x41/2”x11/2” (39x115x39 mm)

Single­gang

Manual override

SK-9263-KSVQ only)

Also Available from SECO-LARM®:

Indoor No-Touch

Sensors

Proximity Card

Reader

Request-to-Exit

Plates

SD-9163-KS1Q

SD-9163-KSVQ

SD-9263-KSVQ

SD-9263-KS1Q

Slimline, English

SD-9163-KS1Q Slimline, Spanish
SD-9163-KSVQ Slimline, English, Manual Override
SD-9263-KSQ Single-Gang, English
SD-9263-KS1Q Single-Gang, Spanish

• Clean and simple no-touch operation reduces the risk of
cross-contamination

• Adjustable sensor range up to 7” (18cm)

• Stainless-steel plate, available in slimline or single-gang

• 1A relay, adjustable trigger duration 0.5~20 seconds

• Selectable LED colors (turns from red to green or green to

red) to show if the sensor is activated

SD-9163-KSVQ and SD-9263-KSVQ only:

• Manual override button functions without electricity in case of
power failure

SD-9163-KS1Q and SD-9263-KS1Q only:

• Screen printed with “SALIDA” and “SIN TOCAR”

Single-Gang, English, Manual Override

SD-927PKC-NEQ PR-112S-A SD-7201GCPE1Q

Current draw

Dimensions

contact rating
(SK-9163-KSVQ and

23/4”x41/2”x11/2” (70x115x39 mm)

3A@250VAC

The SECO-LARM policy is one of continual development. For that reason, SECO-LARM reserves the
right to change prices and specifications without notice. SECO-LARM is not responsible for misprints.
