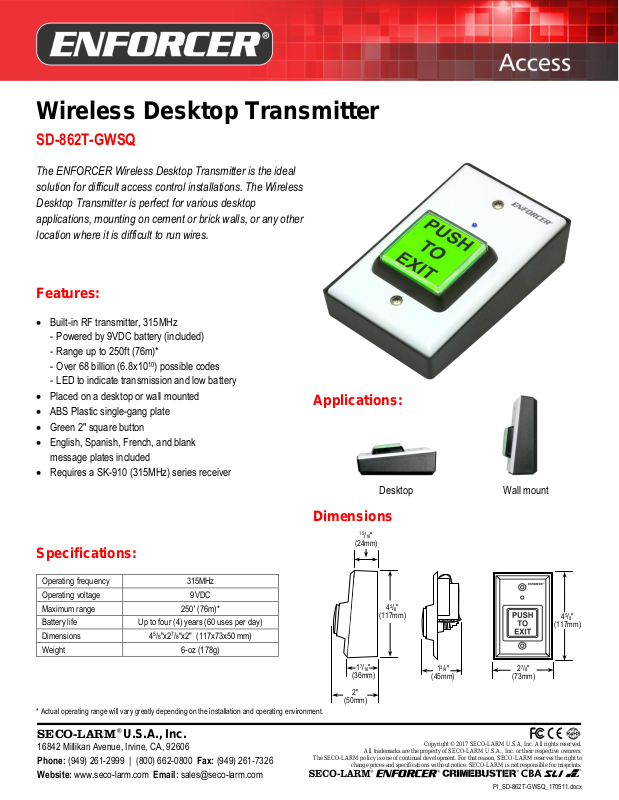

Wireless Desktop Transmitter

SD-862T-GWSQ

The ENFORCER Wireless Desktop Transmitter is the ideal
solution for difficult access control installations. The Wireless
Desktop Transmitter is perfect for various desktop
applications, mounting on cement or brick walls, or any other
location where it is difficult to run wires.

 Built-in RF transmitter, 315MHz

- Powered by 9VDC battery (included)

- Range up to 250ft (76m)*

- Over 68 billion (6.8x10

10

) possible codes

- LED to indicate transmission and low battery

 Placed on a desktop or wall mounted
 ABS Plastic single-gang plate
 Green 2" square button
 English, Spanish, French, and blank

message plates included

 Requires a SK-910 (315MHz) series receiver

Features:

Specifications:

Operating frequency

315MHz

Operating voltage

9VDC

Maximum range

250' (76m)*

Battery life

Up to four (4) years (60 uses per day)

Dimensions

45/8"x27/8"x2" (117x73x50 mm)

Weight

6-oz (178g)

* Actual operating range will vary greatly depending on the installation and operating environment.

Dimensions

15

/16"

(24mm)

17/16"

(36mm)

45/8"

(117mm)

2"

(50mm)

45/8"

(117mm)

27/8"

(73mm)

13/4"

(45mm)

Applications:

Desktop

Wall mount
