NOTE: Products with a model number that ends with “Q” or have a round green “Q” sticker represent RoHs com pliant products.
MANUAL
SD-8000 Series
Wireless Request-to-Exit Plates
SD-8202GT-PEQ
(shown)
(shown)
SD-8103GT-PEQ
Built-in RF transmitter:
- Powered by 9VDC (battery included).
- Over 68 billion (6.8x10
10
) possible codes.
- LED to indicate transmission and low battery.
Stainless-steel single-gang or slim-line plate.
Available in 2 different button configurations:
- Green 2” square
- Green, small, square
English “Push to Exit” and Spanish
“Presione para Salir” messages included.
The ENFORCER Wireless RF Request-to-Exit Buttons are the ideal solution for difficult Access
Control installations. The RTE plates combine the very best of SECO-LARM, flexible wireless
solutions and reliable access control. The RTE plates are perfect for cement or brick walls, or any
other location where it is difficult to run wires.
Wireless
- Range up to 100 feet. 315MHz.
ENFORCER Wireless Request-to-Exit Plates
Specifications:
SD-8000 Series of Wireless RTE Plates:
Dimensions:
11/2”
(38mm)
41/2”
(114mm)
23/4”
(70mm)
21/4”
(57mm)
Operating frequency
315 MHz
Operating voltage
9VDC
Battery life
Up to four (4) years (60 uses per day)
Dimensions
Single-gang
41/2" x 23/4" x 21/4" (114 x 70 x 57 mm)
Slim-line
41/2" x 21/4" x 11/2" (114 x 57 x 38 mm)
Detail: Wireless Request-to-Exit Plates
Switch
9V Alkaline
Battery
LED indicator
Request
button
Battery clip
Wireless
transmitter
SD-8202GT-PEQ
(shown)
Red=Low Battery
Red=Low Battery
ENFORCER®
SD-8202GT-PEQ
Single-Gang
2” Square Green
Pushbutton
Slimline
Vandal-Resistant
Pushbutton
Slimline
Small Square
Pushbutton
Slimline
Small Red
Pushbutton
Single-Gang
Green Mushroom
Pushbutton
SD-8201GTPE1Q
SD-8104STEX1Q
SD-8101RTPE1Q
SD-8103GT-PEQ
2 SECO-LARM U.S.A., Inc.
ENFORCER Wireless Request-to-Exit Plates

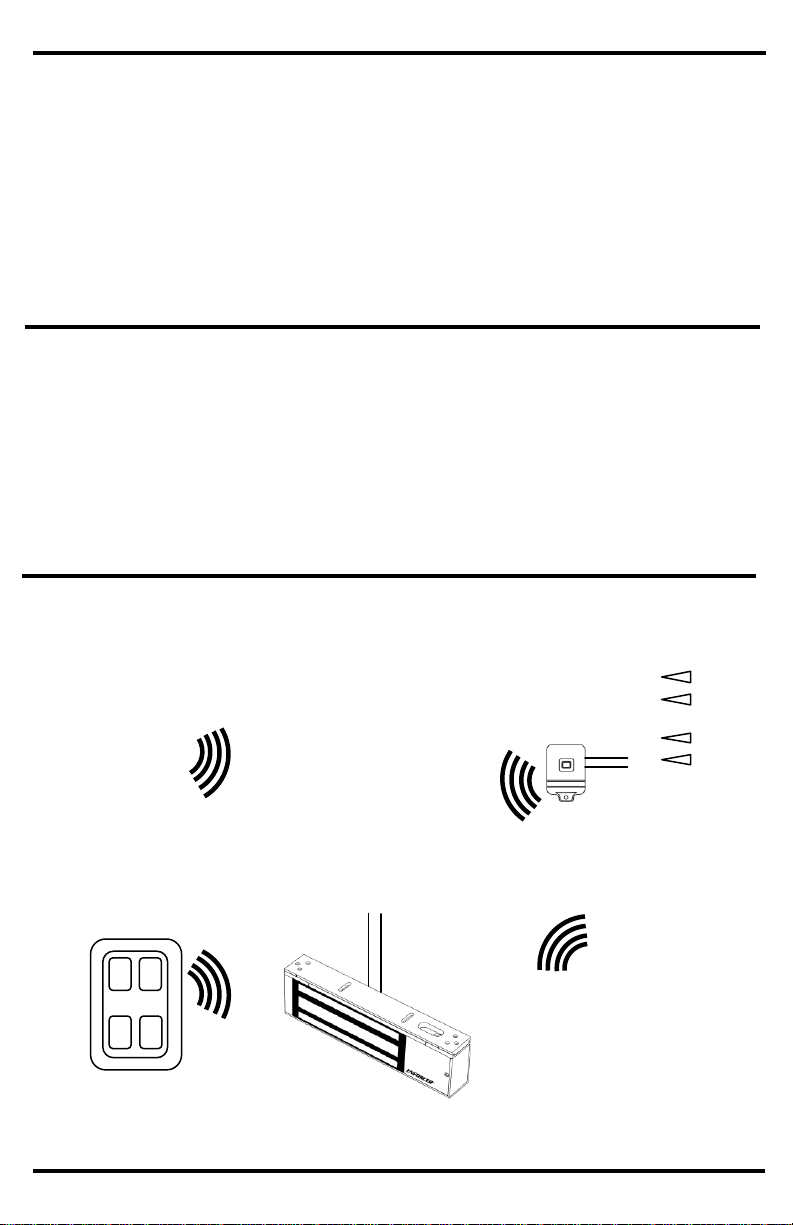

Sample Application: Connecting to multiple wireless devices to an
Electromagnetic Lock:
Installation:
1. Find a suitable location for the wireless request-to-exit plate.
NOTE: Do not house the plate in a metal box, this will greatly reduce the range.
2. The wireless request-to-exit plate can be either surface mounted or flush mounted.
3. Test the operation of the wireless request-to-exit plate in the location where it will be installed.
NOTE: The wireless request-to-exit plate first needs to programmed into the SK-910R
receiver before testing. See SK-910R receiver manual for transmitter learning procedure.
4. Check and make sure the battery clip is securely connected. Then mount the wireless request-
to-exit plate in the back-box and secure it with the 2 included screws.
SD-8202GT-PEQ
Wireless
Request-to-Exit Plate
E-964-Q660Q
Quad Photobeam
Detectors
SK-919TP4H-N
Hand-held 4-Button
Transmitter
SK-919TP4D-P
Wireless 4-Button
Desktop Transmitter
Changing the Battery:
The wireless request-to-exit plate has multi-colored LED that illuminates blue when the button is
pressed. When the battery begins to run low, the LED will illuminate red. To change the battery:
1. Remove the 2 screws from the front of the plate and remove the plate from the back-box.
2. Remove the battery clip from the 9V battery and remove the battery from the bracket.
3. Place the new battery in the bracket and snap the battery clip to the new battery.
4. Test the unit with the new battery. The LED should illuminate blue.
5. Put the plate back in the housing and secure it to the back-box using the screws on the front.
SK-919TDWS-BU
Wired 1-channel
Transmitter
ENFORCER
1
2
3
4
SK-910R
Wireless Receiver
E-941SA-1200
Electromagnetic Lock
Red=Low Batery
SECO-LARM U.S.A., Inc 3
ENFORCER Wireless Request-to-Exit Plates
WARRANTY This SECO-LARM product is warranted against defects in material and workmanship while used in normal
service for a period of one (1) year from the date of sale to the original consumer customer. SECO-LARM’s obligation is
limited to the repair or replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM.
This Warranty is void if damage is caused by or attributed to acts of God, physical or electrical misuse or abuse, neglect,
repair, or alteration, improper or abnormal usage, or faulty installation, or if for any other reason SECO-LARM determines
that such equipment is not operating properly as a result of causes other than defects in material and workmanship.
The sole obligation of SECO-LARM, and the purchaser’s exclusive remedy, shall be limited to replacement or repair only,
at SECO-LARM’s option. In no event shall SECO-LARM be liable for any special, collateral, incidental, or consequential
personal or property damages of any kind to the purchaser or anyone else.
NOTICE: The information and specifications printed in this manual are current at the time of publication. However, the
SECO-LARM policy is one of continual development and improvement. For this reason, SECO-LARM reserves the right
to change specifications without notice. SECO-LARM is also not responsible for misprints or typographical errors.
Copyright © 2008 SECO-LARM U.S.A., Inc. All rights reserved. This material may not be reproduced or copied, in
whole or in part, without the written permission of SECO-LARM.
SECO-LARM
®
U.S.A., Inc.
16842 Millikan Avenue, Irvine, CA 92606 Website: www.seco-larm.com
Tel: 800-662-0800 / 949-261-2999 Fax: 949-261-7326 E-mail: sales@seco-larm.com
MISD-8000Q_0812.docx
Order Part #763-161-1%
Troubleshooting:
PITSW1
LED is red
9V battery is low, replace with new one
LED does not light
Check battery connection
Replace 9V battery
LED lights blue, but does not
activate lock
Check to make sure wireless request-to-exit plate is not
housed in a metal box
Test wireless request-to-exit plate closer to the receiver
Clear codes from receiver, and re-learn wireless plate
transmitter code
Also Available from SECO-LARM:
Desktop RF
Transmitters
Wireless RF
Receivers
SK-910R4
SK-919TP4D-P
Handheld
Transmitters
SK-919TP4H-NU
Slim-Line
Push-to-Exit Plates
Pendant-Style
Transmitters
Extended Range
Antenna
SK-91ERSD
SK-919TP4J-N
SD-7104SGEX1Q
Single-Gang
Push-to-Exit Plates
SD-7201GC-PE1
SK-919TDWS-BU
Wired 1-channel
Transmitter
(shown)
(shown) (shown)
(shown)
(shown)
(shown)
4 SECO-LARM U.S.A., Inc.
