SD-7428-GSEQ
Request-to-Exit Button
with Delayed Egress Timer
User Manual
Programmable nuisance delay timer
(0~3 seconds) to prevent accidental door
unlocking
Adjustable pre-delay timer (1~30 seconds
until the door unlocks)
12~24 VDC Operation
Form C relay outputs for lock relay and
remote alarm relay
Built-in 100dB buzzer
Fits standard double-gang backbox
Keyswitch to re-energize door lock
IMPORTANT
Users and installers of this product are responsible for ensuring that the installation and configuration of this
product complies with all national, state, and local laws and codes related to locking and egress devices.
SECO-LARM will not be held responsible for the use of this product in violation of any current laws or codes.
Replacement Keys: SD-7428-KEY (Sold in packs of 5)
ENFORCER Request-to-Exit Button with Delayed Egress Timer
The Request-to-Exit Button with Delayed Egress Timer mounts to
a standard double-gang backbox. Use the four included mounting
screws to secure the double-gang plate to the backbox.
Introduction:
Specifications:
Operating voltage
12~24 VDC
Current draw
Standby
60mA@12VDC, 90mA@24VDC
Release delay
150mA@12VDC, 55mA@24VDC
Lock relay output
10mA@12VDC, 15mA@24VDC
Lock control output
3A@30VDC, Form C, NO/NC/COM
Remote alarm output
3A@30VDC, Form C, NO/NC/COM
Buzzer sound level
12VDC: 95db@1m, 24VDC: 100db@1m
Overview:
41/2” (114mm)
41/2”
(114mm)
23/4”
(70mm)
Front
Top
Pre-delay
potentiometer
Terminal block
Nuisance delay
jumpers
Buzzer
Request-to-exit
button
Keyswitch
Parts List:
1x Request-to-Exit
Button with Delayed
Egress Timer
4x Mounting screws
2x Keys
1x Manual
Replacement Keys:
SD-7428-KEY
(Sold separately in packs of 5)
Side
Mounting:
The SD-7428-GSEQ allows for a controlled exit from a room protected by an electromagnetic
door lock. To exit the room, press the large green button until the built-in buzzer sounds, at
which time a programmed pre-exit delay timer begins. After the delay, the door unlocks and
stays unlocked. To relock the door, use the included keys to turn the keyswitch.
13
/16”
(20mm)
115/16”
(50mm)
2 SECO-LARM U.S.A., Inc.
ENFORCER Request-to-Exit Button with Delayed Egress Timer
Nuisance delay
0 Seconds
1 Second
2 Seconds
3 Seconds
JP1
OFF
ON
OFF
ON
JP2
OFF
OFF
ON
ON

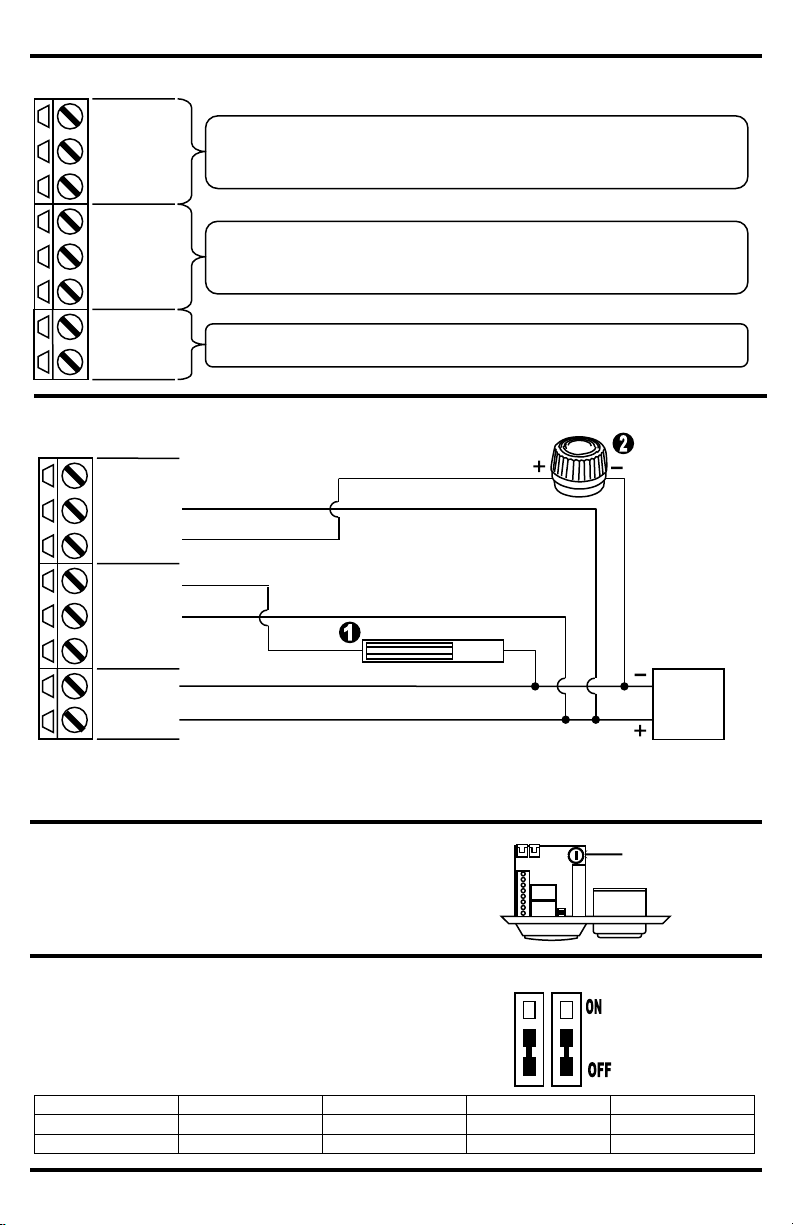

Wiring Diagram:
Remote alarm relay output
(3A@30VDC, Form C Relay, NO/NC/COM)*
Lock relay output
(3A@30VDC, Form C Relay, NO/NC/COM)*
Power input (12~24 VDC)
Sample Application:
Delayed exit from a building:
Power
supply
Strobe light
Electromagnetic lock
1. An electromagnetic lock, such as the E-941SA-1200, is connected to the lock relay output.
2. A strobe light, such as the SL-1301-BAQ, can be connected to the remote alarm relay output.
This device will signal at a remote location whenever the remote alarm relay output is triggered.
Adjusting the Pre-Delay:
The pre-delay can be adjusted using the potentiometer located
on the circuit board. The pre-delay timer can be adjusted from
1~30 seconds. This sets the duration of time between the end
of the nuisance delay and when the door will unlock.
Adjusting the Nuisance Delay:
The nuisance delay determines how long the push button must
be activated before the pre-delay timer will start. The nuisance
delay can be programmed from 0~3 seconds.
NOTE: The nuisance delay is preset to 3 seconds.
Example:
Set to 0 seconds
N.C.
COM
N.O.
Remote
Relay
Alarm
Output N.C.
COM
N.O.
Lock Relay
Output
-
12~24 VDC
-
12~24 VDC
N.C.
COM
N.O.
Lock Relay
Output
N.C.
COM
N.O.
Remote
Relay
Alarm
Output
*Normally energized. (Screen print refers to energized state as normal.)
Potentiometer
SECO-LARM U.S.A., Inc. 3
ENFORCER Request-to-Exit Button with Delayed Egress Timer
NOTICE: The information and specifications printed in this manual are current at the time of publication. However, the
SECO-LARM policy is one of continual development and improvement. For this reason, SECO-LARM reserves the right
to change specifications without notice. SECO-LARM is also not responsible for misprints or typographical errors.
Copyright © 2013 SECO-LARM U.S.A., Inc. All rights reserved. This material may not be reproduced or copied, in whole
or in part, without the written permission of SECO-LARM.
WARRANTY: This SECO-LARM product is warranted against defects in material and workmanship while used in
normal service for the life of the product from the date of sale to the original customer. SECO-LARM’s obligation is limited
to the repair or replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM. This
Warranty is void if damage is caused by or attributed to acts of God, physical or electrical misuse or abuse, neglect, repair
or alteration, improper or abnormal usage, or faulty installation, or if for any other reason SECO-LARM determines that
such equipment is not operating properly as a result of causes other than defects in material and workmanship. The sole
obligation of SECO-LARM and the purchaser’s exclusive remedy shall be limited to the replacement or repair only, at
SECO-LARM’s option. In no event shall SECO-LARM be liable for any special, collateral, incidental, or consequential
personal or property damage of any kind to the purchaser or anyone else.
SECO-LARM® U.S.A., Inc.
16842 Millikan Avenue, Irvine, CA, 92606
Website: www.seco-larm.com
PITSW4
Tel: (949) 261-2999 | (800) 662-0800
Email: sales@seco-larm.com
MiSD-7428-GSEQ_1310.docx
Order part # 763-178%
Remote Alarm Relay Output:
The SD-7428-GSEQ is equipped with a 3A@30VDC Form C dry relay output for a remote alarm.
The remote alarm relay is normally energized.
A remote device or alarm connected to this output will be triggered at the start of the
pre-delay timer.
The remote alarm output will continue signaling until the keyswitch is turned on momentarily.
In the event of power loss, the remote alarm relay will de-energize to trigger the remote alarm.
Troubleshooting:
Request-to-Exit Button will not
release the lock
Check the nuisance delay (see page 3)
Check the pre-delay timer (see page 3)
Door will not relock
Turn keyswitch to re-energize lock relay
